TOYOTA CAMRY HYBRID 2020 Owners Manual (in English)
Manufacturer: TOYOTA, Model Year: 2020, Model line: CAMRY HYBRID, Model: TOYOTA CAMRY HYBRID 2020Pages: 52, PDF Size: 2.89 MB
Page 1 of 52
Printed in U.S.A. 9/19
19 - M KG -13 5 8 9
Quick Reference Guide 2020toyota\fcom
QUICK
REFERENCE
GUIDE
2020

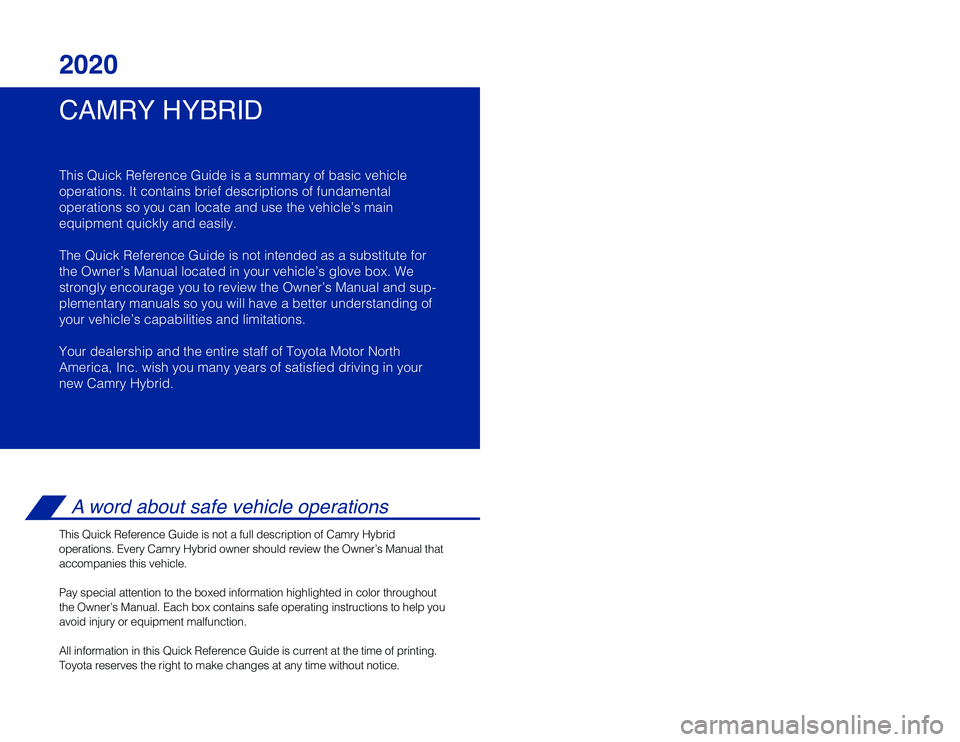

Page 2 of 52
CAMRY HYBRID 2020
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and sup-
plementary manuals so you will have a better understanding of
your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Camry Hybrid.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Camry Hybrid
operations. Every Camry Hybrid owner should review the Owner’s Manual\
that
accompanies this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.

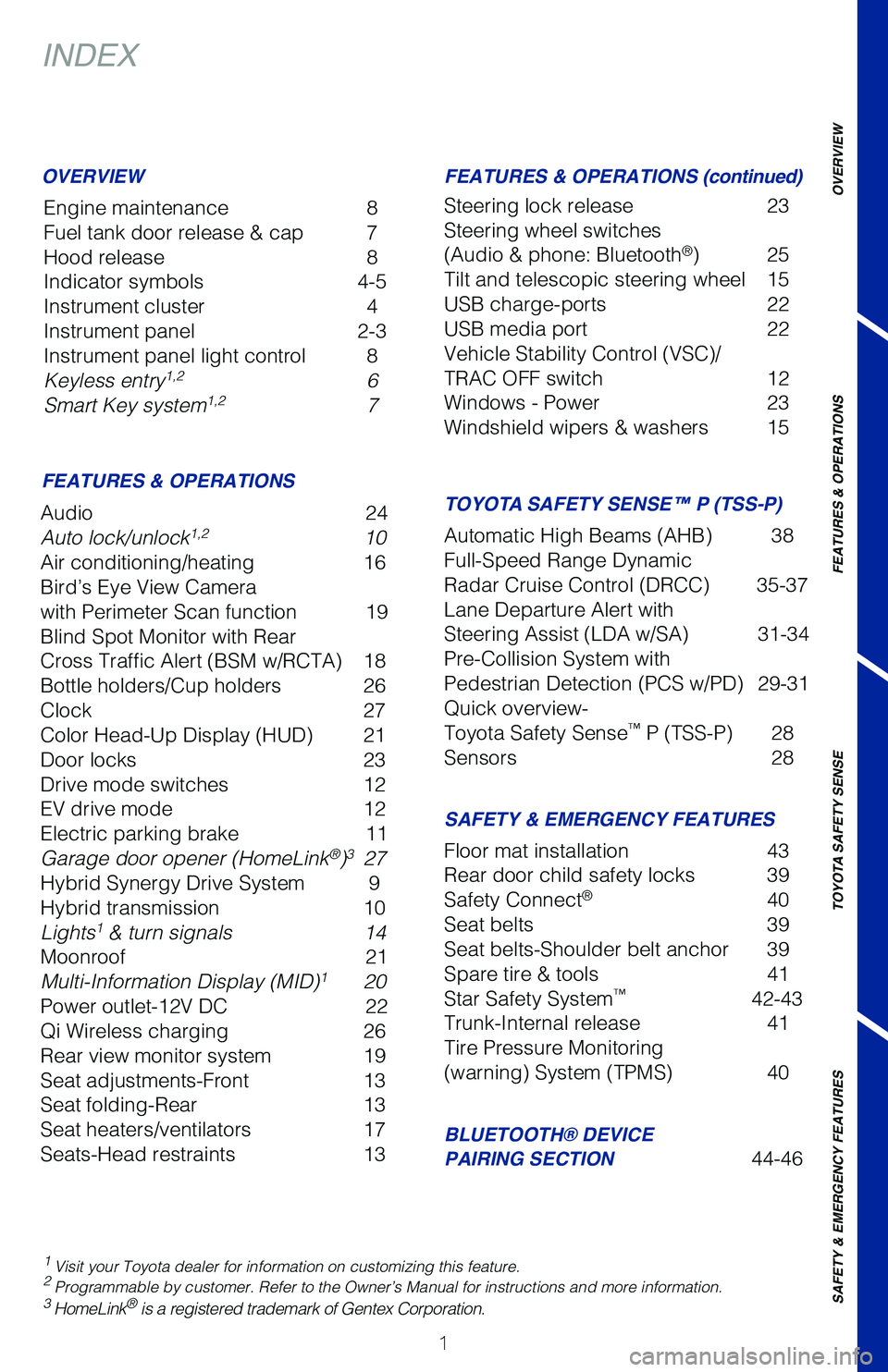

Page 3 of 52
1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY &
EMERGENCY FEATURES
INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6
Smart Key system1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instruction\
s and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
BLUETOOTH® DEVICE
PAIRING SECTION
44-46
Audio
24
Auto lock/unlock
1,2 10
Air conditioning/heating 16
Bird’s Eye View Camera
with Perimeter Scan function 19
Blind Spot Monitor with Rear
Cross Traffic Alert (BSM w/RCTA) 18
Bottle holders/Cup holders 26
Clock 27
Color Head-Up Display (HUD) 21
Door locks 23
Drive mode switches 12
EV drive mode 12
Electric parking brake 11
Garage door opener (HomeLink
®)3 27
Hybrid Synergy Drive System 9
Hybrid transmission 10
Lights
1 & turn signals 14
Moonroof 21
Multi-Information Display (MID)
1 20
Power outlet-12V DC 22
Qi Wireless charging 26
Rear view monitor system 19
Seat adjustments-Front 13
Seat folding-Rear 13
Seat heaters/ventilators 17
Seats-Head restraints 13Floor mat installation
43
Rear door child safety locks 39
Safety Connect
® 40
Seat belts 39
Seat belts-Shoulder belt anchor 39
Spare tire & tools 41
Star Safety System
™ 42-43
Trunk-Internal release 41
Tire Pressure Monitoring
(warning) System (TPMS) 40
FEATURES & OPERATIONS (continued)
TOYOTA SAFETY SENSE™ P (TSS-P)
Steering lock release 23
Steering wheel switches
(Audio & phone: Bluetooth
®) 25
Tilt and telescopic steering wheel 15
USB charge-ports 22
USB media port 22
Vehicle Stability Control (VSC)/
TRAC OFF switch 12
Windows - Power 23
Windshield wipers & washers 15
Automatic High Beams (AHB) 38
Full-Speed Range Dynamic
Radar Cruise Control (DRCC) 35-37
Lane Departure Alert with
Steering Assist (LDA w/SA) 31-34
Pre-Collision System with
Pedestrian Detection (PCS w/PD) 29-31
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 28
Sensors 28

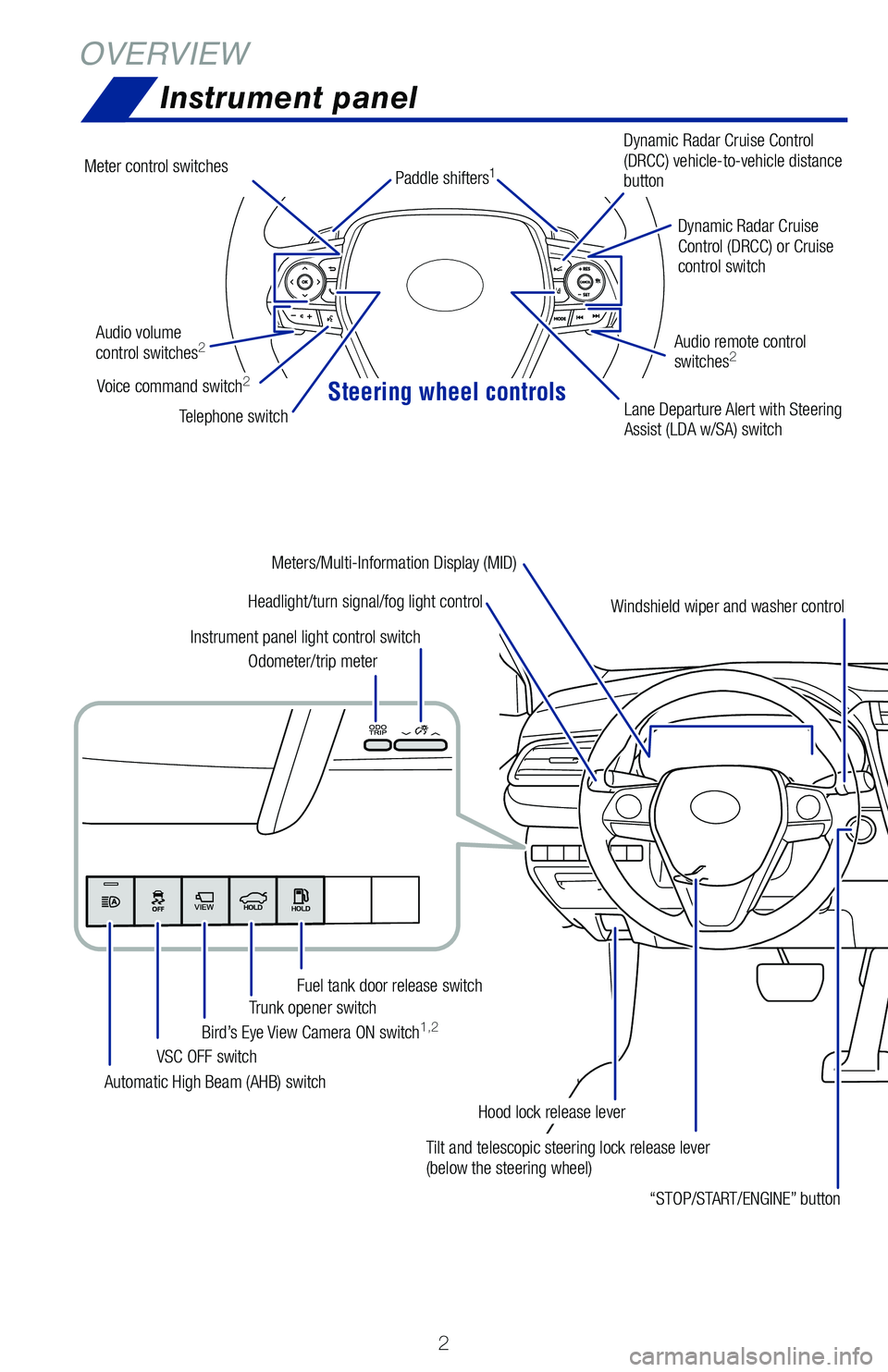

Page 4 of 52
Steering wheel controls
2
OVERVIEWInstrument panel
Tilt and telescopic steering lock release lever
(below the steering wheel)
Headlight/turn signal/fog light control
Automatic High Beam (AHB) switch VSC OFF switch
Bird’s Eye View Camera ON switch
1,2Trunk opener switch
Fuel tank door release switch
Odometer/trip meter
Instrument panel light control switch
“STOP/START/ENGINE” button
Hood lock release leverDynamic Radar Cruise
Control (DRCC) or Cruise
control switch
Dynamic Radar Cruise Control
(DRCC) vehicle-to-vehicle distance
button
Lane Departure Alert with Steering
Assist (LDA w/SA) switch
Audio volume
control switches
2
Telephone switch
Audio remote control
switches
2
Windshield wiper and washer control
Meters/Multi-Information Display (MID)
Meter control switches
Voice command switch2
Paddle shifters1

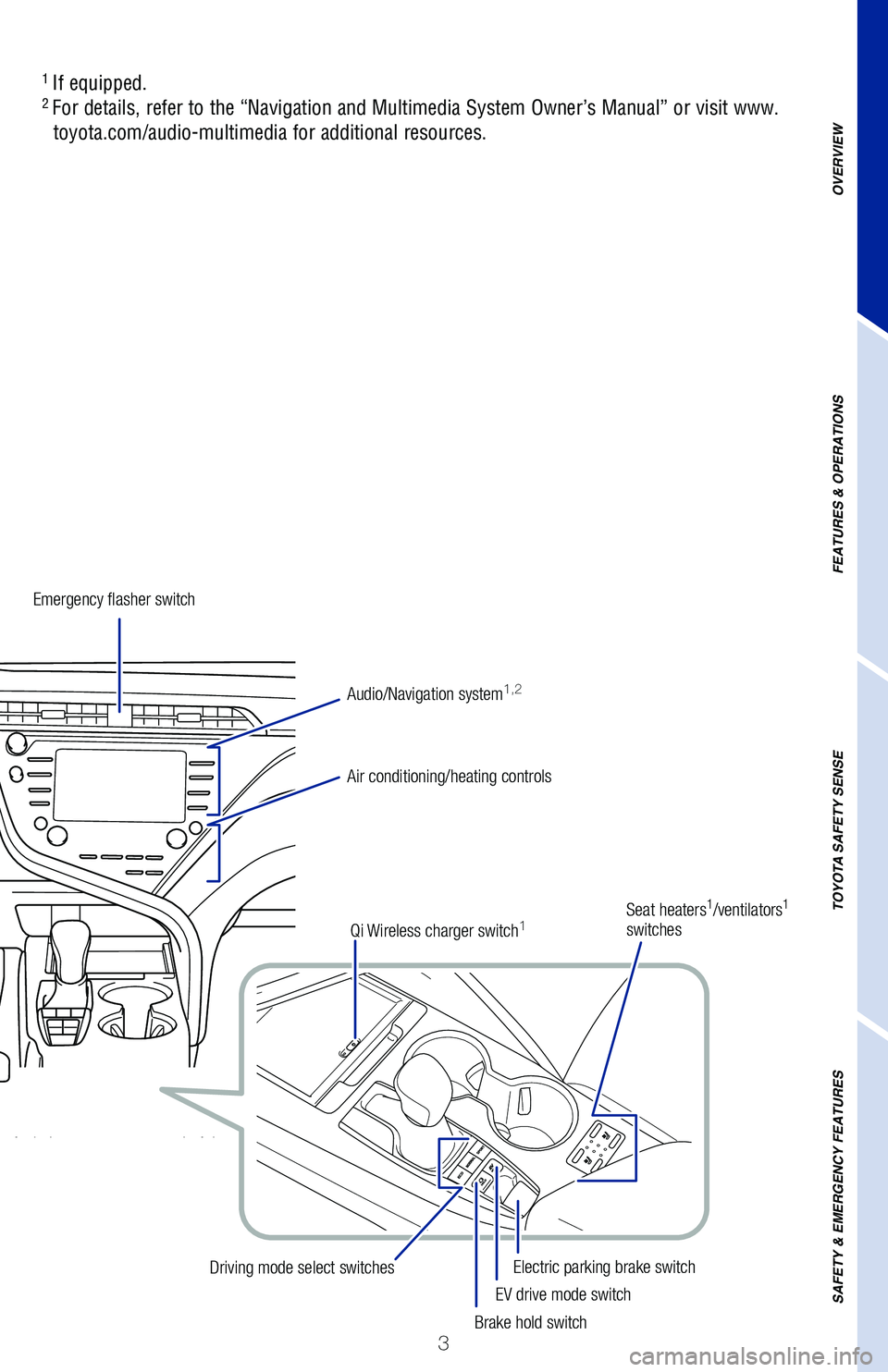

Page 5 of 52
3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1
If equipped.2 For details, refer to the “Navigation and Multimedia System Owner’\
s Manual” or visit www.
toyota.com/audio-multimedia for additional resources.
Emergency flasher switch
Air conditioning/heating controls
EV drive mode switchElectric parking brake switch
Driving mode select switches
Seat heaters1/ventilators1
switches
Audio/Navigation system
1,2
Qi Wireless charger switch1
Brake hold switch
Page 6 of 52
4
For details, refer to “Indicators and warning lights,” Section 2, \
2020 Owner’s
Manual.
Anti-lock Brake System warning1
Airbag SRS warning1
OVERVIEWInstrument cluster
Automatic High Beam (AHB) indicator1
Auto Glide Control (AGC) indicator
Blind Spot Monitor (BSM) indicator4
AIRBAG ON/OFF indicator Type A1
AIRBAG ON/OFF indicator Type B1
Indicator symbols
Hybrid System Indicator
Hybrid System Indicator Outside temperature
Outside temperature Speedometer
Speedometer
Odometer/trip meter
Odometer/trip meter
Shift position
Shift position Fuel gauge
Fuel gauge
Multi-information display
Multi-information display
Engine coolant temperature gauge
Engine coolant temperature gauge Instrument panel light control
Instrument panel light control
Service indicators and reminders
4.2-inch display
7-inch display

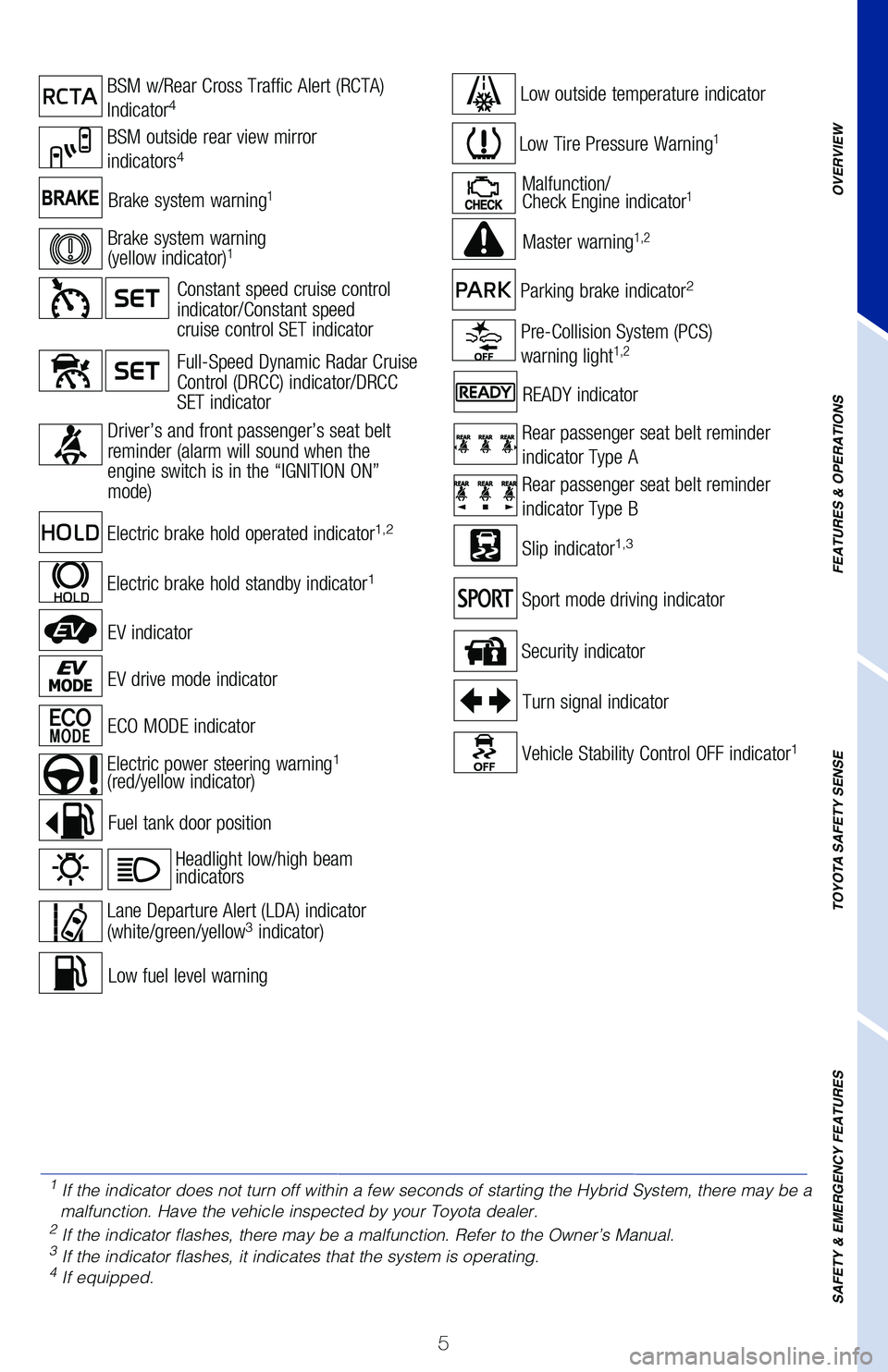

Page 7 of 52
5
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURESBrake system warning1Malfunction/
Check Engine indicator1
Low Tire Pressure Warning1
Low fuel level warning
Security indicator
Fuel tank door position
READY indicator
Master warning
1,2
Headlight low/high beam
indicators
Turn signal indicator
Pre-Collision System (PCS)
warning light1,2
Lane Departure Alert (LDA) indicator
(white/green/yellow3 indicator)
Slip indicator1,3
Vehicle Stability Control OFF indicator1
Parking brake indicator2
Electric power steering warning1
(red/yellow indicator)
Rear passenger seat belt reminder
indicator Type A
Rear passenger seat belt reminder
indicator Type B
Electric brake hold operated indicator1,2
Electric brake hold standby indicator1
BSM w/Rear Cross Traffic Alert (RCTA)
Indicator4
BSM outside rear view mirror
indicators4
Sport mode driving indicator
ECO MODE indicator
EV drive mode indicator
EV indicator
Low outside temperature indicator
Brake system warning
(yellow indicator)1
Full-Speed Dynamic Radar Cruise
Control (DRCC) indicator/DRCC
SET indicator
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Driver’s and
front passenger’s seat belt
reminder (alarm will sound when the
engine switch is in the “IGNITION ON”
mode)
1 If the indicator does not turn off within a few seconds of starting the \
Hybrid System, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Page 8 of 52

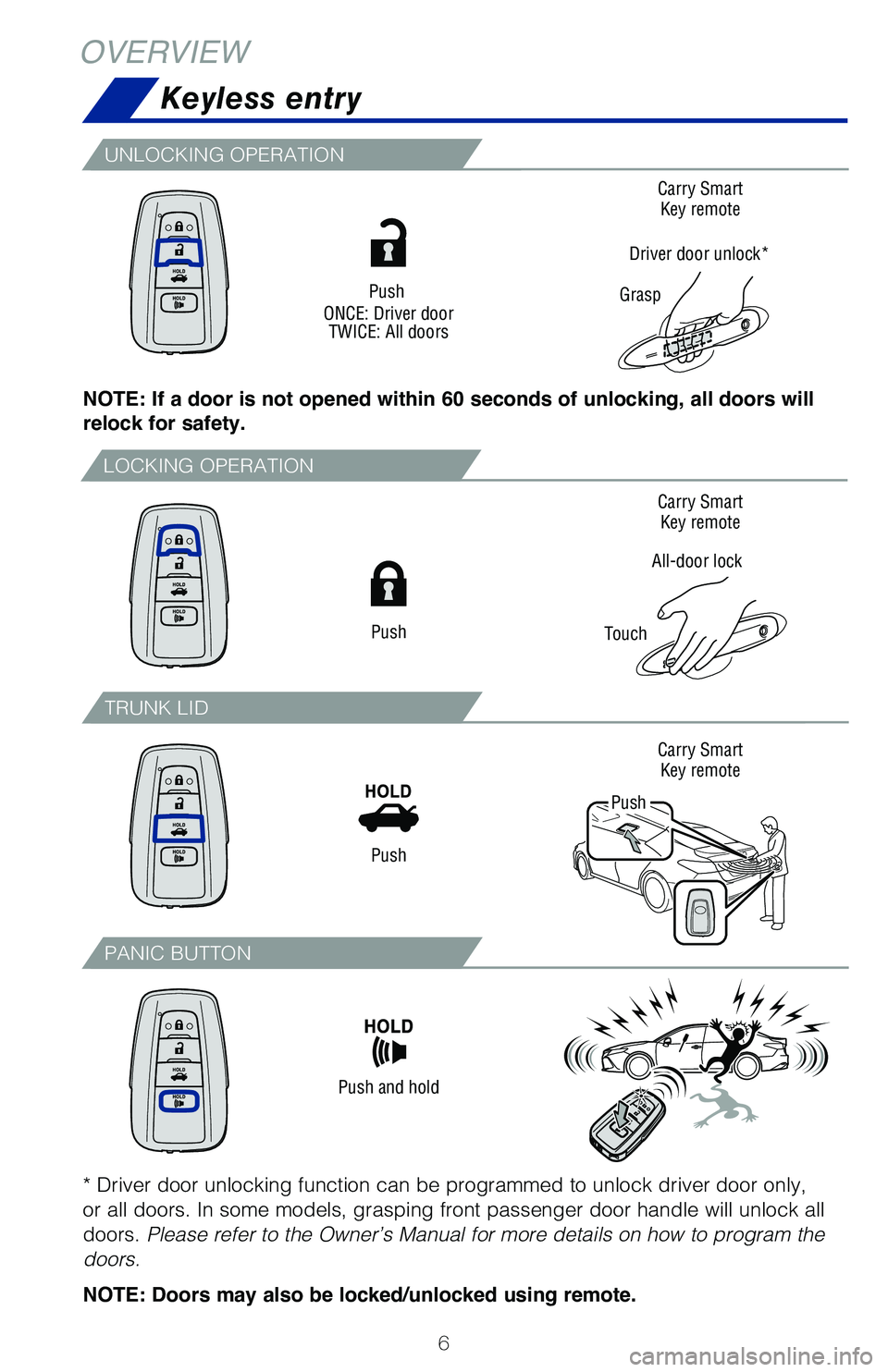

6
Carry Smart Key remote
Carry Smart Key remote
Carry Smart Key remote
LOCKING OPERATION
UNLOCKING OPERATION
TRUNK LID
PANIC BUTTON
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
OVERVIEW
Keyless entry
All-door lock
Touch
Grasp
Driver door unlock*
Push
ONCE: Driver door TWICE: All doors
Push
Push
Push and hold
* Driver door unlocking function can be programmed to unlock driver door\
only,
or all doors. In some models, grasping front passenger door handle will \
unlock all
doors. Please refer to the Owner’s Manual for more details on how to program\
the
doors.
NOTE: Doors may also be locked/unlocked using remote.
Push
Page 9 of 52

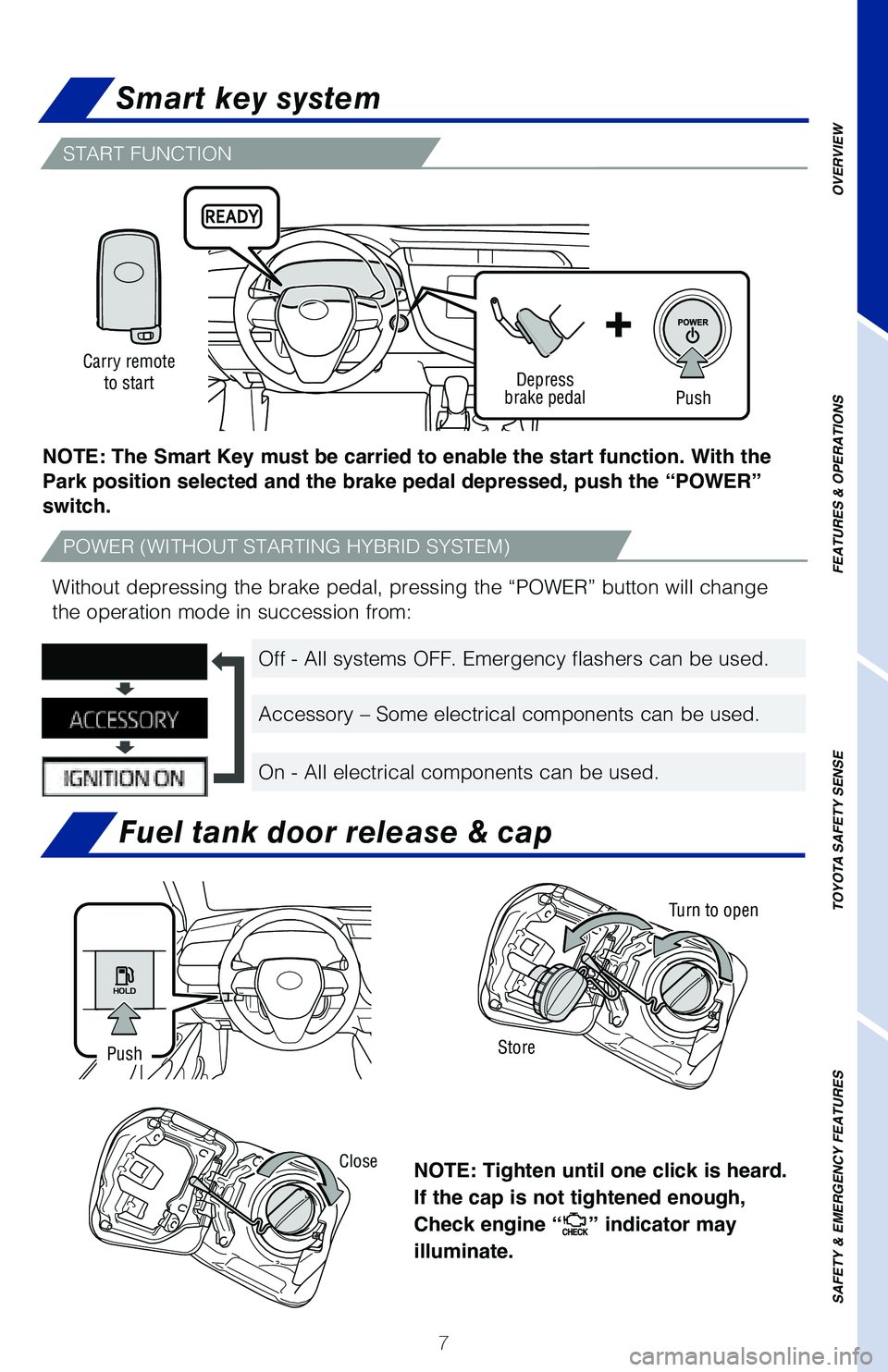

7
START FUNCTION
Fuel tank door release & cap
Smart key system
NOTE: Tighten until one click is heard.
If the cap is not tightened enough,
Check engine “
” indicator may
illuminate.
Turn to open
Store
Push
Close
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
POWER (WITHOUT STARTING HYBRID SYSTEM)
Without depressing the brake pedal, pressing the “POWER” button wi\
ll change
the operation mode in succession from:
NOTE: The Smart Key must be carried to enable the start function. With the
Park position selected and the brake pedal depressed, push the “POWER”
switch.
Depress
brake pedalPush
Carry remote
to start
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
Page 10 of 52

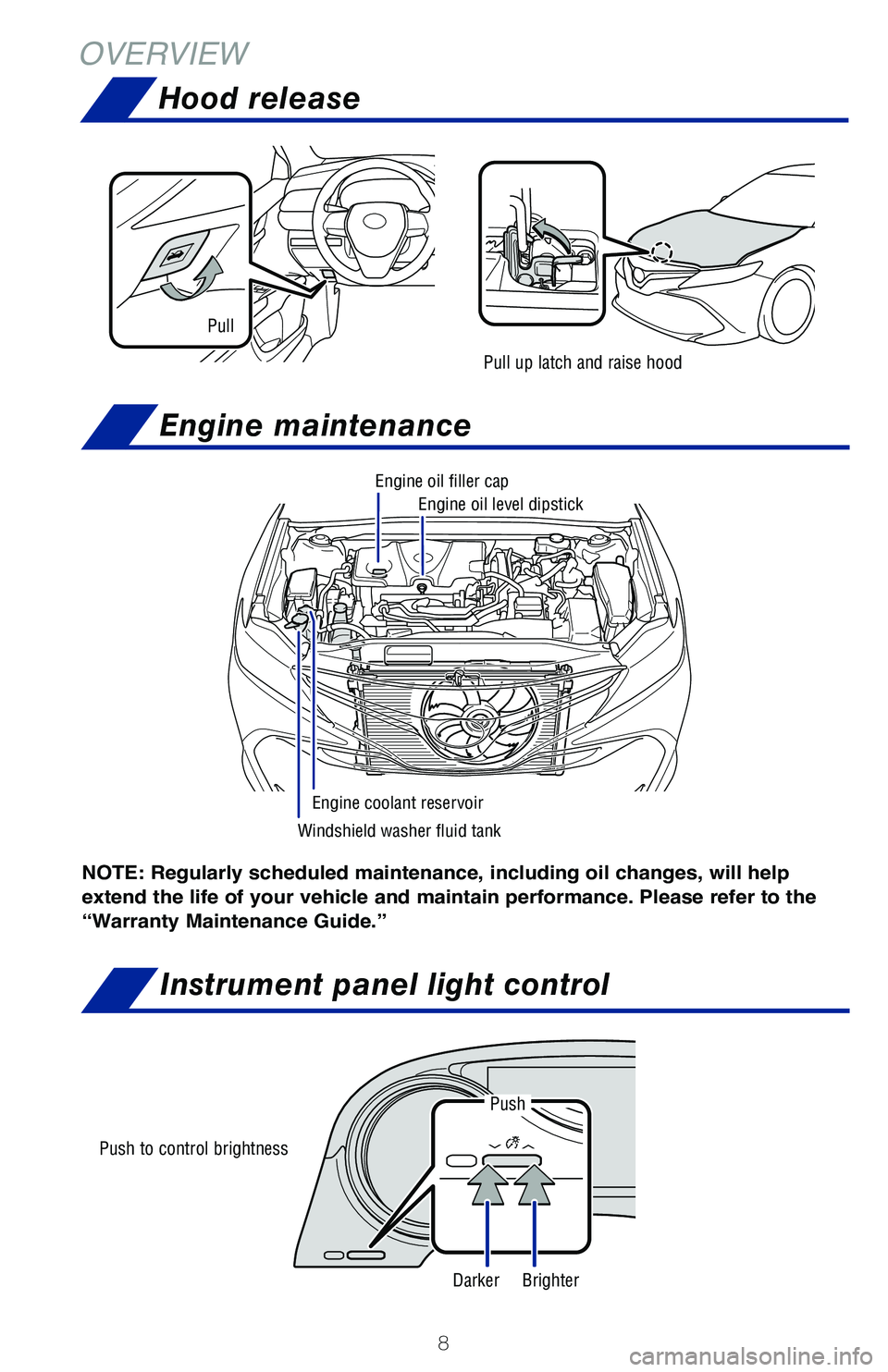

8
OVERVIEWHood release
Engine maintenance
Instrument panel light control
Push to control brightness
Windshield washer fluid tank Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty Maintenance Guide.”
Pull up latch and raise hood
Pull
Push
DarkerBrighter
