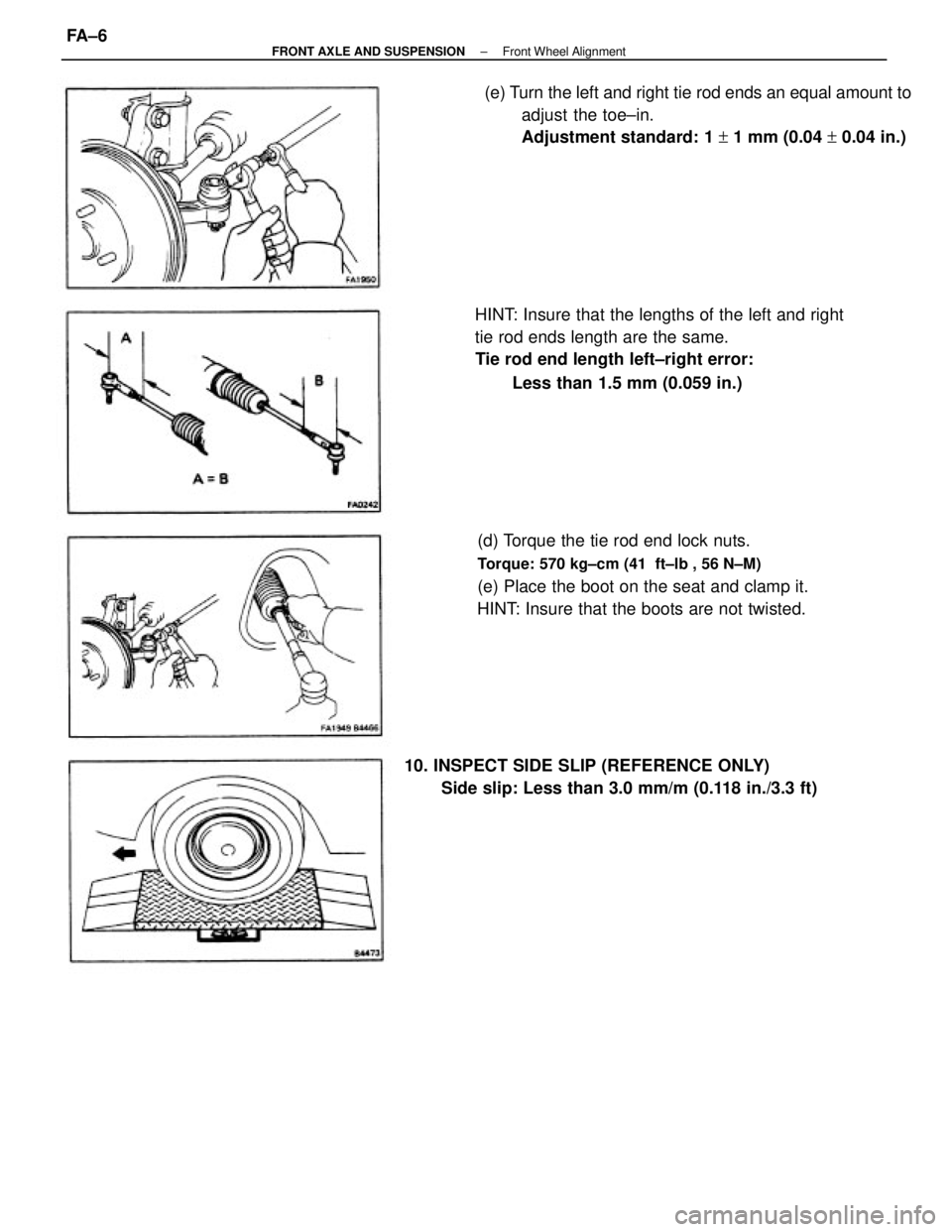

HINT: Insure that the lengths of the left and right
tie rod ends length are the same.
Tie rod end length left±right error:
Less than 1.5 mm (0.059 in.)
(d) Torque the tie rod end lock nuts.
Torque: 570 kg±cm (41 ft±lb , 56 N±M)
(e) Place the boot on the seat and clamp it.
HINT: Insure that the boots are not twisted.(e) Turn the left and right tie rod ends an equal amount to
adjust the toe±in.
Adjustment standard: 1 + 1 mm (0.04 + 0.04 in.)
10. INSPECT SIDE SLIP (REFERENCE ONLY)
Side slip: Less than 3.0 mm/m (0.118 in./3.3 ft)
± FRONT AXLE AND SUSPENSIONFront Wheel AlignmentFA ± 6
