TOYOTA CELICA 1996 Owner's Manual

16
LOWERING THE CONVERTIBLE TOP
The ignition switch must be in the ONº
position to operate the convertible top.
1. Lower all the side windows, quarter
windows, and sun visors. Then pull
the latch handles fully backward.
Before operating, make sure the manual
control switch is not in the MANUALº
position. (See If the convertible top does
not raise or lowerº in Part 4.)2. Push and hold the convertible top
control switch on the OPENº side un-
til the convertible top is completely
lowered. Raise the sun visors.INSTALLING THE TOP BOOT
The top boot is used to cover and conceal
the completely lowered convertible top. It
is in the trunk, and is stored in a plastic
bag.
3. Place the top boot over the lowered
convertible top. Then tuck its outer
edge under the body moldings.
ÐLowering the convertible top
ProCarManuals.com

17
4. Secure the top boot snaps to the
ones on the quarter trim.5. Attach the fastener tape on the top
boot to that on the rear seatback.REMOVING THE TOP BOOT
1. Push the top boot backward to sep-
arate its fastener tape from the tape be-
hind the rear seatback.
ÐRaising the convertible top
ProCarManuals.com

18
2. Release the top boot snaps from
the quarter trim.3. Pull out the outer edge of the top
boot from under the body moldings.
Put the removed top boot in the plastic
bag and store it in the trunk.RAISING THE CONVERTIBLE TOP
The ignition switch must be in the ONº
position to operate the convertible top.
4. Lower the sun visors. Check that all
the side windows and quarter win-
dows are l owered. Then push and hold
the convertible top control switch on
the CLOSEº side until the top
touches the windshield frame.
ProCarManuals.com

19
5. Push the latch handles fully forward
till they are hooked.
Visually check that the latch handles are
fully seated in the strikers. Also, pull on
the convertible top side rails to make sure
the top is securely hooked.
6. Raise all the side windows, quarter
windows, and sun visors.
ProCarManuals.com

20ProCarManuals.com

Part 1SeatsFront seatsÐ
ÐSeat adjustment precautions
21
OPERATION OF
INSTRUMENTS AND
CONTROLSÐ
Chapter 1-3
Seats, Seat belts, Steering
wheel and Mirrors

Seats

Front seats

Fold-down rear seat

Head restraints

Seat belts

SRS airbags

Child restraint

Tilt steering wheel

Outside rear view mirrors

Anti-glare inside rear view
mirror
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belt provided.
CAUTION

Do not drive with the vehicle occu-
pants not properly seated, such as
sitting on top of a folded-down
seatback, or in the luggage
compartment. Persons not prop-
erly seated and restrained by seat
belts can be severely injured in the
event of emergency braking or a
collision.

During driving, do not let passen-
gers stand up or move around be-
tween seats. Balance can be un-
steady and severe injuries can oc-
cur in the event of emergency
braking or a collision.!
Adjust the driver's seat so that the foot
pedals, steering wheel and instrument
panel controls are within easy reach of the
driver.
CAUTION

Adjustments should not be made
while the vehicle is moving, as the
seat may unexpectedly move and
cause the driver to lose control of
the vehicle.

When adjusting the seat, be care-
ful not to hit the seat against a pas-
senger or luggage.

After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.

After adjusting the seatback, exert
body pressure to make sure it is
locked in position.

Do not put objects under the seats
as they may interfere with the seat-
lock mechanism or unexpectedly
push up the seat position adjust-
ing lever; the seat may suddenly
move, causing the driver to lose
control of the vehicle.

While adjusting the seat, do not
put your hands under the seat or
near the moving parts. You may
jam your hands or fingers.!
ProCarManuals.com

22
1. SEAT POSITION ADJUSTING LEVER
Pull the lever up. Then slide the seat to
the desired position with slight body
pressure and release the lever.
2. SEATBACK ANGLE ADJUSTING
LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection when the driver and
the passenger are sitting up straight
and well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. Therefore,
in the event of a frontal collision, the
risk of personal injury may increase
with increasing recline of the seat-
back.!
3. DRIVER'S SEAT CUSHION ANGLE
ADJUSTING KNOB
Turn the knob either way.
For easy access to the rear seat, do
this.
1. Lift the seatback angle adjusting lever
or press the pedal behind the seatback.
The seat will slide forward slightly.
2. Move the seat to the front-most posi-
tion.
After passengers are in, lift up the seat-
back and return the seat until it locks.
CAUTION

After putting back the seat, try
pushing the seat forward and rear-
ward to make sure it is secured in
place.

Never allow anyone to rest their
foot on the release pedal while the
vehicle is moving.!
ÐAdjusting front seats
ÐMoving passenger's seat
for rear seat entry
ProCarManuals.com

23
1. Pull up the seatback security lock
lever 1 to the unlock position.
2. Pull up the lock release button 2.
3. Fold down the seatback.
Each seatback may be folded separately.
This will enlarge the trunk room (coupe) or
luggage compartment (liftback) as far as
the front seatbacks. See Luggage stow-
age precautionsº in Part 2 for precautions
to observe in loading luggage.

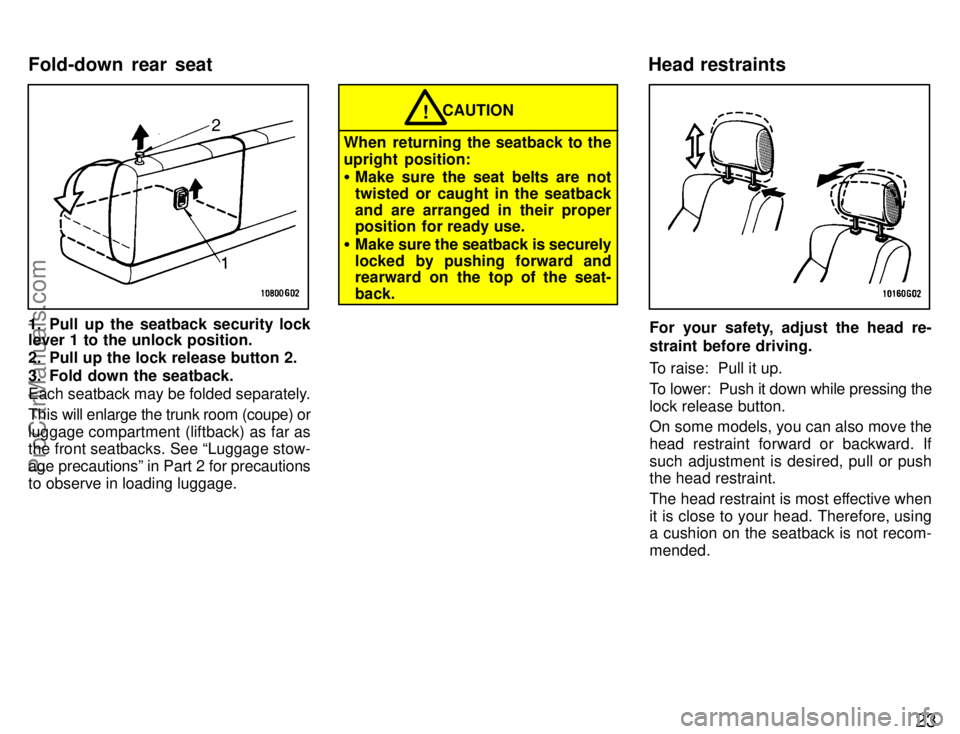

CAUTION
When returning the seatback to the
upright position:

Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position for ready use.

Make sure the seatback is securely
locked by pushing forward and
rearward on the top of the seat-
back.!
For your safety, adjust the head re-
straint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
On some models, you can also move the
head restraint forward or backward. If
such adjustment is desired, pull or push
the head restraint.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
Fold-down rear seat Head restraints
ProCarManuals.com

24

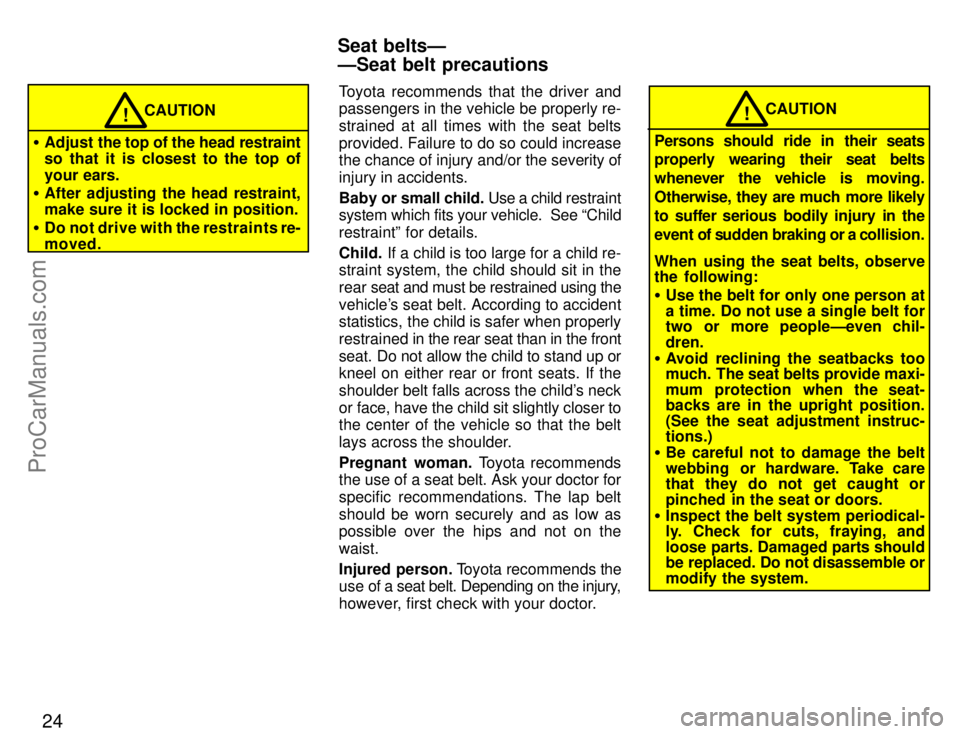

CAUTION!

Adjust the top of the head restraint
so that it is closest to the top of
your ears.

After adjusting the head restraint,
make sure it is locked in position.

Do not drive with the restraints re-
moved. Toyota recommends that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
Baby or small child. Use a child
restraint
system which fits your vehicle. See Child
restraintº for details.
Child. If a child is too large for a child re-
straint system, the child should sit in the
rear seat and must be restrained using the
vehicle's seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the front
seat. Do not allow the child to stand up or
kneel on either rear or front seats. If the
shoulder belt falls across the child's neck
or face, have the child sit slightly closer to
the center of the vehicle so that the belt
lays across the shoulder.
Pregnant woman. Toyota recommends
the use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the injury,
however, first check with your doctor.
CAUTION!
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury in the
event of s udden braking or a collision.
When using the seat belts, observe
the following:

Use the belt for only one person at
a time. Do not use a single belt for
two or more peopleÐeven chil-
dren.

Avoid reclining the seatbacks too
much. The seat belts provide maxi-
mum protection when the seat-
backs are in the upright position.
(See the seat adjustment instruc-
tions.)

Be careful not to damage the belt
webbing or hardware. Take care
that they do not get caught or
pinched in the seat or doors.

Inspect the belt system periodical-
ly. Check for cuts, fraying, and
loose parts. Damaged parts should
be replaced. Do not disassemble or
modify the system.
Seat beltsÐ
ÐSeat belt precautions
ProCarManuals.com

24
CAUTION!

Adjust the top of the head restraint
so that it is closest to the top of
your ears.

After adjusting the head restraint,
make sure it is locked in position.

Do not drive with the restraints re-
moved. Toyota recommends that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
Baby or small child. Use a child
restraint
system which fits your vehicle. See Child
restraintº for details.
Child. If a child is too large for a child re-
straint system, the child should sit in the
rear seat and must be restrained using the
vehicle's seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the front
seat. Do not allow the child to stand up or
kneel on either rear or front seats. If the
shoulder belt falls across the child's neck
or face, have the child sit slightly closer to
the center of the vehicle so that the belt
lays across the shoulder.
Pregnant woman. Toyota recommends
the use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the injury,
first check with your doctor for specific
recommendations.
CAUTION!
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury in the
event of s udden braking or a collision.
When using the seat belts, observe
the following:

Use the belt for only one person at
a time. Do not use a single belt for
two or more peopleÐeven chil-
dren.

Avoid reclining the seatbacks too
much. The seat belts provide maxi-
mum protection when the seat-
backs are in the upright position.
(See the seat adjustment instruc-
tions.)

Be careful not to damage the belt
webbing or hardware. Take care
that they do not get caught or
pinched in the seat or doors.

Inspect the belt system periodical-
ly. Check for cuts, fraying, and
loose parts. Damaged parts should
be replaced. Do not disassemble or
modify the system.
Seat beltsÐ
ÐSeat belt precautions
ProCarManuals.com
