TOYOTA CELICA 1996 Service Manual

34
Coupe and liftback onlyÐYour vehicle
has anchors for securing the top strap of
a child restraint system. The anchor nuts
are welded beneath the sheet metal to
permit installation of an anchor bracket for
a child restraint system.
To install an anchor bracket, use an 8 mm
X 30 mm X 1.25 mm coarse thread metric
bolt and 15 mm (0.6 in.) spacer. Note that
the bolts accompanying many child re-
straint systems are not metric. You can
damage the anchor nuts on our vehicle if
you force bolts with different thread into
the anchor nuts.
For instructions about how to install the
anchor bracket, see (B) TOP STRAP
ANCHORS AND LOCATIONSº.
If your child restraint system does not pro-
vide any of the necessary parts, you can
purchase the following items from your
Toyota dealer.
* CRS installation kit (Part No. 04731-22012)
Ðcontains 1 bolt, 3 types of spacers and
1 locking clip.
* Bolt (Part No. 91511-60830)

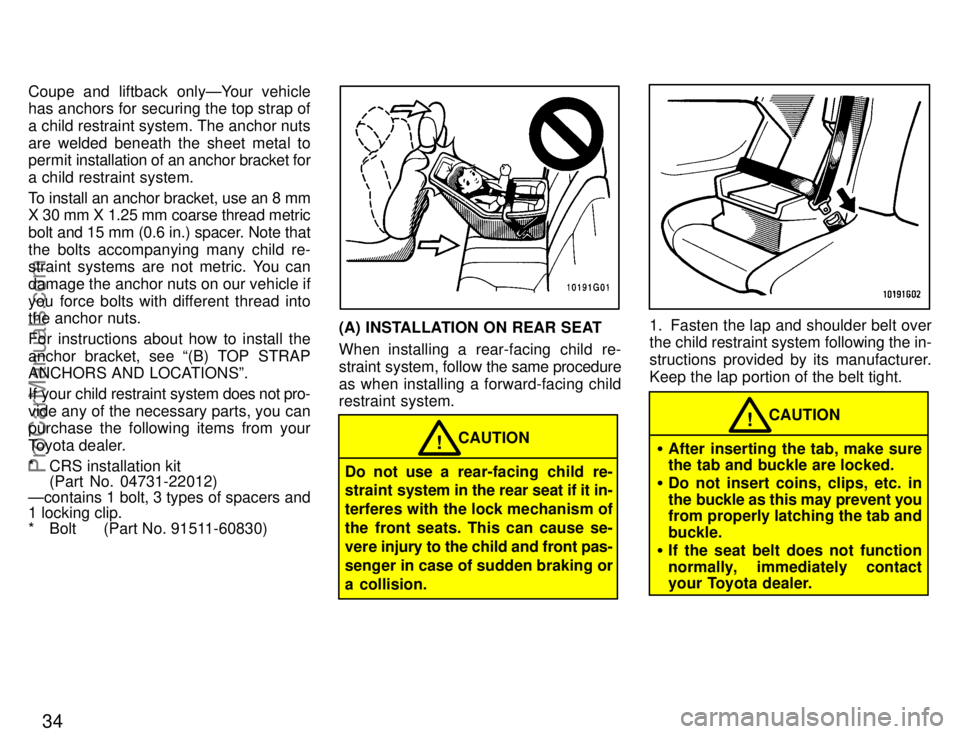

(A) INSTALLATION ON REAR SEAT
When installing a rear-facing child re-
straint system, follow the same procedure
as when installing a forward-facing child
restraint system.
CAUTION!
Do not use a rear-facing child re-
straint system in the rear seat if it in-
terferes with the lock mechanism of
the front seats. This can cause se-
vere injury to the child and front pas-
senger in case of sudden braking or
a collision.
1. Fasten the lap and shoulder belt over
the child restraint system following the in-
structions provided by its manufacturer.
Keep the lap portion of the belt tight.
CAUTION!

After inserting the tab, make sure
the tab and buckle are locked.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, immediately contact
your Toyota dealer.
ProCarManuals.com

35
2. Fully extend the shoulder belt to put it
in the lock mode.3. Place the shoulder belt between the ve-
hicle seatback and the child restraint sys-
tem and allow it to retract. To hold the
child restraint system securely, let the
shoulder belt retract as far as it will go
while firmly pushing down the child re-
straint system.4. Coupe and liftback only- If your child re-
straint system requires the use of a top
strap, latch the hook onto the anchor
bracket and tighten the top strap.
Liftback- Remove the luggage cover
when using the top strap.
ProCarManuals.com

36

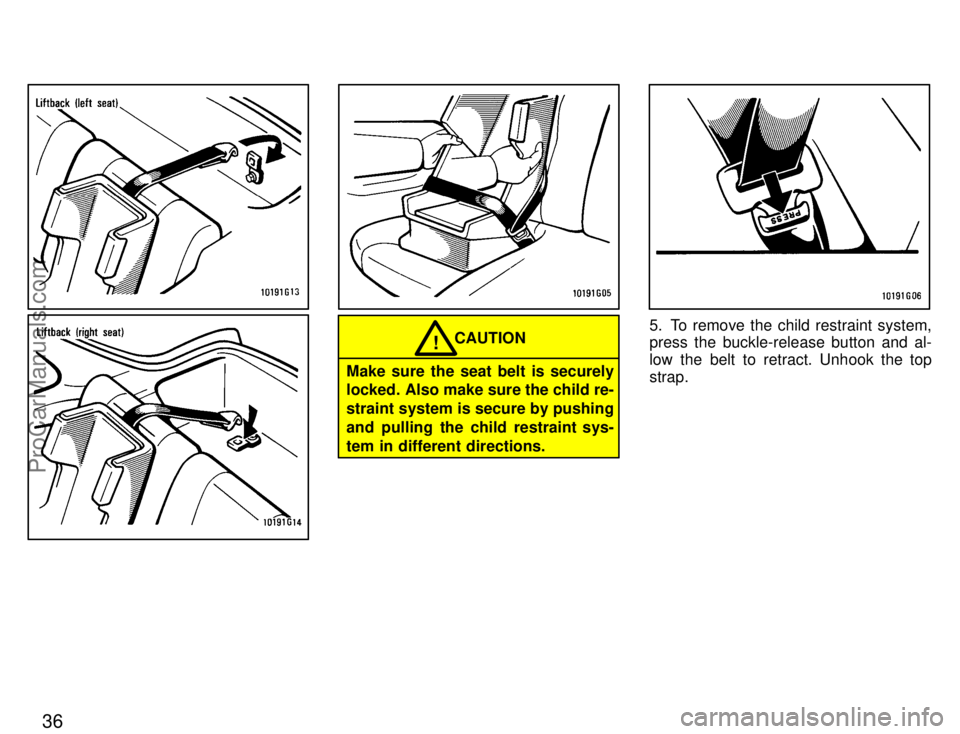

CAUTION!
Make sure the seat belt is securely
locked. Also make sure the child re-
straint system is secure by pushing
and pulling the child restraint sys-
tem in different directions.
5. To remove the child restraint system,
press the buckle-release button and al-
low the belt to retract. Unhook the top
strap.
ProCarManuals.com

37
(B) TOP STRAP ANCHORS AND LOCA-TIONS (Coupe and liftback only)
Coupe ÐOn the filler panel behind the
rear seat
a. Using the illustration as a guide, run
your fingers across the trim of the filler
panel itself to locate the position of the
holes underneath.
b. Make a hole in the covering directly
above the hole in the filler panel.
c. Insert a 15 mm (0.6 in.) spacer and
tighten down the anchor bracket for your
child restraint system with a bolt. Torque
the bolt to 16.5±24.7 NV m (1.68±2.52 kgf-
V m, 12.2±18.2 ftV lbf). To comply with Canada Motor Vehicle
Safety Standards, vehicles sold in Cana-
da are provided with a bracket set in the
glovebox,
designed for use with any of the
2 anchor locations shown in the illustra-
tion.Liftback (right seat)ÐOn the luggage
compartment floor
a. Using the illustration as a guide, un-
cover the anchor by rolling back the car-
pet on the luggage compartment floor.
The anchor hole is sealed.
b. Remove the seal of the anchor.
c. Insert a 15 mm (0.6 in.) spacer and
tighten down the anchor bracket for your
child restraint system with a bolt. Torque
the bolt to 16.5Ð24.7 N Vm (1.68Ð2.52
kgf Vm, 12.2Ð18.2 ftl Vbf).
To comply with Canada Motor Vehicle
Safety Standards, vehicles sold in Cana-
da are provided with a bracket set in the
glovebox.
ProCarManuals.com

38
If you remove the anchor brackets when
the child restraint system is necessary no
longer, replace the bolts in the holes to
prevent entry of exhaust emissions, water
or dirt.
Liftback (left seat)ÐOn the luggage
compartment wall
a. Using the illustration as a guide, re-
move the cap of the anchor.
b. Insert a 15 mm (0.6 in.) spacer and
tighten down the anchor bracket for your
child restraint system with a bolt. Torque
the bolt to 16.5Ð24.7 N Vm (1.68Ð2.52
kgf Vm, 12.2Ð18.2 ft Vlbf)
To comply with Canada Motor Vehicle
Safety Standards, vehicles sold in Cana-
da are provided with a bracket set in the
glovebox.
(C) INSTALLATION ON FRONT SEAT
Do not use a child restraint system which
requires use of a top strap in the front
seat. A child restraint system which re-
quires use of a top strap should only be
installed in the rear seat.

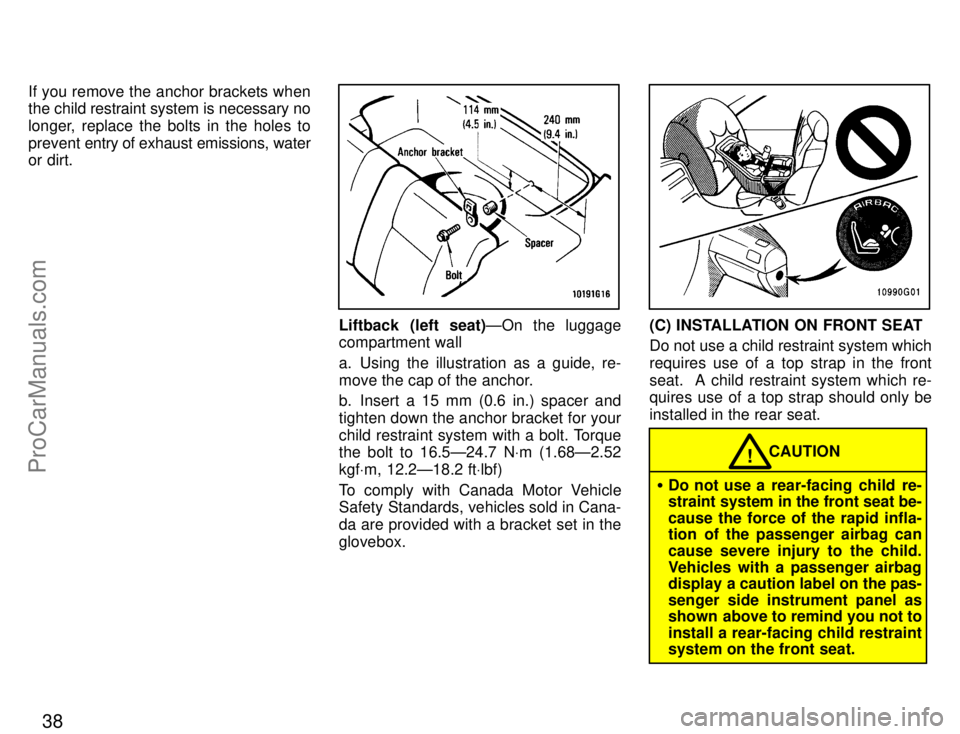

CAUTION!

Do not use a rear-facing child re-
straint system in the front seat be-
cause the force of the rapid infla-
tion of the passenger airbag can
cause severe injury to the child.
Vehicles with a passenger airbag
display a caution label on the pas-
senger side instrument panel as
shown above to remind you not to
install a rear-facing child restraint
system on the front seat.
ProCarManuals.com

39

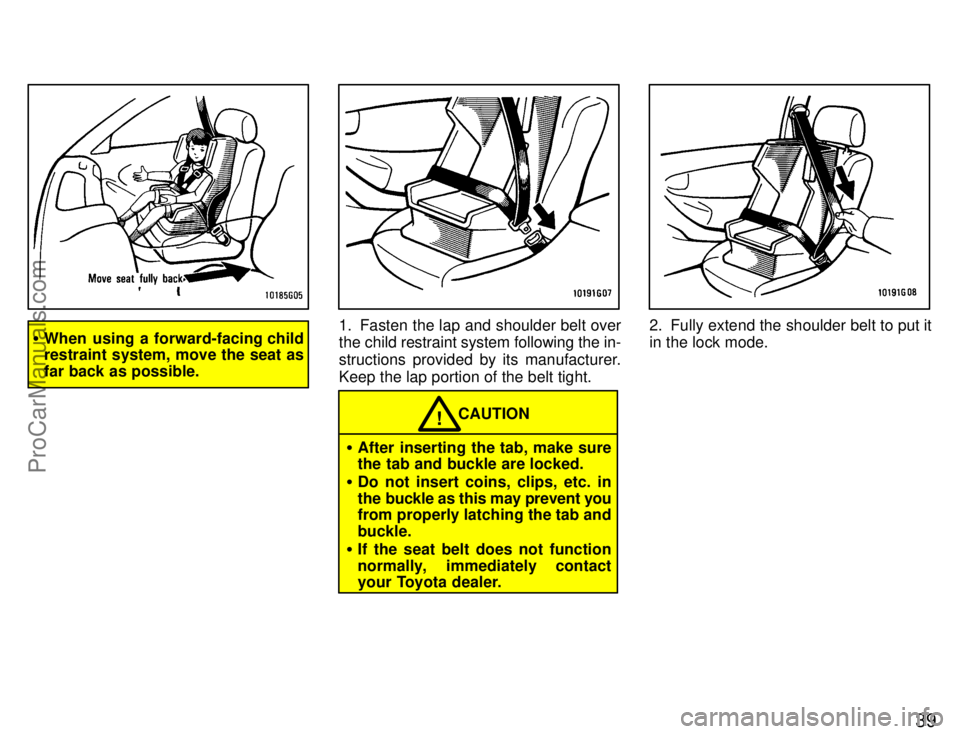

When using a forward-facing child
restraint system, move the seat as
far back as possible.1. Fasten the lap and shoulder belt over
the child restraint system following the in-
structions provided by its manufacturer.
Keep the lap portion of the belt tight.
CAUTION!

After inserting the tab, make sure
the tab and buckle are locked.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, immediately contact
your Toyota dealer.
2. Fully extend the shoulder belt to put it
in the lock mode.
ProCarManuals.com

40

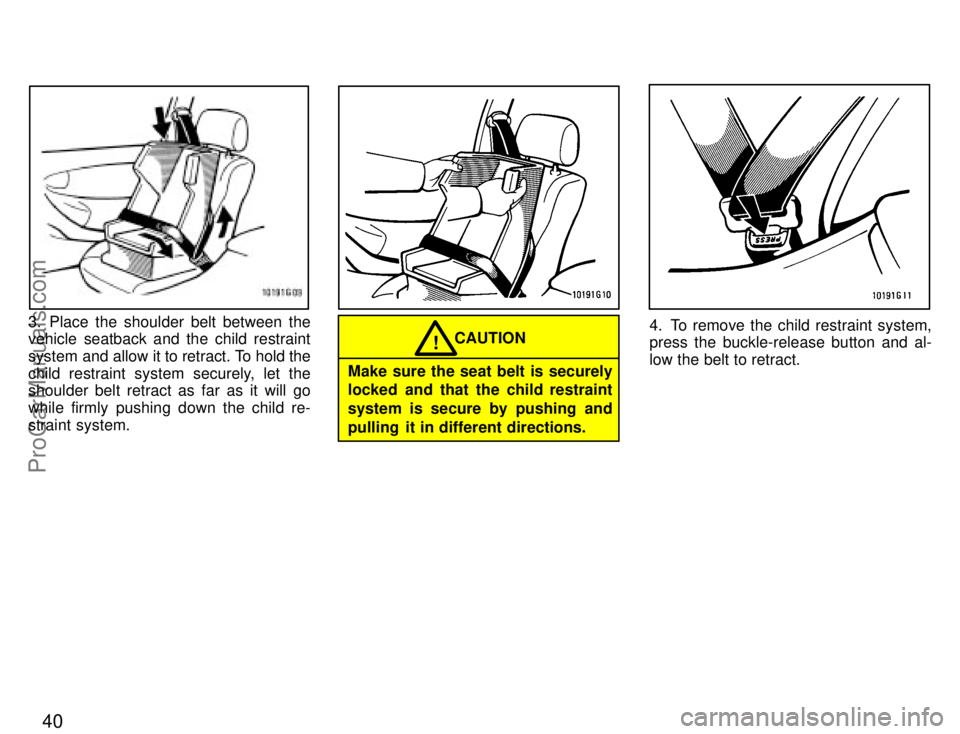

3. Place the shoulder belt between the
vehicle seatback and the child restraint
system and allow it to retract. To hold the
child restraint system securely, let the
shoulder belt retract as far as it will go
while firmly pushing down the child re-
straint system.
CAUTION!
Make sure the seat belt is securely
locked and that the child restraint
system is secure by pushing and
pulling it in different directions.
4. To remove the child restraint system,
press the buckle-release button and al-
low the belt to retract.
ProCarManuals.com

41

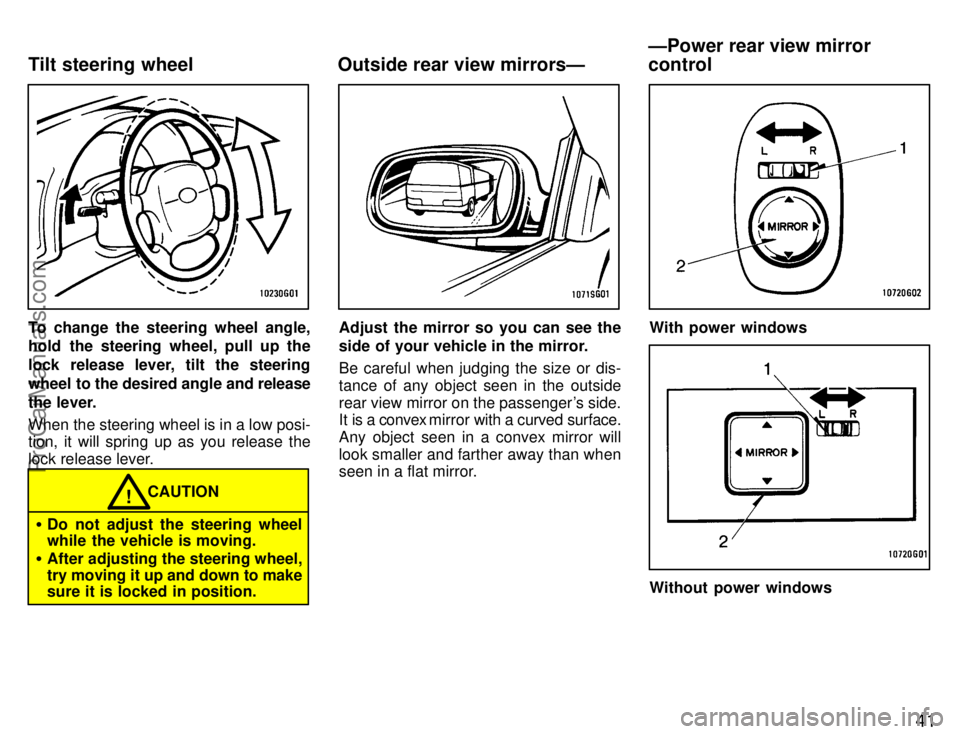

To change the steering wheel angle,
hold the steering wheel, pull up the
lock release lever, tilt the steering
wheel to the desired angle and release
the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION!

Do not adjust the steering wheel
while the vehicle is moving.

After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Adjust the mirror so you can see the
side of your vehicle in the mirror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger's side.
It is a convex
mirror with a curved surface.
Any object seen in a convex mirror will
look smaller and farther away than when
seen in a flat mirror.
With power windows
Without power windows
ÐPower rear view mirror
control
Outside rear view mirrorsÐ
Tilt steering wheel
ProCarManuals.com

42
To adjust a mirror, use the switches.
1. Master switchÐTo select the mirror to
be adjusted
Place the switch at Lº (left) or Rº (right).
2. Control switchÐTo move the mirror
push the switch in the desired direction.
If the engine is not running, the key must
be in the ACCº position.
If ice should jam the mirror, do notoperate the control or scrape the
mirror face. Use a spray de-icer tofree the mirror.
NOTICE
The rear view mirrors can be folded
backward for parking in restricted
areas.
To fold the rear view mirror, push back-
ward.To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight drivingÐLever at position 1
The reflection in the mirror has greater
clarity at this position.
Night drivingÐLever at position 2
Remember that by reducing glare you
also lose some rear view clarity.
Anti-glare inside rear view
mirror
ÐFolding rear view mirrors
ProCarManuals.com

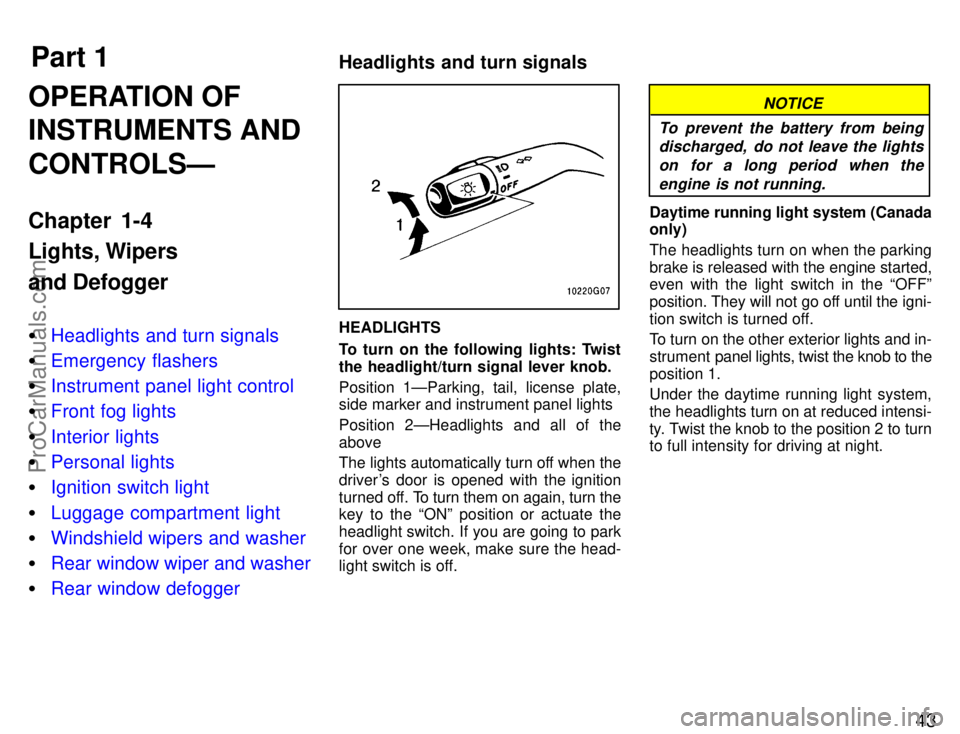

Part 1Headlights and turn signals43
OPERATION OF
INSTRUMENTS AND
CONTROLSÐ
Chapter 1-4
Lights, Wipers
and Defogger

Headlights and turn signals

Emergency flashers

Instrument panel light control

Front fog lights

Interior lights

Personal lights

Ignition switch light

Luggage compartment light

Windshield wipers and washer

Rear window wiper and washer

Rear window defoggerHEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1ÐParking, tail, license plate,
side marker and instrument panel lights
Position 2ÐHeadlights and all of the
above
The lights automatically turn off when the
driver's door is opened with the ignition
turned off. To turn them on again, turn the
key to the ONº position or actuate the
headlight switch. If you are going to park
for over one week, make sure the head-
light switch is off.
NOTICE
To prevent the battery from being discharged, do not leave the lights
on for a long period when theengine is not running.
Daytime running light system (Canada
only)
The headlights turn on when the parking
brake is released with the engine started,
even with the light switch in the OFFº
position. They will not go off until the igni-
tion switch is turned off.
To turn on the other exterior lights and in-
strument panel lights, twist the knob to the
position 1.
Under the daytime running light system,
the headlights turn on at reduced intensi-
ty. Twist the knob to the position 2 to turn
to full intensity for driving at night.
