TOYOTA COROLLA 1999 Owners Manual

C orolla (U)
60

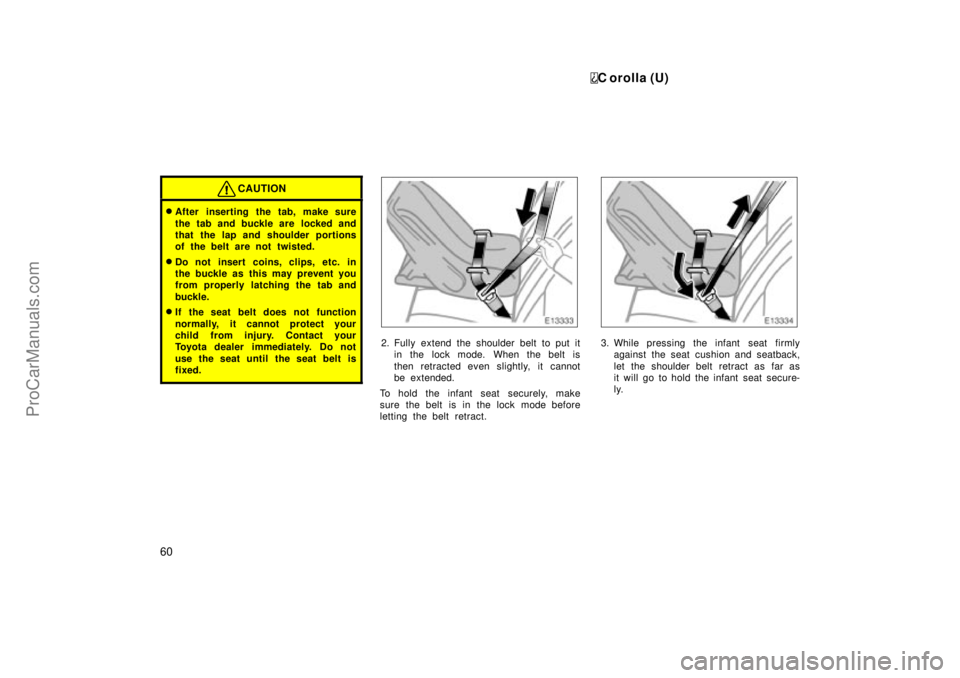

CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.3. While pressing the infant seat firmly
against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.
ProCarManuals.com

C orolla (U)
61

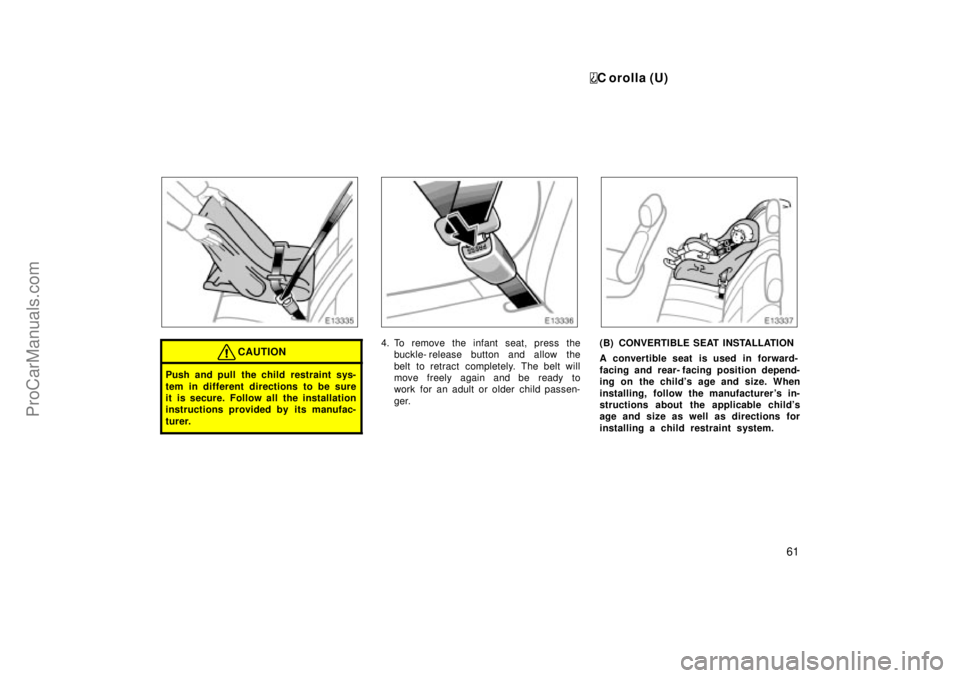

CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the infant seat, press the
buckle- release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward-
facing and rear- facing position depend-
ing on the child's age and size. When
installing, follow the manufacturer's in-
structions about the applicable child's
age and size as well as directions for
installing a child restraint system.
ProCarManuals.com

C orolla (U)
62

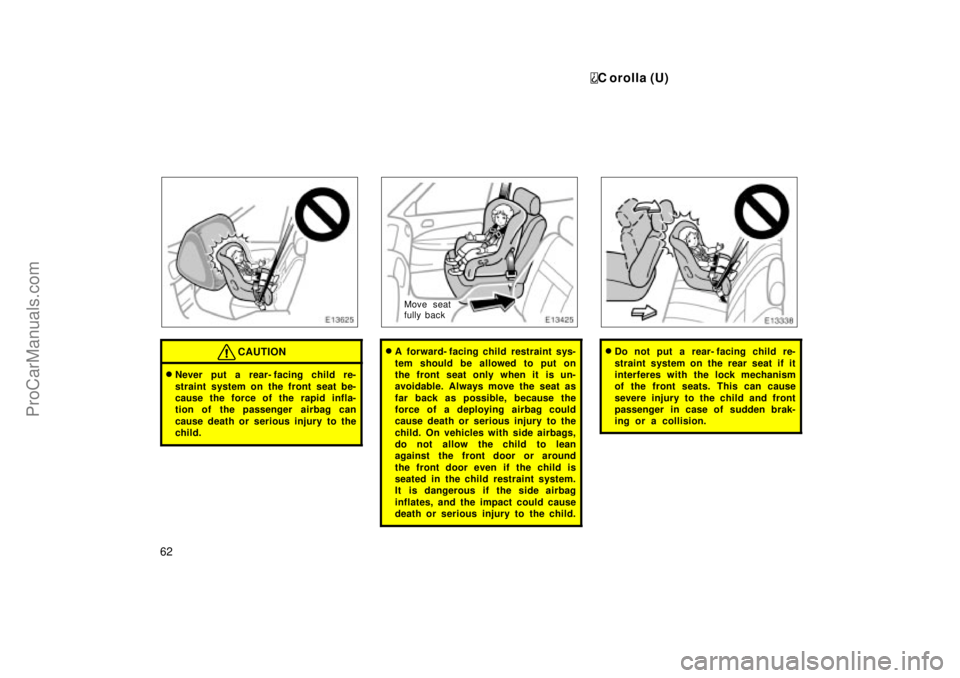

CAUTION

Never put a rear- facing child re-
straint system on the front seat be-
cause the force of the rapid infla-
tion of the passenger airbag can
cause death or serious injury to the
child.
Move seat
fully back

A forward- facing child restraint sys-
tem should be allowed to put on
the front seat only when it is un-
avoidable. Always move the seat as
far back as possible, because the
force of a deploying airbag could
cause death or serious injury to the
child. On vehicles with side airbags,
do not allow the child to lean
against the front door or around
the front door even if the child is
seated in the child restraint system.
It is dangerous if the side airbag
inflates, and the impact could cause
death or serious injury to the child.
Do not put a rear- facing child re-
straint system on the rear seat if it
interferes with the lock mechanism
of the front seats. This can cause
severe injury to the child and front
passenger in case of sudden brak-
ing or a collision.
ProCarManuals.com

C orolla (U)
63

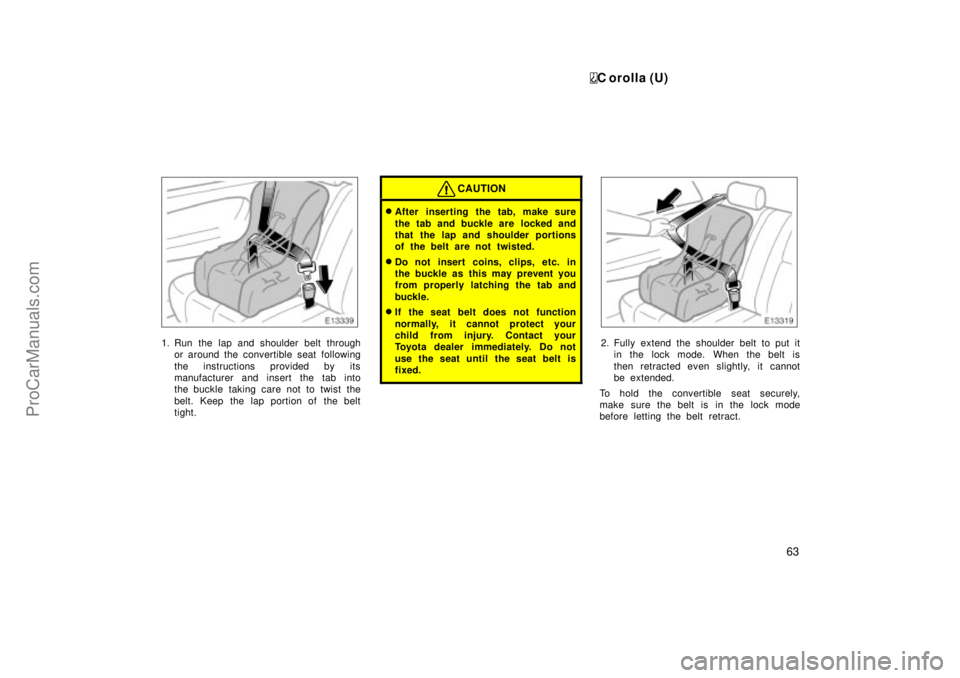

1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.
ProCarManuals.com

C orolla (U)
64

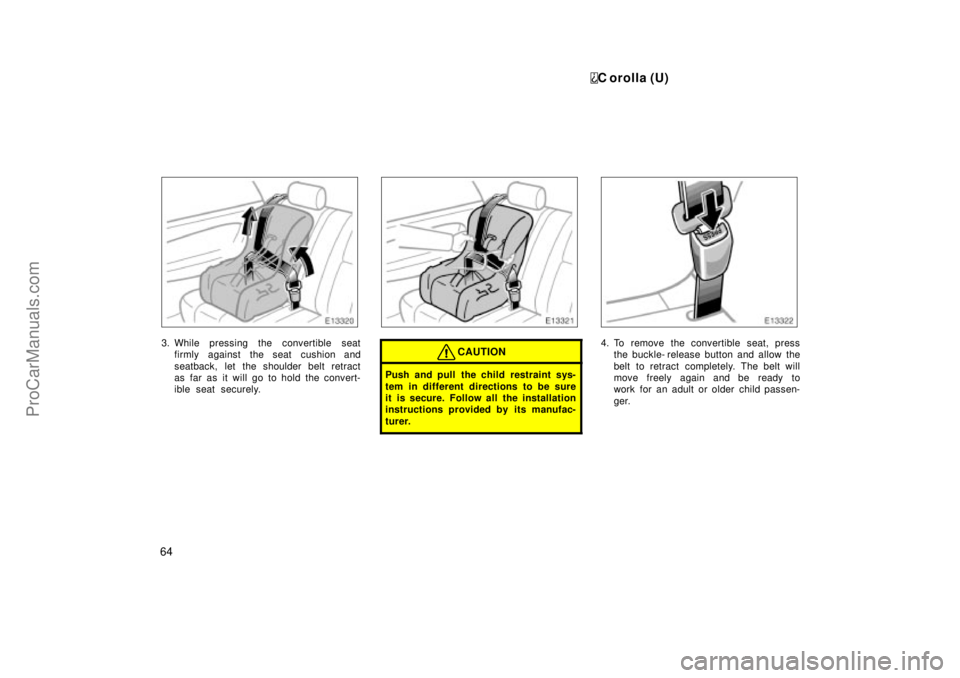

3. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the convertible seat, press
the buckle- release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.
ProCarManuals.com

C orolla (U)
65

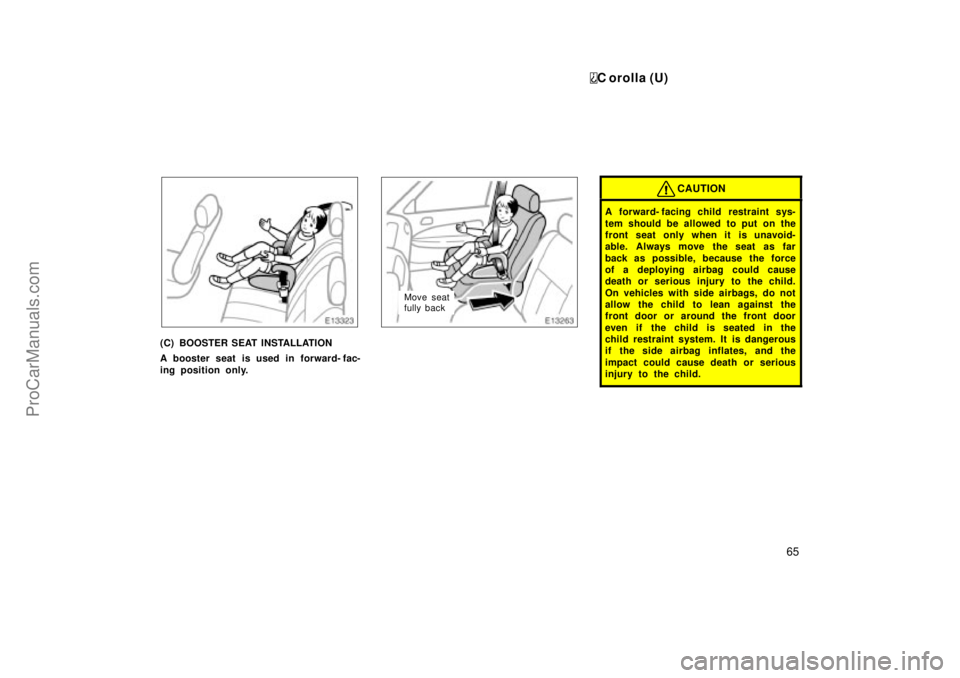

(C) BOOSTER SEAT INSTALLATION
A booster seat is used in forward- fac-
ing position only.
Move seat
fully back
CAUTION
A forward- facing child restraint sys-
tem should be allowed to put on the
front seat only when it is unavoid-
able. Always move the seat as far
back as possible, because the force
of a deploying airbag could cause
death or serious injury to the child.
On vehicles with side airbags, do not
allow the child to lean against the
front door or around the front door
even if the child is seated in the
child restraint system. It is dangerous
if the side airbag inflates, and the
impact could cause death or serious
injury to the child.
ProCarManuals.com

C orolla (U)
66

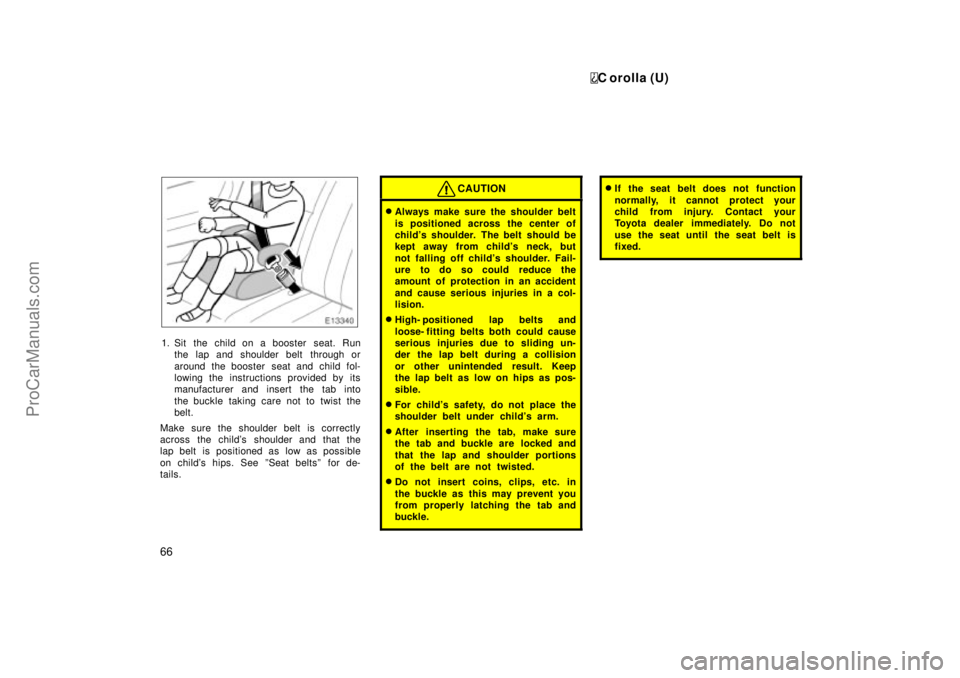

1. Sit the child on a booster seat. Run
the lap and shoulder belt through or
around the booster seat and child fol-
lowing the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt.
Make sure the shoulder belt is correctly
across the child's shoulder and that the
lap belt is positioned as low as possible
on child's hips. See ºSeat beltsº for de-
tails.
CAUTION

Always make sure the shoulder belt
is positioned across the center of
child's shoulder. The belt should be
kept away from child's neck, but
not falling off child's shoulder. Fail-
ure to do so could reduce the
amount of protection in an accident
and cause serious injuries in a col-
lision.

High- positioned lap belts and
loose- fitting belts both could cause
serious injuries due to sliding un-
der the lap belt during a collision
or other unintended result. Keep
the lap belt as low on hips as pos-
sible.

For child's safety, do not place the
shoulder belt under child's arm.

After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
ProCarManuals.com

C orolla (U)
67
2. To remove the child restraint system,
press the buckle- release button and al-
low the belt to retract.If your child restraint system requires
the use of a top strap, latch the hook
onto the anchor bracket and tighten the
top strap.
See the following instructions to install the
anchor bracket.
Bolt
Anchor
bracket
190.75 mm
(7.5 in.)
216.5 mm (8.5 in.)
Spacer
153.0 mm
(6.0 in.)
On the filler panel behind the rear seat
a. Using the illustration as a guide, run
your fingers across the trim of the filler
panel itself to locate the position of the
holes underneath.
b. Make a hole in the covering directly
above the hole in the filler panel.
c. Insert a 15 mm (0.6 in.) spacer and
tighten down the anchor bracket for your
child restraint system with a bolt. Torque
the bolt to 16.5Ð24.7 NVm (1.68Ð2.52
kgfVm, 12.2Ð18.2 ftVlbf).
ÐTop strap anchors and
locations
ProCarManuals.com

C orolla (U)
68
To comply with Canadian Motor Vehicle
Safety Standards, this model sold in
Canada is provided with a bracket set in
the glovebox, designed for use with any of
the 3 anchor locations shown in the
illustration.
If your child restraint system does not
provide any of the necessary parts, ask
your Toyota dealer. (See ºÐChild restraint
systemº.)

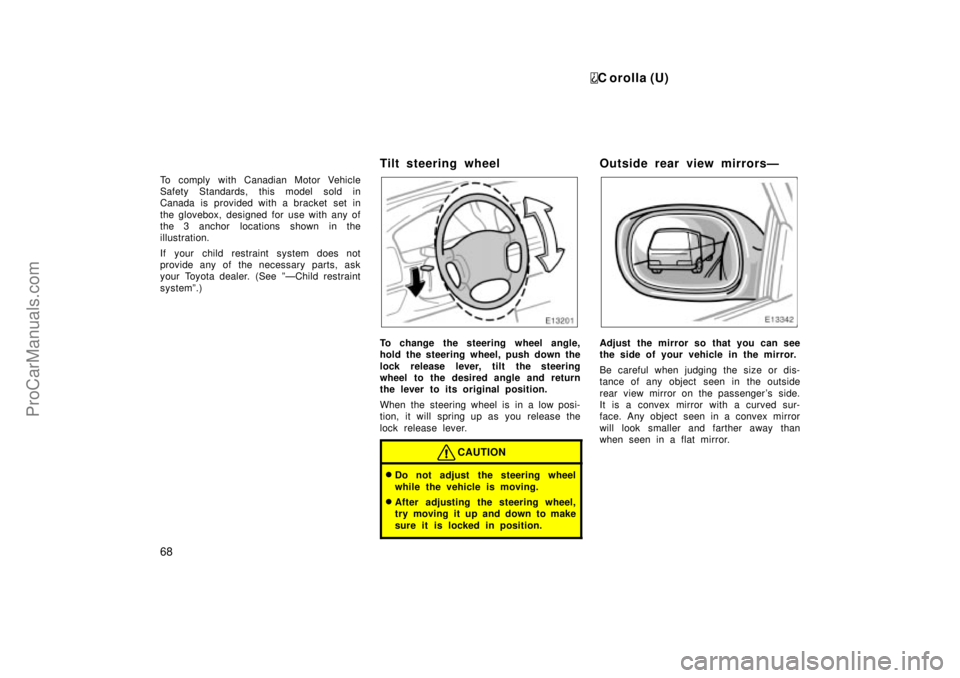

Tilt steering wheel
To change the steering wheel angle,
hold the steering wheel, push down the
lock release lever, tilt the steering
wheel to the desired angle and return
the lever to its original position.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION

Do not adjust the steering wheel
while the vehicle is moving.

After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Outside rear view mirrorsÐ
Adjust the mirror so that you can see
the side of your vehicle in the mirror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger 's side.
It is a convex mirror with a curved sur-
face. Any object seen in a convex mirror
will look smaller and farther away than
when seen in a flat mirror.
ProCarManuals.com

C orolla (U)
69

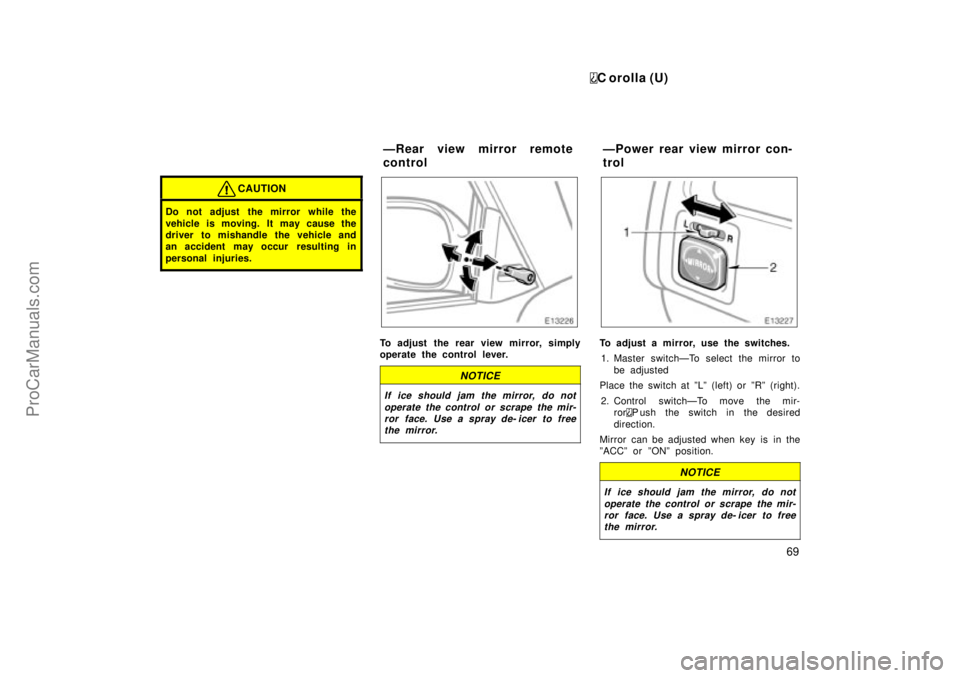

CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal injuries.
To adjust the rear view mirror, simply
operate the control lever.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray de- icer to free
the mirror.
To adjust a mirror, use the switches.
1. Master switchÐTo select the mirror to
be adjusted
Place the switch at ºLº (left) or ºRº (right).
2. Control switchÐTo move the mir-
ror
P ush the switch in the desired
direction.
Mirror can be adjusted when key is in the
ºACCº or ºONº position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray de- icer to free
the mirror.
ÐRear view mirror remote
controlÐPower rear view mirror con-
trol
