TOYOTA COROLLA 2000 Repair Manual

2000 Corolla(U)
197
Power steering fluid level
Check the level through the reservoir. The
level should be in the HOTº or COLDº
range depending on the fluid temperature.
See Section 7- 2 for additional information.
Exhaust system
If you notice any change in the sound of
the exhaust or smell exhaust fumes, have
the cause located and corrected immedi-
ately. (See engine exhaust cautions in
Section 2.)Be on the alert for changes in perfor-
mance, sounds, and visual tip- offs that
indicate service is needed. Some impor-
tant clues are as follows:

Engine missing, stumbling, or pinging

Appreciable loss of power

Strange engine noises

A leak under the vehicle (however, wa-
ter dripping from the air conditioning
after use is normal.)

Change in exhaust sound (This may
indicate a dangerous carbon monoxide
leak. Drive with the windows open and
have the exhaust system checked im-
mediately.)

Flat- looking tire; excessive tire squeal
when cornering; uneven tire wear

Vehicle pulls to one side when driving
straight on a level road

Strange noises related to suspension
movement

Loss of brake effectiveness; spongy
feeling brake or clutch pedal;pedal al-
most touches floor; vehicle pulls to one
side when braking

Engine coolant temperature continually
higher than normalIf you notice any of these clues, take your
vehicle to your Toyota dealer as soon as
possible. It probably needs adjustment or
repair.
CAUTION
Do not continue driving with the ve-
hicle unchecked. It could result in se-
rious vehicle damage and possibly
personal injury.
Does your vehicle need
repairing?
ProCarManuals.com

2000 Corolla(U)
198
ProCarManuals.com

2000 Corolla(U)
229
SPECIFICATIONS
Dimensions and weight230 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine230 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel230 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service specifications231 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tires233 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuses233 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 8
ProCarManuals.com

2000 Corolla(U)
230
Dimensions and weight
Overall length mm (in): 4420 (174.0)
Overall width mm (in): 1695 (66.7)
Overall height mm (in): 1385 (54.5)
*
Wheelbase mm (in): 2465 (97.0)
Front tread mm (in): 1460 (57.5)
Rear tread mm (in): 1450 (57.1)
Vehicle capacity weight
(occupants+luggage) kg(lb): 385 (850)
*: Unladen vehicle
Engine
Model:
1ZZ- FE
Type:
4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.):
79.0
91.5 (3.11
3.60)
Displacement, cm
3 (cu. in.):
1794 (109.5)
Fuel
Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.):
50 (13.2, 11.0)
ProCarManuals.com

2000 Corolla(U)
231
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):
Intake 0.15Ð0.25 (0.006Ð0.010)
Exhaust 0.25Ð0.35 (0.010Ð0.014)
Spark plug type:
DENSO SK16R11
NGK IFR5A11
Spark plug gap, mm(in.):
1.1 (0.043)ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
With filter 3.7 (3.9, 3.3)
Without filter 3.5 (3.7, 3.1)
Oil grade:
API grade SJ, Energy- Conservingº or
ILSAC multigrade engine oil is recom-
mended.
Recommended oil viscosity (SAE):COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
Manual transmission
5.8 (6.1, 5.1)
Automatic transmission
5.7 (6.0, 5.0)
Coolant type:
TOYOTA Long Life Coolantº or equiva-
lent
With ethylene- glycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
BATTERY
Open voltage
* at 20
C (68
F):
12.6- 12.8 V Fully charged
12.2- 12.4 V Half charged
11.8- 12.0 V Discharged
*: Voltage that is checked 20 minutes af-
ter the key is removed with all the
lights turned off
Charging rates:
5A max.
ProCarManuals.com

2000 Corolla(U)
232
CLUTCH
Pedal free play, mm (in.):
5Ð15 (0.2Ð0.6)
Fluid type:
SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.):
1.9 (2.0, 1.7)
Oil type:
Gear oil API GL- 4 or GL- 5
Recommended oil viscosity:
SAE 75W- 90
AUTOMATIC TRANSAXLE
Automatic transmission
Fluid capacity (drain and refill), L (qt.,
Imp. qt.):
Four- speed type
Up to 3.1 (3.3, 2.7)
Three- speed type
2.5 (2.6, 2.2)
Fluid type:
Automatic transmission fluid D- ll or
DEXRONIII (DEXRONII)Differential (three- speed type only)
Fluid capacity L (qt., Imp. qt.):
1.4 (1.5, 1.2)
Fluid type:
Automatic transmission fluid D- II or
DEXRONIII (DEXRONII)
BRAKES
Minimum pedal clearance when depressed
with the pressure of 490 N (50 kgf, 110
lbf) with the engine running, mm (in.):
Vehicles with anti- lock brake system
90 (3.5)
Vehicles without anti- lock brake system
85 (3.3)
Pedal free play, mm (in.):
1Ð6 (0.04Ð0.24)
Pad wear limit, mm (in.):
1.0 (0.04)
Lining wear limit, mm (in.):
1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf):
4Ð7 clicks
Fluid type:
SAE J1703 or FMVSS No.116 DOT 3STEERING
Wheel free play:
Less than 30 mm (1.2 in.)
Power steering fluid type:
Automatic transmission fluid DEXRONII
or III
ProCarManuals.com

2000 Corolla(U)
233
Tires
Tire size:
Compact spare tire
T115/70D14
T125/70D14
Except compact spare tire
P175/65SR14
P185/65SR14
Tire pressure, kPa (kgf/cm
2 or bar, psi):
Compact spare tire
420 (4.2, 60)
Except compact spare tire
210 (2.1, 30)
Wheel size:
Compact spare tire
14
4T
Except compact Spare tire
14
5.5JJ
Wheel nut torque, N´m (kgf´m, ft´lbf):
102.9 (10.5, 76)

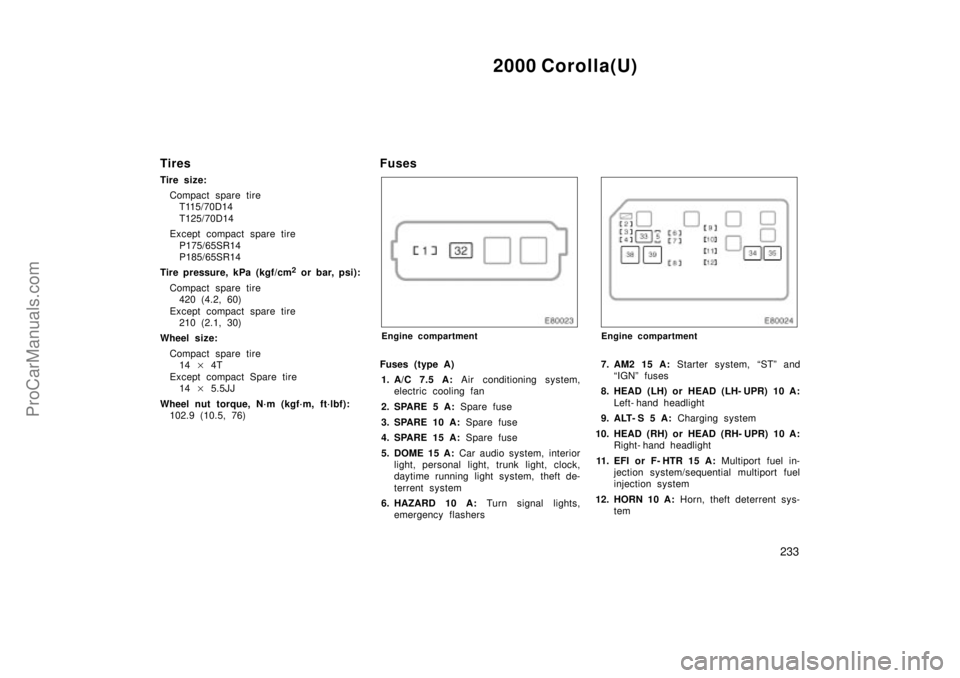

Fuses
Engine compartment
Fuses (type A)
1. A/C 7.5 A: Air conditioning system,
electric cooling fan
2. SPARE 5 A: Spare fuse
3. SPARE 10 A: Spare fuse
4. SPARE 15 A: Spare fuse
5. DOME 15 A: Car audio system, interior
light, personal light, trunk light, clock,
daytime running light system, theft de-
terrent system
6. HAZARD 10 A: Turn signal lights,
emergency flashers
Engine compartment
7. AM2 15 A: Starter system, STº and
IGNº fuses
8. HEAD (LH) or HEAD (LH- UPR) 10 A:
Left- hand headlight
9. ALT- S 5 A: Charging system
10. HEAD (RH) or HEAD (RH- UPR) 10 A:
Right- hand headlight
11. EFI or F- HTR 15 A: Multiport fuel in-
jection system/sequential multiport fuel
injection system
12. HORN 10 A: Horn, theft deterrent sys-
tem
ProCarManuals.com

2000 Corolla(U)
234
Engine compartment
13. DRL 7.5 A: Daytime running light sys-
tem
14. HEAD RH- LWR 10 A: Right- hand
headlight
15. HEAD LH- LWR 10 A: Left- hand head-
light
16. CDS 30 A: Electric cooling fan
17. TURN 7.5 A: Turn signal lights, emer-
gency flashers
18. GAUGE 10 A: Gauge and meters,
buck- up lights, air conditioning system,
power windows, rear window defogger,
power door lock system
Instrument panel
19. WIP 20 A: Windshield wipers and
washer
20. DEF I- UP/M- HTR 10 A: Rear window
defogger, multiport fuel injection sys-
tem/sequential multiport fuel injection
system
21. ECU- IG 10 A: Starting system, electric
cooling fan, automatic transmission
shift lock system, anti- lock brake sys-
tem, cruise control system, theft deter-
rent system
22. IGN 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, charging system, SRS airbag
system, seat belt pretensioners23. STOP 15 A: Stop lights, high mounted
stoplight, anti- lock brake system, auto-
matic transmission shift lock system,
cruise control system, multiport fuel in-
jection system/sequential multiport fuel
injection system
24. TAIL 15 A: Tail lights, gauges and me-
ters, instrument panel light control, cig-
arette lighter, clock, car audio system,
rear window defogger, license plate
lights, electronically controlled automat-
ic transmission system, multiport fuel
injection system/sequential multiport
fuel injection system, air conditioning
system, emergency flashers
25. OBD 7.5 A: On- board diagnosis sys-
tem
26. ECU- B 7.5 A: SRS airbag system,
seat belt pretensioners
27. ST 5 A: Starter system, multiport fuel
injection system/sequential multiport
fuel injection system
28. D/L 30 A: Power door lock system
29. FOG 15 A: No circuit
30. S- HTR 15 A: No circuit
ProCarManuals.com

2000 Corolla(U)
235
31. CIG 15 A: Car audio system, clock,
cigarette lighter, power rear view mir-
rors, SRS airbag system, seat belt pre-
tensioners, automatic transmission shift
lock system, theft deterrent system
Fuses (type B)
32. HTR 50 A: Air conditioning system,
A/Cº fuse
33. MAIN 40 A: Starter system, HEAD
(LH) or HEAD (LH- UPR)º, HEAD (RH)
or HEAD (RH- UPR)º, HEAD LH- LWRº,
HEAD RH- LWRº and DRLº fuses
34. RDI 30 A: Electric cooling fan
35. AM1 50 A: CIGº, TURNº, GAUGEº,
ECU- IGº, and WIPº fuses
36. DEF 40 A: Rear window defogger,
DEF I- UP/M- HTRº fuse
37. POWER 30 A: Power windows, electric
moon roof
Fuses (type C)
38. FL ABS 50 A: Anti- lock brake system
39. FL ALT 100 A: RDIº, CDSº, AM1º,
POWERº, D/Lº, TAILº, OBDº, FOGº,
ECU- Bº, STOPº and DEFº, HTRº
fuses
ProCarManuals.com

2000 Corolla(U)
236
