TOYOTA COROLLA 2000 Owners Manual

2000 Corolla(U)
17
SETTING THE SYSTEM
1. Turn the ignition key to the LOCKº
position and remove it.
2. Have all passengers get out of the
vehicle.
3. Close and lock all the doors, trunk and
hood.
The indicator light will come on when all
the doors, trunk and hood are closed and
locked.As the doors are locked, the system will
give you a preparation time of 30 seconds
before the setting, during which the doors,
trunk and hood may be opened.
Be careful not to unlock any door with the
key during setting. This will cancel the
system.
4. After making sure the indicator light
starts flashing, you may leave the ve-
hicle.
The system will automatically be set after
the preparation time passes. The indicator
light will flash to show the system is set.
If any of the doors, trunk or hood is open
at that time, the setting is interrupted until
it is closed and locked.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm and cut
the starter circuit under the following
conditions:

If any of the doors is unlocked or if
the trunk or hood is forcibly opened
without the key

If the battery terminal is disconnected
and then reconnected
After one minute, the alarm will automati-
cally stop with the starter circuit cut kept
on.
Reactivating the alarm
Once set, the system automatically resets
the alarm each time all the doors, trunk
and hood are closed after the alarm
stops.
The alarm will be activated again under
the following conditions:

If any of the doors, trunk or hood is
opened

If the battery terminal is disconnected
and then reconnected
ProCarManuals.com

2000 Corolla(U)
18
Stopping the alarm
Turn the ignition key from the LOCKº to
ONº position. The alarm will be stopped
with the starter circuit cut kept on. Stop-
ping the alarm in this manner will keep
the alarm from being reactivated when any
of the doors, trunk or hood is opened.
Interrupting the setting
With the system set, the trunk can be
opened with the key without activating or
cancelling the system. While it is open,
the doors and hood may be opened in
addition. However, when the battery termi-
nal is disconnected and then reconnected,
the system is activated.
To resume the setting, close and lock all
the doors, trunk and hood. The trunk must
be closed with the key removed.
CANCELLING THE SYSTEM
Unlock either front door with the key. This
cancels the system completely and the
starter circuit cut will be cancelled at
once.INDICATOR LIGHT
The indicator light gives the following
three indications.
FLASHINGÐThe system is set. You need
the key to open the doors, trunk and
hood.
ONÐThe system will automatically be set
when the time comes. The doors, trunk
and hood may be opened without a key.
OFFÐThe system is inactive. You may
open any door, trunk and hood.TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above.
The doors should be locked with the
key. Be sure to wait until the indicator
light starts flashing.
3. Unlock any door from the inside. The
system should activate the alarm.
4. Cancel the system by unlocking any of
the doors with the key.
5. Repeat this operation for the other
doors, trunk and hood. When testing on
the hood, also check that the system
is activated when the battery terminal
is disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
ProCarManuals.com

2000 Corolla(U)
19

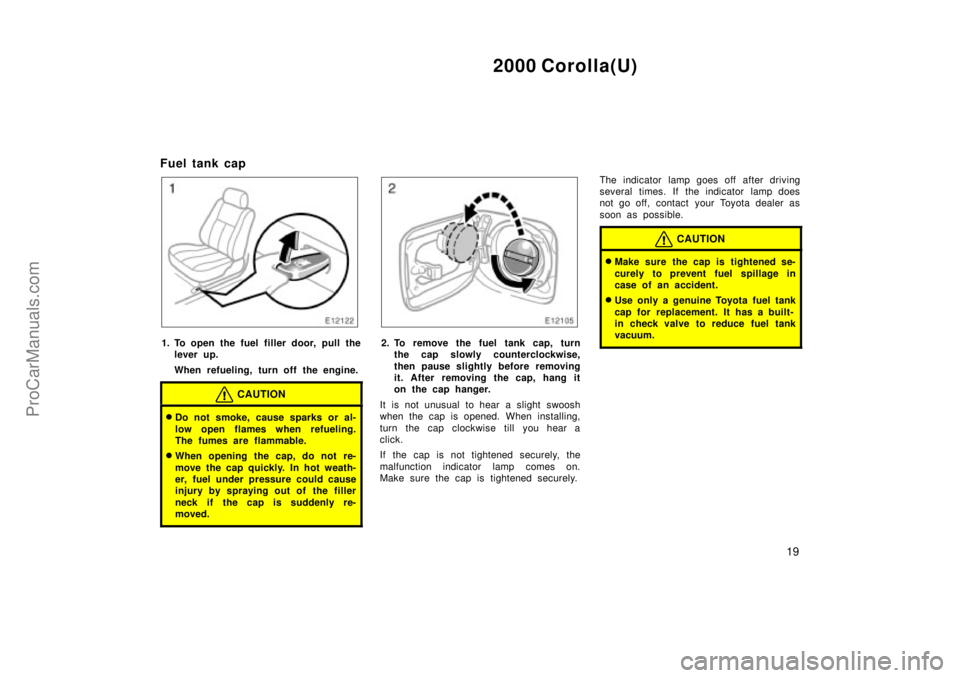

Fuel tank cap
1. To open the fuel filler door, pull the
lever up.
When refueling, turn off the engine.
CAUTION

Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.

When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
2. To remove the fuel tank cap, turn
the cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION

Make sure the cap is tightened se-
curely to prevent fuel spillage in
case of an accident.

Use only a genuine Toyota fuel tank
cap for replacement. It has a built-
in check valve to reduce fuel tank
vacuum.
ProCarManuals.com

2000 Corolla(U)
20

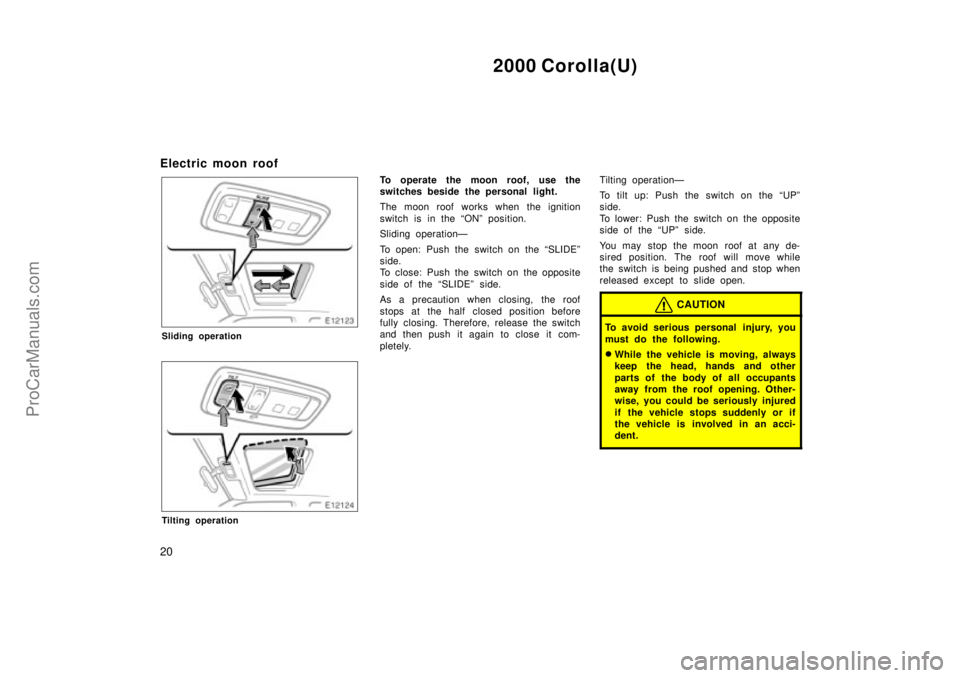

Electric moon roof
Sliding operation
Tilting operation
To operate the moon roof, use the
switches beside the personal light.
The moon roof works when the ignition
switch is in the ONº position.
Sliding operationÐ
To open: Push the switch on the SLIDEº
side.
To close: Push the switch on the opposite
side of the SLIDEº side.
As a precaution when closing, the roof
stops at the half closed position before
fully closing. Therefore, release the switch
and then push it again to close it com-
pletely.Tilting operationÐ
To tilt up: Push the switch on the UPº
side.
To lower: Push the switch on the opposite
side of the UPº side.
You may stop the moon roof at any de-
sired position. The roof will move while
the switch is being pushed and stop when
released except to slide open.
CAUTION
To avoid serious personal injury, you
must do the following.

While the vehicle is moving, always
keep the head, hands and other
parts of the body of all occupants
away from the roof opening. Other-
wise, you could be seriously injured
if the vehicle stops suddenly or if
the vehicle is involved in an acci-
dent.
ProCarManuals.com

2000 Corolla(U)
21

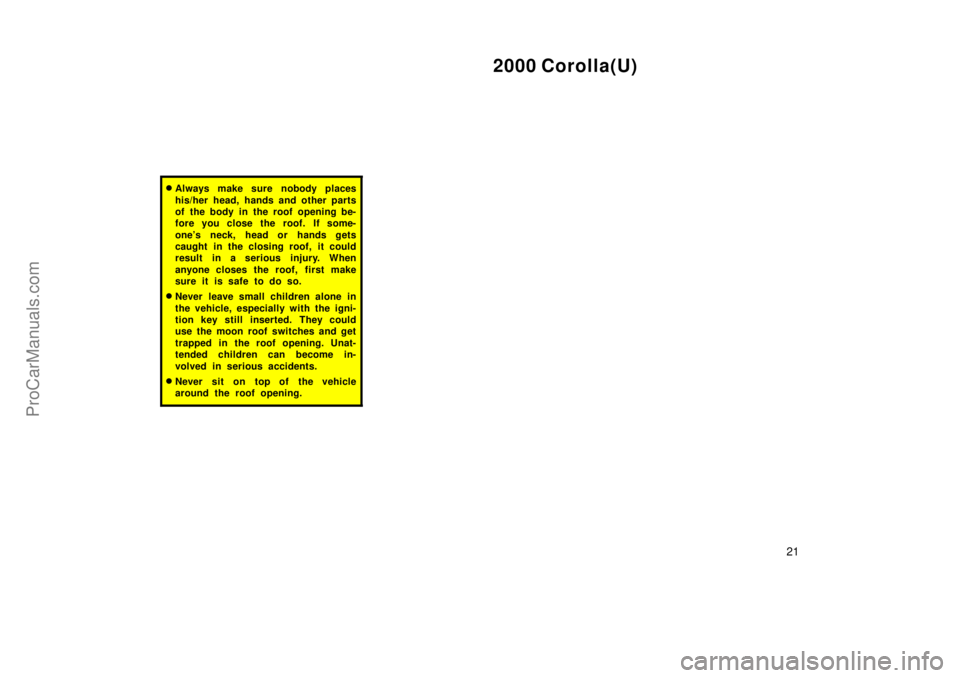

Always make sure nobody places
his/her head, hands and other parts
of the body in the roof opening be-
fore you close the roof. If some-
one's neck, head or hands gets
caught in the closing roof, it could
result in a serious injury. When
anyone closes the roof, first make
sure it is safe to do so.

Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the moon roof switches and get
trapped in the roof opening. Unat-
tended children can become in-
volved in serious accidents.

Never sit on top of the vehicle
around the roof opening.
ProCarManuals.com

2000 Corolla(U)
22
ProCarManuals.com

2000 Corolla(U)
23
OPERATION OF INSTRUMENTS AND
CONTROLS
Seats, Seat belts, Steering wheel and Mirrors
Seats24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front seats24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fold- down rear seat26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Head restraints28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat belts29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS driver and front passenger airbags38 . . . . . . . . . . . . . . . . . . . . . . . .
SRS side airbags45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Child restraint50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tilt steering wheel71 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors71 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti- glare inside rear view mirro72 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vanity mirror73 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1- 3
ProCarManuals.com

2000 Corolla(U)
24

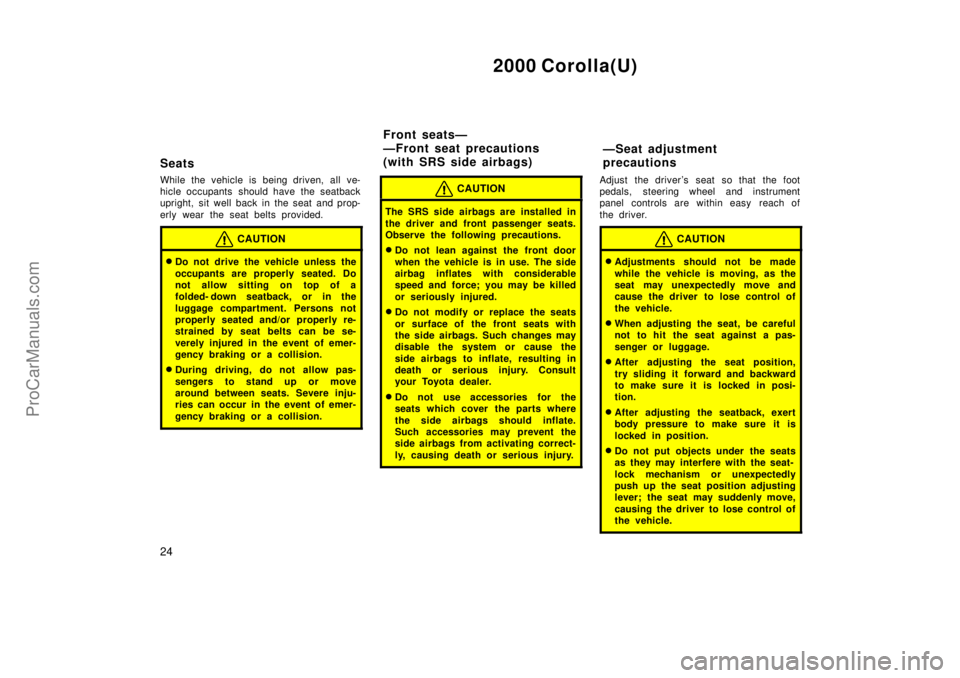

Seats
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION

Do not drive the vehicle unless the
occupants are properly seated. Do
not allow sitting on top of a
folded- down seatback, or in the
luggage compartment. Persons not
properly seated and/or properly re-
strained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.

During driving, do not allow pas-
sengers to stand up or move
around between seats. Severe inju-
ries can occur in the event of emer-
gency braking or a collision.
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.

Do not lean against the front door
when the vehicle is in use. The side
airbag inflates with considerable
speed and force; you may be killed
or seriously injured.

Do not modify or replace the seats
or surface of the front seats with
the side airbags. Such changes may
disable the system or cause the
side airbags to inflate, resulting in
death or serious injury. Consult
your Toyota dealer.

Do not use accessories for the
seats which cover the parts where
the side airbags should inflate.
Such accessories may prevent the
side airbags from activating correct-
ly, causing death or serious injury.
Adjust the driver's seat so that the foot
pedals, steering wheel and instrument
panel controls are within easy reach of
the driver.
CAUTION

Adjustments should not be made
while the vehicle is moving, as the
seat may unexpectedly move and
cause the driver to lose control of
the vehicle.

When adjusting the seat, be careful
not to hit the seat against a pas-
senger or luggage.

After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.

After adjusting the seatback, exert
body pressure to make sure it is
locked in position.

Do not put objects under the seats
as they may interfere with the seat-
lock mechanism or unexpectedly
push up the seat position adjusting
lever; the seat may suddenly move,
causing the driver to lose control of
the vehicle.
Front seatsÐ
ÐFront seat precautions
(with SRS side airbags)ÐSeat adjustment
precautions
ProCarManuals.com

2000 Corolla(U)
25

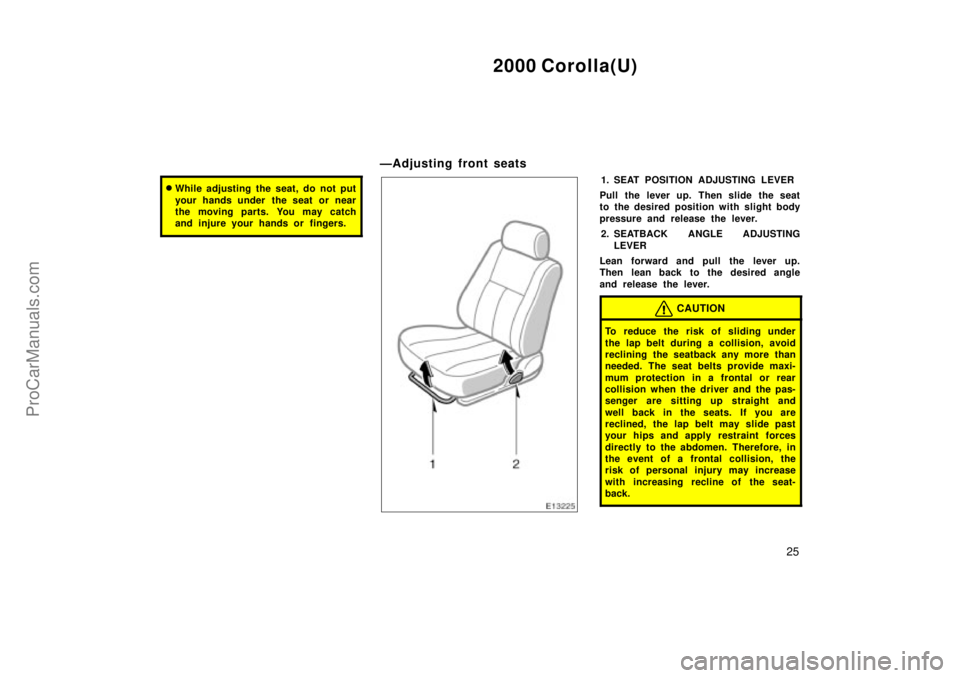

While adjusting the seat, do not put
your hands under the seat or near
the moving parts. You may catch
and injure your hands or fingers.
ÐAdjusting front seats
1. SEAT POSITION ADJUSTING LEVER
Pull the lever up. Then slide the seat
to the desired position with slight body
pressure and release the lever.
2. SEATBACK ANGLE ADJUSTING
LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. Therefore, in
the event of a frontal collision, the
risk of personal injury may increase
with increasing recline of the seat-
back.
ProCarManuals.com

2000 Corolla(U)
26

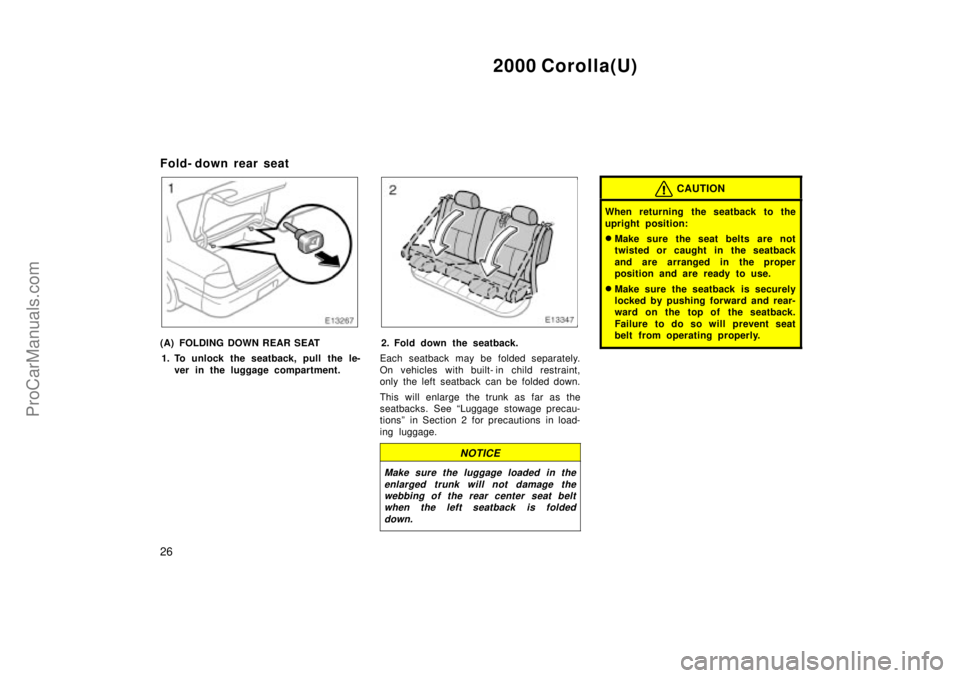

Fold- down rear seat
(A) FOLDING DOWN REAR SEAT
1. To unlock the seatback, pull the le-
ver in the luggage compartment.2. Fold down the seatback.
Each seatback may be folded separately.
On vehicles with built- in child restraint,
only the left seatback can be folded down.
This will enlarge the trunk as far as the
seatbacks. See Luggage stowage precau-
tionsº in Section 2 for precautions in load-
ing luggage.
NOTICE
Make sure the luggage loaded in the
enlarged trunk will not damage the
webbing of the rear center seat belt
when the left seatback is folded
down.
CAUTION
When returning the seatback to the
upright position:

Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in the proper
position and are ready to use.

Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent seat
belt from operating properly.
ProCarManuals.com
