Page 411 of 468
5
When trouble arises
411
5-2. Steps to take in an emergency

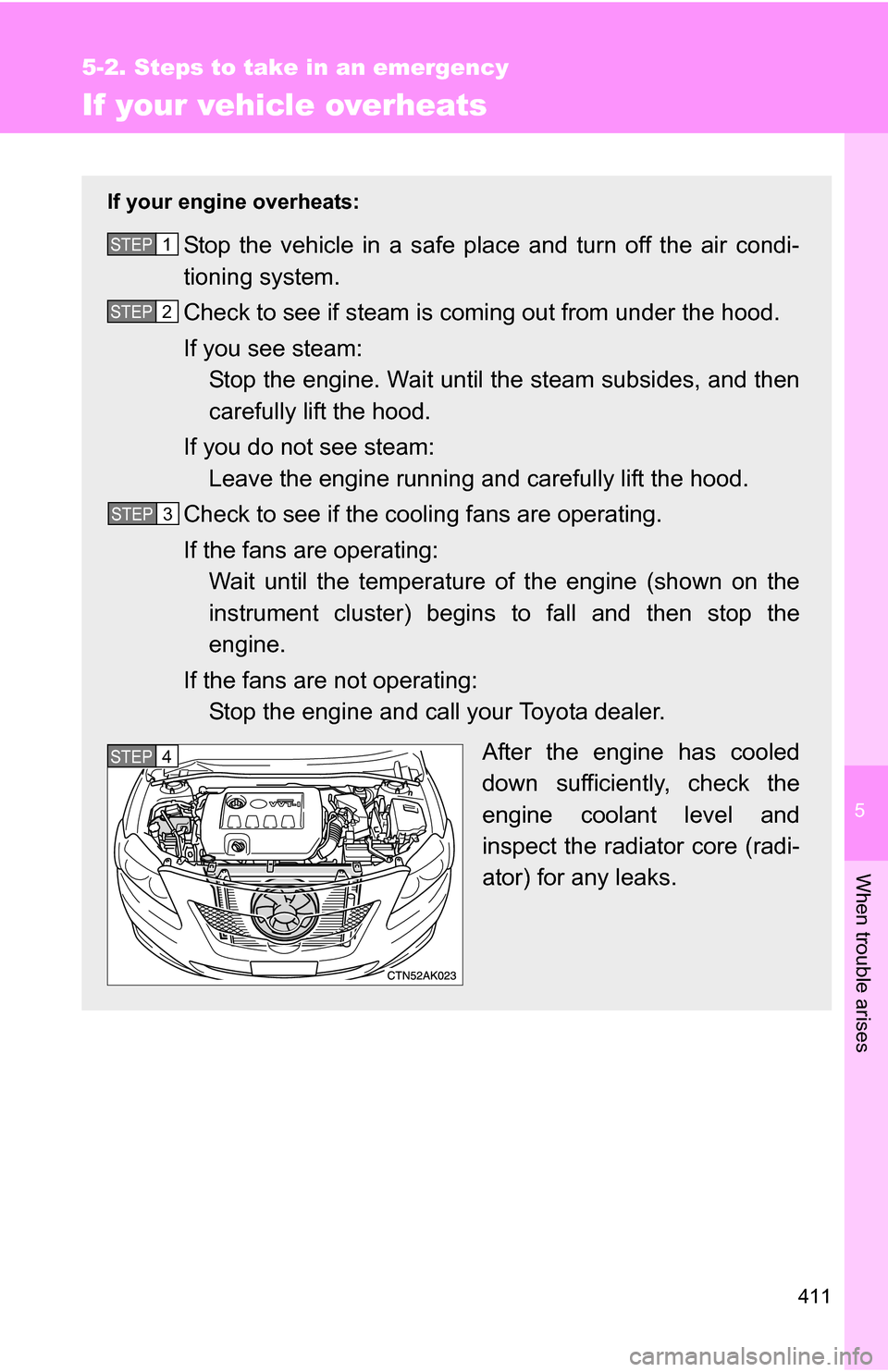

If your vehicle overheats
If your engine overheats:
Stop the vehicle in a safe place and turn off the air condi-
tioning system.
Check to see if steam is coming out from under the hood.
If you see steam: Stop the engine. Wait until the steam subsides, and then
carefully lift the hood.
If you do not see steam: Leave the engine running and carefully lift the hood.
Check to see if the cooling fans are operating.
If the fans are operating: Wait until the temperature of the engine (shown on the
instrument cluster) begins to fall and then stop the
engine.
If the fans are not operating: Stop the engine and call your Toyota dealer.
After the engine has cooled
down sufficiently, check the
engine coolant level and
inspect the radiator core (radi-
ator) for any leaks.STEP1
STEP2
STEP3
STEP5STEP4
Page 412 of 468
412 5-2. Steps to take in an emergency

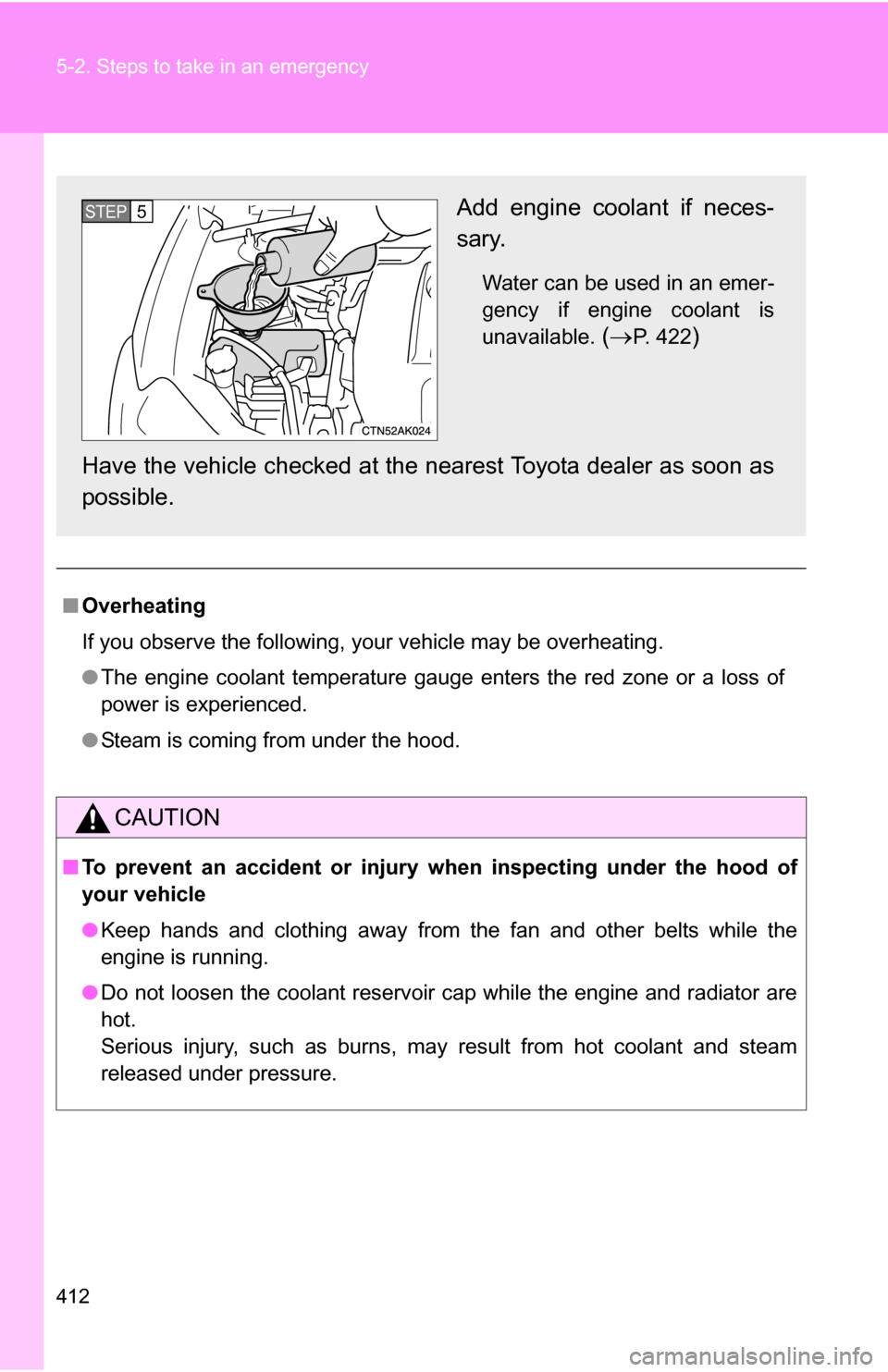

■Overheating
If you observe the following, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of
power is experienced.
● Steam is coming from under the hood.
CAUTION
■To prevent an accident or injury when inspecting under the hood of
your vehicle
● Keep hands and clothing away from the fan and other belts while the
engine is running.
● Do not loosen the coolant reservoir cap while the engine and radiator are
hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
Add engine coolant if neces-
sary.
Water can be used in an emer-
gency if engine coolant is
unavailable.
(P. 422)
Have the vehicle chec ked at the nearest Toyota dealer as soon as
possible.
STEP5
Page 413 of 468
5
When trouble arises
413
5-2. Steps to take in an emergency

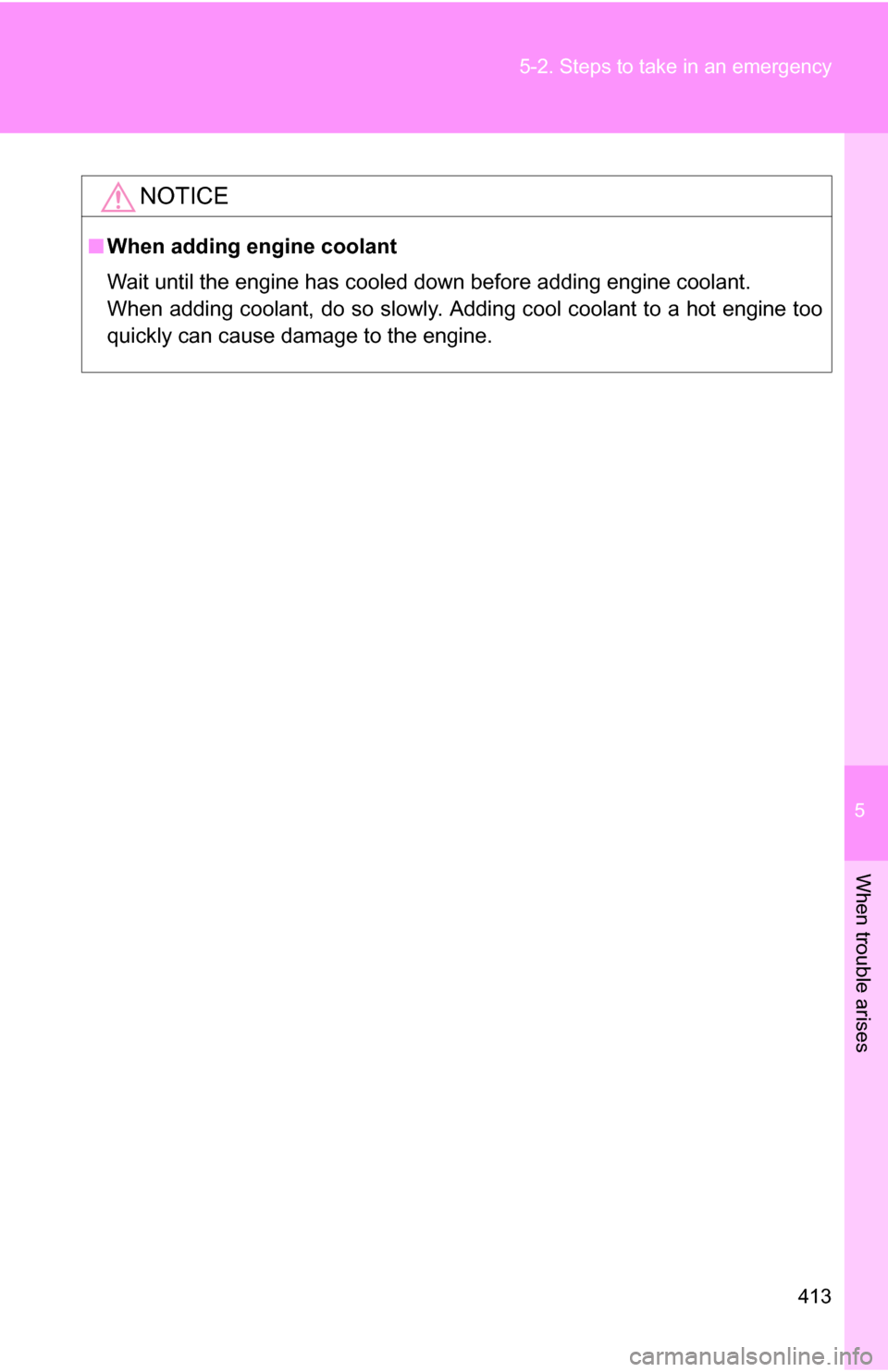

NOTICE
■
When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.
Page 414 of 468

414
5-2. Steps to take in an emergency

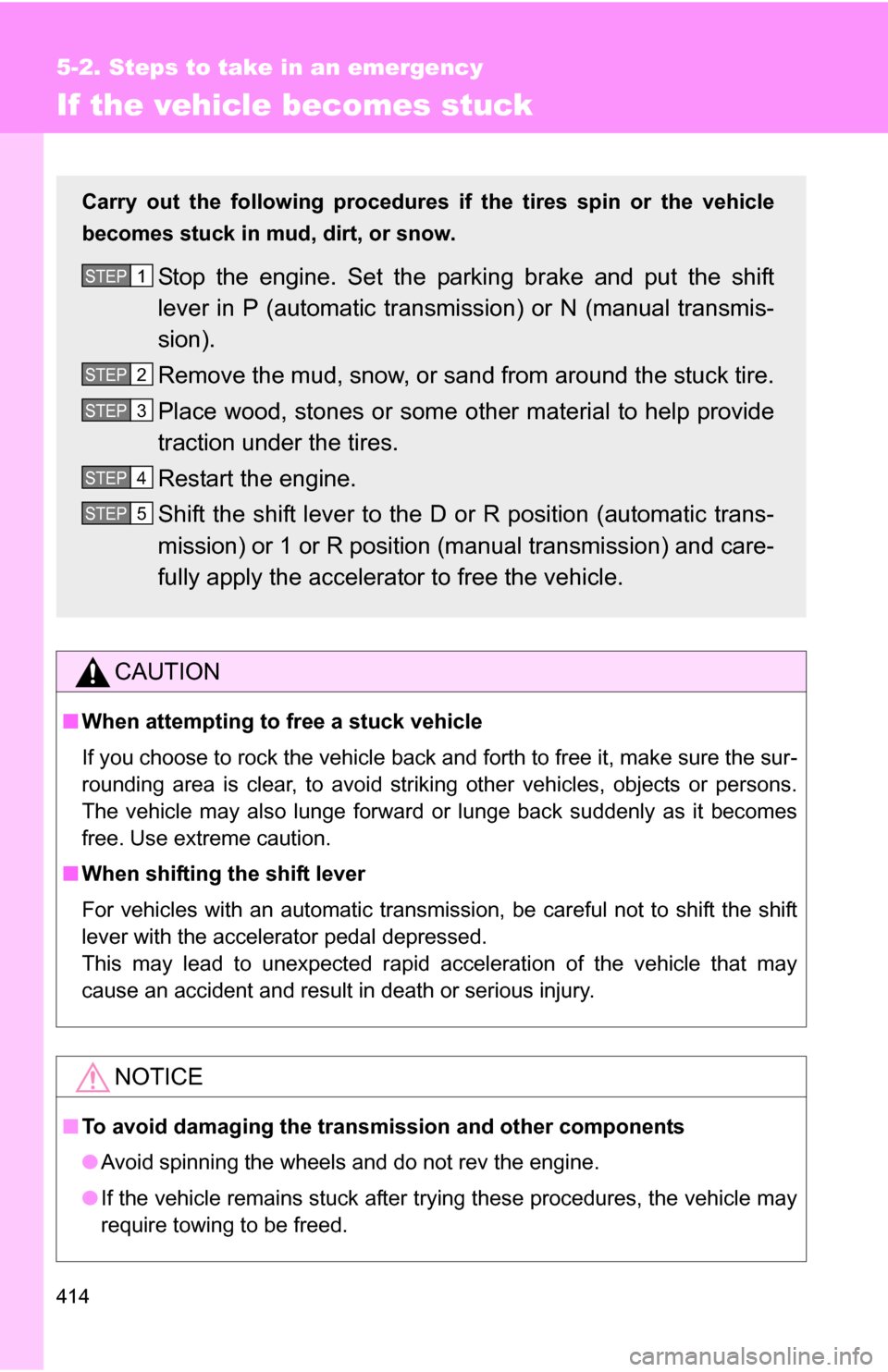

If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear, to avoid striki ng other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
For vehicles with an automatic transmission, be careful not to shift the shift
lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels and do not rev the engine.
● If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and put the shift
lever in P (automatic transmission) or N (manual transmis-
sion).
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
Restart the engine.
Shift the shift lever to the D or R position (automatic trans-
mission) or 1 or R position (manual transmission) and care-
fully apply the accelerator to free the vehicle.STEP1
STEP2
STEP3
STEP4
STEP5

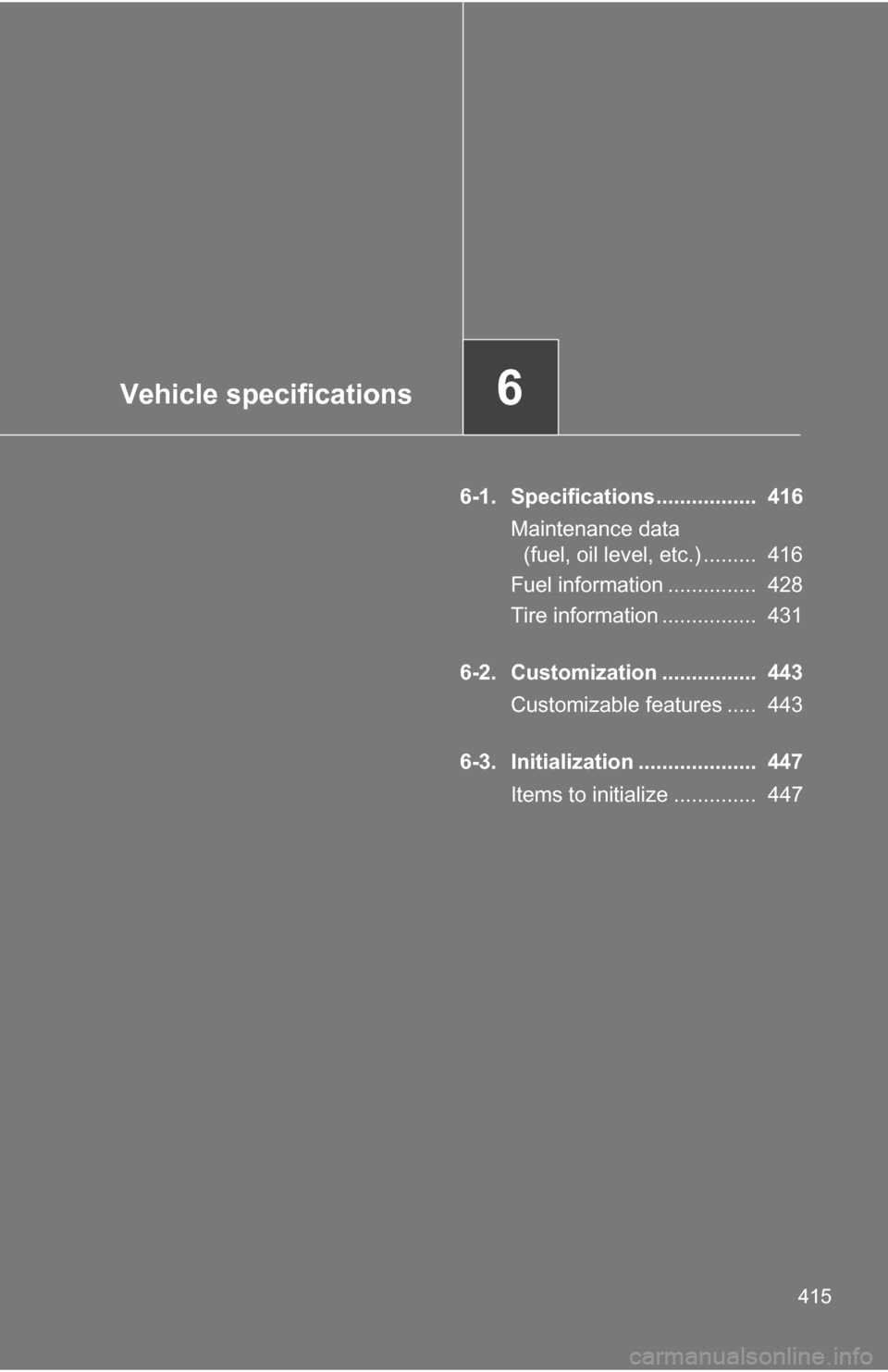

Page 415 of 468
Vehicle specifications6
415
6-1. Specifications................. 416Maintenance data (fuel, oil level, etc.) ......... 416
Fuel information ............... 428
Tire information ................ 431
6-2. Customization ................ 443 Customizable features ..... 443
6-3. Initialization .................... 447 Items to initialize .............. 447
Page 416 of 468
416
6-1. Specifications

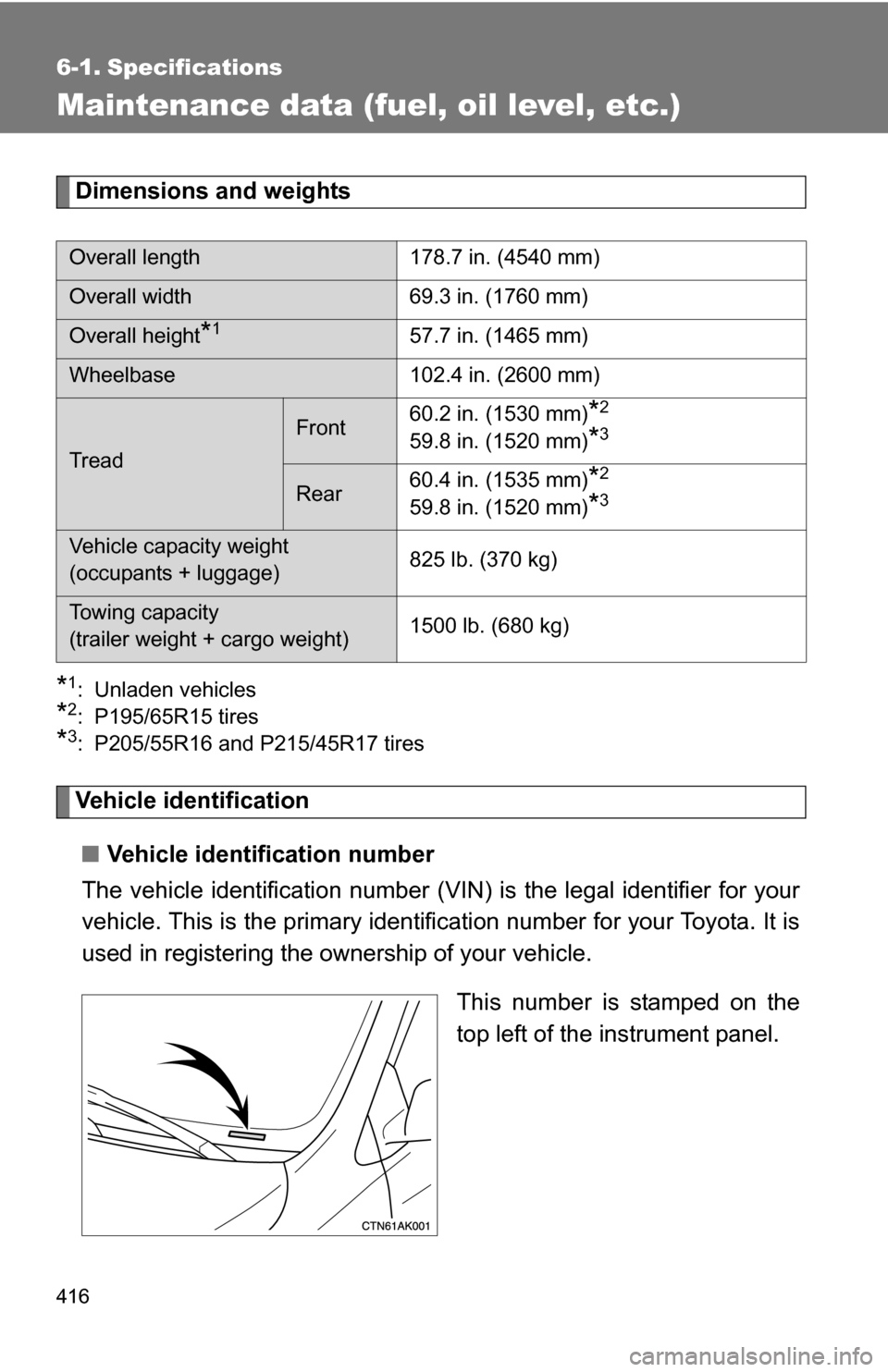

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*1: Unladen vehicles
*2: P195/65R15 tires
*3: P205/55R16 and P215/45R17 tires
Vehicle identification■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
Overall length 178.7 in. (4540 mm)
Overall width69.3 in. (1760 mm)
Overall height*157.7 in. (1465 mm)
Wheelbase102.4 in. (2600 mm)
Tread
Front60.2 in. (1530 mm)*2
59.8 in. (1520 mm)*3
Rear60.4 in. (1535 mm)*2
59.8 in. (1520 mm)*3
Vehicle capacity weight
(occupants + luggage) 825 lb. (370 kg)
Towing capacity
(trailer weight + cargo weight)1500 lb. (680 kg)
Page 417 of 468
417
6-1. Specifications
6
Vehicle specifications

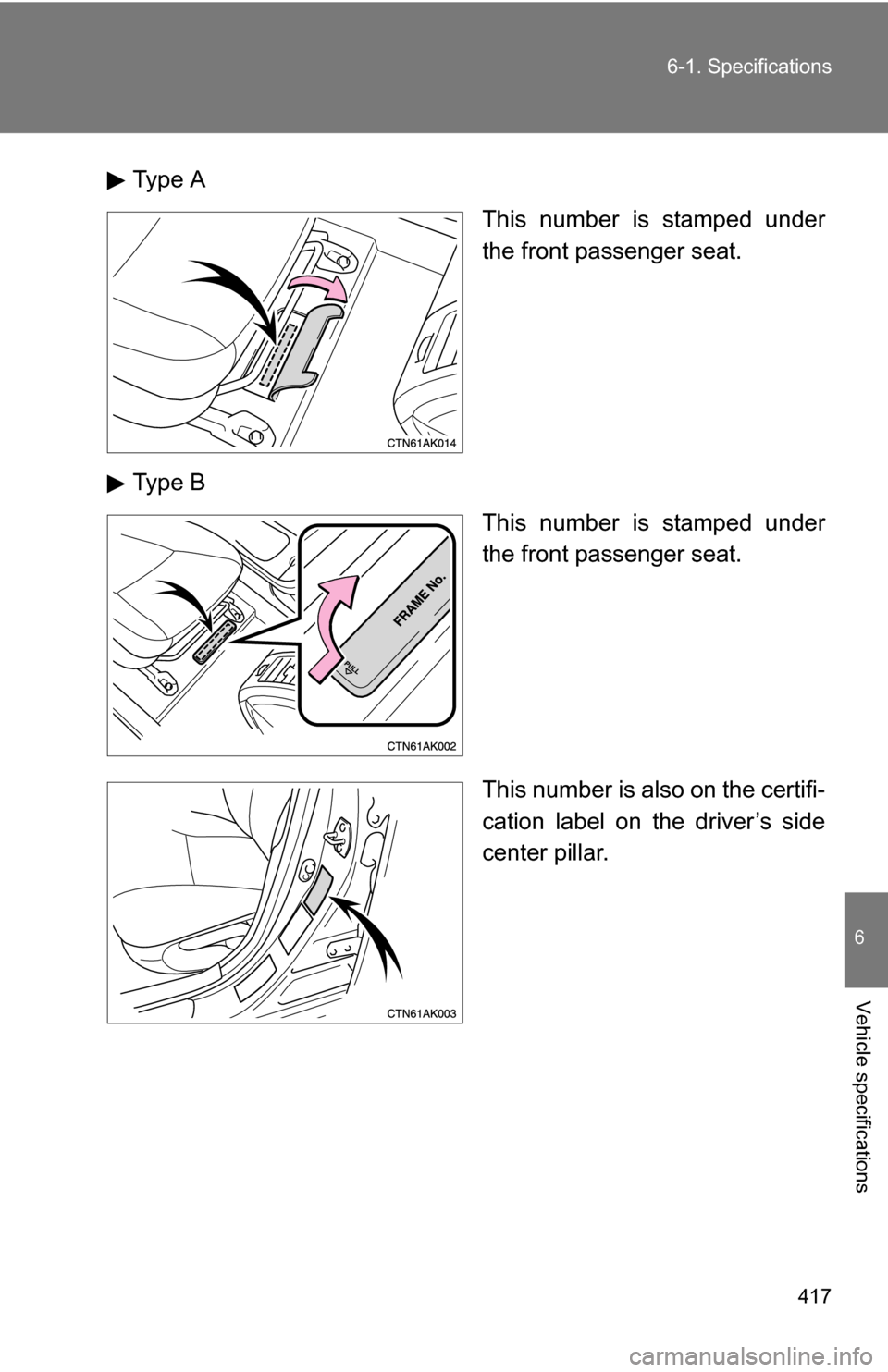

Type A
This number is stamped under
the front passenger seat.
Type B This number is stamped under
the front passenger seat.
This number is also on the certifi-
cation label on the driver’s side
center pillar.
Page 418 of 468
418 6-1. Specifications

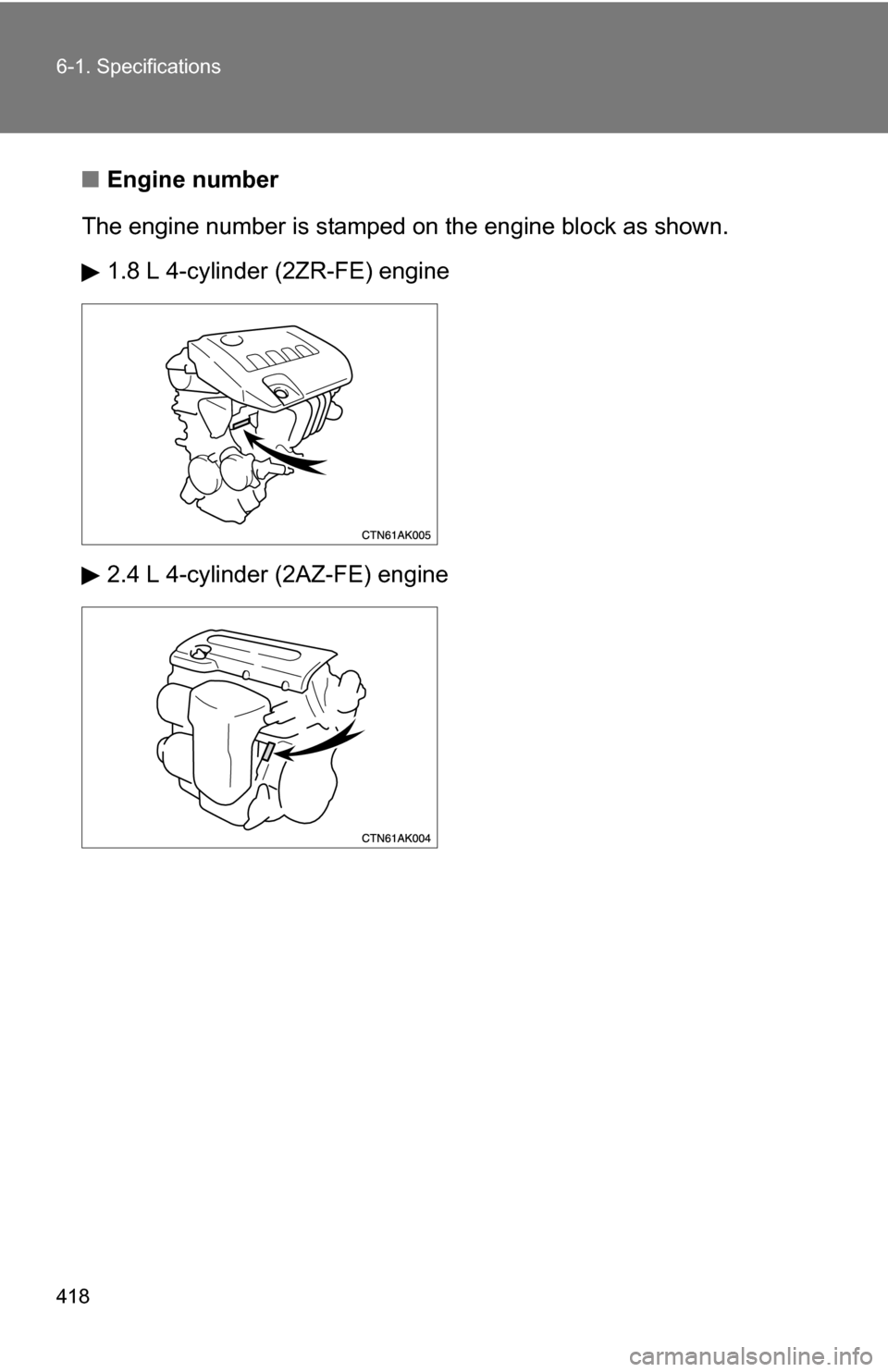

■Engine number
The engine number is stamped on the engine bl ock as shown.
1.8 L 4-cylinder (2ZR-FE) engine
2.4 L 4-cylinder (2AZ-FE) engine
Page 419 of 468
419
6-1. Specifications
6
Vehicle specifications

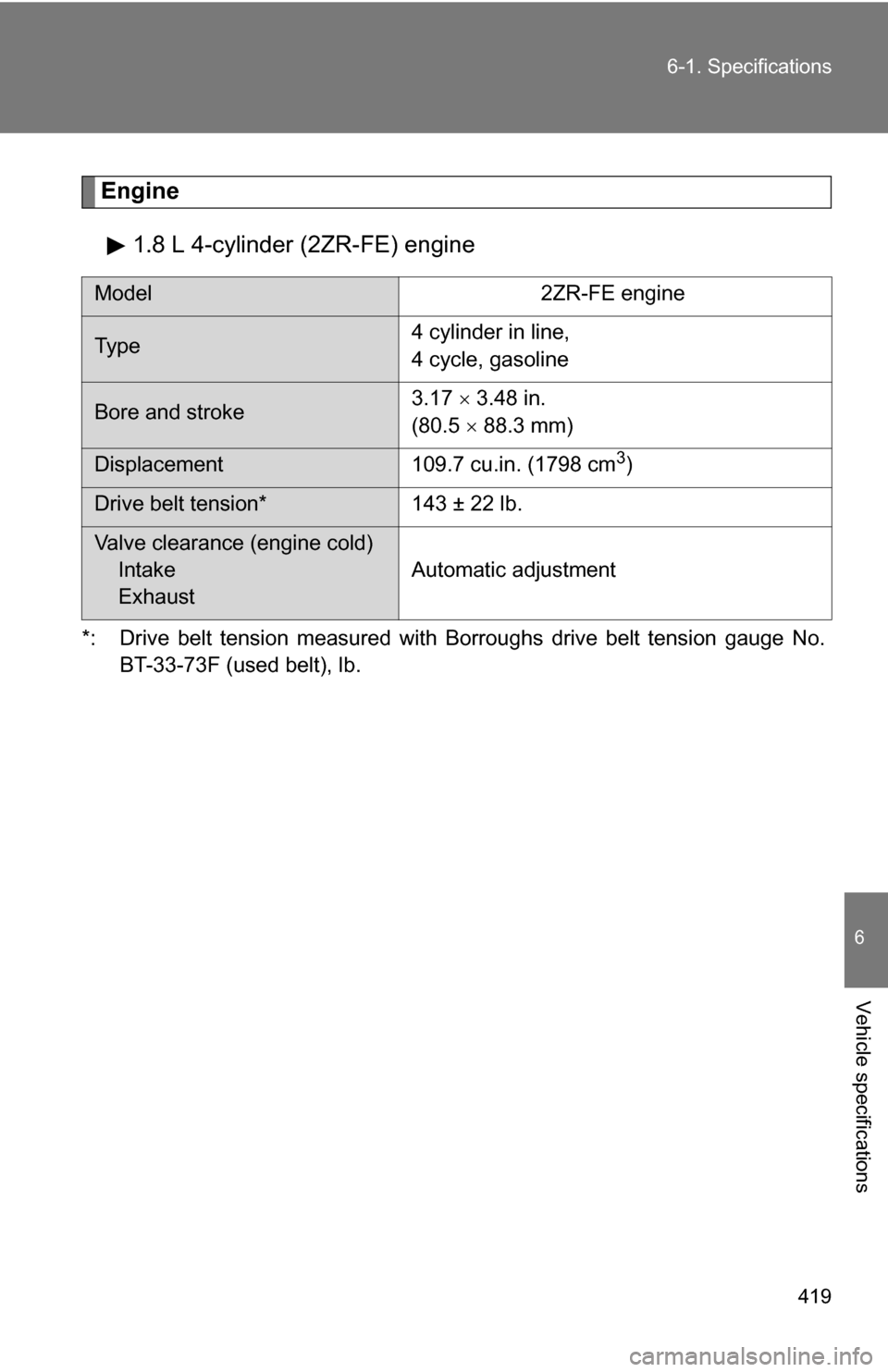

Engine
1.8 L 4-cylinder (2ZR-FE) engine
*: Drive belt tension measured with Borroughs drive belt tension gauge No. BT-33-73F (used belt), lb.
Model 2ZR-FE engine
Ty p e4 cylinder in line,
4 cycle, gasoline
Bore and stroke3.17
3.48 in.
(80.5 88.3 mm)
Displacement 109.7 cu.in. (1798 cm3)
Drive belt tension* 143 ± 22 lb.
Valve clearance (engine cold)
Intake
Exhaust Automatic adjustment
Page 420 of 468

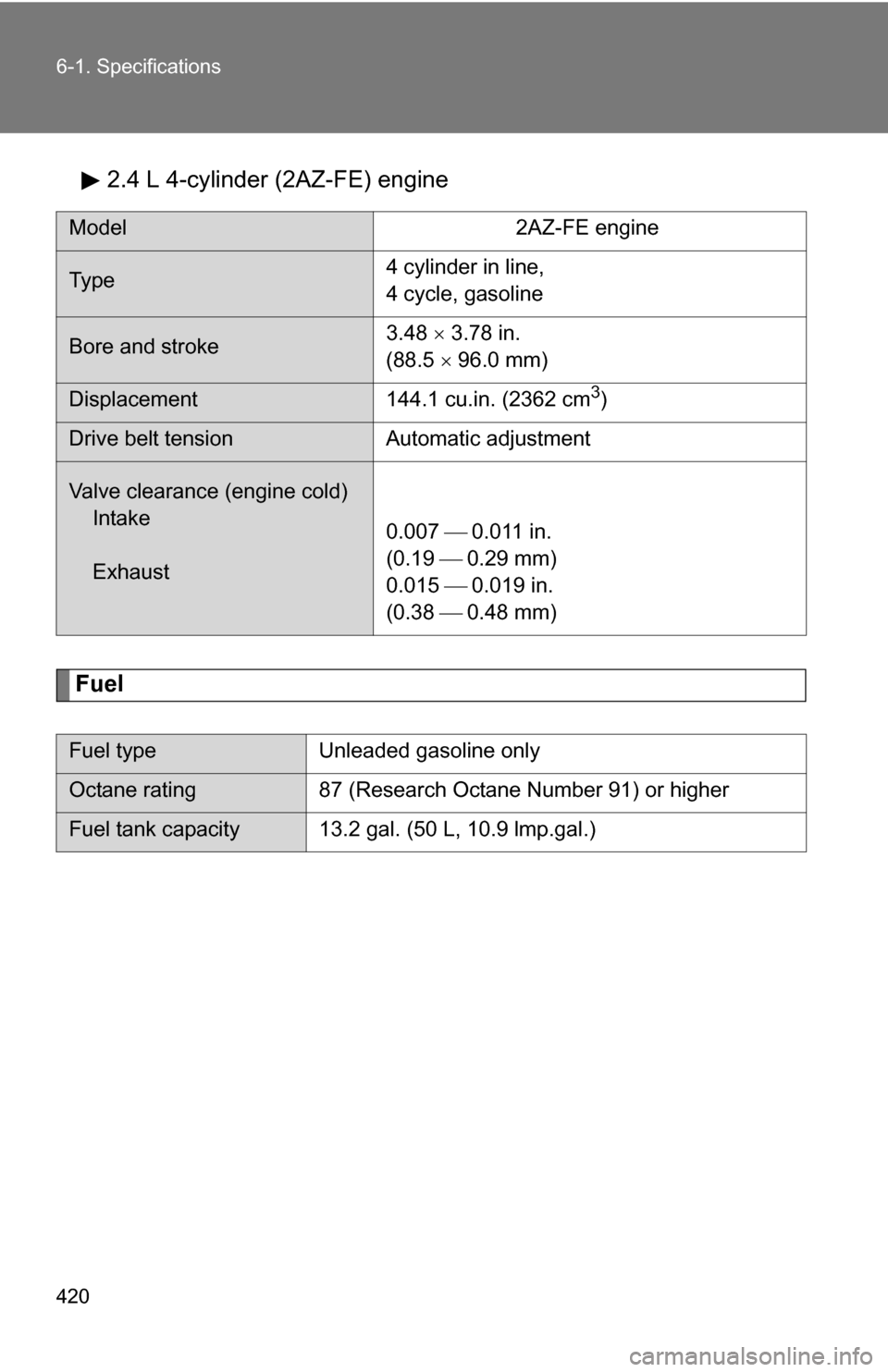

420 6-1. Specifications
2.4 L 4-cylinder (2AZ-FE) engine
Fuel
Model2AZ-FE engine
Ty pe4 cylinder in line,
4 cycle, gasoline
Bore and stroke3.48
3.78 in.
(88.5 96.0 mm)
Displacement 144.1 cu.in. (2362 cm3)
Drive belt tensionAutomatic adjustment
Valve clearance (engine cold)
Intake
Exhaust 0.007
0.011 in.
(0.19 0.29 mm)
0.015 0.019 in.
(0.38 0.48 mm)
Fuel type Unleaded gasoline only
Octane rating 87 (Research Octane Number 91) or higher
Fuel tank capacity 13.2 gal. (50 L, 10.9 lmp.gal.)
