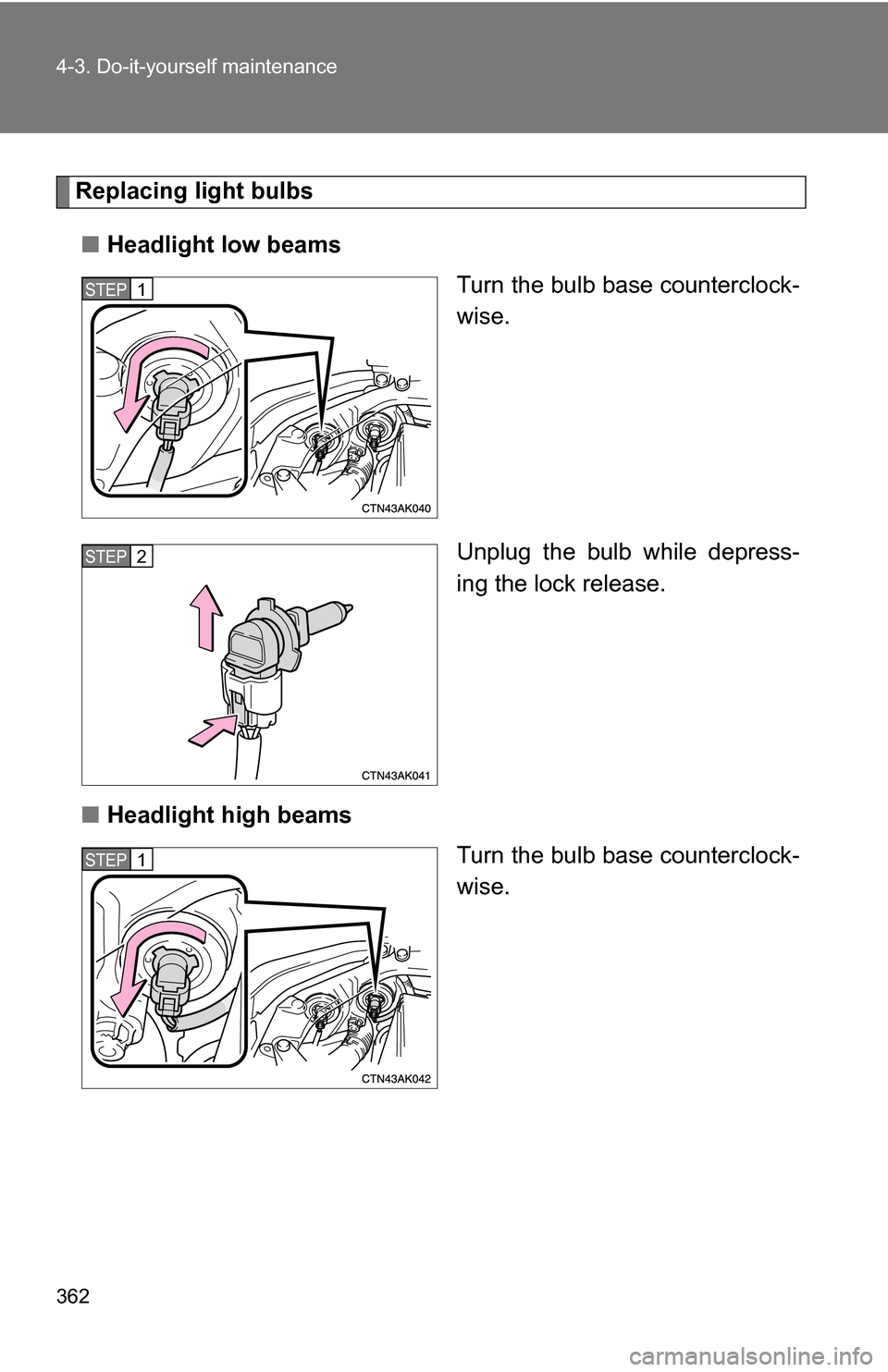

362 4-3. Do-it-yourself maintenance
Replacing light bulbs■ Headlight low beams
Turn the bulb base counterclock-
wise.
Unplug the bulb while depress-
ing the lock release.
■ Headlight high beams
Turn the bulb base counterclock-
wise.
STEP 1
STEP 2
STEP 1

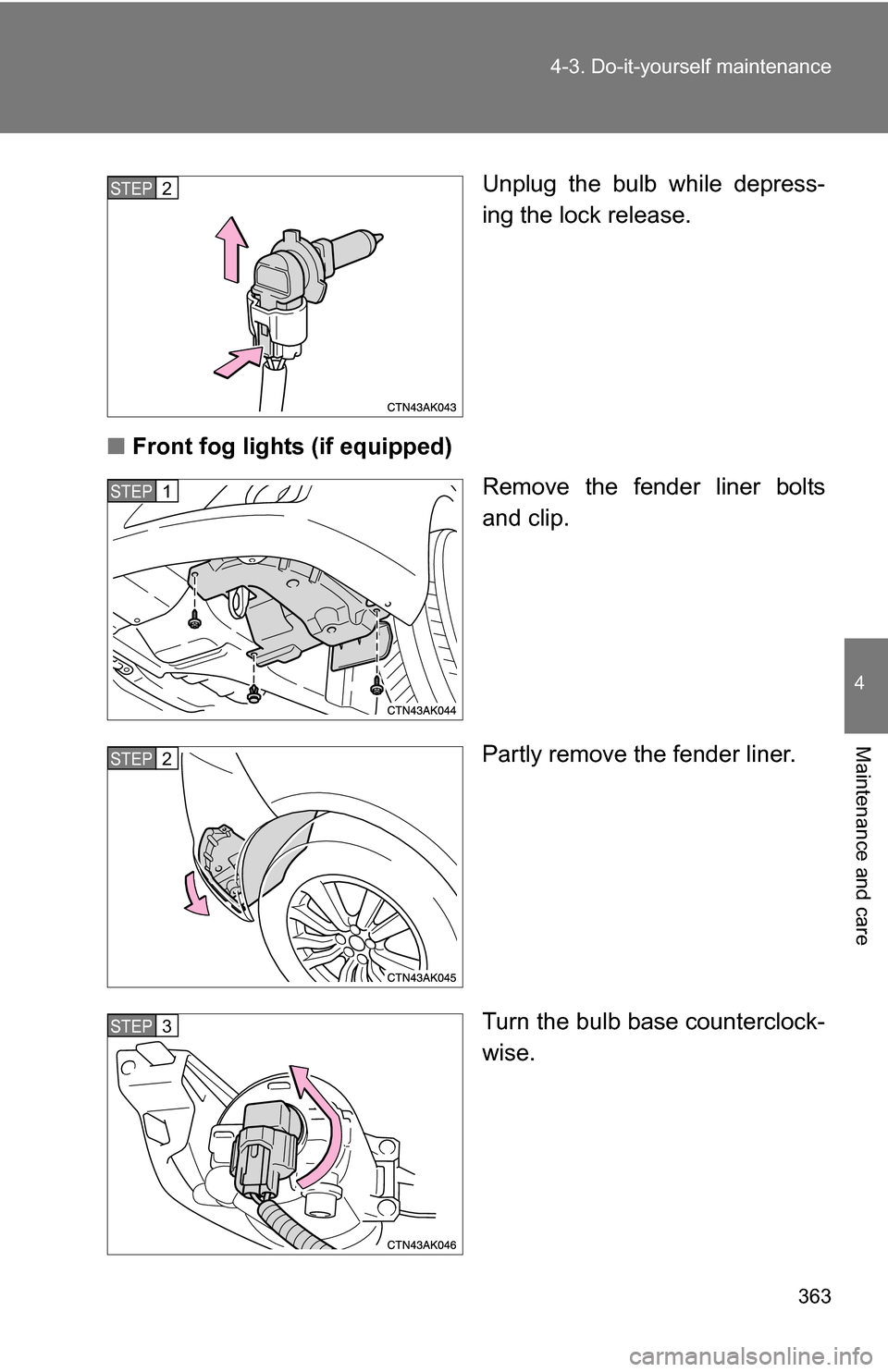

363
4-3. Do-it-yourself maintenance
4
Maintenance and care
Unplug the bulb while depress-
ing the lock release.
■ Front fog lights (if equipped)
Remove the fender liner bolts
and clip.
Partly remove the fender liner.
Turn the bulb base counterclock-
wise.STEP 2
STEP 1
STEP 2
STEP 3

365
4-3. Do-it-yourself maintenance
4
Maintenance and care
Partly remove the fender liner
and turn the bulb base counter-
clockwise.
Front side marker light
Front turn signal/parking light
Remove the light bulb. Front side marker light
Front turn signal/parking lightSTEP 3
STEP 4

366 4-3. Do-it-yourself maintenance
■Stop/tail and rear side marker lights, and rear turn signal
lights
Open the trunk lid.
Remove the luggage trim cover
clips. Partly remove the luggage
trim cover.
Type A Turn the bulb base counterclock-
wise.
Stop/tail and rear side marker
light
Rear turn signal light
Remove the light bulb. Stop/tail and rear side marker
light
Rear turn signal light
STEP 1
STEP 2
STEP 3
STEP 4

367
4-3. Do-it-yourself maintenance
4
Maintenance and care
Type B
Turn the bulb base counterclock-
wise.
Stop/tail and rear side marker
light
Rear turn signal light
Remove the light bulb. Stop/tail and rear side marker
light
Rear turn signal light
■ Back-up light
Open the trunk lid and remove
the cover.
Turn the bulb base counterclock-
wise.
STEP 3
STEP 4
STEP 1
STEP 2

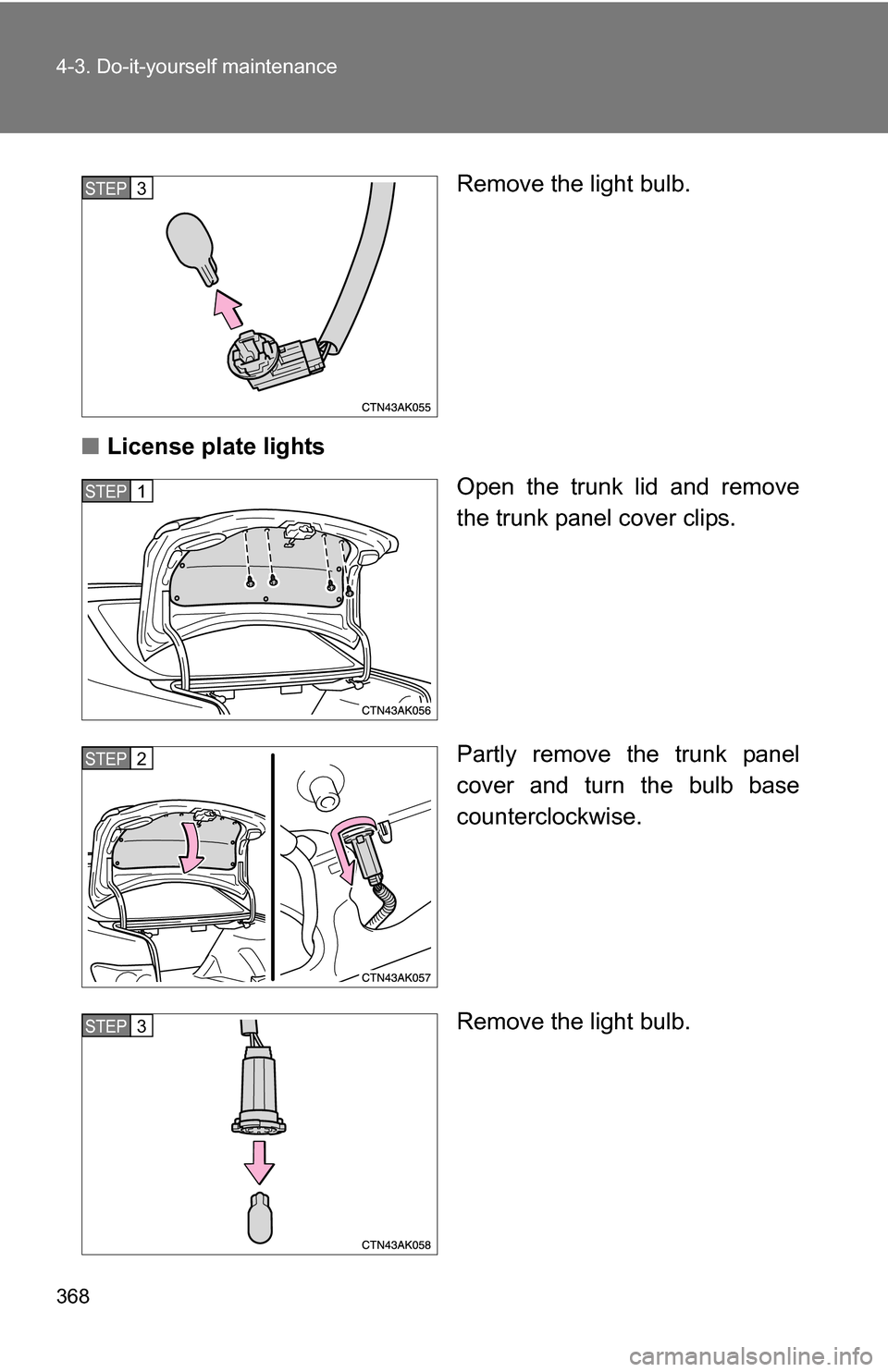

368 4-3. Do-it-yourself maintenance
Remove the light bulb.
■ License plate lights
Open the trunk lid and remove
the trunk panel cover clips.
Partly remove the trunk panel
cover and turn the bulb base
counterclockwise.
Remove the light bulb.STEP 3
STEP 1
STEP 2
STEP 3

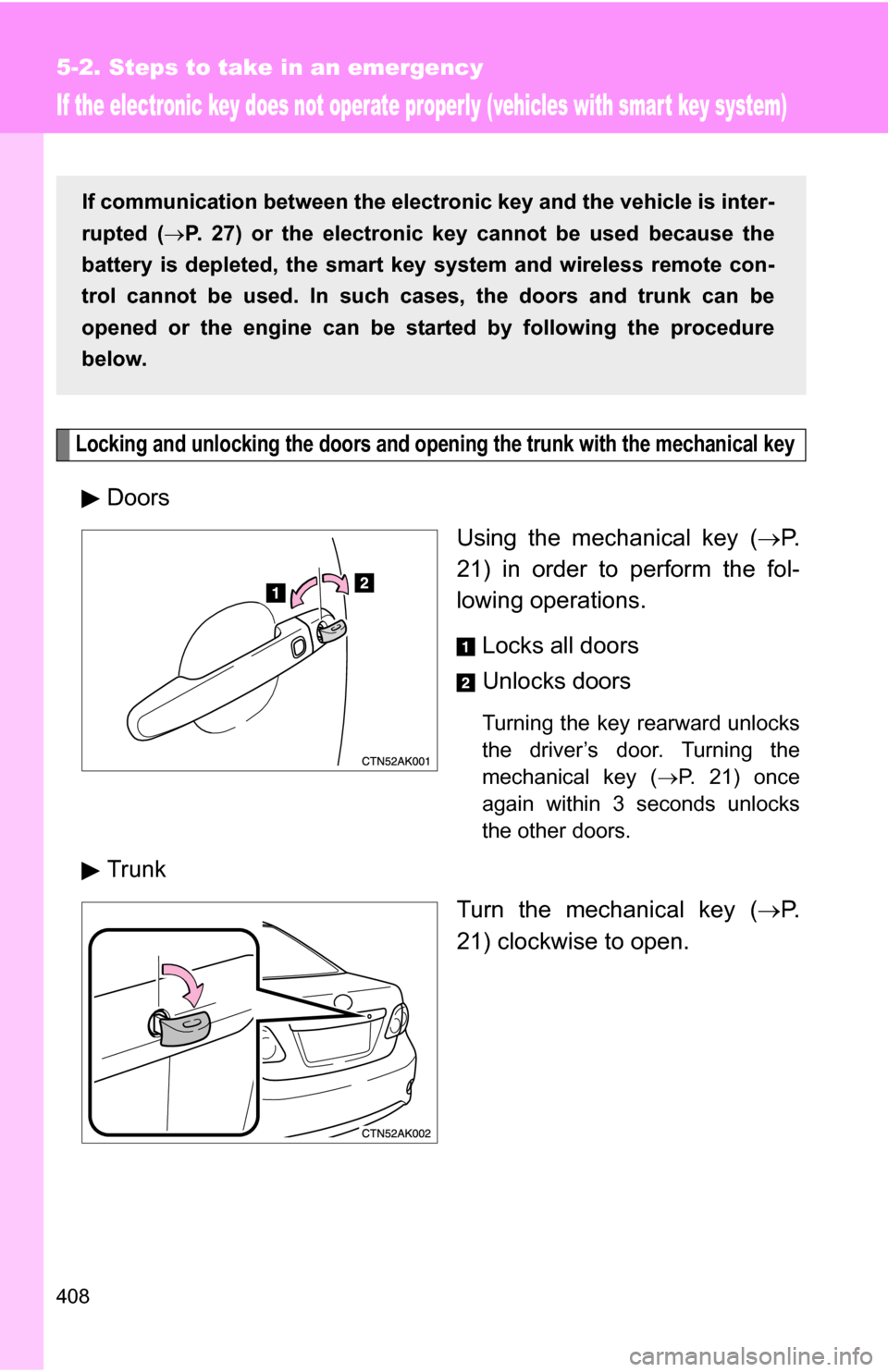

408
5-2. Steps to take in an emergency
If the electronic key does not operate properly (vehicles with smart key system)
Locking and unlocking the doors and opening the trunk with the mechanical key
DoorsUsing the mechanical key (P.
21) in order to perform the fol-
lowing operations.
Locks all doors
Unlocks doors
Turning the key rearward unlocks
the driver’s door. Turning the
mechanical key ( P. 21) once
again within 3 seconds unlocks
the other doors.
Trunk
Turn the mechanical key (P.
21) clockwise to open.
If communication between the elect ronic key and the vehicle is inter-
rupted ( P. 27) or the electronic key cannot be used because the
battery is depleted, the smart key system and wireless remote con-
trol cannot be used. In such cases, the doors and trunk can be
opened or the engine can be st arted by following the procedure
below.

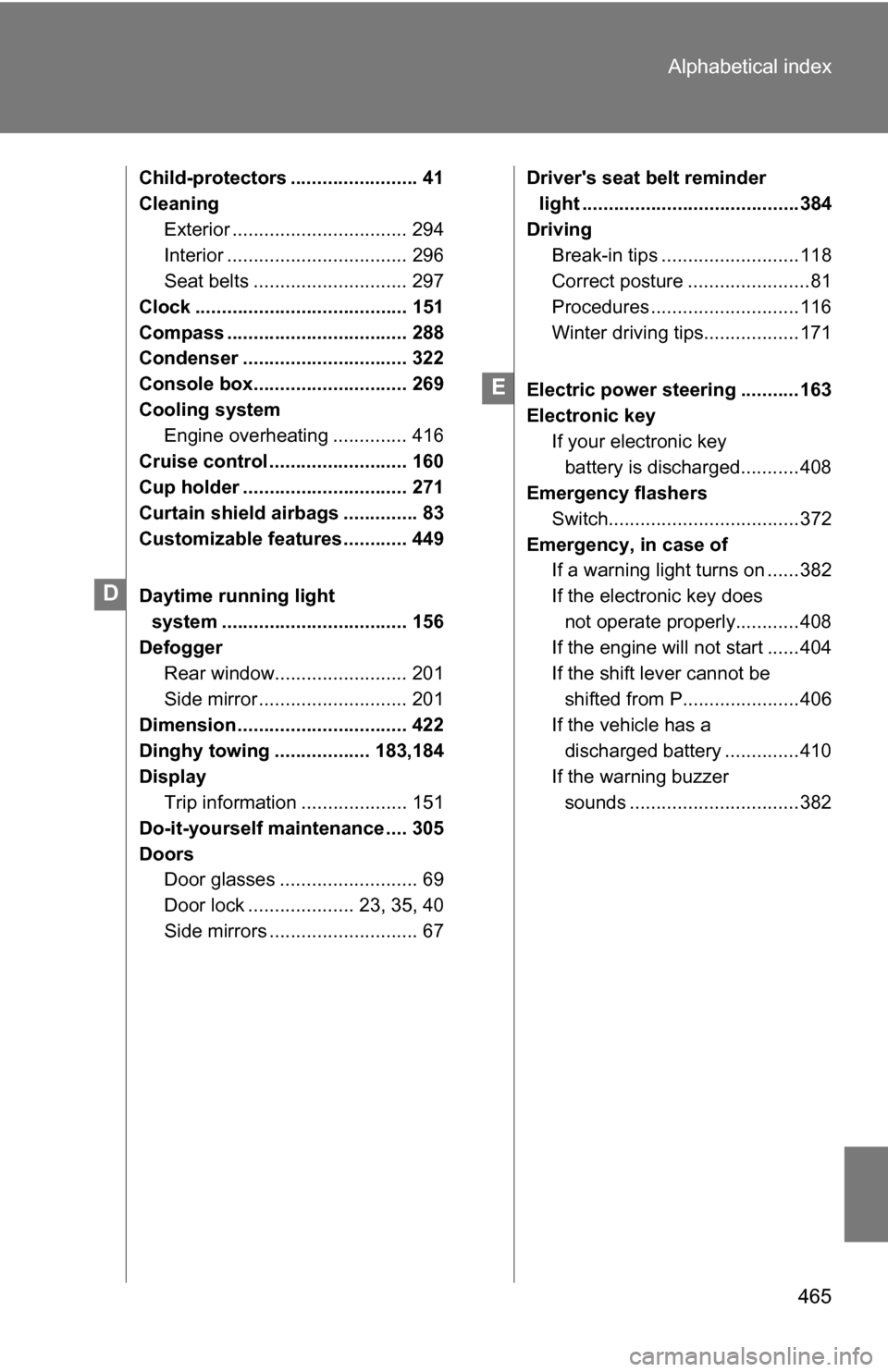

465
Alphabetical index
Child-protectors ........................ 41
Cleaning
Exterior ................................. 294
Interior .................................. 296
Seat belts ............................. 297
Clock ........................................ 151
Compass .................................. 288
Condenser ............................... 322
Console box............................. 269
Cooling system Engine overheating .............. 416
Cruise control .......................... 160
Cup holder ............................... 271
Curtain shield airbags .............. 83
Customizable features ............ 449
Daytime running light system ................................... 156
Defogger
Rear window......................... 201
Side mirror ............................ 201
Dimension ................................ 422
Dinghy towing .................. 183,184
Display Trip information .................... 151
Do-it-yourself maintenance .... 305
Doors Door glasses .......................... 69
Door lock .................... 23, 35, 40
Side mirrors ............................ 67 Driver's seat belt reminder
light .........................................384
Driving Break-in tips ..........................118
Correct posture .......................81
Procedures ............................116
Winter driving tips..................171
Electric power steering ...........163
Electronic key If your electronic key battery is discharged...........408
Emergency flashers
Switch....................................372
Emergency, in case of If a warning light turns on ......382
If the electronic key does
not operate properly............ 408
If the engine will not start ......404
If the shift lever cannot be
shifted from P......................406
If the vehicle has a
discharged battery ..............410
If the warning buzzer sounds ................................382
