gas type TOYOTA COROLLA 2010 10.G Owners Manual

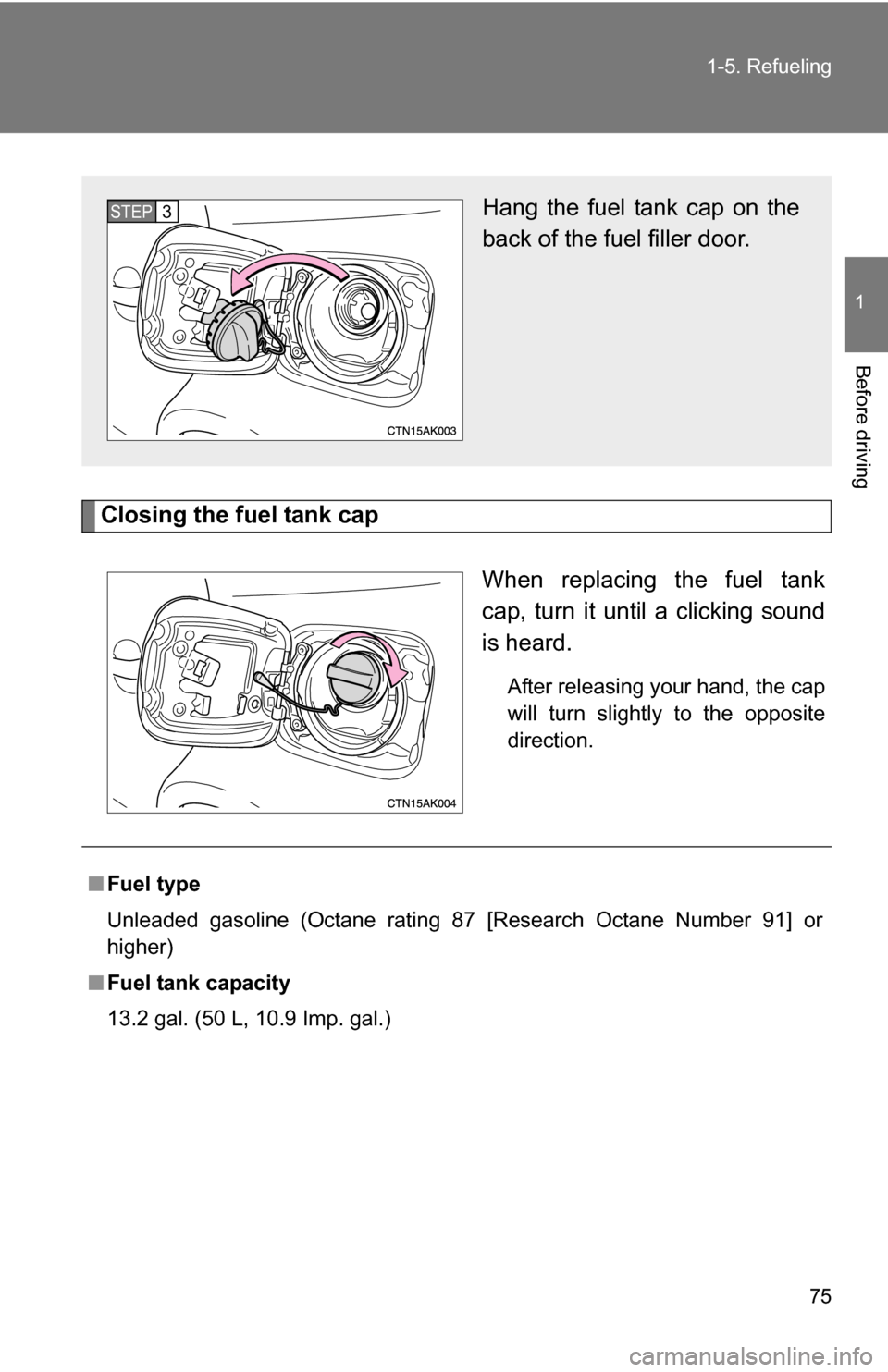

75
1-5. Refueling
1
Before driving
Closing the fuel tank cap
When replacing the fuel tank
cap, turn it until a clicking sound
is heard.
After releasing your hand, the cap
will turn slightly to the opposite
direction.
Hang the fuel tank cap on the
back of the fuel filler door.STEP 3
■Fuel type
Unleaded gasoline (Octane rating 87 [Research Octane Number 91] or
higher)
■ Fuel tank capacity
13.2 gal. (50 L, 10.9 Imp. gal.)

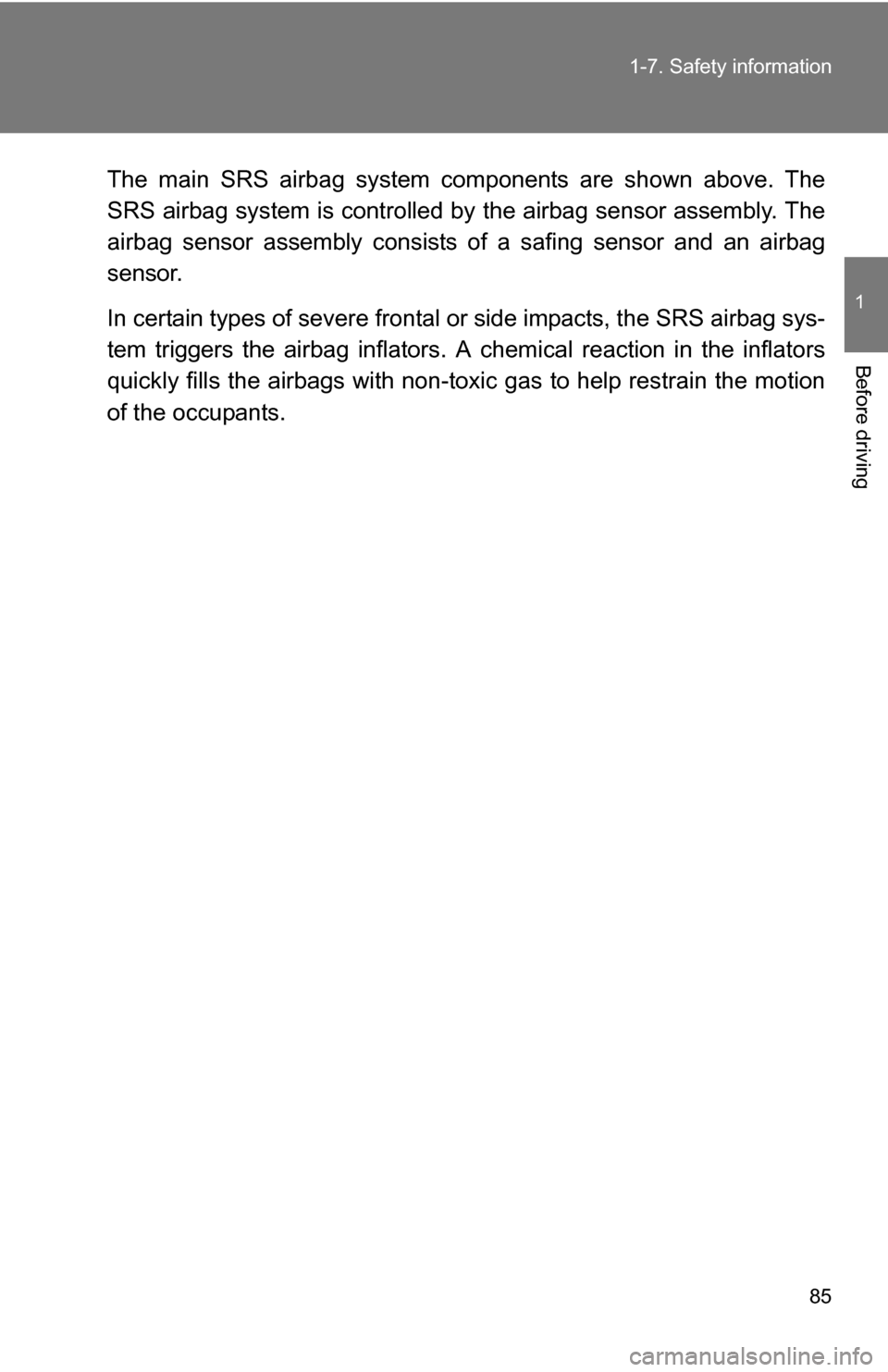

85
1-7. Safety information
1
Before driving
The main SRS airbag system components are shown above. The
SRS airbag system is controlled by
the airbag sensor assembly. The
airbag sensor assembly consists of a safing sensor and an airbag
sensor.
In certain types of severe frontal or side impacts, the SRS airbag sys-
tem triggers the airbag inflators. A chemical reaction in the inflators
quickly fills the airbags with non-toxic gas to help rest rain the motion
of the occupants.

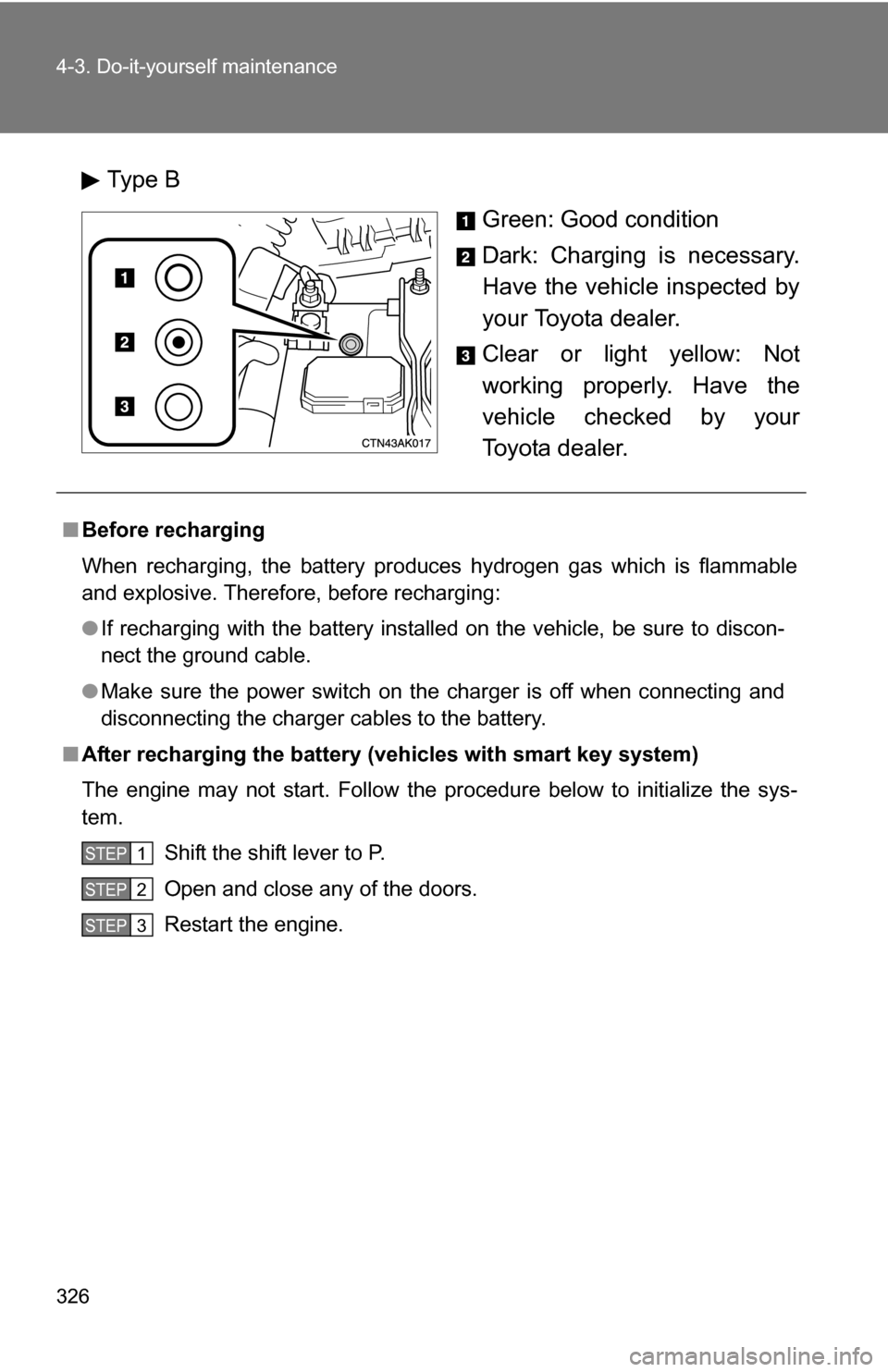

326 4-3. Do-it-yourself maintenance
Type BGreen: Good condition
Dark: Charging is necessary.
Have the vehicle inspected by
your Toyota dealer.
Clear or light yellow: Not
working properly. Have the
vehicle checked by your
Toyota dealer.
■Before recharging
When recharging, the battery produces hydrogen gas which is flammable
and explosive. Therefore, before recharging:
●If recharging with the battery installed on the vehicle, be sure to discon-
nect the ground cable.
● Make sure the power switch on the charger is off when connecting and
disconnecting the charger cables to the battery.
■ After recharging the battery (vehicles with smart key system)
The engine may not start. Follow the procedure below to initialize the sys-
tem.
Shift the shift lever to P.
Open and close any of the doors.
Restart the engine.
STEP 1
STEP 2
STEP 3

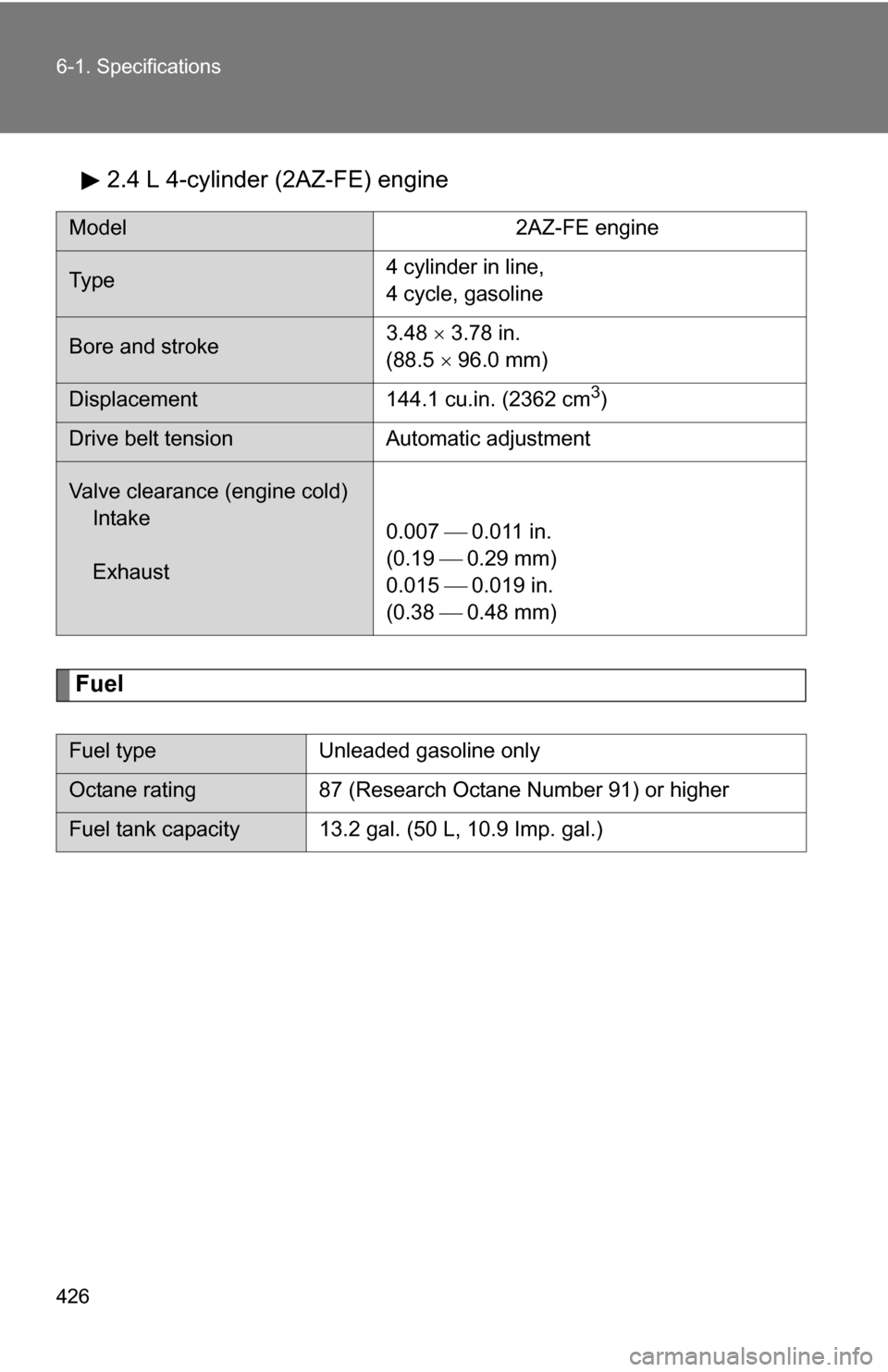

426 6-1. Specifications
2.4 L 4-cylinder (2AZ-FE) engine
Fuel
Model2AZ-FE engine
Ty pe4 cylinder in line,
4 cycle, gasoline
Bore and stroke3.48 
3.78 in.
(88.5  96.0 mm)
Displacement 144.1 cu.in. (2362 cm3)
Drive belt tensionAutomatic adjustment
Valve clearance (engine cold)
Intake
Exhaust 0.007 
0.011 in.
(0.19 0.29 mm)
0.015  0.019 in.
(0.38 0.48 mm)
Fuel type Unleaded gasoline only
Octane rating 87 (Research Octane Number 91) or higher
Fuel tank capacity 13.2 gal. (50 L, 10.9 Imp. gal.)

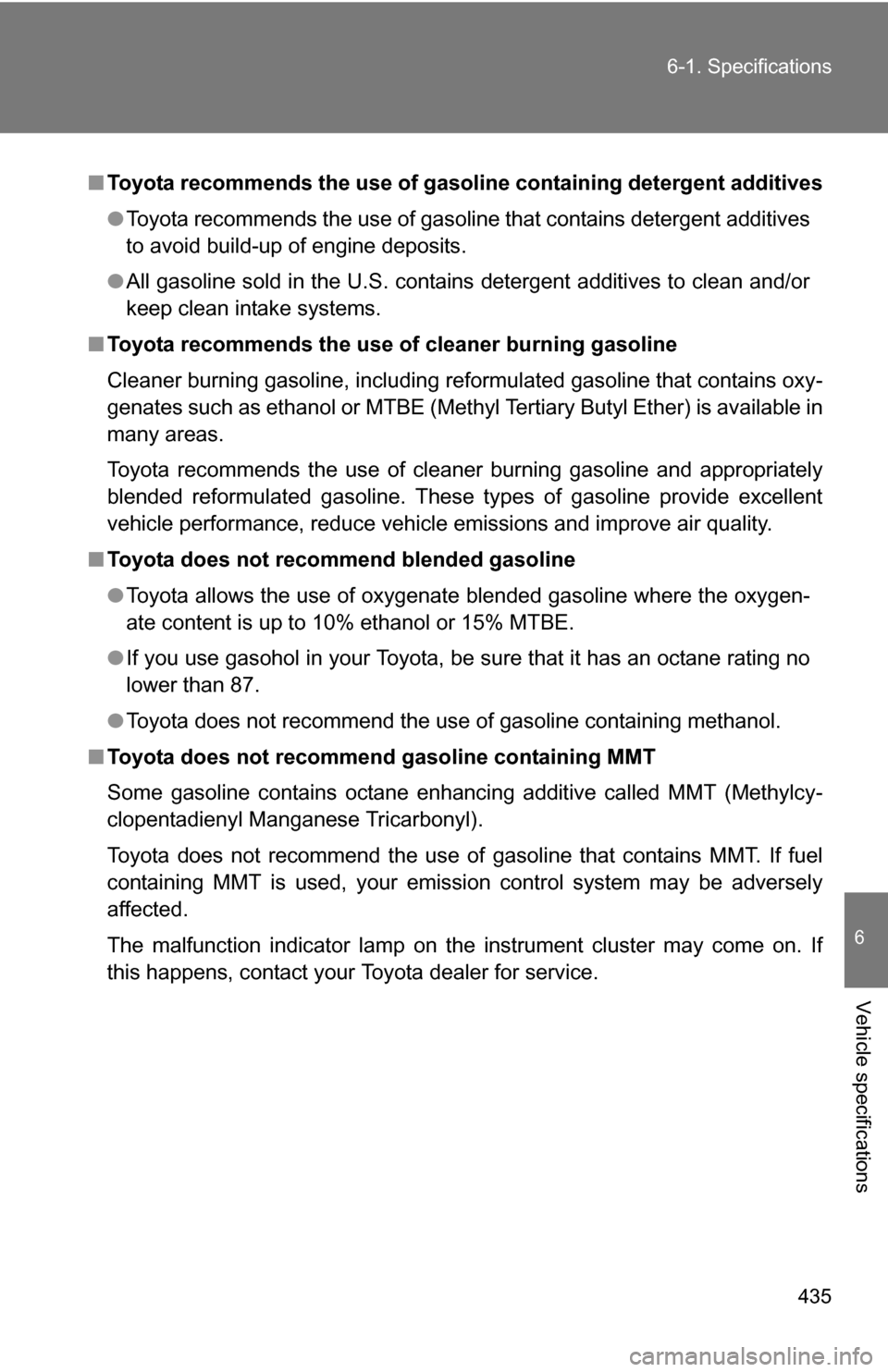

435
6-1. Specifications
6
Vehicle specifications
■
Toyota recommends the use of gaso line containing detergent additives
● Toyota recommends the use of gasoline that contains detergent additives
to avoid build-up of engine deposits.
● All gasoline sold in the U.S. contains detergent additives to clean and/or
keep clean intake systems.
■ Toyota recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.
Toyota recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.
■ Toyota does not recommend blended gasoline
●Toyota allows the use of oxygenate blended gasoline where the oxygen-
ate content is up to 10% ethanol or 15% MTBE.
● If you use gasohol in your Toyota, be sure that it has an octane rating no
lower than 87.
● Toyota does not recommend the use of gasoline containing methanol.
■ Toyota does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Toyota dealer for service.

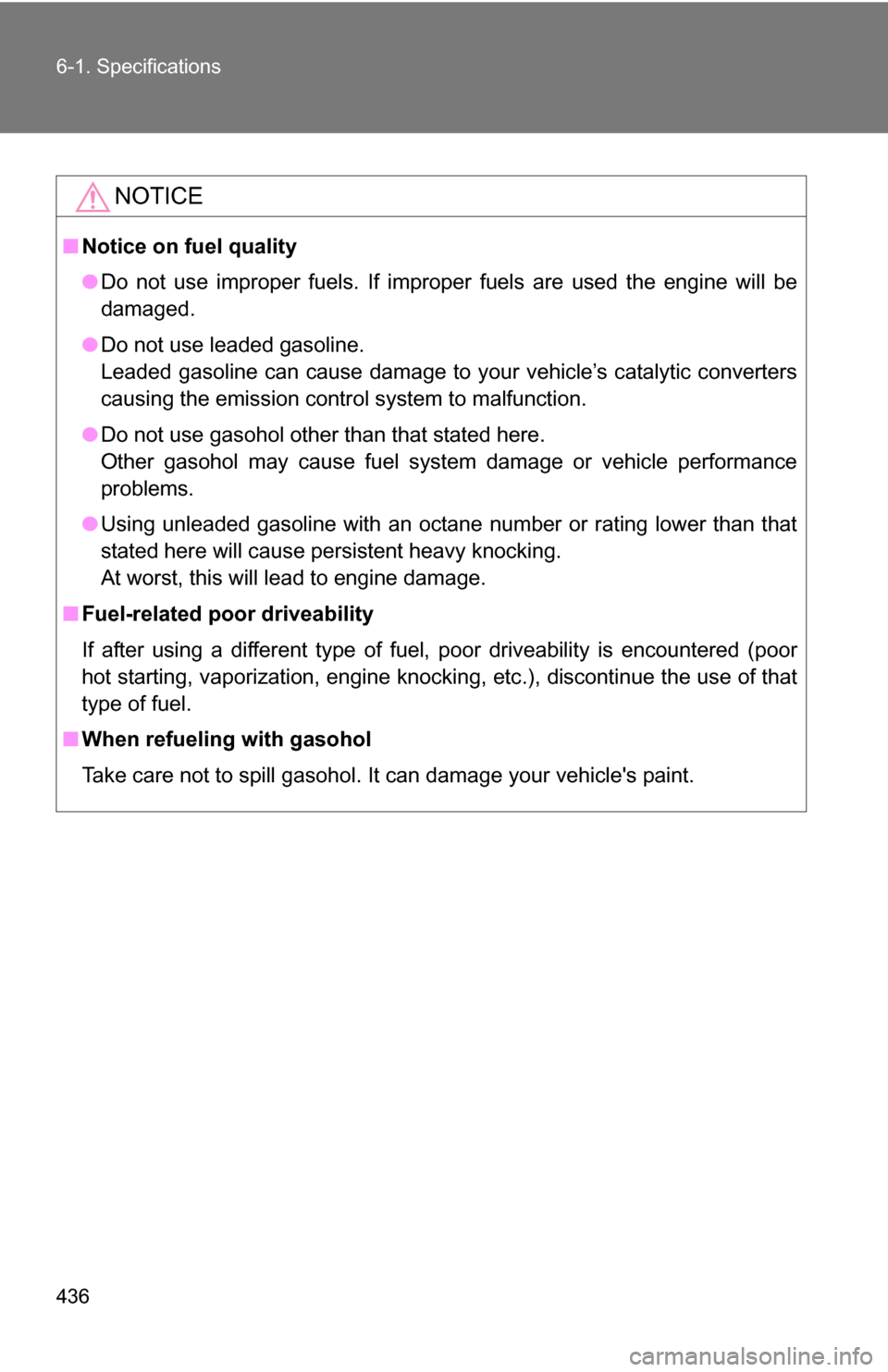

436 6-1. Specifications
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s catalytic converters
causing the emission control system to malfunction.
● Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance
problems.
● Using unleaded gasoline with an octane number or rating lower than that
stated here will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■ Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor
hot starting, vaporization, engine knocking, etc.), discontinue the use of that
type of fuel.
■ When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle's paint.

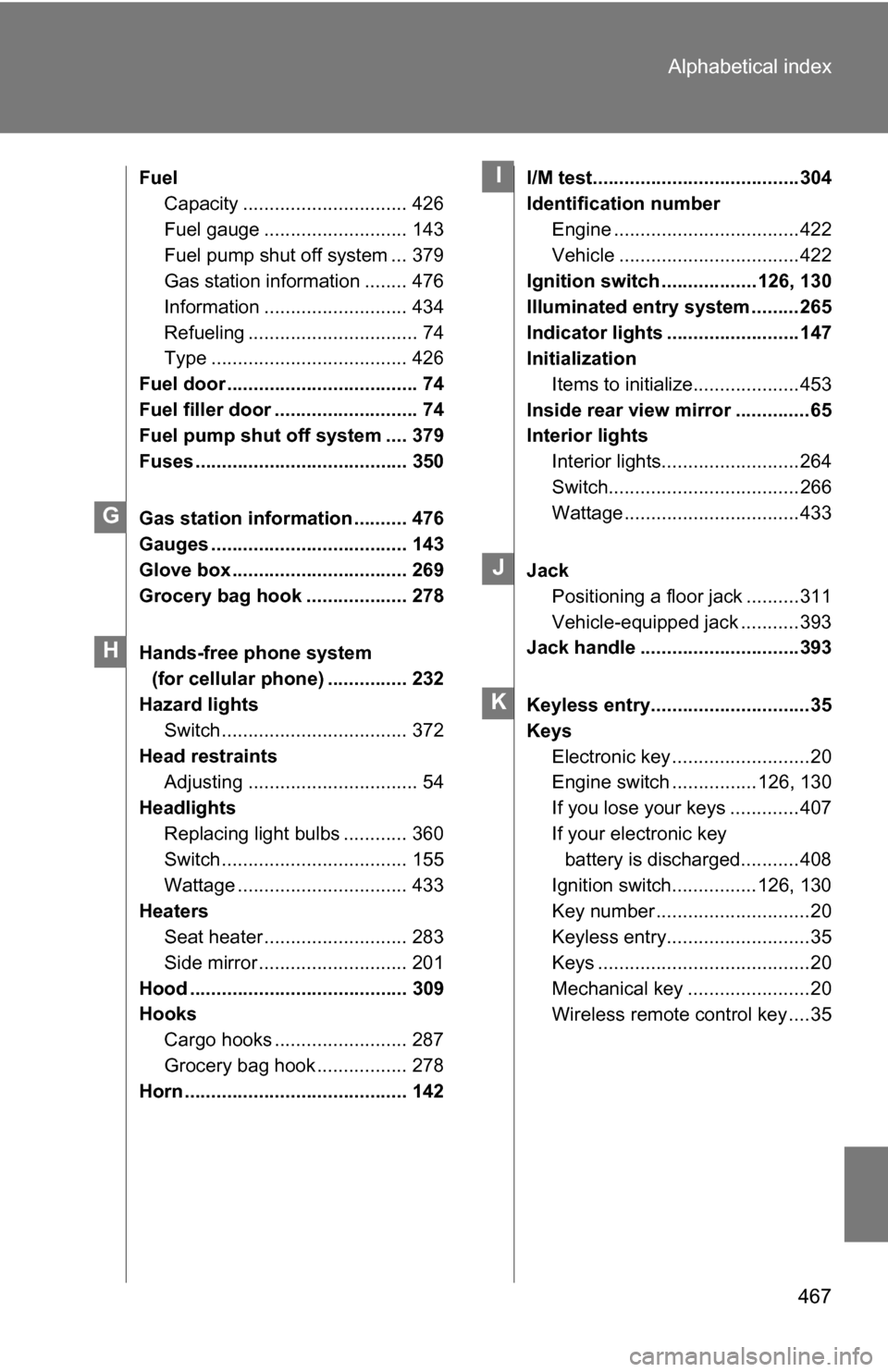

467
Alphabetical index
Fuel
Capacity ............................... 426
Fuel gauge ........................... 143
Fuel pump shut off system ... 379
Gas station information ........ 476
Information ........................... 434
Refueling ................................ 74
Type ..................................... 426
Fuel door .................................... 74
Fuel filler door ........................... 74
Fuel pump shut off system .... 379
Fuses ........................................ 350
Gas station information .......... 476
Gauges ..................................... 143
Glove box ................................. 269
Grocery bag hook ................... 278
Hands-free phone system (for cellular phone) ............... 232
Hazard lights
Switch ................................... 372
Head restraints Adjusting ................................ 54
Headlights Replacing light bulbs ............ 360
Switch ................................... 155
Wattage ................................ 433
Heaters Seat heater ........................... 283
Side mirror ............................ 201
Hood ......................................... 309
Hooks Cargo hooks ......................... 287
Grocery bag hook ................. 278
Horn .......................................... 142 I/M test.......................................304
Identification number
Engine ...................................422
Vehicle ..................................422
Ignition switch ..................126, 130
Illuminated entry system .........265
Indicator lights .........................147
Initialization
Items to initialize....................453
Inside rear view mirror ..............65
Interior lights Interior lights..........................264
Switch....................................266
Wattage .................................433
Jack Positioning a floor jack ..........311
Vehicle-equipped jack ...........393
Jack handle ..............................393
Keyless entry..............................35
Keys
Electronic key ..........................20
Engine switch ................126, 130
If you lose your keys .............407
If your electronic key battery is discharged...........408
Ignition switch................126, 130
Key number .............................20
Keyless entry...........................35
Keys ........................................20
Mechanical key .......................20
Wireless remote control key ....35
G
H
I
J
K

476
GAS STATION INFORMATION
Auxiliary catch leverP. 309Trunk openerP. 4 6Fuel filler door P. 7 4
Hood lock release lever
P. 3 0 9
Fuel filler door opener P. 7 4Tire inflation pressure
P. 431
Fuel tank capacity 13.2 gal. (50 L, 10.9 Imp. gal.)
Fuel typeUnleaded gasoline only P. 75, 426
Cold tire inflation pressure P. 431
Engine oil
capacity
(Drain and refill)
1.8 L 4-cyl-
inder (2ZR-
FE) engineqt. (L, Imp. qt.)
With filter 4.4 (4.2, 3.7)
Without filter 4.1 (3.9, 3.4)
2.4 L 4-cyl-
inder (2AZ-
FE) engine With filter 4.0 (3.8, 3.3)
Without filter 3.8 (3.6, 3.2)
Engine oil type
P. 427
