TOYOTA COROLLA 2016 11.G Owners Manual

912. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12J84U)n

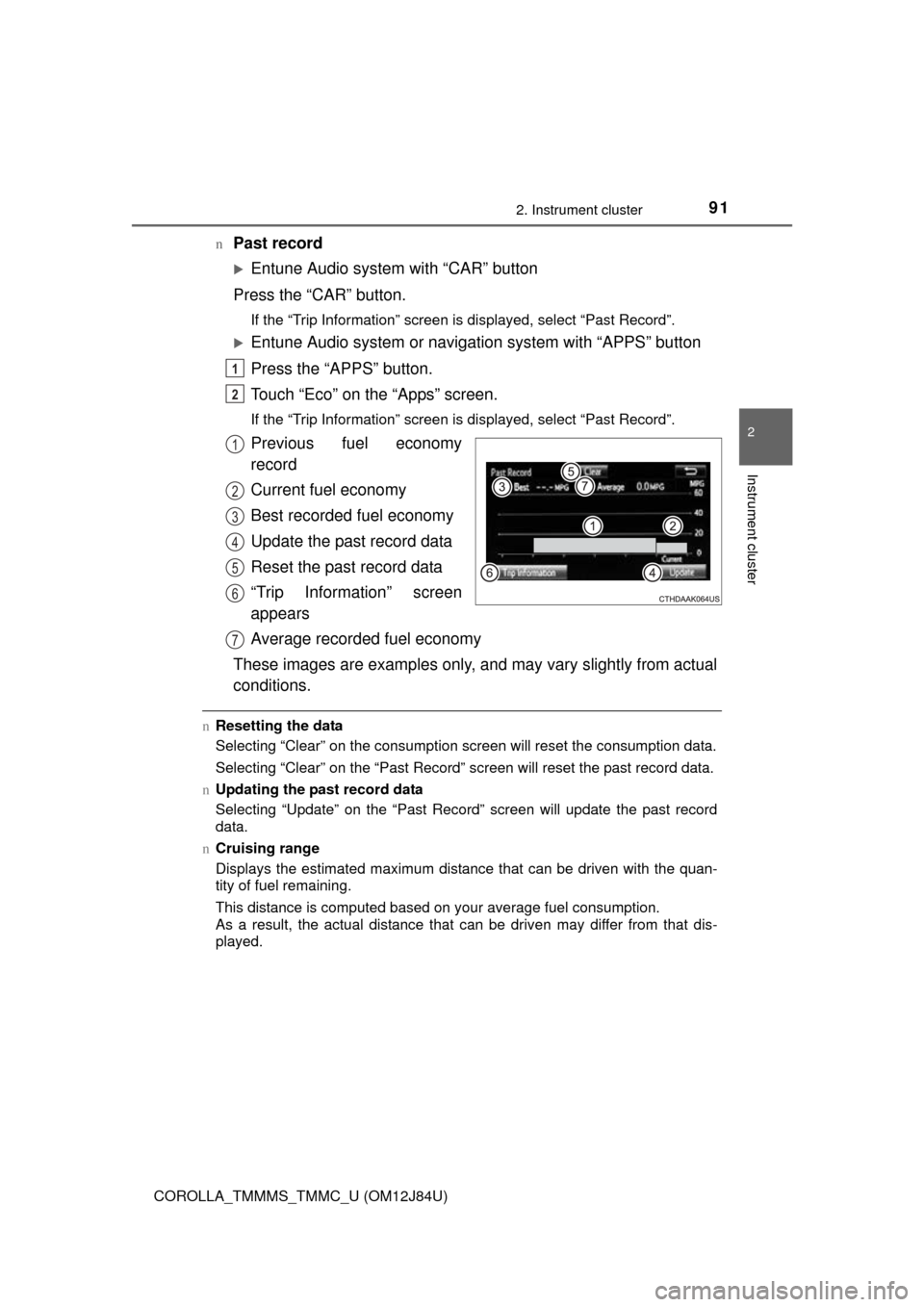

Past record
Entune Audio system with “CAR” button
Press the “CAR” button.
If the “Trip Information” screen is displayed, select “Past Record”.
Entune Audio system or navigation system with “APPS” button
Press the “APPS” button.
Touch “Eco” on the “Apps” screen.
If the “Trip Information” screen is displayed, select “Past Record”.
Previous fuel economy
record
Current fuel economy
Best recorded fuel economy
Update the past record data
Reset the past record data
“Trip Information” screen
appears
Average recorded fuel economy
These images are examples only, and may vary slightly from actual
conditions.
n Resetting the data
Selecting “Clear” on the consumption screen will reset the consumption data.
Selecting “Clear” on the “Past Record” screen will reset the past record data.
n Updating the past record data
Selecting “Update” on the “Past Record” screen will update t\
he past record
data.
n Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.
1
2
1
2
3
4
5
6
7

922. Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12J84U)
During Eco-friendly acceleration
operation (Eco driving), Eco Driv-
ing Indicator Light will turn on.
When the acceleration exceeds
Zone of Eco driving, and when the
vehicle is stopped, the light turns
off.

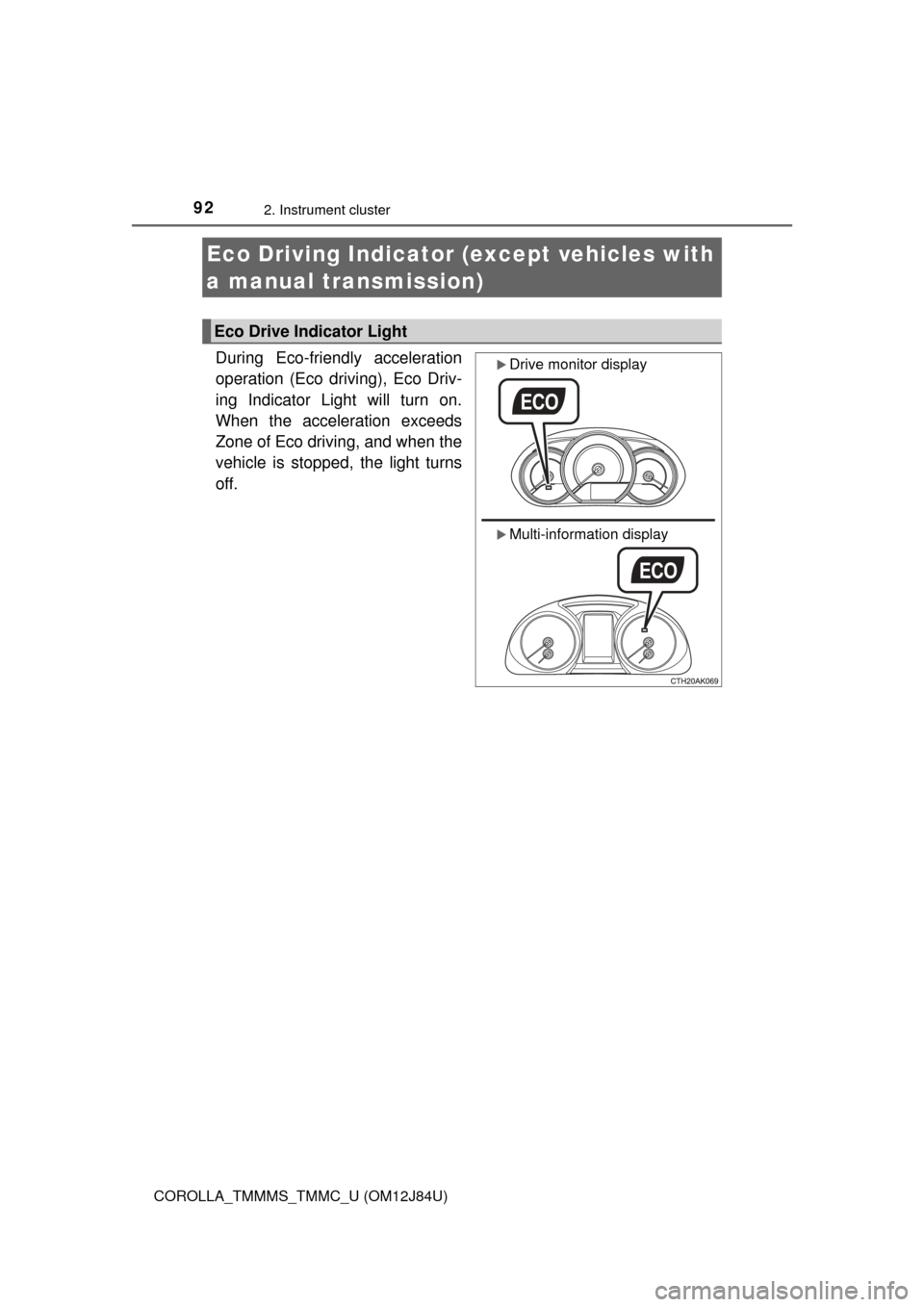

Eco Driving Indicator (except vehicles with
a manual transmission)
Eco Drive Indicator Light
Drive monitor display
Multi-information display

932. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12J84U)
Suggests Zone of Eco driving with
current Eco driving ratio based on
acceleration.Eco driving ratio based on
acceleration
If the acceleration exceeds Zone of
Eco driving, the right side of Eco
Driving Indicator Zone Display
blinks.
Zone of Eco driving
Drive monitor display
( P. 80)
Multi-information display
( P. 86)
nOperation of Eco Driving Indicator
Eco Driving Indicator will not operate in the following conditions:
lThe shift lever is in any position other than D.
l Paddle shift switch
* is operated.
l Sport mode
* is selected.
l The vehicle speed is approximately 80 mph (130 km/h) or higher.
*: If equipped

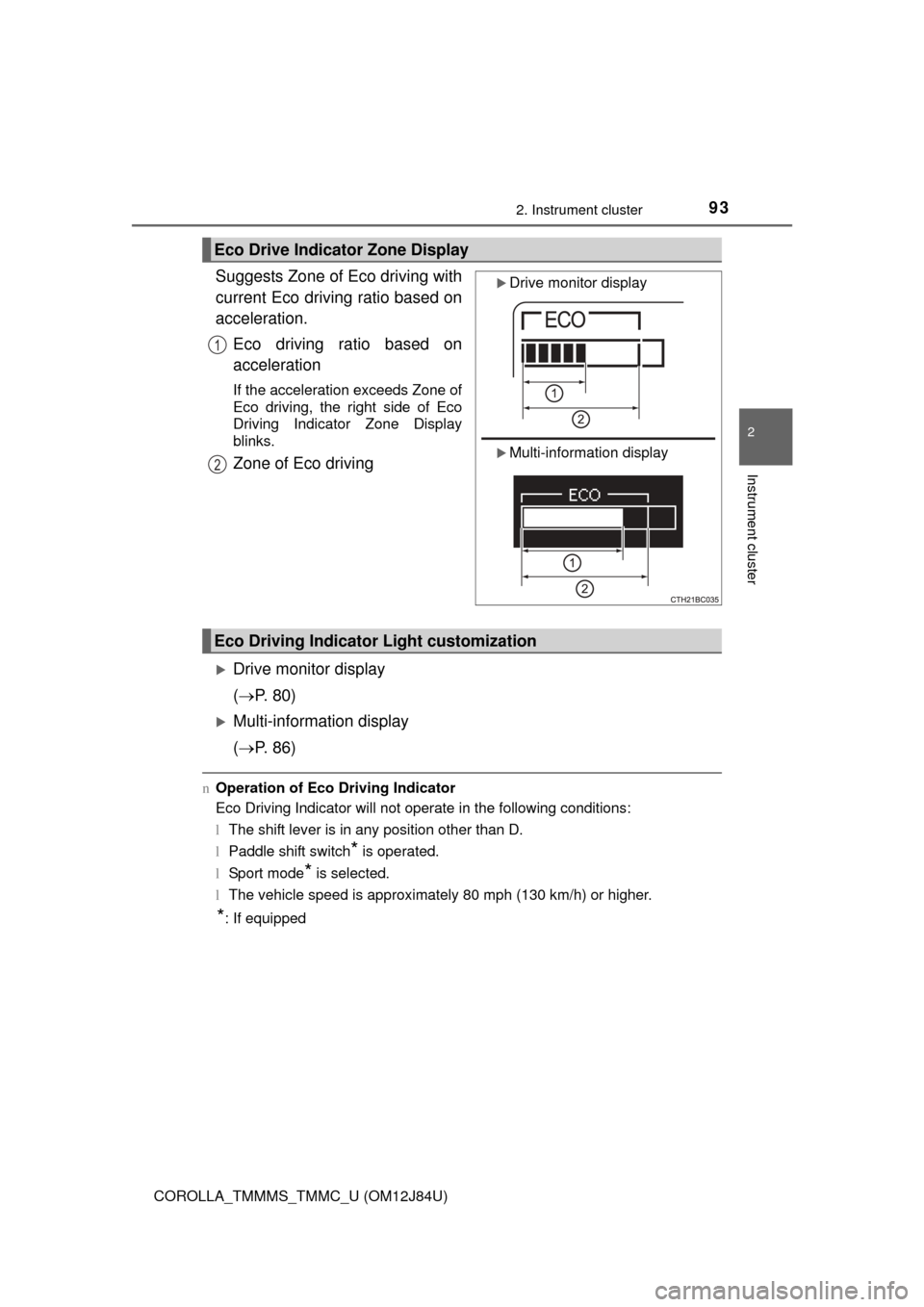

Eco Drive Indicator Zone Display
Drive monitor display
Multi-information display
1
2
Eco Driving Indicator Light customization

942. Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12J84U)

95
3
Operation of
each component
COROLLA_TMMMS_TMMC_U (OM12J84U) 3-1. Key information
Keys .................................... 96
3-2. Opening, closing and locking the doors
Doors ................................ 101
Trunk ................................. 110
Smart key system ............. 115
3-3. Adjusting the seats Front seats ........................ 124
Rear seats......................... 126
Head restraints.................. 128
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 131
Inside rear view mirror ...... 133
Outside rear view mirrors ............................. 135
3-5. Opening and closing the windows
Power windows ................. 137
Moon roof .......................... 141

96
COROLLA_TMMMS_TMMC_U (OM12J84U)
3-1. Key information

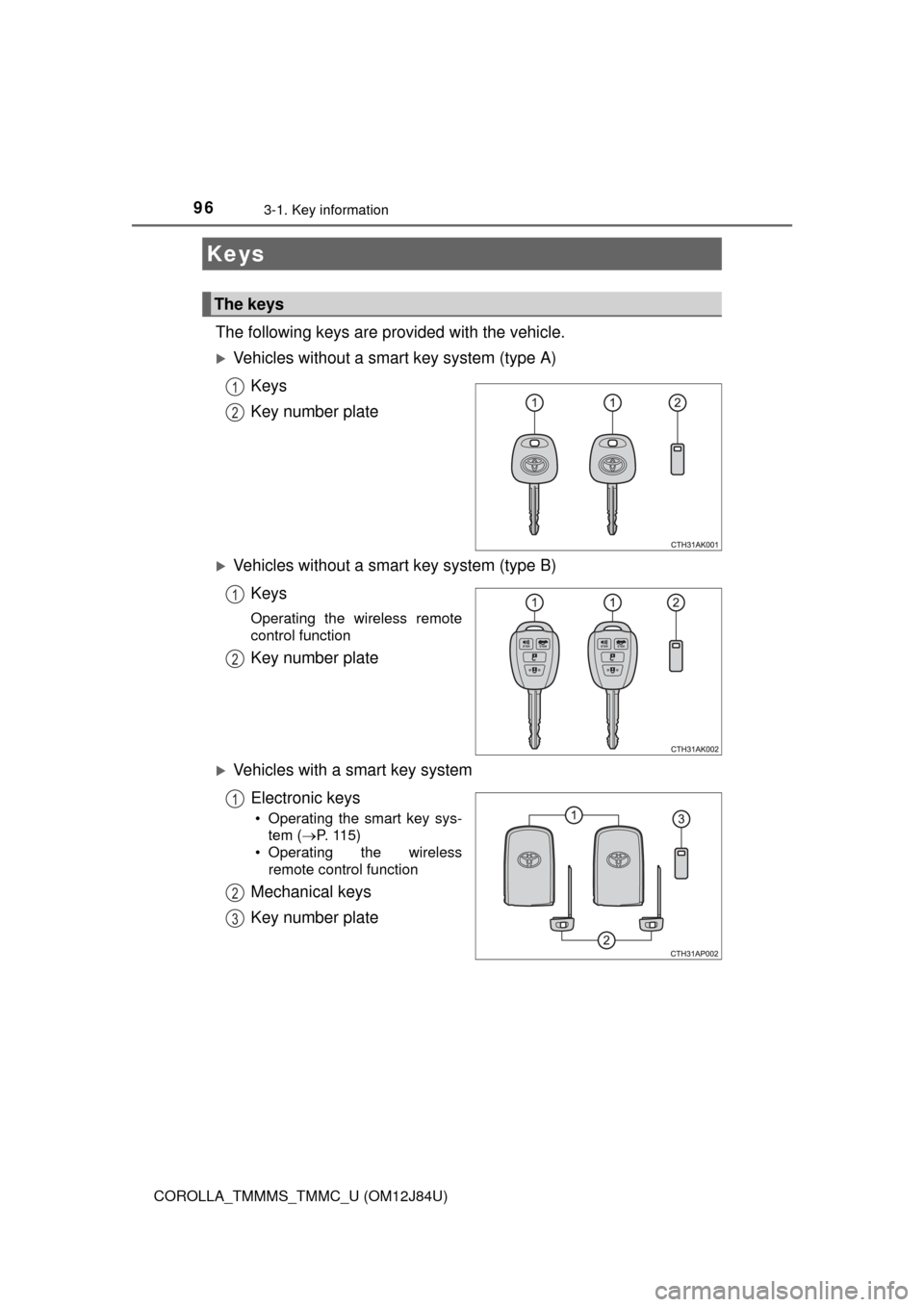

The following keys are provided with the vehicle.
Vehicles without a smart key system (type A)Keys
Key number plate
Vehicles without a smart key system (type B)Keys
Operating the wireless remote
control function
Key number plate
Vehicles with a smart key systemElectronic keys
• Operating the smart key sys-tem ( P. 115)
• Operating the wireless
remote control function
Mechanical keys
Key number plate
Keys
The keys
1
2
1
2
1
2
3

973-1. Key information
3
Operation of each component
COROLLA_TMMMS_TMMC_U (OM12J84U)
Vehicles without a smart key systemLocks all the doors ( P. 101)
Unlocks all the doors
(  P. 101)
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 5 seconds
unlocks the other doors.
Sounds the alarm ( P. 9 8 )
Opens the trunk ( P. 1 1 1 )
Vehicles with a smart key system
Locks all the doors ( P. 102)
Unlocks all the doors
(  P. 102)
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 5 seconds
unlocks the other doors.
Opens the trunk ( P. 1 1 1 )
Sounds the alarm ( P. 9 8 )
To take out the mechanical key,
push the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key bat-
tery is depleted or the entry function does not operate properly, you will
need the mechanical key. ( P. 535)

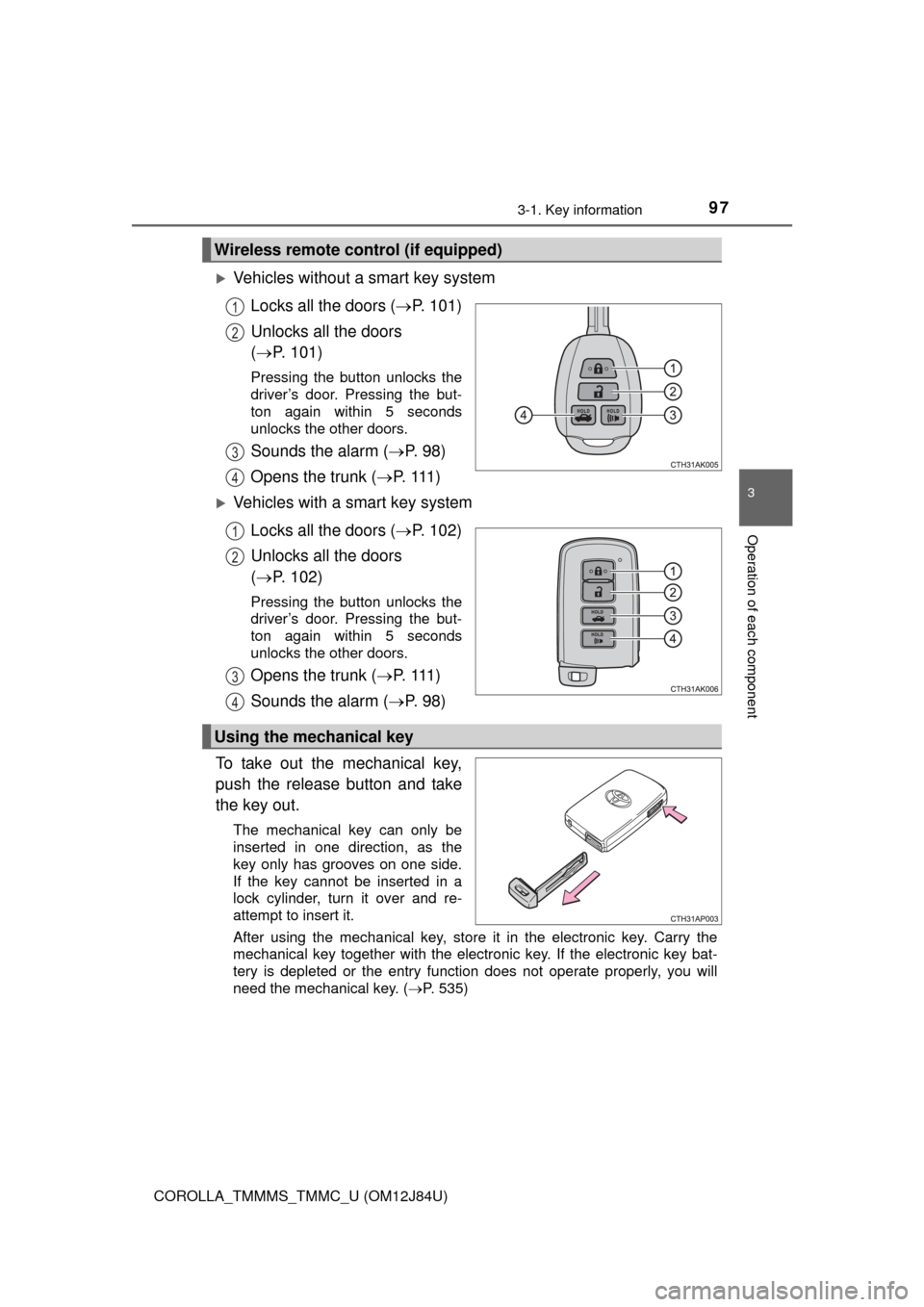

Wireless remote control (if equipped)
1
2
3
4
1
2
3
4
Using the mechanical key

983-1. Key information
COROLLA_TMMMS_TMMC_U (OM12J84U)

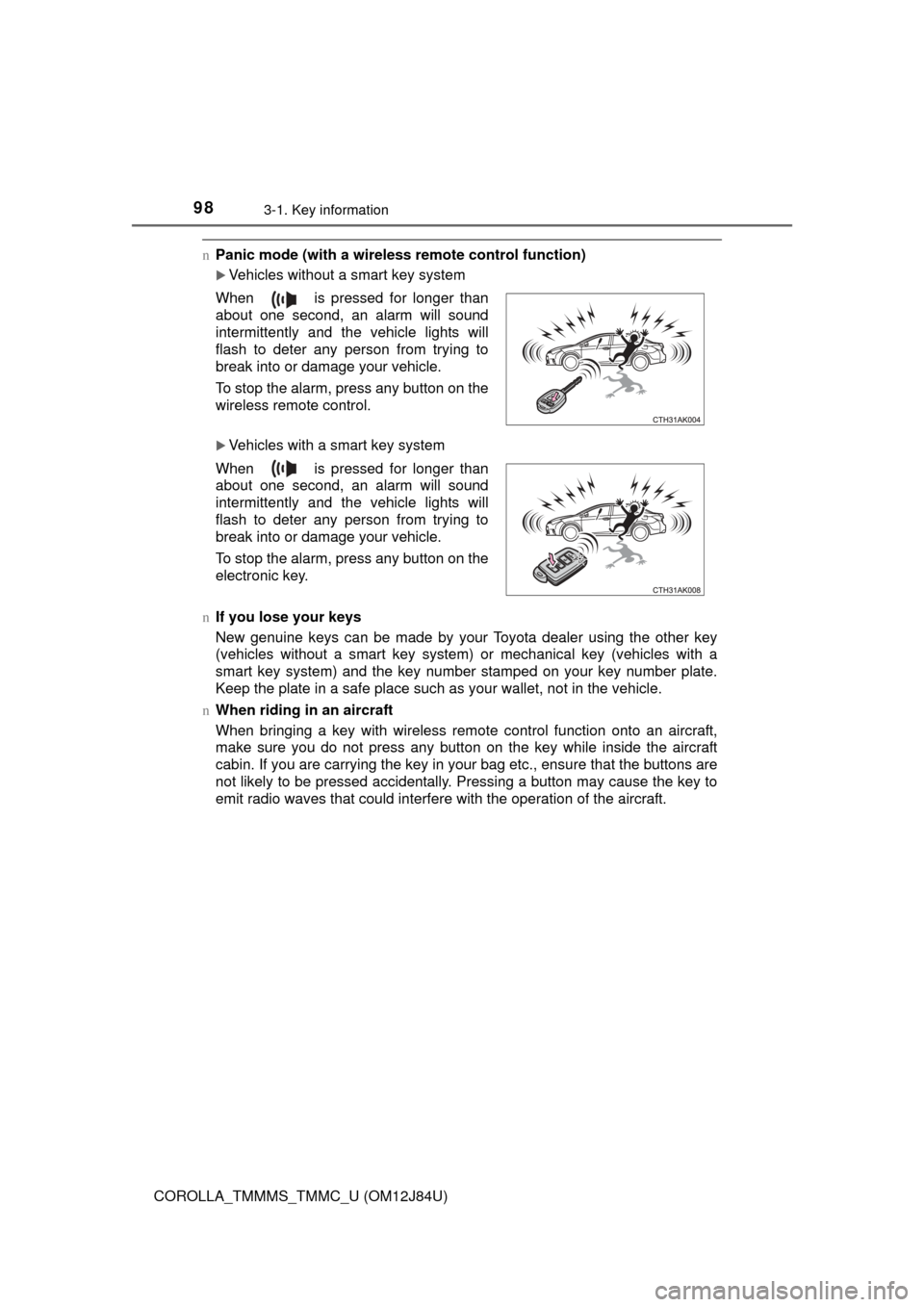

nPanic mode (with a wireless remote control function)
Vehicles without a smart key system
Vehicles with a smart key system
n If you lose your keys
New genuine keys can be made by your Toyota dealer using the other key
(vehicles without a smart key system) or mechanical key (vehicles with a
smart key system) and the key number stamped on your key number plate.
Keep the plate in a safe place such as your wallet, not in the vehicle.
n When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any button on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft. When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
wireless remote control.
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
electronic key.

993-1. Key information
3
Operation of each component
COROLLA_TMMMS_TMMC_U (OM12J84U)n
Electronic key battery depletion (vehicles with a smart key system)
lThe standard battery life is 1 to 2 years.
l If the battery becomes low, an alarm will sound in the cabin when the engine
stops. ( P. 504, 515)
l As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. ( P. 469)
• The smart key system or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
l To avoid serious deterioration, do not leave the electronic key within 3 ft. (1
m) of the following electrical appl iances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
n Replacing the battery
P. 469
n Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask
your Toyota dealer for details.
n If a wrong key is used (vehicles with a smart key system)
The key cylinder rotates freely to isolate inside mechanism.
n Certification for the wi reless remote control
For the U.S.A.
FCC ID: HYQ23AAH FCC ID: HYQ12BEL
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
For 12BEL
The FCC ID/IC Certification number is affixed inside the equipment. You can
find the ID/number when replacing the battery.

1003-1. Key information
COROLLA_TMMMS_TMMC_U (OM12J84U)
For Canada
NOTE:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
For 12BEL/12BDP
The FCC ID/IC Certification number is affixed inside the equipment. You can
find the ID/number when replacing the battery.
NOTICE
n To prevent key damage
lDo not drop the keys, subject them to strong shocks or bend them.
l Do not expose the keys to high temperatures for long periods of time.
l Do not get the keys wet or wash them in an ultrasonic washer etc.
l Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
l Do not disassemble the keys.
l Do not attach a sticker or anything else to the surface of the electronic key
and key (with a wireless remote control function).
l Vehicles with a smart key system: Do not place the keys near objects that
produce magnetic fields, such as TVs, audio systems and induction cook-
ers, or medical electrical equipment, such as low-frequency therapy equip-
ment.
n Carrying the electronic key on your person (vehicles with a smart key
system)
Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
n In case of a smart key system malfunction or other key-related prob-
lems (vehicles with a smart key system)
Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.
n When an electronic key is lost (vehicles with a smart key system)
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit your Toyota dealer imm ediately with all remaining electronic
keys that was provided with your vehicle.
