812. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12J84U)
nThe meters and display illuminate when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The engine switch is in IGNITION ON mode.
n When disconnecting and reco nnecting battery terminals
The following information data will be reset:
l Average fuel consumption
l Driving range
l Average vehicle speed
CAUTION
n The display at low temperatures
Allow the interior of the vehicle to warm up before using the display. At
extremely low temperatures, the display monitor may respond slowly, and
display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
n Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
nTo prevent damage to the engine and its components
lDo not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
l The engine may be overheating if the high engine coolant temperature
warning light comes on. In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (P. 543)

822. Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12J84U)
Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Fuel gauge
Multi-information display
The multi-information display presents the driver with a variety of driving-
related data including the current outside air temperature.
Display change button
Switches the trip information.
Engine coolant temperature gauge
Displays the engine coolant temperature.

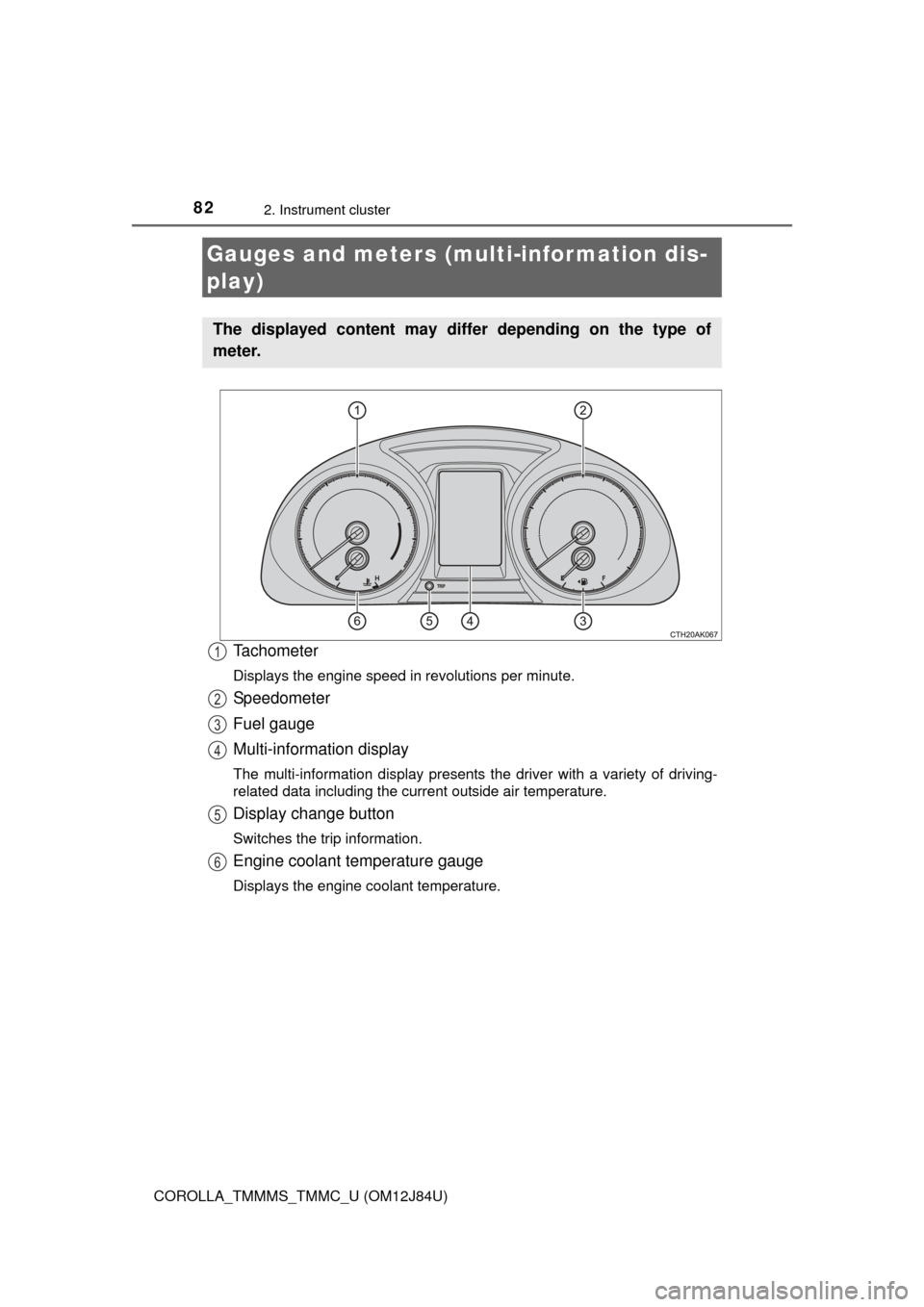

Gauges and meters (multi-information dis-
play)
The displayed content may differ depending on the type of
meter.
1
2
3
4
5
6

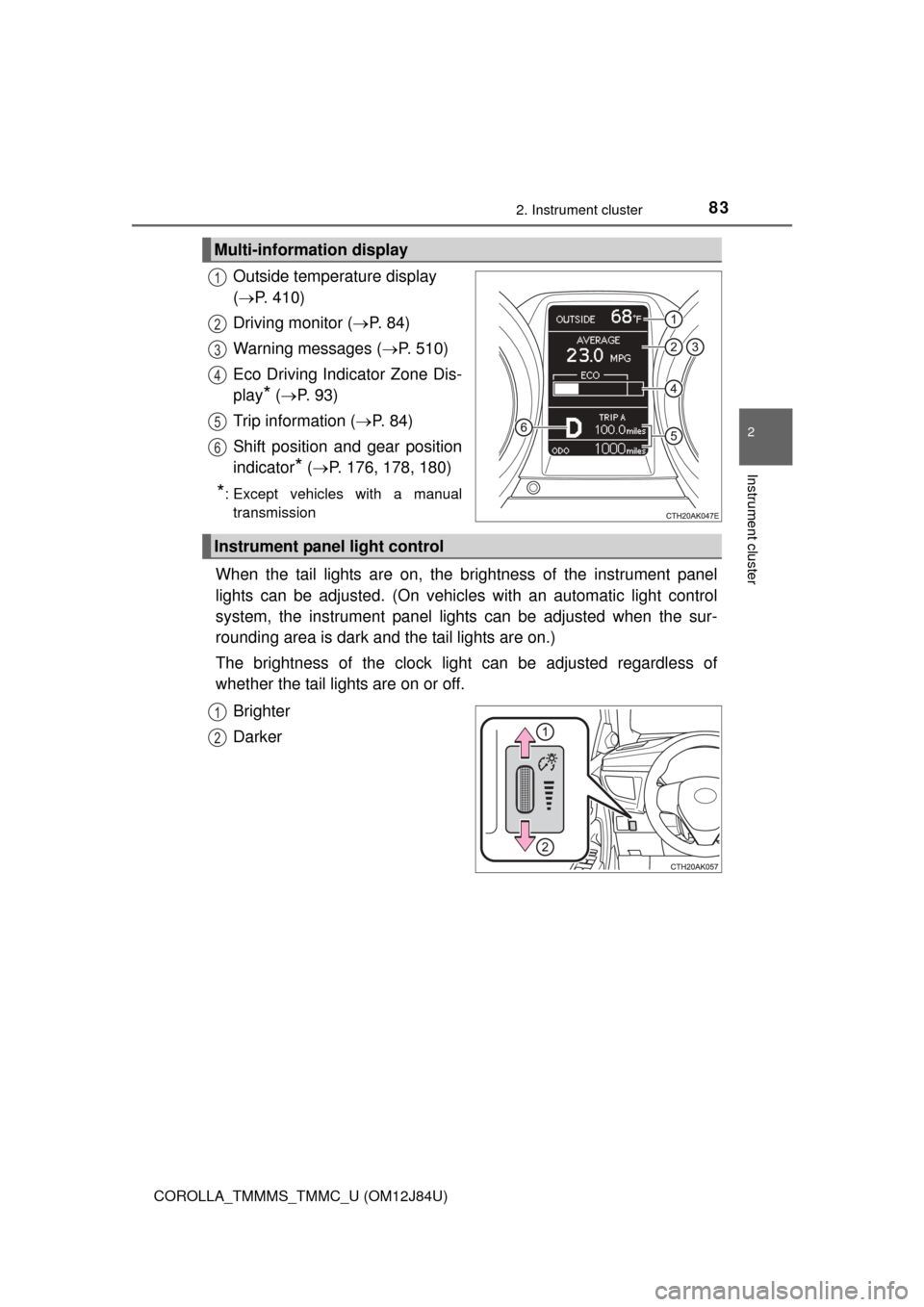

832. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12J84U)
Outside temperature display
( P. 410)
Driving monitor ( P. 84)
Warning messages ( P. 510)
Eco Driving Indicator Zone Dis-
play
* (  P. 9 3 )
Trip information ( P. 8 4 )
Shift position and gear position
indicator
* (  P. 176, 178, 180)
*: Except vehicles with a manual
transmission
When the tail lights are on, the br ightness of the instrument panel
lights can be adjusted. (On vehicles with an automatic light control
system, the instrument panel lights can be adjusted when the sur-
rounding area is dark and the tail lights are on.)
The brightness of the clock li ght can be adjusted regardless of
whether the tail lights are on or off.
Brighter
Darker
Multi-information display
1
2
3
4
5
6
Instrument panel light control
1
2

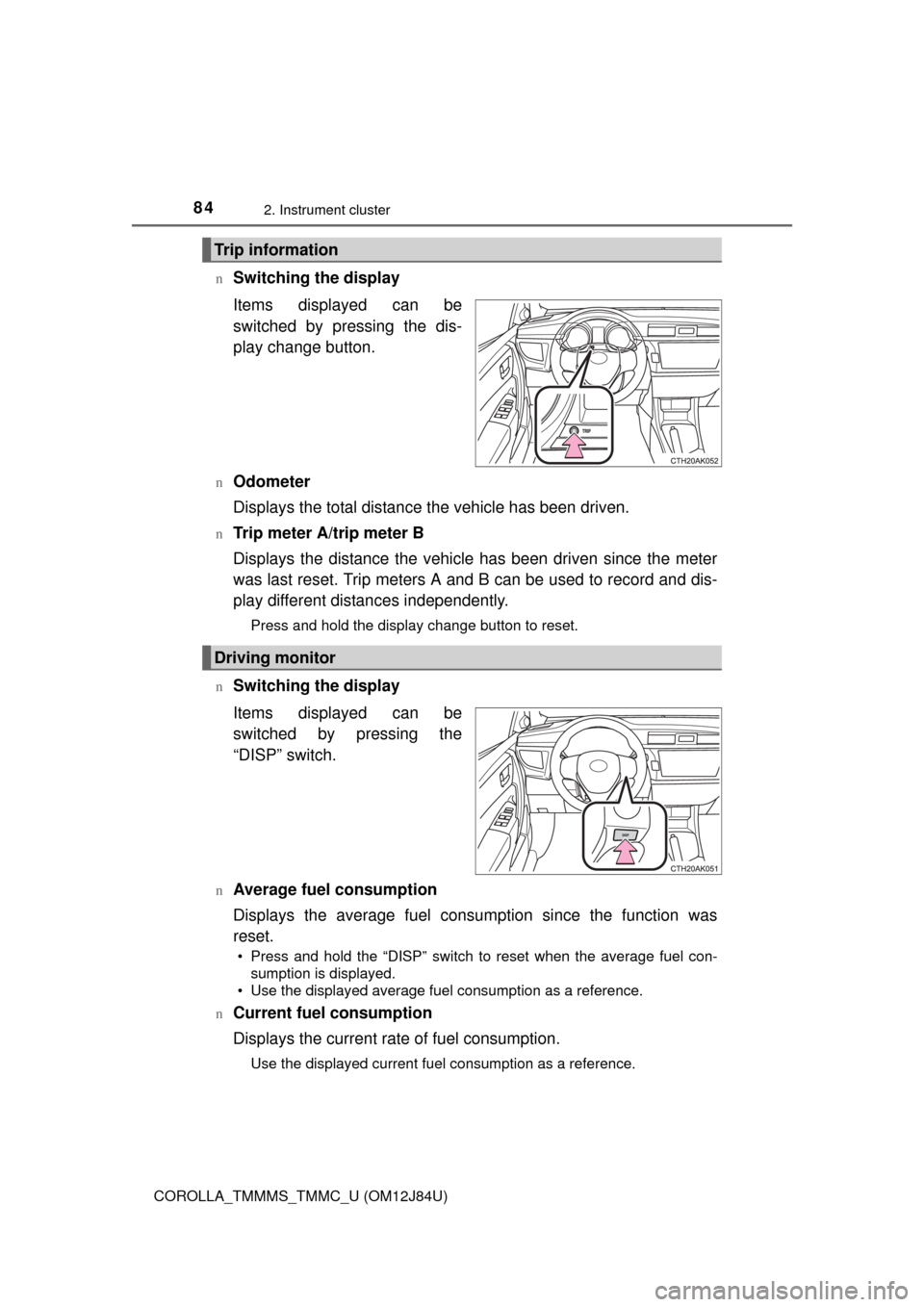

842. Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12J84U)n
Switching the display
Items displayed can be
switched by pressing the dis-
play change button.
nOdometer
Displays the total distance the vehicle has been driven.
nTrip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
Press and hold the display change button to reset.
n
Switching the display
Items displayed can be
switched by pressing the
“DISP” switch.
nAverage fuel consumption
Displays the average fuel consum ption since the function was
reset.
• Press and hold the “DISP” switch to reset when the average fuel con- sumption is displayed.
• Use the displayed average fuel consumption as a reference.
n
Current fuel consumption
Displays the current rate of fuel consumption.
Use the displayed current fuel consumption as a reference.
Trip information
Driving monitor

852. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12J84U)n
Driving range
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.
n
Average vehicle speed
Displays the average vehicle speed since the engine was last
started.
nElapsed time
Displays the elapsed time since the engine was started.
nCustomization
Language and Eco Driving Indicator Light settings can be changed.
(  P. 86)
nEco Driving Indicator Zone Di splay (except vehicles with a
manual transmission)
 P. 9 3

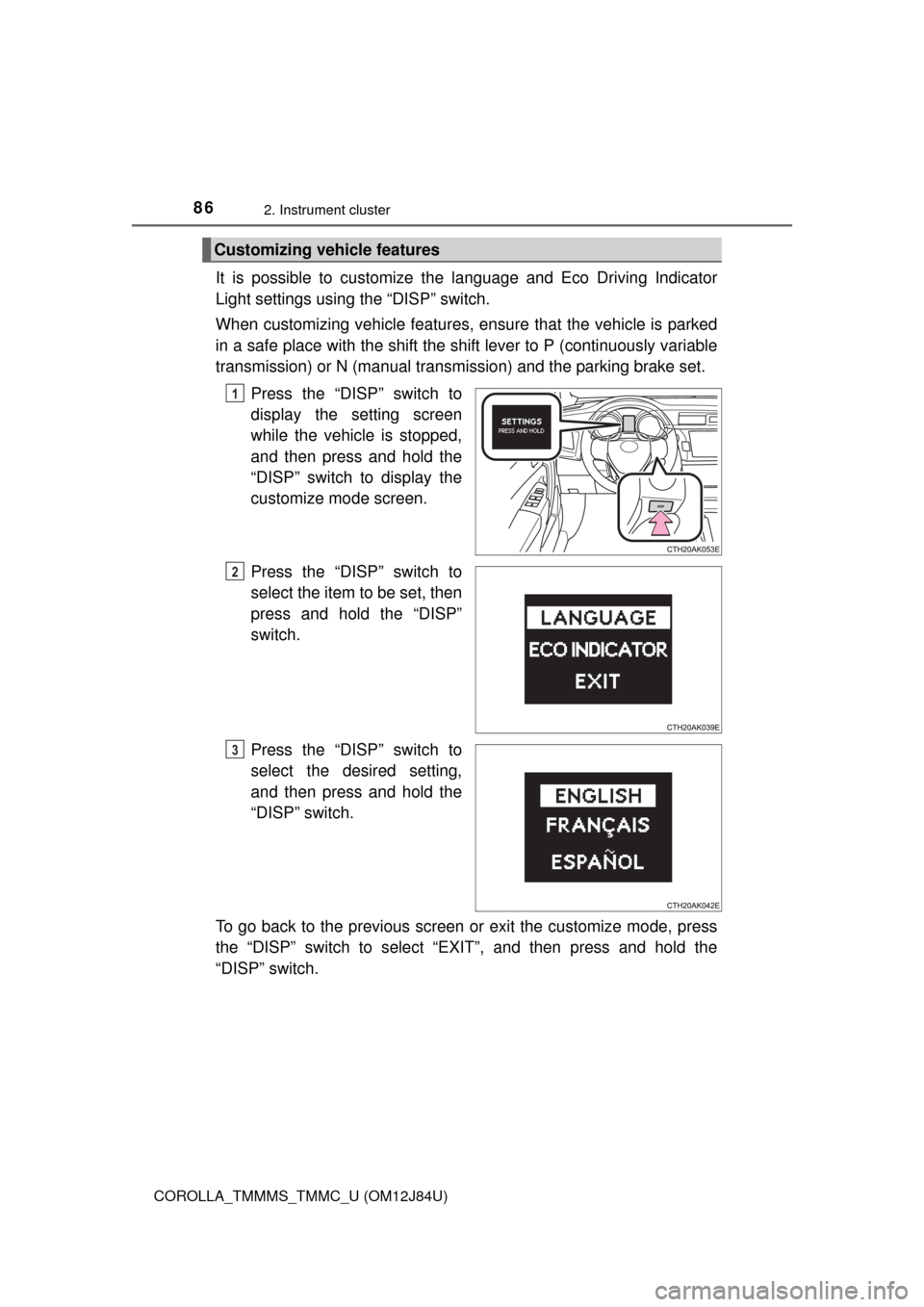

862. Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12J84U)
It is possible to customize the language and Eco Driving Indicator
Light settings using the “DISP” switch.
When customizing vehicle features, en sure that the vehicle is parked
in a safe place with the shift the shift lever to P (continuously variable
transmission) or N (manual transmission) and the parking brake set.
Press the “DISP” switch to
display the setting screen
while the vehicle is stopped,
and then press and hold the
“DISP” switch to display the
customize mode screen.
Press the “DISP” switch to
select the item to be set, then
press and hold the “DISP”
switch.
Press the “DISP” switch to
select the desired setting,
and then press and hold the
“DISP” switch.
To go back to the previous screen or exit the customize mode, press
the “DISP” switch to select “EXIT”, and then press and hold the
“DISP” switch.
Customizing vehicle features
1
2
3

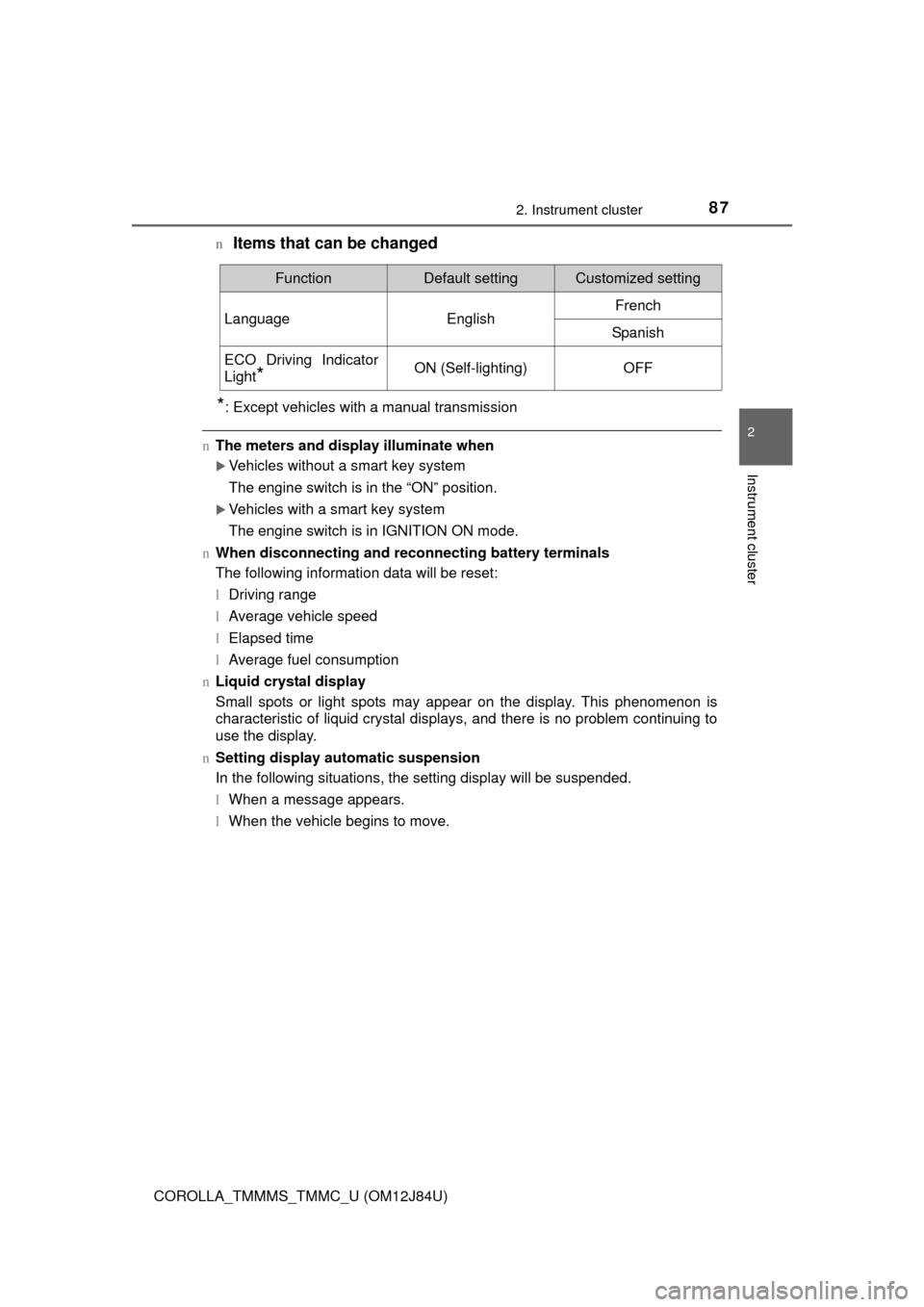

872. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12J84U)n
Items that can be changed
*: Except vehicles with a manual transmission
n
The meters and display illuminate when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The engine switch is in IGNITION ON mode.
n When disconnecting and reco nnecting battery terminals
The following information data will be reset:
l Driving range
l Average vehicle speed
l Elapsed time
l Average fuel consumption
n Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
n Setting display automatic suspension
In the following situations, the setting display will be suspended.
lWhen a message appears.
l When the vehicle begins to move.
FunctionDefault settingCustomized setting
LanguageEnglishFrench
Spanish
ECO Driving Indicator
Light
*ON (Self-lighting)OFF

882. Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12J84U)
CAUTION
nThe display at low temperatures
Allow the interior of the vehicle to warm up before using the display. At
extremely low temperatures, the display monitor may respond slowly, and
display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
n Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
nTo prevent damage to the engine and its components
lDo not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
l The engine may be overheating if the engine coolant temperature gauge
are in the red zone. In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (P. 543)

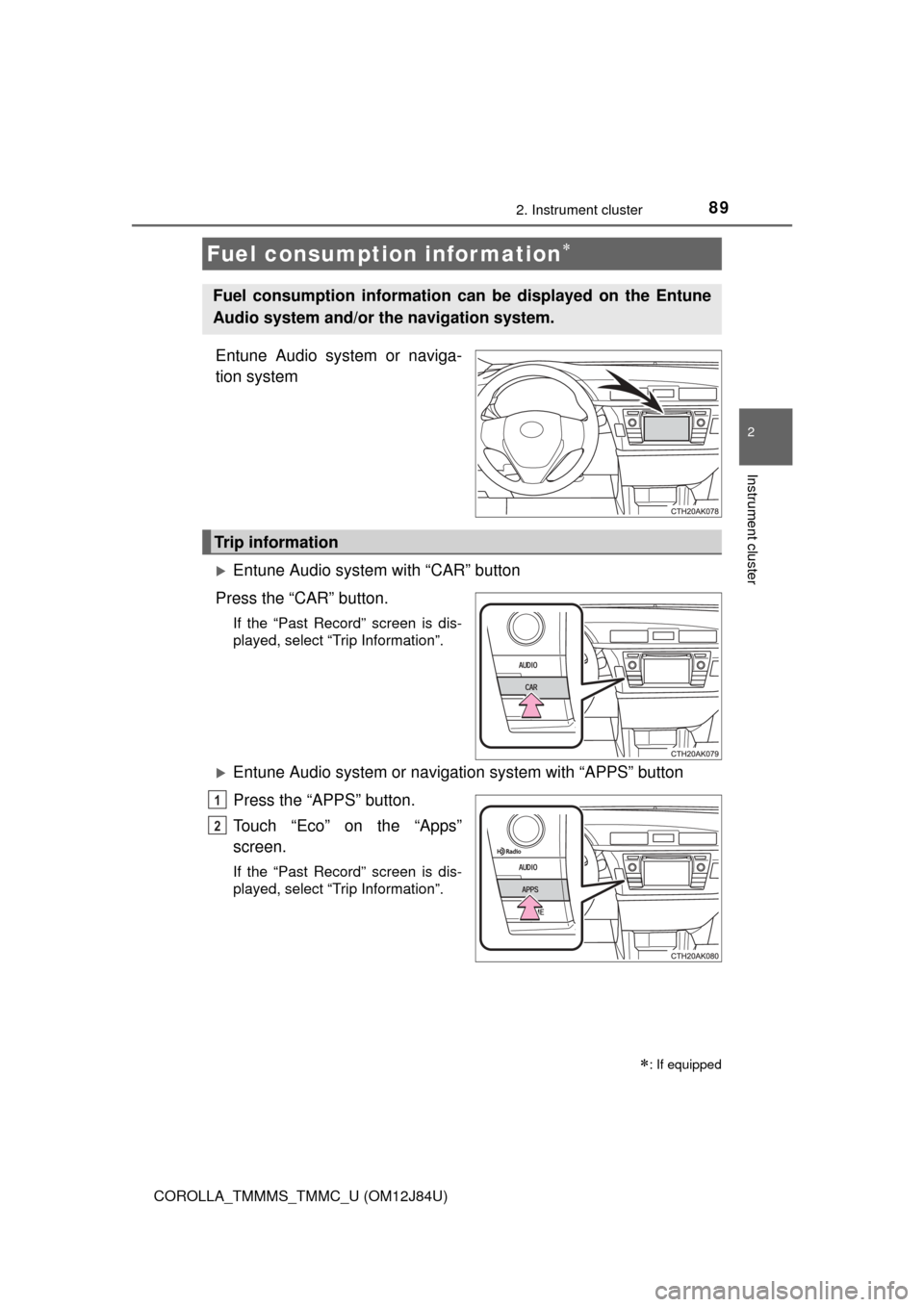

892. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12J84U)
Entune Audio system or naviga-
tion system
Entune Audio system with “CAR” button
Press the “CAR” button.
If the “Past Record” screen is dis-
played, select “Trip Information”.
Entune Audio system or navigation system with “APPS” button
Press the “APPS” button.
Touch “Eco” on the “Apps”
screen.
If the “Past Record” screen is dis-
played, select “Trip Information”.
Fuel consumption information
: If equipped
Fuel consumption information ca n be displayed on the Entune
Audio system and/or th e navigation system.
Trip information
1
2

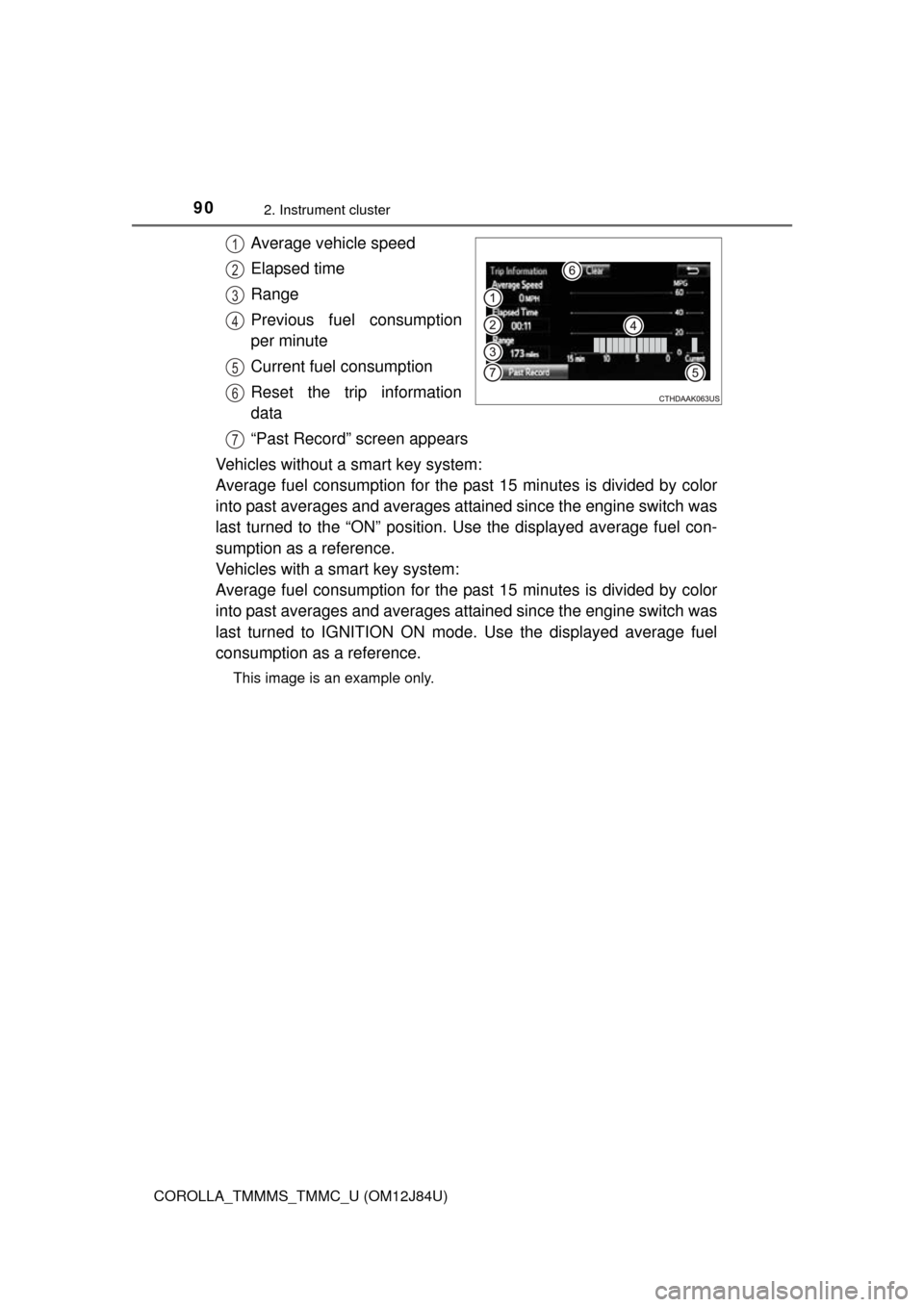

902. Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12J84U)
Average vehicle speed
Elapsed time
Range
Previous fuel consumption
per minute
Current fuel consumption
Reset the trip information
data
“Past Record” screen appears
Vehicles without a smart key system:
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the engine switch was
last turned to the “ON” position. Use the displayed average fuel con-
sumption as a reference.
Vehicles with a smart key system:
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the engine switch was
last turned to IGNITION ON mode. Use the displayed average fuel
consumption as a reference.
This image is an example only.
1
2
3
4
5
6
7
