nUse a CR2016 (vehicles without a sm art key system) or CR2032 (vehicles
with a smart key system) lithium battery
l Batteries can be purchased at your Toyota dealer, local electrical appliance
shops or camera stores.
l Replace only with the same or equivalent type recommended by the manu-
facturer.
l Dispose of used batteries according to local laws.
n If the key battery is depleted
The following symptoms may occur:
lThe smart key system (if equipped) and wireless remote control will not
function properly.
l The operational range will be reduced.
CAUTION
n Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
NOTICE
nFor normal operation after replacing the battery
Observe the following precautions to prevent accidents:
lAlways work with dry hands.
Moisture may cause the battery to rust.
l Do not touch or move any other component inside the remote control.
l Do not bend either of the battery terminals.

4727-3. Do-it-yourself maintenance
COROLLA_TMMMS_TMMC_U (OM12J84U)
Turn the engine switch off.

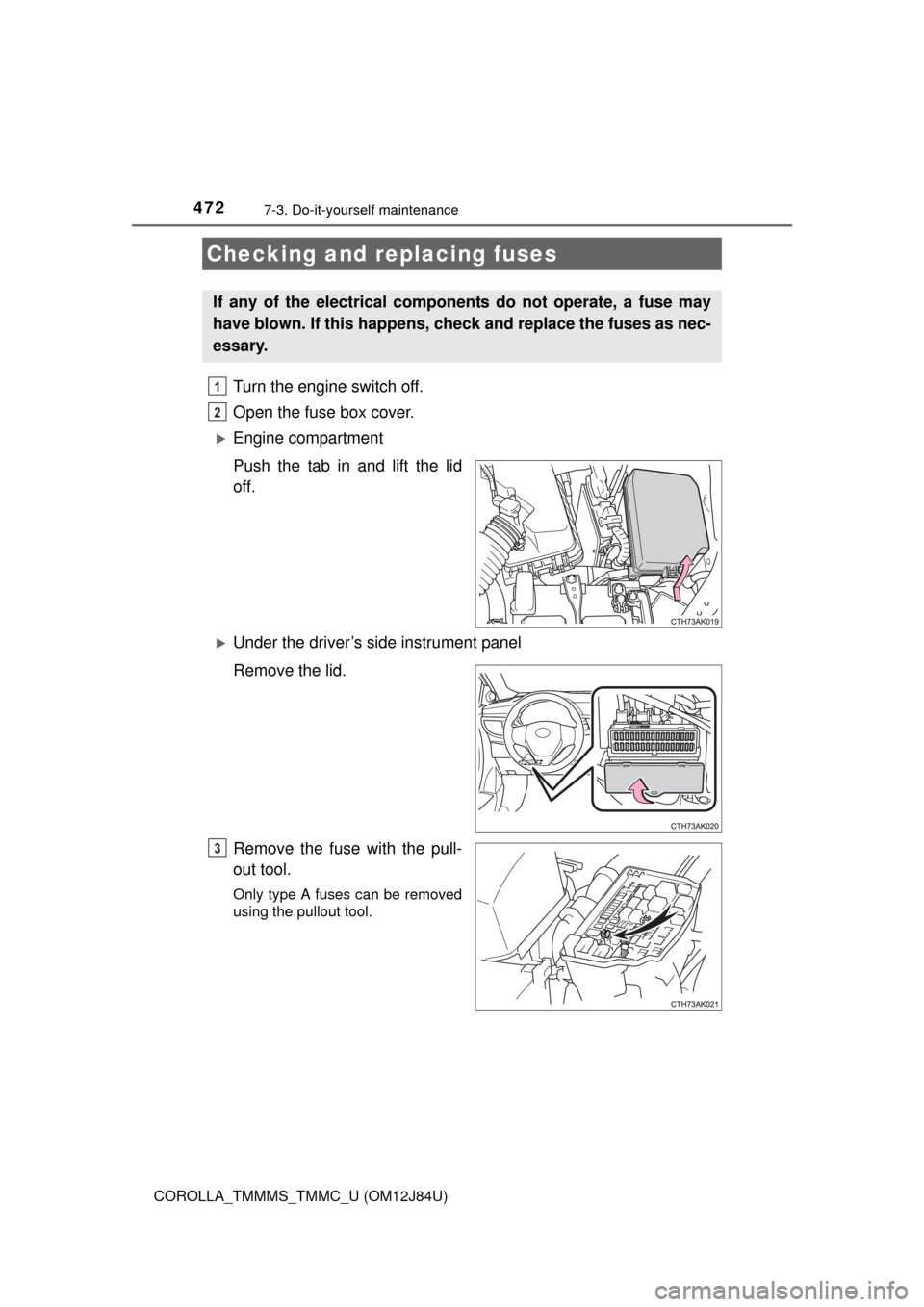

Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Under the driver’s side instrument panel
Remove the lid.
Remove the fuse with the pull-
out tool.
Only type A fuses can be removed
using the pullout tool.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
3

4737-3. Do-it-yourself maintenance
7
Maintenance and care
COROLLA_TMMMS_TMMC_U (OM12J84U)
Check if the fuse is blown.Normal fuse
Blown fuse
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
4
1
2
Ty p e AType B
Ty p e C

4747-3. Do-it-yourself maintenance
COROLLA_TMMMS_TMMC_U (OM12J84U)
nAfter a fuse is replaced
lIf the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 475)
l If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
n If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
nTo prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
lNever use a fuse of a higher amperage rating than that indicated, or use\
any other object in place of a fuse.
l Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
l Do not modify the fuses or fuse boxes.
NOTICE
nBefore replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.

4757-3. Do-it-yourself maintenance
7
Maintenance and care
COROLLA_TMMMS_TMMC_U (OM12J84U)
Check the wattage of the light bulb to be replaced. (P. 559)
nFront
Light bulbs
You may replace the following bulb s yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact your Toyota
dealer.
For more information about repl acing other light bulbs, contact
your Toyota dealer.

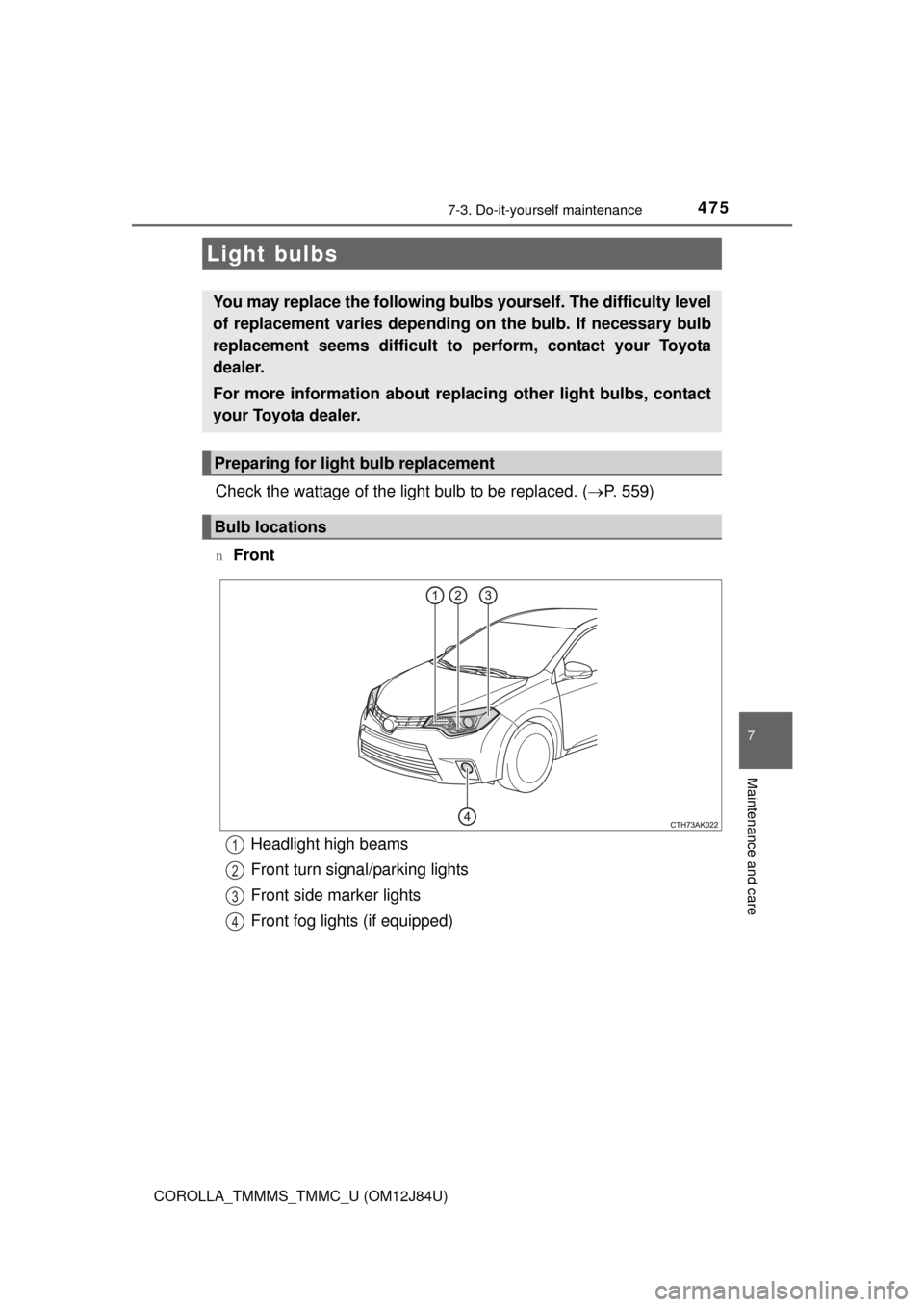

Preparing for light bulb replacement
Bulb locations
Headlight high beams
Front turn signal/parking lights
Front side marker lights
Front fog lights (if equipped)1
2
3
4

4767-3. Do-it-yourself maintenance
COROLLA_TMMMS_TMMC_U (OM12J84U)n
Rear

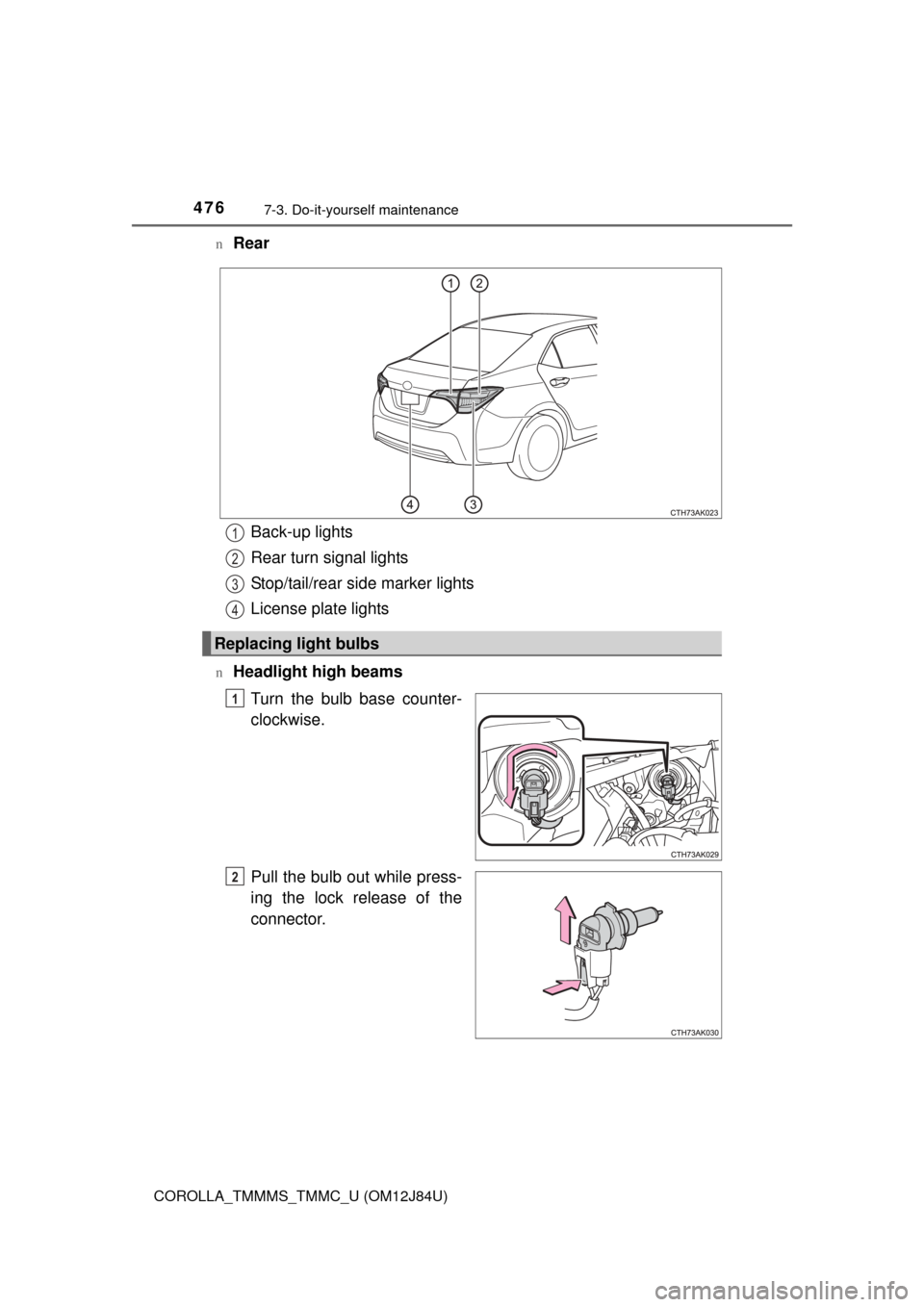

nHeadlight high beams

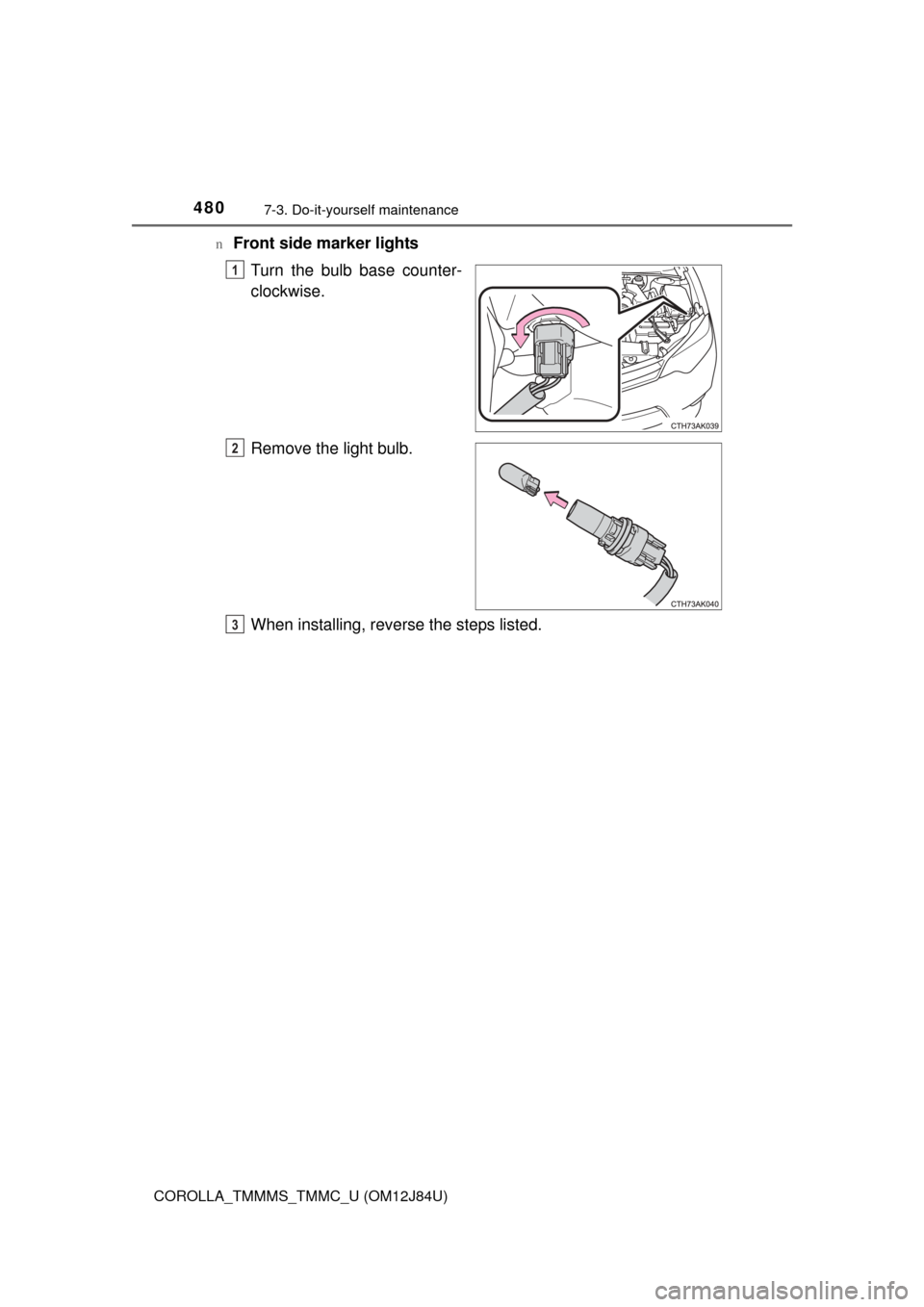

Turn the bulb base counter-
clockwise.
Pull the bulb out while press-
ing the lock release of the
connector.
Back-up lights
Rear turn signal lights
Stop/tail/rear side marker lights
License plate lights
Replacing light bulbs
1
2
3
4
1
2

4777-3. Do-it-yourself maintenance
7
Maintenance and care
COROLLA_TMMMS_TMMC_U (OM12J84U)

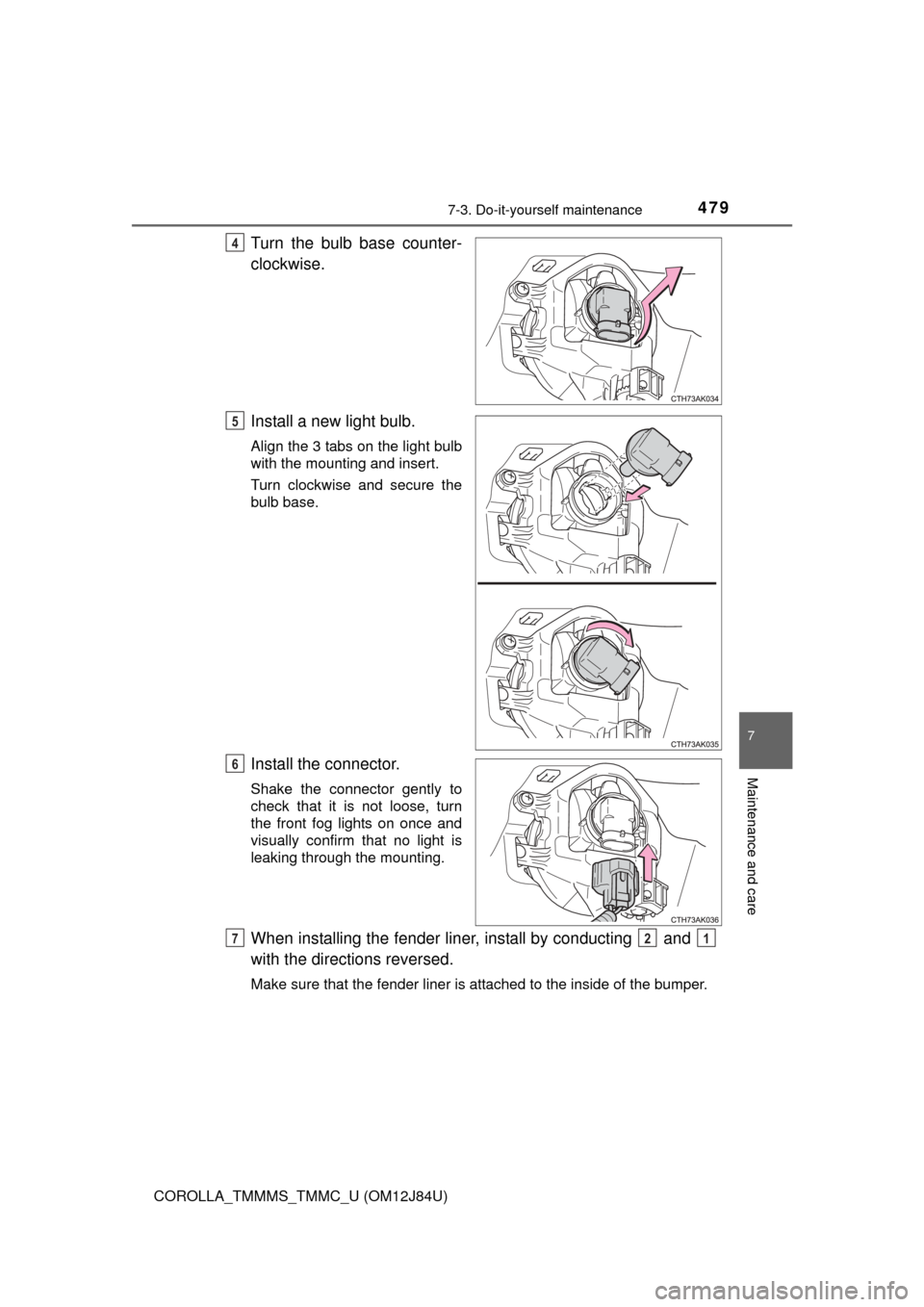

Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
3
4

4787-3. Do-it-yourself maintenance
COROLLA_TMMMS_TMMC_U (OM12J84U)n
Front fog lights (if equipped)

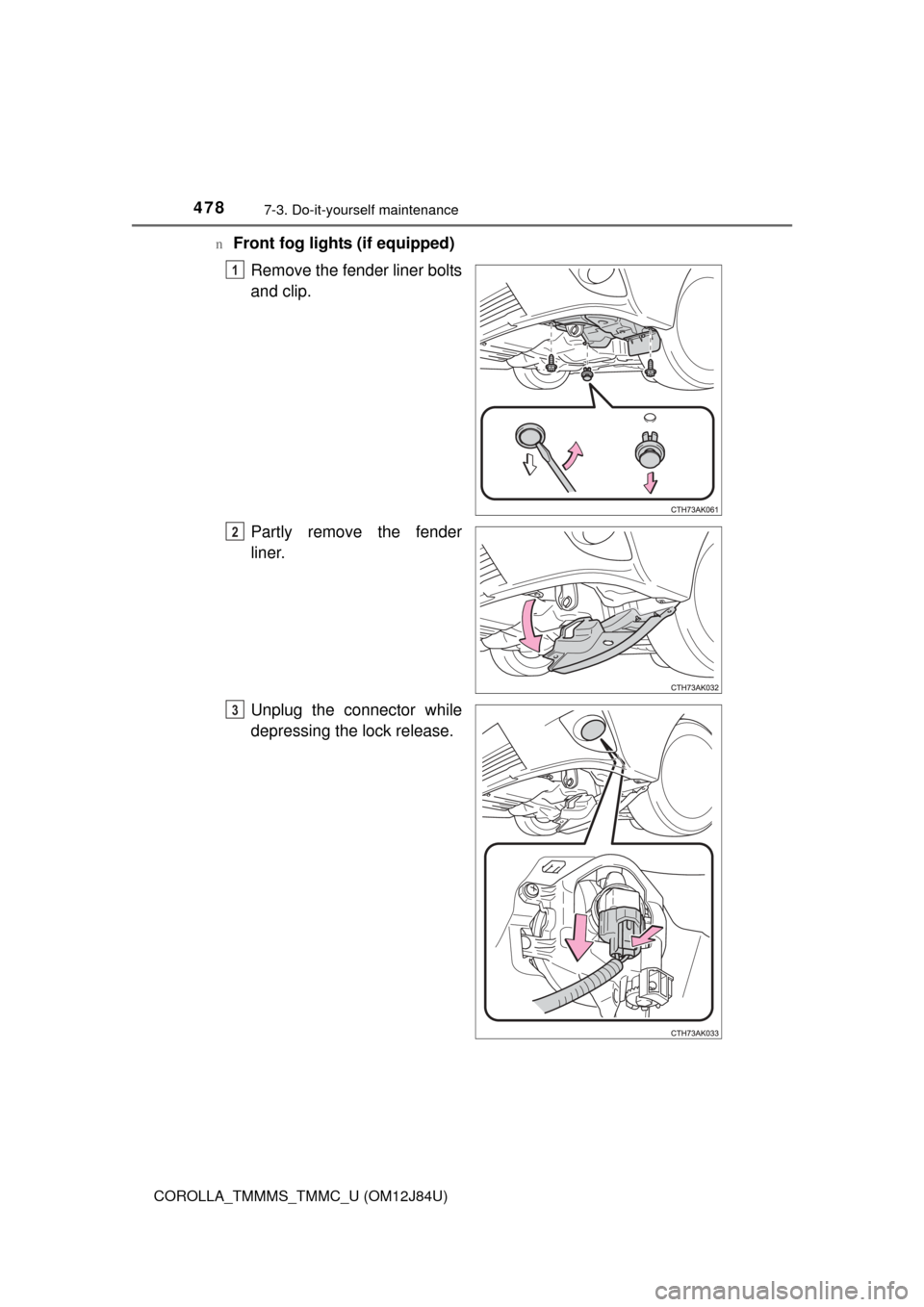

Remove the fender liner bolts
and clip.
Partly remove the fender
liner.

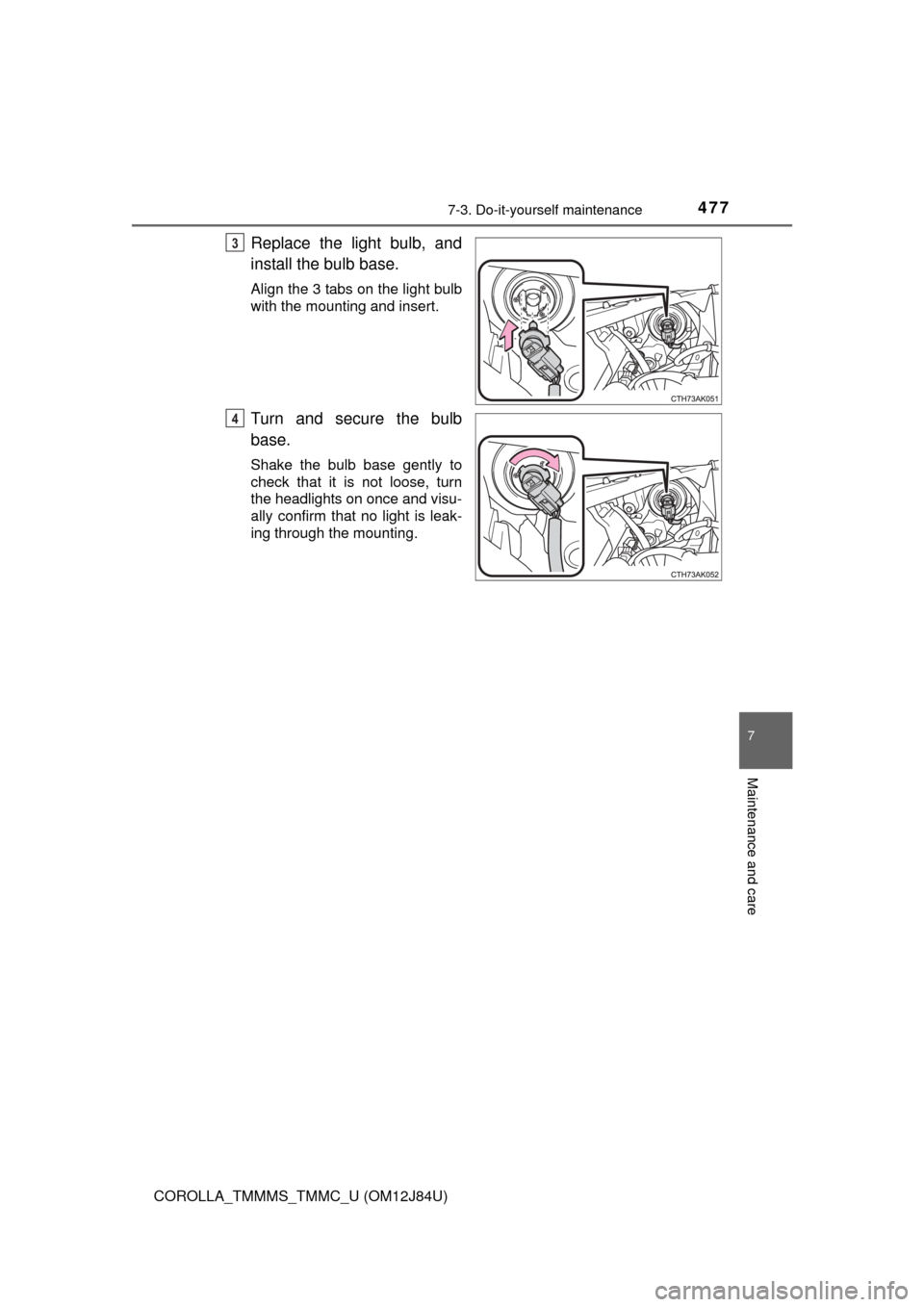

Unplug the connector while
depressing the lock release.
1
2
3

4797-3. Do-it-yourself maintenance
7
Maintenance and care
COROLLA_TMMMS_TMMC_U (OM12J84U)
Turn the bulb base counter-
clockwise.
Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn clockwise and secure the
bulb base.
Install the connector.
Shake the connector gently to
check that it is not loose, turn
the front fog lights on once and
visually confirm that no light is
leaking through the mounting.
When installing the fender liner, install by conducting and
with the directions reversed.
Make sure that the fender liner is attached to the inside of the bumper.
4
5
6
721

4807-3. Do-it-yourself maintenance
COROLLA_TMMMS_TMMC_U (OM12J84U)n
Front side marker lights
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
