fuel type TOYOTA COROLLA 2017 11.G Quick Reference Guide

10

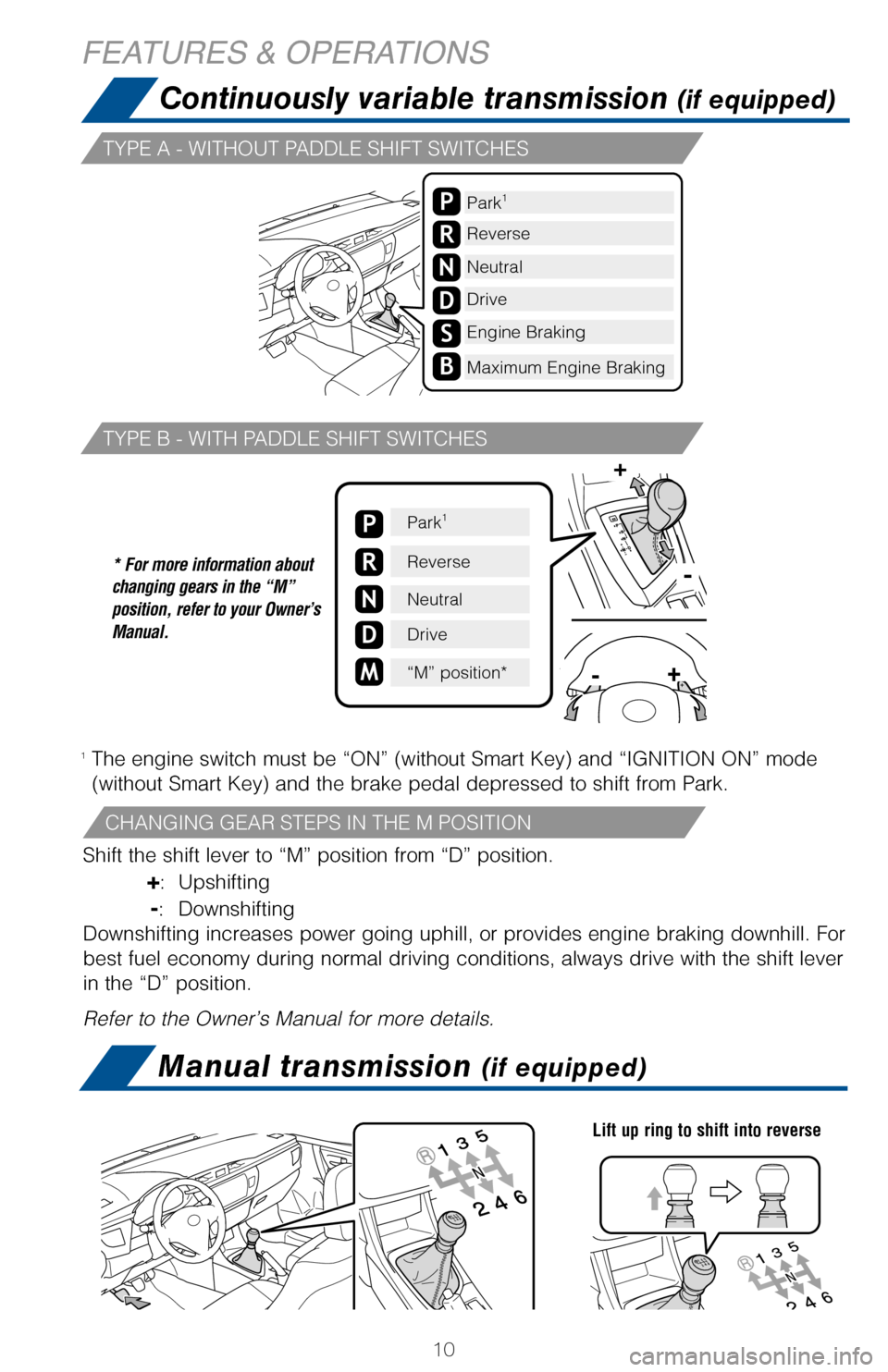

Manual transmission (if equipped)
Continuously variable transmission (if equipped)
CHANGING GEAR STEPS IN THE M POSITION
TYPE A - WITHOUT PADDLE SHIFT SWITCHES
TYPE B - WITH PADDLE SHIFT SWITCHES
Lift up ring to shift into reverse
Park1
Reverse
Neutral
Drive
Engine Braking
Maximum Engine Braking
S
B
P
R
N
D
1 The engine switch must be “ON” (without Smart Key) and “IGNITION ON” mode
(without Smart Key) and the brake pedal depressed to shift from Park.
Shift the shift lever to “M” position from “D” position.
+: Upshifting
-: Downshifting
Downshifting increases power going uphill, or provides engine braking downhill. For
best fuel economy during normal driving conditions, always drive with the shift lever
in the “D” position.
Refer to the Owner’s Manual for more details.
Park1
Reverse
Neutral
Drive
“M” position*
P
R
N
D
M
+
+
-
-
* For more information about changing gears in the “M” position, refer to your Owner’s Manual.
FEATURES & OPERATIONS
