TOYOTA COROLLA 2021 Owners Manual (in English)

5819-2. Customization
9
Vehicle specifications
COROLLA_U
9-2.Customization
■Changing by using the
audio system screen
1 Press the “MENU” button.
2 Select “Setup” on the “Menu”
screen.
3 Select “General” or “Vehicle”
on the “Setup” screen.
Various setting can be changed.
Refer to the list o f settings that can
be changed for details.
■Changing by using the
meter control switches
1 Press or of the meter
control switch to select . 2
Press or of the meter
control switch to select the
desired item to be custom-
ized.
3 Press or press and hold .
The available settings will differ
depending on if is pressed or
pressed and held. Follow the
instructions on the display.
Some function settings are changed simultaneously with other func-
tions being customized. Contact y our Toyota dealer for further
details.
Settings that can be changed using the audio system screen
Settings that can be changed using the meter control switches
Customizable features
Your vehicle includes a vari-
ety of electronic features
that can be personalized to
suit your preferences. The
settings of these features
can be changed using the
multi-information display,
the audio system screen, or
at your Toyota dealer.
Customizing vehicle fea-
tures
WA R N I N G
■During customization
As the engine needs to be run-
ning during customization, ensure
that the vehicle is parked in a
place with adequate ventilation. In
a closed area such as a garage,
exhaust gases in cluding harmful
carbon monoxide (CO) may col-
lect and enter the vehicle. This
may lead to death or a serious
health hazard.
NOTICE
■During customization
To prevent batte ry discharge,
ensure that the engine is running
while customizing features.
Customizable features

5829-2. Customization
COROLLA_U

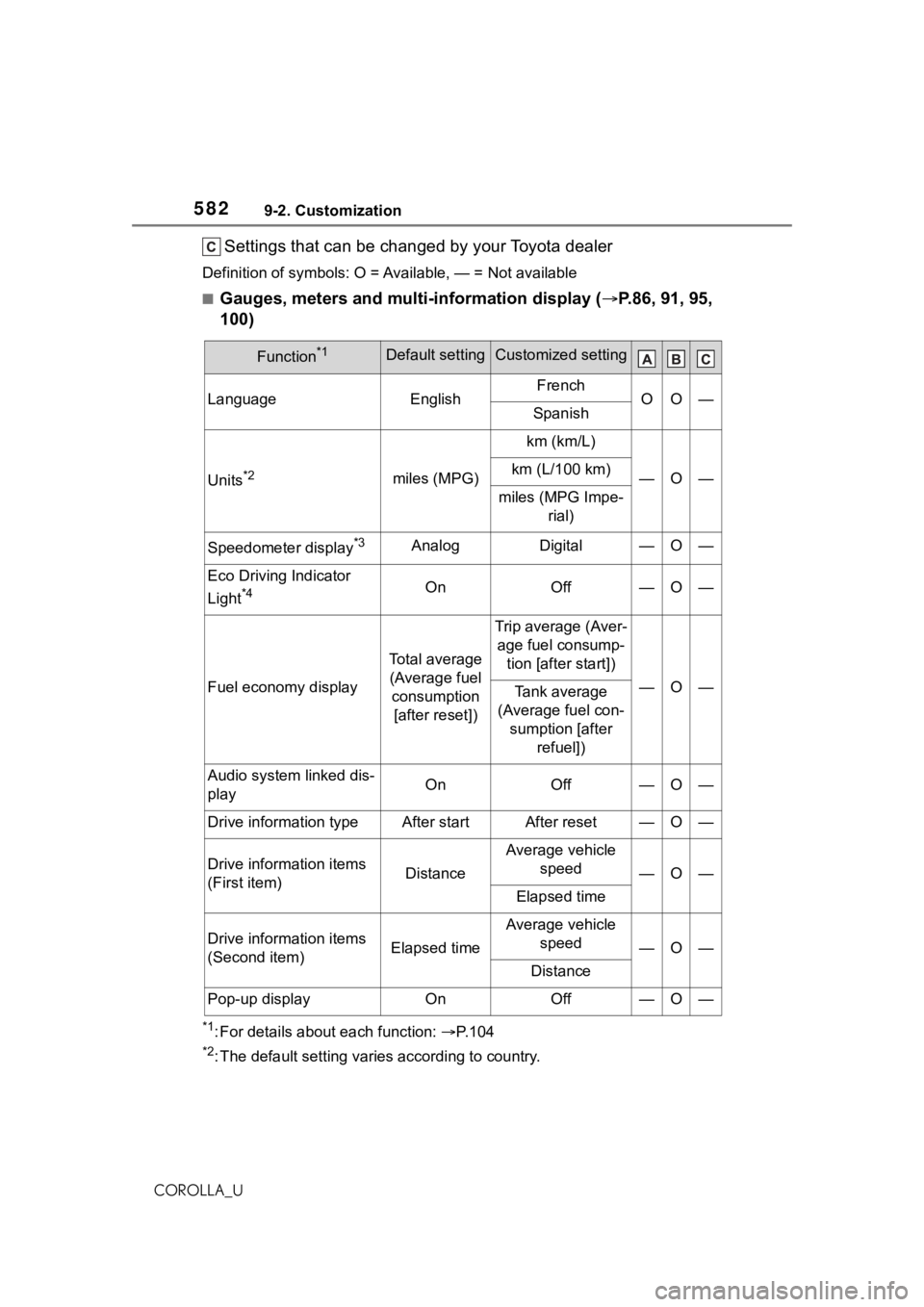

Settings that can be changed by your Toyota dealer
Definition of symbols: O = Available, — = Not available
■Gauges, meters and multi-information display ( P.86, 91, 95,
100)
*1: For details about each function: P. 1 0 4
*2: The default setting varies according to country.
Function*1Default settingCustomized setting
LanguageEnglishFrenchOO—Spanish
Units*2miles (MPG)
km (km/L)
—O—km (L/100 km)
miles (MPG Impe-
rial)
Speedometer display*3AnalogDigital—O—
Eco Driving Indicator
Light
*4OnOff—O—
Fuel economy display
Total average (Average fuel consumption [after reset])
Trip average (Aver- age fuel consump- tion [after start])
—O—Tank average
(Average fuel con- sumption [after refuel])
Audio system linked dis-
playOnOff—O—
Drive information typeAfter startAfter reset—O—
Drive information items
(First item)Distance
Average vehicle speed
—O—
Elapsed time
Drive information items
(Second item)Elapsed time
Average vehicle speed
—O—
Distance
Pop-up displayOnOff—O—

5839-2. Customization
9
Vehicle specifications
COROLLA_U
*3: 7-inch display
*4: If equipped

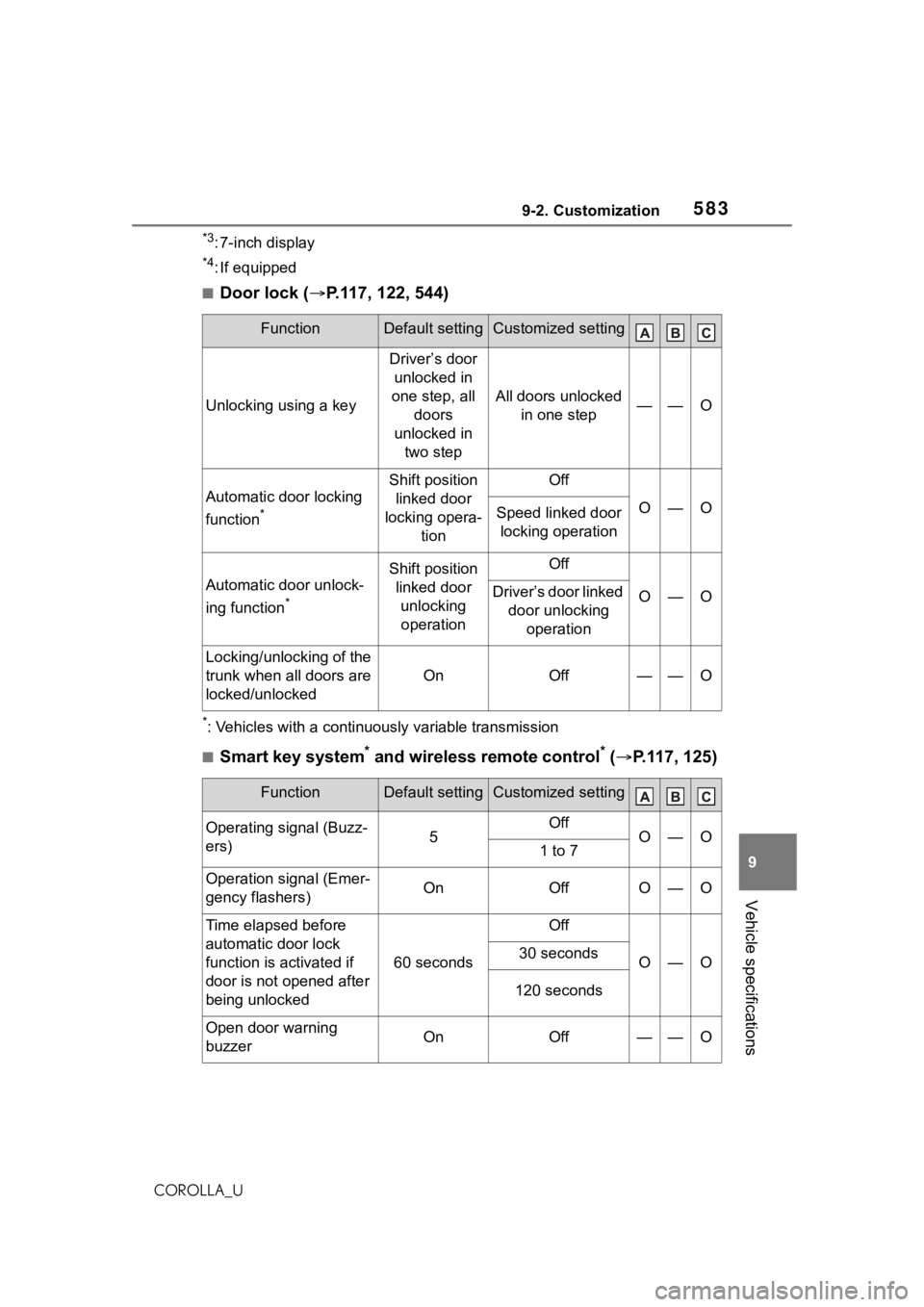

■Door lock (P.117, 122, 544)
*: Vehicles with a continuous ly variable transmission
■Smart key system* and wireless remote control* ( P.117, 125)
FunctionDefault settingCustomized setting
Unlocking using a key
Driver’s door
unlocked in
one step, all doors
unlocked in two step
All doors unlocked in one step——O
Automatic door locking
function
*
Shift position linked door
locking opera- tionOff
O—OSpeed linked door locking operation
Automatic door unlock-
ing function
*
Shift position linked door unlocking operationOff
O—ODriver’s door linked door unlocking operation
Locking/unlocking of the
trunk when all doors are
locked/unlocked
OnOff——O
FunctionDefault settingCustomized setting
Operating signal (Buzz-
ers)5OffO—O1 to 7
Operation signal (Emer-
gency flashers)OnOffO—O
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked
60 seconds
Off
O—O30 seconds
120 seconds
Open door warning
buzzerOnOff——O

5849-2. Customization
COROLLA_U
*: If equipped

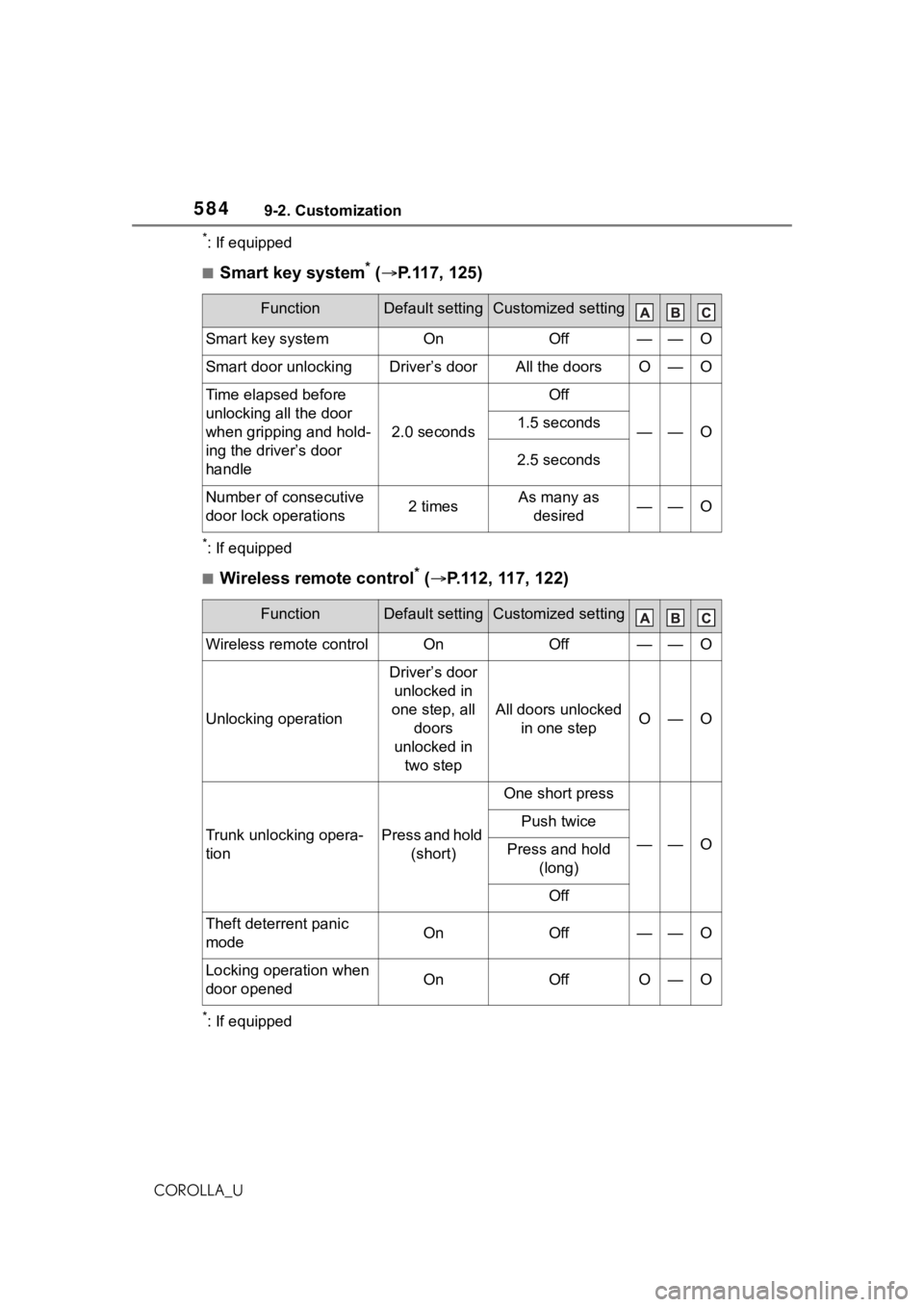

■Smart key system* ( P.117, 125)
*: If equipped
■Wireless remote control* ( P.112, 117, 122)
*: If equipped
FunctionDefault settingCustomized setting
Smart key systemOnOff——O
Smart door unlockingDriver’s doorAll the doorsO—O
Time elapsed before
unlocking all the door
when gripping and hold-
ing the driver’s door
handle
2.0 seconds
Off
——O1.5 seconds
2.5 seconds
Number of consecutive
door lock operations2 timesAs many as
desired——O
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
Unlocking operation
Driver’s door unlocked in
one step, all doors
unlocked in two step
All doors unlocked in one stepO—O
Trunk unlocking opera-
tionPress and hold (short)
One short press
——O
Push twice
Press and hold (long)
Off
Theft deterrent panic
modeOnOff——O
Locking operation when
door openedOnOffO—O

5859-2. Customization
9
Vehicle specifications
COROLLA_U
■Power windows and moon roof* ( P.142, 145)
*: If equipped
■Moon roof* ( P.145)
*: If equipped
■Automatic light control system ( P.186)
FunctionDefault settingCustomized setting
Mechanical key linked
operationOffOn——O
Wireless remote control
linked operationOffOn (open only)——O
Wireless remote control
linked operation signal
(buzzer)
OnOff——O
FunctionDefault settingCustomized setting
Linked operation of com-
ponents when key is
used (open only)
Slide onlyTilt only——O
Linked operation of com-
ponents when wireless
remote control is used
Slide onlyTilt only——O
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
Off
O—O60 seconds
90 seconds
Windshield wiper linked
headlight illuminationOnOff——O

5869-2. Customization
COROLLA_U

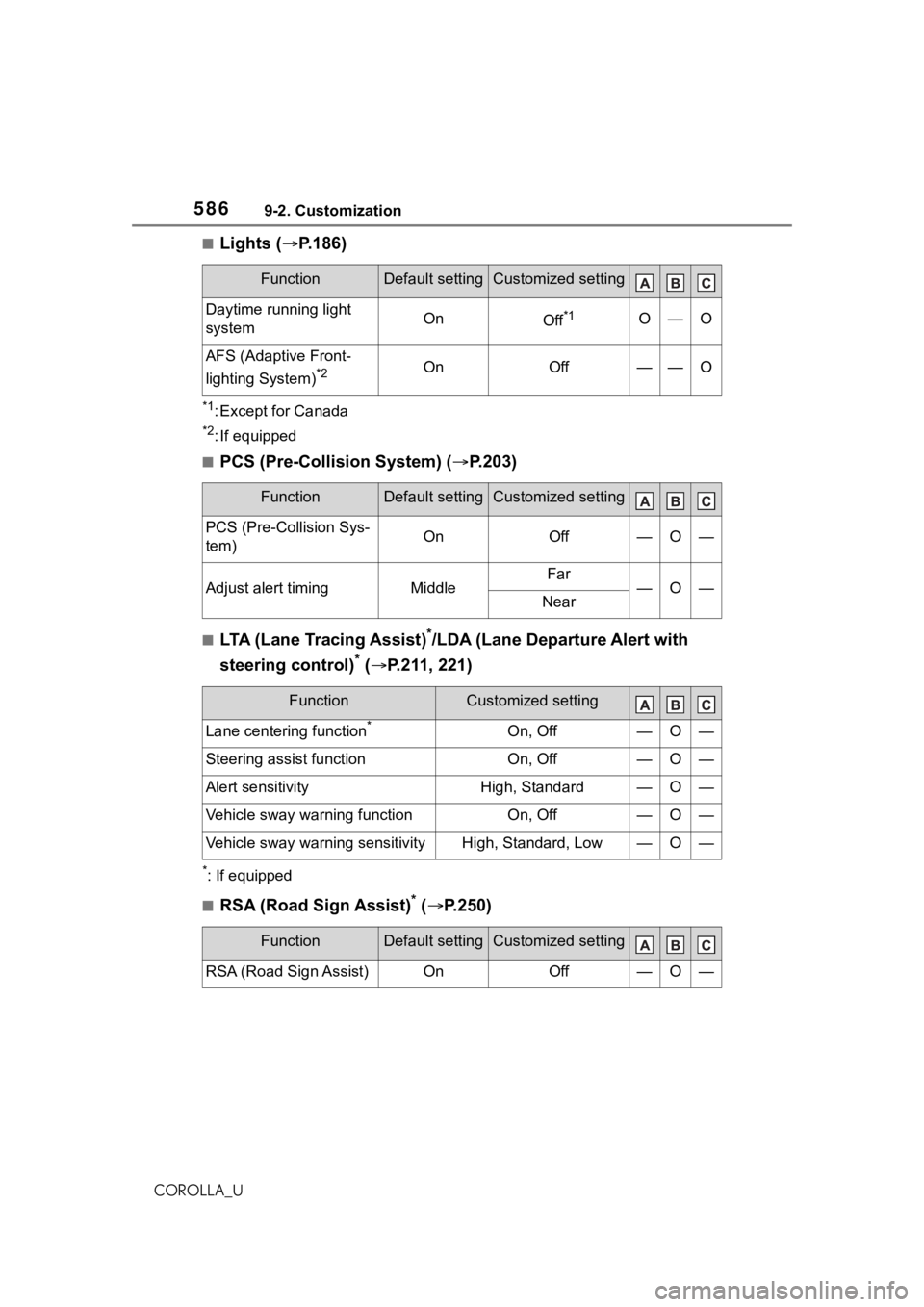

■Lights (P.186)
*1: Except for Canada
*2: If equipped
■PCS (Pre-Collision System) ( P.203)
■LTA (Lane Tracing Assist)*/LDA (Lane Departure Alert with
steering control)
* (  P.211, 221)
*: If equipped
■RSA (Road Sign Assist)* ( P.250)
FunctionDefault settingCustomized setting
Daytime running light
systemOnOff*1O—O
AFS (Adaptive Front-
lighting System)
*2OnOff——O
FunctionDefault settingCustomized setting
PCS (Pre-Collision Sys-
tem)OnOff—O—
Adjust alert timingMiddleFar—O—Near
FunctionCustomized setting
Lane centering function*On, Off—O—
Steering assist functionOn, Off—O—
Alert sensitivityHigh, Standard—O—
Vehicle sway warning functionOn, Off—O—
Vehicle sway warning sensitivityHigh, Standard, Low—O—
FunctionDefault settingCustomized setting
RSA (Road Sign Assist)OnOff—O—

5879-2. Customization
9
Vehicle specifications
COROLLA_U
*: If equipped

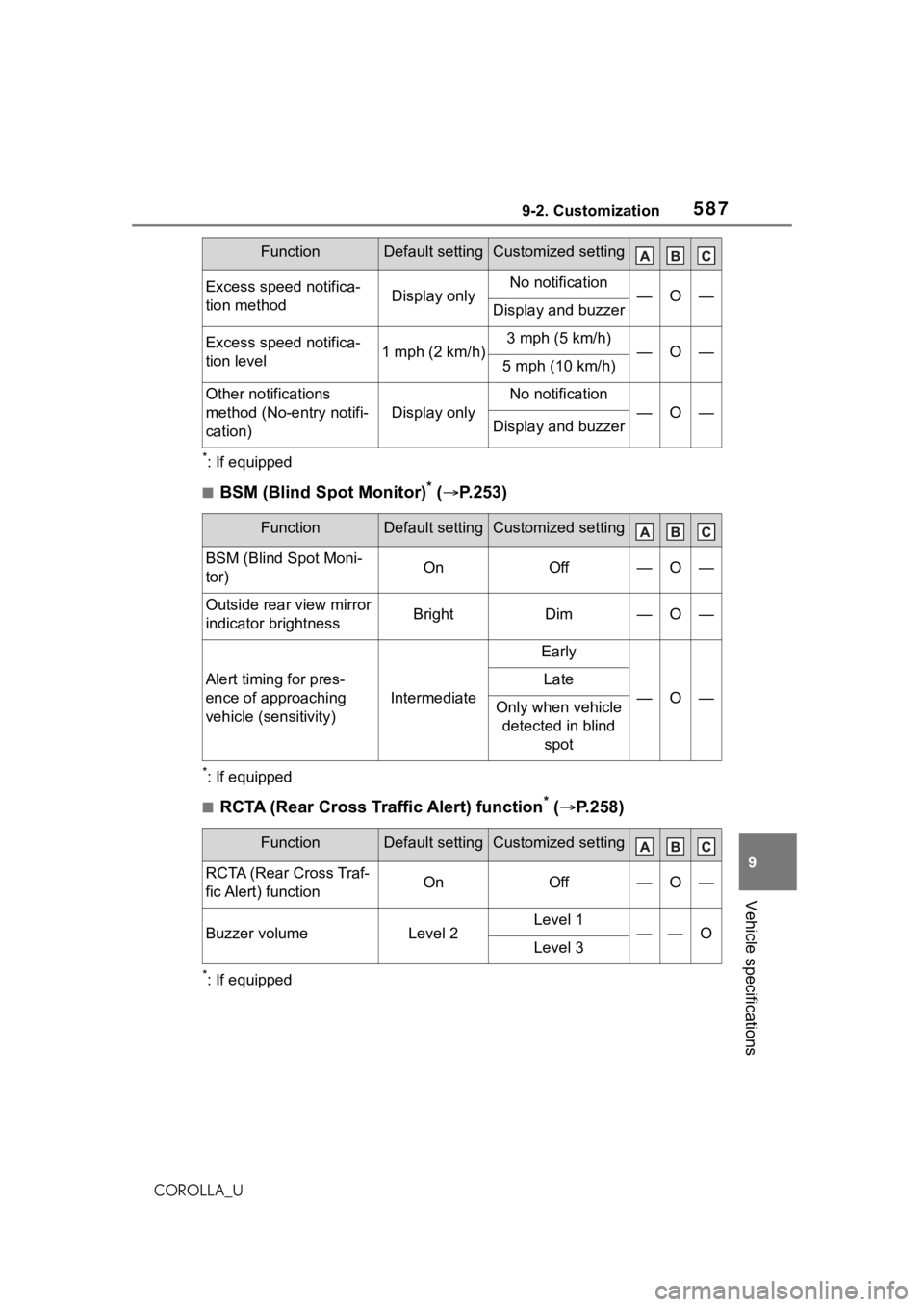

■BSM (Blind Spot Monitor)* ( P.253)
*: If equipped
■RCTA (Rear Cross Traffic Alert) function* ( P.258)
*: If equipped
Excess speed notifica-
tion methodDisplay onlyNo notification—O—Display and buzzer
Excess speed notifica-
tion level1 mph (2 km/h)3 mph (5 km/h)—O—5 mph (10 km/h)
Other notifications
method (No-entry notifi-
cation)
Display only
No notification
—O—Display and buzzer
FunctionDefault settingCustomized setting
BSM (Blind Spot Moni-
tor)OnOff—O—
Outside rear view mirror
indicator brightnessBrightDim—O—
Alert timing for pres-
ence of approaching
vehicle (sensitivity)
Intermediate
Early
—O—
Late
Only when vehicle
detected in blind spot
FunctionDefault settingCustomized setting
RCTA (Rear Cross Traf-
fic Alert) functionOnOff—O—
Buzzer volumeLevel 2Level 1——OLevel 3
FunctionDefault settingCustomized setting

5889-2. Customization
COROLLA_U
■Automatic air conditioning system* ( P.421)
*: If equipped
■Illumination ( P.428)
*: If equipped
■Vehicle customization
●When the smart key system is off,
Smart door unlocking cannot be
customized.
●When the doors remain closed
after unlocking the doors and the
automatic door lock function is
activated, the sig nals will be gen-
erated in accordance with the
operation signal (buzzer) and the
operation signal (emergency
flashers) settings.
■In the following situations, cus-
tomize mode in which the set-
tings can be changed through
the multi-information display
will automaticall y be turned off
●The engine switch is turned off.
●The vehicle begins to move while
the customize mode screen is dis-
played.
FunctionDefault settingCustomized setting
A/C auto switch opera-
tionOnOffO—O
FunctionDefault settingCustomized setting
Time elapsed before the
interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the
engine switch is turned
off
OnOff——O
Operation when the
doors are unlockedOnOff——O
Operation when you
approach the vehicle
with the electronic key
on your person
*
OnOff——O
Cup holder lights* and
center tray light
*OnOff——O
Door trim lights*OnOff——O

5899-3. Initialization
9
Vehicle specifications
COROLLA_U

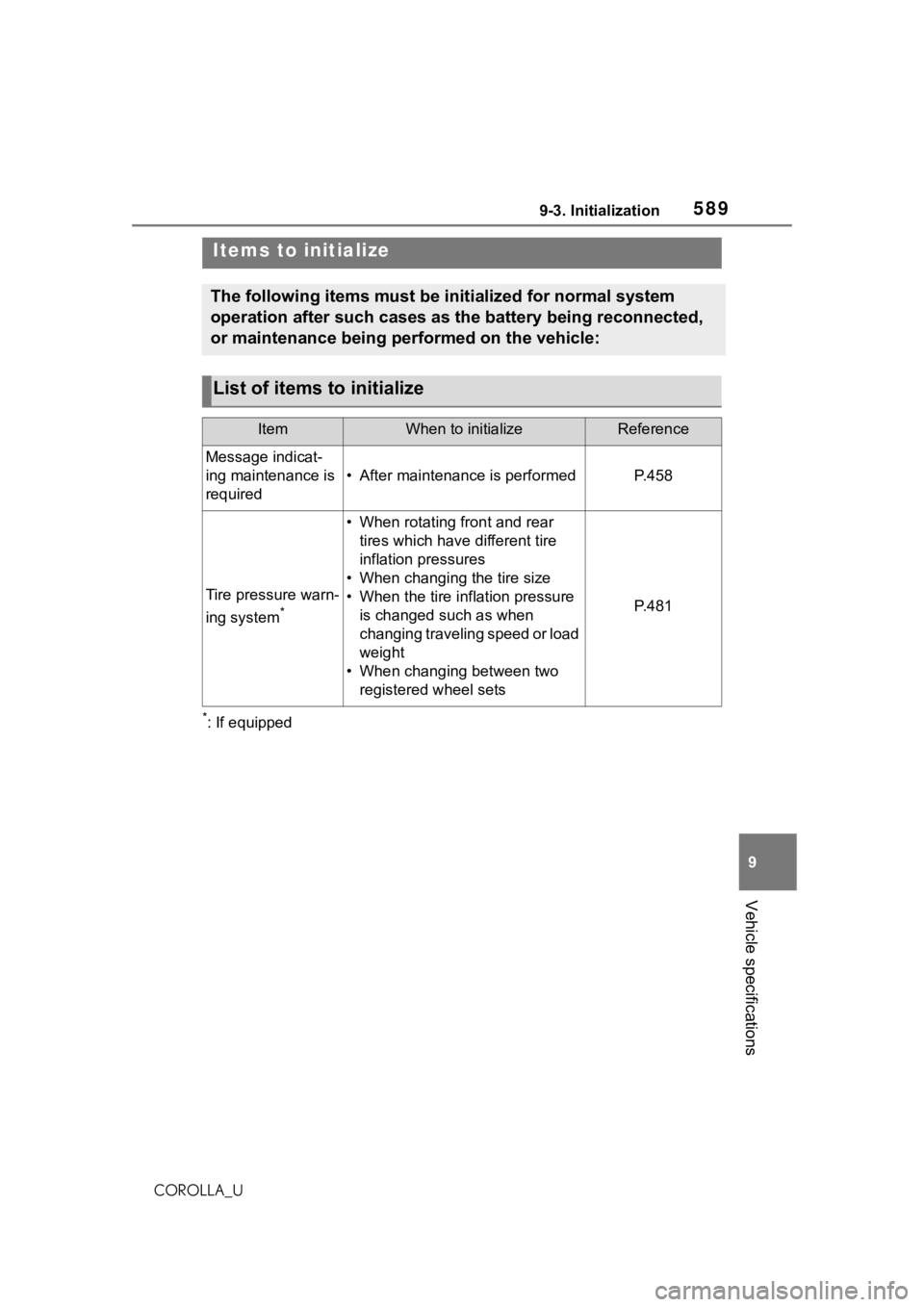

9-3.Initialization
*: If equipped
Items to initialize
The following items must be initialized for normal system
operation after such cases as the battery being reconnected,
or maintenance being performed on the vehicle:
List of items to initialize
ItemWhen to initializeReference
Message indicat-
ing maintenance is
required
• After maintenance is performedP. 4 5 8
Tire pressure warn-
ing system
*
• When rotating front and rear tires which have different tire
inflation pressures
• When changing the tire size
• When the tire inflation pressure is changed such as when
changing traveling speed or load
weight
• When changing between two registered wheel sets
P. 4 8 1
