5518-2. Steps to take in an emergency
8
When trouble arises
COROLLA_U
hoses and radiator core (radi-
ator) for any leaks.
Radiator
Cooling fan
If a large amount of coolant leaks,
immediately contact your Toyota
dealer.

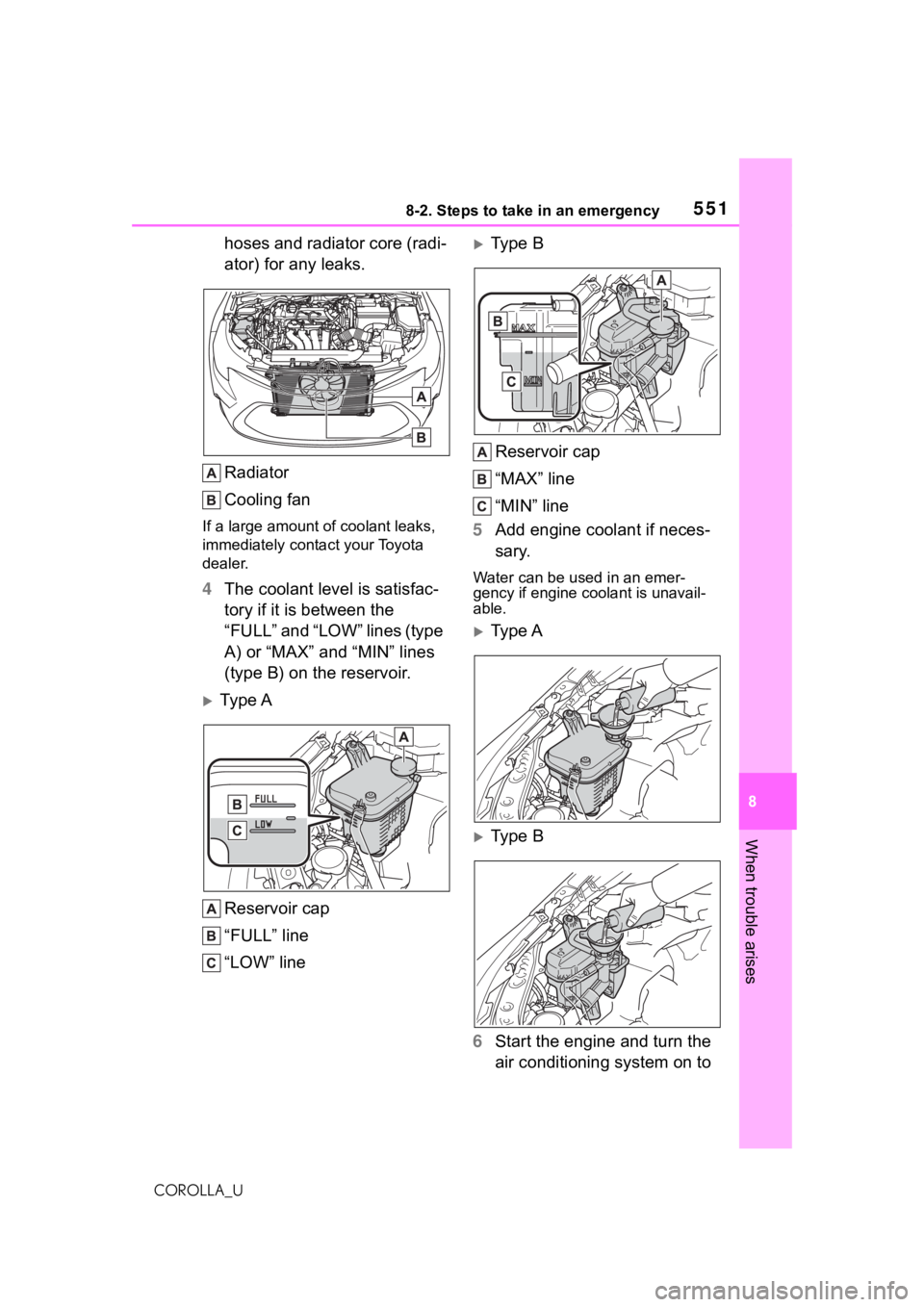

4 The coolant level is satisfac-
tory if it is between the
“FULL” and “LOW” lines (type
A) or “MAX” and “MIN” lines
(type B) on the reservoir.
Ty p e A
Reservoir cap
“FULL” line
“LOW” line
Type BReservoir cap
“MAX” line
“MIN” line
5 Add engine coolant if neces-
sary.
Water can be used in an emer-
gency if engine coolant is unavail-
able.
Type A
Type B
6 Start the engine and turn the
air conditioning system on to

5528-2. Steps to take in an emergency
COROLLA_U
check that the radiator cool-
ing fan operates and to check
for coolant leaks from the
radiator or hoses.
The fan operates when the air con-
ditioning system is turned on imme-
diately after a cold start. Confirm
that the fan is operating by check-
ing the fan sound and air flow. If it is
difficult to check th ese, turn the air
conditioning system on and off
repeatedly. (The fan may not oper-
ate in freezing temperatures.)
7 If the fan is not operating:
Stop the engine immediately
and contact your Toyota
dealer.
If the fan is operating: Have
the vehicle inspected at the
nearest Toyota dealer.
WA R N I N G
■When inspecting under the
hood of your vehicle
Observe the following precau-
tions. Failure to do so may result
in serious injury such as burns.
●If steam is seen coming from
under the hood, do not open the
hood until the steam has sub-
sided. The engine compart-
ment may be very hot.
●Keep hands and clothing (espe-
cially a tie, a scarf or a muffler)
away from the fan and belts.
Failure to do so m ay cause the
hands or clothing to be caught,
resulting in serious injury.
●Do not loosen the coolant reser-
voir cap while the engine and
radiator are hot.
High temperature steam or
coolant could spray out.
NOTICE
■When adding engine coolant
Add coolant slowly after the
engine has cooled down suffi-
ciently. Adding cool coolant to a
hot engine too quickly can cause
damage to the engine.
■To prevent damage to the
cooling system
Observe the following precau-
tions:
●Avoid contaminating the coolant
with foreign matter (such as
sand or dust etc.).
●Do not use any coolant additive.

5538-2. Steps to take in an emergency
8
When trouble arises
COROLLA_U
1Stop the engine. Set the
parking brake and shift the
shift lever to P (continuously
variable transmission) or N
(manual transmission).
2 Remove the mud, snow or
sand from around the front
wheels.
3 Place wood, stones or some
other material under the front
wheels to help provide trac-
tion.
4 Restart the engine.
5 Shift the shift lever to D or R
(continuously variable trans-
mission) or 1 or R (manual
transmission) and release
the parking brake. Then,
while exercising caution,
depress the accelerator
pedal.
■When it is difficu lt to free the
vehicle
Press the switch to turn off
TRAC.
If the vehicle becomes
stuck
Carry out the following pro-
cedures if the tires spin or
the vehicle becomes stuck
in mud, dirt or snow:
Recovering procedure
WA R N I N G
■When attempting to free a
stuck vehicle
If you choose to push the vehicle
back and forth to free it, make
sure the surrounding area is clear
to avoid striking other vehicles,
objects or people. The vehicle
may also lunge forward or lunge
back suddenly as it becomes free.
Use extreme caution.
■When shifting the shift lever
(vehicles with a continuously
variable transmission)
Be careful not to shift the shift
lever with the accelerator pedal
depressed.
This may lead to unexpected
rapid acceleration of the vehicle
that may cause an accident
resulting in death o r serious injury.
NOTICE
■To avoid damaging the trans-
mission and other compo-
nents
●Avoid spinning the front wheels
and depressing the accelerator
pedal more than necessary.
●If the vehicle remains stuck
even after these procedures are
performed, the vehicle may
require towing to be freed.

5548-2. Steps to take in an emergency
COROLLA_U

555
9
9
Vehicle specifications
COROLLA_U
Vehicle specifications

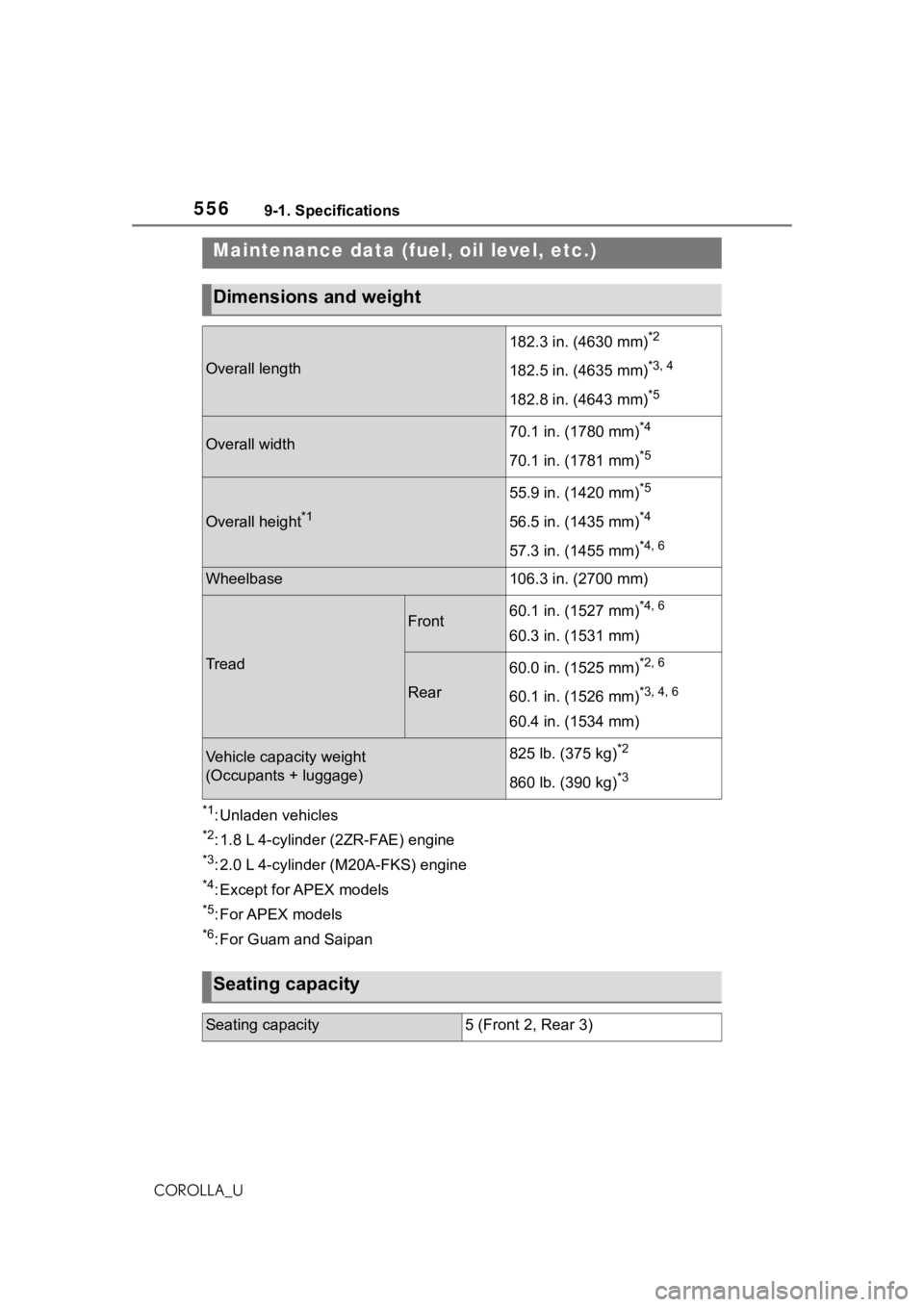

.9-1. SpecificationsMaintenance data (fuel, oil level, etc.) .................. 556
Fuel information .......... 568
Tire information ........... 570
9-2. Customization Customizable features.................................. 581
9-3. Initialization Items to initialize ......... 589

5569-1. Specifications
COROLLA_U
9-1.Specifications
*1: Unladen vehicles
*2: 1.8 L 4-cylinder (2ZR-FAE) engine
*3: 2.0 L 4-cylinder (M20A-FKS) engine
*4: Except for APEX models
*5: For APEX models
*6: For Guam and Saipan
Maintenance data (fuel, oil level, etc.)

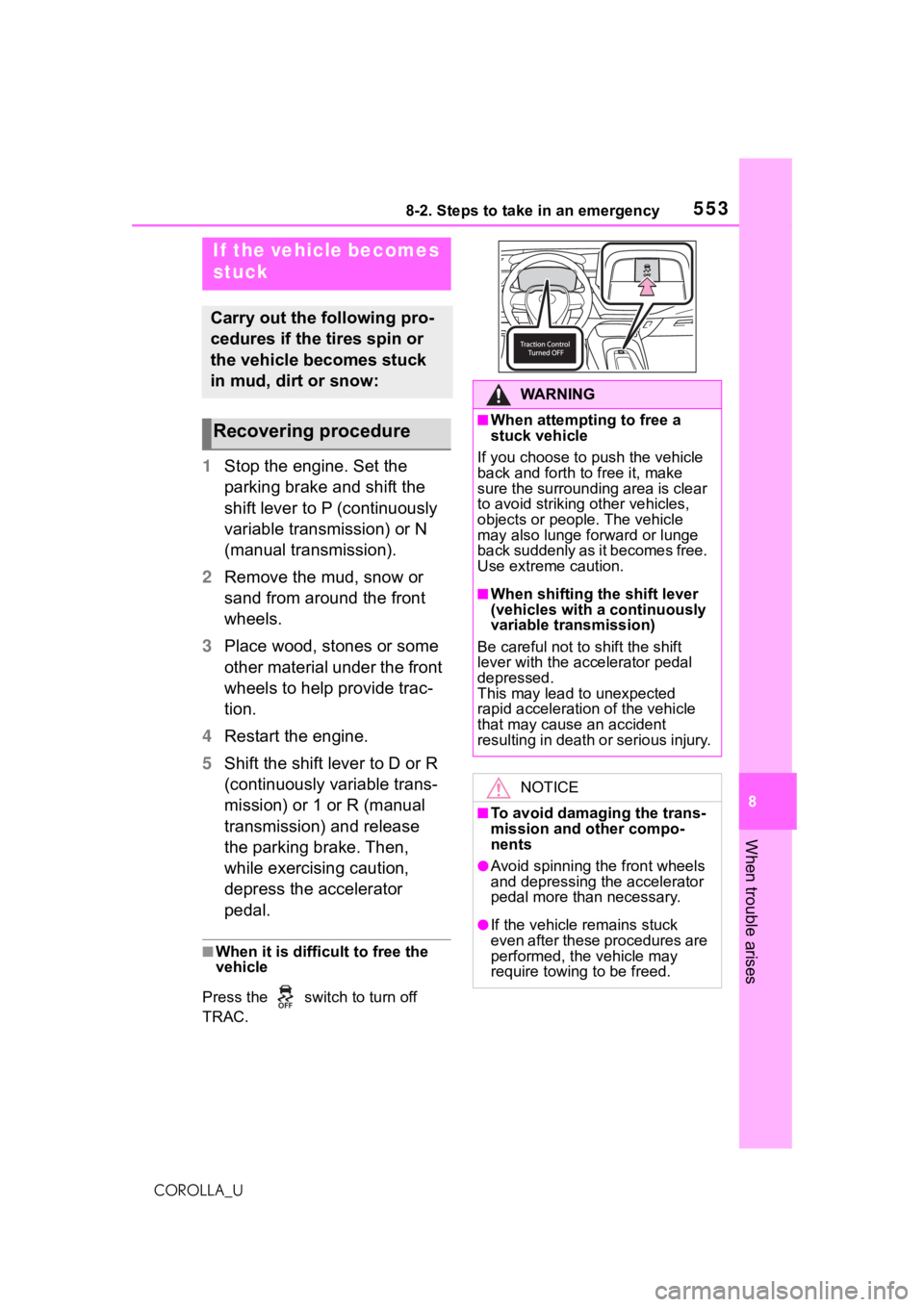

Dimensions and weight
Overall length
182.3 in. (4630 mm)*2
182.5 in. (4635 mm)*3, 4
182.8 in. (4643 mm)*5
Overall width70.1 in. (1780 mm)*4
70.1 in. (1781 mm)*5
Overall height*1
55.9 in. (1420 mm)*5
56.5 in. (1435 mm)*4
57.3 in. (1455 mm)*4, 6
Wheelbase106.3 in. (2700 mm)
Tread
Front60.1 in. (1527 mm)*4, 6
60.3 in. (1531 mm)
Rear
60.0 in. (1525 mm)*2, 6
60.1 in. (1526 mm)*3, 4, 6
60.4 in. (1534 mm)
Vehicle capacity weight
(Occupants + luggage)825 lb. (375 kg)*2
860 lb. (390 kg)*3
Seating capacity
Seating capacity5 (Front 2, Rear 3)

5579-1. Specifications
9
Vehicle specifications
COROLLA_U
■Vehicle identification num-
ber
The vehicle identification num-
ber (VIN) is the legal identifier
for your vehicle. This is the pri-
mary identification number for
your Toyota. It is used in regis-
tering the ownership of your
vehicle.
On some models: This number
is stamped under the right-hand
front seat.
This number is also stamped on
the top left of the instrument
panel.
This number is also on the Certi-
fication Label.
■Engine number
The engine number is stamped
on the engine block as shown.
1.8 L 4-cylinder (2ZR-FAE)
engine
2.0 L 4-cylinder (M20A-FKS)
engine

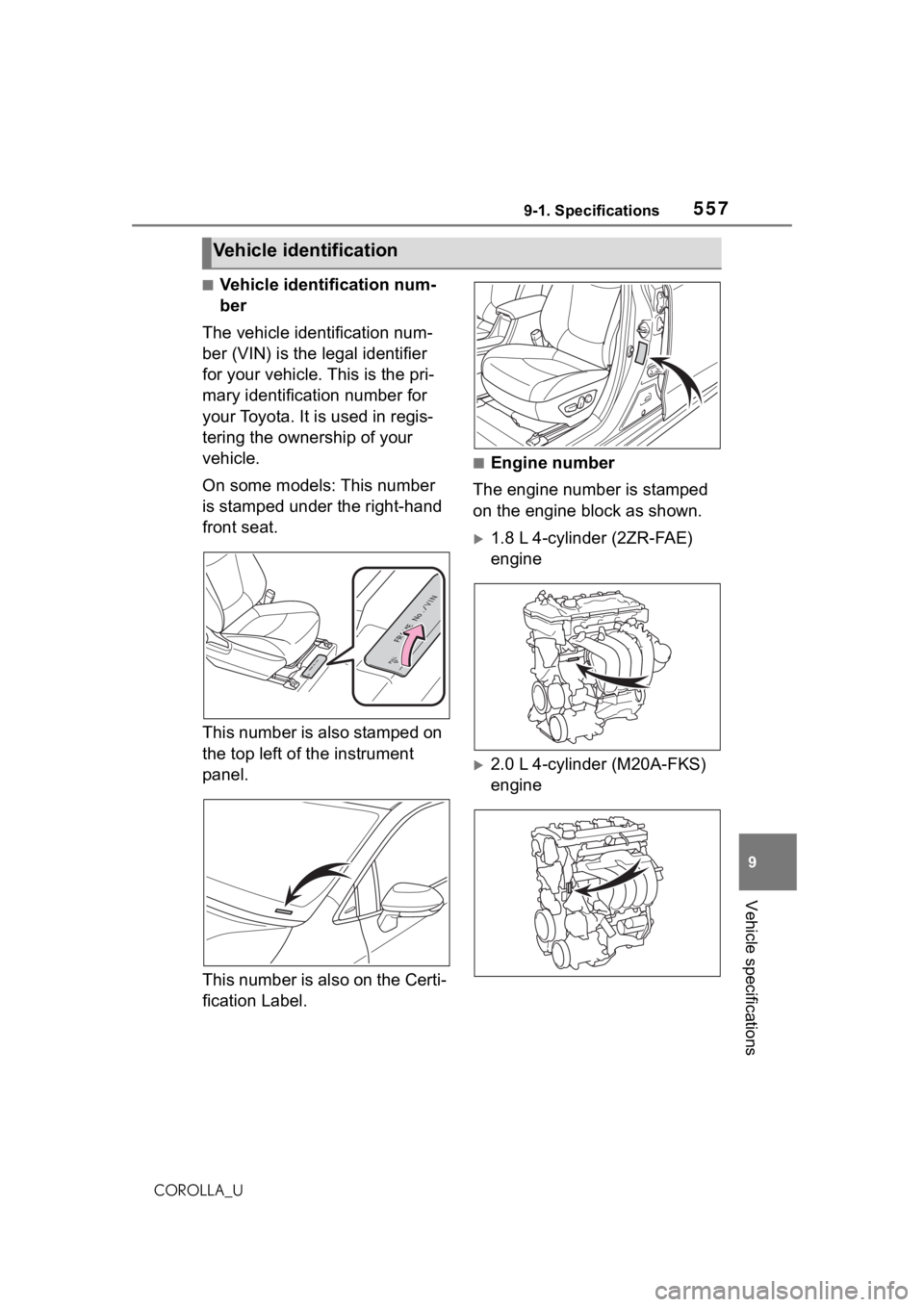

Vehicle identification

5589-1. Specifications
COROLLA_U
■Oil capacity (Drain and refill
[Reference
*])
*: The engine oil capacity is a refer-ence quantity to be used when
changing the engine oil. Warm up
and turn off the engine, wait more
than 5 minutes, and check the oil
level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity.
Oil grade: ILSAC GF-5 multi-
grade engine oil
Recommended viscosity: SAE
0W-20
Engine
Model1.8 L 4-cylinder (2ZR-FAE)2.0 L 4-cylinder
(M20A-FKS)
Ty p e4-cylinder in line, 4-cycle,
gasoline4-cylinder in line, 4-cycle,
gasoline
Bore and stroke3.17  3.48 in. (80.5  88.3
mm)3.17  3.84 in. (80.5  97.6
mm)
Displacement109.7 cu. in. (1798 cm3)121.3 cu. in. (1987 cm3)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or
higher
Fuel tank capacity
(Reference)13.2 gal. (50.0 L, 11.0 Imp. gal.)
Lubrication system (1.8 L
4-cylinder [2ZR-FAE]
engine)
With filter4.4 qt. (4.2 L, 3.7 Imp.
qt.)
Without
filter4.1 qt. (3.9 L, 3.4 Imp.
qt.)

5599-1. Specifications
9
Vehicle specifications
COROLLA_U
Outside temperature
SAE 0W-20 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained
here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher
viscosity (one with a higher
value) may be better suited if
the vehicle is operated at high
speeds, or under extreme
load conditions.
How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark is added to some oil containers to
help you select the oil you
should use.
■Oil capacity (Drain and refill
[Reference
*])
*: The engine oil capacity is a refer-
ence quantity to be used when
changing the engine oil. Warm up
and turn off the engine, wait more
than 5 minutes, an d check the oil
level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity.
Oil grade: API SN/RC multi-
grade engine oil
Recommended viscosity: SAE
Lubrication system (2.0 L
4-cylinder [M20A-FKS]
engine)
With filter4.9 qt. (4.6 L, 4.0 Imp.
qt.)
Without filter4.5 qt. (4.3 L, 3.8 Imp.
qt.)

5609-1. Specifications
COROLLA_U
0W-16Outside temperature
SAE 0W-16 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-16 is not available,
SAE 0W-20 oil may be used.
However, it must be replaced
with SAE 0W-16 at the next oil
change.
Oil viscosity (0W-16 is explained
here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher
viscosity (one with a higher
value) may be better suited if
the vehicle is operated at high
speeds, or under extreme
load conditions.
How to read oil container label:
API registered mark is added to
some oil containers to help you select the oil you should use.
