5249-1. Specifications
9-1.Specifications
*1: Unladen vehicles
*2: M15A-FKS engine
*3: Vehicles with rough road package
*4: 1ZR-FAE engine with Multidrive
*5: 1ZR-FAE engine with manual transmission
■Vehicle identification number
The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifi-
cation number for your Toyota. It is
used in registering the ownership of
your vehicle.
This number is stamped under the
right-hand front seat.

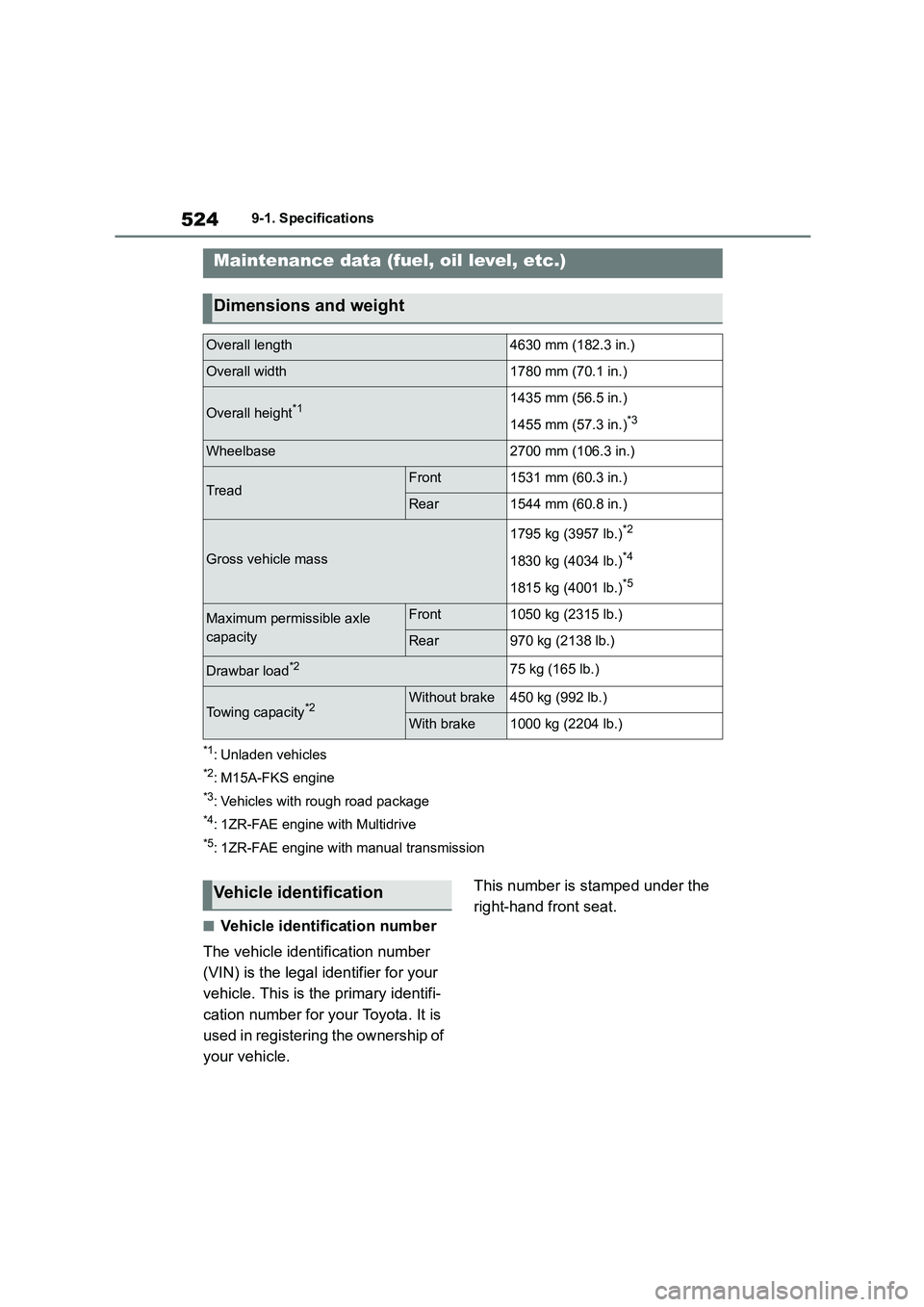

Maintenance data (fuel, oil level, etc.)
Dimensions and weight
Overall length4630 mm (182.3 in.)
Overall width1780 mm (70.1 in.)
Overall height*11435 mm (56.5 in.)
1455 mm (57.3 in.)*3
Wheelbase2700 mm (106.3 in.)
TreadFront1531 mm (60.3 in.)
Rear1544 mm (60.8 in.)
Gross vehicle mass
1795 kg (3957 lb.)*2
1830 kg (4034 lb.)*4
1815 kg (4001 lb.)*5
Maximum permissible axle
capacity
Front1050 kg (2315 lb.)
Rear970 kg (2138 lb.)
Drawbar load*275 kg (165 lb.)
Towing capacity*2Without brake450 kg (992 lb.)
With brake1000 kg (2204 lb.)
Vehicle identification

525
9
9-1. Specifications
Vehicle specifications

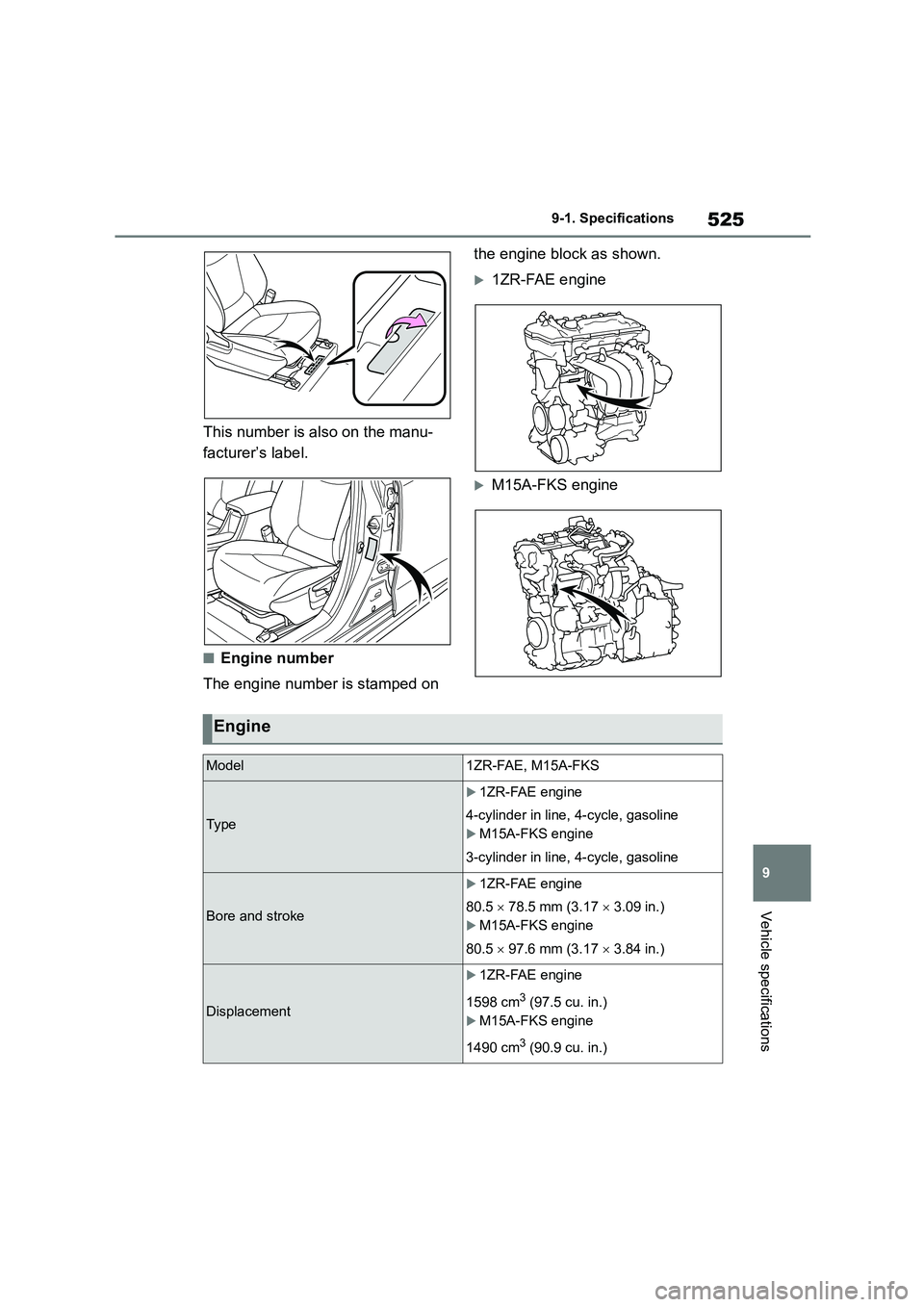

This number is also on the manu-
facturer’s label.
■Engine number
The engine number is stamped on
the engine block as shown.
1ZR-FAE engine
M15A-FKS engine
Engine
Model1ZR-FAE, M15A-FKS
Ty p e
1ZR-FAE engine
4-cylinder in line, 4-cycle, gasoline
M15A-FKS engine
3-cylinder in line, 4-cycle, gasoline
Bore and stroke
1ZR-FAE engine
80.5  78.5 mm (3.17  3.09 in.)
M15A-FKS engine
80.5  97.6 mm (3.17  3.84 in.)
Displacement
1ZR-FAE engine
1598 cm3 (97.5 cu. in.)
M15A-FKS engine
1490 cm3 (90.9 cu. in.)

5269-1. Specifications

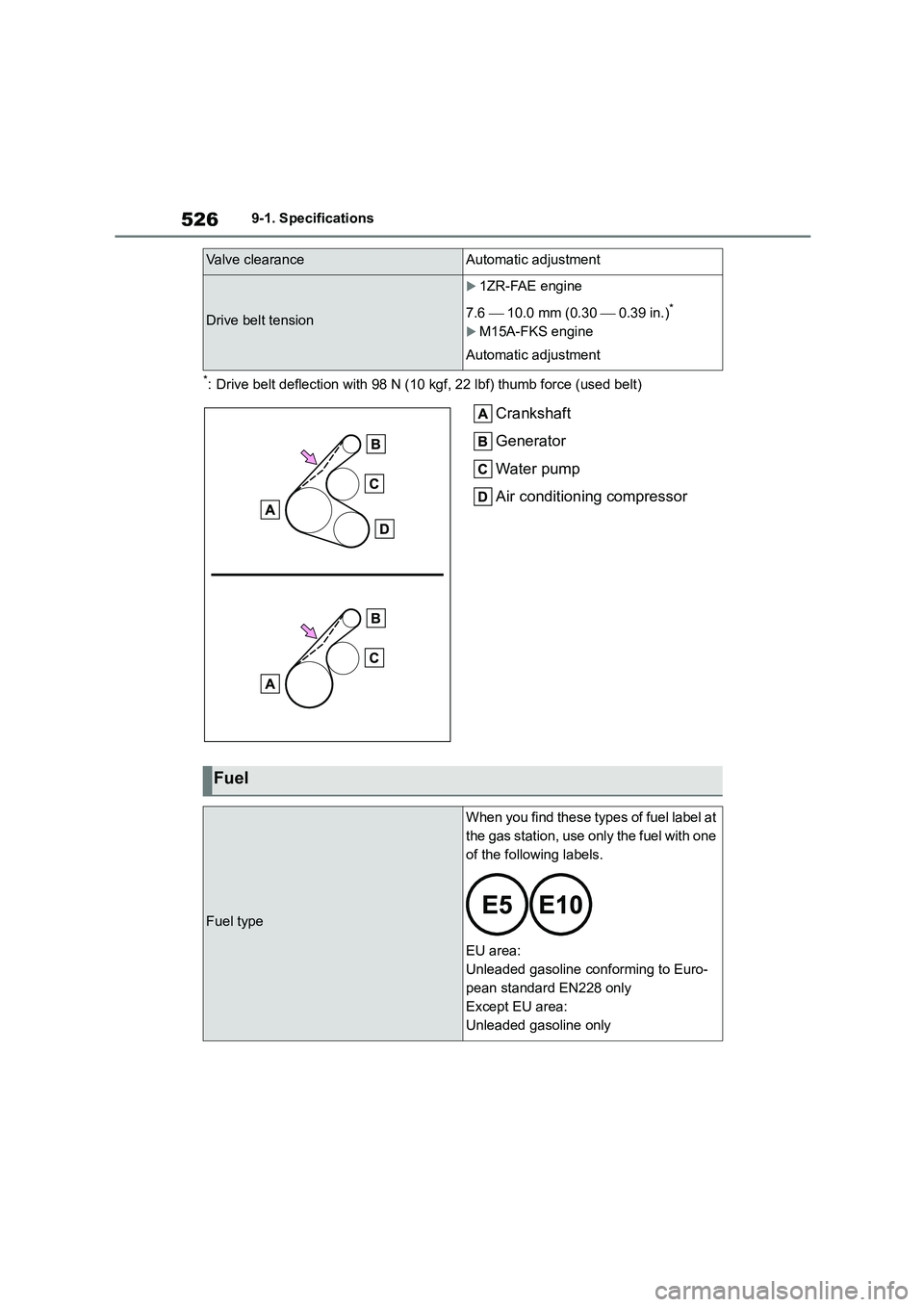

*: Drive belt deflection with 98 N (10 kgf, 22 lbf) thumb force (used belt)
Crankshaft
Generator
Water pump
Air conditioning compressor
Valve clearanceAutomatic adjustment
Drive belt tension
1ZR-FAE engine
7.6  10.0 mm (0.30  0.39 in.)*
M15A-FKS engine
Automatic adjustment
Fuel
Fuel type
When you find these types of fuel label at
the gas station, use only the fuel with one
of the following labels.
EU area:
Unleaded gasoline conforming to Euro-
pean standard EN228 only
Except EU area:
Unleaded gasoline only

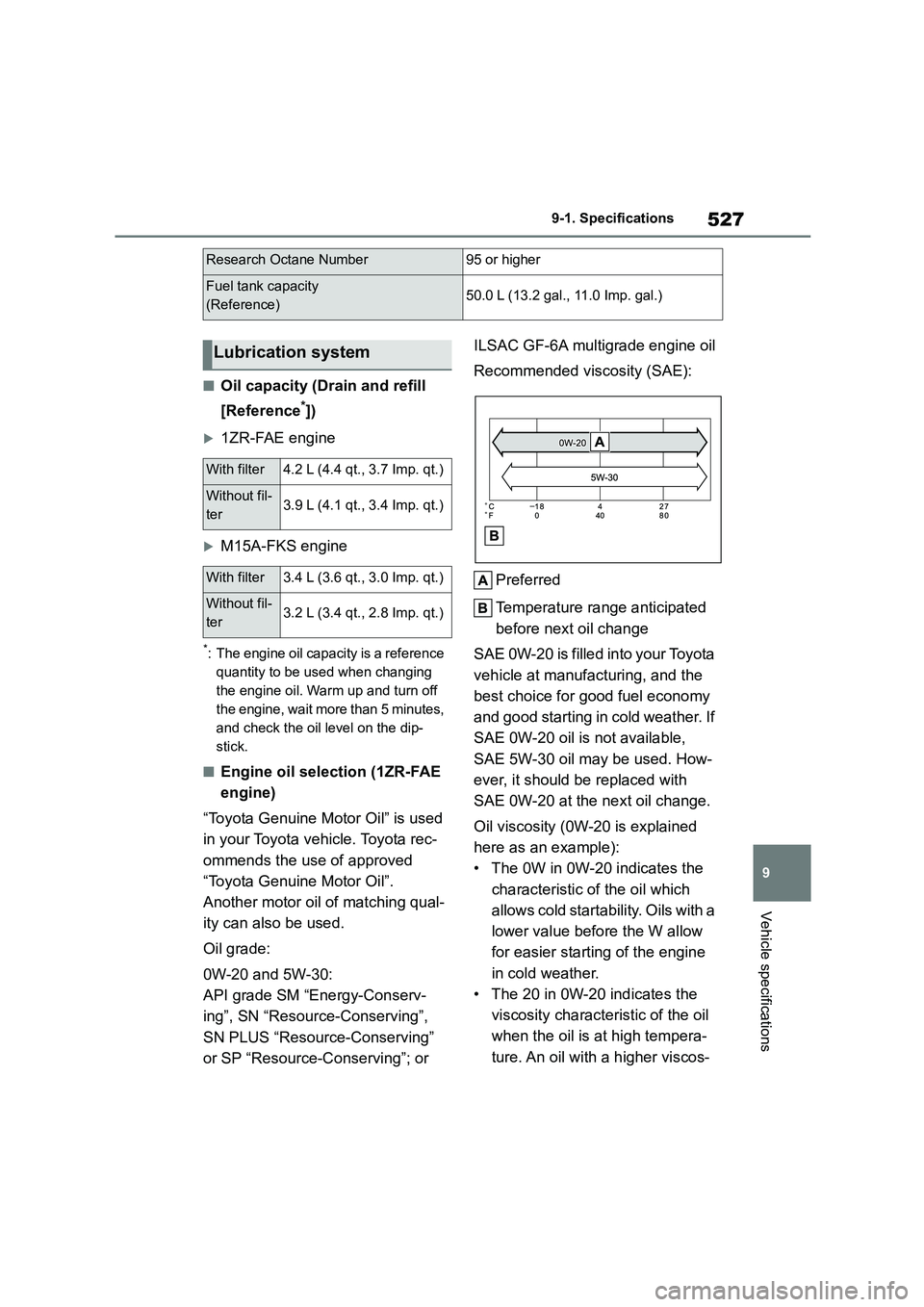

527
9
9-1. Specifications
Vehicle specifications
■Oil capacity (Drain and refill
[Reference*])
1ZR-FAE engine
M15A-FKS engine
*: The engine oil capacity is a reference
quantity to be used when changing
the engine oil. Warm up and turn off
the engine, wait more than 5 minutes,
and check the oil level on the dip-
stick.
■Engine oil selection (1ZR-FAE
engine)
“Toyota Genuine Motor Oil” is used
in your Toyota vehicle. Toyota rec-
ommends the use of approved
“Toyota Genuine Motor Oil”.
Another motor oil of matching qual-
ity can also be used.
Oil grade:
0W-20 and 5W-30:
API grade SM “Energy-Conserv-
ing”, SN “Resource-Conserving”,
SN PLUS “Resource-Conserving”
or SP “Resource-Conserving”; or
ILSAC GF-6A multigrade engine oil
Recommended viscosity (SAE):
Preferred
Temperature range anticipated
before next oil change
SAE 0W-20 is filled in to your Toyota
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather. If
SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with
SAE 0W-20 at the ne xt oil change.
Oil viscosity (0W-20 is explained
here as an example):
• The 0W in 0W-20 indicates the
characteristic of the oil which
allows cold startability. Oils with a
lower value before the W allow
for easier starting of the engine
in cold weather.
• The 20 in 0W-20 indicates the
viscosity characteristic of the oil
when the oil is at high tempera-
ture. An oil with a higher viscos-
Research Octane Number95 or higher
Fuel tank capacity
(Reference)50.0 L (13.2 gal., 11.0 Imp. gal.)
Lubrication system
With filter4.2 L (4.4 qt., 3.7 Imp. qt.)
Without fil-
ter3.9 L (4.1 qt., 3.4 Imp. qt.)
With filter3.4 L (3.6 qt., 3.0 Imp. qt.)
Without fil-
ter3.2 L (3.4 qt., 2.8 Imp. qt.)

5289-1. Specifications

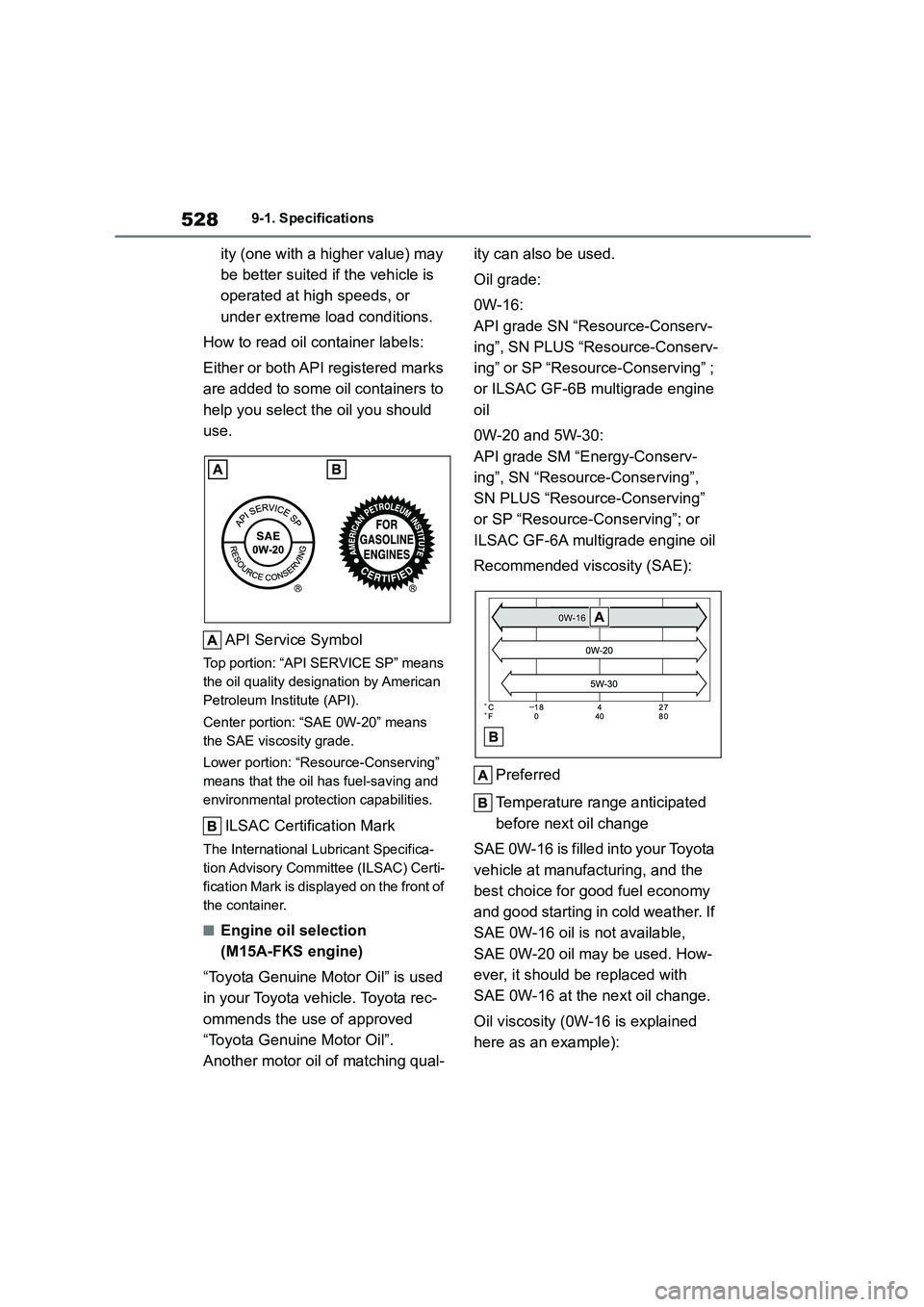

ity (one with a higher value) may
be better suited if the vehicle is
operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks
are added to some oil containers to
help you select the oil you should
use.
API Service Symbol
Top portion: “API SERVICE SP” means
the oil quality designation by American
Petroleum Institute (API).
Center portion: “SAE 0W-20” means
the SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specifica-
tion Advisory Comm ittee (ILSAC) Certi-
fication Mark is displayed on the front of
the container.
■Engine oil selection
(M15A-FKS engine)
“Toyota Genuine Motor Oil” is used
in your Toyota vehicle. Toyota rec-
ommends the use of approved
“Toyota Genuine Motor Oil”.
Another motor oil of matching qual-
ity can also be used.
Oil grade:
0W-16:
API grade SN “Resource-Conserv-
ing”, SN PLUS “Resource-Conserv-
ing” or SP “Resource-Conserving” ;
or ILSAC GF-6B multigrade engine
oil
0W-20 and 5W-30:
API grade SM “Energy-Conserv-
ing”, SN “Resource-Conserving”,
SN PLUS “Resource-Conserving”
or SP “Resource-Conserving”; or
ILSAC GF-6A multigrade engine oil
Recommended viscosity (SAE):
Preferred
Temperature range anticipated
before next oil change
SAE 0W-16 is filled in to your Toyota
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather. If
SAE 0W-16 oil is not available,
SAE 0W-20 oil may be used. How-
ever, it should be replaced with
SAE 0W-16 at the ne xt oil change.
Oil viscosity (0W-16 is explained
here as an example):

529
9
9-1. Specifications
Vehicle specifications

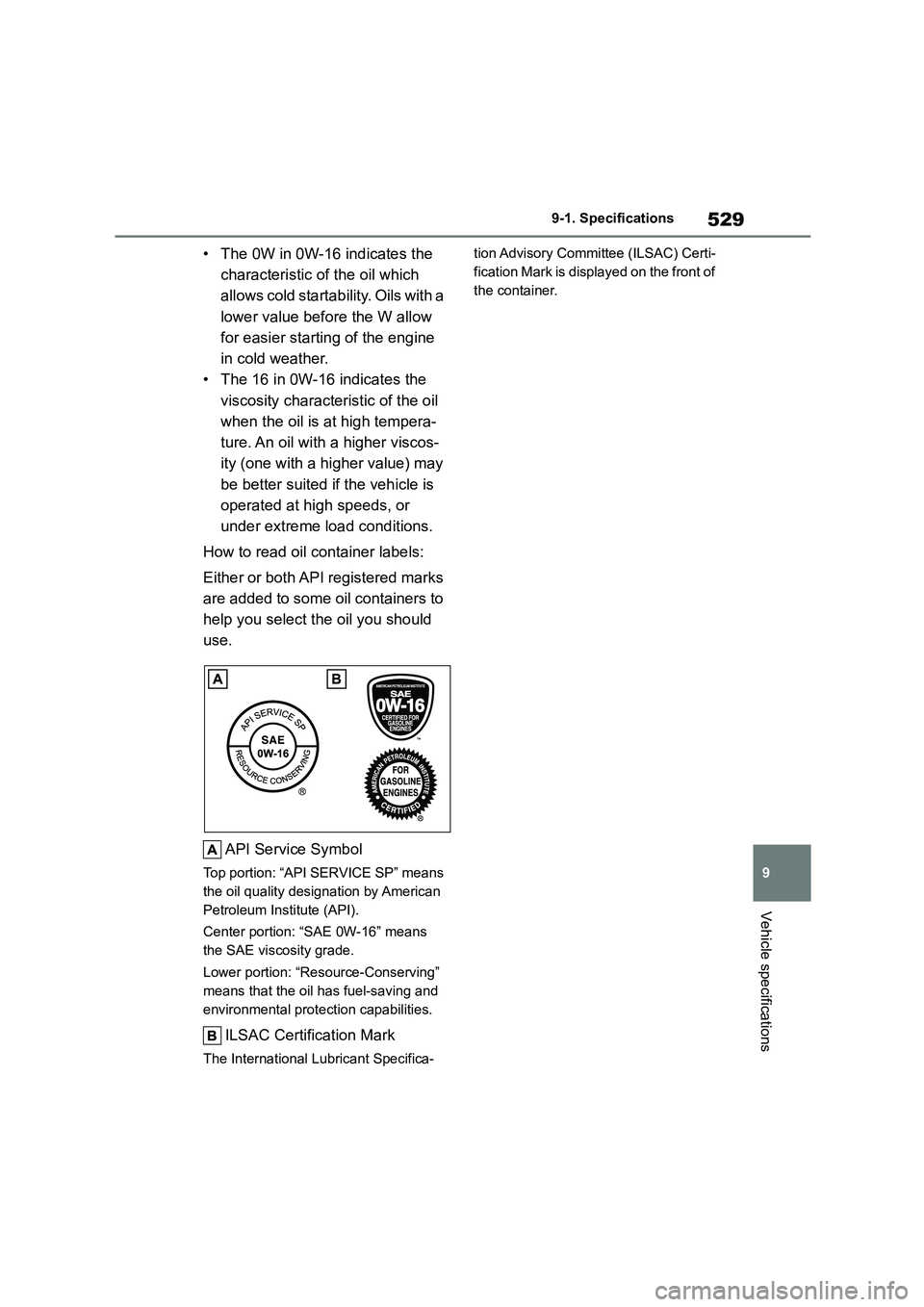

• The 0W in 0W-16 indicates the
characteristic of the oil which
allows cold startab ility. Oils with a
lower value before the W allow
for easier starting of the engine
in cold weather.
• The 16 in 0W-16 indicates the
viscosity characteristic of the oil
when the oil is at high tempera-
ture. An oil with a higher viscos-
ity (one with a higher value) may
be better suited if the vehicle is
operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks
are added to some oil containers to
help you select the oil you should
use.
API Service Symbol
Top portion: “API SERVICE SP” means
the oil quality designation by American
Petroleum Institute (API).
Center portion: “SAE 0W-16” means
the SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specifica-
tion Advisory Commi ttee (ILSAC) Certi-
fication Mark is displayed on the front of
the container.

5309-1. Specifications

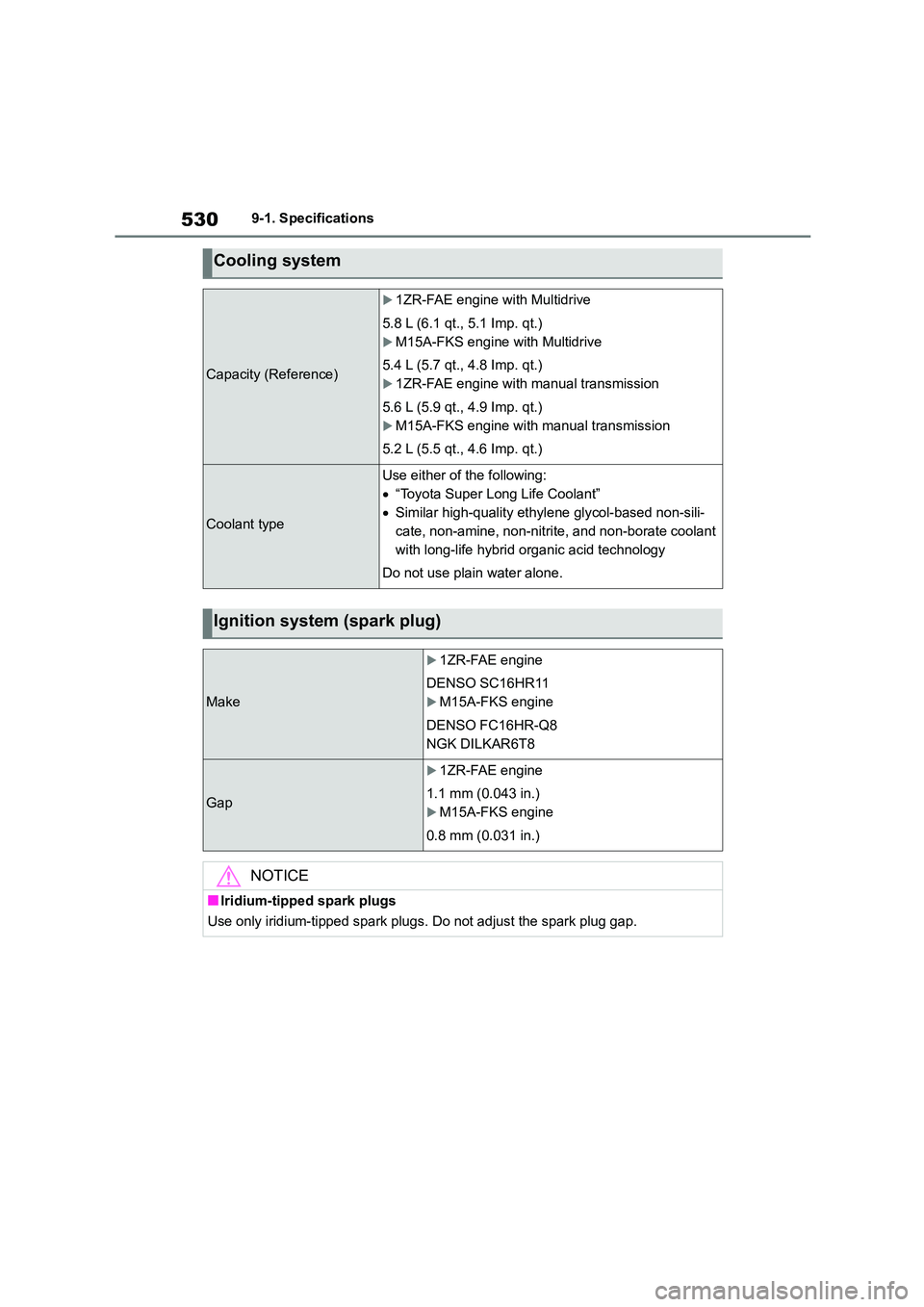

Cooling system
Capacity (Reference)
1ZR-FAE engine with Multidrive
5.8 L (6.1 qt., 5.1 Imp. qt.)
M15A-FKS engine with Multidrive
5.4 L (5.7 qt., 4.8 Imp. qt.)
1ZR-FAE engine with manual transmission
5.6 L (5.9 qt., 4.9 Imp. qt.)
M15A-FKS engine with manual transmission
5.2 L (5.5 qt., 4.6 Imp. qt.)
Coolant type
Use either of the following:
 “Toyota Super Long Life Coolant”
 Similar high-quality ethylene glycol-based non-sili-
cate, non-amine, non-nitrite, and non-borate coolant
with long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
Make
1ZR-FAE engine
DENSO SC16HR11
M15A-FKS engine
DENSO FC16HR-Q8
NGK DILKAR6T8
Gap
1ZR-FAE engine
1.1 mm (0.043 in.)
M15A-FKS engine
0.8 mm (0.031 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

531
9
9-1. Specifications
Vehicle specifications
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.

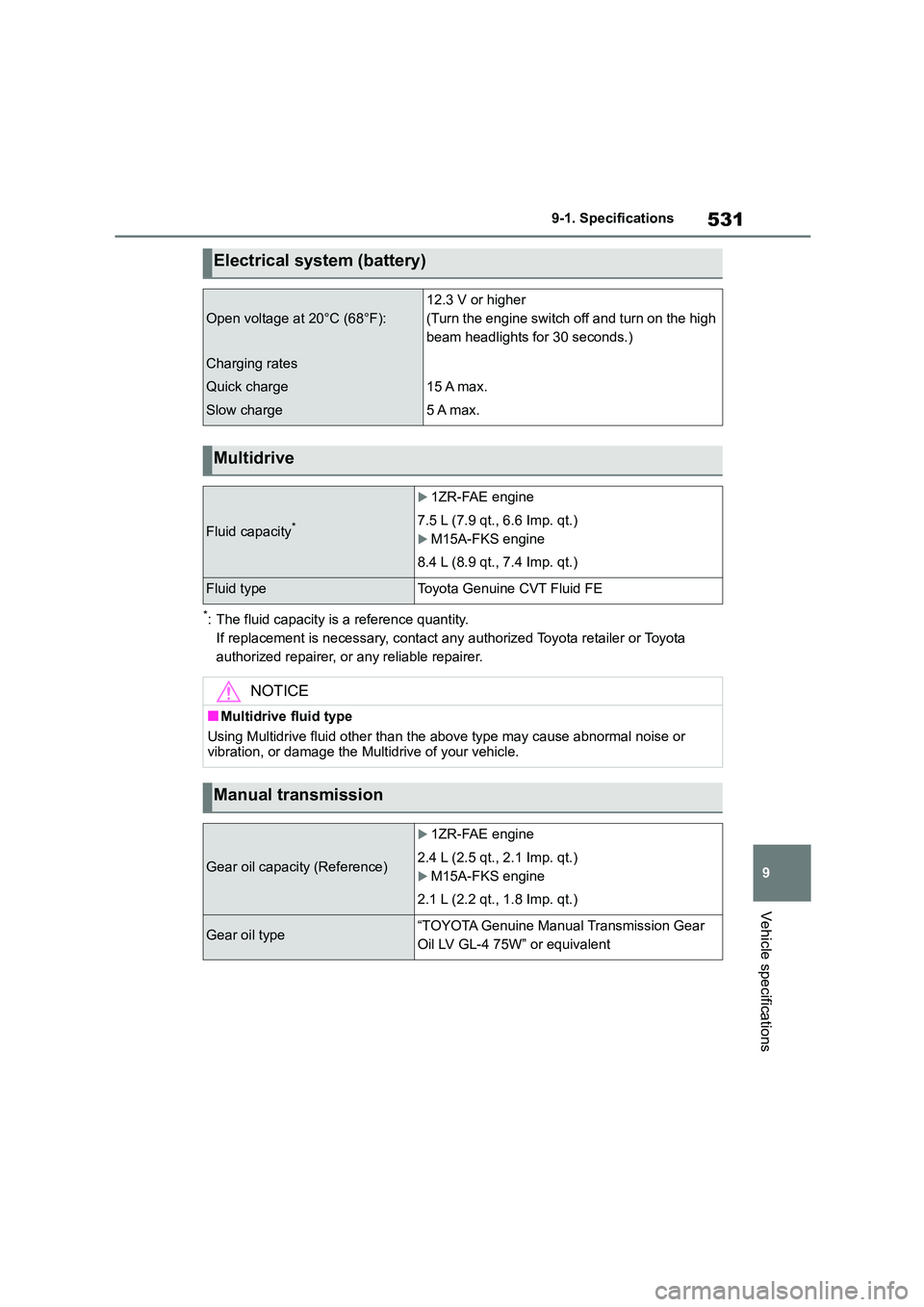

Electrical system (battery)
Open voltage at 20°C (68°F):
12.3 V or higher
(Turn the engine switch off and turn on the high
beam headlights for 30 seconds.)
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.
Multidrive
Fluid capacity*
1ZR-FAE engine
7.5 L (7.9 qt., 6.6 Imp. qt.)
M15A-FKS engine
8.4 L (8.9 qt., 7.4 Imp. qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
■Multidrive fluid type
Using Multidrive fluid other than the above type may cause abnormal noise or
vibration, or damage the Multidrive of your vehicle.
Manual transmission
Gear oil capacity (Reference)
1ZR-FAE engine
2.4 L (2.5 qt., 2.1 Imp. qt.)
M15A-FKS engine
2.1 L (2.2 qt., 1.8 Imp. qt.)
Gear oil type“TOYOTA Genuine Manual Transmission Gear
Oil LV GL-4 75W” or equivalent

5329-1. Specifications
*1: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf, 67.4
lbf) while the engine is running.
*2: If equipped
*3: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf, 45.0
lbf)
*4: Vehicles with a electric parking brake

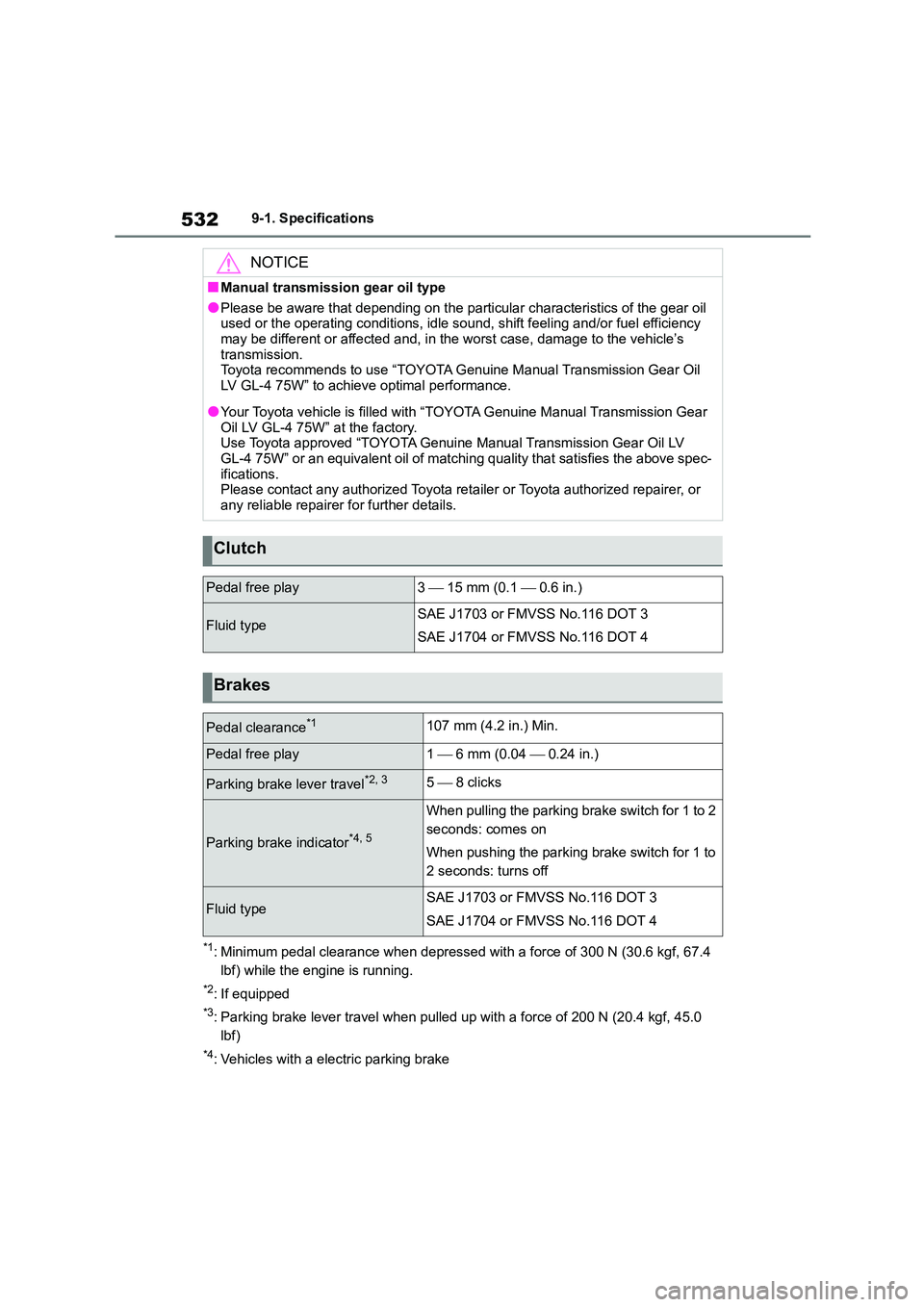

NOTICE
■Manual transmission gear oil type
●Please be aware that depending on the particular characteristics of the gear oil
used or the operating conditions, idle sound, shift feeling and/or fuel efficiency may be different or affected and, in the worst case, damage to the vehicle’s
transmission.
Toyota recommends to use “TOYOTA Genuine Manual Transmission Gear Oil LV GL-4 75W” to achieve optimal performance.
●Your Toyota vehicle is filled with “TOYOTA Genuine Manual Transmission Gear
Oil LV GL-4 75W” at the factory. Use Toyota approved “TOYOTA Genuine Manual Transmission Gear Oil LV
GL-4 75W” or an equivalent oil of matching quality that satisfies the above spec-
ifications. Please contact any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer for further details.
Clutch
Pedal free play3  15 mm (0.1  0.6 in.)
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
SAE J1704 or FMVSS No.116 DOT 4
Brakes
Pedal clearance*1107 mm (4.2 in.) Min.
Pedal free play1  6 mm (0.04  0.24 in.)
Parking brake lever travel*2, 35  8 clicks
Parking brake indicator*4, 5
When pulling the parking brake switch for 1 to 2
seconds: comes on
When pushing the parking brake switch for 1 to
2 seconds: turns off
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
SAE J1704 or FMVSS No.116 DOT 4

537
9
9-1. Specifications
Vehicle specifications

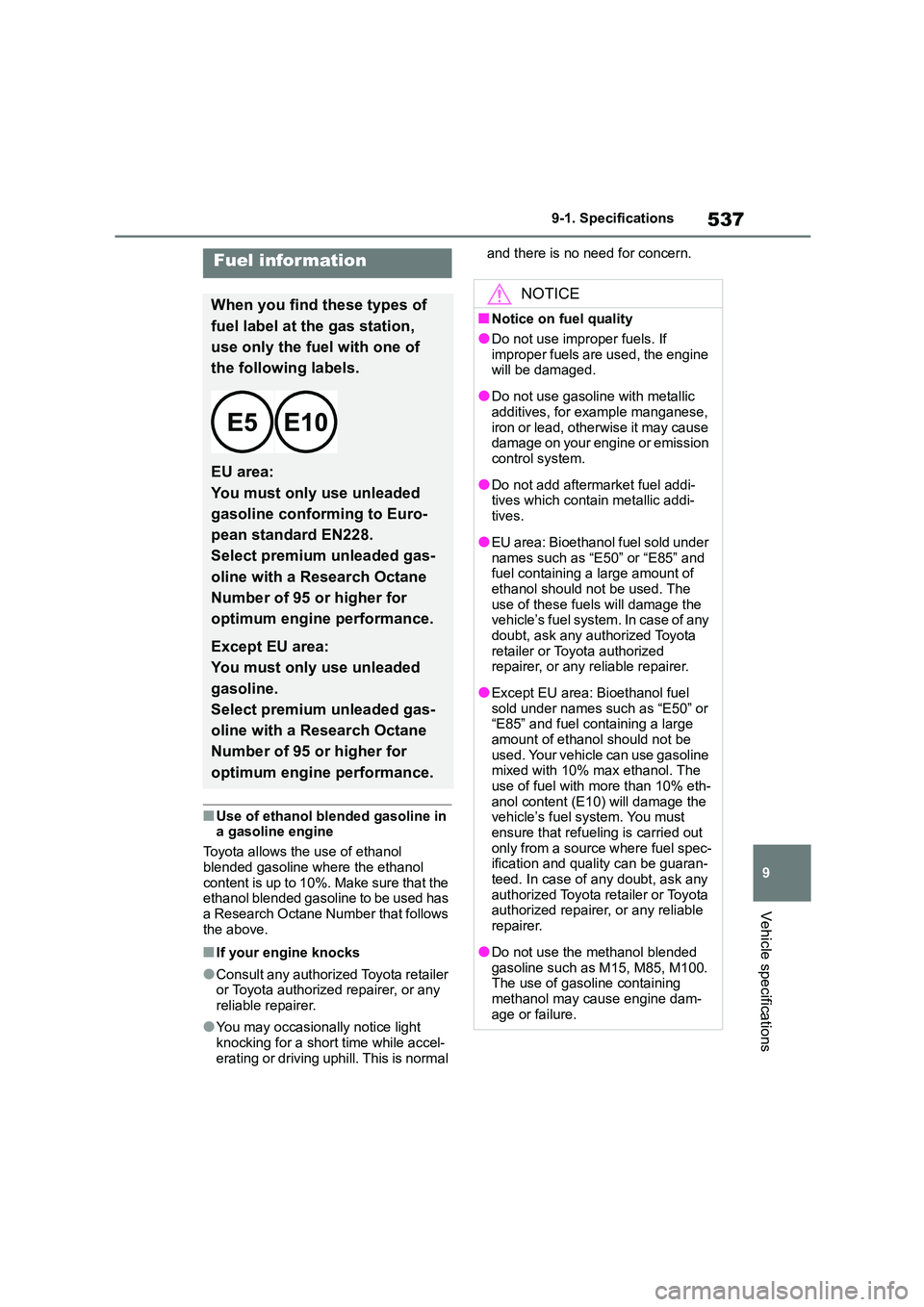

■Use of ethanol blended gasoline in
a gasoline engine
Toyota allows the use of ethanol
blended gasoline where the ethanol
content is up to 10%. Make sure that the ethanol blended gasoline to be used has
a Research Octane Number that follows
the above.
■If your engine knocks
●Consult any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
●You may occasionally notice light knocking for a short time while accel-
erating or driving uphill. This is normal
and there is no need for concern.Fuel infor mation
When you find these types of
fuel label at the gas station,
use only the fuel with one of
the following labels.
EU area:
You must only use unleaded
gasoline conforming to Euro-
pean standard EN228.
Select premium unleaded gas-
oline with a Research Octane
Number of 95 or higher for
optimum engine performance.
Except EU area:
You must only use unleaded
gasoline.
Select premium unleaded gas-
oline with a Research Octane
Number of 95 or higher for
optimum engine performance.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If
improper fuels are used, the engine
will be damaged.
●Do not use gasoline with metallic
additives, for example manganese,
iron or lead, otherwise it may cause damage on your engine or emission
control system.
●Do not add aftermarket fuel addi-
tives which contain metallic addi-
tives.
●EU area: Bioethanol fuel sold under
names such as “E50” or “E85” and fuel containing a large amount of
ethanol should not be used. The
use of these fuels will damage the vehicle’s fuel system. In case of any
doubt, ask any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
●Except EU area: Bioethanol fuel sold under names such as “E50” or
“E85” and fuel containing a large
amount of ethanol should not be used. Your vehicle can use gasoline
mixed with 10% max ethanol. The
use of fuel with more than 10% eth- anol content (E10) will damage the
vehicle’s fuel system. You must
ensure that refue ling is carried out only from a source where fuel spec-
ification and quality can be guaran-
teed. In case of any doubt, ask any authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
●Do not use the methanol blended
gasoline such as M15, M85, M100. The use of gasoline containing
methanol may cause engine dam-
age or failure.
