TOYOTA COROLLA CROSS 2022 Owners Manual

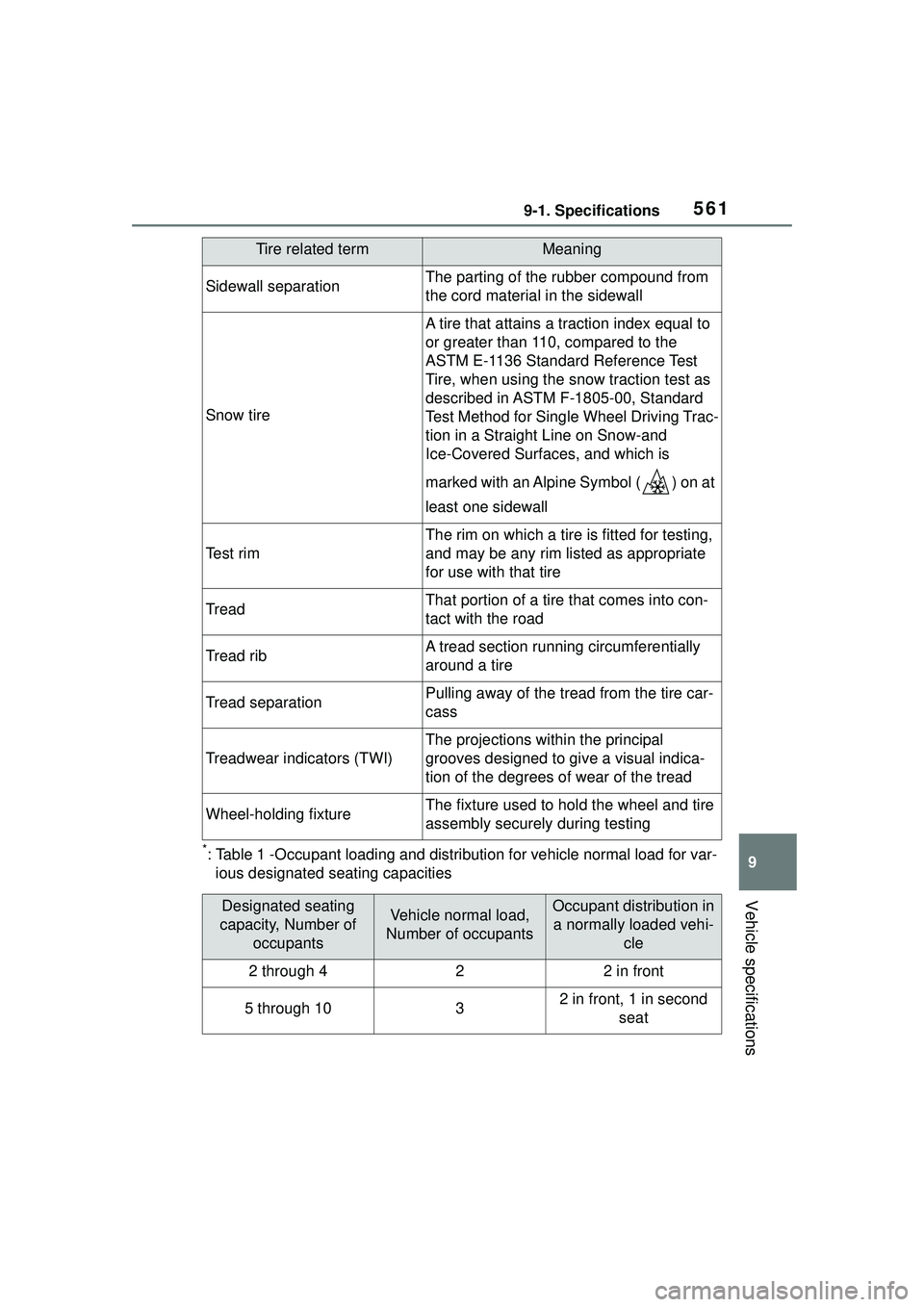

5619-1. Specifications
9
Vehicle specifications
*: Table 1 -Occupant loading and distribution for vehicle normal load for var-
ious designated seating capacities
Sidewall separationThe parting of the rubber compound from
the cord material in the sidewall
Snow tire
A tire that attains a traction index equal to
or greater than 110, compared to the
ASTM E-1136 Standard Reference Test
Tire, when using the snow traction test as
described in ASTM F-1805-00, Standard
Test Method for Single Wheel Driving Trac-
tion in a Straight Line on Snow-and
Ice-Covered Surfaces, and which is
marked with an Alpine Symbol ( ) on at
least one sidewall
Test rim
The rim on which a tire is fitted for testing,
and may be any rim listed as appropriate
for use with that tire
TreadThat portion of a tire that comes into con-
tact with the road
Tread ribA tread section running circumferentially
around a tire
Tread separationPulling away of the tread from the tire car-
cass
Treadwear indicators (TWI)
The projections within the principal
grooves designed to give a visual indica-
tion of the degrees of wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire
assembly securely during testing
Tire related termMeaning
Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehi- cle
2 through 422 in front
5 through 1032 in front, 1 in second seat

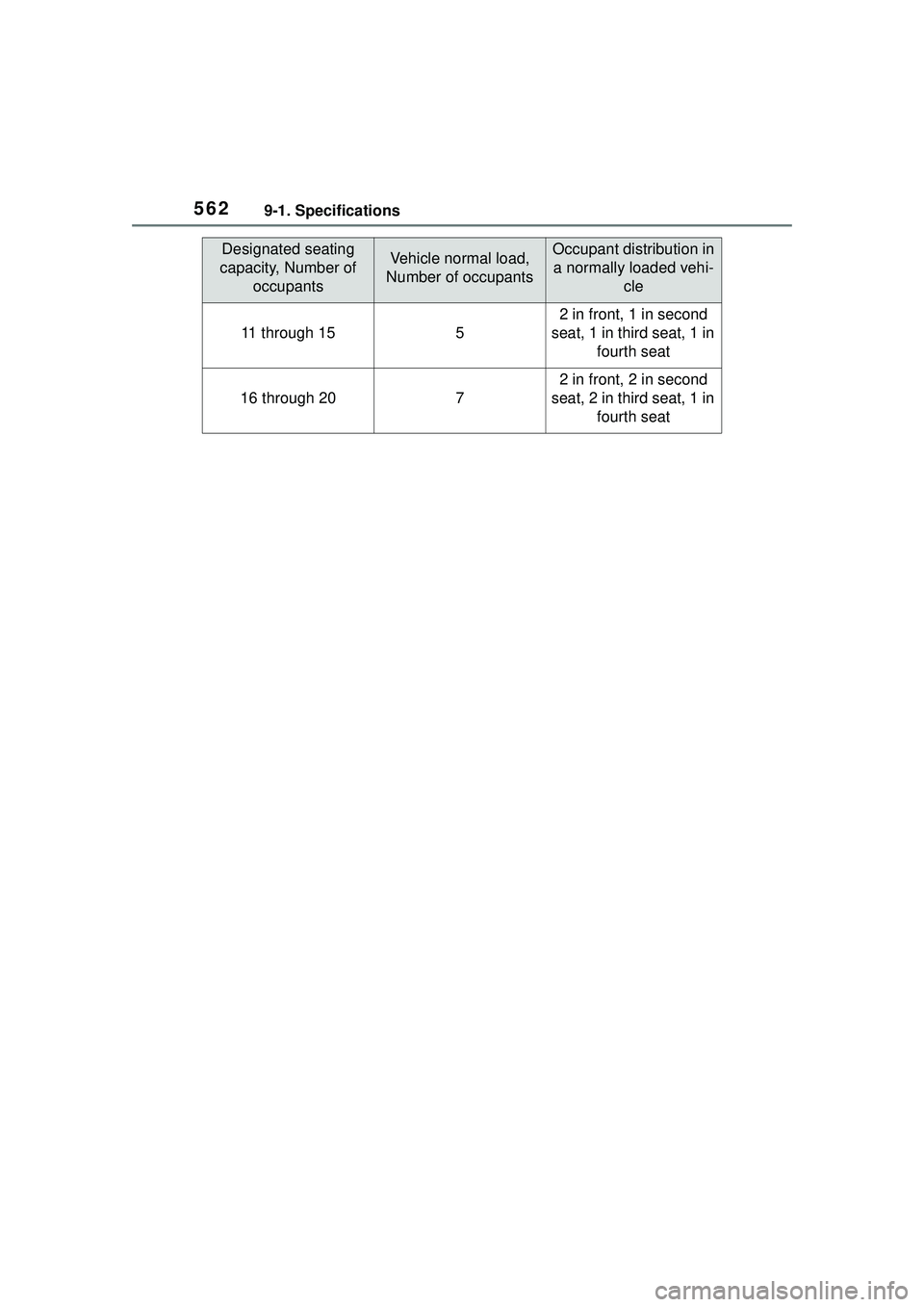

5629-1. Specifications
11 through 155
2 in front, 1 in second
seat, 1 in third seat, 1 in fourth seat
16 through 207
2 in front, 2 in second
seat, 2 in third seat, 1 in fourth seat
Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehi- cle

5639-2. Customization
9
Vehicle specifications
9-2.Customization
■Changing by using the
audio system screen
1 Press the “MENU” button.
2 Select “Setup” on the “Menu”
screen.
3 Select “General” or “Vehicle”
on the “Setup” screen.
Various setting can be changed.
Refer to the list of settings that can
be changed for details.
■Changing by using the
meter control switches
1 Press or of the meter
control switch to select . 2
Press or of the meter
control switch to select the
desired item to be custom-
ized.
3 Press or press and hold .
The available settings will differ
depending on if is pressed or
pressed and held. Follow the
instructions on the display.
Some function settings are changed simultaneously with other func-
tions being customized. Contact your Toyota dealer for further
details.
Settings that can be changed using the audio system screen
Settings that can be changed using the meter control switches
Customizable features
Your vehicle includes a vari-
ety of electronic features
that can be personalized to
suit your preferences. The
settings of these features
can be changed using the
multi-information display,
the audio system screen, or
at your Toyota dealer.
Customizing vehicle fea-
tures
WARNING
■During customization
As the engine needs to be run-
ning during customization, ensure
that the vehicle is parked in a
place with adequate ventilation. In
a closed area such as a garage,
exhaust gases including harmful
carbon monoxide (CO) may col-
lect and enter the vehicle. This
may lead to death or a serious
health hazard.
NOTICE
■During customization
To prevent battery discharge,
ensure that the engine is running
while customizing features.
Customizable features

5649-2. Customization
Settings that can be changed by your Toyota dealer
Definition of symbols: O = Available, — = Not available
■Gauges, meters and multi-information display (P.76, 81, 85,
90)
Function*1Default settingCustomized setting
LanguageEnglishFrenchOO—Spanish
Units*2miles (MPG)
km (km/L)
—O—km (L/100 km)
miles (MPG Impe- rial)
Speedometer display*3AnalogDigital—O—
Eco Driving Indicator
LightOnOff—O—
Fuel economy display
Total average (Average fuel consumption [after reset])
Trip average (Aver- age fuel consump- tion [after start])
—O—Tank average
(Average fuel con- sumption [after refuel])
Audio system linked dis-
playOnOff—O—
Drive information typeAfter startAfter reset—O—
Drive information items
(First item)Distance
Average vehicle speed
—O—
Elapsed time
Drive information items
(Second item)Elapsed time
Average vehicle speed
—O—
Distance
Pop-up displayOnOff—O—

5659-2. Customization
9
Vehicle specifications
*1: For details about each function: P. 9 4
*2: The default setting varies according to country.
*3: 7-inch display
■Door lock ( P.104, 109, 530)
■Smart key system* and wireless remote control ( P.104, 119)
Suggestion functionOn
On (when the vehi-
cle is stopped)
O—O
Off
FunctionDefault settingCustomized setting
Unlocking using a key
Driver’s door unlocked in
one step, all doors
unlocked in two step
All doors unlocked in one step——O
Automatic door locking
function
Shift position linked door
locking opera- tionOff
O—OSpeed linked door locking operation
Automatic door unlock-
ing function
Shift position linked door unlocking operationOff
O—ODriver’s door linked door unlocking operation
FunctionDefault settingCustomized setting
Operating signal (Buzz-
ers)5OffO—O1 to 7
Operation signal (Emer-
gency flashers)OnOffO—O
Function*1Default settingCustomized setting

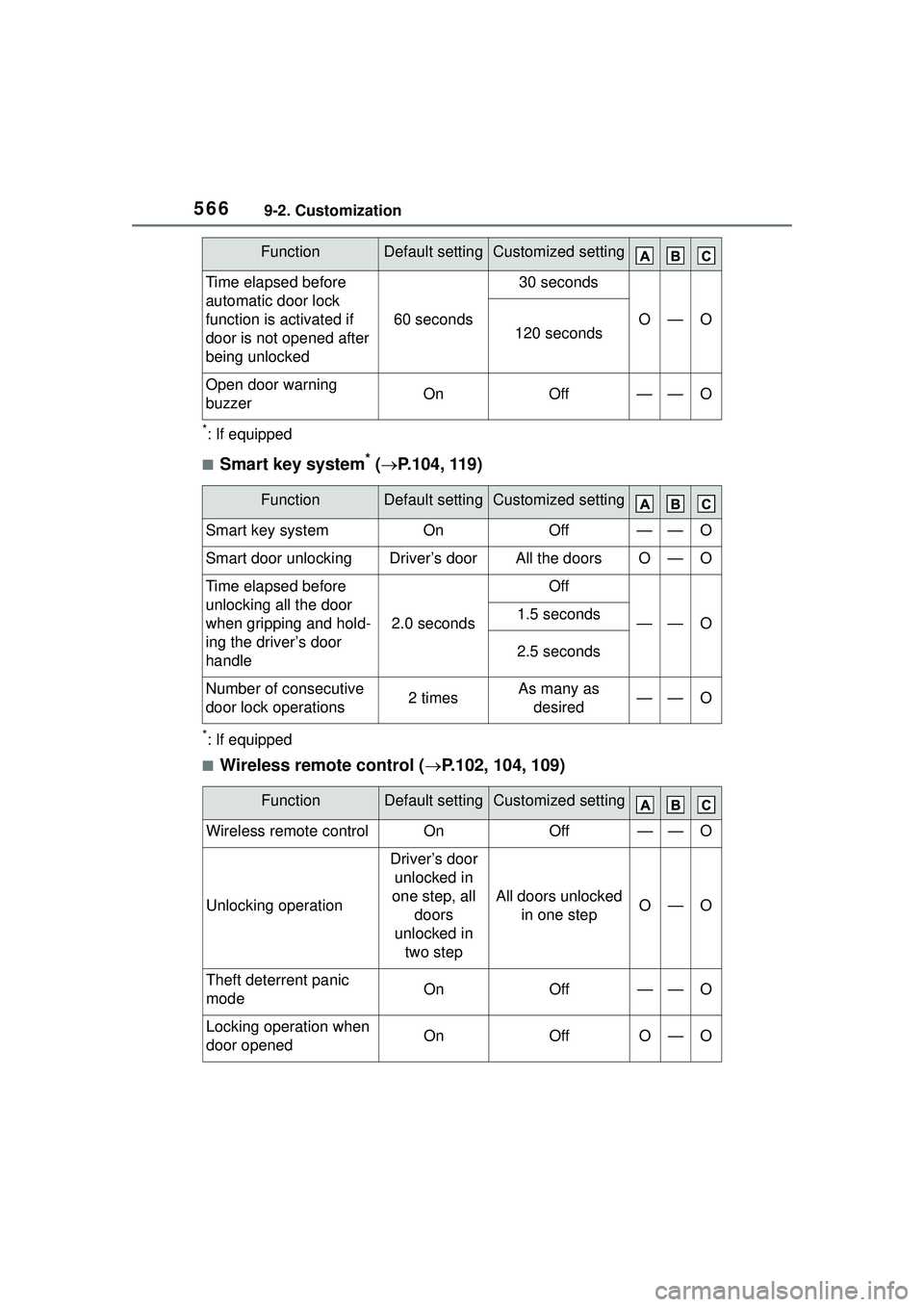

5669-2. Customization
*: If equipped
■Smart key system* ( P.104, 119)
*: If equipped
■Wireless remote control ( P.102, 104, 109)
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked
60 seconds
30 seconds
O—O120 seconds
Open door warning
buzzerOnOff——O
FunctionDefault settingCustomized setting
Smart key systemOnOff——O
Smart door unlockingDriver’s doorAll the doorsO—O
Time elapsed before
unlocking all the door
when gripping and hold-
ing the driver’s door
handle
2.0 seconds
Off
——O1.5 seconds
2.5 seconds
Number of consecutive
door lock operations2 timesAs many as
desired——O
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
Unlocking operation
Driver’s door unlocked in
one step, all doors
unlocked in two step
All doors unlocked in one stepO—O
Theft deterrent panic
modeOnOff——O
Locking operation when
door openedOnOffO—O
FunctionDefault settingCustomized setting

5679-2. Customization
9
Vehicle specifications
■Power back door* ( P.109)
*: If equipped
■Power windows and moon roof* ( P.133, 136)
*: If equipped
■Moon roof* ( P.136)
*: If equipped
FunctionDefault settingCustomized setting
Power back door opera-
tionsOnOff—O—
Set at the desired posi-
tion(height): Back door
automatic open and stop
position
Initial settings
positionStop at the desired position (height)—O—
5 step configuration:
Back door automatic
open and stop position
51 to 5—O—
Operation buzzer vol-
ume31—O—2
FunctionDefault settingCustomized setting
Key linked operationOffOn——O
Wireless remote control
linked operationOffOn (open only)——O
Wireless remote control
linked operation signal
(buzzer)
OnOff——O
FunctionDefault settingCustomized setting
Linked operation of com-
ponents when key is
used (open only)
Slide onlyTilt only——O
Linked operation of com-
ponents when wireless
remote control is used
Slide onlyTilt only——O

5689-2. Customization
■Automatic light control system* ( P.177)
*: If equipped
■Lights ( P.177)
*: Except for Canada
■PCS (Pre-Collision System) ( P.195)
■LTA (Lane Tracing Assist) ( P.203)
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
Off
O—O60 seconds
90 seconds
Windshield wiper linked
headlight illuminationOnOff——O
FunctionDefault settingCustomized setting
Daytime running light
systemOnOff*O—O
Welcome lightingOnOff——O
FunctionDefault settingCustomized setting
PCS (Pre-Collision Sys-
tem)OnOff—O—
Adjust alert timingMiddleEarly—O—Late
FunctionCustomized setting
Lane centering functionOn, Off—O—
Steering assist functionOn, Off—O—
Alert sensitivityHigh, Standard—O—
Vehicle sway warning
functionOn, Off—O—
Vehicle sway warning
sensitivityHigh, Standard, Low—O—

5699-2. Customization
9
Vehicle specifications
■RSA (Road Sign Assist)* ( P.213)
*: If equipped
■Stop & Start system ( P.227)
■BSM (Blind Spot Monitor)* ( P.233)
*: If equipped
FunctionDefault settingCustomized setting
RSA (Road Sign Assist)OnOff—O—
Excess speed notifica-
tion methodDisplay onlyNo notification—O—Display and buzzer
Excess speed notifica-
tion level1 mph (2 km/h)3 mph (5 km/h)—O—5 mph (10 km/h)
Other notifications
method (No-entry notifi-
cation)
Display only
No notification
—O—Display and buzzer
FunctionDefault settingCustomized setting
Change the Stop & Start
system duration when
the A/C is on
StandardExtended—O—
FunctionDefault settingCustomized setting
BSM (Blind Spot Moni-
tor)OnOff—O—
Outside rear view mirror
indicator brightnessBrightDim—O—
Alert timing for pres-
ence of approaching
vehicle (sensitivity)
Intermediate
Early
—O—
Late
Only when vehicle
detected in blind spot

5709-2. Customization
■Intuitive parking assist* ( P.251)
*: If equipped
■RCTA (Rear Cross Traffic Alert) function* ( P.238)
*: If equipped
■PKSB (Parking Support Brake)* ( P.258)
*: If equipped
■Automatic air conditioning system* ( P.416)
*: If equipped
■Illumination ( P.426)
FunctionDefault settingCustomized setting
Intuitive parking assistOnOff—O—
Buzzer volumeLevel 2Level 1—O—Level 3
FunctionDefault settingCustomized setting
RCTA (Rear Cross Traf-
fic Alert) functionOnOff—O—
Buzzer volumeLevel 2Level 1—O—Level 3
FunctionDefault settingCustomized setting
PKSB (Parking Support
Brake) functionOnOff—O—
FunctionDefault settingCustomized setting
A/C auto switch opera-
tionOnOffO—O
FunctionDefault settingCustomized setting
Time elapsed before the
interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
