TOYOTA COROLLA HATCHBACK 2019 (in English) User Guide

9
NOTE: Regularly scheduled maintenance, including
oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
Hood release
Engine maintenance
FEATURES & OPERATIONS
Auto lock/unlock
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed goes above approximately 12 mph (20 k\
m/h).
Driver’s door linked door unlocking function
-Doors unlock when the engine switch is set to OFF and driver’s door i\
s opened.
Refer to the Owner’s Manual for more details.
* The “ENGINE START STOP”switch must be “IGNITION ON” and th\
e brake pedal depressed to shift from Park.
Push shift lever to the left from “D” position, to “M” posit\
ion.
+ : Upshift (push and release)
- : Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking do\
wnhill. For
best fuel economy during normal driving conditions, always drive with th\
e shift lever in
the “D” position.
P
R
N
D
M
Park*
Reverse
Neutral
Drive
“M” mode
“M” 10-SPEED SPORT SEQUENTIAL SHIFTMATIC MODE
Continuously variable transmission (if equipped)
+ (“M” mode)
- (“M” mode)
- (“M” mode)
+ (“M” mode)
Lift up ring to shift into reverse
Manual transmission (if equipped)
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
2019_Corolla_HB_QRG_V5_0516.indd 95/17/18 11:12 PM

10
FEATURES & OPERATIONS

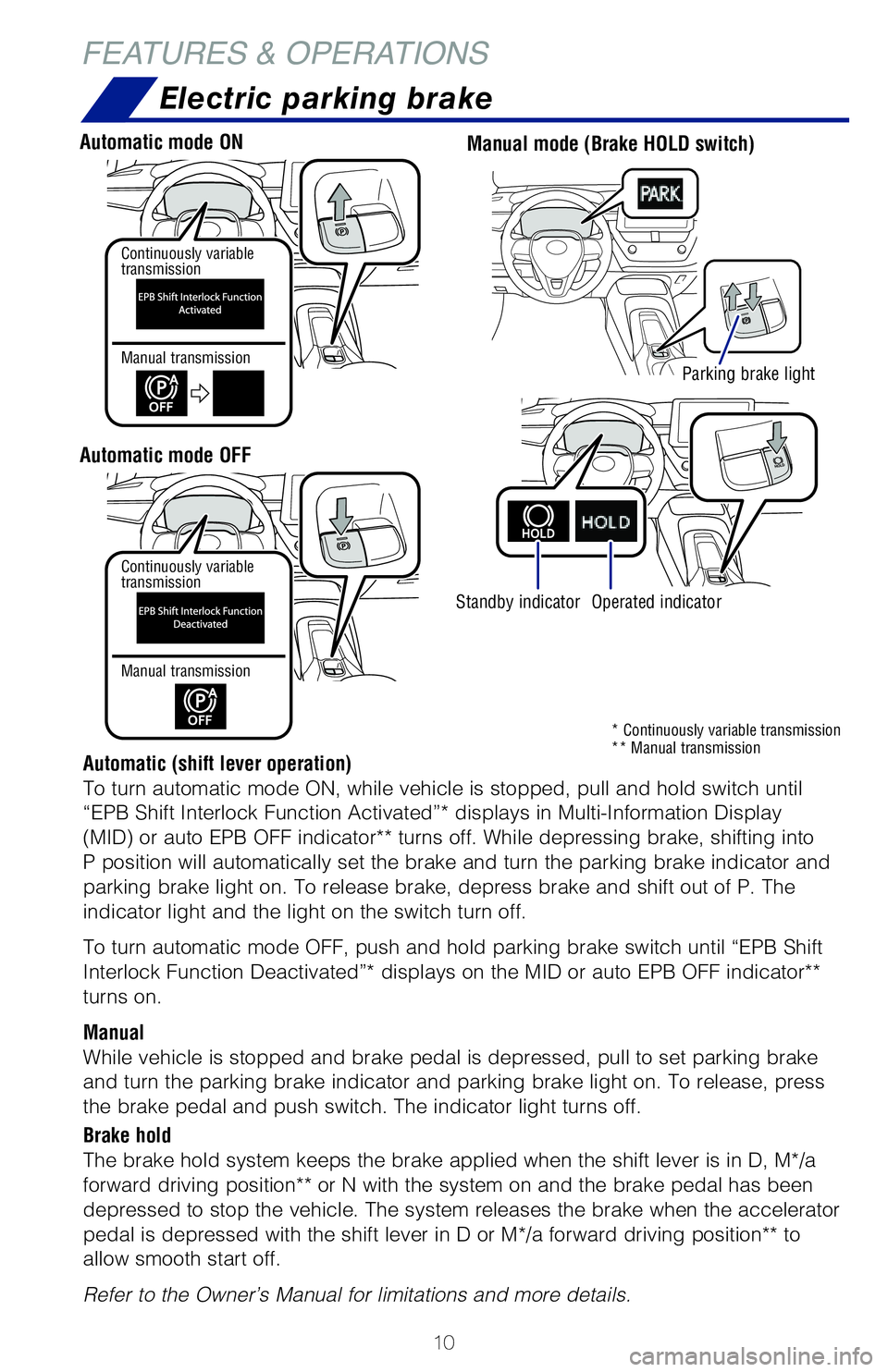

Electric parking brake
Driver side
Driver side
Automatic mode ON
Automatic mode OFF
Manual mode (Brake HOLD switch)
Automatic (shift lever operation)
To turn automatic mode ON, while vehicle is stopped, pull and hold switc\
h until
“EPB Shift Interlock Function Activated”* displays in Multi-Inform\
ation Display
(MID) or auto EPB OFF indicator** turns off. While depressing brake, s\
hifting into
P position will automatically set the brake and turn the parking brake i\
ndicator and
parking brake light on. To release brake, depress brake and shift out of\
P. The
indicator light and the light on the switch turn off.
To turn automatic mode OFF, push and hold parking brake switch until “\
EPB Shift
Interlock Function Deactivated”* displays on the MID or auto EPB OFF \
indicator**
turns on.
Manual
While vehicle is stopped and brake pedal is depressed, pull to set parki\
ng brake
and turn the parking brake indicator and parking brake light on. To rele\
ase, press
the brake pedal and push switch. The indicator light turns off.
Brake hold
The brake hold system keeps the brake applied when the shift lever is in\
D, M*/a
forward driving position** or N with the system on and the brake pedal h\
as been
depressed to stop the vehicle. The system releases the brake when the ac\
celerator
pedal is depressed with the shift lever in D or M*/a forward driving pos\
ition** to
allow smooth start off.
Refer to the Owner’s Manual for limitations and more details.
Standby indicatorOperated indicator
Parking brake light
Continuously variable
transmission
Continuously variable
transmission
Manual transmission
Manual transmission
* Continuously variable transmission
** Manual transmission
Push “ ” or “ ” and “” on steering wheel to change and select information in
the following:
4.2-inch display
Meter control switches
2019_Corolla_HB_QRG_V5_0516.indd 105/17/18 11:12 PM

11
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Electric parking brake
Manual mode (Brake HOLD switch)
Automatic (shift lever operation)
To turn automatic mode ON, while vehicle is stopped, pull and hold switc\
h until
“EPB Shift Interlock Function Activated”* displays in Multi-Inform\
ation Display
(MID) or auto EPB OFF indicator** turns off. While depressing brake, s\
hifting into
P position will automatically set the brake and turn the parking brake i\
ndicator and
parking brake light on. To release brake, depress brake and shift out of\
P. The
indicator light and the light on the switch turn off.
To turn automatic mode OFF, push and hold parking brake switch until “\
EPB Shift
Interlock Function Deactivated”* displays on the MID or auto EPB OFF \
indicator**
turns on.
Manual
While vehicle is stopped and brake pedal is depressed, pull to set parki\
ng brake
and turn the parking brake indicator and parking brake light on. To rele\
ase, press
the brake pedal and push switch. The indicator light turns off.
Brake hold
The brake hold system keeps the brake applied when the shift lever is in\
D, M*/a
forward driving position** or N with the system on and the brake pedal h\
as been
depressed to stop the vehicle. The system releases the brake when the ac\
celerator
pedal is depressed with the shift lever in D or M*/a forward driving pos\
ition** to
allow smooth start off.
Refer to the Owner’s Manual for limitations and more details.
Driving assist system status display areaDriving assist system status display area
Content display areaContent display area
Parking brake light
* Continuously variable transmission
** Manual transmission
Push “” or “” and “” on steering wheel to change and select information in
the following:

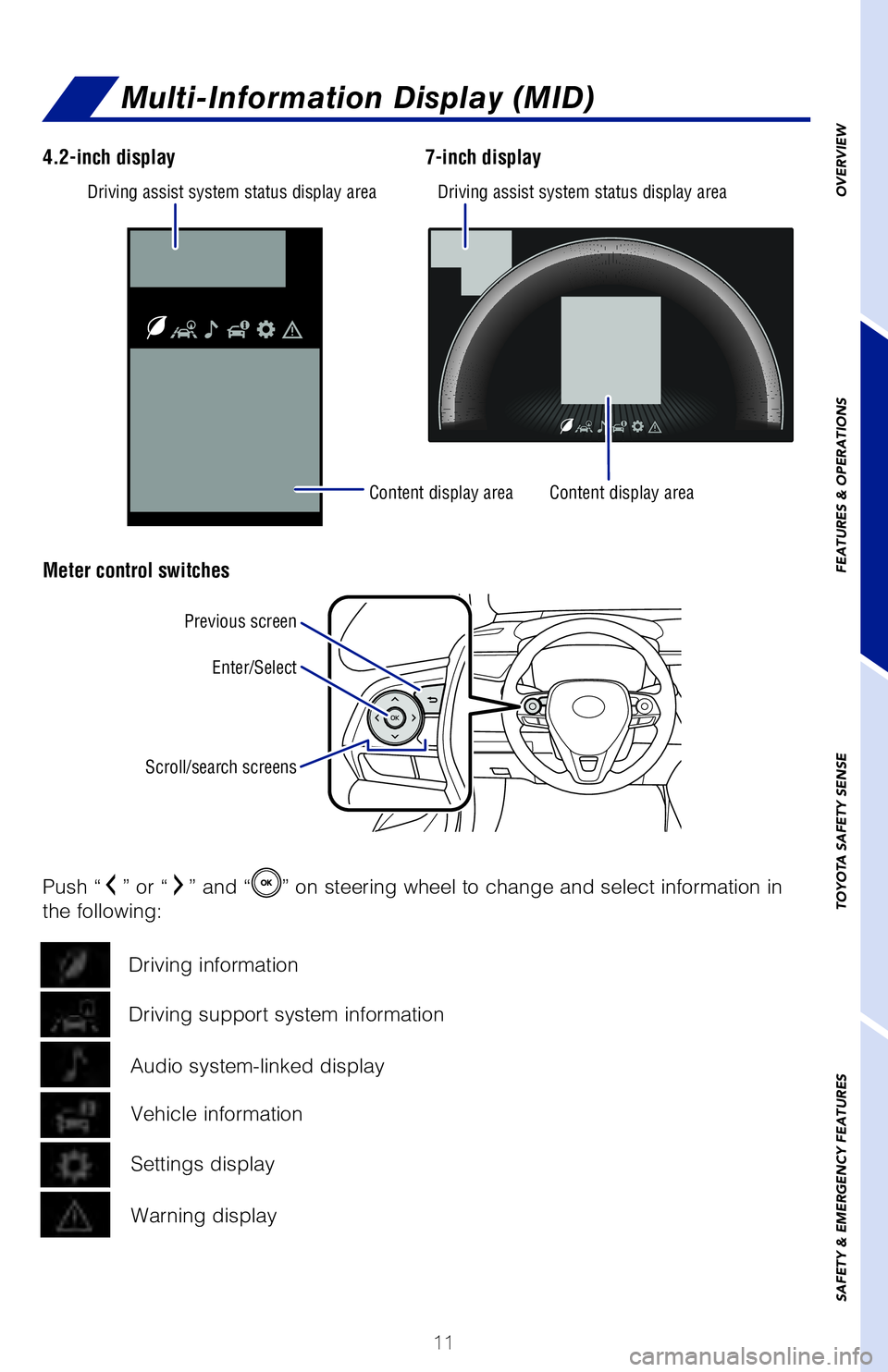

Multi-Information Display (MID)
4.2-inch display
Meter control switches 7-inch display
Previous screen
Enter/Select
Scroll/search screens
Driving support system information Driving information
Vehicle information
Audio system-linked display
Settings display
Warning display
2019_Corolla_HB_QRG_V5_0516.indd 115/17/18 11:12 PM

12
FEATURES & OPERATIONS
Parking lights
HEADLIGHTS
FRONT FOG LIGHTS (IF EQUIPPED)
TURN SIGNAL
REAR
FRONT
-Daytime Running Light system (DRL) Automatically turns on the headlights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after 30-second delay, or lock switch on remote may be pushed after locking.
-Automatic High Beam (AHB) system Automatically switches between high and low beams as appropriate to provide the most light possible and enha\
nce
forward visibility. Refer to Toyota Safety Sense™ (TSS) in this guide or the Owner’s Manual for more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to Owner’s Manual for detai\
ls.

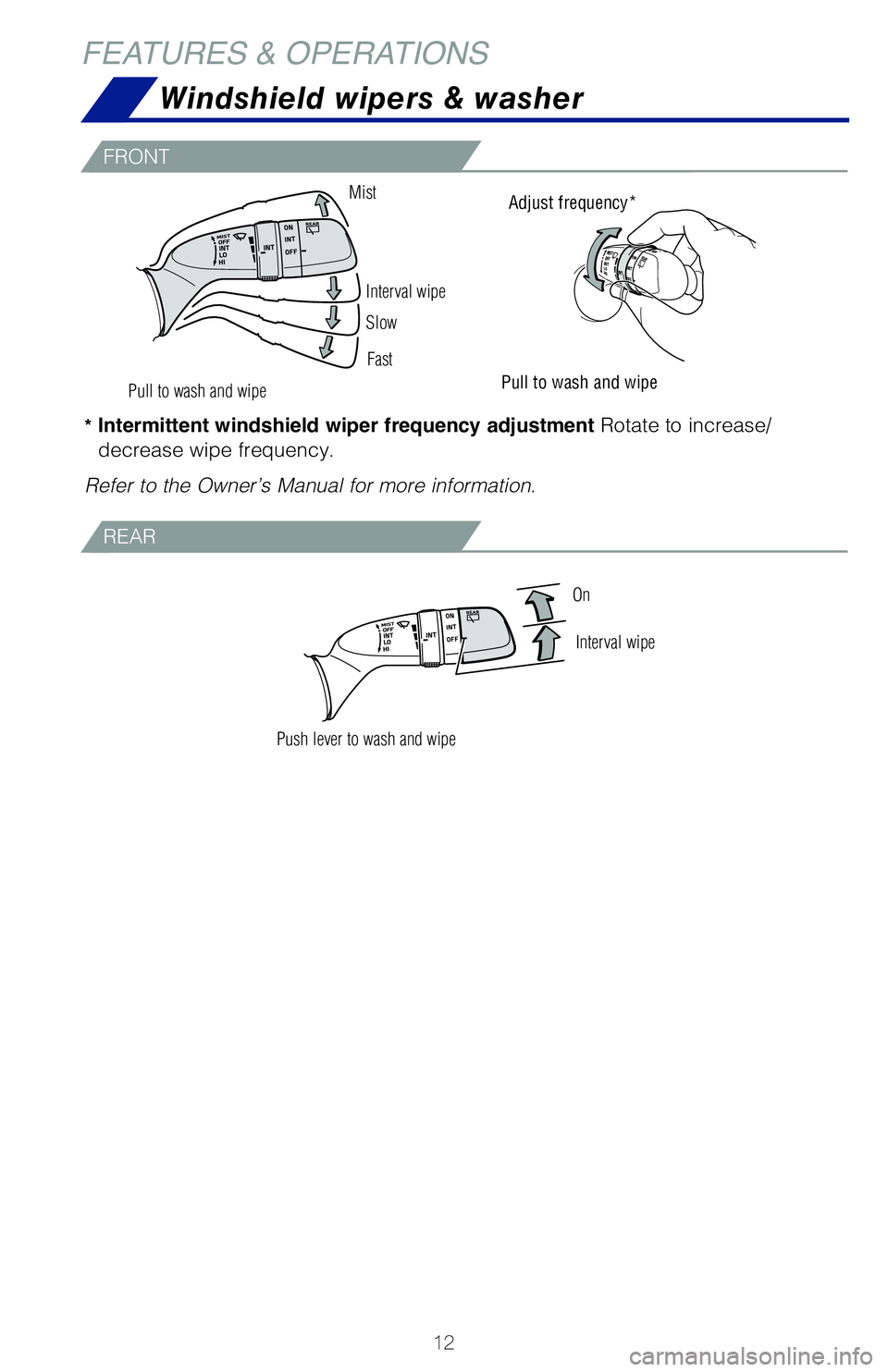

Windshield wipers & washer
Interval wipe
Slow
Fast
Pull to wash and wipe
Push lever to wash and wipe Mist
On
Interval wipe
Adjust frequency*
Pull to wash and wipe
* Intermittent windshield wiper frequency adjustment Rotate to increase/ decrease wipe frequency.
Refer to the Owner’s Manual for more information.
1 The right hand signals will flash three times.2 The left hand signals will flash three times.
Front fog lights come on only when the headlights are on low beam.
2019_Corolla_HB_QRG_V5_0516.indd 125/17/18 11:12 PM

13
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

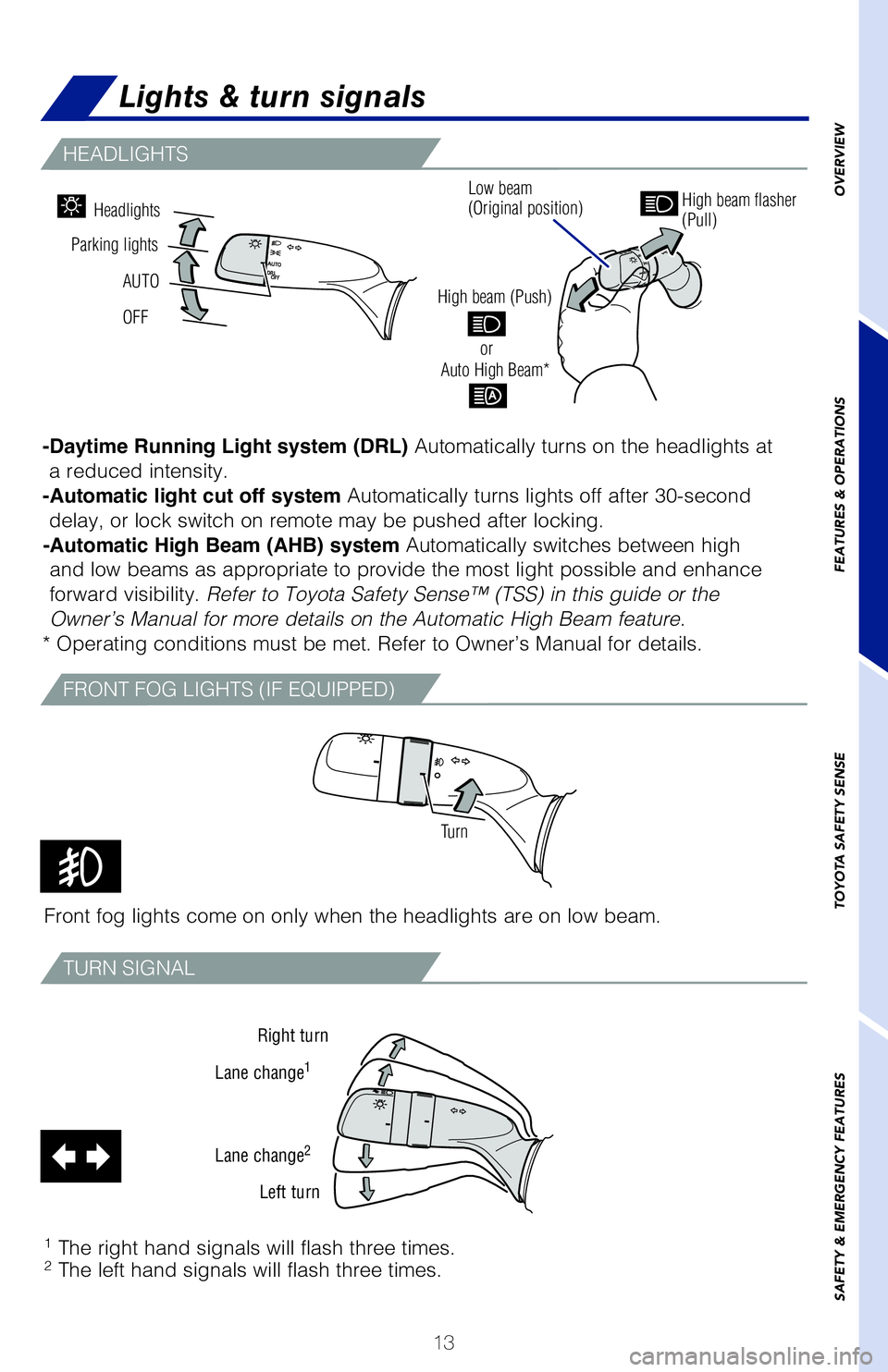

Lights & turn signals
Headlights
AUTO
OFF
Parking lights
HEADLIGHTS
FRONT FOG LIGHTS (IF EQUIPPED)
TURN SIGNAL
Turn
Low beam
(Original position)
or
-Daytime Running Light system (DRL) Automatically turns on the headlights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after 30-second delay, or lock switch on remote may be pushed after locking.
-Automatic High Beam (AHB) system Automatically switches between high and low beams as appropriate to provide the most light possible and enha\
nce
forward visibility. Refer to Toyota Safety Sense™ (TSS) in this guide or the Owner’s Manual for more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to Owner’s Manual for detai\
ls.
High beam (Push)
High beam flasher
(Pull)
Auto High Beam*
* Intermittent windshield wiper frequency adjustment Rotate to increase/ decrease wipe frequency.
Refer to the Owner’s Manual for more information.
Right turn
Lane change
1
Lane change2
Left turn
1 The right hand signals will flash three times.
2 The left hand signals will flash three times.
Front fog lights come on only when the headlights are on low beam.
2019_Corolla_HB_QRG_V5_0516.indd 135/17/18 11:12 PM

14

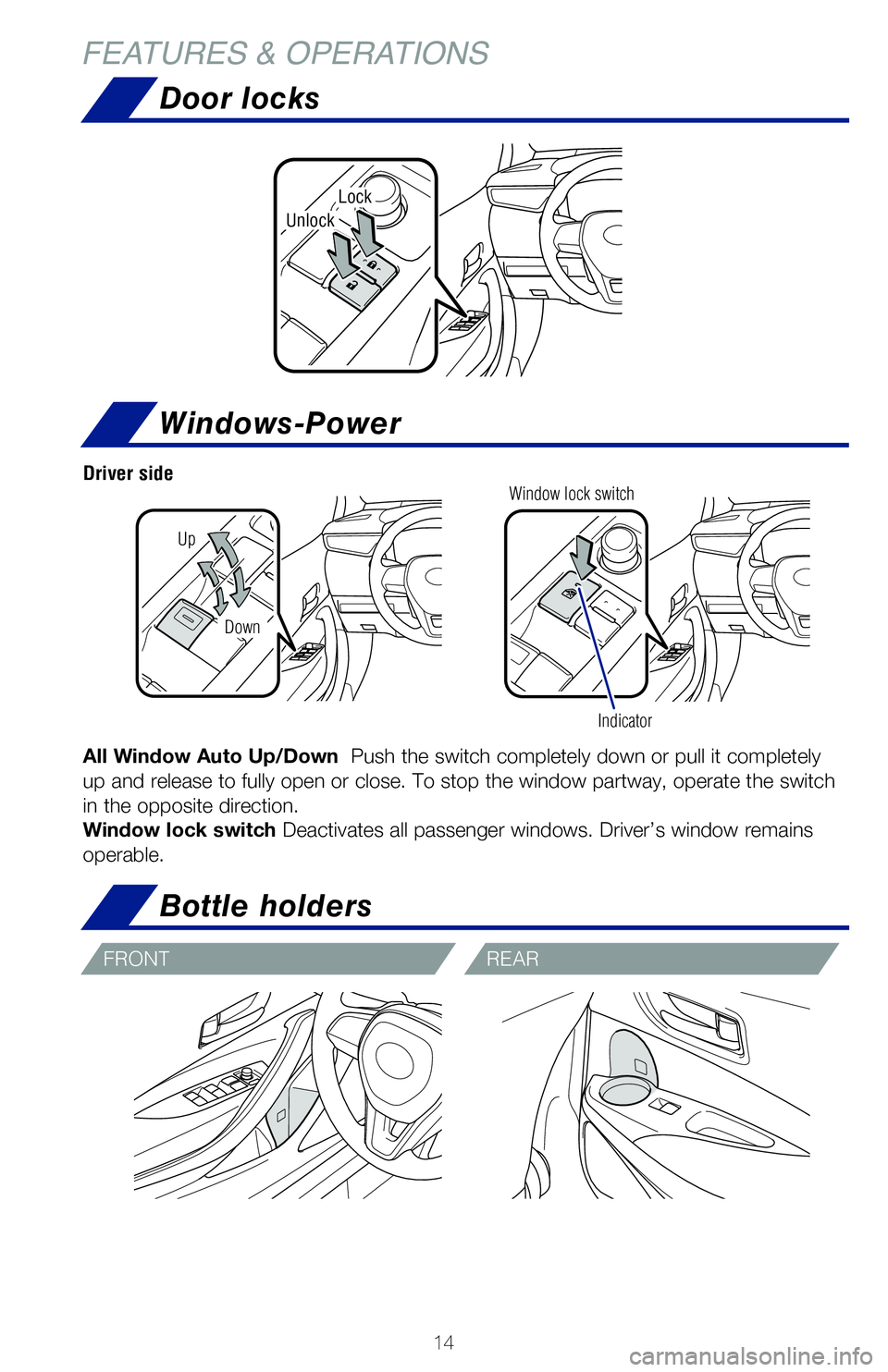

Windows-Power
All Window Auto Up/Down Push the switch completely down or pull it completely
up and release to fully open or close. To stop the window partway, opera\
te the switch
in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Up
Down
Indicator
Driver sideWindow lock switch
Hold wheel, push lever down, set angle and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
FRONTREAR
The green indicator light on the engine switch will flash and a message \
will be
shown on the multi-information display. Press the engine switch while tu\
rning the
steering wheel left and right.
FRONT
FEATURES & OPERATIONS
Unlock
Lock
Door locks
Bottle holders
2019_Corolla_HB_QRG_V5_0516.indd 145/17/18 11:12 PM

15
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
All Window Auto Up/Down Push the switch completely down or pull it completely
up and release to fully open or close. To stop the window partway, opera\
te the switch
in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.

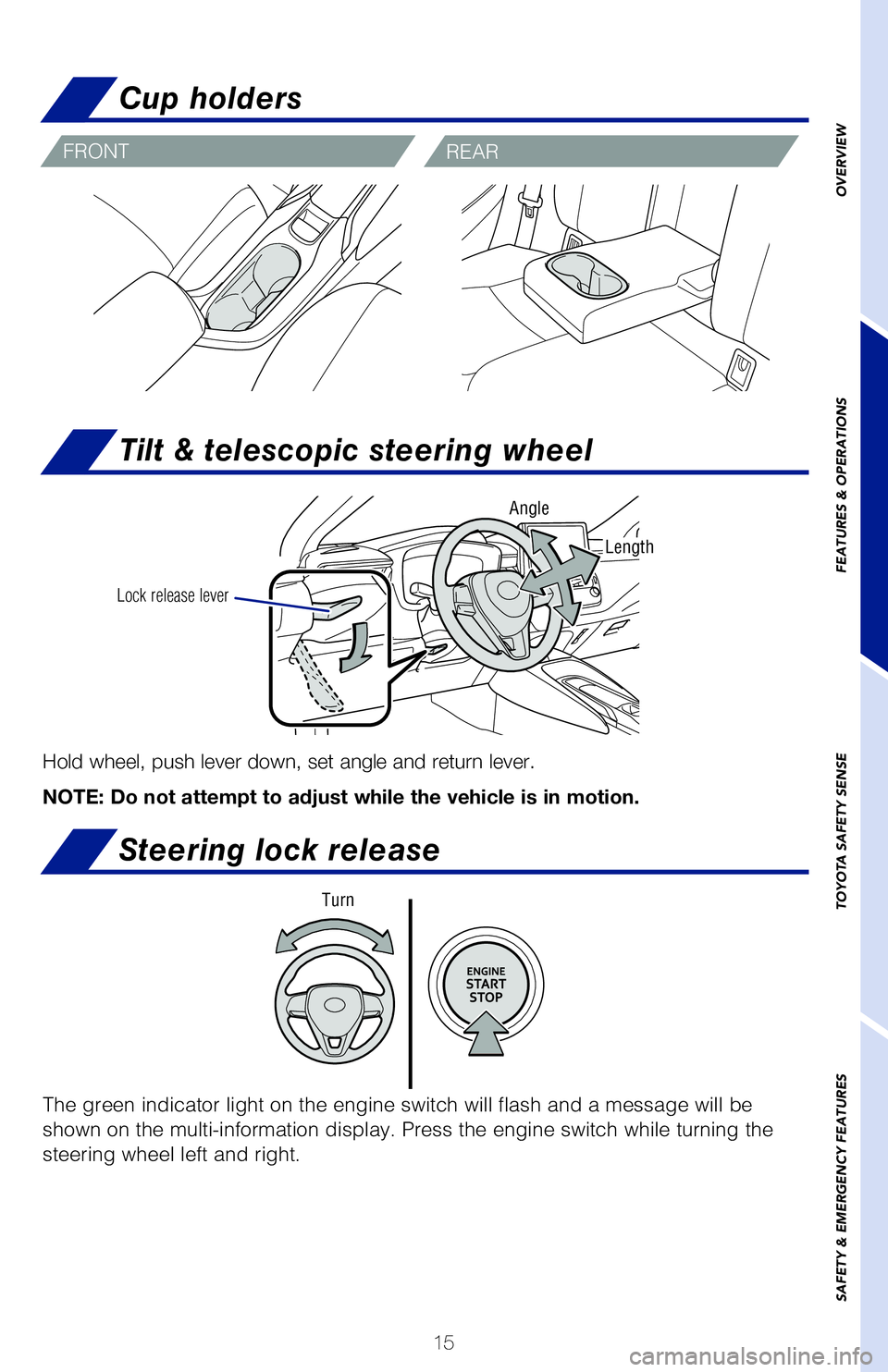

Tilt & telescopic steering wheel
Hold wheel, push lever down, set angle and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Lock release lever
REAR
Steering lock release
The green indicator light on the engine switch will flash and a message \
will be
shown on the multi-information display. Press the engine switch while tu\
rning the
steering wheel left and right.
Turn
FRONT
REAR
Cup holders
Angle
Length
Door locks
2019_Corolla_HB_QRG_V5_0516.indd 155/17/18 11:12 PM

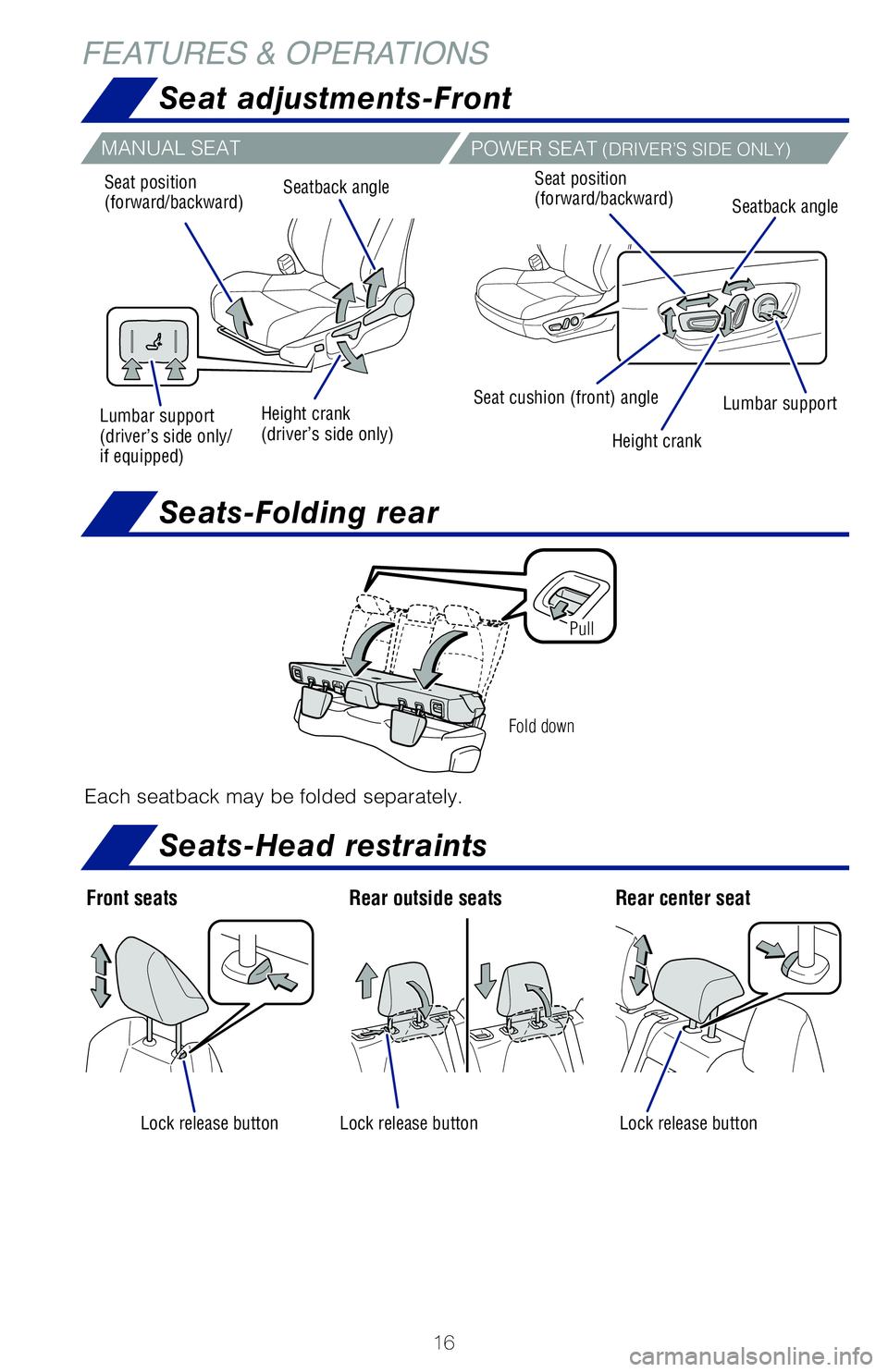

16
FEATURES & OPERATIONS
Front seatsRear outside seats Rear center seat
Lock release buttonLock release buttonLock release button
Seat adjustments-Front
Seats-Head restraints
Seats-Folding rear
Fold down
Pull
Each seatback may be folded separately.
MANUAL SEAT
POWER SEAT (DRIVER’S SIDE ONLY)
Seat position
(forward/backward)
Height crank
(driver’s side only) Height crank
Seatback angle
Seatback angle
Seat position
(forward/backward)
Lumbar support
(driver’s side only/
if equipped) Lumbar support
Seat cushion (front) angle

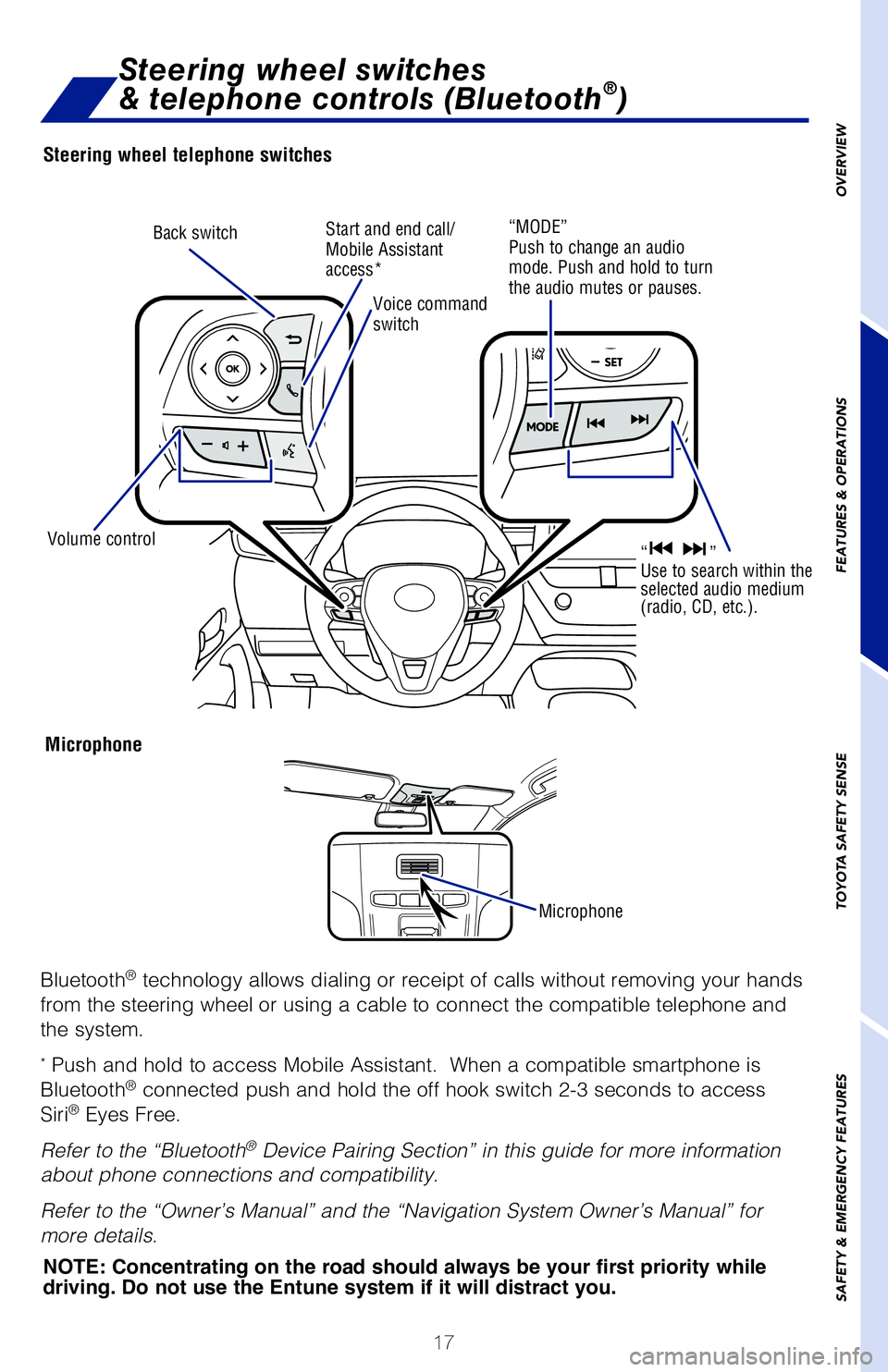

Steering wheel telephone switches
Microphone
Bluetooth® technology allows dialing or receipt of calls without removing your han\
ds
from the steering wheel or using a cable to connect the compatible telep\
hone and
the system.
* Push and hold to access Mobile Assistant. When a compatible smartphone\
is
Bluetooth® connected push and hold the off hook switch 2-3 seconds to access
Siri® Eyes Free.
Refer to the “Bluetooth® Device Pairing Section” in this guide for more information
about phone connections and compatibility.
Refer to the “Owner’s Manual” and the “Navigation System Own\
er’s Manual” for
more details.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Entune system if it will distract you.
Volume control
2019_Corolla_HB_QRG_V5_0516.indd 165/17/18 11:12 PM

17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Each seatback may be folded separately.
POWER SEAT (DRIVER’S SIDE ONLY)
Seatback angle
Lumbar support
Steering wheel telephone switches
Microphone
Bluetooth® technology allows dialing or receipt of calls without removing your han\
ds
from the steering wheel or using a cable to connect the compatible telep\
hone and
the system.
* Push and hold to access Mobile Assistant. When a compatible smartphone\
is
Bluetooth® connected push and hold the off hook switch 2-3 seconds to access
Siri® Eyes Free.

Refer to the “Bluetooth
® Device Pairing Section” in this guide for more information
about phone connections and compatibility.
Refer to the “Owner’s Manual” and the “Navigation System Own\
er’s Manual” for
more details.
Back switch
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Entune system if it will distract you.
Volume control Voice command
switch
Start and end call/
Mobile Assistant
access*“MODE”
Push to change an audio
mode. Push and hold to turn
the audio mutes or pauses.
“ ”
Use to search within the
selected audio medium
(radio, CD, etc.).
Steering wheel switches
& telephone controls (Bluetooth®)
Microphone
2019_Corolla_HB_QRG_V5_0516.indd 175/17/18 11:12 PM

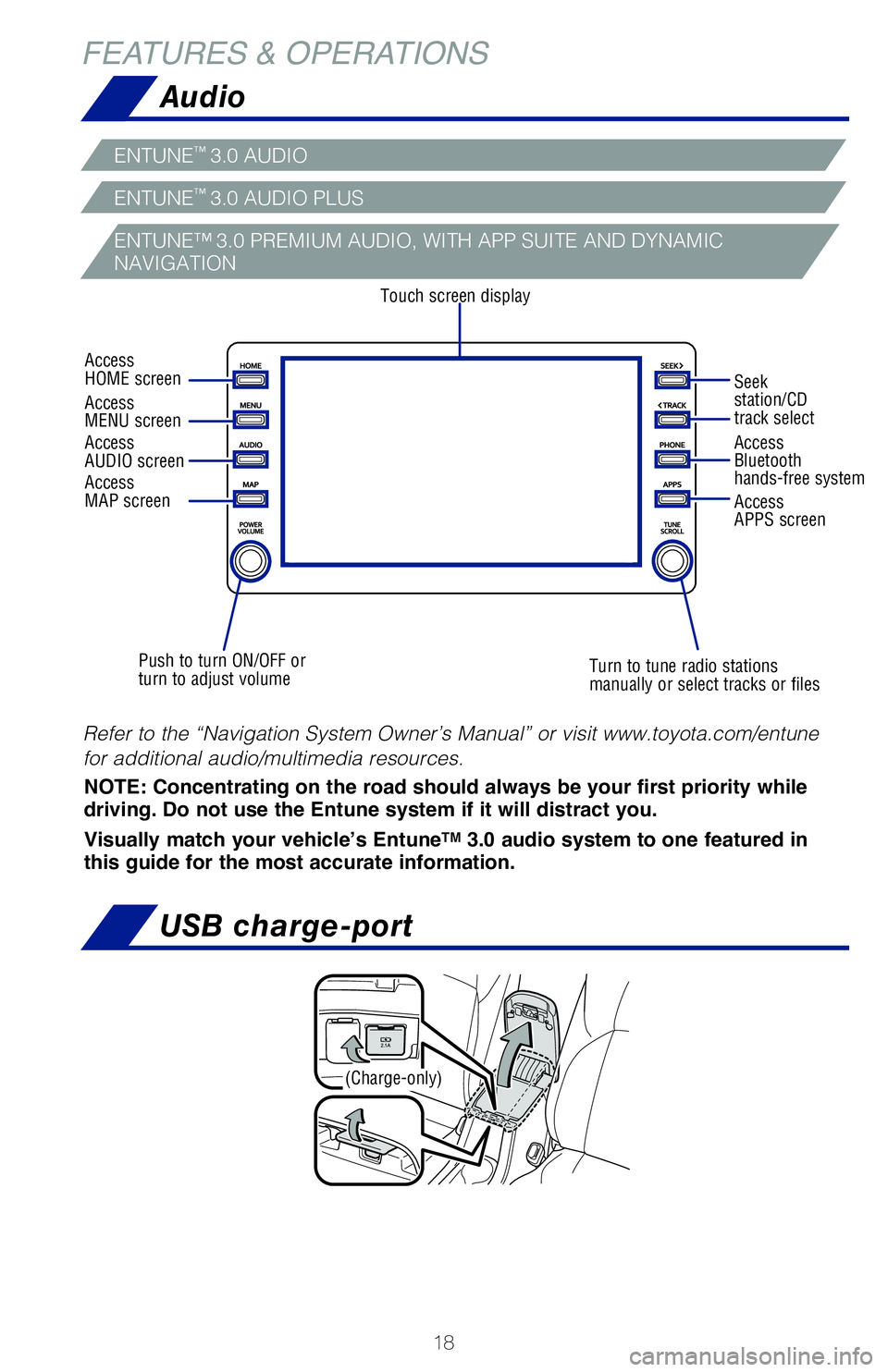

18
Audio
FEATURES & OPERATIONS
ENTUNE™ 3.0 AUDIO PLUS
ENTUNE™ 3.0 AUDIO
ENTUNE™ 3.0 PREMIUM AUDIO, WITH APP SUITE AND DYNAMIC
NAVIGATION
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Entune system if it will distract you.
Visually match your vehicle’s Entune
TM 3.0 audio system to one featured in
this guide for the most accurate information.
Refer to the “Navigation System Owner’s Manual” or visit www.toyota.\
com/entune
for additional audio/multimedia resources.
Touch screen display
Access
AUDIO screen
Push to turn ON/OFF or
turn to adjust volume Turn to tune radio stations
manually or select tracks or filesAccess
Bluetooth
hands-free system
Seek
station/CD
track select
Access
HOME screen
Access
MENU screen
Access
APPS screen
Access
MAP screen
A mobile device can be charged wirelessly on the tray. (1) Press the wi\
reless
charger power switch and the green operation indicator light turns on. (2) Pl\
ace a
mobile device on the tray as shown in the illustration. An amber indicator ill\
uminates
while charging is in progress. When charging is complete, the indicator illum\
inates
green. Some phones, cases or cover type wireless chargers may not cause the
green indicator to illuminate even though it is fully charged.
Refer to the Owner‘s Manual for more details on this system before attempt\
ing to
use it.
Operation indicator light
USB charge-port
(Charge-only)
The “ENGINE START STOP” switch must be in the ACCESSORY or IGNITION O\
N
mode for use.
2019_Corolla_HB_QRG_V5_0516.indd 185/17/18 11:12 PM
