OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Note: When your vehicle is too close to a vehicle ahead, and sufficient automatic
deceleration via the cruise control is not possible, the display will flash and the
buzzer will sound to alert the driver. An example of this would be if another driver
cuts in front of you while you are following a vehicle. Depress the brake pedal to
ensure an appropriate vehicle-to-vehicle distance.
If you are already using DRCC “”, push ON-OFF button to turn the system off
first, then push and hold ON-OFF button for at least 1.5 seconds to swit\
ch.
Note: When the engine is turned off, it will automatically default to DRCC.
Refer to a Toyota Owner’s Manual for additional information on DRCC o\
peration,
settings adjustments, limitations, and precautions before attempting to \
use it. (3)
Acceleration when there are no longer any preceding vehicles driving
slower than the set speed The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.
To adjust speed or cancel, see steps (2) and (3) of ADJUSTING SPEED on
page 36.

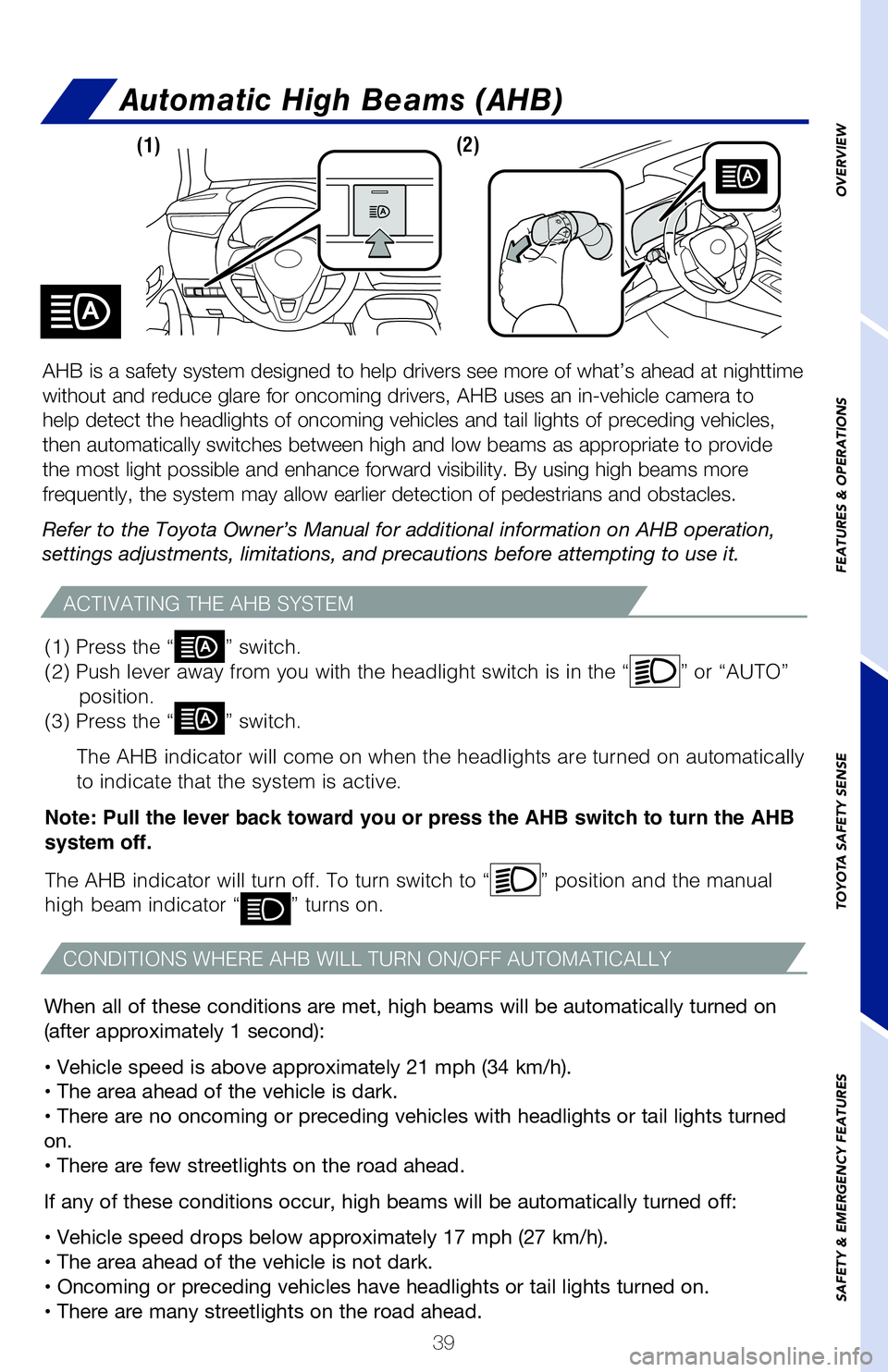

Automatic High Beams (AHB)
ACTIVATING THE AHB SYSTEM
CONDITIONS WHERE AHB WILL TURN ON/OFF AUTOMATICALLY
When all of these conditions are met, high beams will be automatically t\
urned on
(after approximately 1 second):
• Vehicle speed is above approximately 21 mph (34 km/h).
• The area ahead of the vehicle is dark.
• There are no oncoming or preceding vehicles with headlights or tail lights turned
on.
• There are few streetlights on the road ahead.
If any of these conditions occur, high beams will be automatically turne\
d off:
• Vehicle speed drops below approximately 17 mph (27 km/h).
• The area ahead of the vehicle is not dark.
• Oncoming or preceding vehicles have headlights or tail lights turned on.
• There are many streetlights on the road ahead.
AHB is a safety system designed to help drivers see more of what’s ah\
ead at nighttime
without and reduce glare for oncoming drivers, AHB uses an in-vehicle ca\
mera to
help detect the headlights of oncoming vehicles and tail lights of prece\
ding vehicles,
then automatically switches between high and low beams as appropriate to\
provide
the most light possible and enhance forward visibility. By using high be\
ams more
frequently, the system may allow earlier detection of pedestrians and ob\
stacles.
Refer to the Toyota Owner’s Manual for additional information on AHB \
operation,
settings adjustments, limitations, and precautions before attempting to \
use it.
(2) (1)
(1) Press the “
” switch.
(2) Push lever away from you with the headlight switch is in the “
” or “AUTO”
position.
(3) Press the “
” switch.
The AHB indicator will come on when the headlights are turned on automat\
ically
to indicate that the system is active.
Note: Pull the lever back toward you or press the AHB switch to turn the AHB
system off.
The AHB indicator will turn off. To turn switch to “
” position and the manual
high beam indicator “
” turns on.
2019_Corolla_HB_QRG_V5_0516.indd 395/17/18 11:12 PM

40
TOYOTA SAFETY SENSE™

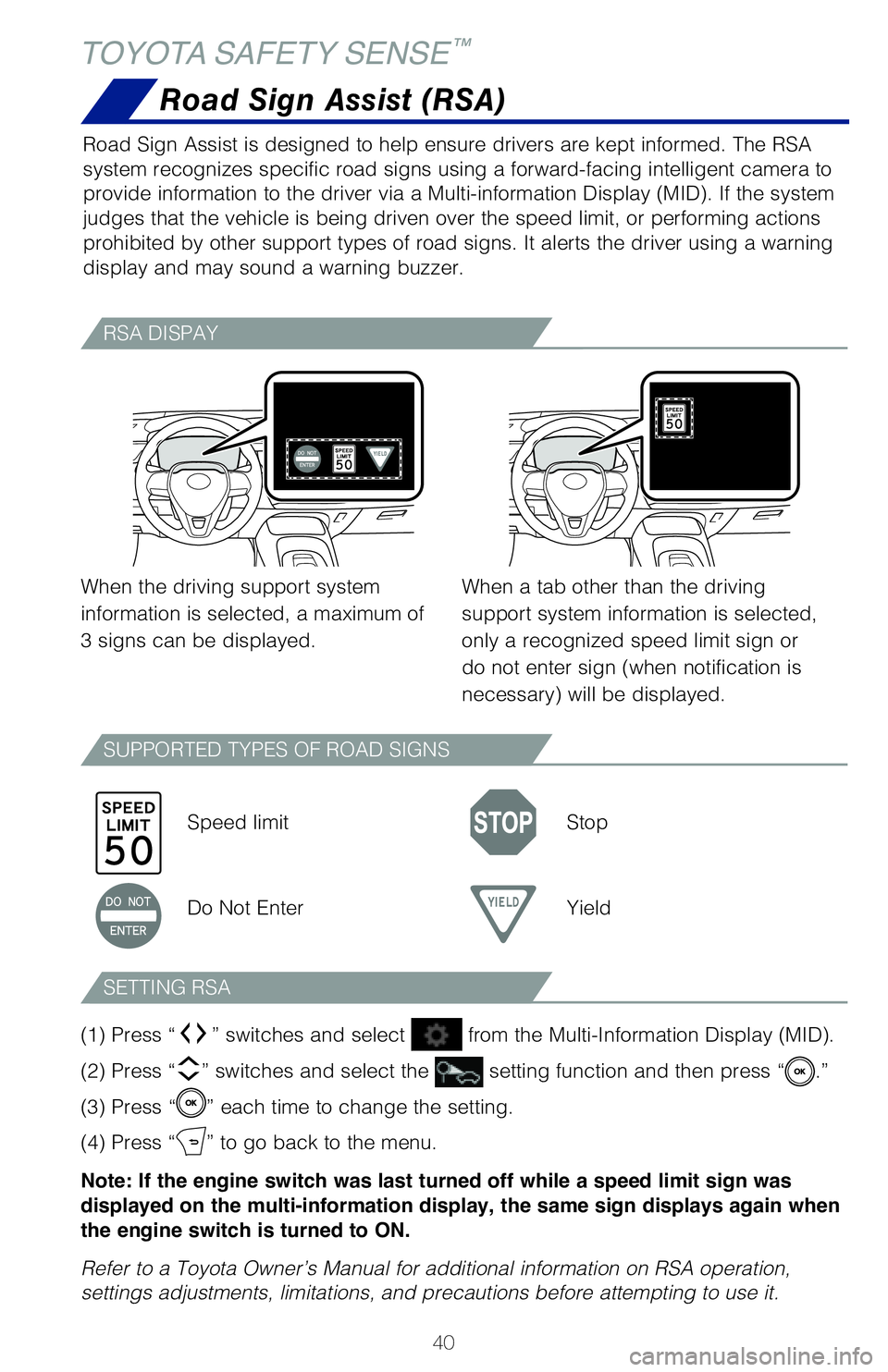

Road Sign Assist (RSA)
Road Sign Assist is designed to help ensure drivers are kept informed. T\
he RSA
system recognizes specific road signs using a forward-facing intelligent\
camera to
provide information to the driver via a Multi-information Display (MID)\
. If the system
judges that the vehicle is being driven over the speed limit, or perform\
ing actions
prohibited by other support types of road signs. It alerts the driver us\
ing a warning
display and may sound a warning buzzer.
RSA DISPAY
SUPPORTED TYPES OF ROAD SIGNS
SETTING RSA
When the driving support system
information is selected, a maximum of
3 signs can be displayed.Speed limit Stop
Do Not Enter Yield
When a tab other than the driving
support system information is selected,
only a recognized speed limit sign or
do not enter sign (when notification is
necessary) will be displayed.
(1) Press “
” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select the setting function and then press “.”
(3) Press “
” each time to change the setting.
(4) Press “
” to go back to the menu.
Note: If the engine switch was last turned off while a speed limit sign was
displayed on the multi-information display, the same sign displays again when
the engine switch is turned to ON.
Refer to a Toyota Owner’s Manual for additional information on RSA op\
eration,
settings adjustments, limitations, and precautions before attempting to \
use it.
SAFETY & EMERGENCY FEATURES
Moving the lever downward will allow the door to be opened only from the\
outside.
NOTE: If a passenger’s seat belt is fully extended, then retracted ev\
en slightly,
the Automatic locking retractor (ALR) will prevent it from being re-ex\
tended
beyond that point, unless fully retracted again. This feature is used to\
help
hold child restraint systems securely.
To find more information about seat belts, and how to install a child re\
straint
system, refer to the Owner’s Manual.
2019_Corolla_HB_QRG_V5_0516.indd 405/17/18 11:12 PM

41
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Road Sign Assist (RSA)
Road Sign Assist is designed to help ensure drivers are kept informed. T\
he RSA
system recognizes specific road signs using a forward-facing intelligent\
camera to
provide information to the driver via a Multi-information Display (MID)\
. If the system
judges that the vehicle is being driven over the speed limit, or perform\
ing actions
prohibited by other support types of road signs. It alerts the driver us\
ing a warning
display and may sound a warning buzzer.
When a tab other than the driving
support system information is selected,
only a recognized speed limit sign or
do not enter sign (when notification is
necessary) will be displayed.
(1) Press “ ” switches and select
from the Multi-Information Display (MID).
(2) Press “ ” switches and select the
setting function and then press “.”
(3) Press “” each time to change the setting.
(4) Press “
” to go back to the menu.
Note: If the engine switch was last turned off while a speed limit sign was
displayed on the multi-information display, the same sign displays again when
the engine switch is turned to ON.
Refer to a Toyota Owner’s Manual for additional information on RSA op\
eration,
settings adjustments, limitations, and precautions before attempting to \
use it.
SAFETY & EMERGENCY FEATURES
Moving the lever downward will allow the door to be opened only from the\
outside.
Unlock
Lock
Push up to raise
Push lock release to lower

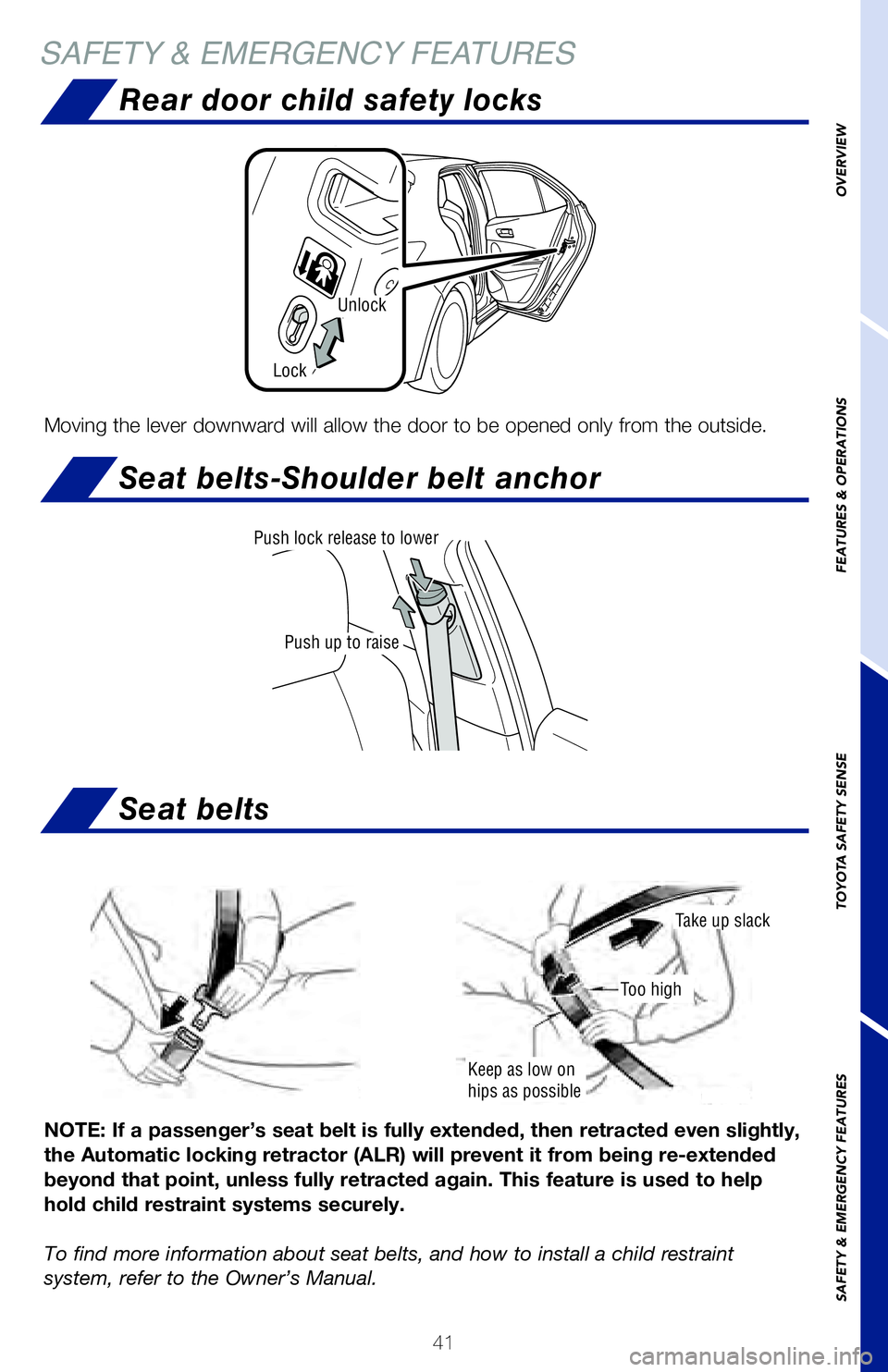

Rear door child safety locks
Seat belts-Shoulder belt anchor
Seat belts
NOTE: If a passenger’s seat belt is fully extended, then retracted ev\
en slightly,
the Automatic locking retractor (ALR) will prevent it from being re-ex\
tended
beyond that point, unless fully retracted again. This feature is used to\
help
hold child restraint systems securely.
To find more information about seat belts, and how to install a child re\
straint
system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
2019_Corolla_HB_QRG_V5_0516.indd 415/17/18 11:12 PM

42
SAFETY & EMERGENCY FEATURES

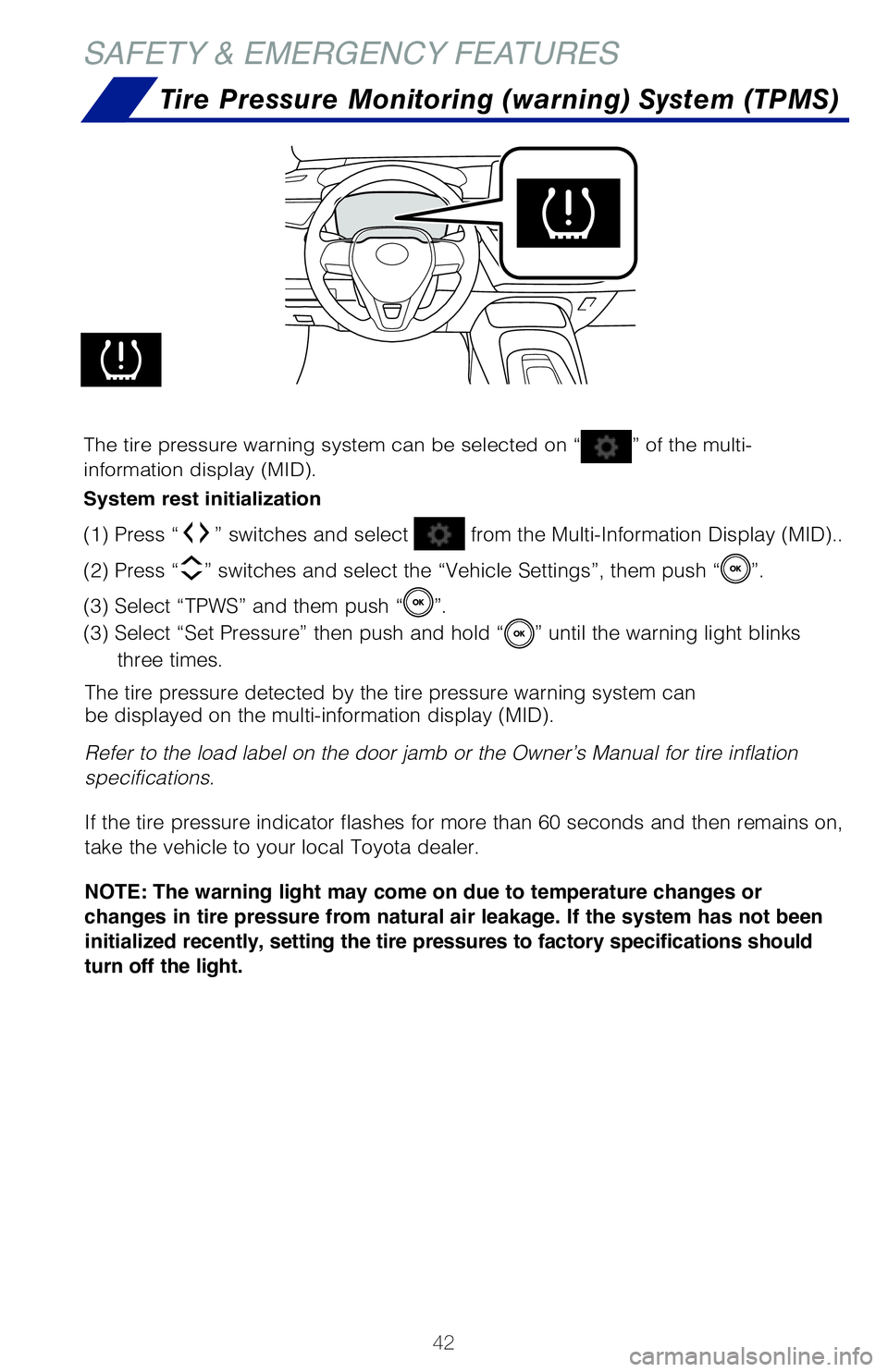

Tire Pressure Monitoring (warning) System (TPMS)
The tire pressure detected by the tire pressure warning system can
be displayed on the multi-information display (MID).
Refer to the load label on the door jamb or the Owner’s Manual for ti\
re inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then\
remains on,
take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not been
initialized recently, setting the tire pressures to factory specifications should
turn off the light.
The tire pressure warning system can be selected on “” of the multi-
information display (MID).
System rest initialization
(1) Press “” switches and select from the Multi-Information Display (MID)..
(2) Press “
” switches and select the “Vehicle Settings”, them push “”.
(3) Select “TPWS” and them push “
”.
(3) Select “Set Pressure” then push and hold “
” until the warning light blinks
three times.
Safety Connect is a subscription-based telematics service that uses Glob\
al
Positioning System (GPS) data and embedded cellular technology to prov\
ide safety
and security features to subscribers. Safety Connect is supported by Toy\
ota’s
designated response center, which operates 24 hours per day, 7 days per \
week.
Services for subscribers include:
• Automatic collision notification
• Stolen vehicle location
• Emergency assistance (“SOS” button)
• Enhanced roadside assistance
Contact your dealer for more information about Safety Connect.
For details, refer to the “Owner’s Manual” or visit www.Toyota.\
com/safety-connect.
2019_Corolla_HB_QRG_V5_0516.indd 425/17/18 11:12 PM

43
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Tire Pressure Monitoring (warning) System (TPMS)
The tire pressure detected by the tire pressure warning system can
be displayed on the multi-information display (MID).
Refer to the load label on the door jamb or the Owner’s Manual for ti\
re inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then\
remains on,
take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not been
initialized recently, setting the tire pressures to factory specifications should
turn off the light.
The tire pressure warning system can be selected on “” of the multi-
information display (MID).
System rest initialization
(1) Press “ ” switches and select from the Multi-Information Display (MID)..
(2) Press “ ” switches and select the “Vehicle Settings”, them push “”.
(3) Select “TPWS” and them push “
”.
(3) Select “Set Pressure” then push and hold “
” until the warning light blinks
three times.

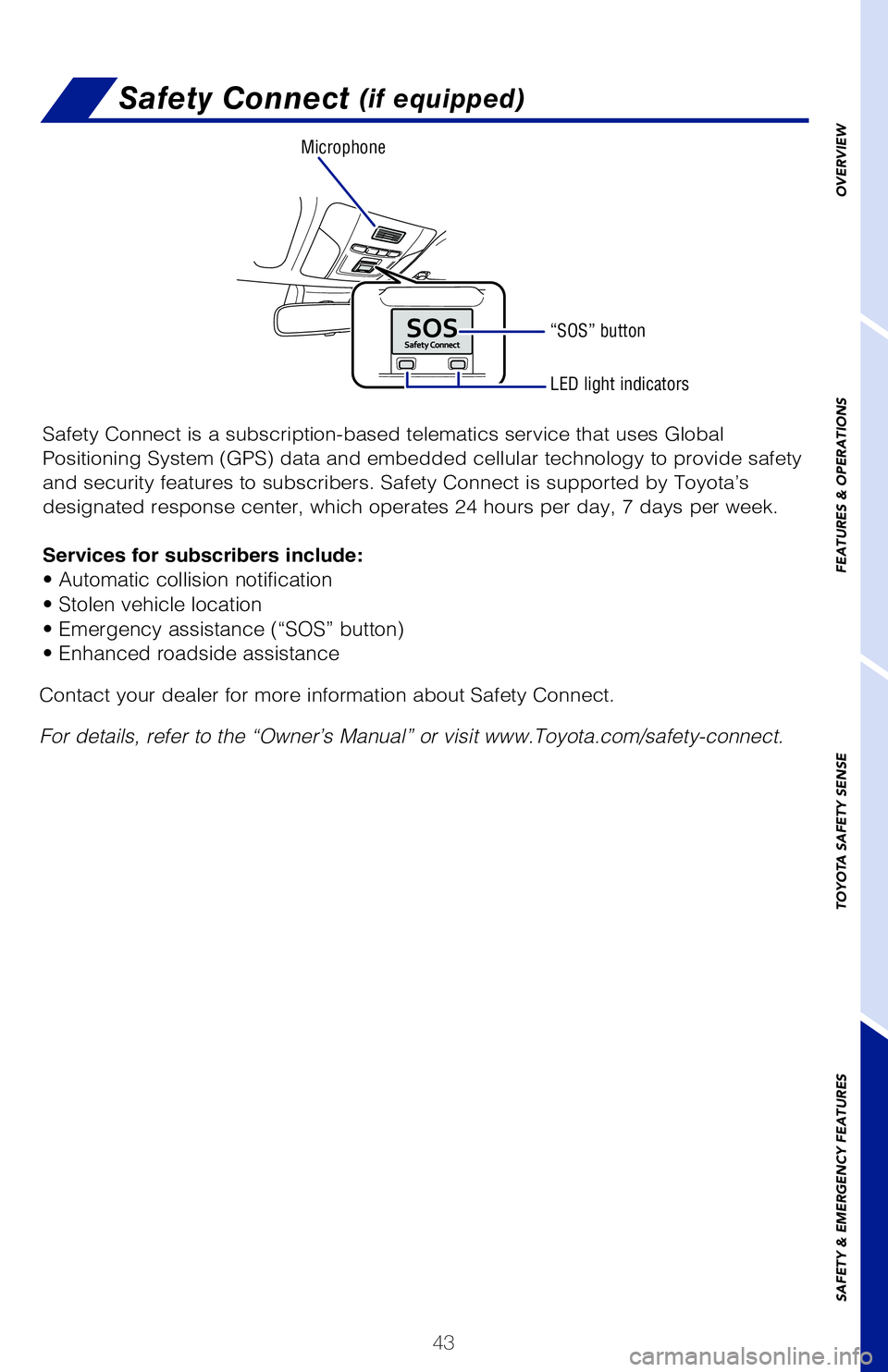

Safety Connect (if equipped)
Safety Connect is a subscription-based telematics service that uses Glob\
al
Positioning System (GPS) data and embedded cellular technology to prov\
ide safety
and security features to subscribers. Safety Connect is supported by Toy\
ota’s
designated response center, which operates 24 hours per day, 7 days per \
week.
Services for subscribers include:
• Automatic collision notification
• Stolen vehicle location
• Emergency assistance (“SOS” button)
• Enhanced roadside assistance
Microphone
LED light indicators
“SOS” button
Contact your dealer for more information about Safety Connect.
For details, refer to the “Owner’s Manual” or visit www.Toyota.\
com/safety-connect.
2019_Corolla_HB_QRG_V5_0516.indd 435/17/18 11:12 PM

44
SAFETY & EMERGENCY FEATURES

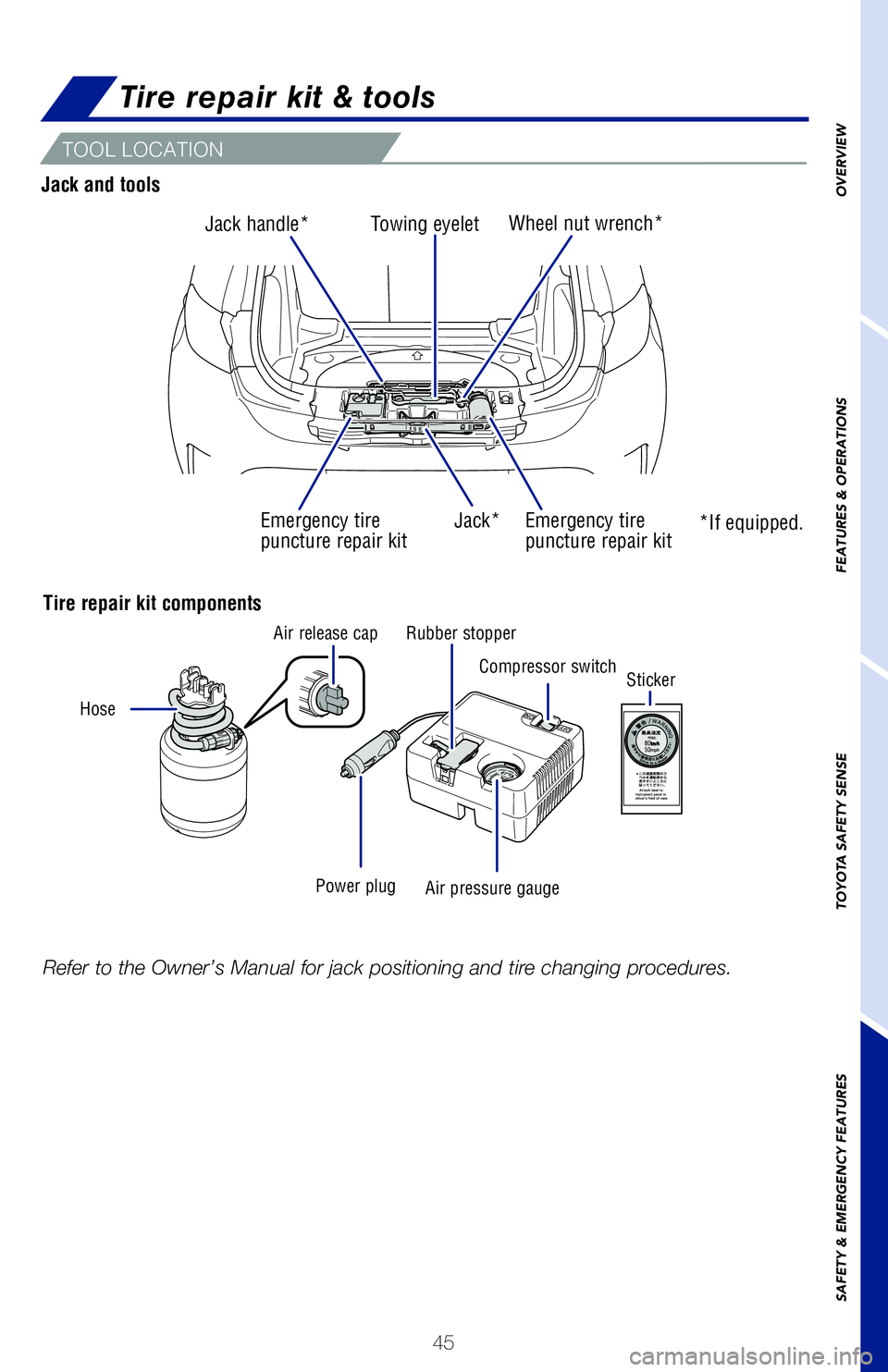

Tire repair kit components
Hose

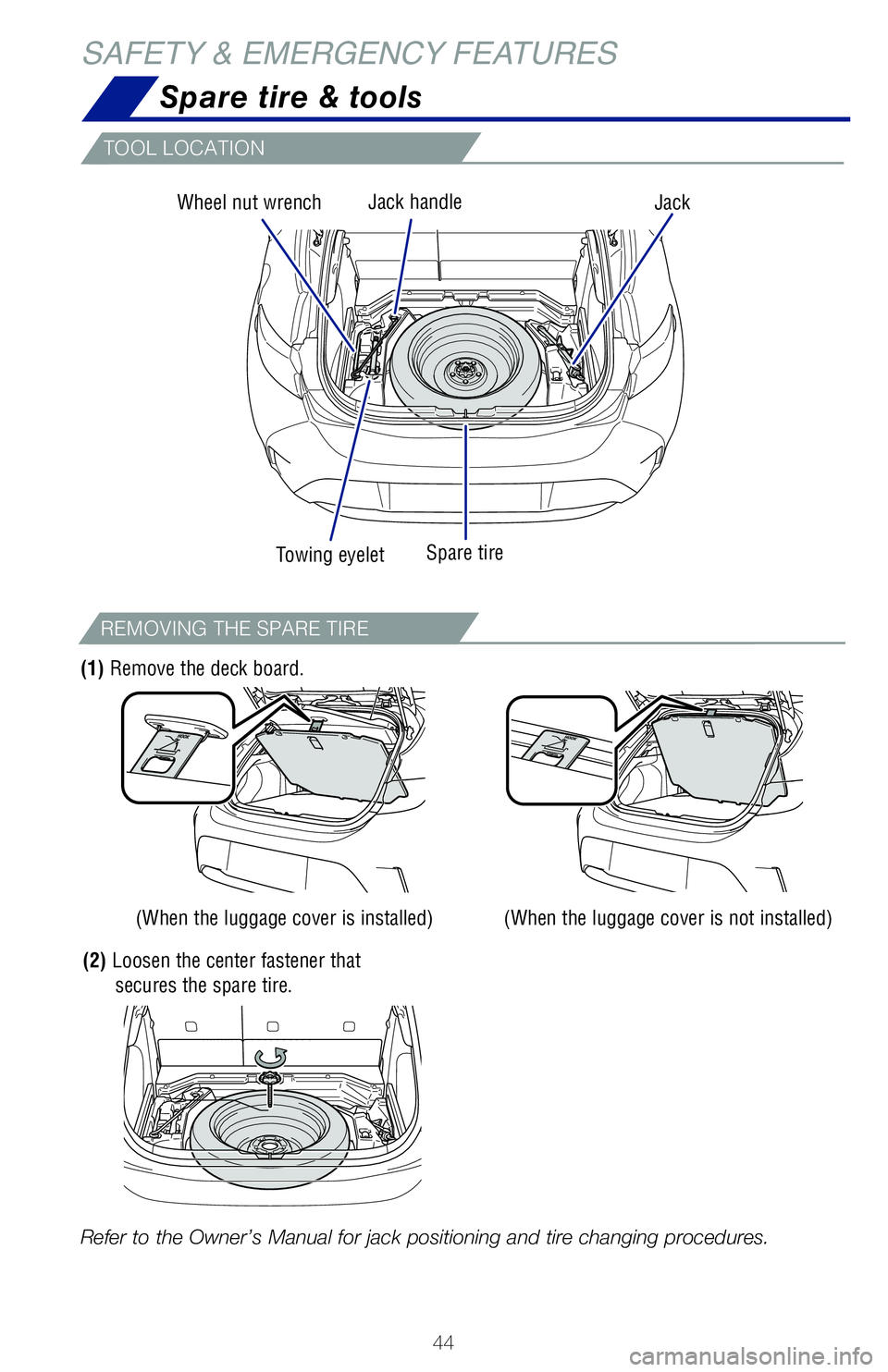

Spare tire & tools
TOOL LOCATION
Jack and toolsRefer to the Owner’s Manual for jack positioning and tire changing pr\
ocedures.
TOOL LOCATION
REMOVING THE SPARE TIRE
Towing eyelet
Wheel nut wrenchJack
Spare tireJack handle
Refer to the Owner’s Manual for jack positioning and tire changing pr\
ocedures.
(2) Loosen the center fastener that secures the spare tire.
(1) Remove the deck board.
(When the luggage cover is installed) (When the luggage cover is not installed)
2019_Corolla_HB_QRG_V5_0516.indd 445/17/18 11:12 PM

45
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Tire repair kit components
Sticker
Hose Air release cap Rubber stopper
Power plug Air pressure gaugeCompressor switch
Tire repair kit & tools
TOOL LOCATION
Towing eyeletWheel nut wrench*
Jack**If equipped.Emergency tire
puncture repair kitEmergency tire
puncture repair kit
Jack handle*
Jack and tools
Refer to the Owner’s Manual for jack positioning and tire changing pr\
ocedures.
Refer to the Owner’s Manual for jack positioning and tire changing pr\
ocedures. (When the luggage cover is not installed)
2019_Corolla_HB_QRG_V5_0516.indd 455/17/18 11:12 PM

46
SAFETY & EMERGENCY FEATURES
There are two types of Toyota floor mats: carpeted and all-weather. Each\
vehicle has
model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use Toyota floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep\
the mat in place.
• Install floor mats right side up.
VSC helps prevent loss of traction during cornering by reducing engine p\
ower, and
Traction Control helps maintain traction on loose gravel and wet, icy, o\
r uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels star\
ts to slip. TRAC
limits engine output and applies the brakes to the spinning wheel. This \
transfers power
to the wheels that still have traction to help keep you on track.
TRACTION CONTROL (TRAC)Star Safety System™
Your vehicle comes standard with the Star Safety SystemTM, which combines Anti-lock
Braking System (ABS), Brake Assist (BA), Electronic Brake-force Dist\
ribution (EBD),
Smart Stop Technology (SST), Traction Control (TRAC) and Vehicle Sta\
bility Control
(VSC).
Refer to the Owner’s Manual for more details and important informatio\
n on
limitations to these systems.
Toyota’s ABS sensors detect which wheels are locking up and limits wh\
eel lockup
by “pulsing” each wheel’s brakes independently. Pulsing release\
s brake pressure
repeatedly for fractions of a second. This helps the tires attain the tr\
action that current
road conditions will allow, helping you to stay in directional control. \
ANTI-LOCK BRAKE SYSTEM (ABS)
Brake Assist is designed to detect sudden or “panic” braking, and \
then add braking
pressure to help decrease the vehicle’s stopping distance. When there\
’s only a split
second to react, Brake Assist can add additional brake pressure more qui\
ckly than just
the driver alone can.
BRAKE ASSIST (BA)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD\
) to help maintain
control and balance when braking. Abrupt stops can cause a vehicle to ti\
lt forward,
reducing the braking power of the rear wheels. EBD responds to sudden st\
ops by
redistributing brake force to enhance the braking effectiveness of all f\
our wheels.
ELECTRONIC BRAKE FORCE DISTRIBUTION (EBD)
ENHANCED VEHICLE STABILITY CONTROL (VSC)
Enhanced Vehicle Stability Control provides cooperative control of the A\
BS, TRAC,
VSC and EPS.
Enhanced VSC helps to maintain directional stability when loss of tracti\
on occurs
during a turn.
Smart Stop Technology automatically reduces engine power when the accele\
rator and
brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are a\
pplied firmly
for longer than one-half second at speeds greater than five miles per ho\
ur.
SST doesn’t engage if the brake pedal is depressed before the acceler\
ator pedal,
allowing vehicles to start on a steep hill and safely accelerate without\
rolling backward.
SMART STOP TECHNOLOGY (SST)
2019_Corolla_HB_QRG_V5_0516.indd 465/17/18 11:12 PM

47
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Floor mat installation
There are two types of Toyota floor mats: carpeted and all-weather. Each\
vehicle has
model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use Toyota floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep\
the mat in place.
• Install floor mats right side up.
The shape of the retaining hooks (clips) may
differ from that shown in the
illustration.
Always align the marks
VSC helps prevent loss of traction during cornering by reducing engine p\
ower, and
Traction Control helps maintain traction on loose gravel and wet, icy, o\
r uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels star\
ts to slip. TRAC
limits engine output and applies the brakes to the spinning wheel. This \
transfers power
to the wheels that still have traction to help keep you on track.
TRACTION CONTROL (TRAC)
Your vehicle comes standard with the Star Safety SystemTM, which combines Anti-lock
Braking System (ABS), Brake Assist (BA), Electronic Brake-force Dist\
ribution (EBD),
Smart Stop Technology (SST), Traction Control (TRAC) and Vehicle Sta\
bility Control
(VSC).
Refer to the Owner’s Manual for more details and important informatio\
n on
limitations to these systems.
Toyota’s ABS sensors detect which wheels are locking up and limits wh\
eel lockup
by “pulsing” each wheel’s brakes independently. Pulsing release\
s brake pressure
repeatedly for fractions of a second. This helps the tires attain the tr\
action that current
road conditions will allow, helping you to stay in directional control. \
Brake Assist is designed to detect sudden or “panic” braking, and \
then add braking
pressure to help decrease the vehicle’s stopping distance. When there\
’s only a split
second to react, Brake Assist can add additional brake pressure more qui\
ckly than just
the driver alone can.
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD\
) to help maintain
control and balance when braking. Abrupt stops can cause a vehicle to ti\
lt forward,
reducing the braking power of the rear wheels. EBD responds to sudden st\
ops by
redistributing brake force to enhance the braking effectiveness of all f\
our wheels.
Enhanced Vehicle Stability Control provides cooperative control of the A\
BS, TRAC,
VSC and EPS.
Enhanced VSC helps to maintain directional stability when loss of tracti\
on occurs
during a turn.
Smart Stop Technology automatically reduces engine power when the accele\
rator and
brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are a\
pplied firmly
for longer than one-half second at speeds greater than five miles per ho\
ur.
SST doesn’t engage if the brake pedal is depressed before the acceler\
ator pedal,
allowing vehicles to start on a steep hill and safely accelerate without\
rolling backward.
2019_Corolla_HB_QRG_V5_0516.indd 475/17/18 11:12 PM

48

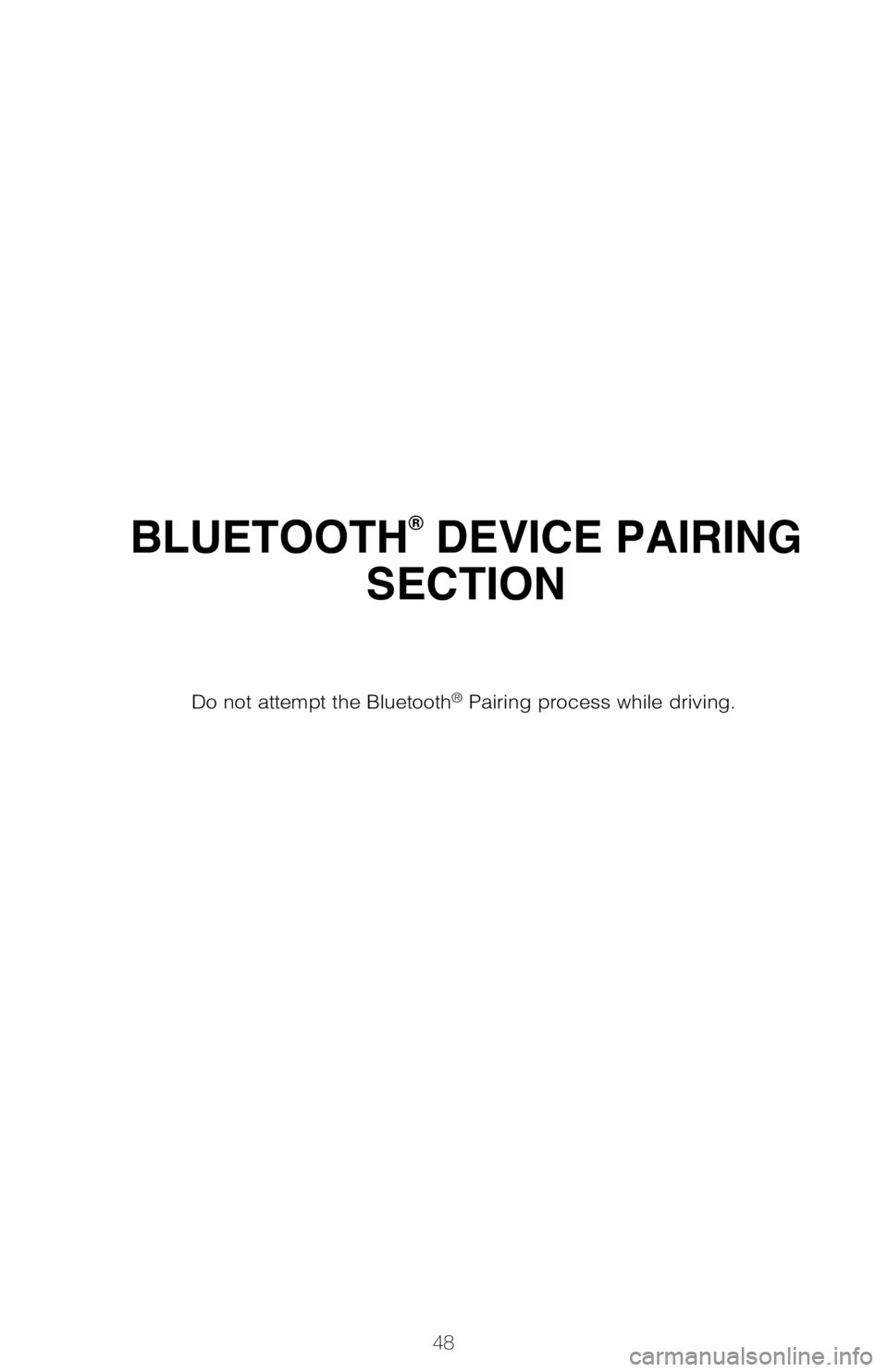

BLUETOOTH® DEVICE PAIRING
SECTION
Do not attempt the Bluetooth® Pairing process while driving. To
begin the Bluetooth® Pairing process, press the HOME button on the faceplate of
your multimedia system.
Pairing your phone is the first step in connecting with your Toyota for hands-f\
ree
calling and for audio streaming via Bluetooth. This pairing process is quick an\
d easy.
All you have to do is setup the phone and multimedia system to form a conne\
ction.1
iPhone bluetooth Menu
1 Some Android devices may have slightly different SETTINGS screen layout\
depending on manufacturer of device and Android OS version.
STEP 1
STEP 2
STEP 4
2019_Corolla_HB_QRG_V5_0516.indd 485/17/18 11:12 PM
