TOYOTA COROLLA HATCHBACK 2020 (in English) Owner's Manual

19
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

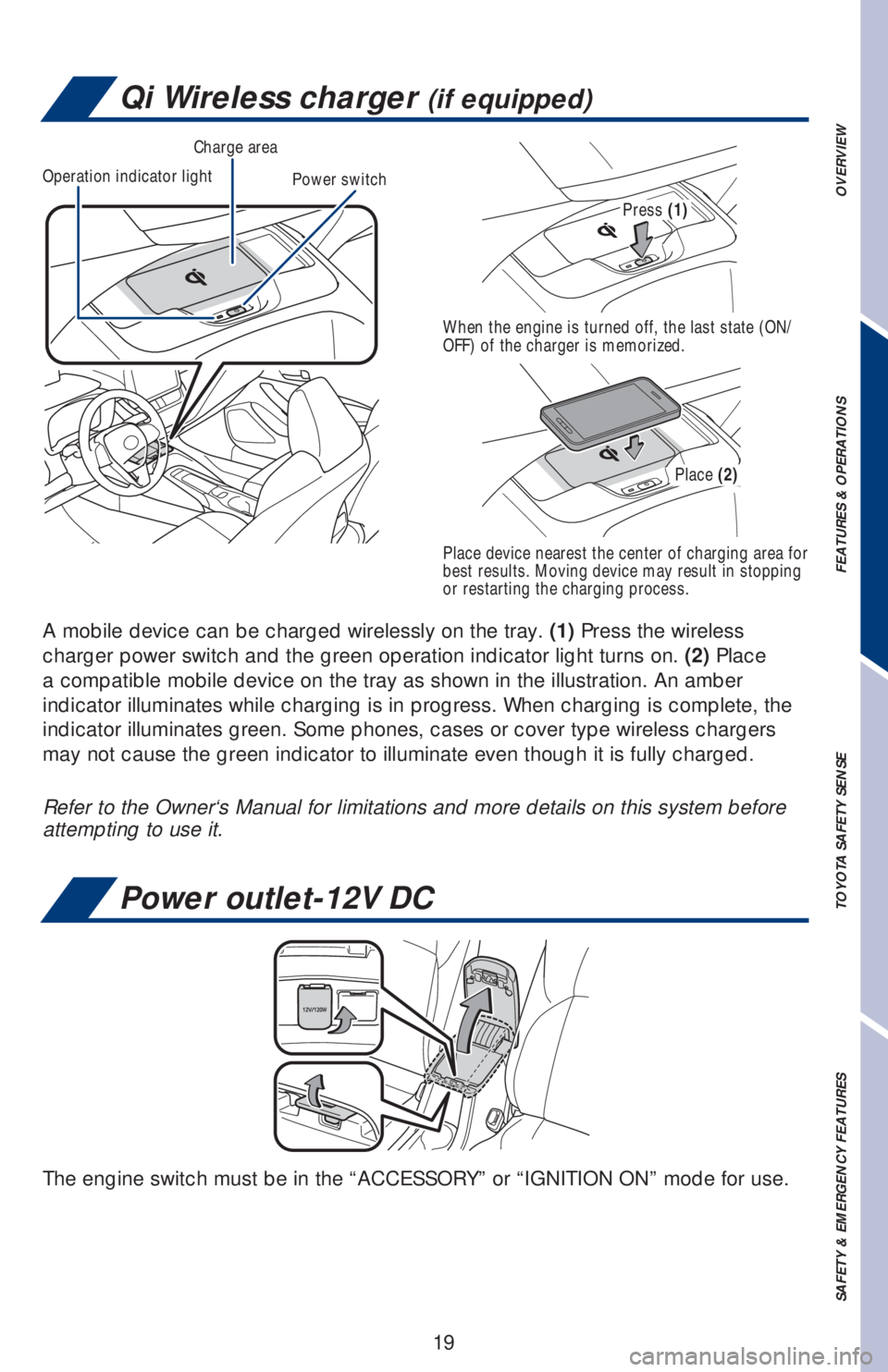

Qi Wireless charger (if equipped)
A mobile device can be charged wirelessly on the tray. (1) Press the wireless
charger power switch and the green operation indicator light turns on. (2) Place
a compatible mobile device on the tray as shown in the illustration. An amber
indicator illuminates while charging is in progress. When charging is complete, the
indicator illuminates green. Some phones, cases or cover type wireless chargers
may not cause the green indicator to illuminate even though it is fully charged.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
Power switch
Charge area
Operation indicator light
Press (1)
When the engine is turned off, the last state (ON/
OFF) of the charger is memorized.
Place device nearest the center of charging area for
best results. Moving device may result in stopping
or restarting the charging process.
Place (2)
Power outlet-12V DC
The engine switch must be in the “ACCESSORY” or “IGNITION ON” mode for use.

20
FEATURES & OPERATIONS
USB media port
Connecting a compatible device and cable into the USB media port will support
charging and music playback through the audio multimedia system.
Seat heaters (if equipped)
The engine switch must be in the “IGNITION ON” mode for use.

21
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

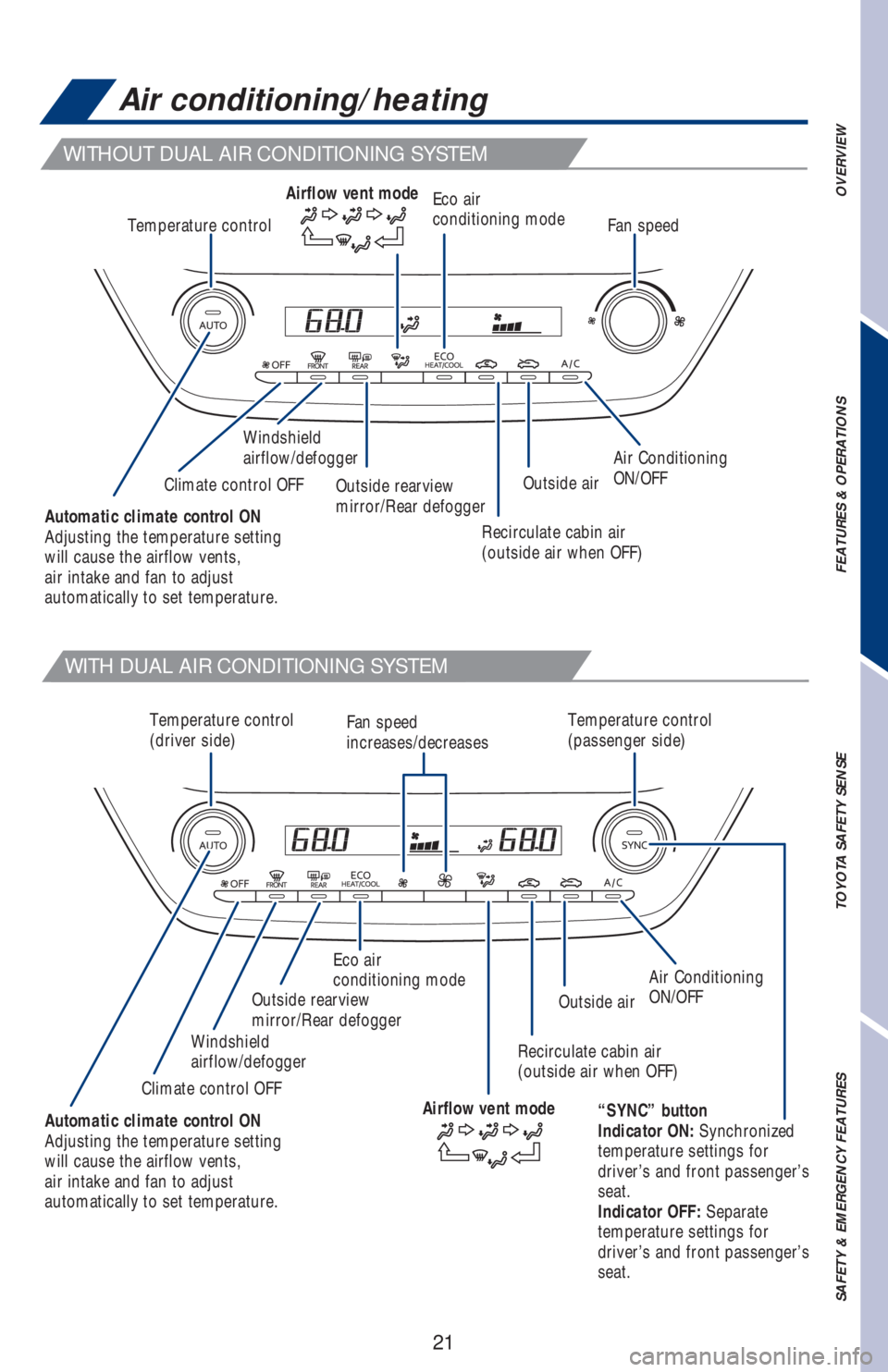

Air conditioning/heating
WITHOUT DUAL AIR CONDITIONING SYSTEM
WITH DUAL AIR CONDITIONING SYSTEM
Temperature control
Temperature control
(driver side)Temperature control
(passenger side) Fan speed
increases/decreasesFan speed
Windshield
airflow/defogger
Windshield
airflow/defoggerAir Conditioning
ON/OFF
Air Conditioning
ON/OFF Climate control OFF
Climate control OFFEco air
conditioning mode
Eco air
conditioning mode Automatic climate control ON
Adjusting the temperature setting
will cause the airflow vents,
air intake and fan to adjust
automatically to set temperature.
Automatic climate control ON
Adjusting the temperature setting
will cause the airflow vents,
air intake and fan to adjust
automatically to set temperature.
Airflow vent mode
Airflow vent mode
Outside rearview
mirror/Rear defogger
Outside rearview
mirror/Rear defoggerRecirculate cabin air
(outside air when OFF)
Recirculate cabin air
(outside air when OFF)Outside air
Outside air
“SYNC” button
Indicator ON: Synchronized
temperature settings for
driver’s and front passenger’s
seat.
Indicator OFF: Separate
temperature settings for
driver’s and front passenger’s
seat.

22
FEATURES & OPERATIONS
Driving mode select
iMT (INTELLIGENT MANUAL TRANSMISSION, WITH A MANUAL TRANSMISSION)
SPORT MODE (WITH A CONTINUOUSLY VARIABLE TRANSMISSION)
Refer to the Owner’s Manual for more information.

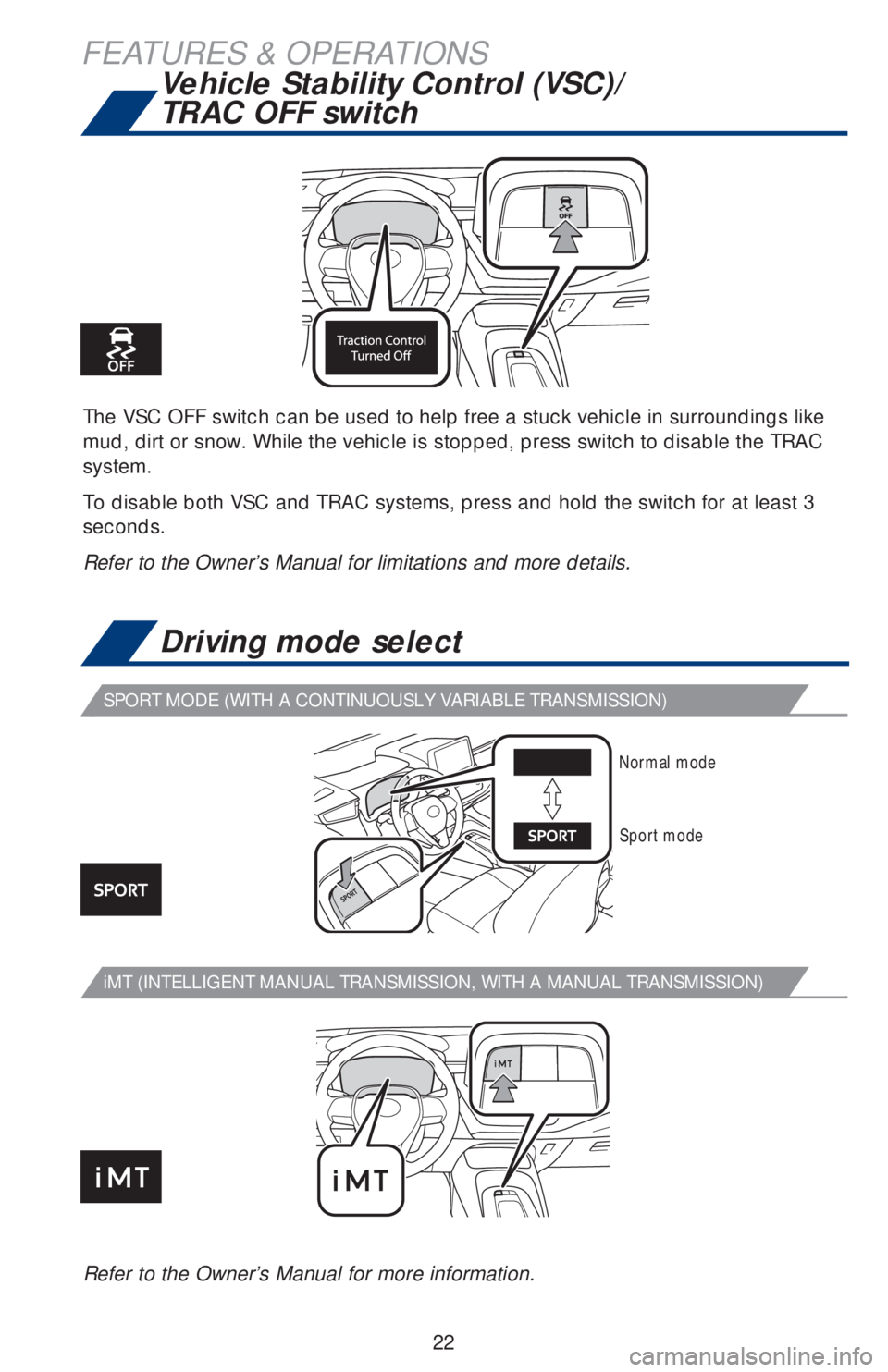

Vehicle Stability Control (VSC)/
TRAC OFF switch
The VSC OFF switch can be used to help free a stuck vehicle in surroundings like
mud, dirt or snow. While the vehicle is stopped, press switch to disable the TRAC
system.
To disable both VSC and TRAC systems, press and hold the switch for at least 3
seconds.
Refer to the Owner’s Manual for limitations and more details.
Normal mode
Sport mode

23
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Rear view monitor system
The rear view monitor system displays an image of the view from the bumper of
the rear area of the vehicle. The camera for the rear view monitor system is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “MENU” button and
select “Display” on the screen. Select “Camera” to adjust the screen contrast and
brightness.
Refer to the Owner’s Manual and the Navigation Owner‘s Manual for limitations and
more details on this system.
The system is designed to use radar sensors to detect vehicles traveling in the
Corolla Hatchback’s blind spot and advises the driver of the vehicles’ presence via
the outside rear view mirror indicators.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
Indicators Outside rear view mirror indicators
Meter control switchesOutside rear view mirror indicators
Blind Spot Monitor (if equipped)

24

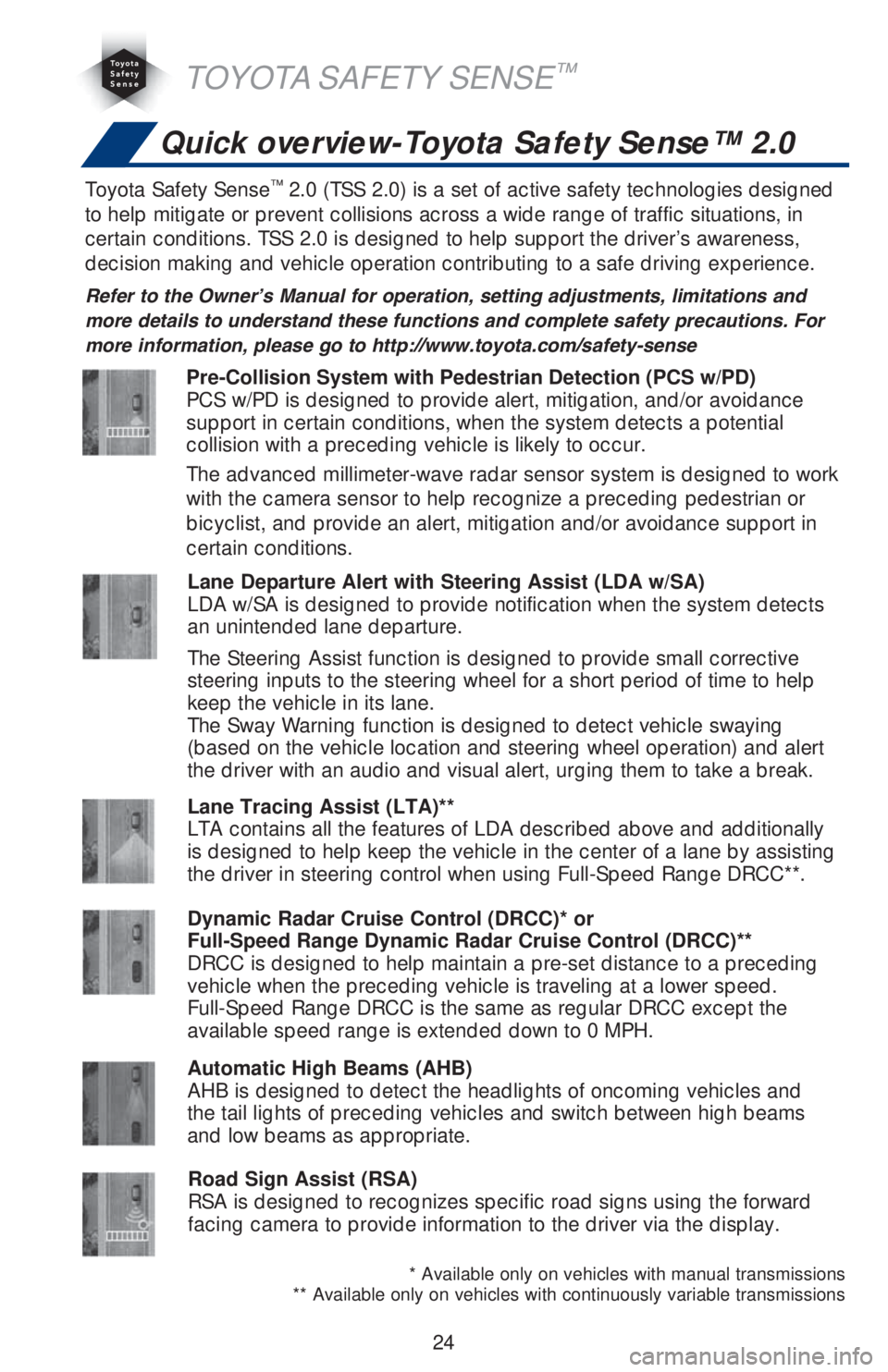

TOYOTA SAFETY SENSE™
Toyota Safety Sense™ 2.0 (TSS 2.0) is a set of active safety technologies designed
to help mitigate or prevent collisions across a wide range of traffic situations, in
certain conditions. TSS 2.0 is designed to help support the driver’s awareness,
decision making and vehicle operation contributing to a safe driving experience.
5HIHUWRWKH2ZQHU

25
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Radar sensorCamera sensor
Sensors
TSS 2.0 combines an in-vehicle camera mounted in front of the inside rear view mirror
and a radar mounted in the front grill. These sensors support the driver assist systems.
The Pre-Collision System uses a radar sensor and camera sensor to help detect a
vehicle or pedestrian or bicyclist in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control performance that
this system can provide, do not overly rely on this system. This system will not prevent
collisions or lessen collision damage or injury in every situation. Do not use PCS
instead of normal braking operations under any circumstances. Do not attempt to test
the operation of the Pre-Collision System yourself, as the system may not operate or
engage, possibly leading to an accident. In some situations, such as when driving in
inclement weather such as heavy rain, fog, snow or a sandstorm or while driving on a
curve and for a few seconds after driving on a curve, a vehicle or pedestrian or bicyclist
may not be detected by the radar and camera sensors, preventing the system from
operating or engaging properly.
Refer to the Toyota Owner’s Manual for a list of additional situations in which the
system may not operate properly.
Pre-Collision Warning
When the system determines that the possibility of a frontal collision is high, a buzzer
will sound and a warning message will be displayed on the Multi-Information Display
(MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide additional braking
force using Brake Assist. This system may prime the brakes and may apply greater
braking force in relation to how strongly the brake pedal is depressed.
Pre-Collision System with
Pedestrian Detection (PCS w/PD)

26
PRE-COLLISION SYSTEM (CONTINUED)
TOYOTA SAFETY SENSE™
Refer to the Toyota Owner’s Manual for additional information on PCS operation,
settings adjustments, limitations, and precautions before attempting to use it. Pre-Collision Braking
If the driver does not brake in a set time and the system determines that the possibility
of a frontal collision with a preceding vehicle is extremely high, the system may
automatically apply the brakes, reducing speed in order to help the driver reduce the
impact and in certain cases avoid the collision.
Monocular camera sensor
Millimeter
wave radar
As part of the Pre-Collision System, this function is also designed to first provide an
alert and then automatic braking if needed.
Refer to the Toyota Owner’s Manual for additional limitations and information.Under certain conditions, the PCS system included with the TSS 2.0 package
may also help to detect a pedestrian or bicyclist in front of your vehicle using the
in-vehicle camera and front grille-mounted radar. The in-vehicle camera of PCS
detects a potential pedestrian or bicyclist based on size, profile, and motion of
the detected pedestrian or bicyclist. However, a pedestrian or bicyclist may not
be detected depending on the conditions, including the surrounding brightness
and the motion, posture, size, and angle of the potential detected pedestrian or
bicyclist, preventing the system from operating or engaging.
PCS PEDESTRIAN DETECTION

27
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
CHANGING PCS ALERT TIMING
DISABLING PRE-COLLISION SYSTEM (PCS)
Each time the PCS switch is pressed, the response to the PCS alert timing changes.
FarMiddle
(default)Near
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select “Adjust alert timing” from the MID and then
press “
”. The setting screen is displayed.
(3) Press “
” each time to change the setting. Each time it is pressed, the
response to the PCS alert timing changes as shown above.
(4) Press “
” to go back to the menu.
Note: PCS is enabled each time the engine switch is turned to Ignition On.
The system can be disabled/enabled and the alert timing of the system can be
changed. (Alert timing only, brake operation remains the same).
(1) Press “
” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select “PCS” setting function and then press “.”
(3) Press “
” to go back to the menu.
Note: The system is enabled each time the power switch is turned to ON
mode.
Refer to the Toyota Owner’s Manual for additional information on PCS operation,
settings adjustments, limitations, and precautions before attempting to use it.

28
TOYOTA SAFETY SENSE™

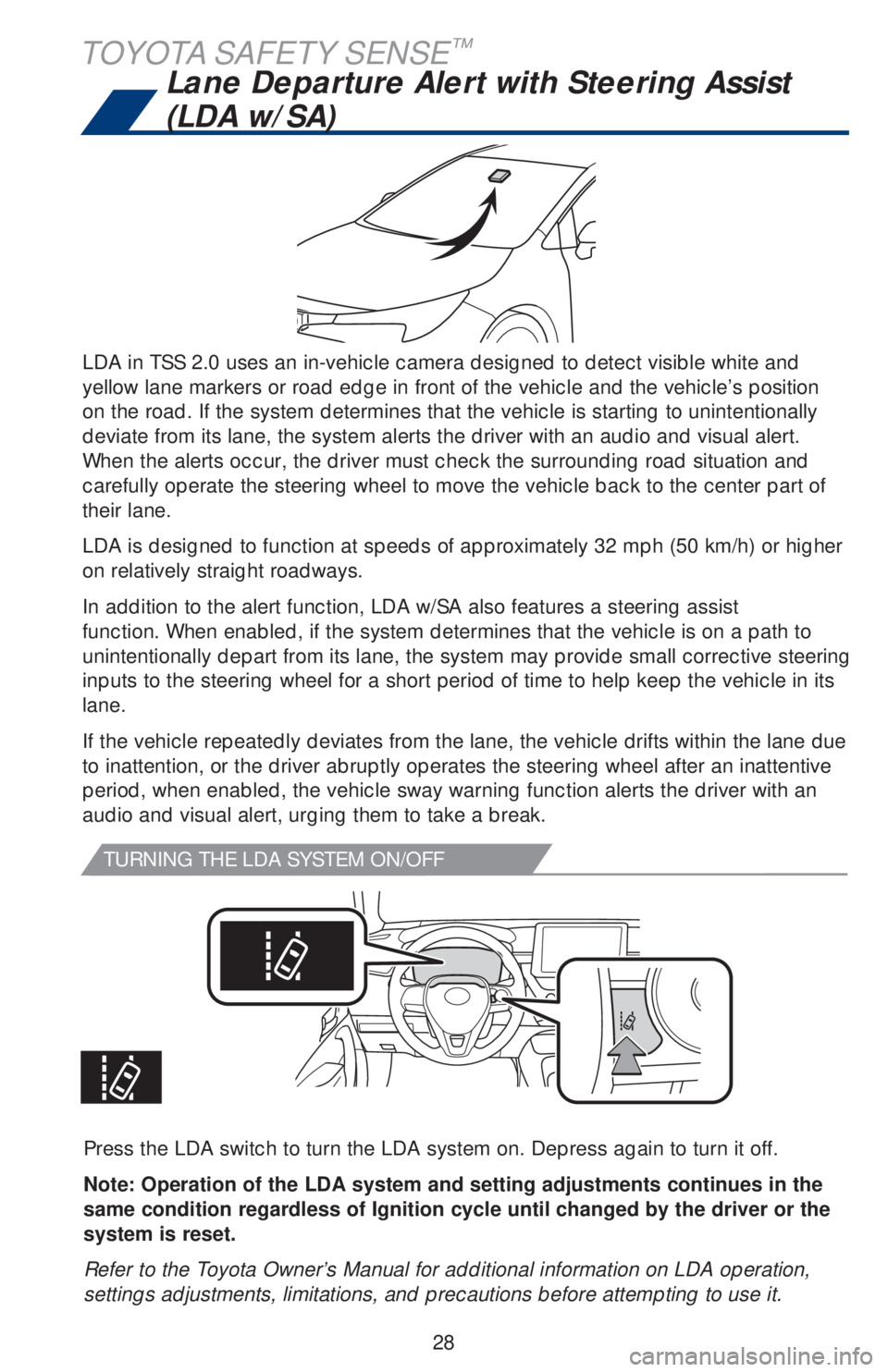

LDA in TSS 2.0 uses an in-vehicle camera designed to detect visible white and
yellow lane markers or road edge in front of the vehicle and the vehicle’s position
on the road. If the system determines that the vehicle is starting to unintentionally
deviate from its lane, the system alerts the driver with an audio and visual alert.
When the alerts occur, the driver must check the surrounding road situation and
carefully operate the steering wheel to move the vehicle back to the center part of
their lane.
LDA is designed to function at speeds of approximately 32 mph (50 km/h) or higher
on relatively straight roadways.
In addition to the alert function, LDA w/SA also features a steering assist
function. When enabled, if the system determines that the vehicle is on a path to
unintentionally depart from its lane, the system may provide small corrective steering
inputs to the steering wheel for a short period of time to help keep the vehicle in its
lane.
If the vehicle repeatedly deviates from the lane, the vehicle drifts within the lane due
to inattention, or the driver abruptly operates the steering wheel after an inattentive
period, when enabled, the vehicle sway warning function alerts the driver with an
audio and visual alert, urging them to take a break.
Lane Departure Alert with Steering Assist
(LDA w/SA)
TURNING THE LDA SYSTEM ON/OFF
Press the LDA switch to turn the LDA system on. Depress again to turn it off.
Note: Operation of the LDA system and setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the
system is reset.
Refer to the Toyota Owner’s Manual for additional information on LDA operation,
settings adjustments, limitations, and precautions before attempting to use it.
