OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

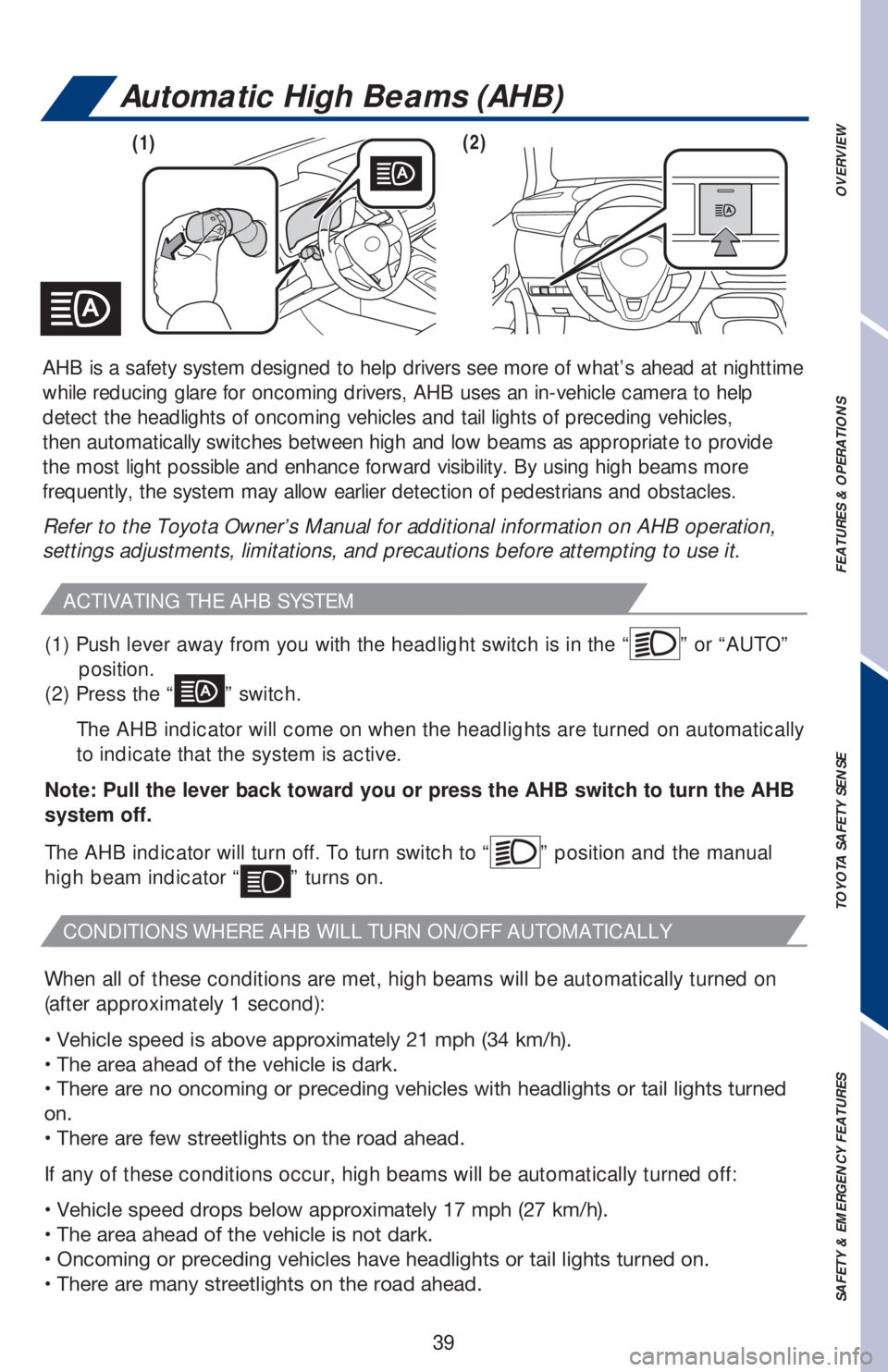

Automatic High Beams (AHB)
ACTIVATING THE AHB SYSTEM
CONDITIONS WHERE AHB WILL TURN ON/OFF AUTOMATICALLY
When all of these conditions are met, high beams will be automatically turned on
(after approximately 1 second):
.=LOPJSLZWLLKPZHIV]LHWWYV_PTH[LS`TWORTO
.;OLHYLHHOLHKVM[OL]LOPJSLPZKHYR
.;OLYLHYLUVVUJVTPUNVYWYLJLKPUN]LOPJSLZ^P[OOLHKSPNO[ZVY[HPSSPNO[Z[\YULK
VU
.;OLYLHYLML^Z[YLL[SPNO[ZVU[OLYVHKHOLHK
If any of these conditions occur, high beams will be automatically turned off:
.=LOPJSLZWLLKKYVWZILSV^HWWYV_PTH[LS`TWORTO
.;OLHYLHHOLHKVM[OL]LOPJSLPZUV[KHYR
.6UJVTPUNVYWYLJLKPUN]LOPJSLZOH]LOLHKSPNO[ZVY[HPSSPNO[Z[\YULKVU
.;OLYLHYLTHU`Z[YLL[SPNO[ZVU[OLYVHKHOLHK AHB is a safety system designed to help drivers see more of what’s ahead at nighttime
while reducing glare for oncoming drivers, AHB uses an in-vehicle camera to help
detect the headlights of oncoming vehicles and tail lights of preceding vehicles,
then automatically switches between high and low beams as appropriate to provide
the most light possible and enhance forward visibility. By using high beams more
frequently, the system may allow earlier detection of pedestrians and obstacles.
Refer to the Toyota Owner’s Manual for additional information on AHB operation,
settings adjustments, limitations, and precautions before attempting to use it.
(2) (1)
(1) Push lever away from you with the headlight switch is in the “
” or “AUTO”
position.
(2) Press the “
” switch.
The AHB indicator will come on when the headlights are turned on automatically
to indicate that the system is active.
Note: Pull the lever back toward you or press the AHB switch to turn the AHB
system off.
The AHB indicator will turn off. To turn switch to “
” position and the manual
high beam indicator “
” turns on.

40

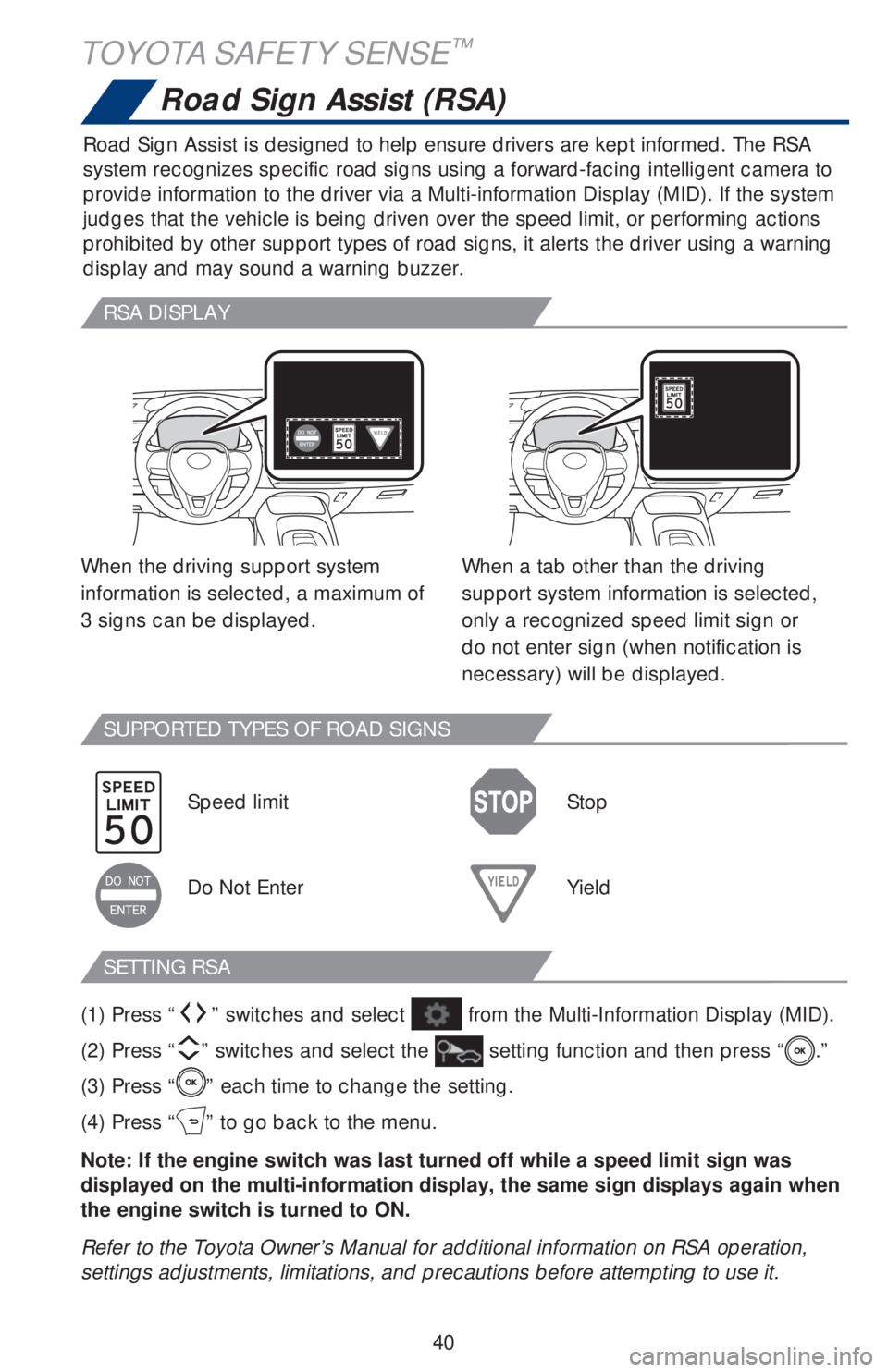

Road Sign Assist (RSA)
Road Sign Assist is designed to help ensure drivers are kept informed. The RSA
system recognizes specific road signs using a forward-facing intelligent camera to
provide information to the driver via a Multi-information Display (MID). If the system
judges that the vehicle is being driven over the speed limit, or performing actions
prohibited by other support types of road signs, it alerts the driver using a warning
display and may sound a warning buzzer.
RSA DISPLAY
SUPPORTED TYPES OF ROAD SIGNS
SETTING RSA
When the driving support system
information is selected, a maximum of
3 signs can be displayed.
Speed limit Stop
Do Not Enter YieldWhen a tab other than the driving
support system information is selected,
only a recognized speed limit sign or
do not enter sign (when notification is
necessary) will be displayed.
(1) Press “
” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select the setting function and then press “.”
(3) Press “
” each time to change the setting.
(4) Press “
” to go back to the menu.
Note: If the engine switch was last turned off while a speed limit sign was
displayed on the multi-information display, the same sign displays again when
the engine switch is turned to ON.
Refer to the Toyota Owner’s Manual for additional information on RSA operation,
settings adjustments, limitations, and precautions before attempting to use it.
TOYOTA SAFETY SENSE™

41
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

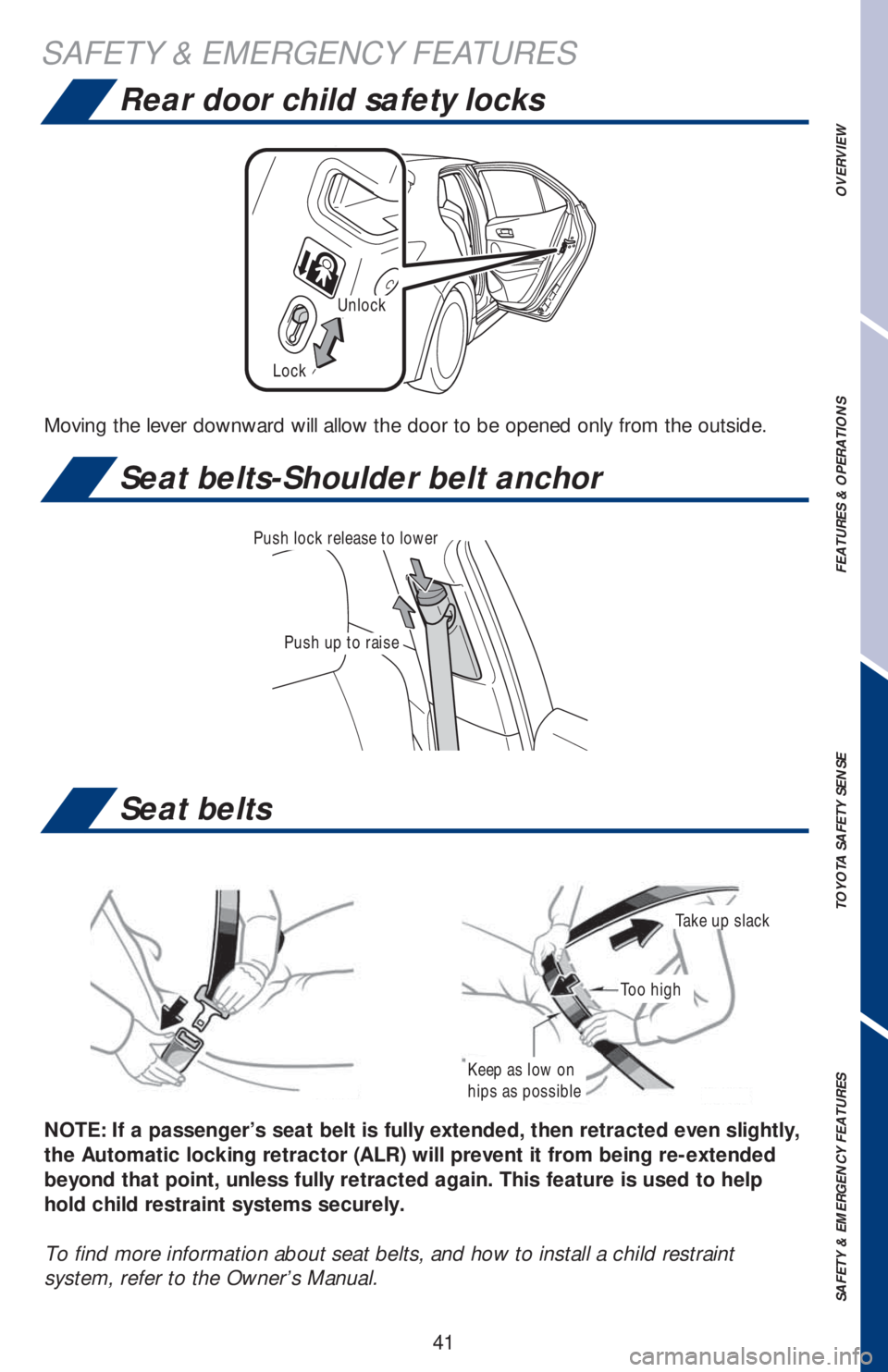

Moving the lever downward will allow the door to be opened only from the outside.
Unlock
Lock
Push up to raise
Push lock release to lower
Rear door child safety locks
Seat belts-Shoulder belt anchor
Seat belts
NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly,
the Automatic locking retractor (ALR) will prevent it from being re-extended
beyond that point, unless fully retracted again. This feature is used to help
hold child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
SAFETY & EMERGENCY FEATURES

42
SAFETY & EMERGENCY FEATURES
Tire Pressure Monitoring (warning) System (TPMS)
The tire pressure detected by the tire pressure warning system can
be displayed on the multi-information display (MID).
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains on,
take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not been
initialized recently, setting the tire pressures to factory specifications should
turn off the light.
The tire pressure warning system can be selected on “” of the multi-
information display (MID).
System rest initialization
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select the “Vehicle Settings”, then push “”.
(3) Select “TPWS” and then push “
”.
(3) Select “Set Pressure” then push and hold “
” until the warning light blinks
three times.

43
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

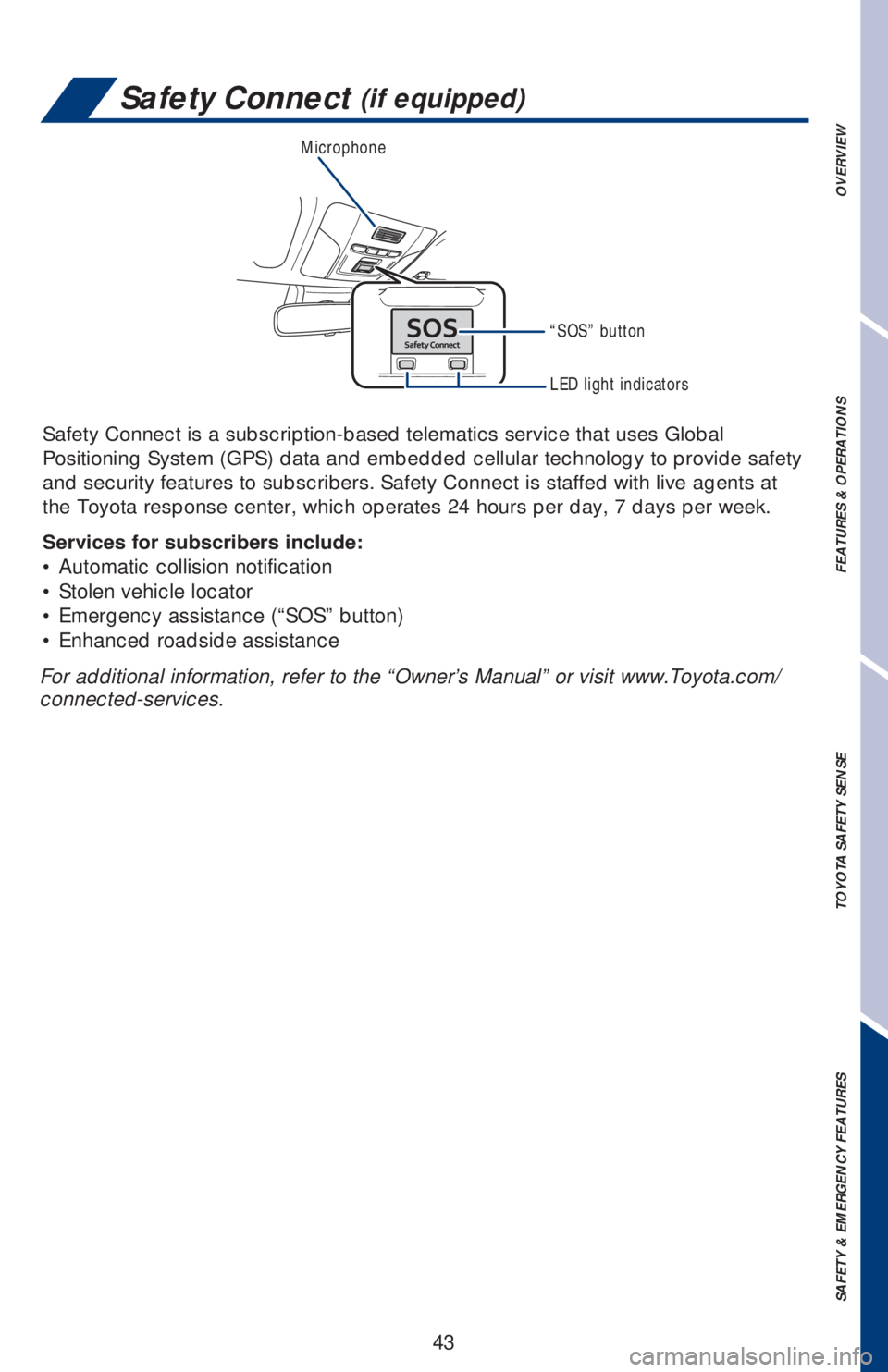

Safety Connect (if equipped)
Safety Connect is a subscription-based telematics service that uses Global
Positioning System (GPS) data and embedded cellular technology to provide safety
and security features to subscribers. Safety Connect is staffed with live agents at
the Toyota response center, which operates 24 hours per day, 7 days per week.
Services for subscribers include:
• Automatic collision notification
• Stolen vehicle locator
• Emergency assistance (“SOS” button)
• Enhanced roadside assistance
Microphone
LED light indicators
“SOS” button
For additional information, refer to the “Owner’s Manual” or visit www.Toyota.com/
connected-services.

44
SAFETY & EMERGENCY FEATURES
Spare tire & tools
TOOL LOCATION
REMOVING THE SPARE TIRE
Towing eyelet
Wheel nut wrenchJack
Spare tireJack handle
Refer to the Owner’s Manual for jack positioning and tire changing procedures.
(2) Loosen the center fastener that
secures the spare tire. (1) Remove the deck board.
(When the luggage cover is installed) (When the luggage cover is not installed)

45
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Tire repair kit components
Sticker
HoseAir release cap Rubber stopper
Power plug
Air pressure gaugeCompressor switch
Tire repair kit & tools
TOOL LOCATION
Towing eyeletWheel nut wrench*
Jack**If equipped.Emergency tire
puncture repair kitEmergency tire
puncture repair kit
Jack handle*
Jack and tools
Refer to the Owner’s Manual for jack positioning and tire changing procedures.

46
SAFETY & EMERGENCY FEATURES
Star Safety System™
Your vehicle comes standard with the Star Safety SystemTM, which combines Anti-lock
Braking System (ABS), Brake Assist (BA), Electronic Brake-force Distribution (EBD),
Smart Stop Technology (SST), Traction Control (TRAC) and Vehicle Stability Control
(VSC).
Refer to the Owner’s Manual for more details and important information on
limitations to these systems.
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that current
road conditions will allow, helping you to stay in directional control.
ANTI-LOCK BRAKE SYSTEM (ABS)
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a split
second to react, Brake Assist can add additional brake pressure more quickly than just
the driver alone can.
BRAKE ASSIST (BA)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help maintain
control and balance when braking. EBD responds to sudden stops by redistributing
brake force to enhance the braking effectiveness of all four wheels.
ELECTRONIC BRAKE FORCE DISTRIBUTION (EBD)
ENHANCED VEHICLE STABILITY CONTROL (VSC)
Enhanced Vehicle Stability Control provides cooperative control of the ABS, TRAC,
VSC and EPS.
Enhanced VSC helps to maintain directional stability when loss of traction occurs
during a turn.
Smart Stop Technology automatically reduces engine power when the accelerator and
brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied firmly
for longer than one-half second at speeds greater than five miles per hour.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling backward.
SMART STOP TECHNOLOGY (SST)

47
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Floor mat installation
There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle has
model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use Toyota floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat in place.
• Install floor mats right side up.
The shape of the retaining hooks (clips) may
differ from that shown in the
illustration.
Always align the marks
VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip. TRAC
limits engine output and applies the brakes to the spinning wheel. This transfers power
to the wheels that still have traction to help keep you on track.
TRACTION CONTROL (TRAC)

48

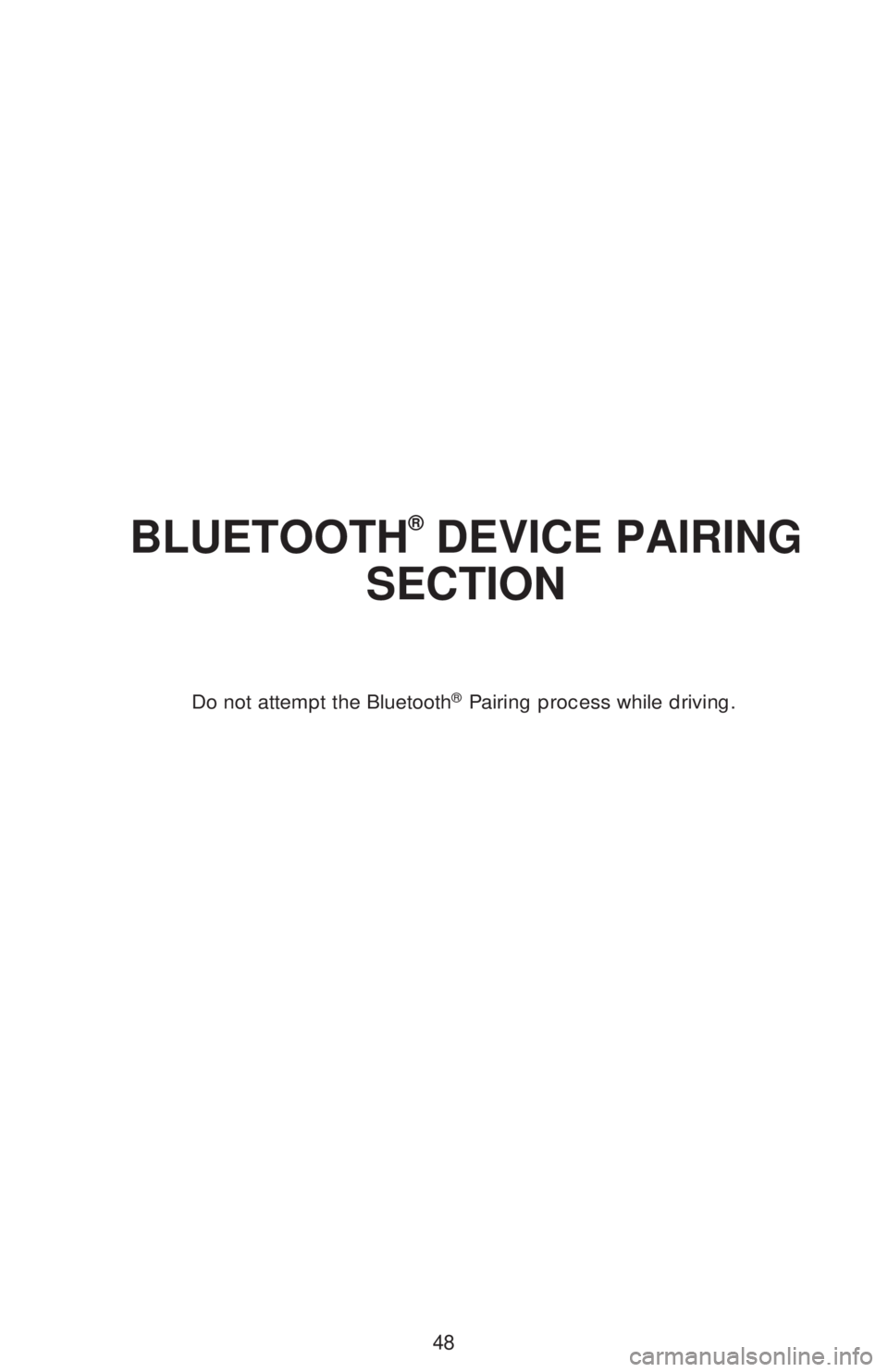

BLUETOOTH® DEVICE PAIRING
SECTION
Do not attempt the Bluetooth® Pairing process while driving.
