OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

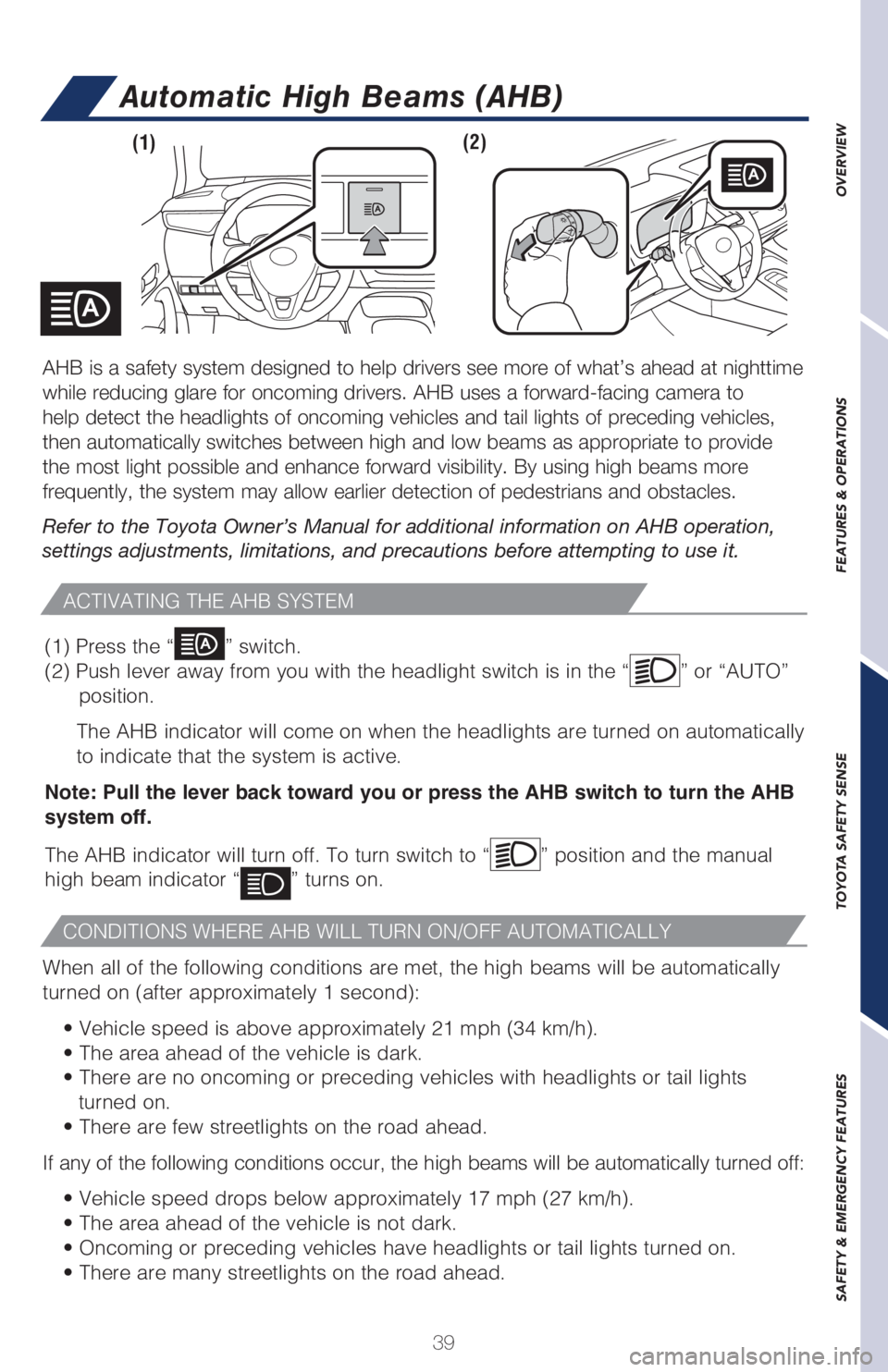

Automatic High Beams (AHB)
ACTIVATING THE AHB SYSTEM
CONDITIONS WHERE AHB WILL TURN ON/OFF AUTOMATICALLY
AHB is a safety system designed to help drivers see more of what’s ahead\
at nighttime
while reducing glare for oncoming drivers. AHB uses a forward-facing camera t\
o
help detect the headlights of oncoming vehicles and tail lights of preceding\
vehicles,
then automatically switches between high and low beams as appropriate to pro\
vide
the most light possible and enhance forward visibility. By using high beams\
more
frequently, the system may allow earlier detection of pedestrians and obstacles.
Refer to the Toyota Owner’s Manual for additional information on AHB opera\
tion,
settings adjustments, limitations, and precautions before attempting to use it.
(2) (1)
(1) Press the “
” switch.
(2) Push lever away from you with the headlight switch is in the “
” or “AUTO”
position.
The AHB indicator will come on when the headlights are turned on automatica\
lly
to indicate that the system is active.
Note: Pull the lever back toward you or press the AHB switch to turn the AHB
system off.
The AHB indicator will turn off. To turn switch to “
” position and the manual
high beam indicator “
” turns on.
When all of the following conditions are met, the high beams will be automat\
ically
turned on (after approximately 1 second): • Vehicle speed is above approximately 21 mph (34 km/h).
• The area ahead of the vehicle is dark.
• There are no oncoming or preceding vehicles with headlights or tail lig\
hts turned on.
• There are few streetlights on the road ahead.
If any of the following conditions occur, the high beams will be automatic\
ally turned off: • Vehicle speed drops below approximately 17 mph (27 km/h).
• The area ahead of the vehicle is not dark.
• Oncoming or preceding vehicles have headlights or tail lights turned on\
.
• There are many streetlights on the road ahead.

40

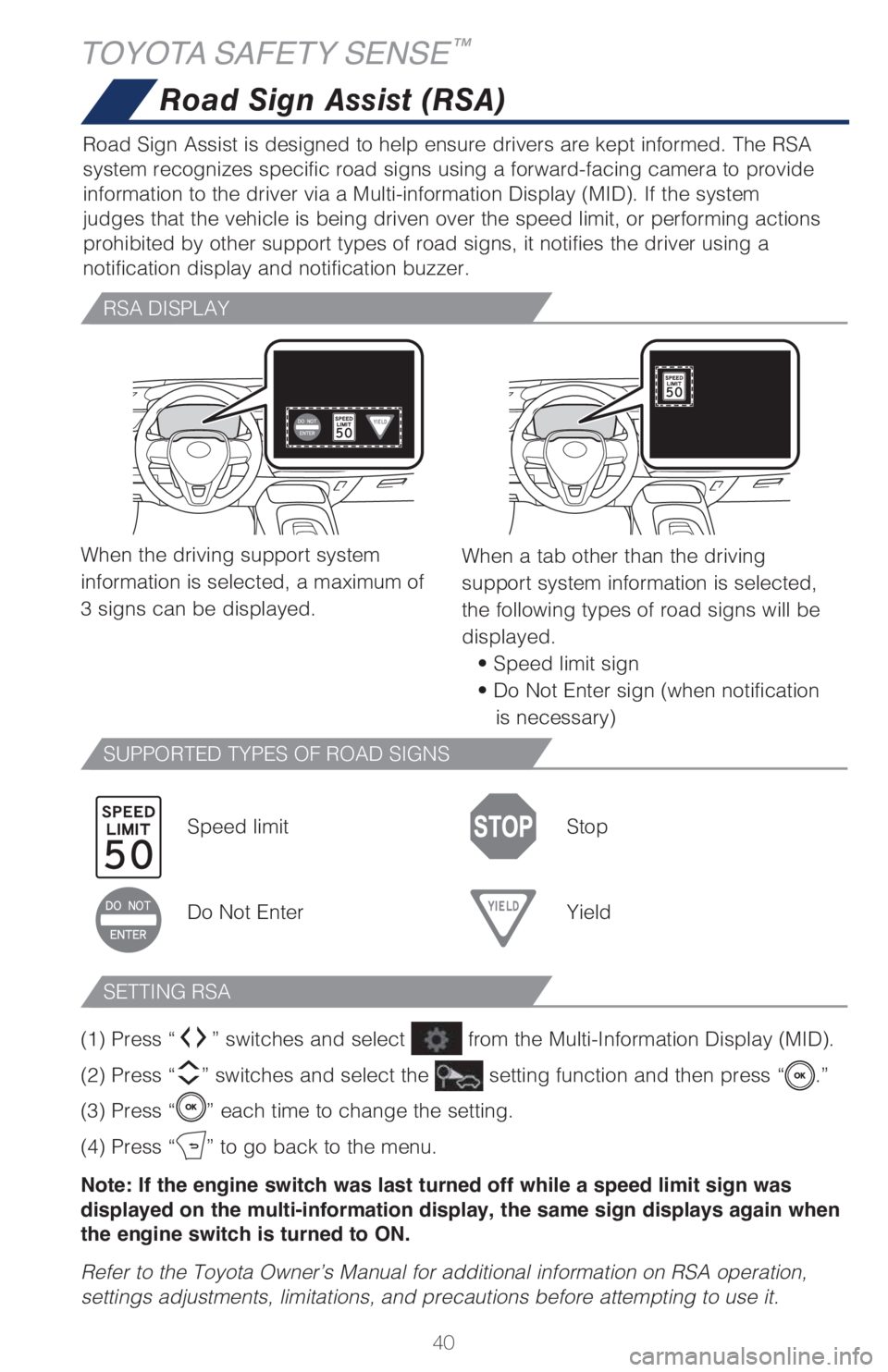

Road Sign Assist (RSA)
Road Sign Assist is designed to help ensure drivers are kept informed. The R\
SA
system recognizes specific road signs using a forward-facing camera to provide\

information to the driver via a Multi-information Display (MID). If the system
judges that the vehicle is being driven over the speed limit, or performing ac\
tions
prohibited by other support types of road signs, it notifies the driver using a
notification display and notification buzzer.
RSA DISPLAY
SUPPORTED TYPES OF ROAD SIGNS
SETTING RSA
When the driving support system
information is selected, a maximum of
3 signs can be displayed.Speed limit Stop
Do Not Enter Yield
(1) Press “
” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select the setting function and then press “.”
(3) Press “
” each time to change the setting.
(4) Press “
” to go back to the menu.
Note: If the engine switch was last turned off while a speed limit sign was
displayed on the multi-information display, the same sign displays again when
the engine switch is turned to ON.
Refer to the Toyota Owner’s Manual for additional information on RSA opera\
tion,
settings adjustments, limitations, and precautions before attempting to use it.
TOYOTA SAFETY SENSE™
When a tab other than the driving
support system information is selected,
the following types of road signs will be
displayed. • Speed limit sign
• Do Not Enter sign (when notification is necessary)

41
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Moving the lever downward will allow the door to be opened only from the outsi\
de.
Unlock
Lock
Push up, or squeeze lock
release to lower
Rear door child safety locks
Seat belts-Shoulder belt anchor
Seat belts
NOTE: If a passenger’s seat belt is fully extended, then retracted even sl\
ightly,
the Automatic locking retractor (ALR) will prevent it from being re-exten\
ded
beyond that point, unless fully retracted again. This feature is used to help
hold child restraint systems securely.
To find more information about seat belts, and how to install a child rest\
raint
system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
To o high
SAFETY & EMERGENCY FEATURES

42
SAFETY & EMERGENCY FEATURES
Tire Pressure Monitoring (warning) System (TPMS)
The tire pressure detected by the tire pressure warning system can be displ\
ayed
on the multi-information display (MID).
Refer to the load label on the door jamb or the Owner’s Manual for tire in\
flation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then r\
emains on,
take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not been
initialized recently, setting the tire pressures to factory specifications should
turn off the light.
The tire pressure warning system can be selected on “” of the multi-
information display (MID).
System reset initialization
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select the “Vehicle Settings”, then push “.”
(3) Press “
” switches and select “TPWS” and then push “.”
(4) Press “
” switches and select “Set Pressure” then push and hold “” until
the warning light blinks three times.

43
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Safety Connect®
Safety Connect is a subscription-based telematics service that uses Global
Positioning System (GPS) data and embedded cellular technology to provide safety
and security features to subscribers. Safety Connect is staffed with live a\
gents at
the Toyota response center, which operates 24 hours per day, 7 days per week.
Services for subscribers include:
• Automatic collision notification
• Stolen vehicle locator
• Emergency assistance (“SOS” button)
• Enhanced roadside assistance
For additional information, refer to the “Owner’s Manual” or visit\
www.Toyota.com/
connected-services.
Microphone
LED light indicators
(Green is Active) “SOS” button

44

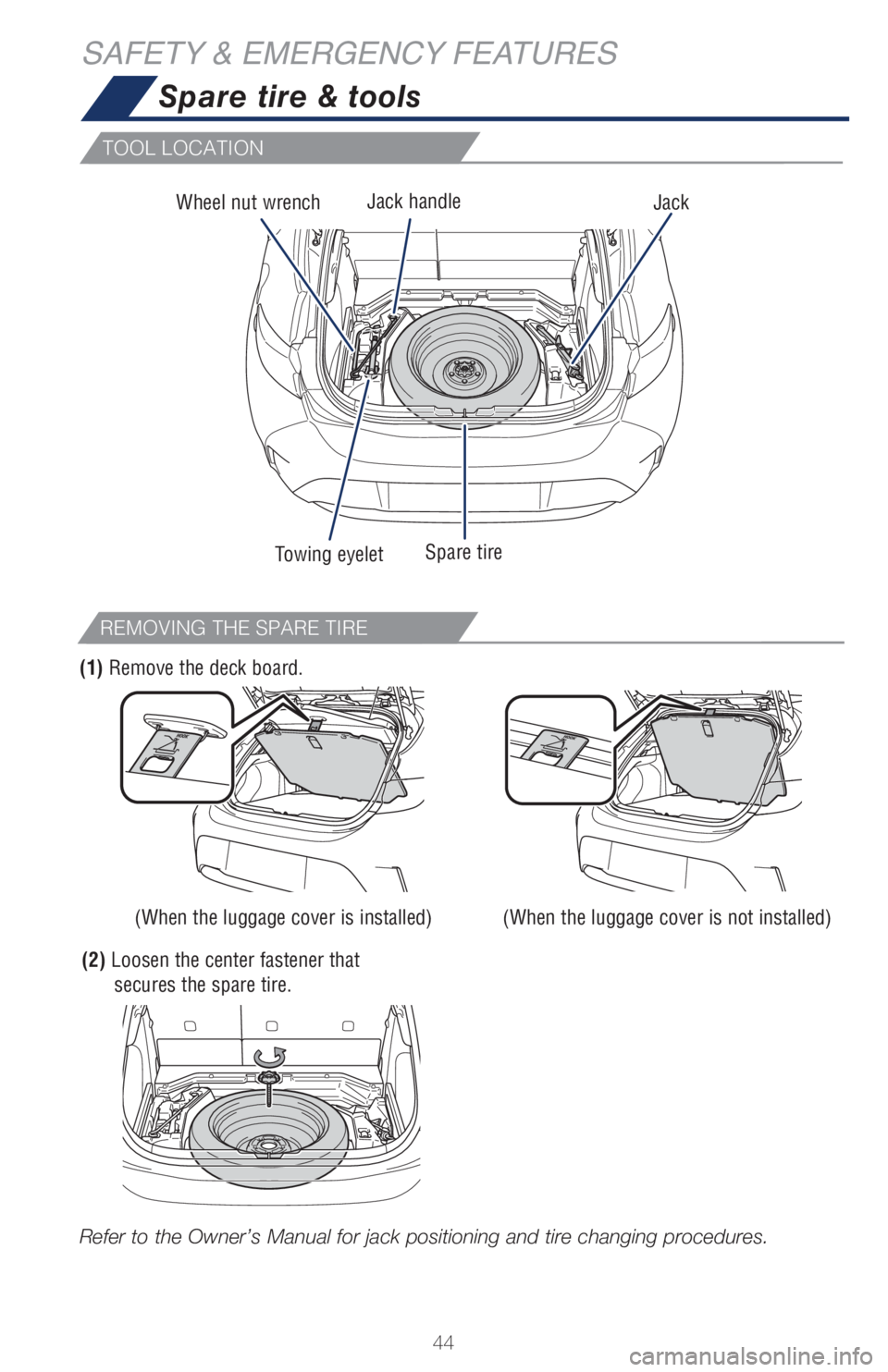

SAFETY & EMERGENCY FEATURESSpare tire & tools
TOOL LOCATION
REMOVING THE SPARE TIRE
Towing eyelet
Wheel nut wrenchJack
Spare tireJack handle
Refer to the Owner’s Manual for jack positioning and tire changing procedu\
res.
(2) Loosen the center fastener that secures the spare tire.
(1) Remove the deck board.
(When the luggage cover is installed) (When the luggage cover is not installed)

45
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Tire repair kit components
Sticker
Hose Air release cap
Rubber stopper
Power plug Air pressure gaugeCompressor switch
Tire repair kit & tools
TOOL LOCATION
Towing eyeletWheel nut wrench*
Jack**If equipped.Emergency tire
puncture repair kitEmergency tire
puncture repair kit
Jack handle*
Jack and tools
Refer to the Owner’s Manual for jack positioning and tire changing procedu\
res.

46
SAFETY & EMERGENCY FEATURESStar Safety System
™
Your vehicle comes standard with the Star Safety SystemTM, which combines Anti-lock
Braking System (ABS), Brake Assist (BA), Electronic Brake-force Distributio\
n (EBD),
Smart Stop Technology (SST), Traction Control (TRAC) and Vehicle Stabilit\
y Control
(VSC).
Refer to the Owner’s Manual for more details and important information on
limitations to these systems.
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases \
brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction tha\
t current
road conditions will allow, helping you to stay in directional control.
ANTI-LOCK BRAKE SYSTEM (ABS)
Brake Assist is designed to detect sudden or “panic” braking, and then \
add braking
pressure to help decrease the vehicle’s stopping distance. When there’s on\
ly a split
second to react, Brake Assist can add additional brake pressure more quickly t\
han just
the driver alone can.
BRAKE ASSIST (BA)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help \
maintain
control and balance when braking. EBD responds to sudden stops by redistributin\
g
brake force to enhance the braking effectiveness of all four wheels.
ELECTRONIC BRAKE FORCE DISTRIBUTION (EBD)
ENHANCED VEHICLE STABILITY CONTROL (VSC)
Enhanced Vehicle Stability Control provides cooperative control of the ABS, TRAC\
,
VSC and EPS.
Enhanced VSC helps to maintain directional stability when loss of traction occur\
s
during a turn.
Smart Stop Technology automatically reduces engine power when the accelerator\
and
brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are appl\
ied firmly
for longer than one-half second at speeds greater than five miles per hour.\

SST doesn’t engage if the brake pedal is depressed before the accelerato\
r pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling\
backward.
SMART STOP TECHNOLOGY (SST)

47
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Floor mat installation
There are two types of Toyota floor mats: carpeted and all-weather. Each vehi\
cle has
model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use Toyota floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the\
mat in place.
• Install floor mats right side up.
The shape of the retaining hooks (clips) may
differ from that shown in the
illustration.
Always align the marks
VSC helps prevent loss of traction during cornering by reducing engine powe\
r, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven\

surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.\
TRAC
limits engine output and applies the brakes to the spinning wheel. This transf\
ers power
to the wheels that still have traction to help keep you on track.
TRACTION CONTROL (TRAC)

48
BLUETOOTH® DEVICE PAIRING
SECTION
Do not attempt the Bluetooth® Pairing process while driving.
