TOYOTA COROLLA HATCHBACK 2021 (in English) User Guide

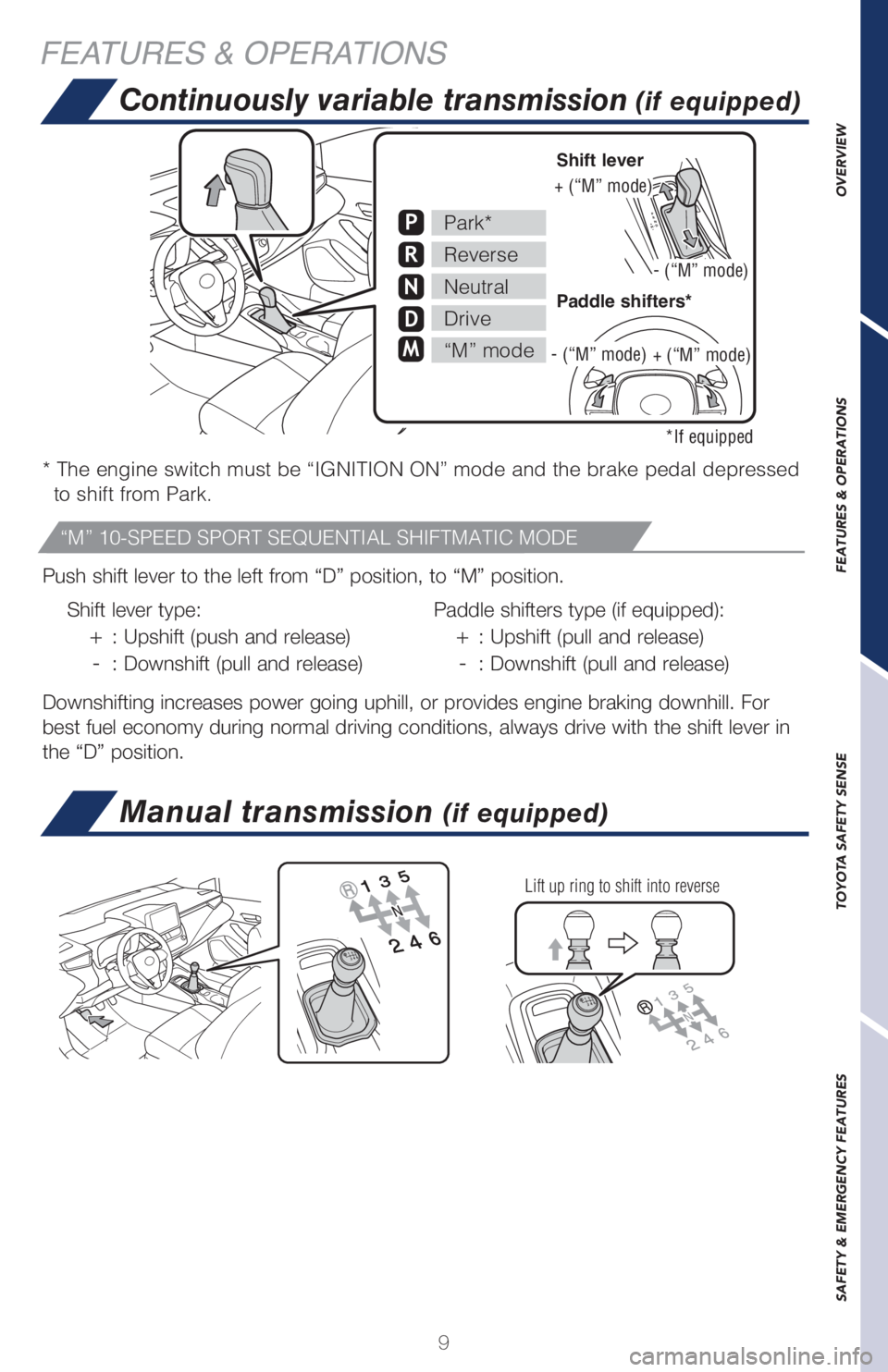

9
P
R
N
D
M
Park*
Reverse
Neutral
Drive
“M” mode
FEATURES & OPERATIONS
* The engine switch must be “IGNITION ON” mode and the brake pedal \
depressed to shift from Park.
Push shift lever to the left from “D” position, to “M” position.\
Downshifting increases power going uphill, or provides engine braking downhill. For
best fuel economy during normal driving conditions, always drive with the sh\
ift lever in
the “D” position.
“M” 10-SPEED SPORT SEQUENTIAL SHIFTMATIC MODE
Continuously variable transmission (if equipped)
Lift up ring to shift into reverse
Manual transmission (if equipped)
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES+ (“M” mode)
Shift lever
Paddle shifters*
*If equipped
- (“M” mode)
- (“M” mode)
+ (“M” mode)
Shift lever type:
+ : Upshift (push and release)
- : Downshift (pull and release) Paddle shifters type (if equipped):
+ : Upshift (pull and release)
- : Downshift (pull and release)

10
FEATURES & OPERATIONSElectric parking brake
Driver sideDriver sideAutomatic mode ONAutomatic mode OFF
Standby indicatorOperated indicatorParking brake light
Continuously variable
transmissionContinuously variable
transmission
Manual transmissionManual transmission
* Available only on vehicles with continuously variable transmissions ** Available only on vehicles with manual transmissions
Automatic (shift lever operation)
To turn automatic mode ON, while vehicle is stopped, pull and hold switch \
until
“EPB Shift Interlock Function Activated”* displays in Multi-Information D\
isplay
(MID) or auto EPB OFF indicator** turns off. While depressing brake, shifting\
into
P position* or when the engine is off** will automatically set the brake \
and turn
the parking brake indicator and parking brake light on. To release brake, d\
epress
brake and shift out of P. The indicator and the light on the switch turn off.\
To turn automatic mode OFF, push and hold parking brake switch until “E\
PB Shift
Interlock Function Deactivated”* displays on the MID or auto EPB OFF indicator\
**
turns on.
Manual
While vehicle is stopped and brake pedal is depressed, pull to set parking br\
ake
and turn the parking brake indicator and parking brake light on. To release\
, press
the brake pedal and push switch. The indicator and the light on the switch \
turn off.
Brake hold
The brake hold system keeps the brake applied when the shift lever is in D,\
M*/a
forward driving position** or N with the system on and the brake pedal has been\

depressed to stop the vehicle. The system releases the brake when the accelerator\

pedal is depressed with the shift lever in D or M*/a forward driving position\
** to
allow smooth start off.
Refer to the Owner’s Manual for limitations and more details.
Parking
brake lightParking
brake light
Manual mode Brake hold

11
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURESDriving assist system status display areaDriving assist system status display area
Content display areaContent display area
Press meter control switches to change and select information in the followin\
g:
Multi-Information Display (MID)
4.2-in display
Meter control switches 7-in display
Previous screen
Push: enter/set,
Push and hold: reset
Scroll/search screens
Driving support system information display Driving information display
Vehicle information display
Audio system-linked display
Settings display
Warning message display

12
FEATURES & OPERATIONS
REAR
FRONT
DEFAULT SETTING*
CUSTOMIZED SETTING
Windshield wipers & washer
Interval wipe
Slow
Fast
Pull to wash and wipe
Push lever to wash and wipeMist
OFF
On
Interval wipe
Adjust frequency*
Pull to wash and wipe
* Intermittent windshield wiper frequency adjustment Rotate to increase/ decrease wiper frequency.
Refer to the Owner’s Manual for more information.
Auto lock/unlock
Automatic door locks can be programmed to operate in different modes, or turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed goes above approximately 12 mph (20 km/h).
Driver’s door linked door unlocking function
-Doors automatically unlock when the driver’s door is opened.
OFF
* The Shift position linked door locking/unlocking function is only avail\
able on vehicles with continuously variable transmissions. The default setting for vehic\
les
with manual transmissions is OFF.
Refer to the Owner’s Manual or contact your Toyota dealer for more details\
.

13
Lights & turn signals
HeadlightsAUTO
DRL OFF
Parking lights
HEADLIGHTS
FRONT FOG LIGHTS (IF EQUIPPED)
TURN SIGNAL
Turn Low beam
(Original position)
Daytime Running Light system
(DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at night. Automatic light cut off system Automatically turns lights off after 30 second
delay, or lock switch on remote is pushed after locking. Automatic High Beam (AHB) system Automatically switches between high
and low beams as appropriate to enhance vision at night.
Refer to Toyota Safety Sense™ 2.0 (TSS 2.0) in this guide or the Owner’\
s Manual
for more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to the Owner’s Manual for de\
tails.
High beam flasher
(Pull)
or
High beam (Push)Automatic High Beam*
Right turn
Lane change *
Lane change *
Left turn
*
Move lever partway and release; the signals will flash three times.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Front fog lights come on only when the headlights are on low beam.

14
Windows-Power
All window auto up/down
Push the switch completely down or pull it completely up and release to full\
y open or
close. To stop the window partway, operate the switch in the opposite directio\
n.
Window lock switch
Deactivates all passenger windows. Driver’s window remains operable.
Up
Down
Indicator
Driver sideWindow lock switch
FRONT (DOOR MOUNTED) REAR (DOOR MOUNTED)
FEATURES & OPERATIONS
Unlock
Lock
Door locks
Bottle holders

15
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Tilt & telescopic steering wheel
Hold wheel, push lever down, set angle and return lever.

NOTE: Do not attempt to adjust while the vehicle is in motion.
Lock release lever
Steering lock release
When the steering lock cannot be released, “Push Engine Switch while Turn\
ing
Steering Wheel in Either Direction” will be displayed on the multi-informatio\
n
display. Press the engine switch shortly and firmly while turning the steering w\
heel
left and right.
Turn
FRONT
REAR
Cup holders
Angle
Length

16
FEATURES & OPERATIONS
Front seatsRear outside seats Rear center seat
Lock release buttonLock release buttonLock release button
Seat adjustments-Front
Seats-Head restraints
Rear seats-Folding
Fold down
Pull
Each seatback may be folded separately.
MANUAL SEAT
POWER SEAT (DRIVER’S SIDE ONLY)
Seat position
(forward/backward)
Height crank
(driver’s side only) Height crank
Seatback angle
Seatback angle
Seat position
(forward/backward)
Lumbar support*
(driver’s side only) Lumbar support
Seat cushion (front) angle
*If equipped

17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Bluetooth® technology allows dialing or receipt of calls without removing your han\
ds
from the steering wheel.
Refer to the Bluetooth
® device pairing in this guide or the Navigation and
Multimedia System Owner’s Manual for additional user instructions.
Back switch
NOTE: Always use safe driving practices and follow all traffic rules.
Volume control Voice command
switch
Start and end call
“MODE”
Push to change audio mode.
Push and hold to mute or
pause the audio.
“ ”
Use to search within the
selected audio feature.
Steering wheel switches
& telephone controls (Bluetooth®)
Microphone

18
Audio
FEATURES & OPERATIONS
NOTE: Always use safe driving practices and follow all traffic rules.
Refer to the “Navigation and Multimedia System Owner’s Manual” or vi\
sit www.
toyota.com/audio-multimedia for additional resources.
Touch screen display
Access
AUDIO screen
Push to turn ON/OFF or
turn to adjust volume Turn to tune radio stations
manually or select tracks or filesAccess
Bluetooth
hands-free system
Seek station/
track/file
select
Access
HOME screen
Access
MENU screen
Access
apps screen
Access
MAP screen
USB charge port
(Charge-only)
The engine switch must be in the “ACCESSORY” or “IGNITION ON” m\
ode for use.
