Page 7 of 56

5
Security indicator
Smart Key system indicator
SPORT mode indicator4
Turn signal indicator
Vehicle Stability Control (VSC) OFF
indicator1
Rear passengers’ seat belt reminder
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
For details, refer to “Warning lights and indicators,” Section 2-1, 2\
021 Owner’s
Manual.
Airbag SRS warning1
iMT indicator (orange/green)1,4
Low fuel level warning
Low engine oil pressure warning
Low outside temperature indicator
Low tire pressure warning1
Malfunction/Check engine indicator1
Parking brake indicator2
Pre-Collision System (PCS) warning1,2
Lane Tracing Assist (LTA)4/
Lane Departure Alert (LDA) indicator
(white/green/orange
3)
High coolant temperature warning
Auto EPB OFF indicator1,4
Automatic High Beam (AHB) indicator
Blind Spot Monitor (BSM) indicator4
BSM outside rear view mirror indicators1,4
Brake hold operated indicator1,2
Brake hold standby indicator1
Brake system warning1
Brake system warning (yellow)1
Charging system warning1
ECO driving indicator light1,4
Driver’s and front passenger’s seat belt
reminder (alarm will sound when the engine
switch is in the “IGNITION ON” mode)
Electric power steering system warning
(red/yellow)1
Front fog light indicator4
Fuel tank door position
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC) indicator/
DRCC SET indicator
Headlight low/high beam
indicators
Brake Override System/Drive-Start
Control warning
1 If the indicator does not turn off within a few seconds of starting the en\
gine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owne\
r’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Anti-lock Brake System (ABS) warning1
“AIR BAG ON/OFF” indicator1
Slip indicator1,3
RCTA OFF indicator1,2,4

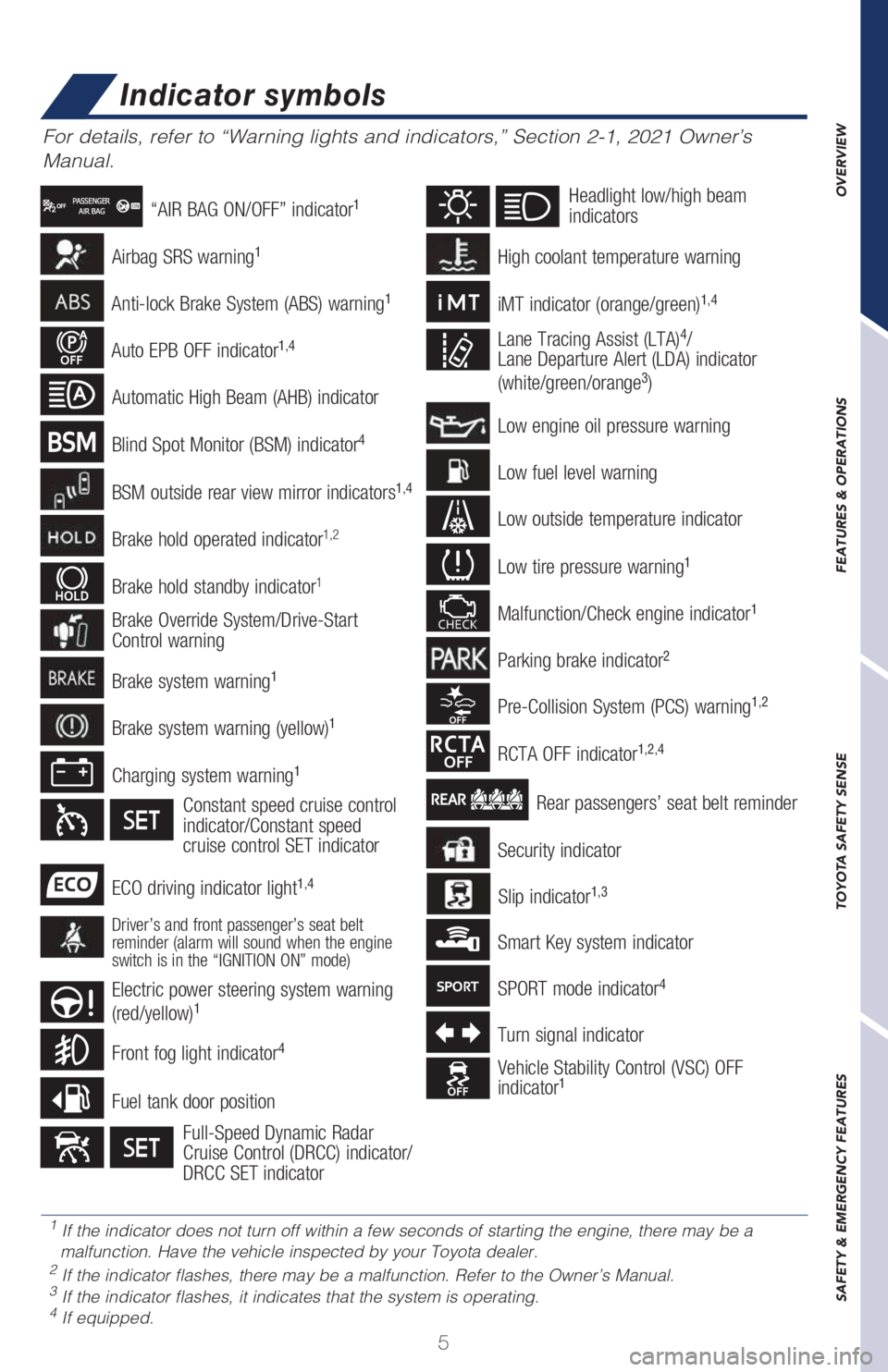

Indicator symbols
Page 9 of 56

7
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

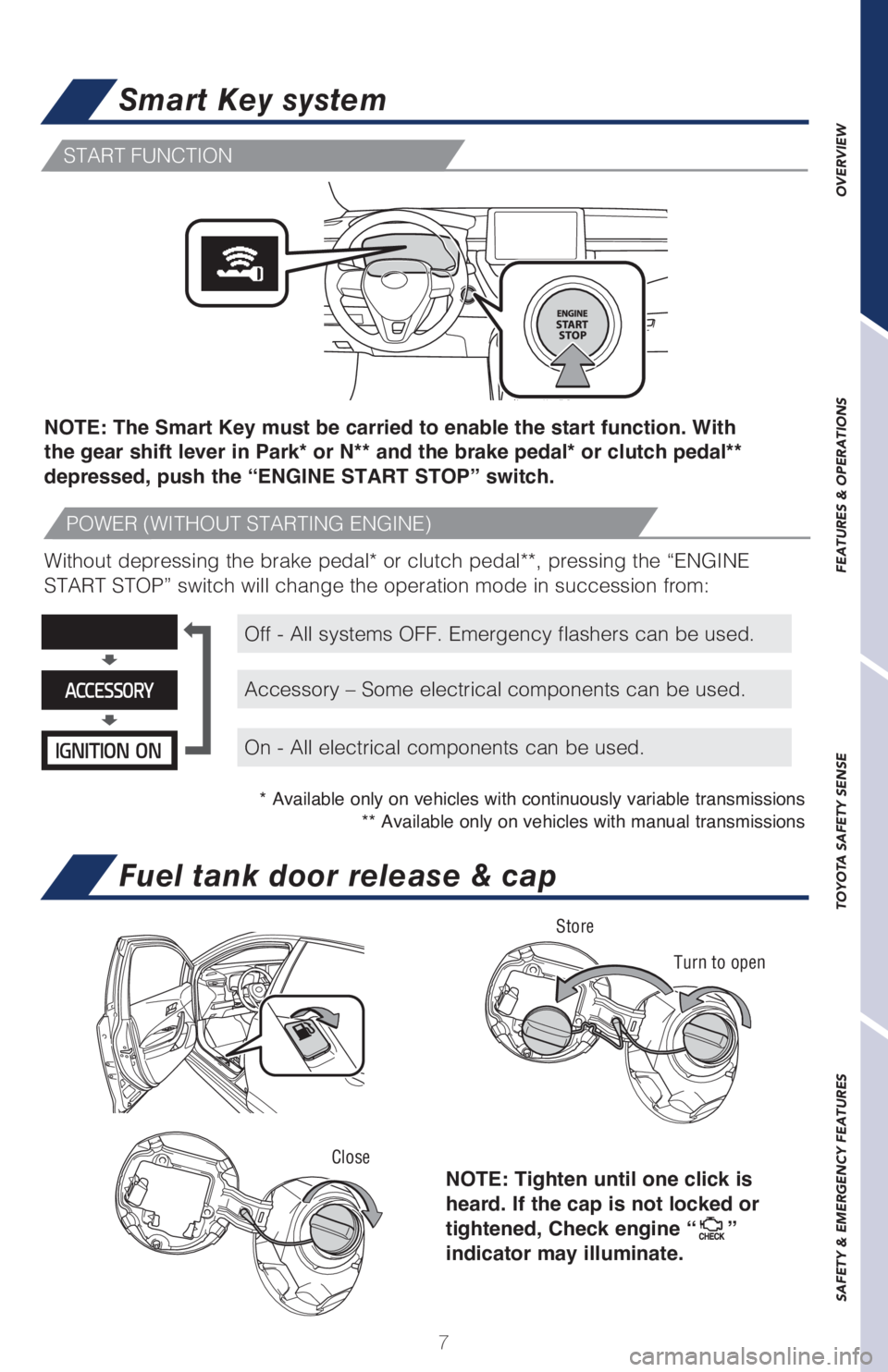

Smart Key system
NOTE: The Smart Key must be carried to enable the start function. With
the gear shift lever in Park* or N** and the brake pedal* or clutch pedal**
depressed, push the “ENGINE START STOP” switch.
Without depressing the brake pedal* or clutch pedal**, pressing the “ENGINE
START STOP” switch will change the operation mode in succession from:
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
Fuel tank door release & cap
NOTE: Tighten until one click is
heard. If the cap is not locked or
tightened, Check engine “
”
indicator may illuminate.
Turn to open
Store
Close
* Available only on vehicles with continuously variable transmissions
** Available only on vehicles with manual transmissions
