712-1. Instrument cluster
COROLLA H/B_U
2
Vehicle status information and indicators
7-inch display (when digital speedometer is displayed)

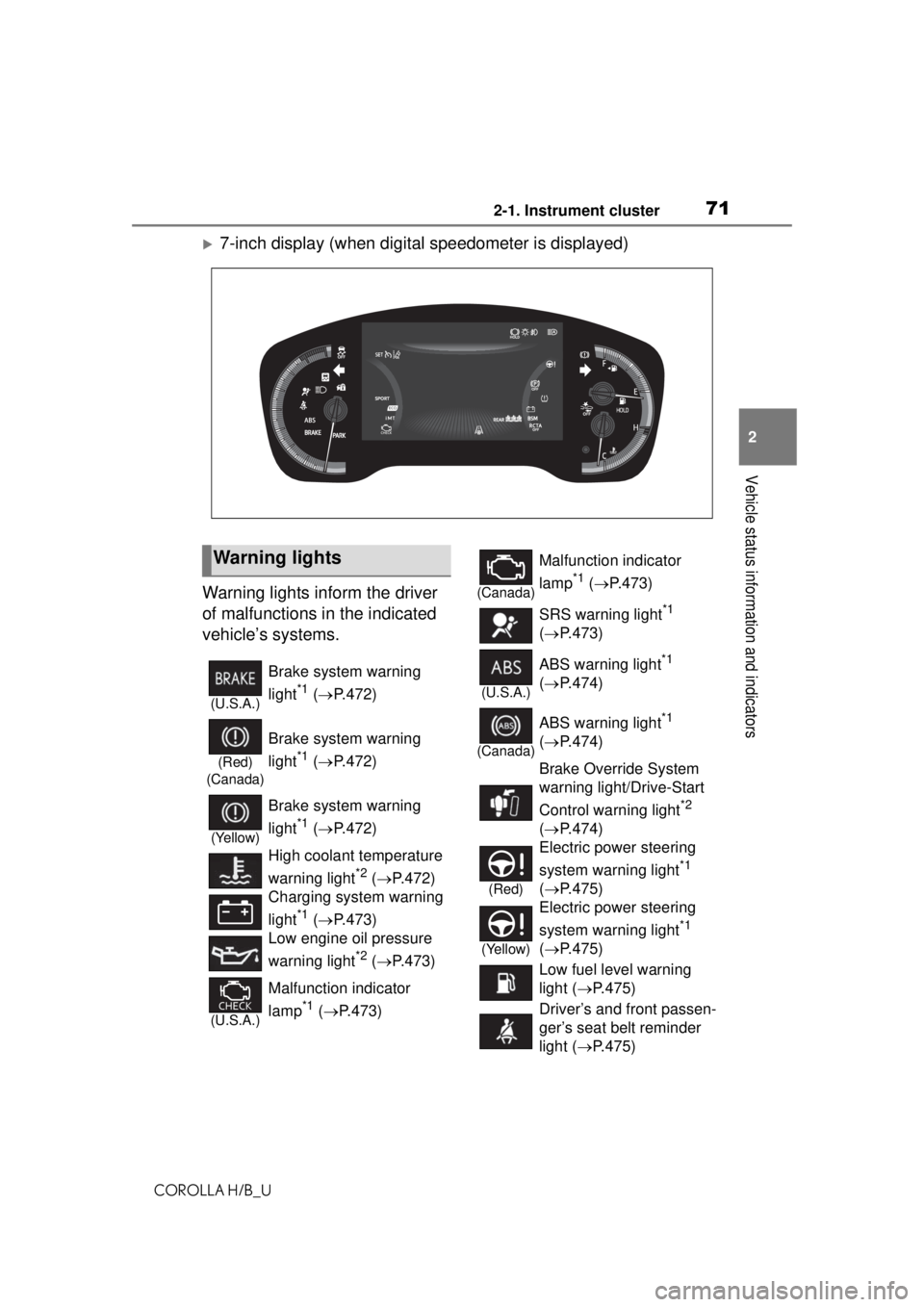

Warning lights inform the driver
of malfunctions in the indicated
vehicle’s systems.
Warning lights
(U.S.A.)
Brake system warning
light
*1 (  P.472)
(Red)
(Canada)
Brake system warning
light
*1 (  P.472)
(Yellow)
Brake system warning
light
*1 ( P.472)
High coolant temperature
warning light
*2 (  P.472)
Charging system warning
light
*1 (  P.473)
Low engine oil pressure
warning light
*2 (  P.473)
(U.S.A.)
Malfunction indicator
lamp
*1 ( P.473)
(Canada)
Malfunction indicator
lamp
*1 ( P.473)
SRS warning light
*1
(  P.473)
(U.S.A.)
ABS warning light*1
(  P.474)
(Canada)
ABS warning light*1
(  P.474)
Brake Override System
warning light/Drive-Start
Control warning light
*2
(  P.474)
(Red)
Electric power steering
system warning light
*1
(  P.475)
(Yellow)
Electric power steering
system warning light
*1
(  P.475)
Low fuel level warning
light ( P.475)
Driver’s and front passen-
ger’s seat belt reminder
light ( P.475)

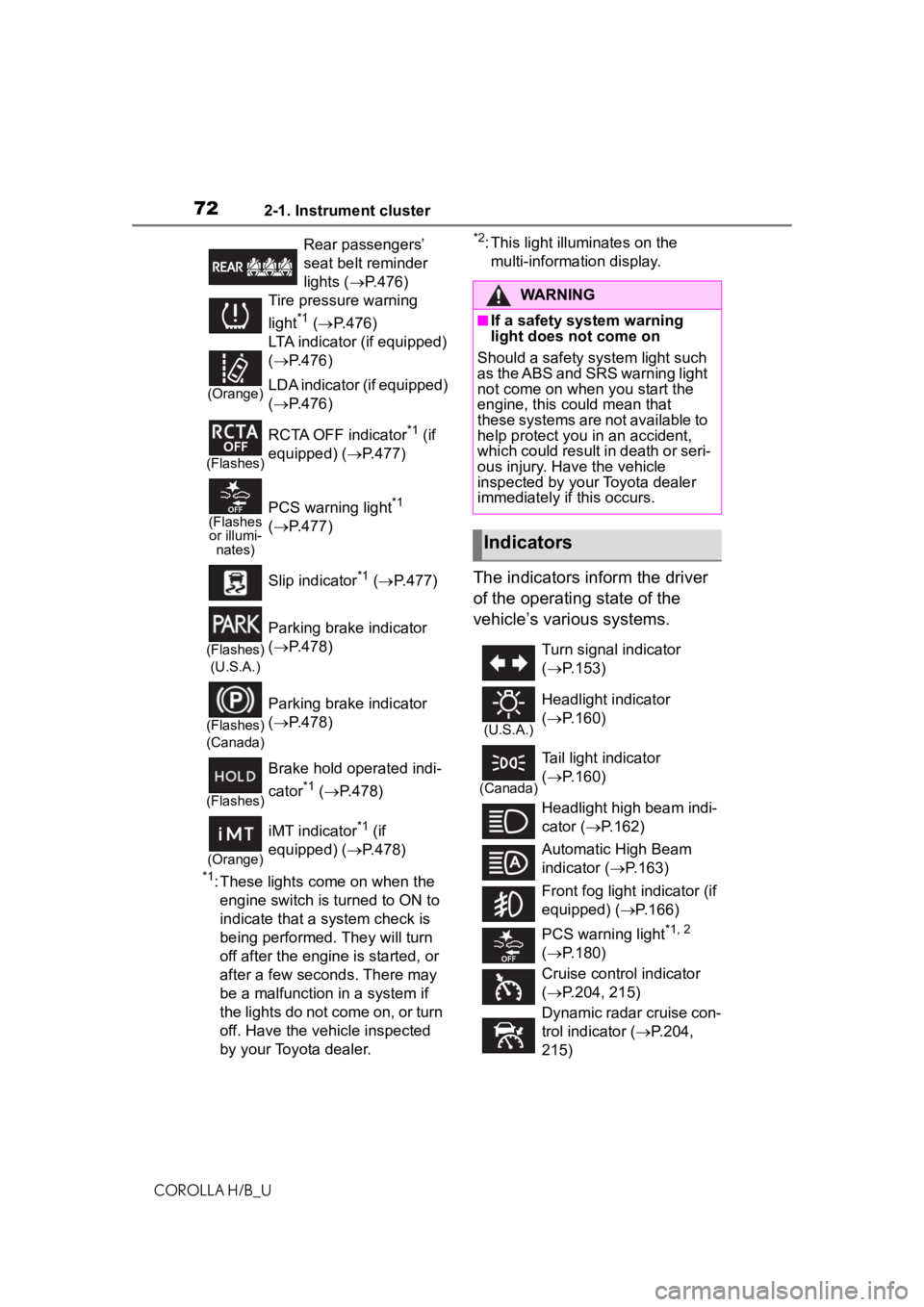

722-1. Instrument cluster
COROLLA H/B_U
*1: These lights come on when the engine switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the engine is started, or
after a few seconds. There may
be a malfunction in a system if
the lights do not come on, or turn
off. Have the vehicle inspected
by your Toyota dealer.
*2: This light illuminates on the multi-information display.
The indicators inform the driver
of the operating state of the
vehicle’s various systems.
Rear passengers’
seat belt reminder
lights ( P.476)
Tire pressure warning
light
*1 (  P.476)
(Orange)
LTA indicator (if equipped)
( P.476)
LDA indicator (if equipped)
(  P.476)
(Flashes)
RCTA OFF indicator*1 (if
equipped) ( P.477)
(Flashes
or illumi- nates)PCS warning light*1
(  P.477)
Slip indicator
*1 (  P.477)
(Flashes)
(U.S.A.)
Parking brake indicator
(  P.478)
(Flashes)
(Canada)
Parking brake indicator
( P.478)
(Flashes)
Brake hold operated indi-
cator
*1 ( P.478)
(Orange)
iMT indicator*1 (if
equipped) ( P.478)
WARNING
■If a safety system warning
light does not come on
Should a safety system light such
as the ABS and SRS warning light
not come on when you start the
engine, this could mean that
these systems are not available to
help protect you in an accident,
which could result in death or seri-
ous injury. Have the vehicle
inspected by your Toyota dealer
immediately if this occurs.
Indicators
Turn signal indicator
(  P.153)
(U.S.A.)
Headlight indicator
( P.160)
(Canada)
Tail light indicator
( P.160)
Headlight high beam indi-
cator ( P.162)
Automatic High Beam
indicator ( P.163)
Front fog light indicator (if
equipped) ( P.166)
PCS warning light
*1, 2
(  P.180)
Cruise contro l indicator
(  P.204, 215)
Dynamic radar cruise con-
trol indicator ( P.204,
215)

732-1. Instrument cluster
COROLLA H/B_U
2
Vehicle status information and indicators
*1: These lights come on when the engine switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the engine is started, or
after a few sec onds. There may
be a malfunction in a system if
the lights do not come on, or turn
off. Have the vehicle inspected
by your Toyota dealer.
*2: This light comes on when the system is turned off.
*3: Depending on the operating con-dition, the color and illuminat-
ing/flashing state of the light
change.
*4: This light illuminates on the out-side rear view mirrors.
*5: This light illuminates on the multi-information display.
*6: When the outside temperature is approximately 37°F (3°C) or
lower, this indicator will flash for
approximately 10 seconds, then
stay on.
*7: This light illuminates on the cen-ter panel.

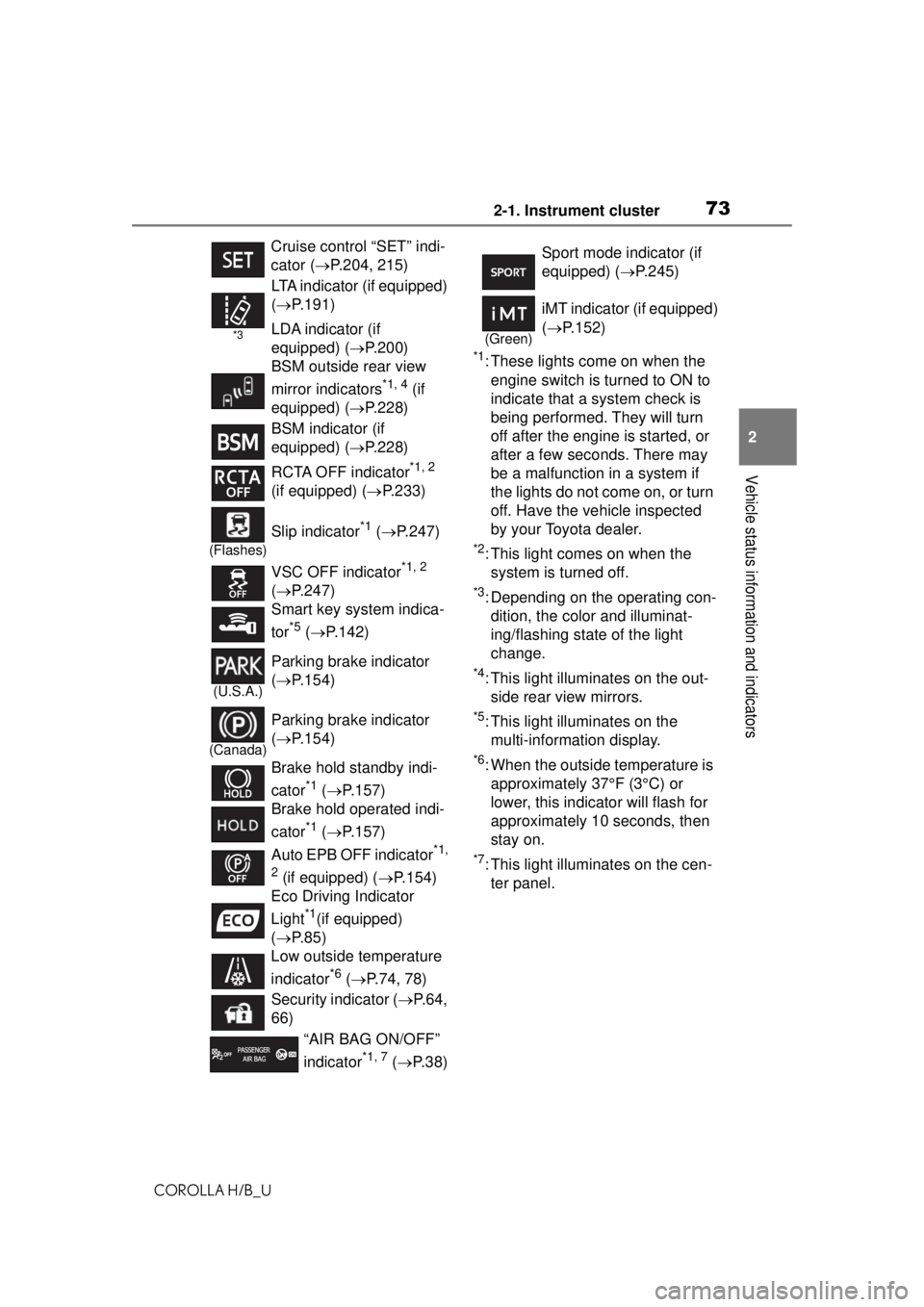

Cruise control “SET” indi-
cator (
P.204, 215)
*3
LTA indicator (if equipped)
( P.191)
LDA indicator (if
equipped) ( P.200)
BSM outside rear view
mirror indicators
*1, 4 (if
equipped) ( P.228)
BSM indicator (if
equipped) ( P.228)
RCTA OFF indicator
*1, 2
(if equipped) ( P.233)
(Flashes)
Slip indicator*1 ( P.247)
VSC OFF indicator
*1, 2
(  P.247)
Smart key system indica-
tor
*5 (  P.142)
(U.S.A.)
Parking brake indicator
( P.154)
(Canada)
Parking brake indicator
( P.154)
Brake hold standby indi-
cator
*1 (  P.157)
Brake hold operated indi-
cator
*1 (  P.157)
Auto EPB OFF indicator
*1,
2
(if equipped) ( P.154)
Eco Driving Indicator
Light
*1(if equipped)
(  P.85)
Low outside temperature
indicator
*6 (  P.74, 78)
Security indicator ( P.64,
66)
“AIR BAG ON/OFF”
indicator
*1, 7 ( P. 3 8 )
Sport mode indicator (if
equipped) ( P.245)
(Green)
iMT indicator (if equipped)
( P.152)

742-1. Instrument cluster
COROLLA H/B_U

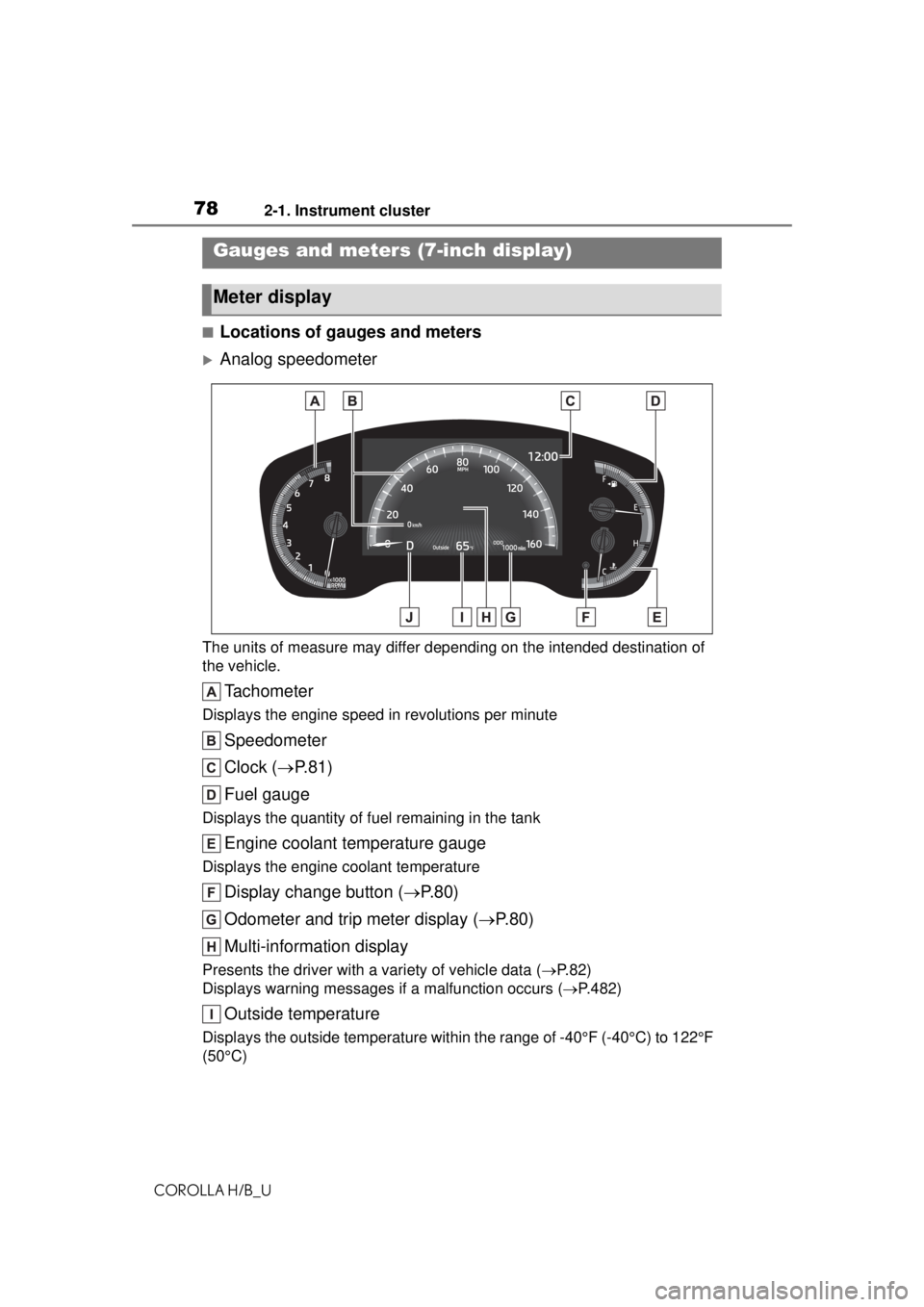

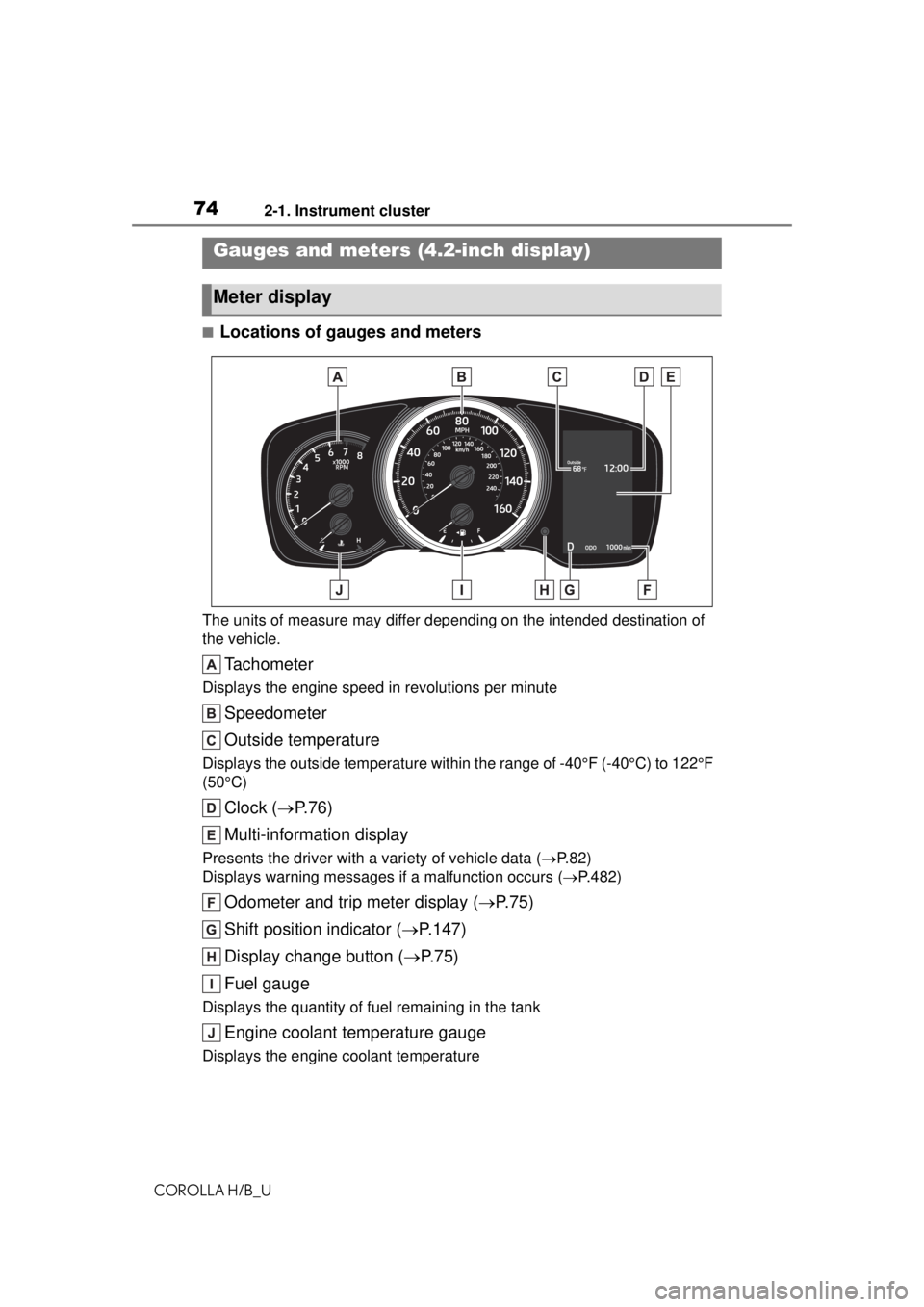

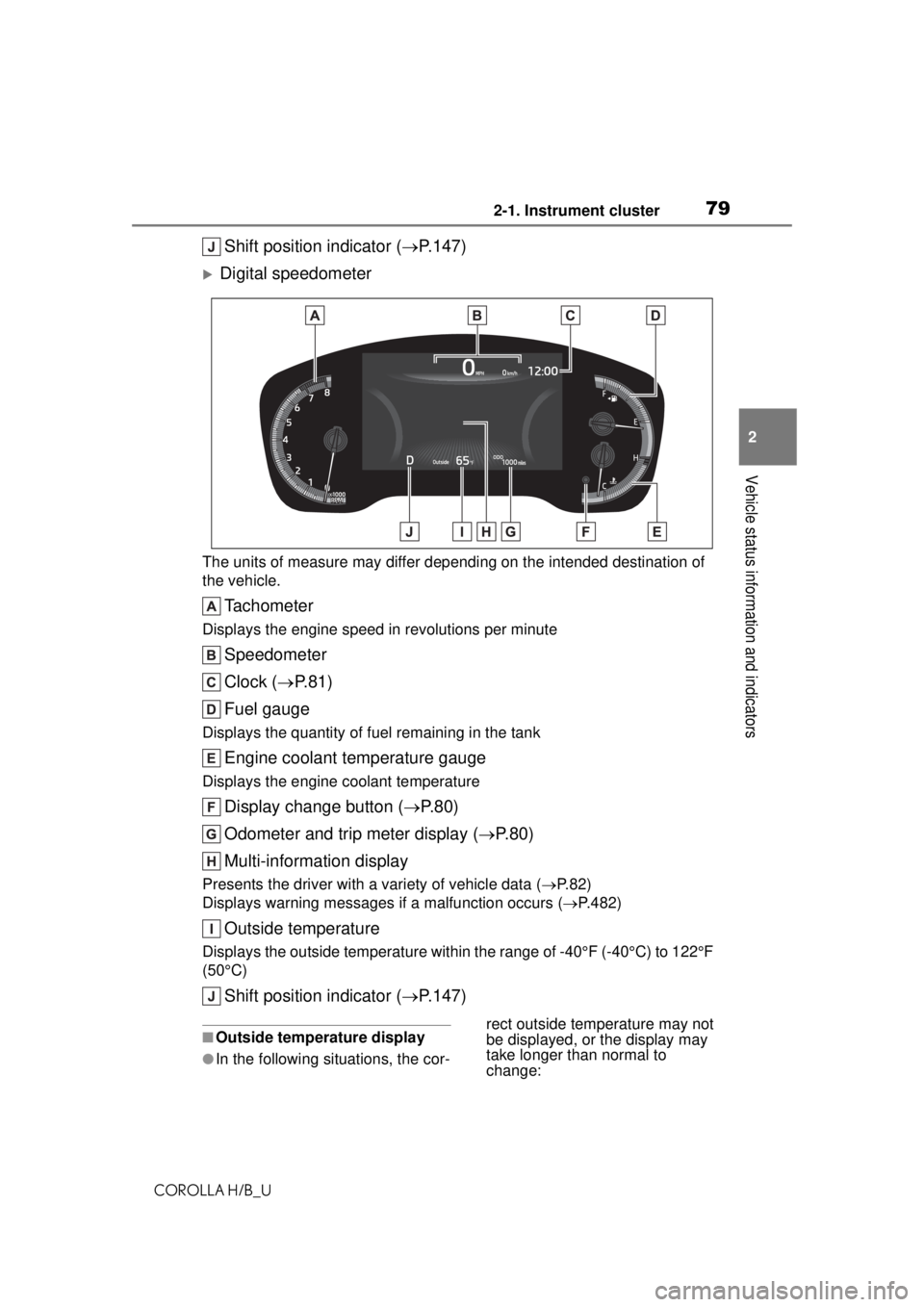

■Locations of gauges and meters
The units of measure may differ depending on the intended destination of
the vehicle.
Tachometer
Displays the engine speed in revolutions per minute
Speedometer
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C)
Clock (P. 7 6 )
Multi-information display
Presents the driver with a variety of vehicle data ( P.82)
Displays warning me ssages if a malfunction occurs ( P.482)
Odometer and trip meter display ( P.75)
Shift position indicator ( P.147)
Display change button ( P.75)
Fuel gauge
Displays the quantity of fuel remaining in the tank
Engine coolant temperature gauge
Displays the engine coolant temperature
Gauges and meters (4.2-inch display)
Meter display

752-1. Instrument cluster
COROLLA H/B_U
2
Vehicle status information and indicators
■Outside temperature display
●In the following situations, the cor-
rect outside temperature may not
be displayed, or the display may
take longer than normal to
change:
• When stopped, or driving at low
speeds (less than 16 mph [25
km/h])
• When the outside temperature
has changed suddenly (at the
entrance/exit of a garage, tunnel,
etc.)
●When “--” or “E” is displayed, the
system may be malfunctioning.
Take your vehicle to your Toyota
dealer.
■Liquid crystal display
 P. 8 3
■Changing the display
Press the display change button
until the desired item is dis-
played.
■Display items
 Odometer
Displays the total distance the vehi-
cle has been driven.
Trip meter A/Trip meter B
Displays the distance the vehicle
has been driven since the meter
was last reset. Trip meters A and B
can be used to record and display
WARNING
■The information display at
low temperatures
Allow the interior of the vehicle to
warm up before using the liquid
crystal information display. At
extremely low temperatures, the
information display monitor may
respond slowly, and display
changes may be delayed.
For example, there is a lag
between the driver’s shifting and
the new gear number appearing
on the display. This lag could
cause the driver to downshift
again, causing rapid and exces-
sive engine braking and possibly
an accident resulting in death or
injury.
NOTICE
■To prevent damage to the
engine and its components
●Do not let the indicator needle
of the tachometer enter the red
zone, which indicates the maxi-
mum engine speed.
●The engine may be overheating
if the engine coolant tempera-
ture gauge is in the red zone
(H). In this case, immediately
stop the vehicle in a safe place,
and check the engine after it
has cooled completely.
(  P.510)

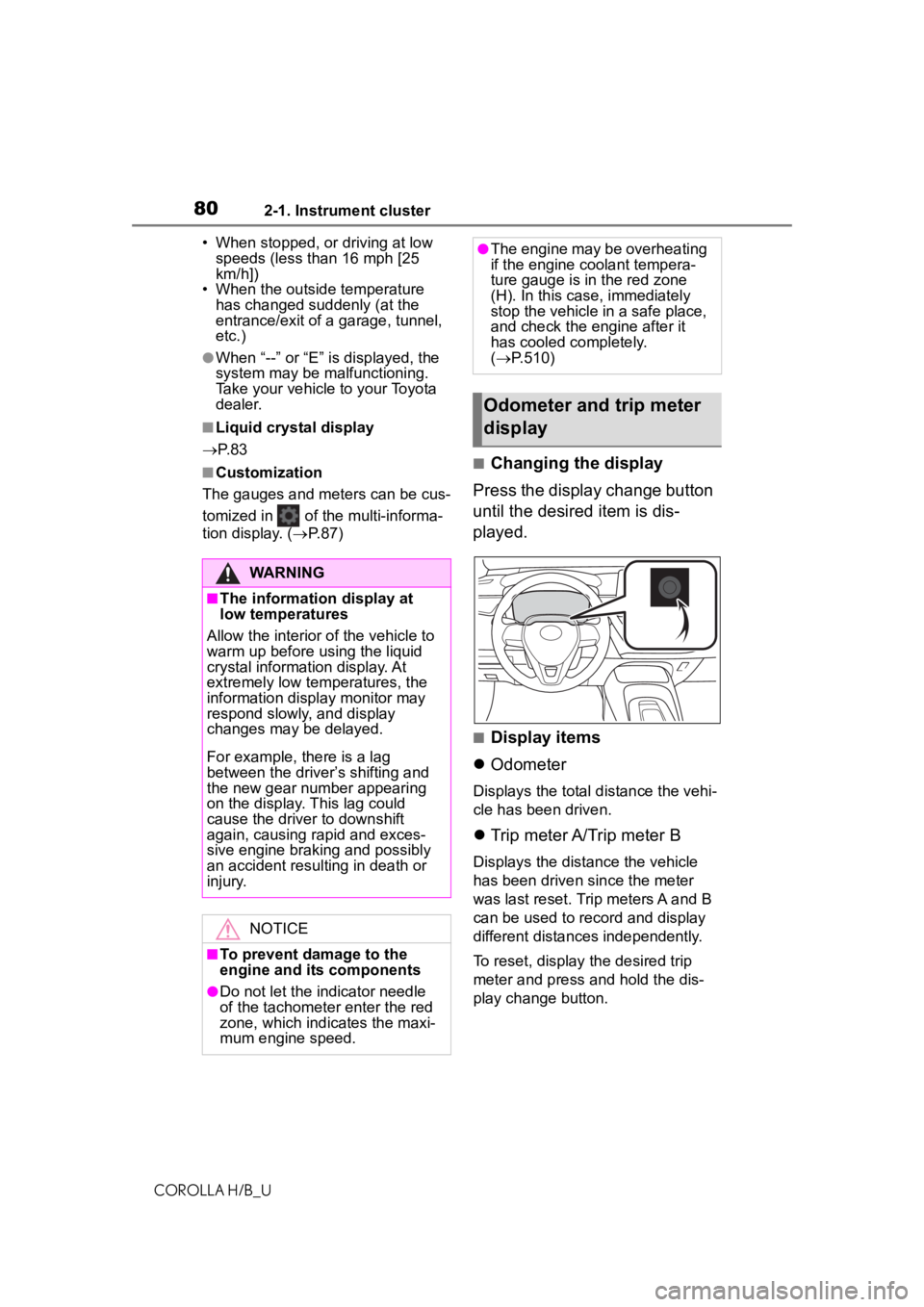

Odometer and trip meter
display

762-1. Instrument cluster
COROLLA H/B_Udifferent distances independently.
To reset, display the desired trip
meter and press and hold the dis-
play change button.
The brightness of the instrument
panel lights can be adjusted.
1
Brighter
2 Darker
■Instrument panel light bright-
ness adjustment
The brightness of the instrument
panel lights can be adjusted sepa-
rately for when the tail lights are on
and off.
■Clock adjustment
The clocks on the following can
be adjusted on the audio system
screen.
 Multi-information display
 Audio system screen
■Setting the clock to be
adjusted automatically by
GPS
1 Press the “MENU” button.
2 Select “Setup” on the “Menu”
screen.
3 Select “General” on the
“Setup” screen.
4 Select “Clock”.
5 Select “Auto Adjust by GPS”
to set to on.
■Adjusting the clock manu-
ally
1 Press the “MENU” button.
2 Select “Setup” on the “Menu”
screen.
3 Select “General” on the
“Setup” screen.
4 Select “Clock”.
5 Select “Auto Adjust by GPS”
to set to off.
6 Adjust the displayed time.
 Hour: Select “-” or “+” of
“Hours” to adjust the hour.
 Minute: Select “-” or “+” of
“Minutes” to adjust the min-
ute.
 “:00”: Select to set the clock to
the beginning of the nearest
hour.
e.g.
1:00 to 1:29  1:00
1:30 to 1:59  2:00
■Setting the time zone
1 Press the “MENU” button.
Changing the instrument
panel light brightness
Adjusting the clock

772-1. Instrument cluster
COROLLA H/B_U
2
Vehicle status information and indicators
2 Select “Setup” on the “Menu”
screen.
3 Select “General” on the
“Setup” screen.
4 Select “Clock”.
5 Select “Time Zone”.
Select the desired time zone.
Premium Audio only:
If “Auto” is selected, the time zone
is selected automa tically by current
vehicle position.
■Setting daylight saving time
1 Press the “MENU” button.
2 Select “Setup” on the “Menu”
screen.
3 Select “General” on the
“Setup” screen.
4 Select “Clock”.
5 Select “Daylight Saving
Time” then on/off/auto
*.
*: Premium Audio only
■Changing the clock
between 12-hour/24-hour
format
1 Press the “MENU” button.
2 Select “Setup” on the “Menu”
screen.
3 Select “General” on the
“Setup” screen.
4 Select “Clock”.
5 Select “24-Hour Time For-
mat” and then on/off.
When set to off, the clock is dis-
played in 12 hour time format.
■Clock settings screen
If “Clock : 00” is displayed when
is selected on the multi-information
display, the system may be malfunc-
tioning. Have the vehicle inspected
by your Toyota dealer.

782-1. Instrument cluster
COROLLA H/B_U
■Locations of gauges and meters
Analog speedometer
The units of measure may differ depending on the intended destination of
the vehicle.
Tachometer
Displays the engine speed in revolutions per minute
Speedometer
Clock (P. 8 1 )
Fuel gauge
Displays the quantity of fuel remaining in the tank
Engine coolant temperature gauge
Displays the engine coolant temperature
Display change button ( P.80)
Odometer and trip meter display ( P.80)
Multi-information display
Presents the driver with a variety of vehicle data ( P.82)
Displays warning me ssages if a malfunction occurs ( P.482)
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C)
Gauges and meters (7-inch display)
Meter display

792-1. Instrument cluster
COROLLA H/B_U
2
Vehicle status information and indicators
Shift position indicator ( P.147)
Digital speedometer
The units of measure may differ depending on the intended destination of
the vehicle.
Tachometer
Displays the engine speed in revolutions per minute
Speedometer
Clock ( P. 8 1 )
Fuel gauge
Displays the quantity of fuel remaining in the tank
Engine coolant temperature gauge
Displays the engine coolant temperature
Display change button ( P.80)
Odometer and trip meter display ( P.80)
Multi-information display
Presents the driver with a variety of vehicle data ( P.82)
Displays warning me ssages if a malfunction occurs ( P.482)
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C)
Shift position indicator ( P.147)
■Outside temperature display
●In the following situations, the cor- rect outside temperature may not
be displayed, or the display may
take longer th
an normal to
change:

802-1. Instrument cluster
COROLLA H/B_U• When stopped, or driving at low
speeds (less than 16 mph [25
km/h])
• When the outside temperature has changed suddenly (at the
entrance/exit of a garage, tunnel,
etc.)
●When “--” or “E” is displayed, the
system may be malfunctioning.
Take your vehicle to your Toyota
dealer.
■Liquid crystal display
 P. 8 3
■Customization
The gauges and meters can be cus-
tomized in of the multi-informa-
tion display. ( P. 8 7 )■Changing the display
Press the display change button
until the desired item is dis-
played.
■Display items
 Odometer
Displays the total distance the vehi-
cle has been driven.
Trip meter A/Trip meter B
Displays the distance the vehicle
has been driven since the meter
was last reset. Trip meters A and B
can be used to record and display
different distances independently.
To reset, display the desired trip
meter and press and hold the dis-
play change button.
WARNING
■The information display at
low temperatures
Allow the interior of the vehicle to
warm up before using the liquid
crystal information display. At
extremely low temperatures, the
information display monitor may
respond slowly, and display
changes may be delayed.
For example, there is a lag
between the driver’s shifting and
the new gear number appearing
on the display. This lag could
cause the driver to downshift
again, causing rapid and exces-
sive engine braking and possibly
an accident resulting in death or
injury.
NOTICE
■To prevent damage to the
engine and its components
●Do not let the indicator needle
of the tachometer enter the red
zone, which indicates the maxi-
mum engine speed.
●The engine may be overheating
if the engine coolant tempera-
ture gauge is in the red zone
(H). In this case, immediately
stop the vehicle in a safe place,
and check the engine after it
has cooled completely.
(  P.510)
Odometer and trip meter
display
