355
4
4-5. Using the driving support systems
Driving
Multi-information display
Driving mode select switch
Operate the driving mode select switch
forward or backward to select the
desired driving mode on the multi-infor-
mation display.
1 Normal mode
Provides an optimal balance of fuel
economy, quietness, and dynamic per-
formance. Suitable for normal driving.
2 Sport mode
Controls the transmission and engine to
provide quick, powerful acceleration.
WA R N I N G
• The angle of the sensor may be
deviated when assist control starts
even if there is a parked vehicle in the target parking spot. Have the
vehicle inspected at any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
• Do not install any accessories
within the sensor detection range.
Driving mode select
switch
The driving modes can be
selected to suit driving condi-
tion.
Selecting a drive mode

3584-5. Using the driving support systems

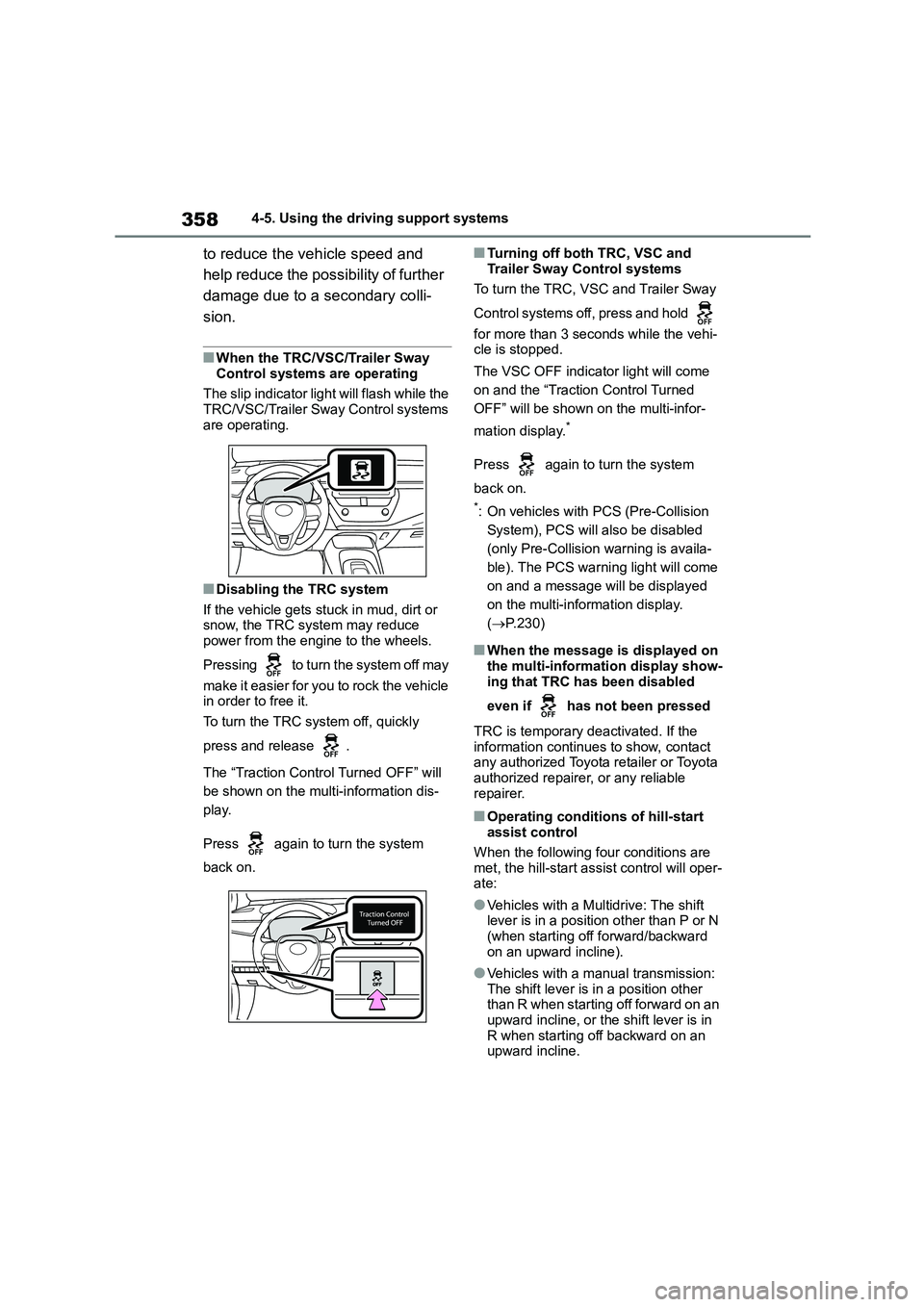

to reduce the vehicle speed and
help reduce the poss ibility of further
damage due to a secondary colli-
sion.
■When the TRC/VSC/Trailer Sway
Control systems are operating
The slip indicator light will flash while the
TRC/VSC/Trailer Sway Control systems
are operating.
■Disabling the TRC system
If the vehicle gets stuck in mud, dirt or snow, the TRC system may reduce
power from the engine to the wheels.
Pressing to turn the system off may
make it easier for you to rock the vehicle
in order to free it.
To turn the TRC system off, quickly
press and release .
The “Traction Control Turned OFF” will
be shown on the multi-information dis-
play.
Press again to turn the system
back on.
■Turning off both TRC, VSC and
Trailer Sway Control systems
To turn the TRC, VSC and Trailer Sway
Control systems off, press and hold
for more than 3 seconds while the vehi- cle is stopped.
The VSC OFF indicator light will come
on and the “Traction Control Turned
OFF” will be shown on the multi-infor-
mation display.*
Press again to turn the system
back on.
*: On vehicles with PCS (Pre-Collision
System), PCS will also be disabled
(only Pre-Collision warning is availa-
ble). The PCS warning light will come
on and a message will be displayed
on the multi-information display.
( P.230)
■When the message is displayed on
the multi-information display show- ing that TRC has been disabled
even if has not been pressed
TRC is temporary deactivated. If the information continues to show, contact
any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
■Operating conditions of hill-start
assist control
When the following four conditions are met, the hill-start assist control will oper-
ate:
●Vehicles with a Multidrive: The shift
lever is in a position other than P or N
(when starting off forward/backward
on an upward incline).
●Vehicles with a manual transmission:
The shift lever is in a position other than R when starting off forward on an
upward incline, or the shift lever is in
R when starting off backward on an upward incline.

371
5
5-2. Using the audio system
Audio system
5-2.Using the audio system

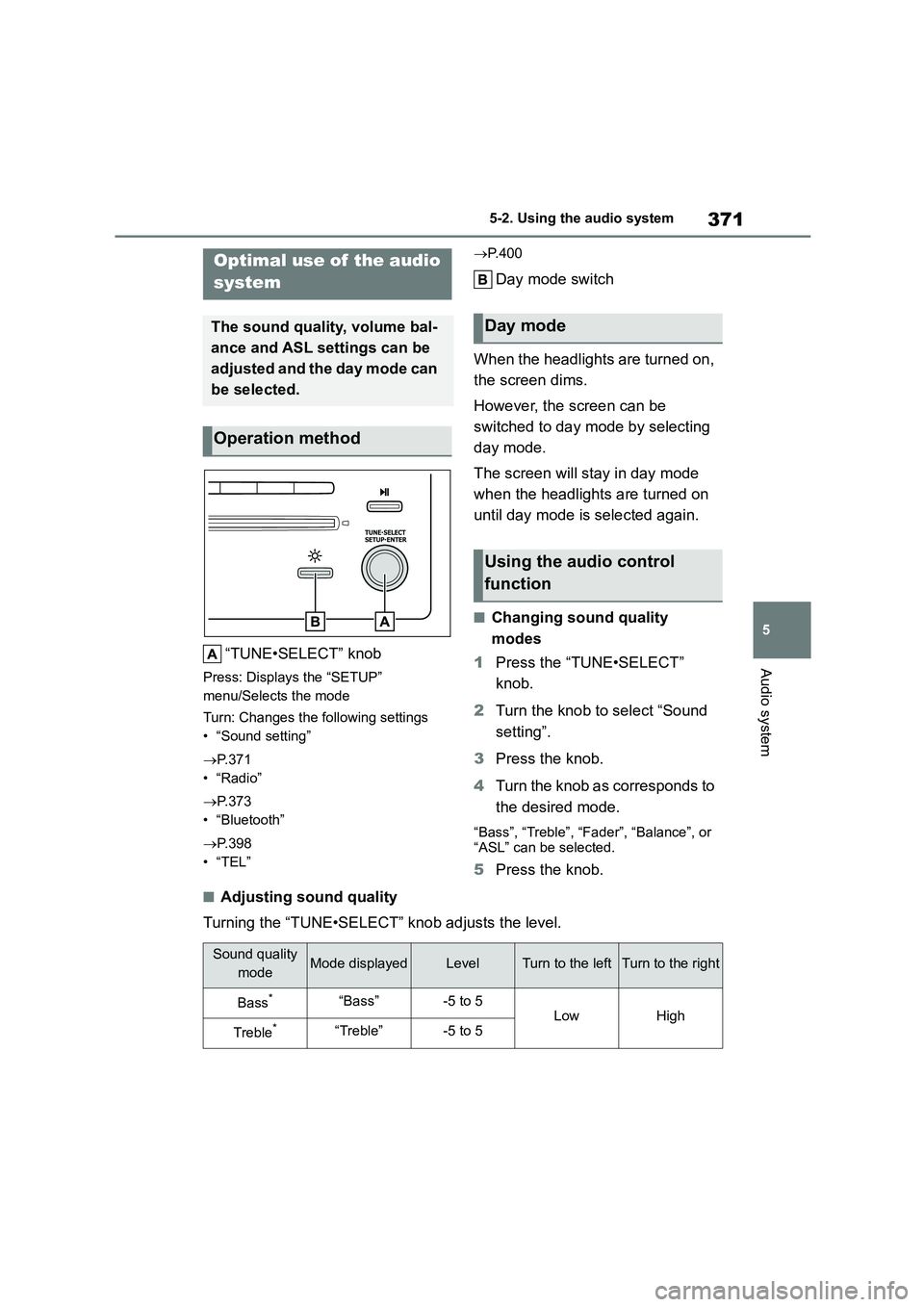

“TUNE•SELECT” knob
Press: Displays the “SETUP”
menu/Selects the mode
Turn: Changes the following settings
• “Sound setting”
 P.371
•“Radio”
 P.373
• “Bluetooth”
 P.398
•“TEL”
 P. 4 0 0
Day mode switch
When the headlights are turned on,
the screen dims.
However, the screen can be
switched to day mode by selecting
day mode.
The screen will stay in day mode
when the headlights are turned on
until day mode is selected again.
■Changing sound quality
modes
1 Press the “TUNE•SELECT”
knob.
2 Turn the knob to select “Sound
setting”.
3 Press the knob.
4 Turn the knob as corresponds to
the desired mode.
“Bass”, “Treble”, “Fader”, “Balance”, or
“ASL” can be selected.
5 Press the knob.
■Adjusting sound quality
Turning the “TUNE•SELECT” knob adjusts the level.
Optimal use of the audio
system
The sound quality, volume bal-
ance and ASL settings can be
adjusted and the day mode can
be selected.
Operation method
Day mode
Using the audio control
function
Sound quality
modeMode displayedLevelTurn to the leftTurn to the right
Bass*“Bass”-5 to 5LowHigh
Treble*“Treble”-5 to 5

3725-2. Using the audio system

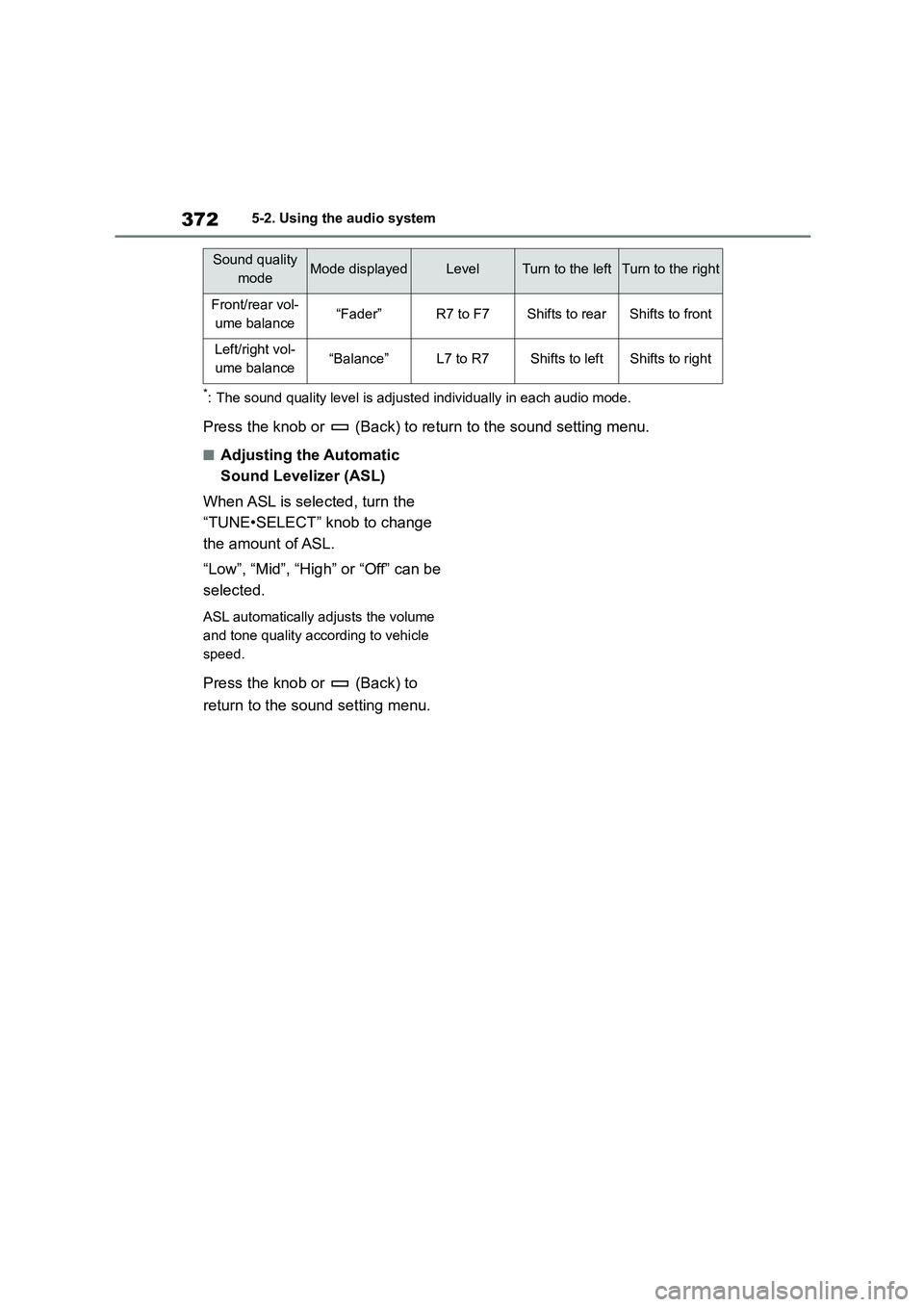

*: The sound quality level is adjusted individually in each audio mode.
Press the knob or (Back) to return to the sound setting menu.
■Adjusting the Automatic
Sound Levelizer (ASL)
When ASL is selected, turn the
“TUNE•SELECT” knob to change
the amount of ASL.
“Low”, “Mid”, “High” or “Off” can be
selected.
ASL automatically adjusts the volume
and tone quality according to vehicle
speed.
Press the knob or (Back) to
return to the sound setting menu.
Front/rear vol-
ume balance“Fader”R7 to F7Shifts to rearShifts to front
Left/right vol-
ume balance“Balance”L7 to R7Shifts to leftShifts to right
Sound quality
modeMode displayedLevelTurn to the leftTurn to the right

373
5
5-3. Using the radio
Audio system
5-3.Using the radio

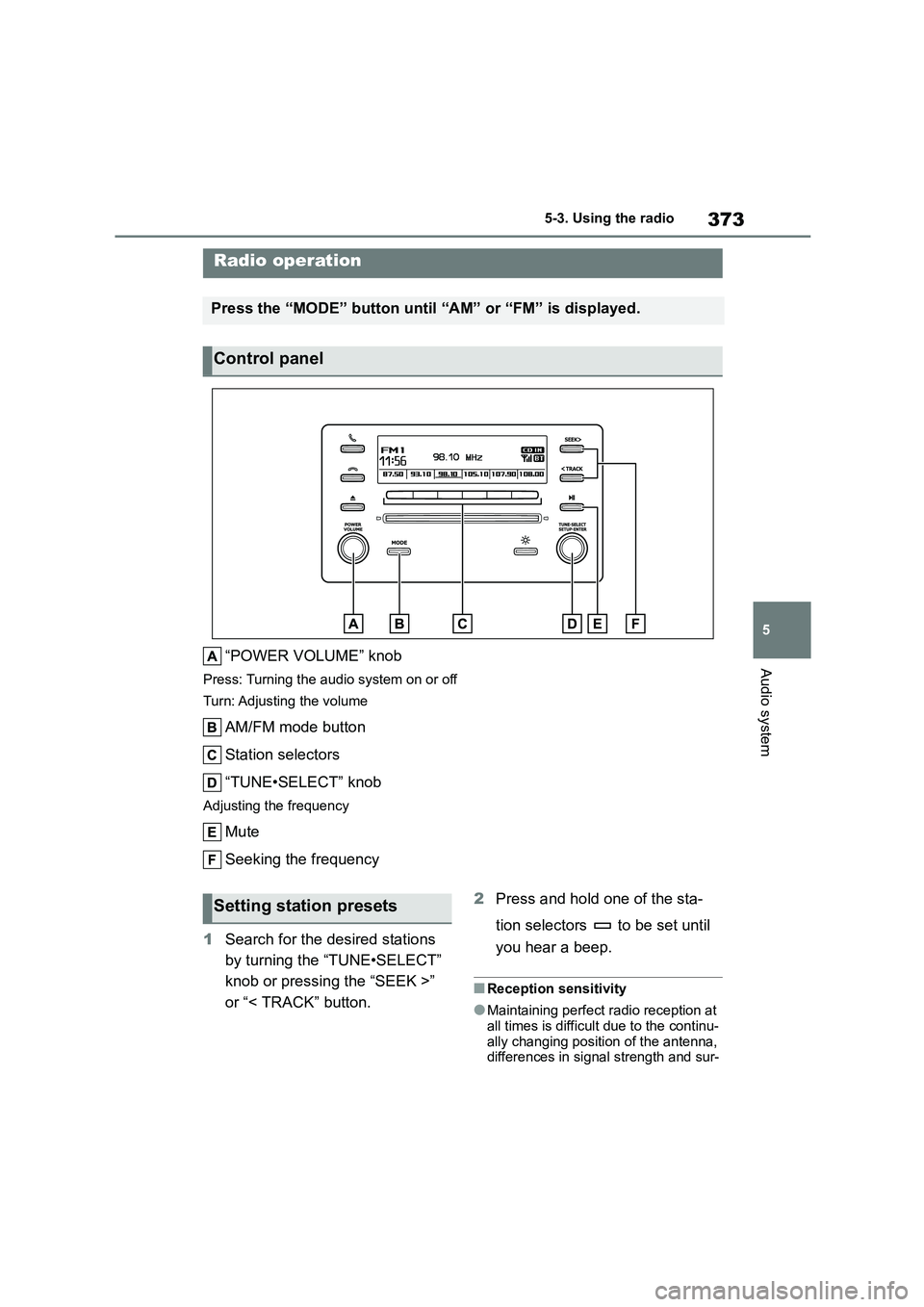

“POWER VOLUME” knob
Press: Turning the audio system on or off
Turn: Adjusting the volume
AM/FM mode button
Station selectors
“TUNE•SELECT” knob
Adjusting the frequency
Mute
Seeking the frequency
1 Search for the desired stations
by turning the “TUNE•SELECT”
knob or pressing the “SEEK >”
or “< TRACK” button.
2 Press and hold one of the sta-
tion selectors to be set until
you hear a beep.
■Reception sensitivity
●Maintaining perfect radio reception at
all times is difficult due to the continu-
ally changing position of the antenna, differences in signal strength and sur-
Radio operation
Press the “MODE” button until “AM” or “FM” is displayed.
Control panel
Setting station presets

375
5
5-4. Playing an audio CD and MP3/WMA discs
Audio system
5-4.Playing an audio CD and MP3/WMA discs
Disc eject
“POWER VOLUME” knob
Press: Turning the audio system on or off
Turn: Adjusting the volume
Displaying text message
Changing the audio source/playback
Displaying track/folder list
Selecting a folder (MP3/WMA/AAC discs only)
Repeat play
Random play or back button
“TUNE•SELECT” knob
Selecting a track/file
Pause/playback
Selecting a track, fast-forwarding or rewinding
CD player operation
Insert a disc or press the “MODE” button (CD is already loaded) to
begin listening to a CD.
Control panel

3765-4. Playing an audio CD and MP3/WMA discs
Insert a disc.
Press the disc eject button and
remove the disc.
■Selecting a track
Turn the “TUNE•SELECT” knob or
press the “SEEK >” or “< TRACK”
button to move up or down until the
desired track number is displayed.
■Selecting a track from a track
list
1 Press (List).
The track list will be displayed.
2Turn and press the
“TUNE•SELECT” knob to select
a track.
To return to the previous display, press
(Back).
■Fast-forwarding and rewinding
tracks
Press and hold the “SEEK >” or “<
TRACK” button until you hear a
beep.
■Random play
Press (RDM).
To cancel, press (RDM) again.
■Repeat play
Press (RPT).
To cancel, press (RPT) again.
■Switching the display
Press (Text) to display or hide
the CD title.
If there are continuing texts, is dis-
played.
Press and hold (Text) until you hear
a beep to display the remaining texts.
■Selecting folders one at a time
Press ()
to select the desired folder.
■Selecting a folder and file from
folder list
1 Press “TUNE•SELECT” knob or
(List).
The folder list will be displayed.
2 Turn and press the knob to
select a folder and a file.
To return to the previous display, press
(Back).
■Returning to the first folder
Press and hold ( you hear a beep.
■Selecting a file
Turn the “TUNE•SELECT” knob or
press the “SEEK >” or “< TRACK”
button to move up or down to select
Loading a CD or
MP3/WMA/AAC disc
Ejecting a CD or
MP3/WMA/AAC disc
Using the CD player
Playing back
MP3/WMA/AAC disc

377
5
5-4. Playing an audio CD and MP3/WMA discs
Audio system

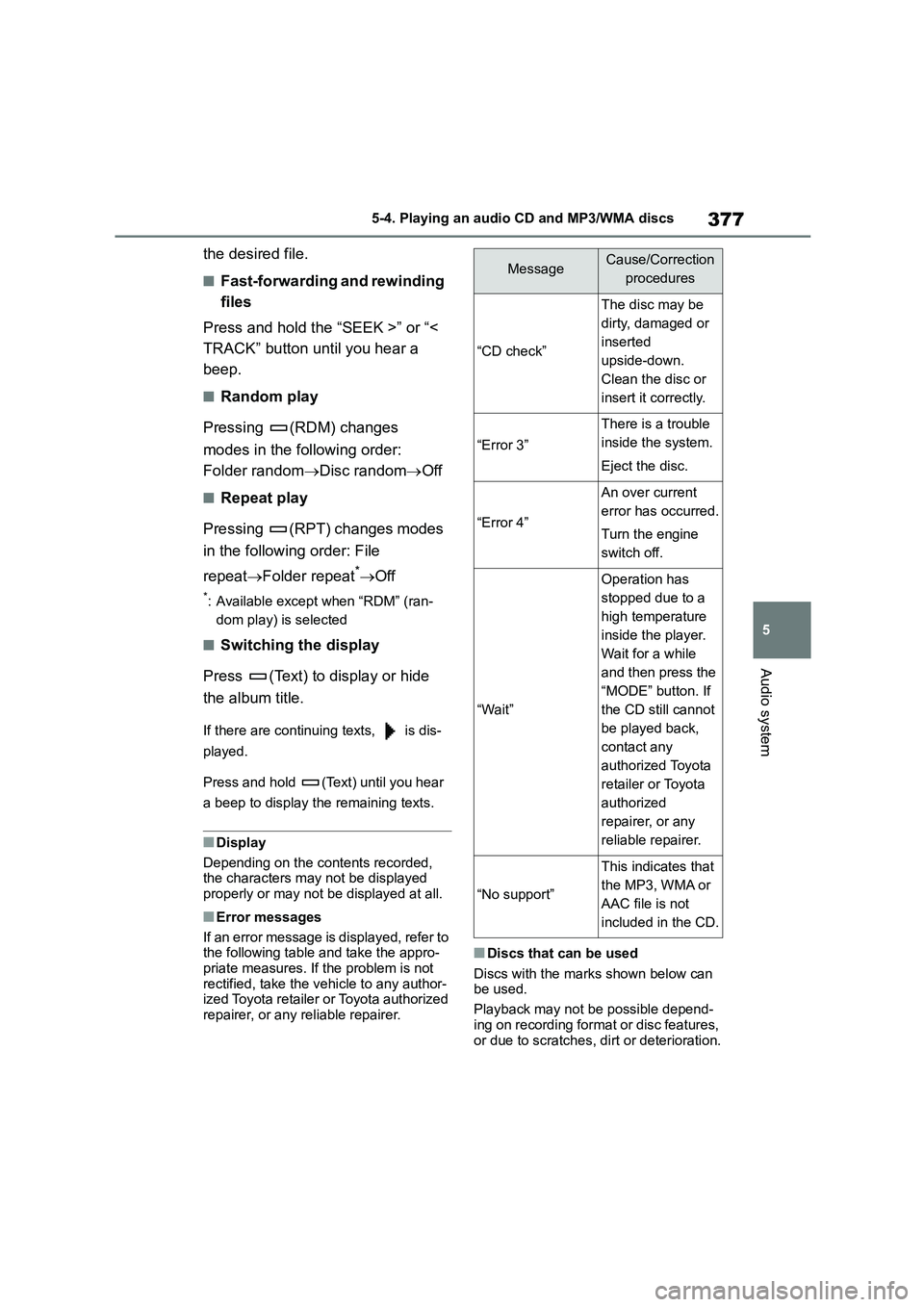

the desired file.
■Fast-forwarding and rewinding
files
Press and hold the “SEEK >” or “<
TRACK” button until you hear a
beep.
■Random play
Pressing (RDM) changes
modes in the following order:
Folder random Disc randomOff
■Repeat play
Pressing (RPT) changes modes
in the following order: File
repeat Folder repeat*Off
*: Available except when “RDM” (ran-
dom play) is selected
■Switching the display
Press (Text) to display or hide
the album title.
If there are continuing texts, is dis-
played.
Press and hold (Text) until you hear
a beep to display the remaining texts.
■Display
Depending on the contents recorded,
the characters may not be displayed
properly or may not be displayed at all.
■Error messages
If an error message is displayed, refer to
the following table and take the appro-
priate measures. If the problem is not rectified, take the vehicle to any author-
ized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
■Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depend-
ing on recording format or disc features, or due to scratches, dirt or deterioration.
MessageCause/Correction
procedures
“CD check”
The disc may be
dirty, damaged or
inserted
upside-down.
Clean the disc or
insert it correctly.
“Error 3”
There is a trouble
inside the system.
Eject the disc.
“Error 4”
An over current
error has occurred.
Turn the engine
switch off.
“Wait”
Operation has
stopped due to a
high temperature
inside the player.
Wait for a while
and then press the
“MODE” button. If
the CD still cannot
be played back,
contact any
authorized Toyota
retailer or Toyota
authorized
repairer, or any
reliable repairer.
“No support”
This indicates that
the MP3, WMA or
AAC file is not
included in the CD.

379
5
5-4. Playing an audio CD and MP3/WMA discs
Audio system

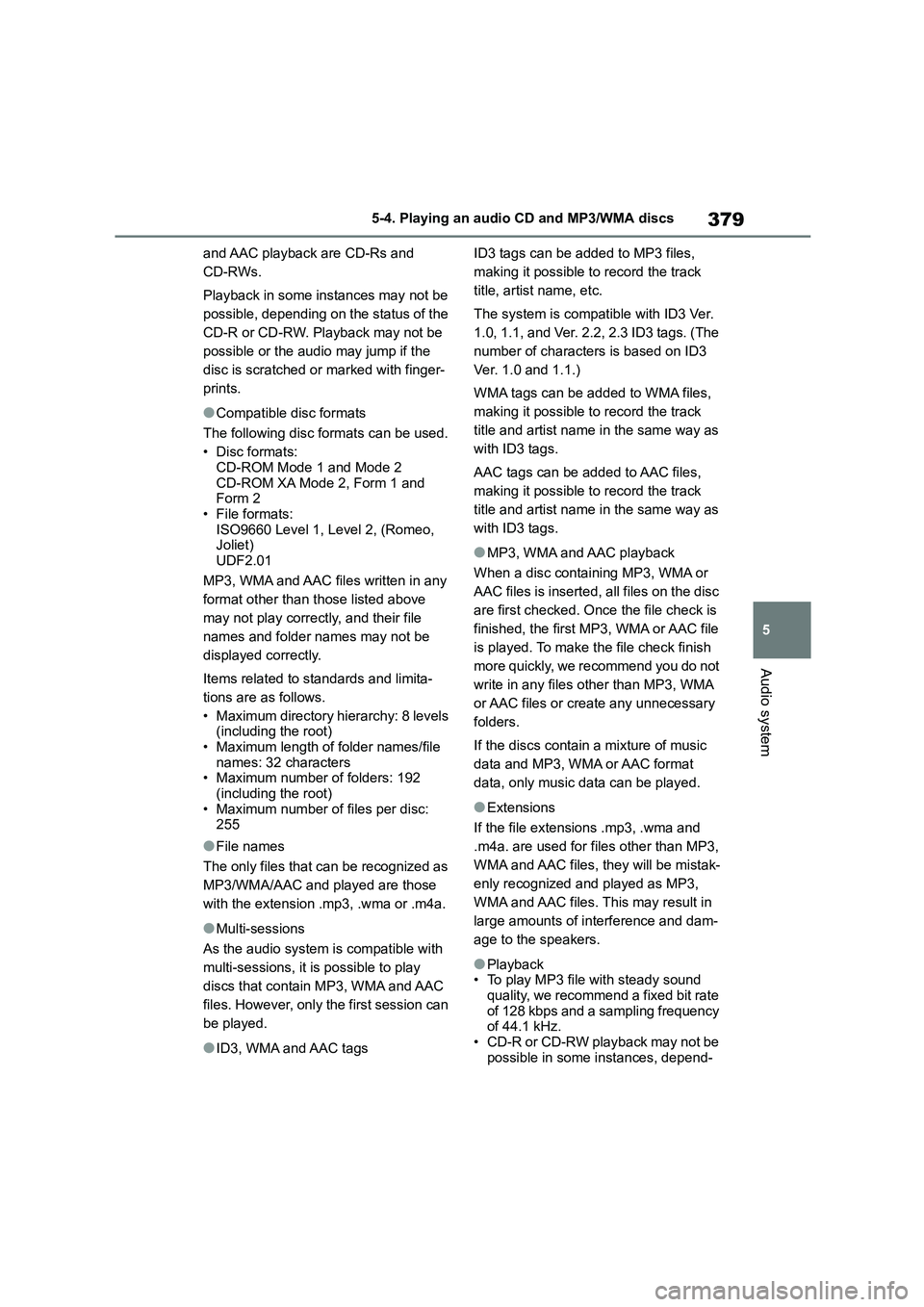

and AAC playback are CD-Rs and
CD-RWs.
Playback in some instances may not be
possible, depending on the status of the
CD-R or CD-RW. Playback may not be
possible or the audio may jump if the
disc is scratched or marked with finger-
prints.
●Compatible disc formats
The following disc formats can be used.
•Disc formats:
CD-ROM Mode 1 and Mode 2
CD-ROM XA Mode 2, Form 1 and Form 2
• File formats:
ISO9660 Level 1, Level 2, (Romeo, Joliet)
UDF2.01
MP3, WMA and AAC files written in any
format other than those listed above
may not play correctly, and their file
names and folder names may not be
displayed correctly.
Items related to standards and limita-
tions are as follows.
• Maximum directory hierarchy: 8 levels (including the root)
• Maximum length of folder names/file
names: 32 characters • Maximum number of folders: 192
(including the root)
• Maximum number of files per disc: 255
●File names
The only files that can be recognized as
MP3/WMA/AAC and played are those
with the extension .mp3, .wma or .m4a.
●Multi-sessions
As the audio system is compatible with
multi-sessions, it is possible to play
discs that contain MP3, WMA and AAC
files. However, only the first session can
be played.
●ID3, WMA and AAC tags
ID3 tags can be added to MP3 files,
making it possible to record the track
title, artist name, etc.
The system is compatible with ID3 Ver.
1.0, 1.1, and Ver. 2.2, 2.3 ID3 tags. (The
number of characters is based on ID3
Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files,
making it possible to record the track
title and artist name in the same way as
with ID3 tags.
AAC tags can be added to AAC files,
making it possible to record the track
title and artist name in the same way as
with ID3 tags.
●MP3, WMA and AAC playback
When a disc containing MP3, WMA or
AAC files is inserted, all files on the disc
are first checked. Once the file check is
finished, the first MP3, WMA or AAC file
is played. To make the file check finish
more quickly, we recommend you do not
write in any files other than MP3, WMA
or AAC files or create any unnecessary
folders.
If the discs contain a mixture of music
data and MP3, WMA or AAC format
data, only music data can be played.
●Extensions
If the file extensions .mp3, .wma and
.m4a. are used for files other than MP3,
WMA and AAC files, they will be mistak-
enly recognized and played as MP3,
WMA and AAC files. This may result in
large amounts of interference and dam-
age to the speakers.
●Playback • To play MP3 file with steady sound
quality, we recommend a fixed bit rate
of 128 kbps and a sampling frequency of 44.1 kHz.
• CD-R or CD-RW playback may not be
possible in some instances, depend-

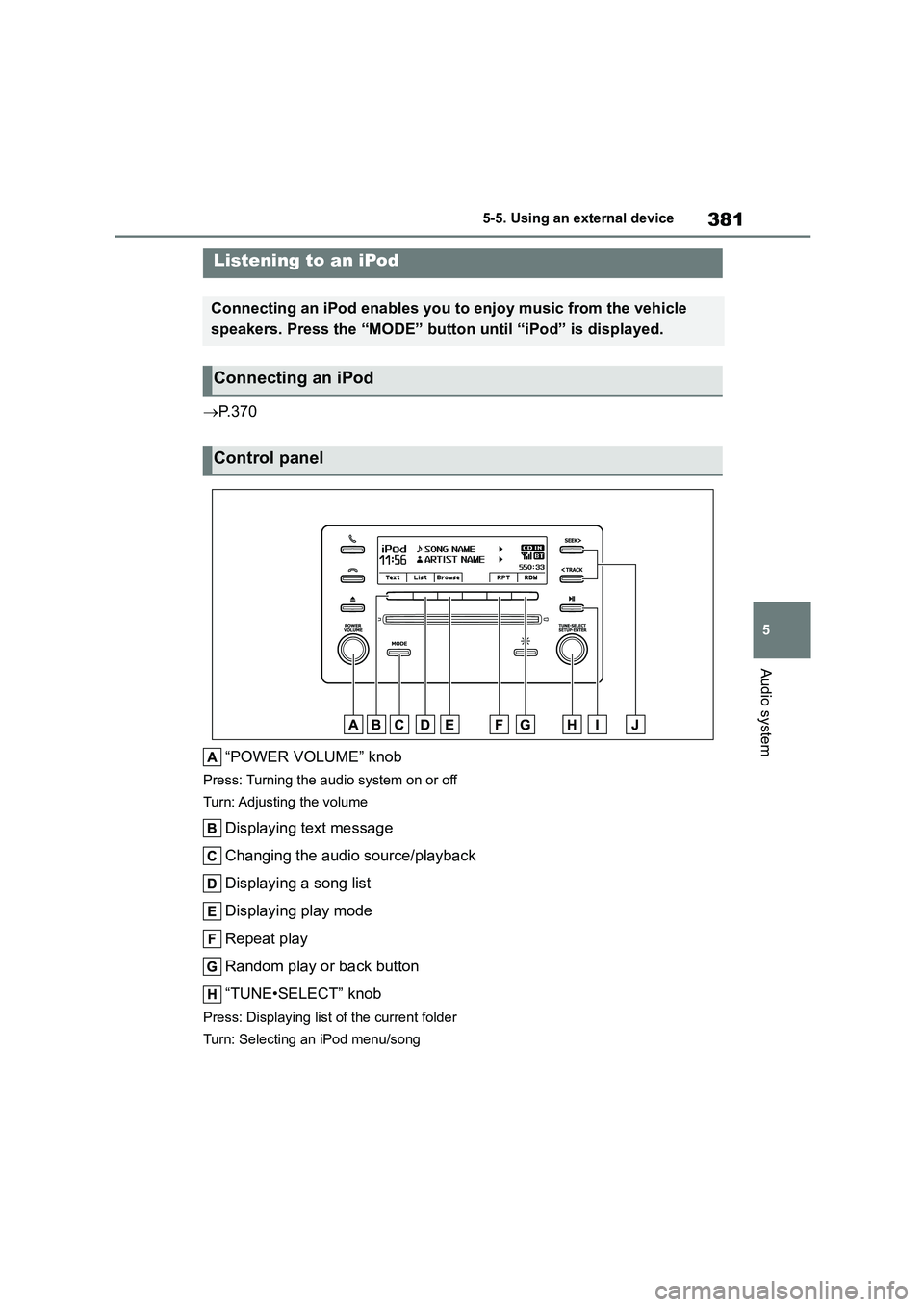

381
5
5-5. Using an external device
Audio system
5-5.Using an external device
 P. 3 7 0
“POWER VOLUME” knob
Press: Turning the audio system on or off
Turn: Adjusting the volume
Displaying text message
Changing the audio source/playback
Displaying a song list
Displaying play mode
Repeat play
Random play or back button
“TUNE•SELECT” knob
Press: Displaying list of the current folder
Turn: Selecting an iPod menu/song
Listening to an iPod
Connecting an iPod enables you to enjoy music from the vehicle
speakers. Press the “MODE” button until “iPod” is displayed.
Connecting an iPod
Control panel
