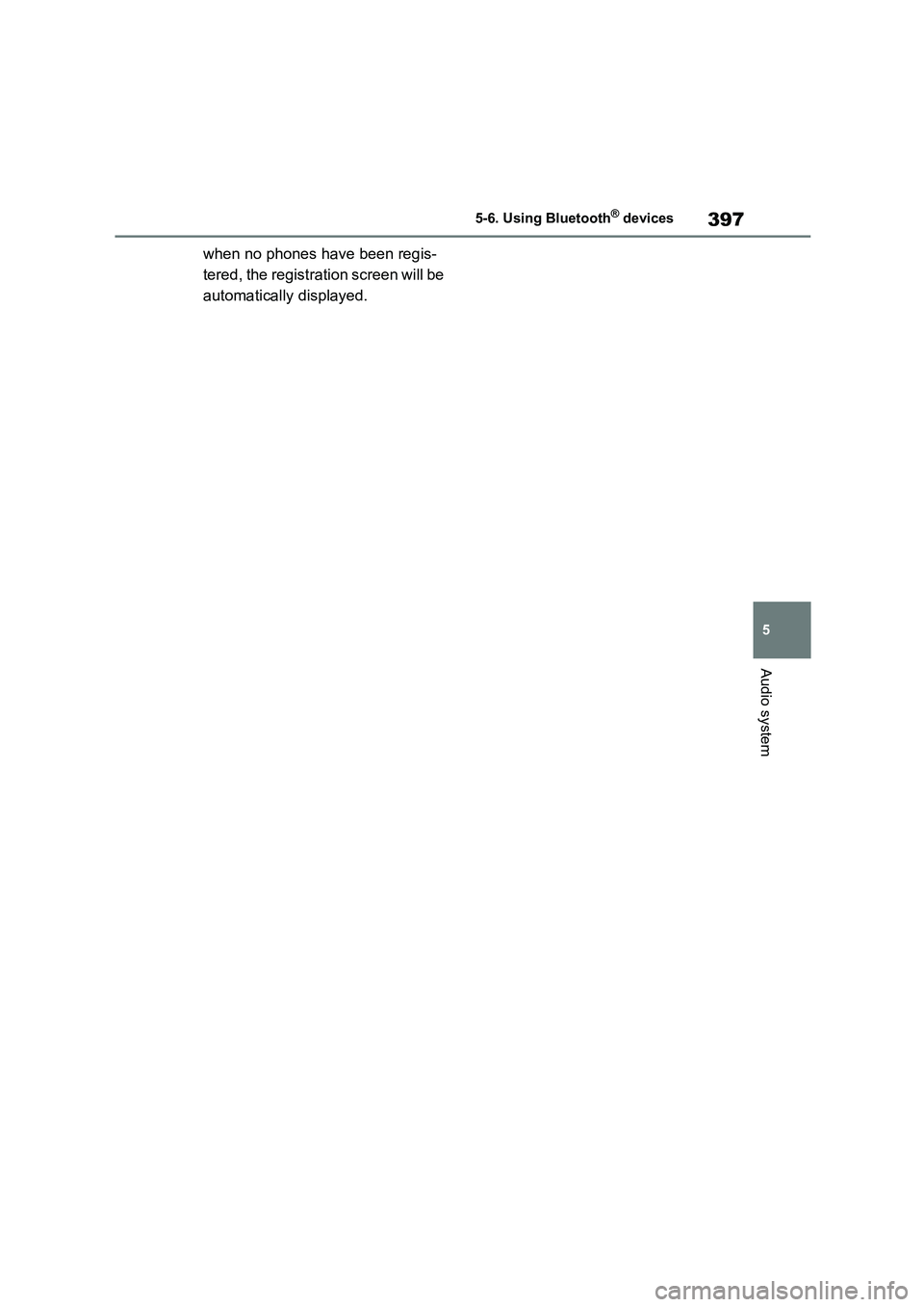

397
5
5-6. Using Bluetooth® devices
Audio system
when no phones have been regis-
tered, the registration screen will be
automatically displayed.

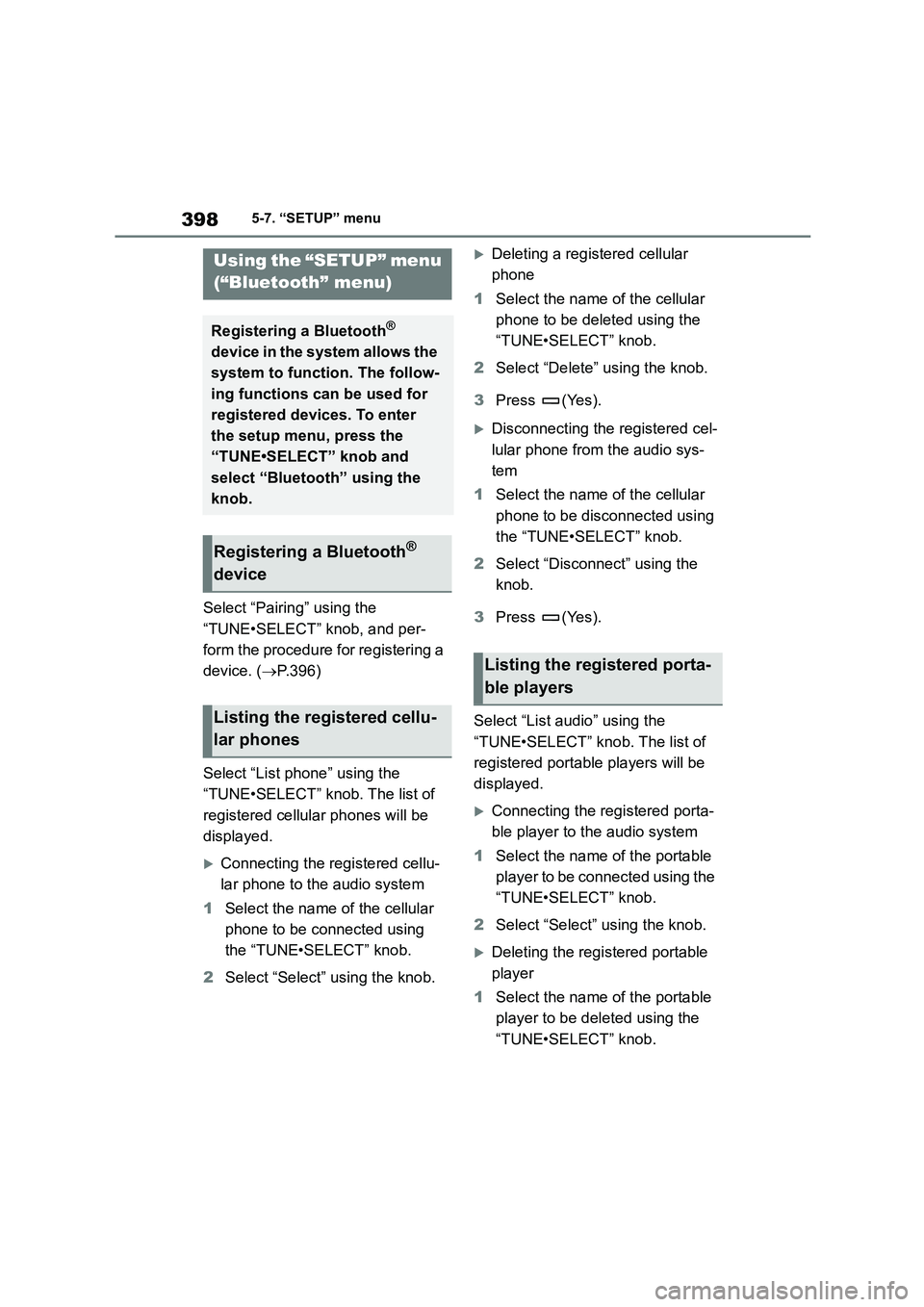

3985-7. “SETUP” menu
5-7.“SETUP” menu
Select “Pairing” using the
“TUNE•SELECT” knob, and per-
form the procedure for registering a
device. ( P.396)
Select “List phone” using the
“TUNE•SELECT” knob. The list of
registered cellular phones will be
displayed.
Connecting the registered cellu-
lar phone to the audio system
1 Select the name of the cellular
phone to be connected using
the “TUNE•SELECT” knob.
2 Select “Select” using the knob.
Deleting a registered cellular
phone
1 Select the name of the cellular
phone to be deleted using the
“TUNE•SELECT” knob.
2 Select “Delete” using the knob.
3 Press (Yes).
Disconnecting the registered cel-
lular phone from the audio sys-
tem
1 Select the name of the cellular
phone to be disconnected using
the “TUNE•SELECT” knob.
2 Select “Disconnect” using the
knob.
3 Press (Yes).
Select “List audio” using the
“TUNE•SELECT” k nob. The list of
registered portable players will be
displayed.
Connecting the registered porta-
ble player to the audio system
1 Select the name of the portable
player to be connected using the
“TUNE•SELECT” knob.
2 Select “Select” using the knob.
Deleting the registered portable
player
1 Select the name of the portable
player to be deleted using the
“TUNE•SELECT” knob.
Using the “SETUP” menu
(“Bluetooth” menu)
Registering a Bluetooth®
device in the system allows the
system to function. The follow-
ing functions can be used for
registered devices. To enter
the setup menu, press the
“TUNE•SELECT” knob and
select “Bluetooth” using the
knob.
Registering a Bluetooth®
device
Listing the registered cellu-
lar phones
Listing the registered porta-
ble players

399
5
5-7. “SETUP” menu
Audio system
2 Select “Delete” using the knob.
3 Press (Yes).
Disconnecting the registered
portable player from the audio
system
1 Select the name of the portable
player to be disconnected using
the “TUNE•SELECT” knob.
2 Select “Disconnect” using the
knob.
3 Press (Yes).
Selecting the connection method
1 Select the name of the desired
portable player using the
“TUNE•SELECT” knob.
2 Select “Connection method”
using the knob.
3 Select “From vehicle” or “From
audio” using the knob.
1 Select “Passkey” using the
“TUNE•SELECT” knob.
2 Select a 4 to 8-digit passkey
using the knob.
Input the number 1 digit at a time.
3 When the entire number to be
registered as a passkey has
been input, press (Enter).
If the passkey to be registered has 8
digits, pressing (Enter) is not neces-
sary.
If “BT power Off” is set to on, the
registered device will be connected
automatically when the engine
switch is turned to ACC.
Select “BT power On” or “BT power
Off” using the “TUNE•SELECT”
knob.
Select “Bluetooth info” using the
“TUNE•SELECT” knob.
Displaying the device name
Select “Device name” using the
“TUNE•SELECT” knob.
Displaying the device address
Select “Device address” using the
“TUNE•SELECT” knob.
If the “Display setting” is set to on,
the portable player connection sta-
tus will be displayed when the
engine switch is turned to ACC.
Select “Display setting On” or “Dis-
play setting Off” using the
“TUNE•SELECT” knob.
Select “Reset” using the
“TUNE•SELECT” knob.
Changing the passkey
Setting automatic connec-
tion of the device on or off
Displaying the device status
Setting the automatic con-
nection confirmation display
to on or off
Initialization

4005-7. “SETUP” menu
Initializing the “HF sound setting”
Select “Sound setting” using the
“TUNE•SELECT” knob and press
(Yes).
For details about “HF sound set-
ting”: P.403
Initializing the device information
Select “Car device info” using the
“TUNE•SELECT” knob and press
(Yes).
Automatic connection of a portable
device, automatic connection con-
firmation display and the passkey
will be initialized.
Initializing the all settings
Select “Reset All” using the
“TUNE•SELECT” knob and press
(Yes).
The automatic transfer function is
available for PBAP compatible
Bluetooth® phones only.
1 Select “Phonebook” using the
“TUNE•SELECT” knob.
2 Select “Auto transfer On” or
“Auto transfer Off” using the
knob.
When set to on, the phone’s contact data and history are automatically
transferred.
1 Select “Phonebook” using the
“TUNE•SELECT” knob.
2 Select “Add contacts” using the
knob.
Transferring all contacts from the
cellular phone
3 Select “Overwrite all” using the
“TUNE•SELECT” knob and
press (Yes).
Using the “SETUP” menu
(“TEL” menu)
To enter the setup menu, press
the “TUNE•SELECT” knob and
select “TEL” using the knob.
Setting automatic con-
tact/history transfer
Adding a new phone num-
ber

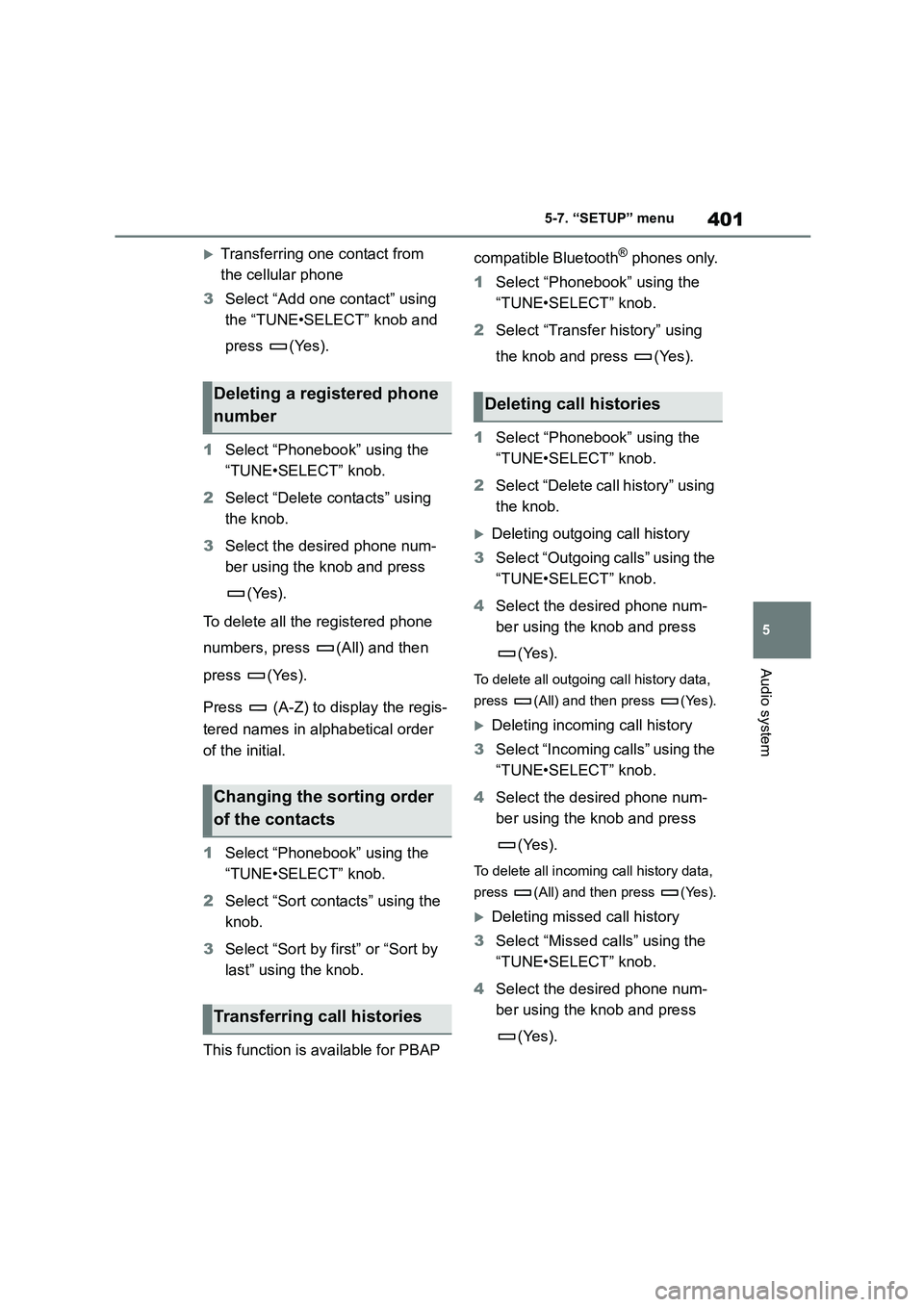

401
5
5-7. “SETUP” menu
Audio system
Transferring one contact from
the cellular phone
3 Select “Add one contact” using
the “TUNE•SELECT” knob and
press (Yes).
1 Select “Phonebook” using the
“TUNE•SELECT” knob.
2 Select “Delete contacts” using
the knob.
3 Select the desired phone num-
ber using the knob and press
(Yes).
To delete all the registered phone
numbers, press (All) and then
press (Yes).
Press (A-Z) to display the regis-
tered names in alphabetical order
of the initial.
1 Select “Phonebook” using the
“TUNE•SELECT” knob.
2 Select “Sort contacts” using the
knob.
3 Select “Sort by first” or “Sort by
last” using the knob.
This function is available for PBAP
compatible Bluetooth® phones only.
1 Select “Phonebook” using the
“TUNE•SELECT” knob.
2 Select “Transfer history” using
the knob and press (Yes).
1 Select “Phonebook” using the
“TUNE•SELECT” knob.
2 Select “Delete call history” using
the knob.
Deleting outgoing call history
3 Select “Outgoing calls” using the
“TUNE•SELECT” knob.
4 Select the desired phone num-
ber using the knob and press
(Yes).
To delete all outgoing call history data,
press (All) and then press (Yes).
Deleting incomi ng call history
3 Select “Incoming calls” using the
“TUNE•SELECT” knob.
4 Select the desired phone num-
ber using the knob and press
(Yes).
To delete all incoming call history data,
press (All) and then press (Yes).
Deleting missed call history
3 Select “Missed calls” using the
“TUNE•SELECT” knob.
4 Select the desired phone num-
ber using the knob and press
(Yes).
Deleting a registered phone
number
Changing the sorting order
of the contacts
Transferring call histories
Deleting call histories

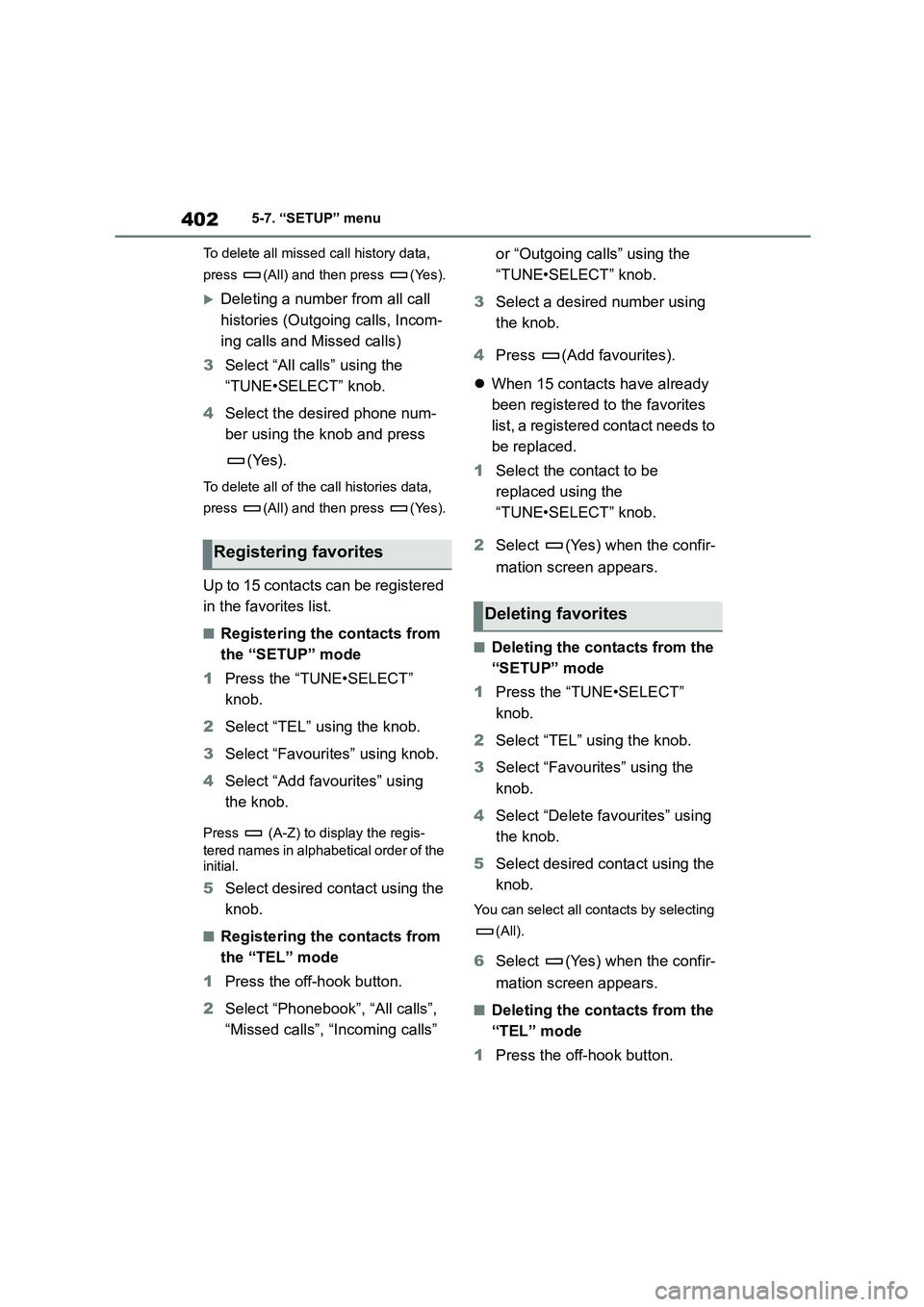

4025-7. “SETUP” menu
To delete all missed call history data,
press (All) and then press (Yes).
Deleting a number from all call
histories (Outgoing calls, Incom-
ing calls and Missed calls)
3 Select “All calls” using the
“TUNE•SELECT” knob.
4 Select the desired phone num-
ber using the knob and press
(Yes).
To delete all of the call histories data,
press (All) and then press (Yes).
Up to 15 contacts can be registered
in the favorites list.
■Registering the contacts from
the “SETUP” mode
1 Press the “TUNE•SELECT”
knob.
2 Select “TEL” using the knob.
3 Select “Favourites” using knob.
4 Select “Add favourites” using
the knob.
Press (A-Z) to display the regis-
tered names in alphabetical order of the initial.
5 Select desired contact using the
knob.
■Registering the contacts from
the “TEL” mode
1 Press the off-hook button.
2 Select “Phonebook”, “All calls”,
“Missed calls”, “Incoming calls”
or “Outgoing calls” using the
“TUNE•SELECT” knob.
3 Select a desired number using
the knob.
4 Press (Add favourites).
 When 15 contacts have already
been registered to the favorites
list, a registered contact needs to
be replaced.
1 Select the contact to be
replaced using the
“TUNE•SELECT” knob.
2 Select (Yes) when the confir-
mation screen appears.
■Deleting the contacts from the
“SETUP” mode
1 Press the “TUNE•SELECT”
knob.
2 Select “TEL” using the knob.
3 Select “Favourites” using the
knob.
4 Select “Delete favourites” using
the knob.
5 Select desired contact using the
knob.
You can select all co ntacts by selecting
(All).
6 Select (Yes) when the confir-
mation screen appears.
■Deleting the contacts from the
“TEL” mode
1 Press the off-hook button.
Registering favorites
Deleting favorites

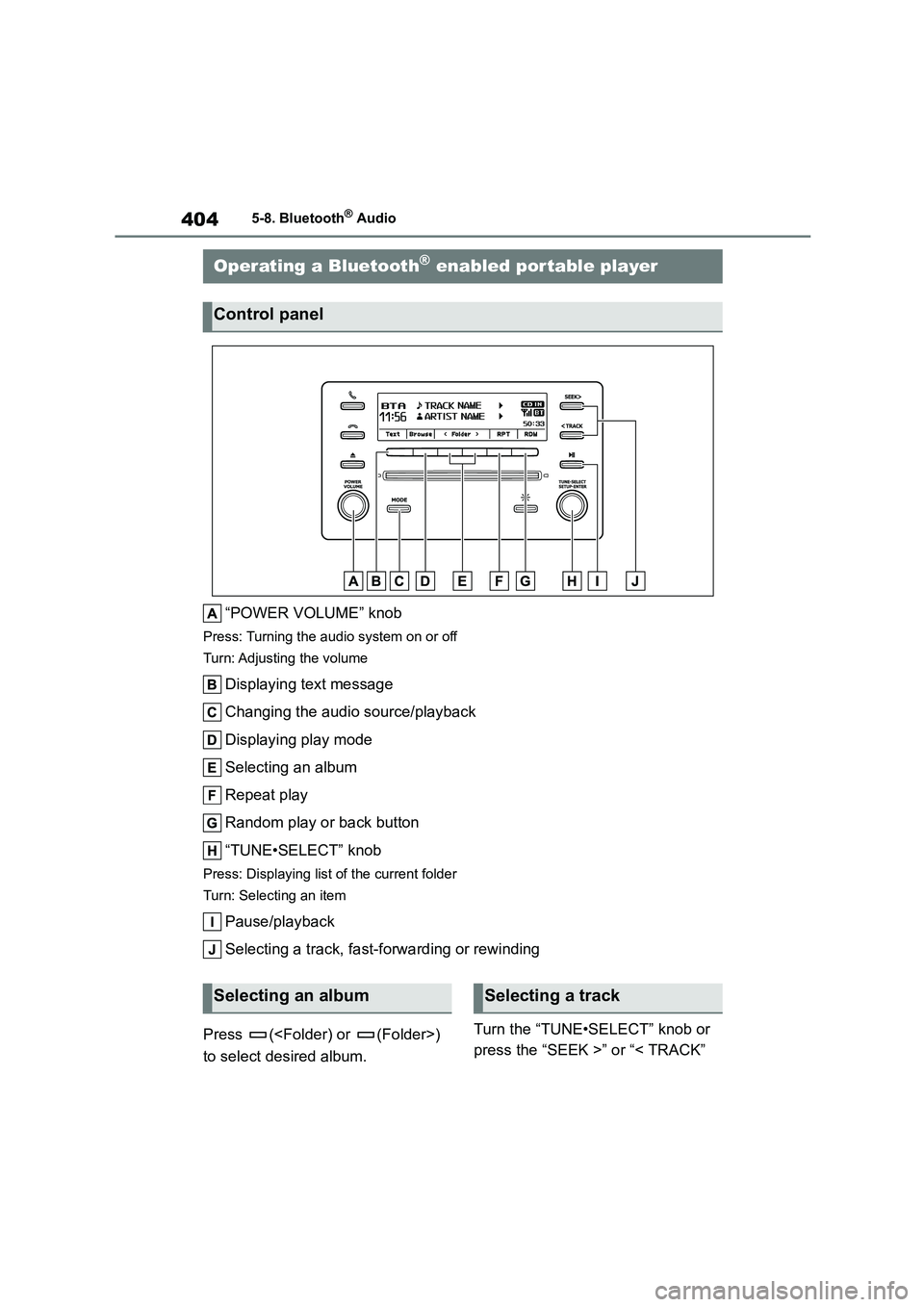

4045-8. Bluetooth® Audio
5-8.Bluetooth® Audio
“POWER VOLUME” knob
Press: Turning the audio system on or off
Turn: Adjusting the volume
Displaying text message
Changing the audio source/playback
Displaying play mode
Selecting an album
Repeat play
Random play or back button
“TUNE•SELECT” knob
Press: Displaying list of the current folder
Turn: Selecting an item
Pause/playback
Selecting a track, fast-forwarding or rewinding
Press ()
to select desired album.
Turn the “TUNE•SELECT” knob or
press the “SEEK >” or “< TRACK”
Operating a Bluetooth® enabled portable player
Control panel
Selecting an albumSelecting a track

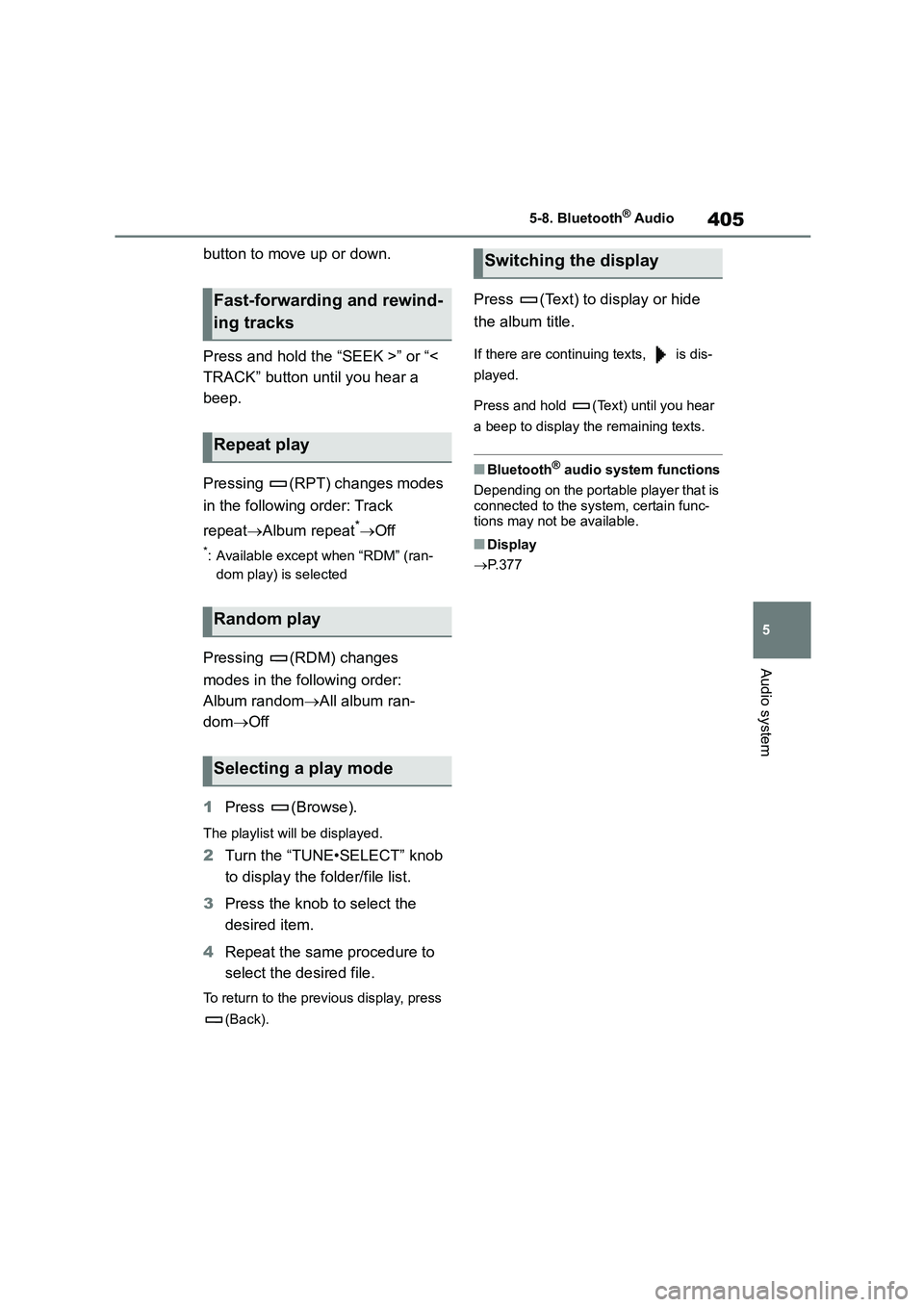

405
5
5-8. Bluetooth® Audio
Audio system
button to move up or down.
Press and hold the “SEEK >” or “<
TRACK” button until you hear a
beep.
Pressing (RPT) changes modes
in the following order: Track
repeat Album repeat*Off
*: Available except when “RDM” (ran-
dom play) is selected
Pressing (RDM) changes
modes in the following order:
Album random All album ran-
dom Off
1 Press (Browse).
The playlist will be displayed.
2Turn the “TUNE•SELECT” knob
to display the folder/file list.
3 Press the knob to select the
desired item.
4 Repeat the same procedure to
select the desired file.
To return to the previous display, press
(Back).
Press (Text) to display or hide
the album title.
If there are continuing texts, is dis-
played.
Press and hold (Text) until you hear
a beep to display the remaining texts.
■Bluetooth® audio system functions
Depending on the portable player that is
connected to the system, certain func- tions may not be available.
■Display
 P. 3 7 7
Fast-forwarding and rewind-
ing tracks
Repeat play
Random play
Selecting a play mode
Switching the display

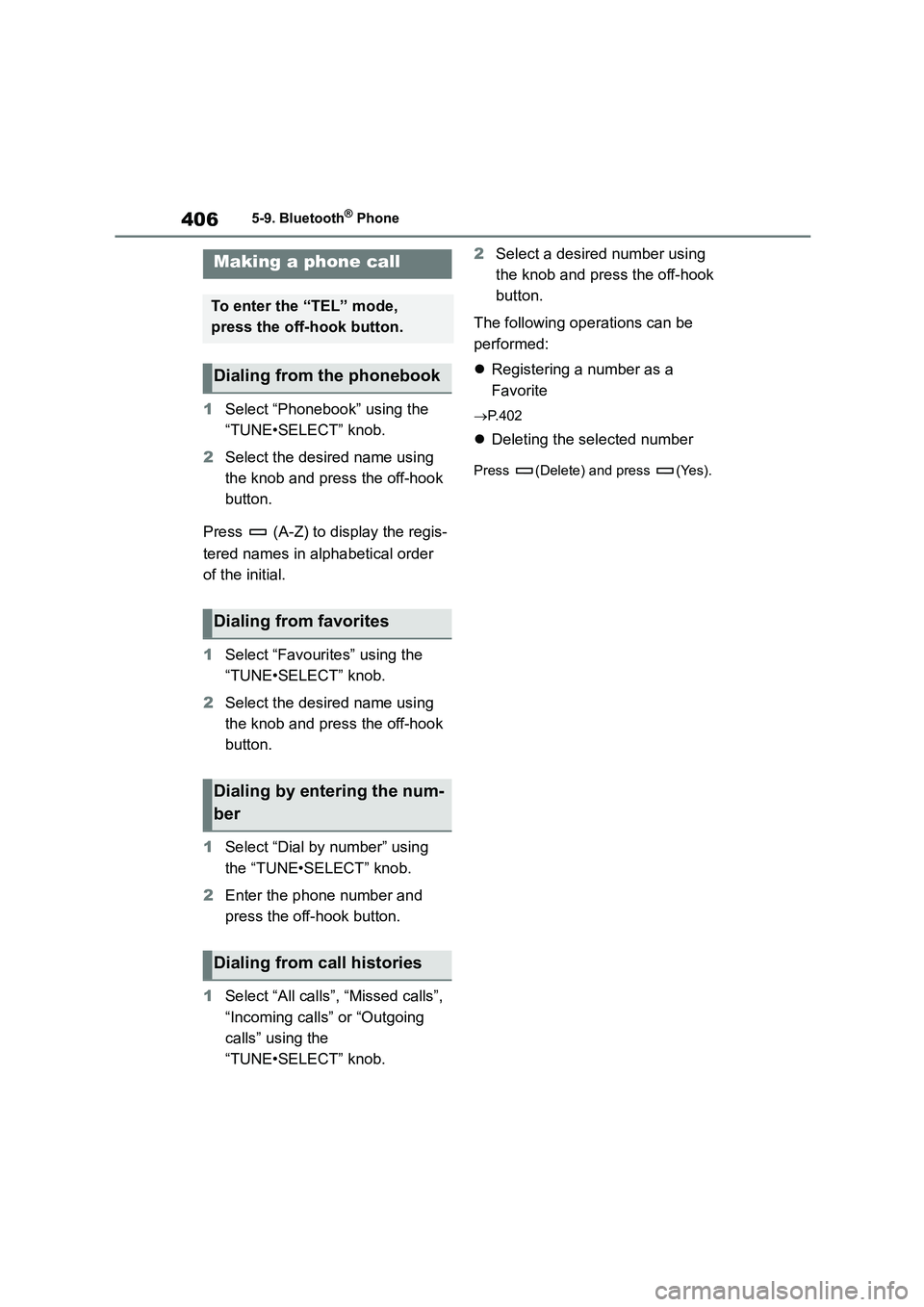

4065-9. Bluetooth® Phone
5-9.Bluetooth® Phone
1Select “Phonebook” using the
“TUNE•SELECT” knob.
2 Select the desired name using
the knob and press the off-hook
button.
Press (A-Z) to display the regis-
tered names in alphabetical order
of the initial.
1 Select “Favourites” using the
“TUNE•SELECT” knob.
2 Select the desired name using
the knob and press the off-hook
button.
1 Select “Dial by number” using
the “TUNE•SELECT” knob.
2 Enter the phone number and
press the off-hook button.
1 Select “All calls”, “Missed calls”,
“Incoming calls” or “Outgoing
calls” using the
“TUNE•SELECT” knob.
2 Select a desired number using
the knob and press the off-hook
button.
The following operations can be
performed:
 Registering a number as a
Favorite
 P. 4 0 2
Deleting the selected number
Press (Delete) and press (Yes).
Making a phone call
To enter the “TEL” mode,
press the off-hook button.
Dialing from the phonebook
Dialing from favorites
Dialing by entering the num-
ber
Dialing from call histories

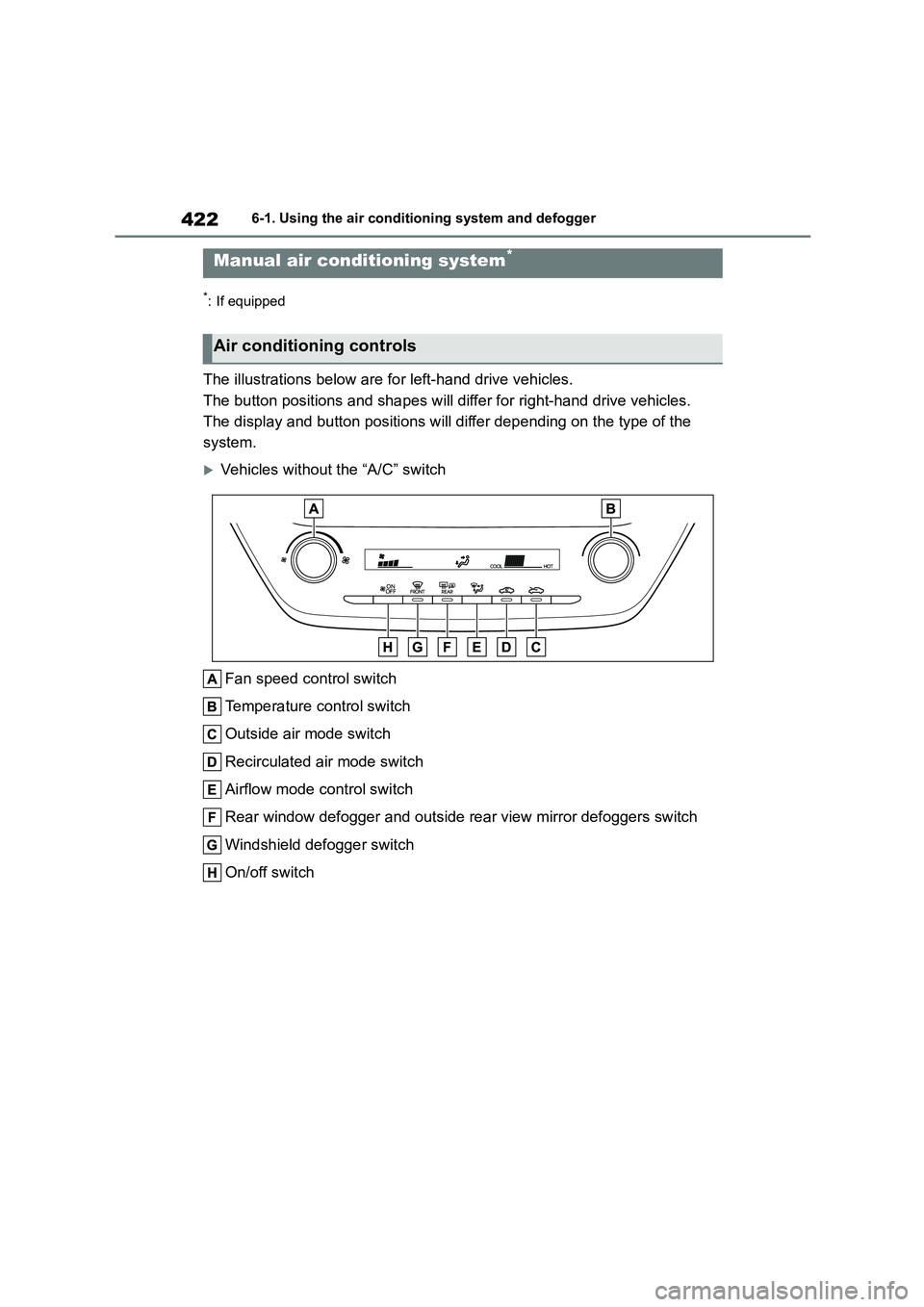

4226-1. Using the air conditioning system and defogger
6-1.Using the air conditioning system and defogger
*: If equipped
The illustrations below are for left-hand drive vehicles.
The button positions and shapes will differ for right-hand drive vehicles.
The display and button positions will di ffer depending on the type of the
system.
Vehicles without the “A/C” switch
Fan speed control switch
Temperature control switch
Outside air mode switch
Recirculated air mode switch
Airflow mode control switch
Rear window defogger and outside rear view mirror defoggers switch
Windshield defogger switch
On/off switch
Manual air conditioning system*
Air conditioning controls
