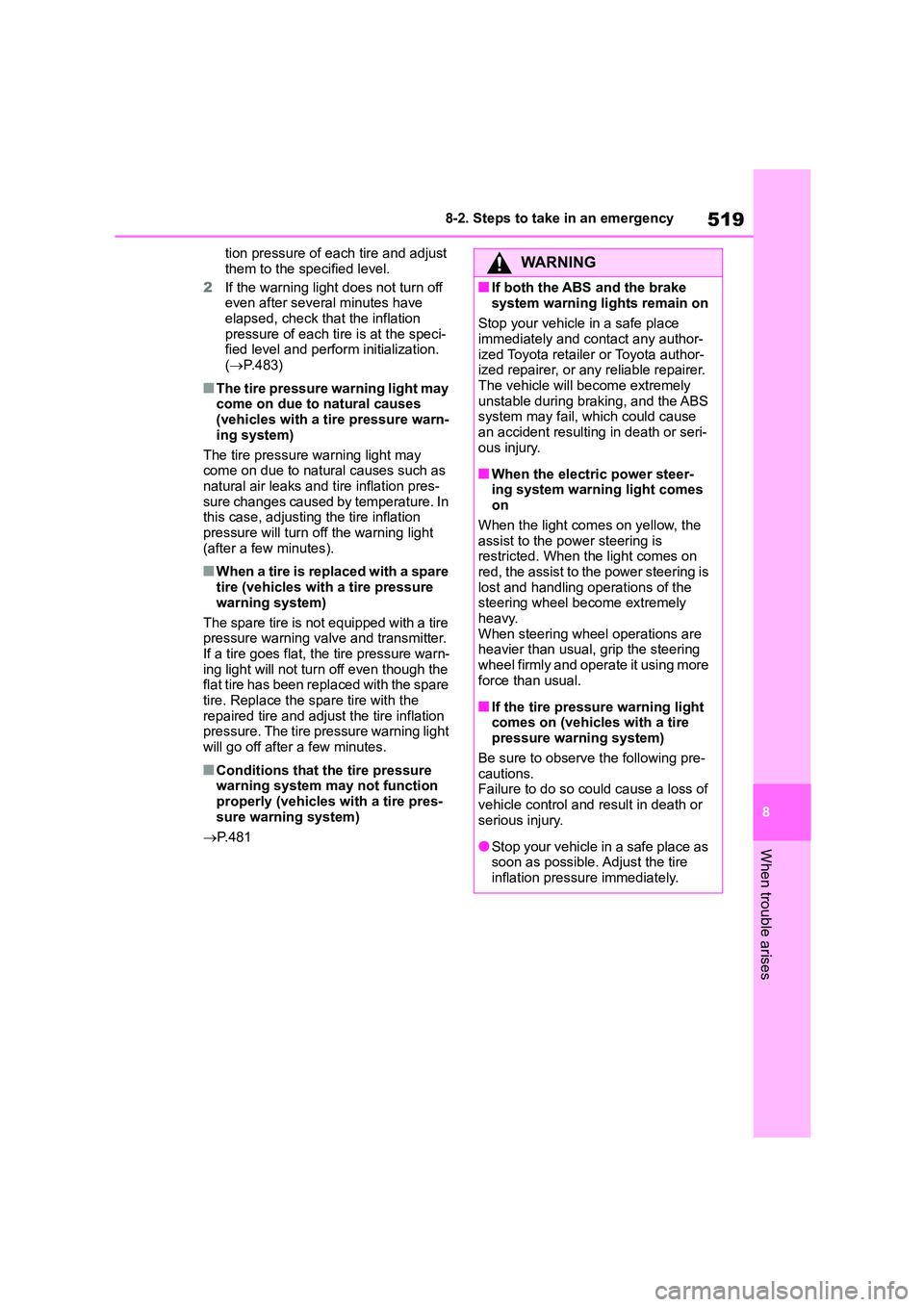

519
8
8-2. Steps to take in an emergency
When trouble arises
tion pressure of each tire and adjust
them to the specified level.
2 If the warning light does not turn off even after several minutes have
elapsed, check that the inflation
pressure of each tire is at the speci- fied level and perform initialization.
( P.483)
■The tire pressure warning light may
come on due to natural causes (vehicles with a tire pressure warn-
ing system)
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pres-
sure changes caused by temperature. In this case, adjusting the tire inflation
pressure will turn off the warning light
(after a few minutes).
■When a tire is replaced with a spare tire (vehicles with a tire pressure
warning system)
The spare tire is not equipped with a tire pressure warning valve and transmitter.
If a tire goes flat, the tire pressure warn-
ing light will not turn off even though the flat tire has been replaced with the spare
tire. Replace the spare tire with the
repaired tire and adjust the tire inflation pressure. The tire pr essure warning light
will go off after a few minutes.
■Conditions that the tire pressure
warning system may not function properly (vehicles with a tire pres-
sure warning system)
 P.481
WA R N I N G
■If both the ABS and the brake
system warning lights remain on
Stop your vehicle in a safe place immediately and contact any author-
ized Toyota retailer or Toyota author-
ized repairer, or any reliable repairer. The vehicle will become extremely
unstable during br aking, and the ABS
system may fail, which could cause
an accident resulting in death or seri- ous injury.
■When the electric power steer-ing system warning light comes
on
When the light comes on yellow, the assist to the power steering is
restricted. When th e light comes on
red, the assist to the power steering is lost and handling operations of the
steering wheel become extremely
heavy. When steering wheel operations are
heavier than usual, grip the steering
wheel firmly and operate it using more force than usual.
■If the tire pressure warning light comes on (vehicles with a tire
pressure warning system)
Be sure to observe the following pre- cautions.
Failure to do so could cause a loss of
vehicle control and re sult in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire
inflation pressure immediately.

5208-2. Steps to take in an emergency
■Warning messages
The warning messages explained below
may differ from the actual messages
according to operation conditions and vehicle specifications.
■Warning buzzer
A buzzer may sound when a message is
displayed. The buzzer may not be audible if the
vehicle is in a noisy location or if the
audio system volume is high.
■If “Engine Oil Level Low Add or Replace” is displayed
The engine oil level is low. Check the
WA R N I N G
●Vehicles with a compact spare tire
and full-size spare tire: If the tire
pressure warning light comes on even after tire inflation pressure
adjustment, it is probable that you
have a flat tire. Check the tires. If a tire is flat, change it with the spare
tire and have the flat tire repaired
by the nearest any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●Vehicles with emergency tire punc-ture repair kit: If the tire pressure
warning light comes on even after
tire inflation pressure adjustment, it is probable that you have a flat tire.
Check the tires. If a tire is flat, repair
the flat tire by using emergency tire puncture repair kit.
●Avoid abrupt maneuvering and braking.
If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leak-age should occur (vehicles with
a tire pressure warning system)
The tire pressure warning system may not activate immediately.
NOTICE
■To ensure the tire pressure warn-
ing system operates properly
(vehicles with a tire pressure warning system)
Do not install tires with different speci-
fications or makers, as the tire pres- sure warning system may not operate
properly.
If a war ning message is
displayed
The multi-information display
shows warnings for system
malfunctions and incorrectly
performed operations, and
messages that indicate a need
for maintenance. When a mes-
sage is displayed, perform the
appropriate corrective action
for the message.
If a warning message is dis-
played again after the appro-
priate actions have been
performed, contact any author-
ized Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer.
Additionally, if a warning light
comes on or flashes at the
same time that a warning mes-
sage is displayed, take the
appropriate corrective action
for the warning light. ( P.511)

521
8
8-2. Steps to take in an emergency
When trouble arises
level of the engine oil, and add if neces-
sary.
This message may appear if the vehicle
is stopped on a slope. Move the vehicle
to a level surface and check to see if the message disappears.
■If “Engine Stopped Steering Power
Low” is displayed
This message is displayed if the engine is stopped while driving.
When steering wheel operations are
heavier than usual, grip the steering wheel firmly and operate it using more
force than usual.
■If “Auto Power OFF to Conserve
Battery” is displayed
Power was cut off due to the automatic
power off function. Next time when start-
ing the engine, increase the engine speed slightly and maintain that level for
approximately 5 minutes to recharge the
battery.
■If “Headlight System Malfunction Visit Your Dealer” is displayed
The following systems may be malfunc-
tioning. Have the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer immediately.
●The LED headl ight system
●The automatic headlight leveling sys-
tem (if equipped)
●AHS (Adaptive High-beam System) (if
equipped)
●Automatic High Beam (if equipped)
■If a message that indicates the mal-
function of front camera is dis-
played
The following systems may be sus- pended until the problem shown in the
message is resolved. ( P.222, 511)
●PCS (Pre-Collision system) (if
equipped)
●LTA (Lane Tracing Assist) (if
equipped)
●LDA (Lane Departure Alert with steer-
ing control) (if equipped)
●AHS (Adaptive High-beam System) (if
equipped)
●Automatic High Beam (if equipped)
●RSA (Road Sign Assist) (if equipped)
●Dynamic radar cruise control with
full-speed range (if equipped)
●Dynamic radar cruise control (if
equipped)
■If “Radar Cruise Control Unavaila- ble See Owner's Manual” is dis-
played (if equipped)
The dynamic radar cruise control with full-speed range system or dynamic
radar cruise control system is sus-
pended temporarily or until the problem shown in the message is resolved.
(causes and coping methods: P.222)
■If “Radar Cruise Control Unavaila-
ble” is displayed (if equipped)
The dynamic radar cruise control with
full-speed range system or dynamic
radar cruise control system cannot be used temporarily. Use the system when
it becomes available again.
■If a message that indicates the
need for visiting your Toyota dealer is displayed
The system or part shown on the
multi-information display is malfunction- ing. Have the vehicle inspected by any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer immediately.
■If a message that indicates the
need for referrin g to Owner’s Man-
ual is displayed
●If “Engine Coolant Temp High” is dis-
played, follow the instructions accord-
ingly. ( P.560)
●If any of the following messages are
displayed on the multi-information dis- play, it may indicate a malfunction.
Have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.

5228-2. Steps to take in an emergency
• “Smart Entry & Start System Malfunc-
tion”
●If any of the following messages are
displayed on the multi-information dis- play, it may indicate a malfunction.
Immediately stop the vehicle and con-
tact any authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer.
• “Braking Power Low” • “Charging System Malfunction”
• “Oil Pressure Low”
NOTICE
■If “High Power Consumption Par-
tial Limit on AC/Heater Opera- tion” is displayed frequently
There is a possible malfunction relat-
ing to the charging system or the bat- tery may be deteriorating. Have the
vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer
immediately.
If you have a flat tire
(vehicles with an emer-
gency tire puncture
repair kit)
Your vehicle is not equipped
with a spare tire, but instead is
equipped with an emergency
tire puncture repair kit.
A puncture caused by a nail or
screw passing through the tire
tread can be repaired tempo-
rarily using the emergency tire
puncture repair kit. (The kit
contains a bottle of sealant.
The sealant can be used only
once to temporarily repair one
tire without removing the nail
or screw from the tire.)
Depending on the damage, this
kit cannot be used to repair the
tire. ( P.523)
After temporarily repairing the
tire with the kit, have the tire
repaired or replaced by any
authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer. Repairs
conducted using the emer-
gency tire puncture repair kit
are only a temporary measure.
Have the tire repaired and
replaced as soon as possible.

523
8
8-2. Steps to take in an emergency
When trouble arises
 Stop the vehicle in a safe place
on a hard, flat surface.
 Set the parking brake.
 Shift the shift lever to P
(Multidrive) or N (manual trans-
mission).
 Stop the engine.
 Turn on the emergency flashers.
 Check the degree of the tire
damage.
Do not remove the nail or screw
from the tire. Removing the object
may widen the opening and make
emergency repair with the repair kit
impossible.
■A flat tire that cannot be repaired
with the emergency tire puncture repair kit
In the following cases, the tire cannot be
repaired with the emergency tire punc-
ture repair kit. Contact any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●When the tire is damaged due to driv-ing without sufficient air pressure
●When there are any cracks or damage at any location on the tire, such as on
the side wall, except the tread
●When the tire is visibly separated from
the wheel
●When the cut or damage to the tread
is 4 mm (0.16 in.) long or more
●When the wheel is damaged
●When two or more tires have been punctured
●When more than 2 sharp objects such as nails or screws have passed
through the tread on a single tire
●When the sealant has expired
WA R N I N G
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could
result in an accident.
Before repairing the tire

5248-2. Steps to take in an emergency

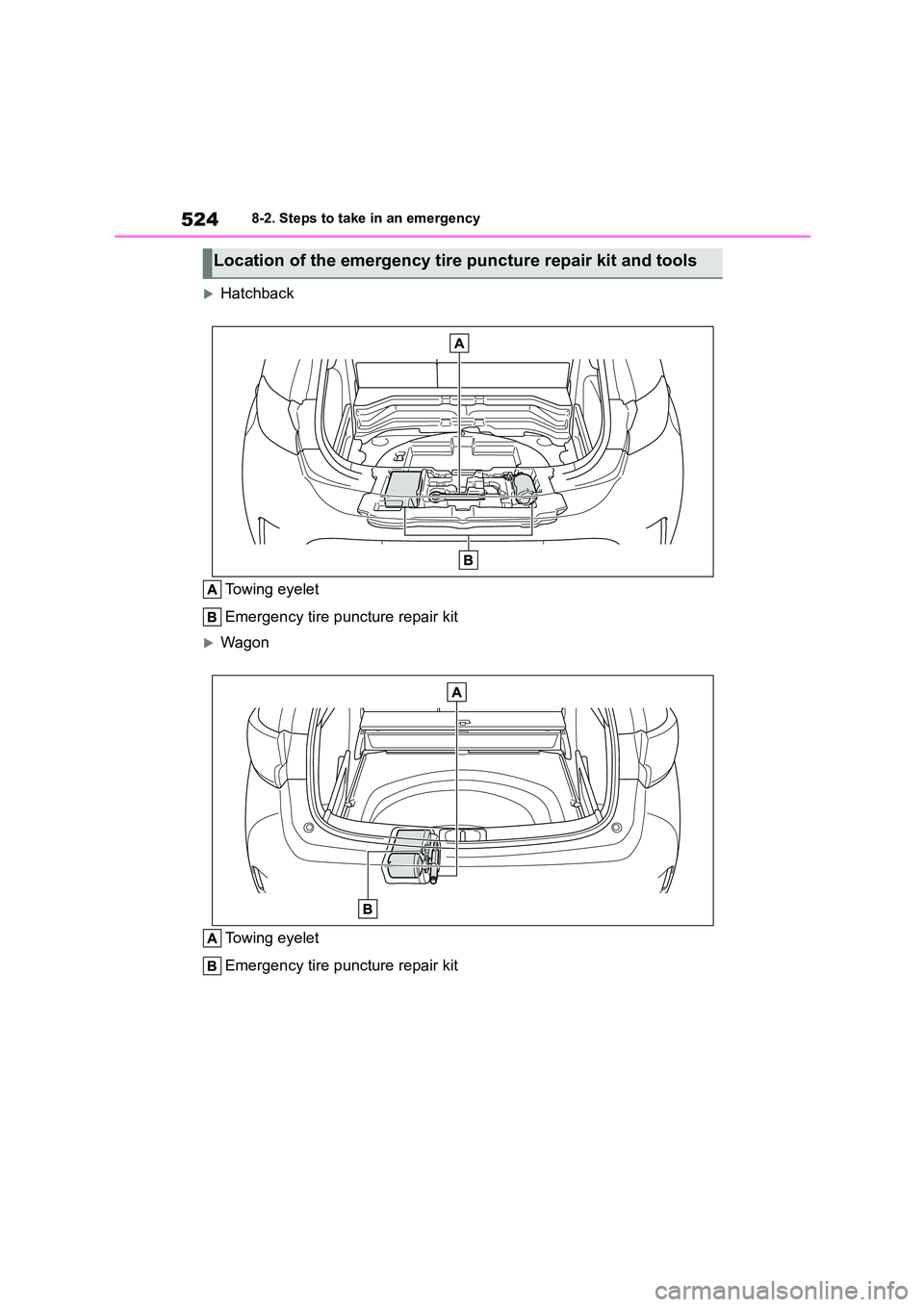

Hatchback
Towing eyelet
Emergency tire puncture repair kit
Wagon
Towing eyelet
Emergency tire puncture repair kit
Location of the emergency tire puncture repair kit and tools

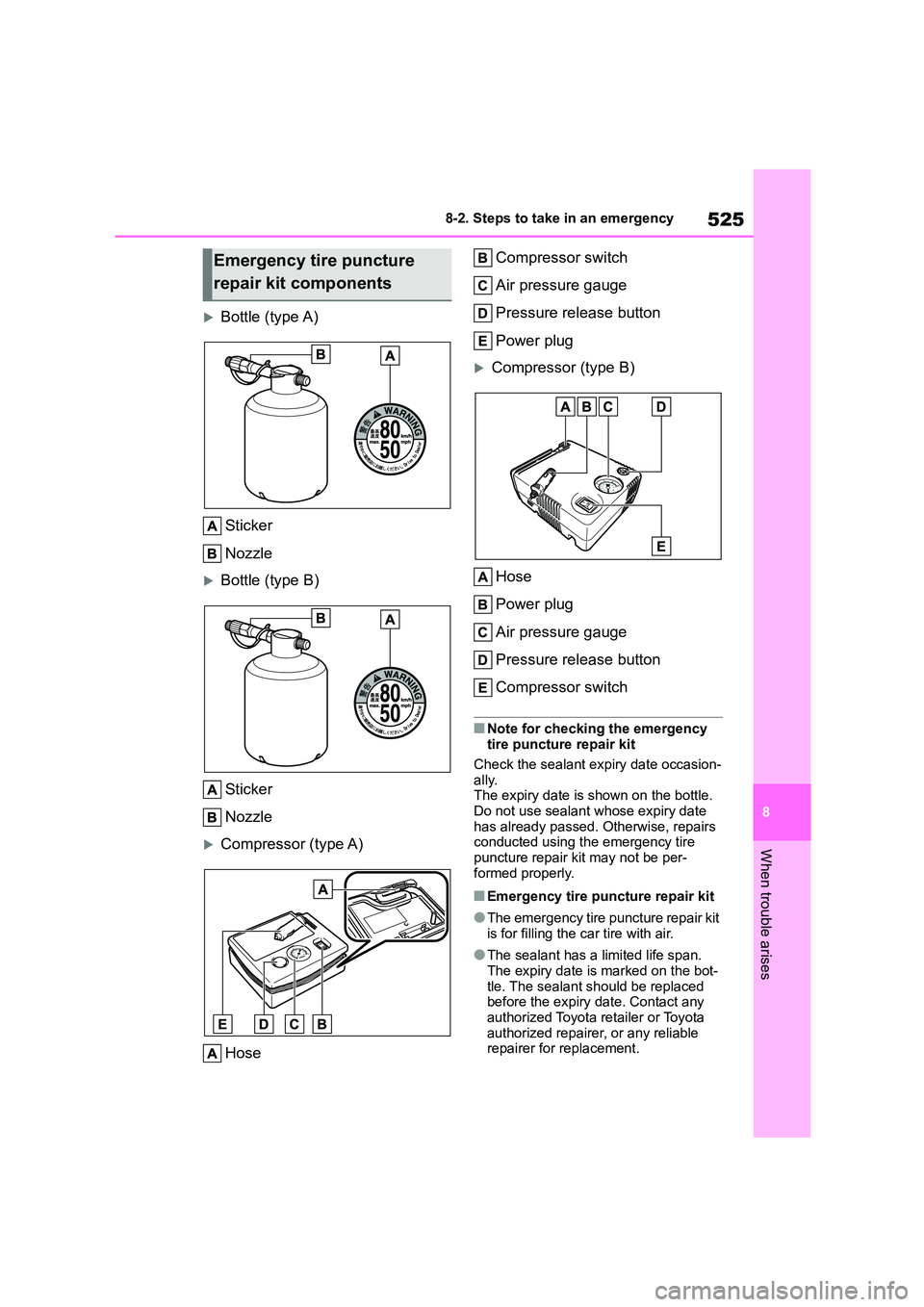

525
8
8-2. Steps to take in an emergency
When trouble arises
Bottle (type A)
Sticker
Nozzle
Bottle (type B)
Sticker
Nozzle
Compressor (type A)
Hose
Compressor switch
Air pressure gauge
Pressure release button
Power plug
Compressor (type B)
Hose
Power plug
Air pressure gauge
Pressure release button
Compressor switch
■Note for checking the emergency tire puncture repair kit
Check the sealant expiry date occasion-
ally. The expiry date is shown on the bottle.
Do not use sealant whose expiry date
has already passed. Otherwise, repairs conducted using the emergency tire
puncture repair kit may not be per-
formed properly.
■Emergency tire puncture repair kit
●The emergency tire puncture repair kit
is for filling the car tire with air.
●The sealant has a limited life span.
The expiry date is marked on the bot- tle. The sealant should be replaced
before the expiry date. Contact any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer for replacement.
Emergency tire puncture
repair kit components

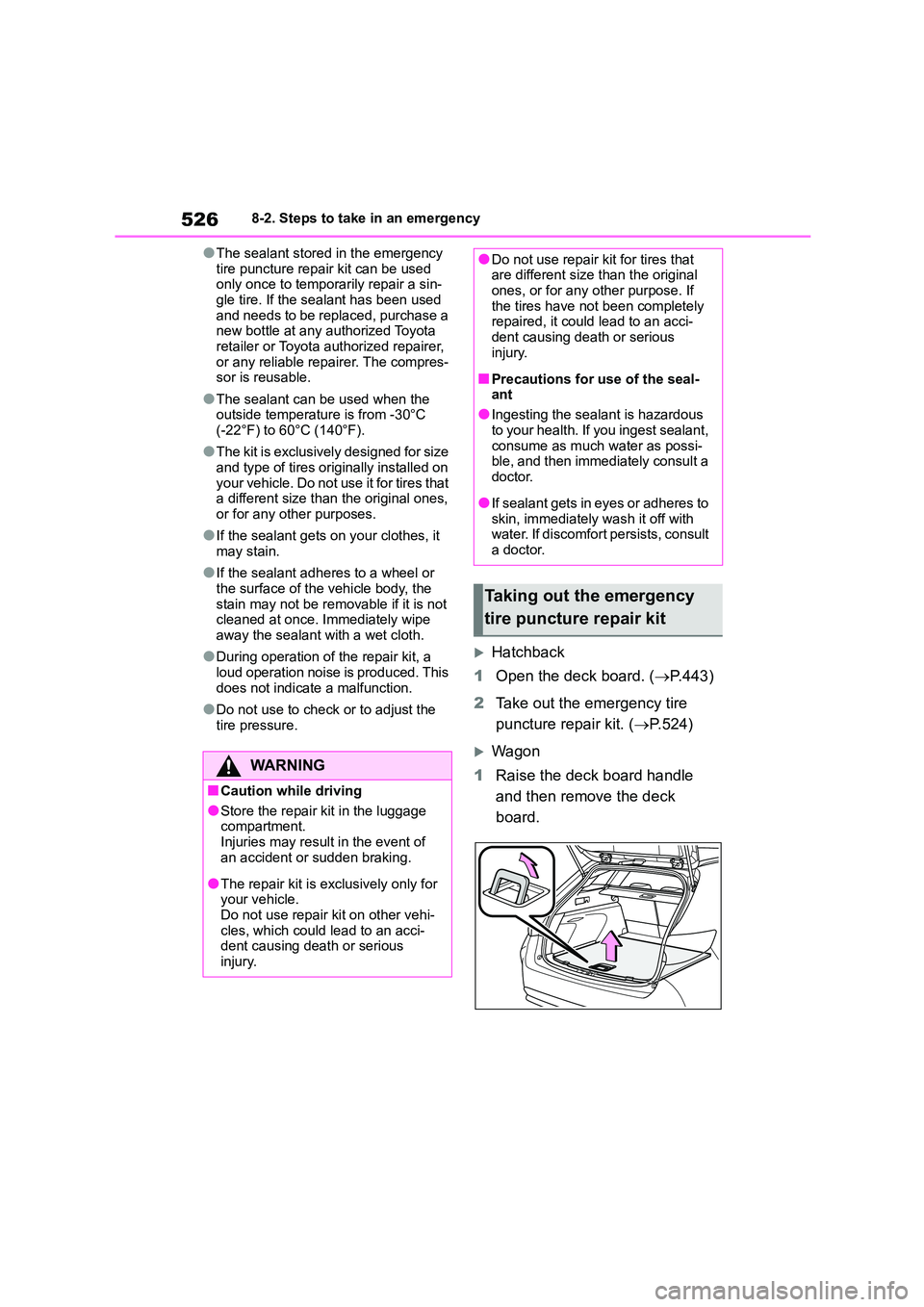

5268-2. Steps to take in an emergency
●The sealant stored in the emergency
tire puncture repair kit can be used only once to temporarily repair a sin-
gle tire. If the sealant has been used
and needs to be replaced, purchase a new bottle at any authorized Toyota
retailer or Toyota authorized repairer,
or any reliable repairer. The compres- sor is reusable.
●The sealant can be used when the outside temperature is from -30°C
(-22°F) to 60°C (140°F).
●The kit is exclusively designed for size
and type of tires originally installed on
your vehicle. Do not use it for tires that a different size than the original ones,
or for any other purposes.
●If the sealant gets on your clothes, it
may stain.
●If the sealant adheres to a wheel or
the surface of the vehicle body, the
stain may not be removable if it is not cleaned at once. Immediately wipe
away the sealant with a wet cloth.
●During operation of the repair kit, a
loud operation noise is produced. This
does not indicate a malfunction.
●Do not use to check or to adjust the
tire pressure.
Hatchback
1 Open the deck board. (P.443)
2 Take out the emergency tire
puncture repair kit. ( P.524)
Wagon
1 Raise the deck board handle
and then remove the deck
board.
WA R N I N G
■Caution while driving
●Store the repair kit in the luggage
compartment.
Injuries may result in the event of an accident or sudden braking.
●The repair kit is exclusively only for your vehicle.
Do not use repair kit on other vehi-
cles, which could lead to an acci- dent causing death or serious
injury.
●Do not use repair kit for tires that are different size than the original
ones, or for any other purpose. If
the tires have not been completely repaired, it could lead to an acci-
dent causing death or serious
injury.
■Precautions for use of the seal-
ant
●Ingesting the sealant is hazardous
to your health. If you ingest sealant,
consume as much water as possi- ble, and then immediately consult a
doctor.
●If sealant gets in eyes or adheres to
skin, immediately wash it off with
water. If discomfort persists, consult a doctor.
Taking out the emergency
tire puncture repair kit

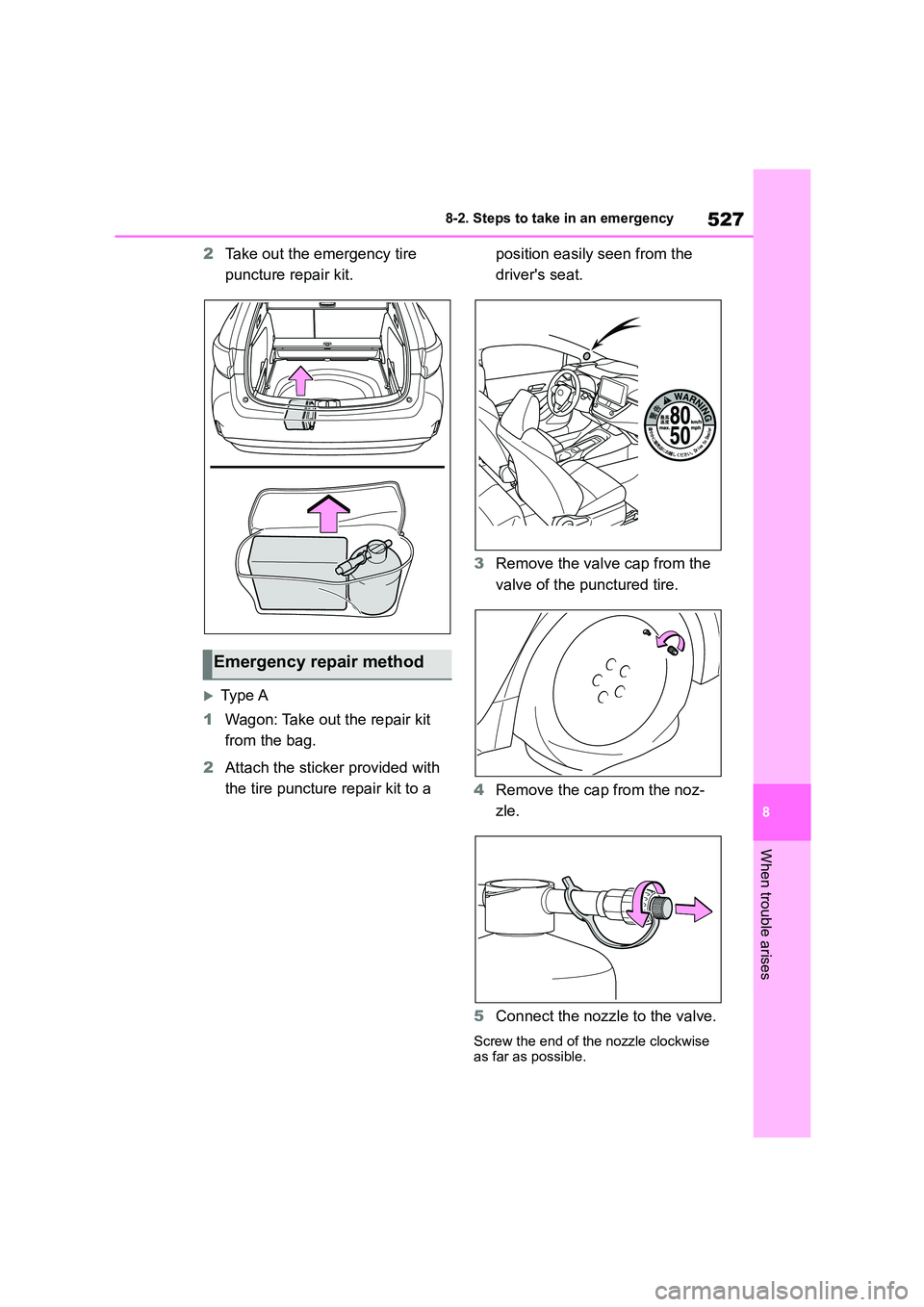

527
8
8-2. Steps to take in an emergency
When trouble arises
2 Take out the emergency tire
puncture repair kit.
Type A
1 Wagon: Take out the repair kit
from the bag.
2 Attach the sticker provided with
the tire puncture repair kit to a
position easily seen from the
driver's seat.
3 Remove the valve cap from the
valve of the punctured tire.
4 Remove the cap from the noz-
zle.
5 Connect the nozzle to the valve.
Screw the end of the nozzle clockwise as far as possible.
Emergency repair method

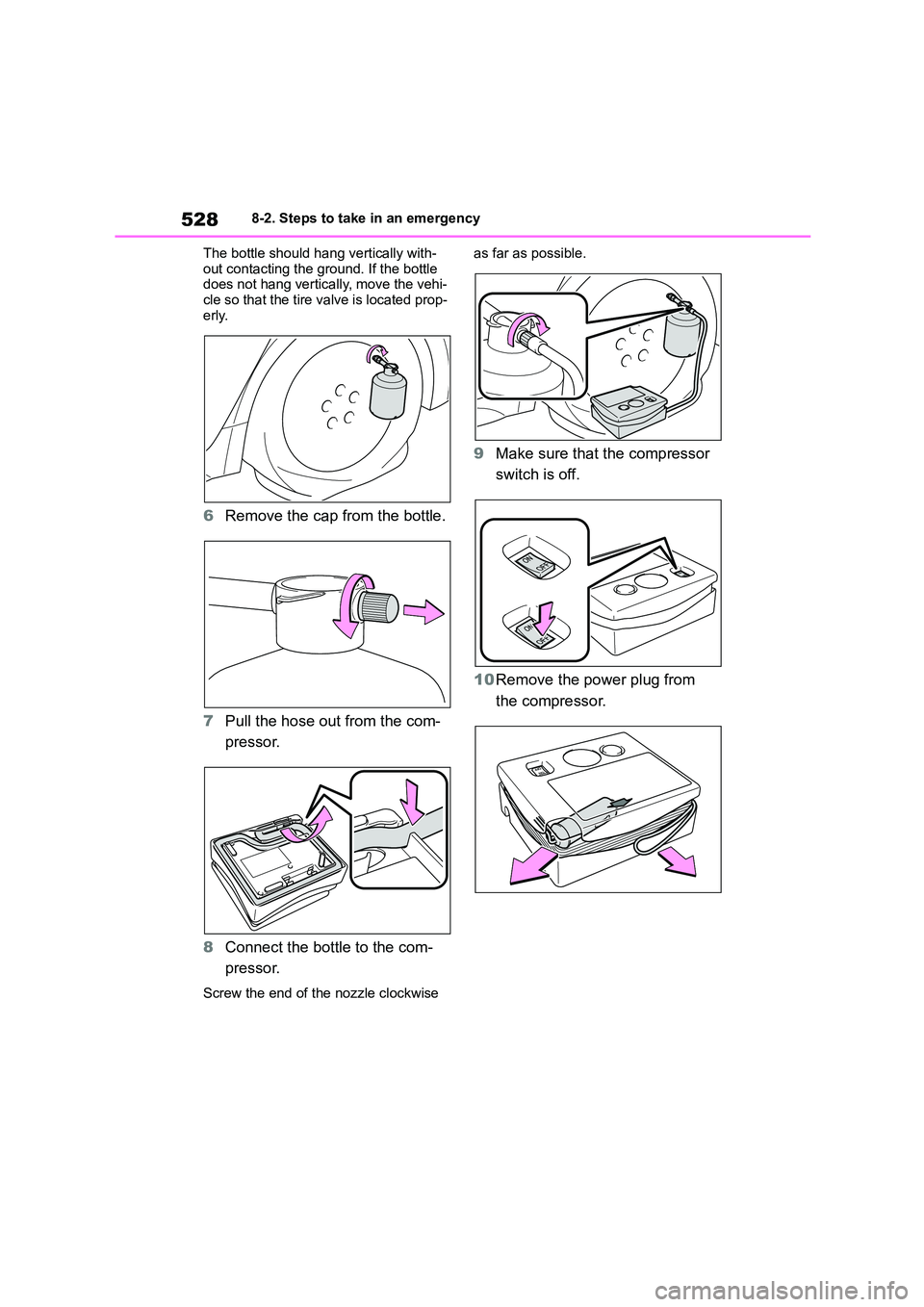

5288-2. Steps to take in an emergency
The bottle should hang vertically with-
out contacting the ground. If the bottle does not hang vertically, move the vehi-
cle so that the tire valve is located prop-
erly.
6 Remove the cap from the bottle.
7 Pull the hose out from the com-
pressor.
8 Connect the bottle to the com-
pressor.
Screw the end of the nozzle clockwise
as far as possible.
9 Make sure that the compressor
switch is off.
10 Remove the power plug from
the compressor.
