3577-2. Steps to take in an emergency
7
When trouble arises
(P.94) in order to perform the
following operations:
1 Locks all the doors
2 Unlocks all the doors
Turning the key unlocks the driver’s
door. Turning the key again unlocks
the other doors.
■Key linked functions
1 Closes the windo ws (turn and
hold)
*
2 Opens the windows (turn and
hold)
*
*
: This setting must be customized at your Toyota dealer.
1 Ensure that the shift lever is
in P and depress the brake
pedal.
2 Touch the electronic key to
the engine switch.
When the electronic key is
detected, a buzzer sounds and the
engine switch will turn to ON.
When the smart key system is
deactivated in customization set-
ting, the engine switch will turn to
ACC.
3Firmly depress the brake
pedal and check that is
shown on the multi-informa-
tion display.
WARNING
■When using the mechanical
key and operating the power
windows
Operate the power window after
checking to make sure that there
is no possibility of any passenger
having any of their body parts
caught in the window.
Also, do not allo w children to
operate the mechanical key. It is
possible for children and other
passengers to get caught in the
power window.
Starting the engine

3637-2. Steps to take in an emergency
7
When trouble arises
able.
6Start the engine and turn the
air conditioning system on to
check that the radiator cool-
ing fan operates and to check
for coolant leaks from the
radiator or hoses.
The fan operates when the air con-
ditioning system is turned on imme-
diately after a cold start. Confirm
that the fan is op erating by check-
ing the fan sound and air flow. If it is
difficult to check these, turn the air
conditioning system on and off
repeatedly. (The fan may not oper-
ate in freezing temperatures.)
7 If the fan is not operating:
Stop the engine immediately
and contact your Toyota
dealer.
If the fan is operating:
Have the vehicle inspected at
the nearest Toyota dealer.
WARNING
■When inspecting under the
hood of your vehicle
Observe the following precau-
tions. Failure to do so may result
in serious injury such as burns.
●If steam is seen coming from
under the hood, do not open the
hood until the steam has sub-
sided. The engine compart-
ment may be very hot.
●Keep hands and clothing (espe-
cially a tie, a sca rf or a muffler)
away from the fan and belts.
Failure to do so may cause the
hands or clothing to be caught,
resulting in serious injury.
●Do not loosen the coolant reser-
voir caps while the engine and
radiator are hot.
High temperature steam or
coolant could spray out.
NOTICE
■When adding engine coolant
Add coolant slowly after the
engine has cooled down suffi-
ciently. Adding cool coolant to a
hot engine too quickly can cause
damage to the engine.
■To prevent damage to the
cooling system
Observe the following precau-
tions:
●Avoid contaminating the coolant
with foreign matter (such as
sand or dust etc.).
●Do not use any coolant additive.

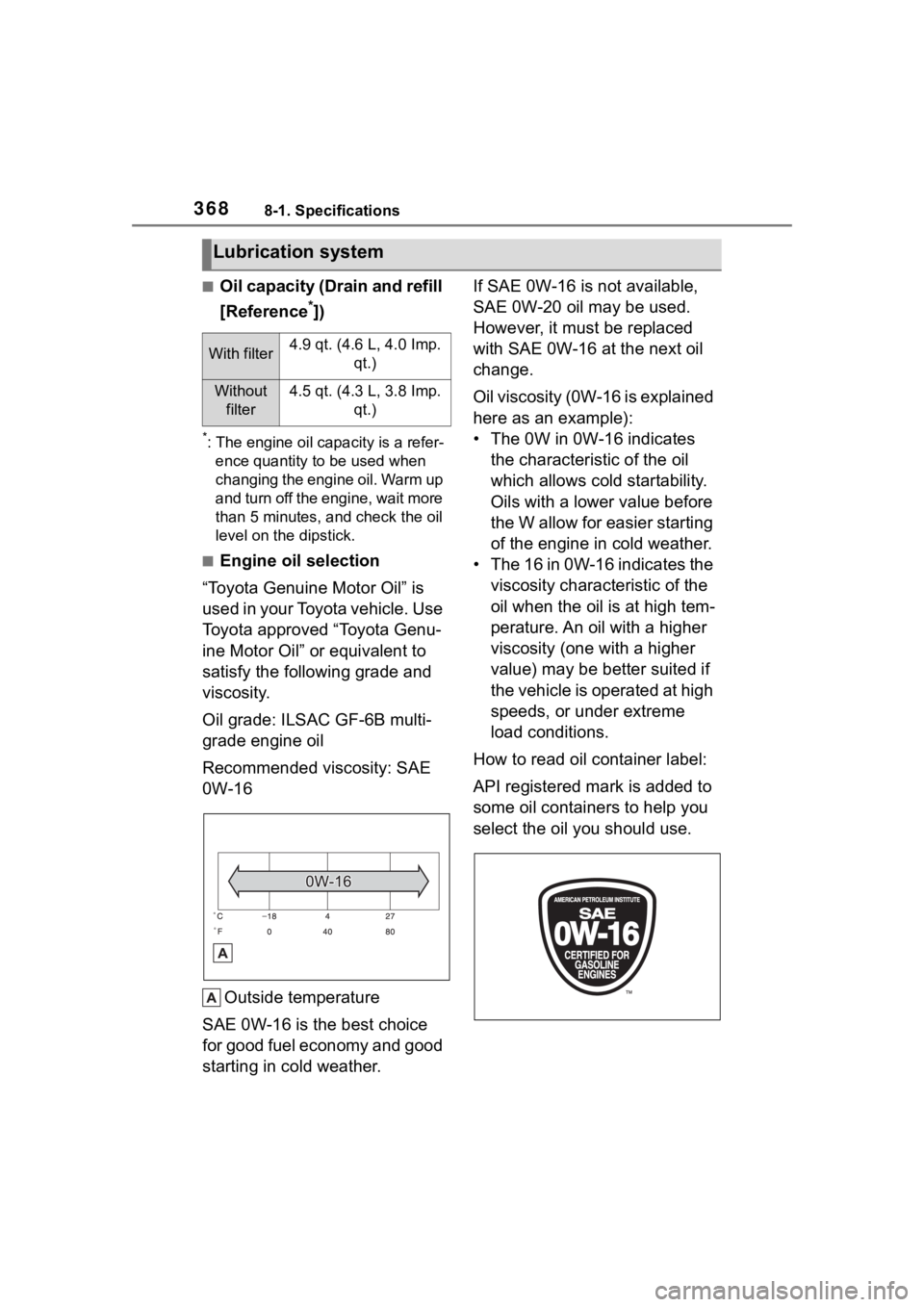

3688-1. Specifications
■Oil capacity (Drain and refill
[Reference
*])
*: The engine oil capacity is a refer-ence quantity to be used when
changing the engine oil. Warm up
and turn off the engine, wait more
than 5 minutes, and check the oil
level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity.
Oil grade: ILSAC GF-6B multi-
grade engine oil
Recommended viscosity: SAE
0W-16
Outside temperature
SAE 0W-16 is the best choice
for good fuel economy and good
starting in cold weather. If SAE 0W-16 is not available,
SAE 0W-20 oil may be used.
However, it must be replaced
with SAE 0W-16 at the next oil
change.
Oil viscosity (0W-16 is explained
here as an example):
• The 0W in 0W-16 indicates
the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher
viscosity (one with a higher
value) may be better suited if
the vehicle is operated at high
speeds, or under extreme
load conditions.
How to read oil container label:
API registered mark is added to
some oil containers to help you
select the oil you should use.
Lubrication system
With filter4.9 qt. (4.6 L, 4.0 Imp. qt.)
Without filter4.5 qt. (4.3 L, 3.8 Imp. qt.)

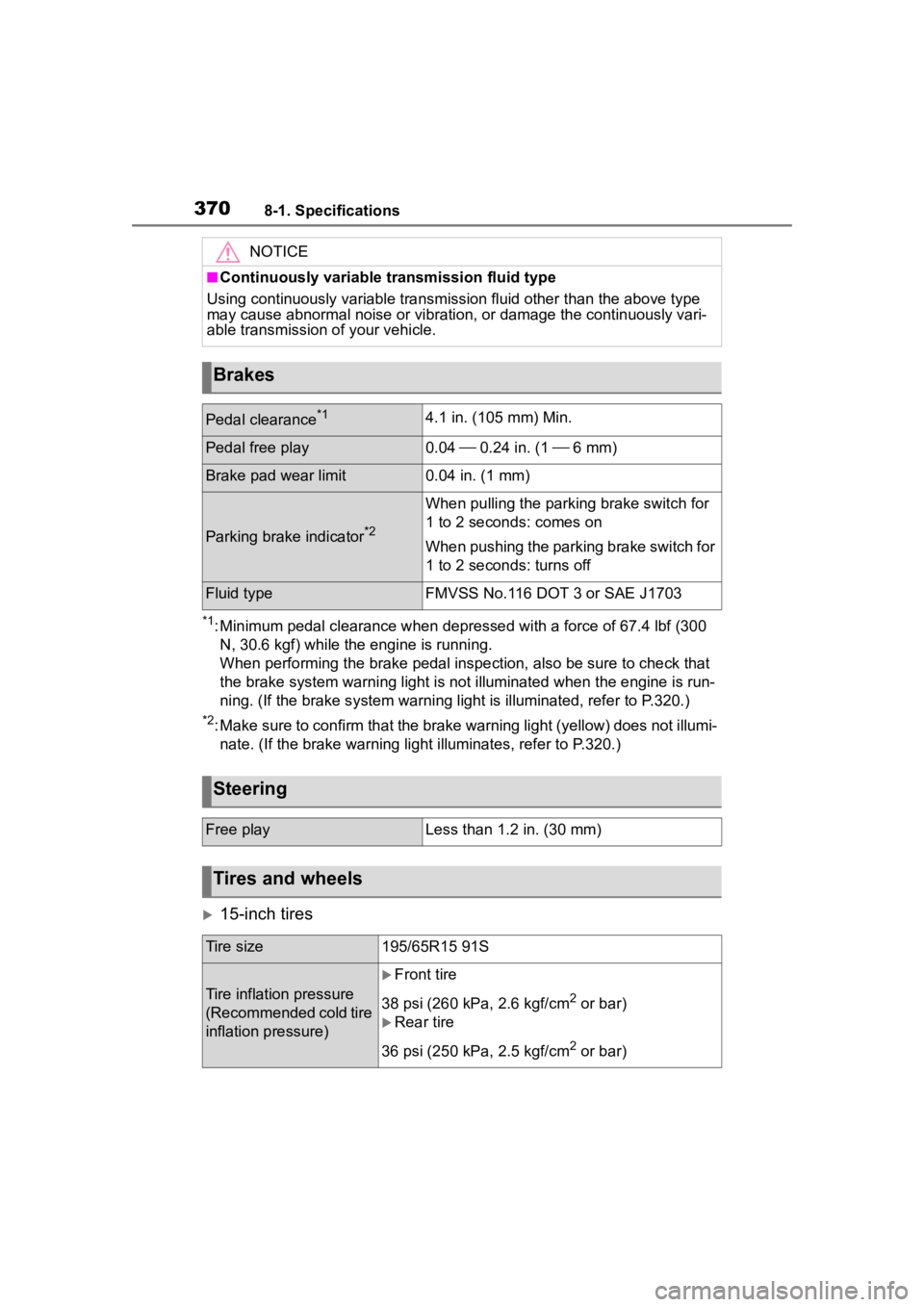

3708-1. Specifications
*1: Minimum pedal clearance when depressed with a force of 67.4 lbf (300
N, 30.6 kgf) while the engine is running.
When performing the brake pedal i nspection, also be sure to check that
the brake system warning light is not illuminated when the engi ne is run-
ning. (If the brake system warning light is illuminated, refer to P.320.)
*2: Make sure to confirm that the brake warning light (yellow) doe s not illumi-
nate. (If the brake warning light illuminates, refer to P.320.)
15-inch tires
NOTICE
■Continuously variable transmission fluid type
Using continuously variable tran smission fluid other than the above type
may cause abnormal noise or vibration, or damage the continuous ly vari-
able transmission of your vehicle.
Brakes
Pedal clearance*14.1 in. (105 mm) Min.
Pedal free play0.04  0.24 in. (1  6 mm)
Brake pad wear limit0.04 in. (1 mm)
Parking brake indicator*2
When pulling th e parking brake switch for
1 to 2 seconds: comes on
When pushing the parking brake switch for
1 to 2 seconds: turns off
Fluid typeFMVSS No.116 DOT 3 or SAE J1703
Steering
Free playLess than 1.2 in. (30 mm)
Tires and wheels
Tire size195/65R15 91S
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
38 psi (260 kPa, 2.6 kgf/cm
2 or bar)
Rear tire
36 psi (250 kPa, 2.5 kgf/cm
2 or bar)

408What to do if... (Troubleshooting)
1-1.What to do if... (Troubleshooting)What to do if... (Troubleshooting)
If you lose your mechanical
keys, new genuine mechani-
cal keys can be made by your
Toyota dealer. ( P.356)
 If you lose your electronic
keys, the risk of vehicle theft
increases significantly. Con-
tact your Toyota dealer imme-
diately. ( P.356)
 Is the electronic key battery
weak or depleted? ( P.304)
 Is the engine switch in ON?
When locking the doors, turn the
engine switch off. ( P.134)
 Is the electronic key left inside
the vehicle?
When locking the doors, make sure
that you have the electronic key on
your person.
 The function may not operate properly due to the condition
of the radio wave. (
P.104)
 Is the child-protector lock set?
The rear door cannot be opened
from inside the vehicle when the
lock is set. Open the rear door from
outside and then unlock the
child-protector lock. ( P.98)
 Did you press the engine
switch while firmly depress-
ing the brake pedal?
( P.133)
 Is the shift lever in P?
( P.133)
 Is the electronic key any-
where detectable inside the
vehicle? ( P.103)
 Is the electronic key battery
weak or depleted?
In this case, the engine can be
started in a temporary way.
(  P.357)
 Is the battery discharged?
( P.358)
If you have a problem,
check the following before
contacting your Toyota
dealer.
The doors cannot be
locked, unlocked, opened
or closed
You lose your keys
The doors cannot be
locked or unlocked
The rear door cannot be
opened
If you think something is
wrong
The engine does not start

409What to do if... (Troubleshooting)
Is the engine switch in ON?
If you cannot release the shift lever
by depressing the brake pedal with
the engine switch in ON. ( P.139)
 Is the window lock switch
pressed?
The power window except for the
one at the driver’s seat cannot be
operated if the win dow lock switch
is pressed. ( P.119)
 The auto power off function
will be operated if the vehicle
is left in ACC or ON mode
(the engine is not running) for
a period of time. ( P.136)
 The seat belt reminder light is
flashing
Are the driver and the front passen-
ger wearing the seat belts?
( P.323)
 The parking brake indicator is
on
Is the parking br ake released?
(  P.142)
Depending on the situation,
other types of warning buzzer
may also sound. ( P.320, 330)
 Did anyone inside the vehicle
open a door during setting the
alarm?
The sensor detects it and the alarm
sounds. ( P. 6 5 )
Do one of the following to deac-
tivate or stop the alarms:
 Unlock the doors.
 Turn the engine switch to
ACC or ON, or start the
engine. (The alarm will be
deactivated or stopped after a
few seconds.)
 Is the electronic key left inside
the vehicle?
Check the message on the
multi-informat ion display. (P.330)
 When a warning light turns on
or a warning message is dis-
played, refer to P.320, 330.
The shift lever cannot be
shifted from P even if you
depress the brake pedal
The windows do not open
or close by operating the
power window switches
The engine switch is
turned off automatically
A warning buzzer sounds
during driving
An alarm is activated and
the horn sounds (vehicles
with an alarm)
A warning buzzer sounds
when leaving the vehicle
A warning light turns on
or a warning message is
displayed

414Alphabetical Index
Ignition switch (engine switch)........................................... 133
Overheating ......................... 362
Tachometer ............................ 72
Engine coolant Capacity ............................... 369
Checking .............................. 277
Preparing and c hecking before
winter.................................. 230
Engine coolant temperature gauge................................. 72, 75
Engine immobilizer system ..... 64
Engine oil Capacity ............................... 368
Checking .............................. 275
Preparing and c hecking before
winter.................................. 230
Warning light ........................ 321
Engine switch ......................... 133 Auto power off function ........ 136
Changing the engine switch modes ................................ 135
If your vehicle has to be stopped in an emergency................. 312
Enhanced VSC ........................ 226
EPS (Electric Power Steering) ............................................... 226Warning light ........................ 322
Event data recorder (EDR)......... 8
F
Flat tire Tire pressure warning system........................................... 285
Vehicles without a spare tire 334
Floor mats ................................. 24
Fluid Brake .................................... 370
Continuously variable transmis-sion..................................... 369
Washer ................................. 281 Fog lights ................................153
Replacing light bulbs ............309
Switch ...................................153
Front fog lights Replacing light bulbs ............309
Switch ...................................153
Front passenger occupant clas- sification system ....................40
Front seats Adjustment ...........................107
Cleaning ...............................262
Correct driving posture ...........25
Head restraints ..................... 110
Seat heaters ....... ..................241
Front side marker lights Light switch...........................148
Front turn signal lights Replacing light bulbs ............309
Turn signal lever ...................141
Fuel Capacity ...............................367
Fuel gauge .......................72, 75
Fuel pump shut off system ...319
Information ......... ..................373
Refueling ..............................157
Type......................................367
Warning light.........................323
Fuel consumption Average fuel economy ......79, 84
Current fuel consumption .79, 84
Fuel economy .....................79, 84
Fuel filler door Refueling ..............................157
Fuel gauge...........................72, 75
Fuel pump shut off system ....319
Fuses .......................................306
G
Gauges ................................72, 75
Glove box ................................246
Glove box light........................246
Grocery bag hooks .................248

419Alphabetical Index
Spare tireInflation pressure.................. 370
Storage location ................... 347
Spark plug ............................... 369
Specifications ......................... 366
Speedometer ...................... 72, 75
Steering wheel Adjustment ........................... 113
Heated steering wheel ......... 241
Meter control switches ..... 78, 83
Stop lights Replacing light bulbs ............ 309
Storage features ..................... 245
Stuck If the vehicle becomes stuck 364
Sun visors ............................... 257
Switches AHB (Automatic High Beam) 150
Brake Hold switch ................ 146
Display change button...... 73, 76
Door lock switches ................. 98
Driving mode select switch... 224
Dynamic radar cruise control switch ................................. 196
Emergency flashers switch .. 312
Engine switch ....................... 133
Heated steering wheel switch ........................................... 241
Ignition switch....................... 133
Instrument panel light control switches ......................... 74, 77
Light switches....................... 148
LTA (Lane Tracing Assist) switch ........................................... 180
Meter control switches ..... 78, 83
Outside rear view mirror switches ............................. 115
Paddle shift switches.... 139, 140
Parking brake switch ............ 142
Power door lock switch .......... 98
Power window switches ....... 117
RCTA switch ......................... 215 Rear window and outside rear
view mirror defoggers switch...........................................234
Seat heater switches ............241
“SOS” button ..........................60
Vehicle-to-vehicle distance switch .................................198
VSC OFF switch ...................226
Window lock switch .............. 119
Windshield wiper and washer switch .................................154
T
Tachometer ...............................72
Tail lights Light switch...........................148
Replacing light bulbs ............309
Theft deterrent system Alarm ......................................65
Engine immobilizer system .....64
Tire inflation pres sure ............299
Maintenance data .................370
Warning light.........................324
Tire information ......................375 Glossary ...............................379
Size ......................................377
Tire identification number .....377
Uniform Tire Quality Grading 378
Tire pressure warning system Function................................285
Installing tire p ressure warning
valves and transmitters ......287
Registering ID codes ............293
Registration of the position of each wheel .........................288
Setting the tire pre ssure .......290
Warning light.........................324
Tires Chains ..................................231
Checking ..............................282
Emergency tire puncture repair kit ........................................334

421Alphabetical Index
Open window ....................... 118
PDA (Proactive Driving Assist)........................................... 325
Seat belt ............................... 323
Warning lights ........................ 320 ABS ...................................... 322
Brake hold operated indicator........................................... 327
Brake Override System ........ 322
Brake system ....................... 320
Charging system .................. 321
Cruise control indicator ........ 325
Drive-Start Control ............... 322
Driving assist information indica- tor ....................................... 326
Dynamic radar cruise control indicator.............................. 325
Electric power steering ......... 322
High coolant temperature ..... 320
LDA indicator ........................ 325
Low engine oil pressure ....... 321
Low fuel level ....................... 323
LTA indicator ......................... 324
Malfunction indicator lamp ... 321
Parking brake indicator ........ 326
PDA indicator ....................... 325
Pre-collision system ............. 324
Seat belt reminder light ........ 323
Slip indicator......................... 326
SRS ...................................... 321
Tire pressure ........................ 324
Warning messages................. 330
Washer Checking .............................. 281
Preparing and c hecking before
winter.................................. 230
Switch................................... 154
Washing and waxing .............. 260
Weight Cargo capacity ..................... 131
Load limits ............................ 131
Weight .................................. 366 Wheels .....................................301
Replacing .............................301
Size ......................................370
Window lock switch ............... 119
Windows Power windows .................... 117
Rear window defogger .........237
Washer .................................154
Windshield wipers ..................154
Winter driving tips ..................230
Wireless charger.....................251
Wireless remote control Battery-Saving Function .......103
Locking/Unlocking ..................93
Replacing the battery ...........304
Refer to “MULTIMEDIA OWNER’S MANUAL” for
information regarding the
equipment listed below.
· Navigation system
· Audio/visual system
· Rear view monitor system
