NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”

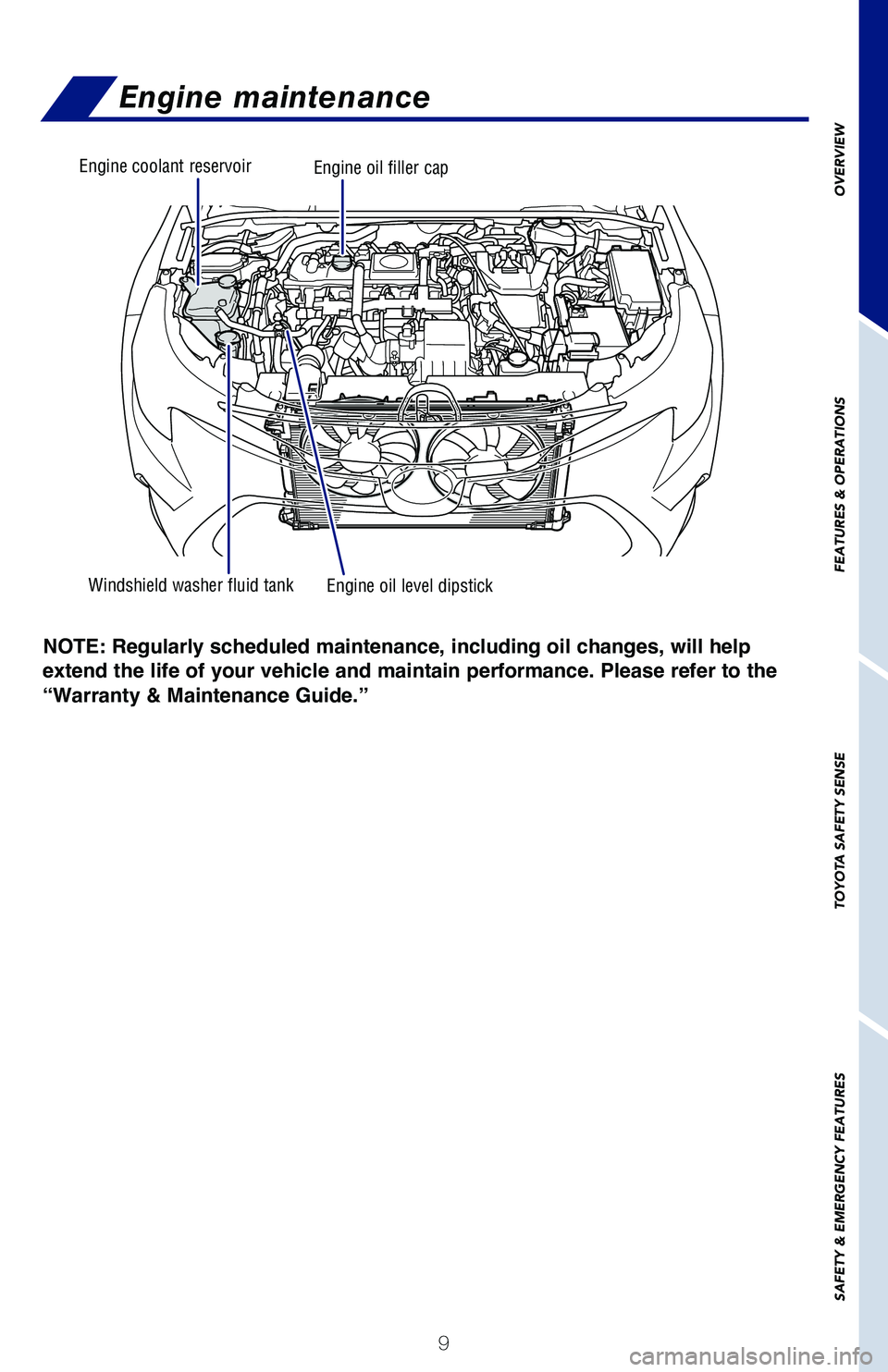

Engine maintenance
Windshield washer fluid tank
Engine coolant reservoirEngine oil filler cap
Engine oil level dipstick
117387_A_MY20_Corolla_HV_QRG_V4_ML_1219_TEXT_R1.indd 912/21/18 8:26 PM

10
FEATURES & OPERATIONS
TIPS FOR IMPROVED FUEL ECONOMY
STARTING YOUR VEHICLE
NOTE: Fuel consumption and energy information of the Hybrid System are
shown on the Entune™ 3.0 Audio system screen or the navigation system.
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the vehicle.
To conserve energy, when the brakes are applied the braking force generates
electricity which is then sent to the traction battery. In addition, the engine shuts off
when the vehicle is stopped. The benefits are better fuel economy, reduced vehicle
emissions and improved performance.
- Ensure tire pressures are maintained at levels specified in the Owner’s Manual.
- When possible, link trips to reduce engine cold starts.
- Avoid driving at speeds that are higher than necessary, especially on the highway.
- When possible, avoid sudden stops to maximize regenerative braking energy.
- Minimize use of the air conditioning.

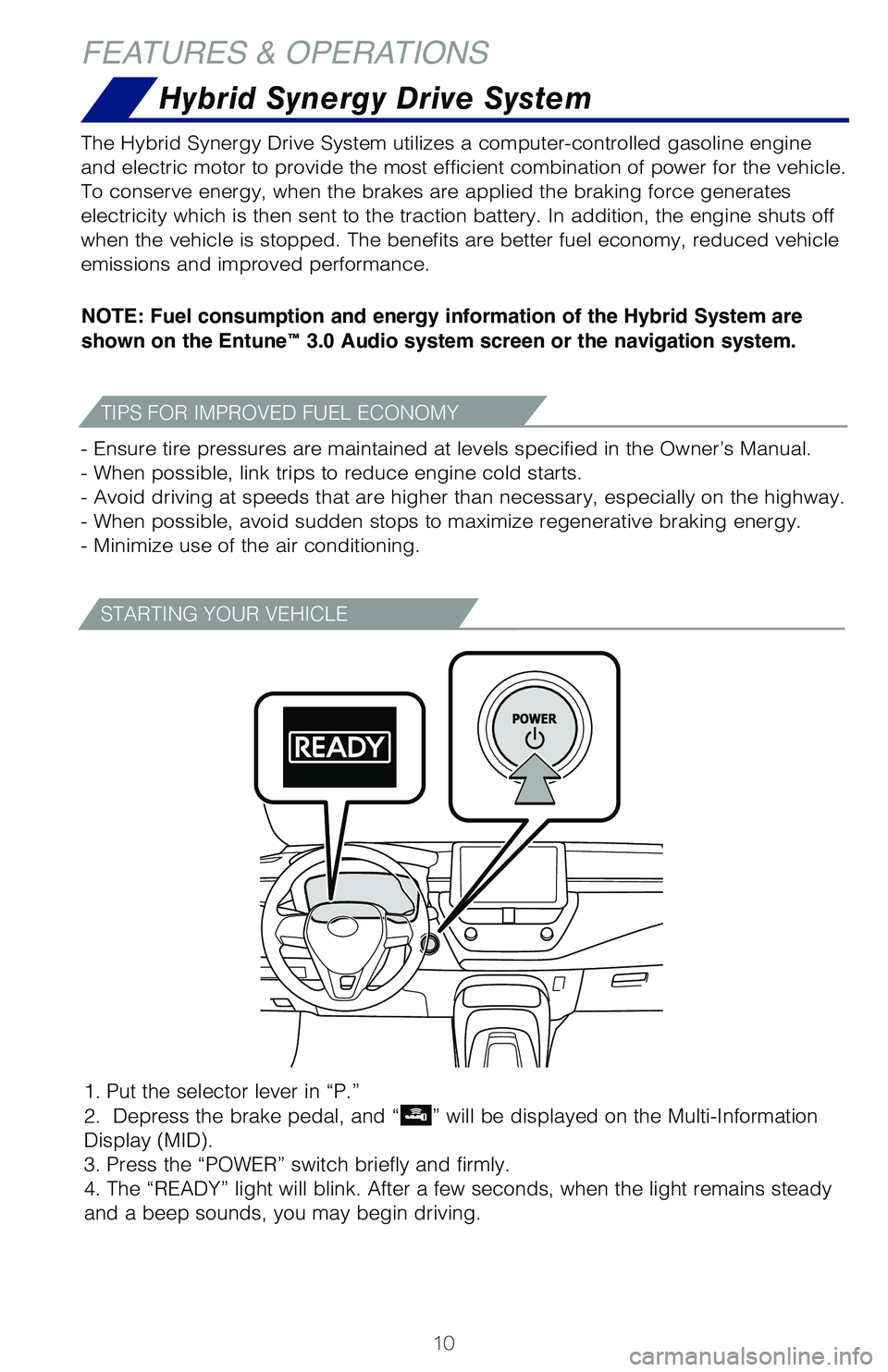

Hybrid Synergy Drive System
1. Put the selector lever in “P.”
2. Depress the brake pedal, and “
” will be displayed on the Multi-Information
Display (MID).
3. Press the “POWER” switch briefly and firmly.
4. The “READY” light will blink. After a few seconds, when the light remains steady
and a beep sounds, you may begin driving.
117387_A_MY20_Corolla_HV_QRG_V4_ML_1219_TEXT_R1.indd 1012/21/18 8:26 PM

11
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Hybrid transmission
* The “POWER” switch must be in the “IGNITION ON” mode and the brake pedal
depressed to shift from Park.
Park*P
3FWFSTFR
/FVUSBMN
%SJWFD
&OHJOF#SBLJOHB

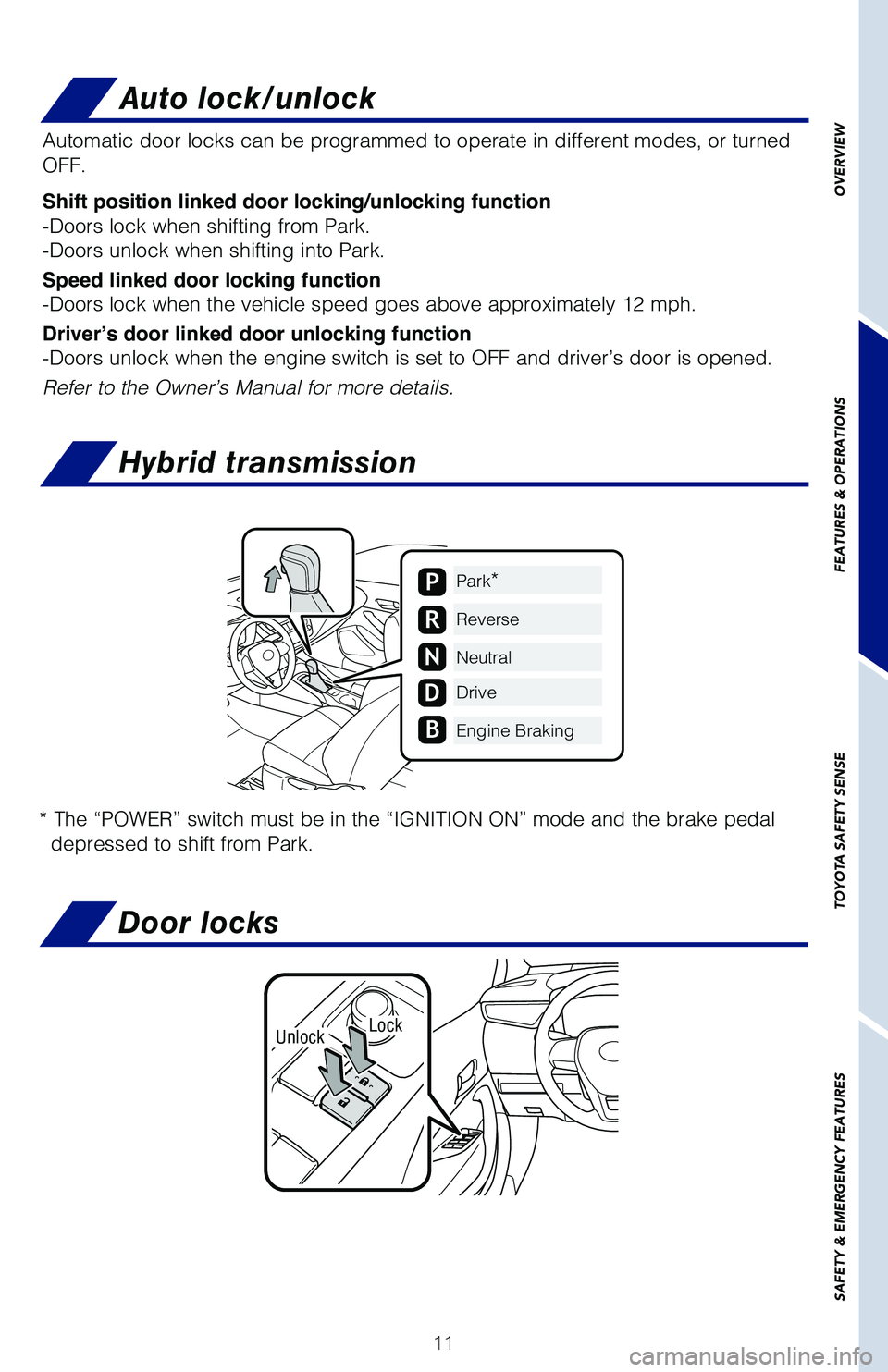

Auto lock/unlock
Automatic door locks can be programmed to operate in different modes, or turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed goes above approximately 12 mph.
Driver’s door linked door unlocking function
-Doors unlock when the engine switch is set to OFF and driver’s door is opened.
Refer to the Owner’s Manual for more details.
LockUnlock
Door locks
117387_A_MY20_Corolla_HV_QRG_V4_ML_1219_TEXT_R1.indd 1112/21/18 8:26 PM

12

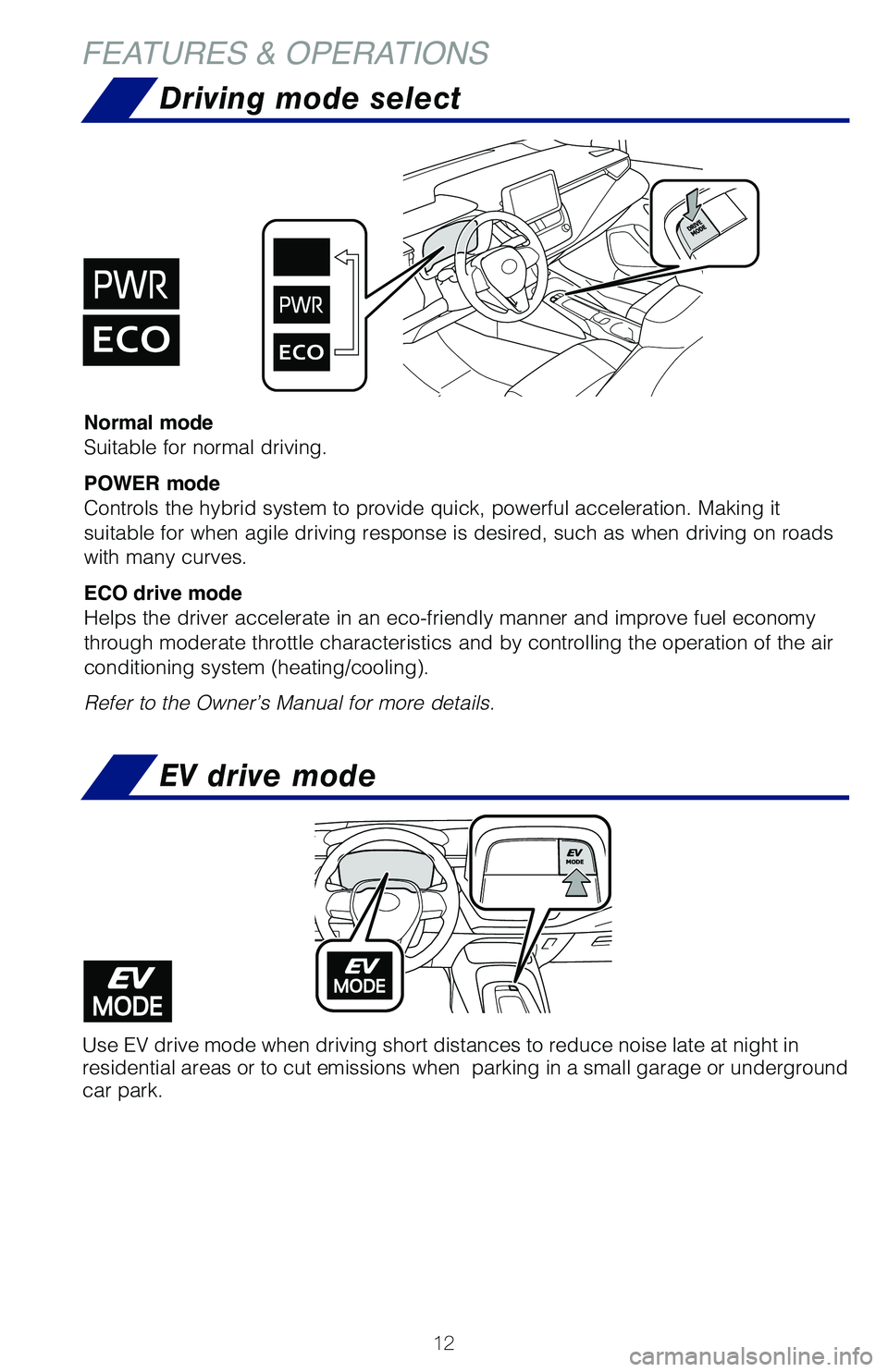

Driving mode select
Normal mode
Suitable for normal driving.
POWER mode
Controls the hybrid system to provide quick, powerful acceleration. Making it
suitable for when agile driving response is desired, such as when driving on roads
with many curves.
ECO drive mode
Helps the driver accelerate in an eco-friendly manner and improve fuel economy
through moderate throttle characteristics and by controlling the operation of the air
conditioning system (heating/cooling).
Refer to the Owner’s Manual for more details.
EV drive mode
Use EV drive mode when driving short distances to reduce noise late at night in
residential areas or to cut emissions when parking in a small garage or underground
car park.
FEATURES & OPERATIONS
117387_A_MY20_Corolla_HV_QRG_V4_ML_1219_TEXT_R1.indd 1212/21/18 8:26 PM

13
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

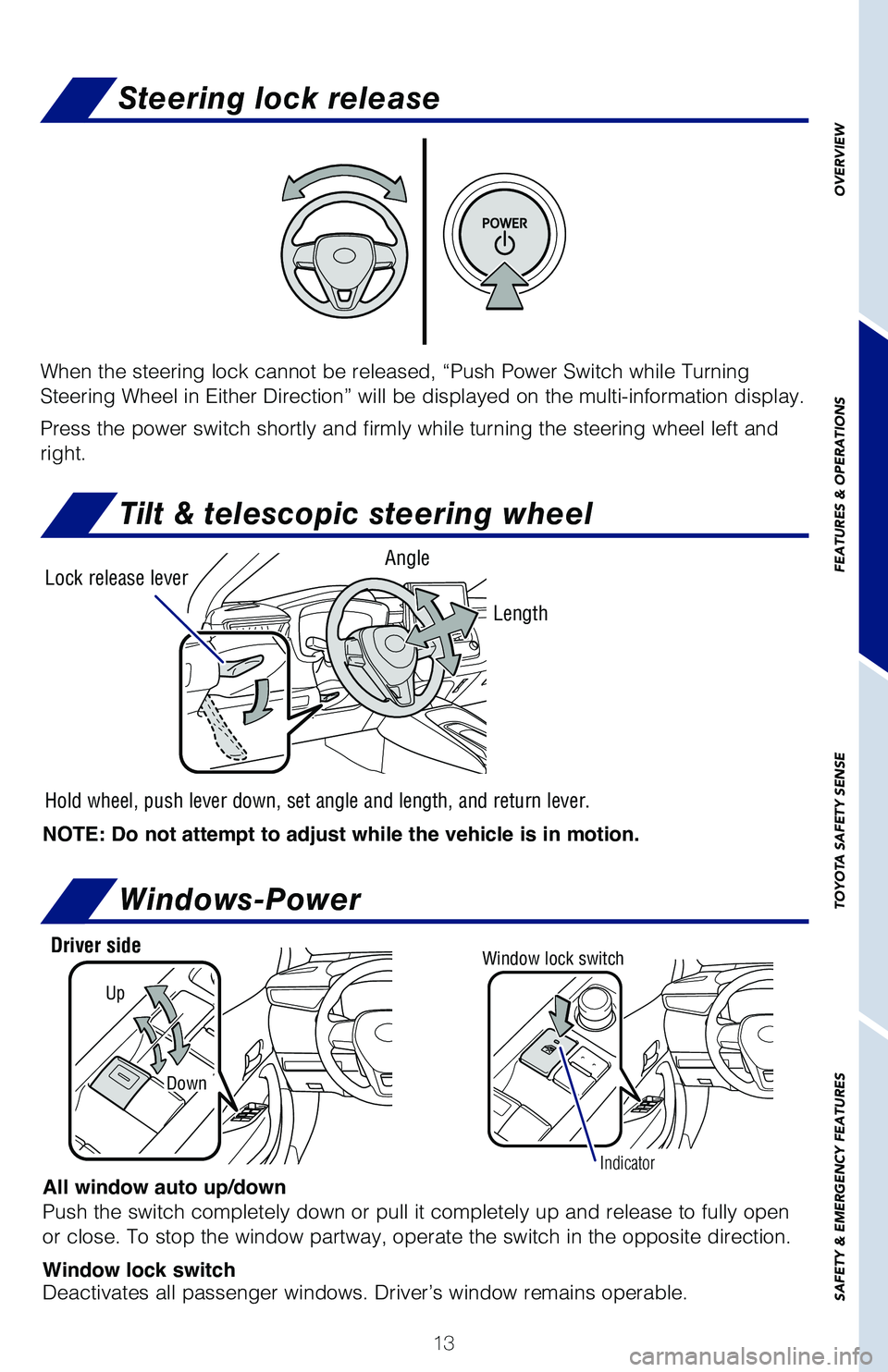

Tilt & telescopic steering wheel
NOTE: Do not attempt to adjust while the vehicle is in motion. Lock release lever
Angle
Length
Hold wheel, push lever down, set angle and length, and return lever.
Windows-Power
Up
Down
Driver sideWindow lock switch
All window auto up/down
Push the switch completely down or pull it completely up and release to fully open
or close. To stop the window partway, operate the switch in the opposite direction.
Window lock switch
Deactivates all passenger windows. Driver’s window remains operable.
When the steering lock cannot be released, “Push Power Switch while Turning
Steering Wheel in Either Direction” will be displayed on the multi-information display.
Press the power switch shortly and firmly while turning the steering wheel left and
right.
Steering lock release
Indicator
117387_A_MY20_Corolla_HV_QRG_V4_ML_1219_TEXT_R1.indd 1312/21/18 8:26 PM

14
FEATURES & OPERATIONS

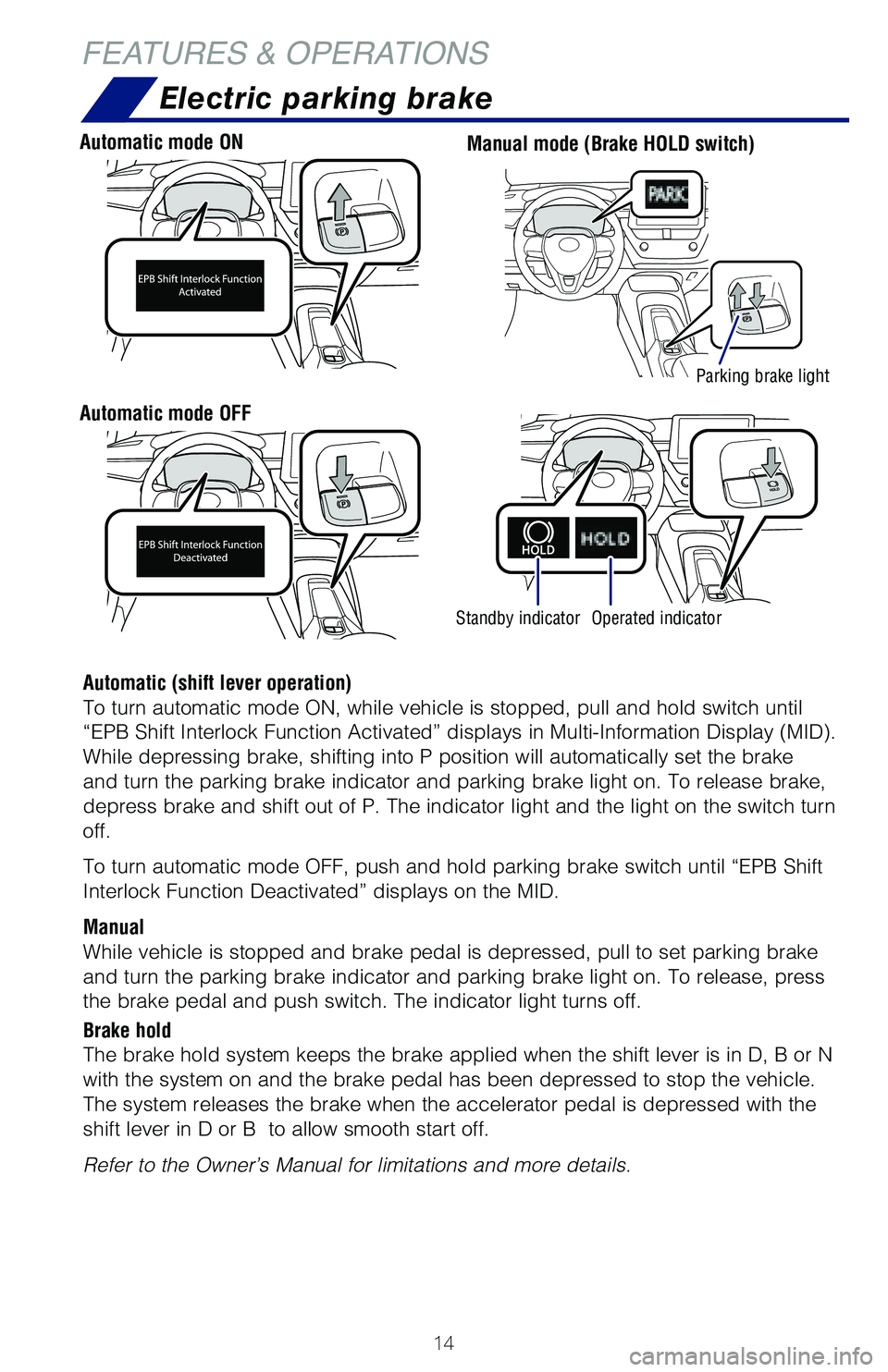

Electric parking brake
Driver side
Driver side
Automatic mode ON
Automatic mode OFF
Manual mode (Brake HOLD switch)
Automatic (shift lever operation)
To turn automatic mode ON, while vehicle is stopped, pull and hold switch until
“EPB Shift Interlock Function Activated” displays in Multi-Information Display (MID).
While depressing brake, shifting into P position will automatically set the brake
and turn the parking brake indicator and parking brake light on. To release brake,
depress brake and shift out of P. The indicator light and the light on the switch turn
off.
To turn automatic mode OFF, push and hold parking brake switch until “EPB Shift
Interlock Function Deactivated” displays on the MID.
Manual
While vehicle is stopped and brake pedal is depressed, pull to set parking brake
and turn the parking brake indicator and parking brake light on. To release, press
the brake pedal and push switch. The indicator light turns off.
Brake hold
The brake hold system keeps the brake applied when the shift lever is in D, B or N
with the system on and the brake pedal has been depressed to stop the vehicle.
The system releases the brake when the accelerator pedal is depressed with the
shift lever in D or B to allow smooth start off.
Refer to the Owner’s Manual for limitations and more details.
Standby indicatorOperated indicator
Parking brake light
117387_A_MY20_Corolla_HV_QRG_V4_ML_1219_TEXT_R1.indd 1412/21/18 8:26 PM

15
Driving support system status display area
Content display area
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Push “” or “” and “” on steering wheel to change and select information in
the following:
Multi-Information Display (MID)
Meter control switches 7-inch display
Previous screen
Enter/Select
Scroll/search screens
Driving support system information display Driving information display
Vehicle information display
Audio system-linked display
Settings display
Warning message display
117387_A_MY20_Corolla_HV_QRG_V4_ML_1219_TEXT_R1.indd 1512/21/18 8:26 PM

16

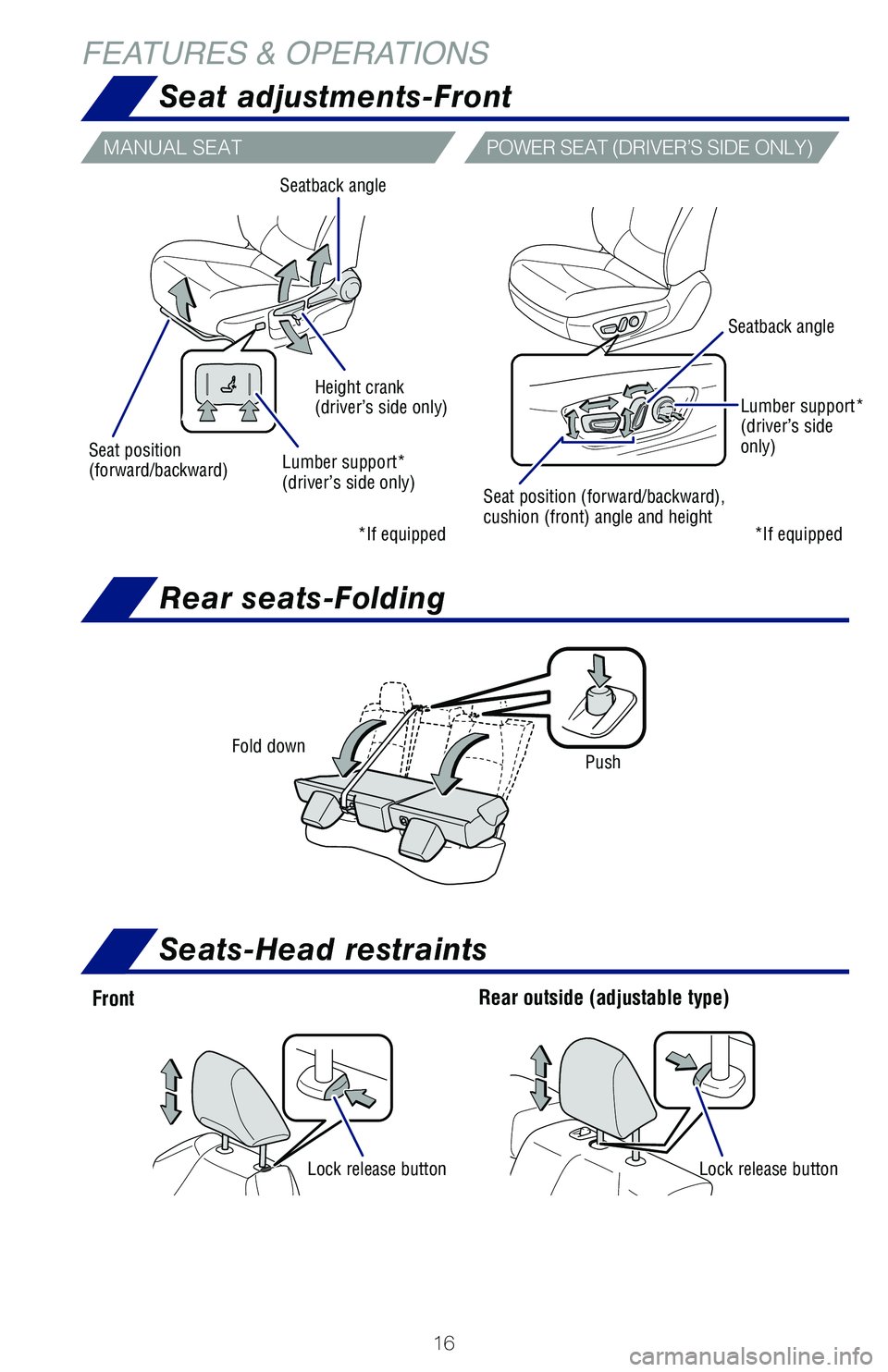

FEATURES & OPERATIONSSeat adjustments-Front
Front Rear outside (adjustable type)
Lock release button
Lock release button
Fold down
Push
MANUAL SEATPOWER SEAT (DRIVER’S SIDE ONLY)
Rear seats-Folding
Seats-Head restraints
Lumber support*
(driver’s side
only)
Lumber support*
(driver’s side only)
Seat position
(forward/backward) Height crank
(driver’s side only)
Seatback angle
Seat position (forward/backward),
cushion (front) angle and height Seatback angle
*If equipped
*If equipped
117387_A_MY20_Corolla_HV_QRG_V4_ML_1219_TEXT_R1.indd 1612/21/18 8:26 PM

17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
-Daytime Running Light system (DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at night.
-Automatic light cut off system Automatically turns lights off after 30 second delay, or lock switch on remote is pushed after all doors are locked.
-Automatic High Beam (AHB) system Automatically switches between high and low beams as appropriate for enhanced vision at night.
Refer to Toyota Safety Sense™ (TSS) in this guide or the Owner’s Manual for
more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to the Owner’s Manual for details.
Headlights
AUTO
OFF
Parking lightsLow beam
(Original position)
or
High beam (Push)High beam flasher
(Pull)
Automatic High Beam*

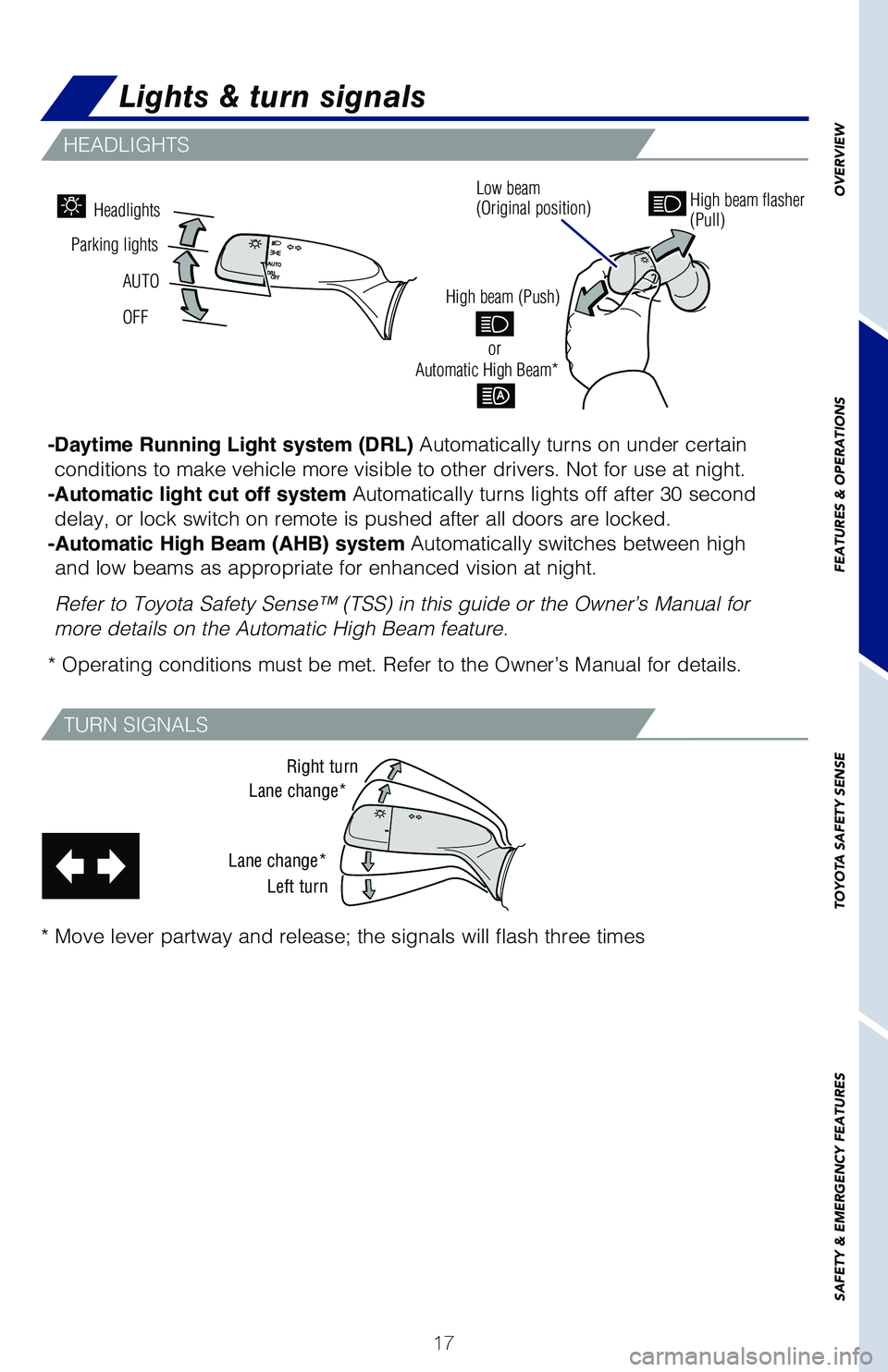

Lights & turn signals
HEADLIGHTS
TURN SIGNALS
Right turn
Lane change*
Lane change* Left turn
* Move lever partway and release; the signals will flash three times
Lumber support*
(driver’s side
only)
117387_A_MY20_Corolla_HV_QRG_V4_ML_1219_TEXT_R1.indd 1712/21/18 8:26 PM

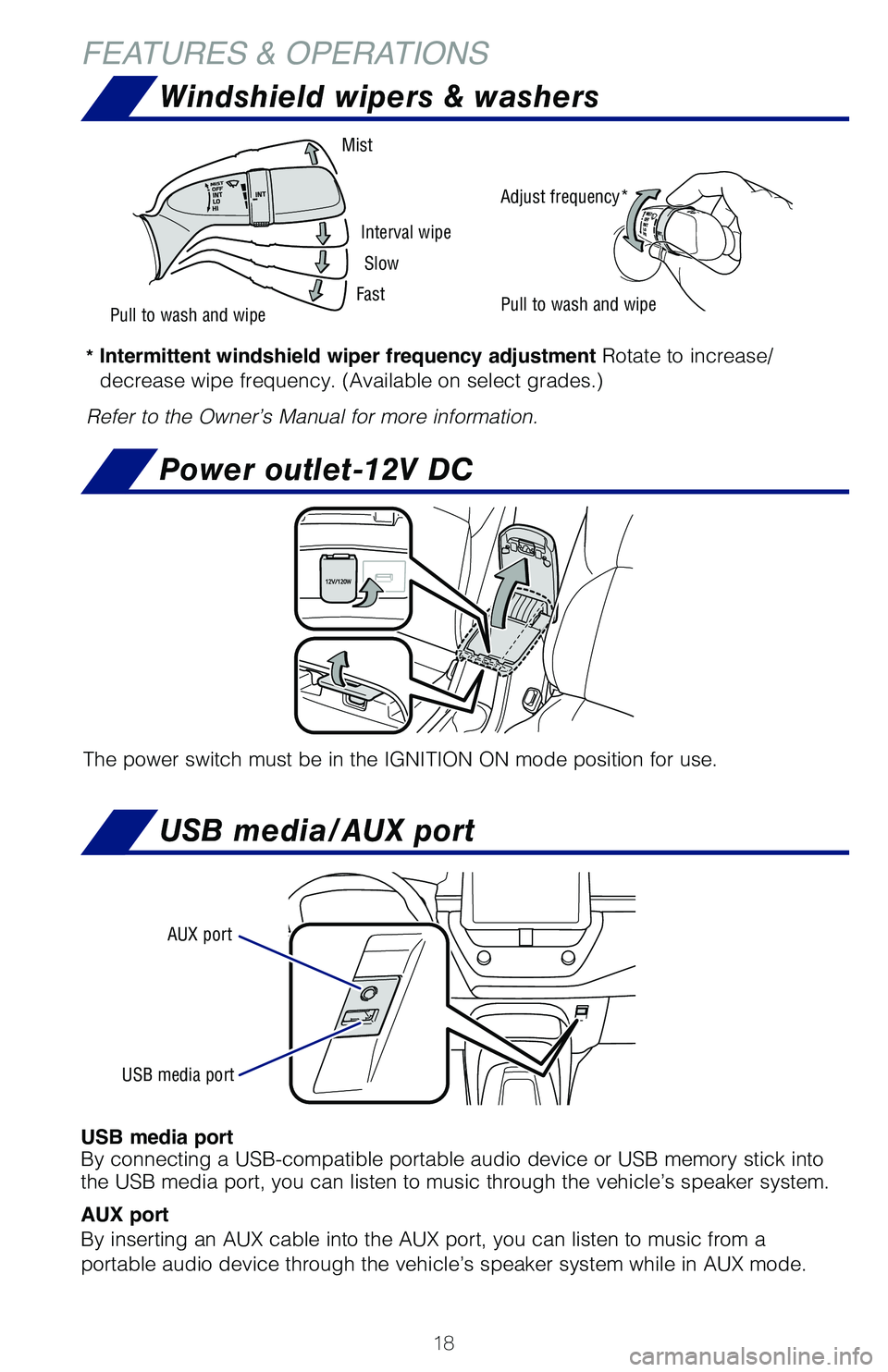

18
FEATURES & OPERATIONS
USB media port
By connecting a USB-compatible portable audio device or USB memory stick into
the USB media port, you can listen to music through the vehicle’s speaker system.
AUX port
By inserting an AUX cable into the AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in AUX mode.The power switch must be in the IGNITION ON mode position for use.
Interval wipe
Mist
Slow
Fast
Pull to wash and wipe
Windshield wipers & washers
* Intermittent windshield wiper frequency adjustment Rotate to increase/ decrease wipe frequency. (Available on select grades.)
Refer to the Owner’s Manual for more information.
Adjust frequency*
Pull to wash and wipe
USB media port AUX port
Power outlet-12V DC
USB media/AUX port
