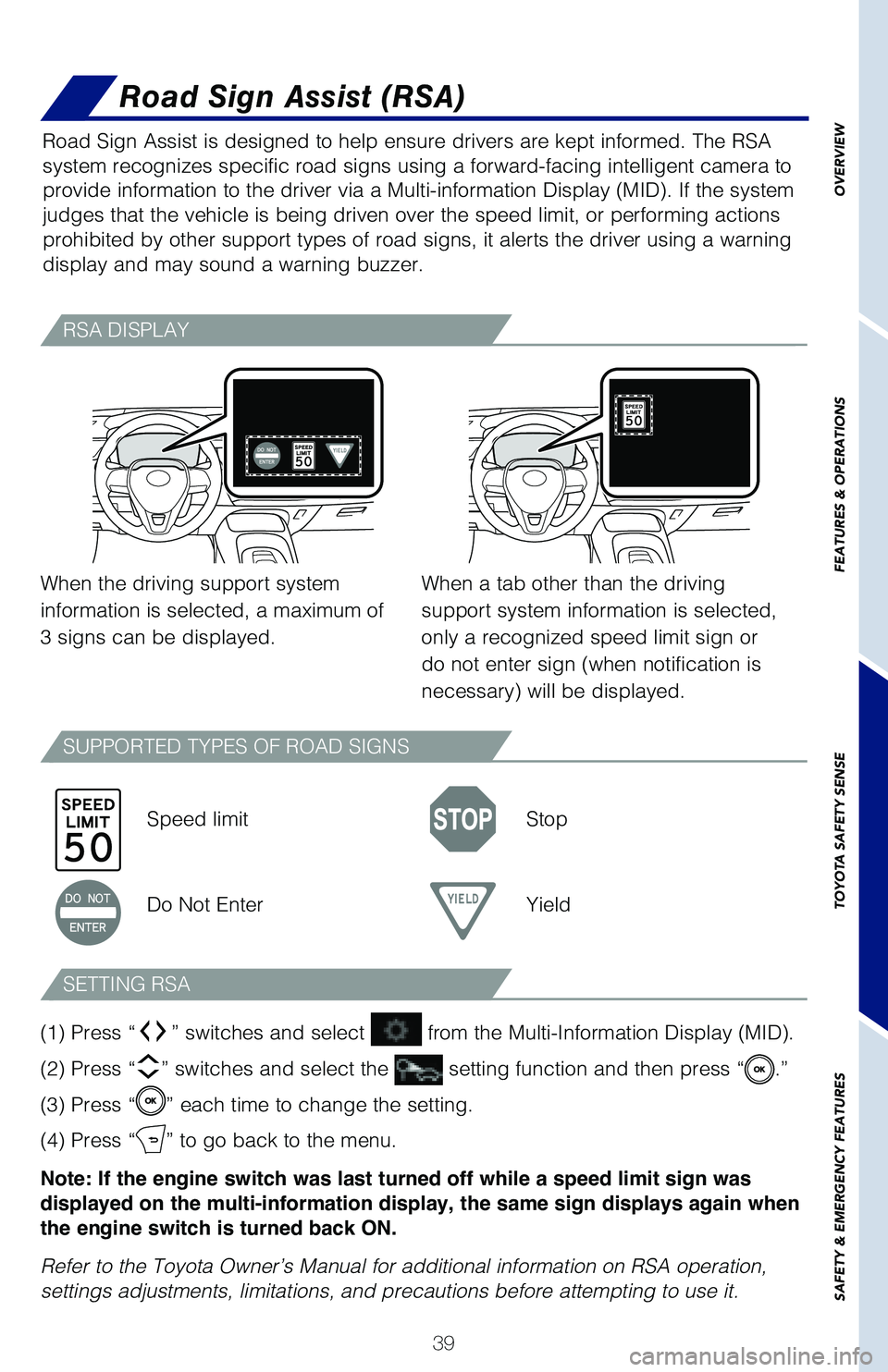

Road Sign Assist (RSA)
Road Sign Assist is designed to help ensure drivers are kept informed. The RSA
system recognizes specific road signs using a forward-facing intelligent camera to
provide information to the driver via a Multi-information Display (MID). If the system
judges that the vehicle is being driven over the speed limit, or performing actions
prohibited by other support types of road signs, it alerts the driver using a warning
display and may sound a warning buzzer.
RSA DISPLAY
SUPPORTED TYPES OF ROAD SIGNS
SETTING RSA
When the driving support system
information is selected, a maximum of
3 signs can be displayed.
Speed limit Stop
Do Not Enter Yield
When a tab other than the driving
support system information is selected,
only a recognized speed limit sign or
do not enter sign (when notification is
necessary) will be displayed.
(1) Press “
” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select the setting function and then press “.”
(3) Press “
” each time to change the setting.
(4) Press “
” to go back to the menu.
Note: If the engine switch was last turned off while a speed limit sign was
displayed on the multi-information display, the same sign displays again when
the engine switch is turned back ON.
Refer to the Toyota Owner’s Manual for additional information on RSA operation,
settings adjustments, limitations, and precautions before attempting to use it.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
117387_A_MY20_Corolla_HV_QRG_V4_ML_1219_TEXT_R1.indd 3912/21/18 8:26 PM

41
40

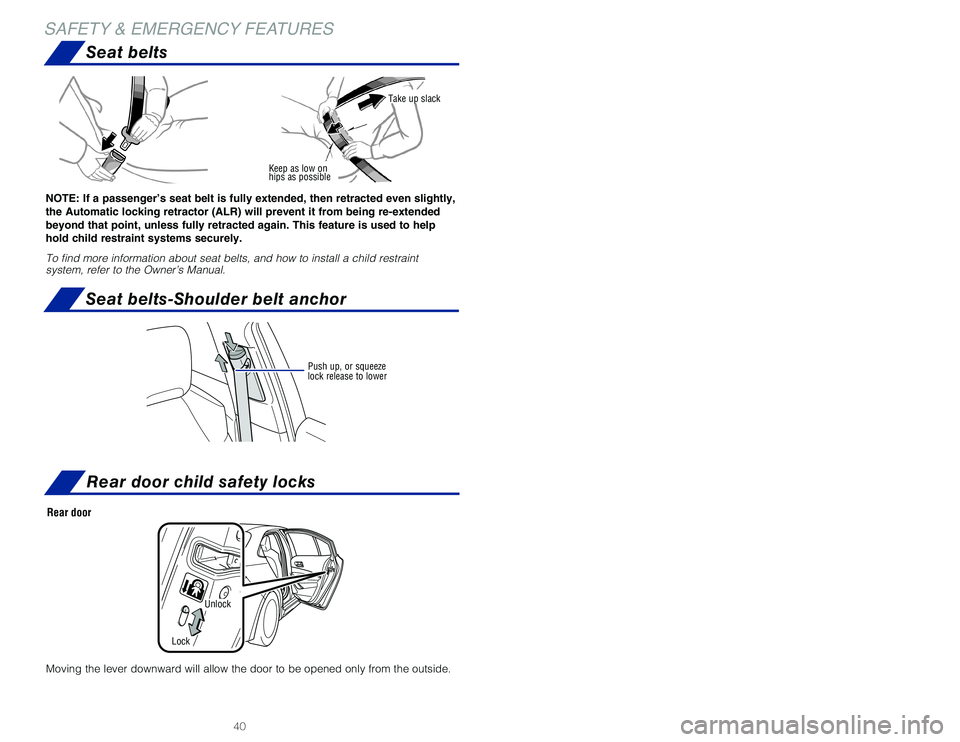

Trunk-Internal release
PullRear door child safety locks
Keep as low on
hips as possible
Take up slack
NOTE: If a passenger’s seat belt is fully extended, then retracted ev\
en slightly,
the Automatic locking retractor (ALR) will prevent it from being re-ex\
tended
beyond that point, unless fully retracted again. This feature is used to\
help
hold child restraint systems securely.
To find more information about seat belts, and how to install a child re\
straint
system, refer to the Owner’s Manual.
Moving the lever downward will allow the door to be opened only from the\
outside.
Push up, or squeeze lock release to lower
Seat belts-Shoulder belt anchor
Seat belts
Rear door
Unlock
Lock
Safety Connect (if equipped)
Safety Connect is a subscription-based telematics service that uses Glob\
al
Positioning System (GPS) data and embedded cellular technology to prov\
ide safety
and security features to subscribers. Safety Connect is supported by Toy\
ota’s
designated response center, which operates 24 hours per day, 7 days per \
week.
Services for subscribers include:
• Automatic collision notification
• Stolen vehicle location
• Emergency assistance (“SOS” button)
• Enhanced roadside assistance
Microphone
LED light indicators
“SOS” button
Contact your dealer for more information about Safety Connect.
For details, refer to the “Owner’s Manual” or visit www.Toyota.com/safety-connect.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
SAFETY & EMERGENCY FEATURES

41
SAFETY & EMERGENCY FEATURESTrunk-Internal release
Pull
Safety Connect (if equipped)

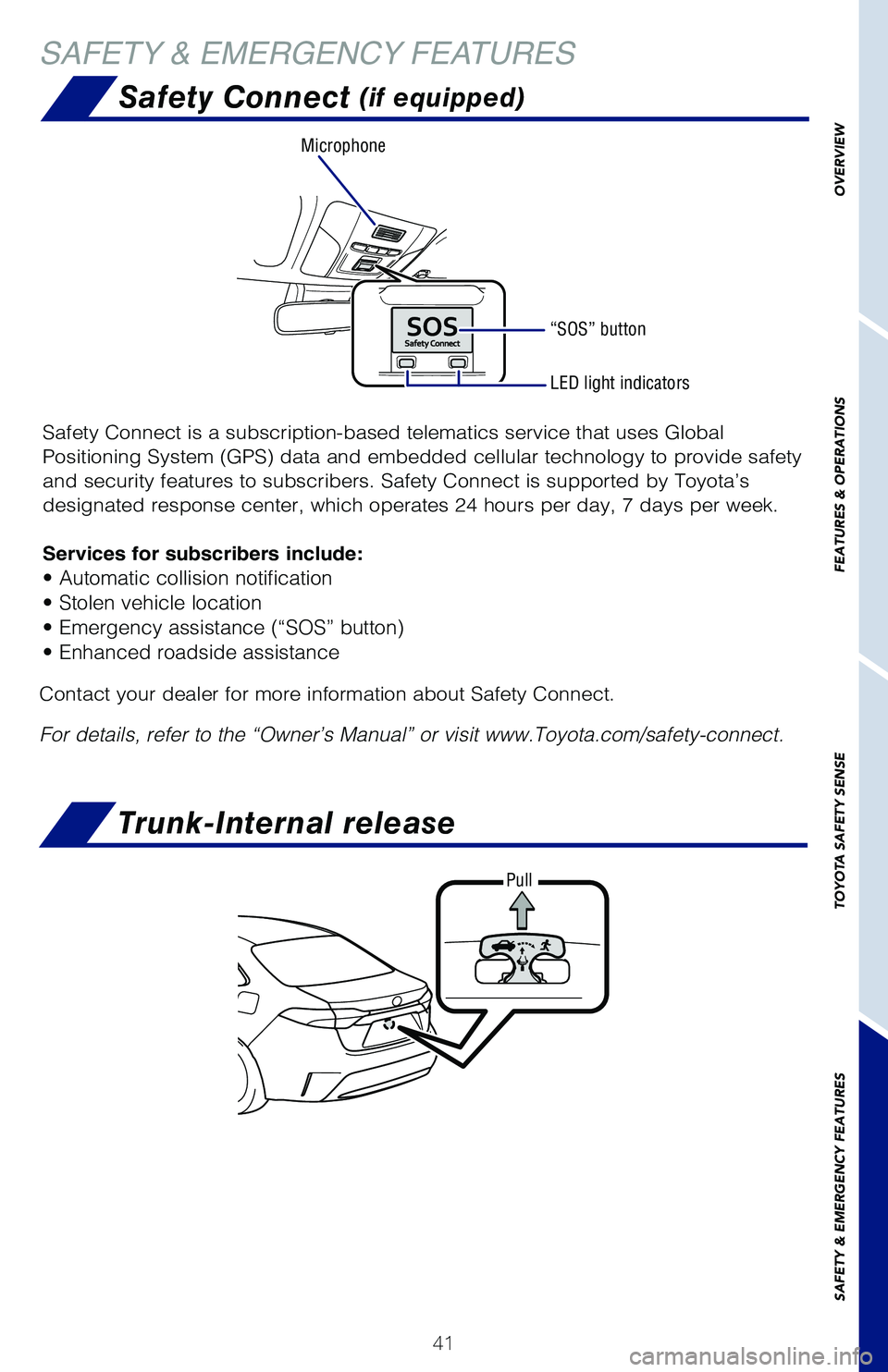

Safety Connect is a subscription-based telematics service that uses Global
Positioning System (GPS) data and embedded cellular technology to provide safety
and security features to subscribers. Safety Connect is supported by Toyota’s
designated response center, which operates 24 hours per day, 7 days per week.
Services for subscribers include:
• Automatic collision notification
• Stolen vehicle location
• Emergency assistance (“SOS” button)
• Enhanced roadside assistance
Microphone
LED light indicators
“SOS” button
Contact your dealer for more information about Safety Connect.
For details, refer to the “Owner’s Manual” or visit www.Toyota.com/safety-connect.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
117387_A_MY20_Corolla_HV_QRG_V4_ML_1219_TEXT_R1.indd 4112/21/18 8:26 PM

42
SAFETY & EMERGENCY FEATURES

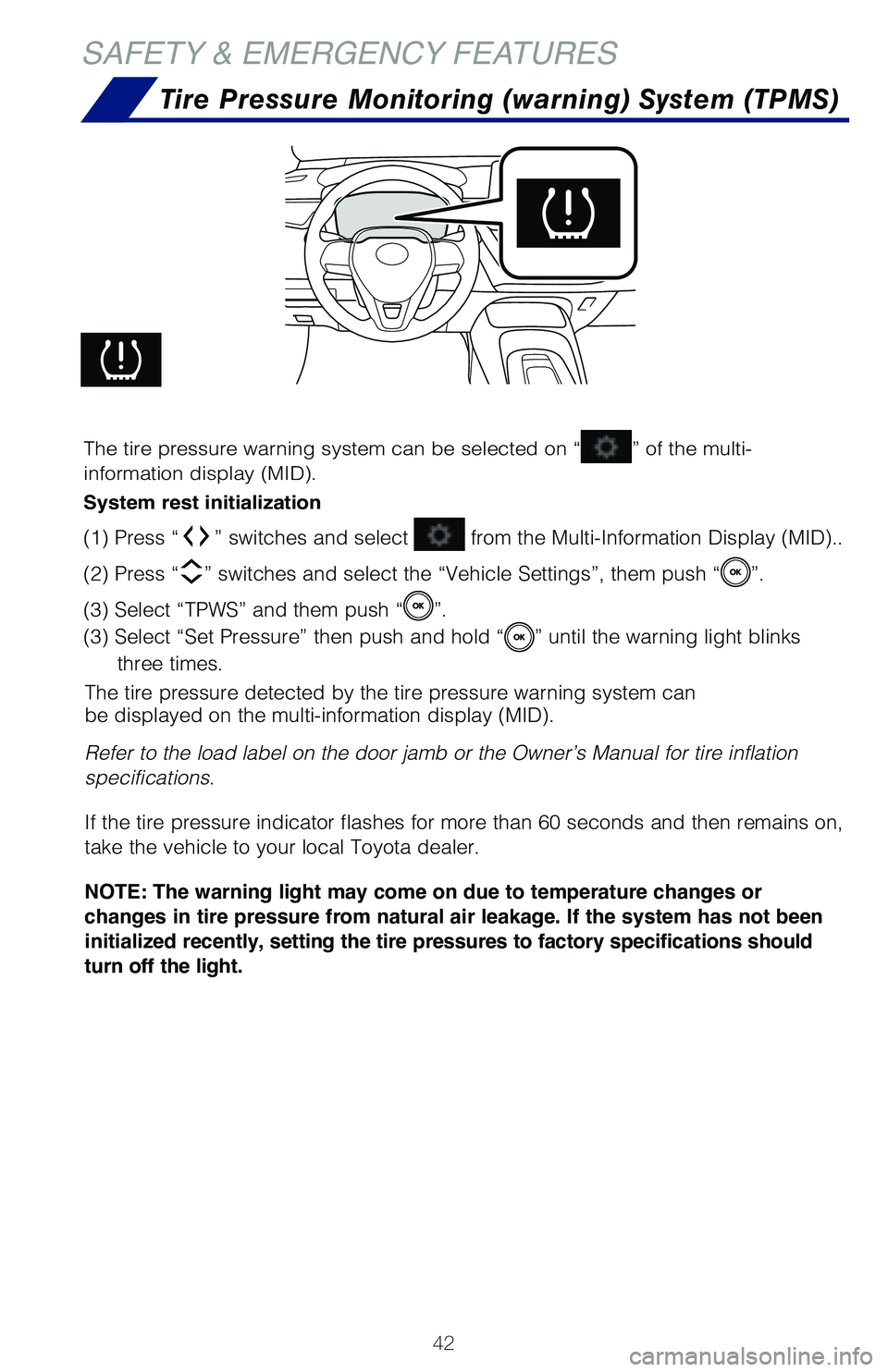

Tire Pressure Monitoring (warning) System (TPMS)
The tire pressure detected by the tire pressure warning system can
be displayed on the multi-information display (MID).
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains on,
take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not been
initialized recently, setting the tire pressures to factory specifications should
turn off the light.
The tire pressure warning system can be selected on “” of the multi-
information display (MID).
System rest initialization
(1) Press “” switches and select from the Multi-Information Display (MID)..
(2) Press “
” switches and select the “Vehicle Settings”, them push “”.
(3) Select “TPWS” and them push “
”.
(3) Select “Set Pressure” then push and hold “
” until the warning light blinks
three times.
117387_A_MY20_Corolla_HV_QRG_V4_ML_1219_TEXT_R1.indd 4212/21/18 8:26 PM

43
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

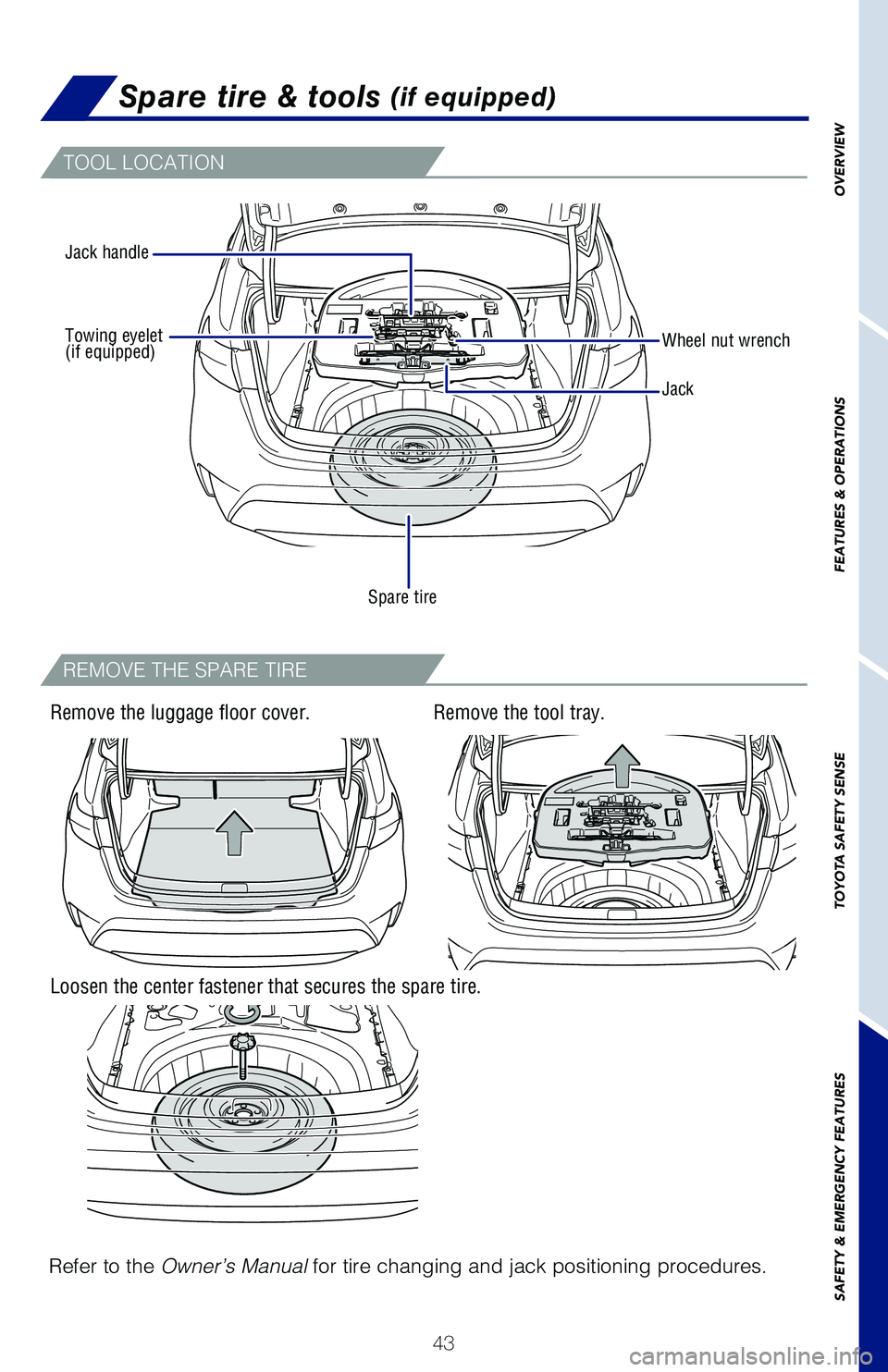

Spare tire & tools (if equipped)
TOOL LOCATION
REMOVE THE SPARE TIRE
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
Remove the luggage floor cover.
Loosen the center fastener that secures the spare tire.
Remove the tool tray.
Wheel nut wrench
Jack
Towing eyelet
(if equipped) Jack handle
Spare tire
117387_A_MY20_Corolla_HV_QRG_V4_ML_1219_TEXT_R1.indd 4312/21/18 8:26 PM

44
SAFETY & EMERGENCY FEATURES

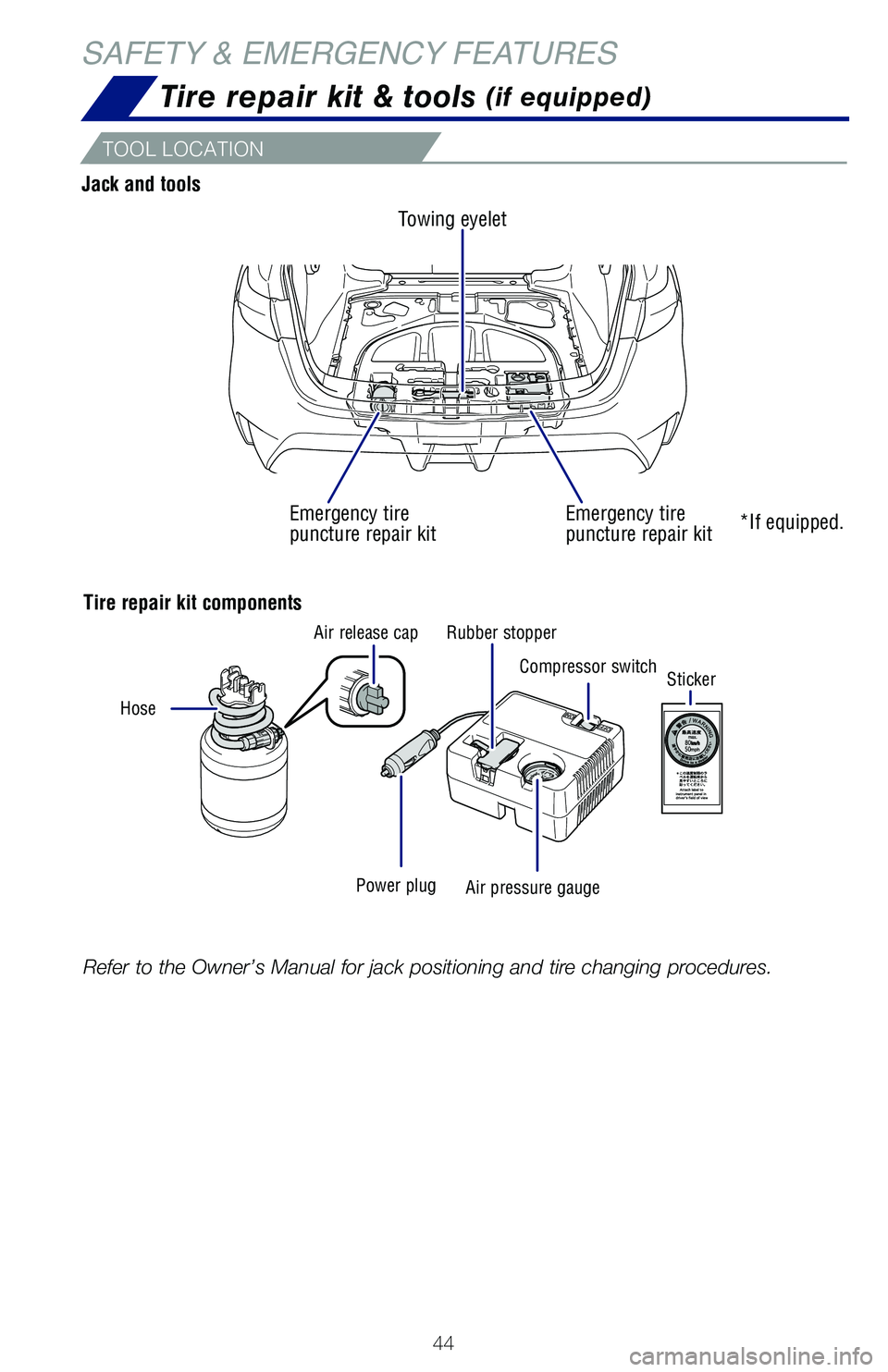

Tire repair kit components
Sticker
Hose Air release cap Rubber stopper
Power plug Air pressure gaugeCompressor switch
Tire repair kit & tools (if equipped)
TOOL LOCATION
Towing eyelet
*If equipped.Emergency tire
puncture repair kitEmergency tire
puncture repair kit
Jack and tools
Refer to the Owner’s Manual for jack positioning and tire changing procedures.
117387_A_MY20_Corolla_HV_QRG_V4_ML_1219_TEXT_R1.indd 4412/21/18 8:26 PM

45
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
SMART STOP TECHNOLOGY (SST)
Smart Stop Technology automatically reduces engine power when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied
firmly for longer than one-half second at speeds greater than five miles per hour.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling
backward.

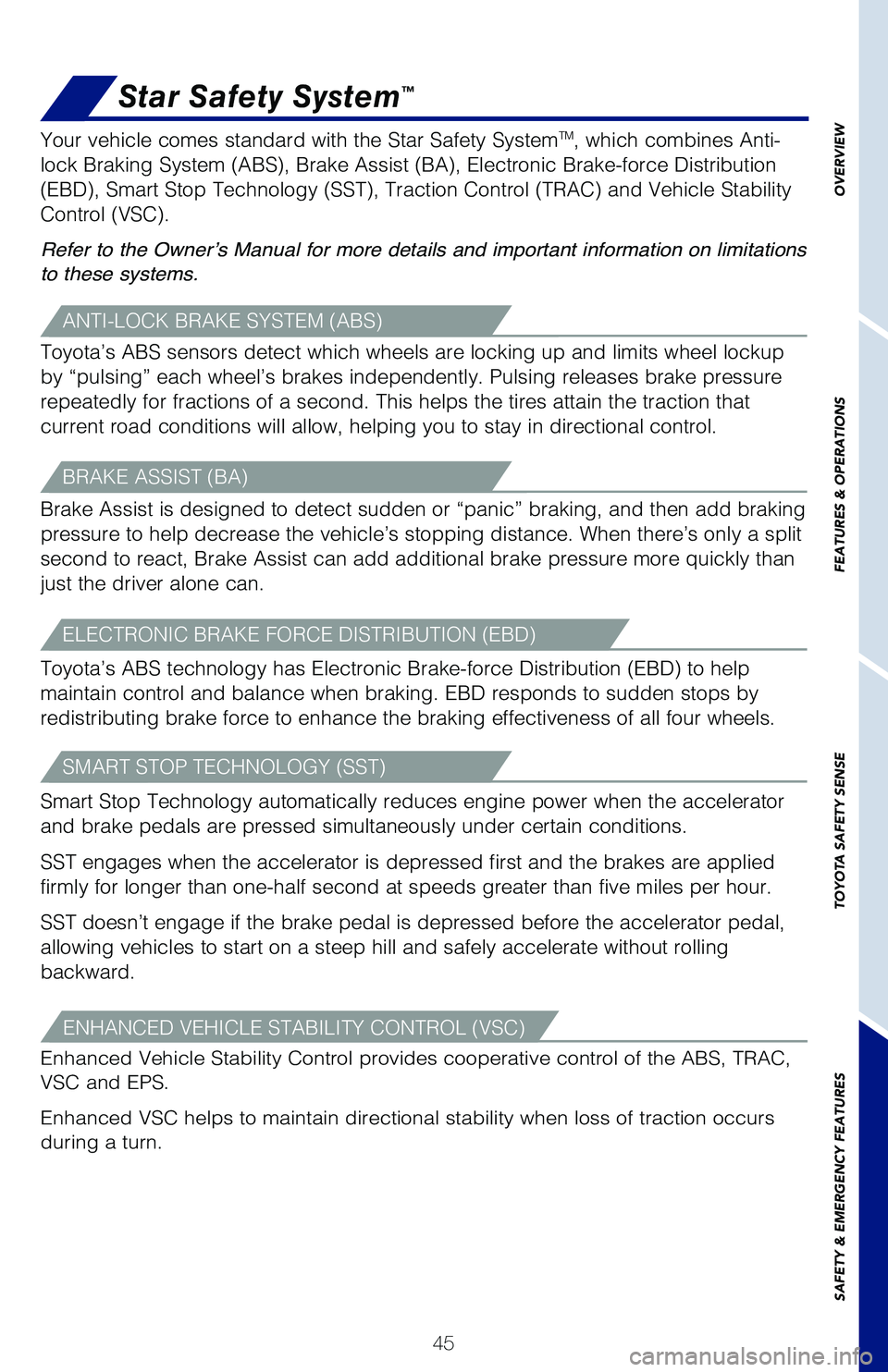

Star Safety System™
ANTI-LOCK BRAKE SYSTEM (ABS)
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control.
BRAKE ASSIST (BA)
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a split
second to react, Brake Assist can add additional brake pressure more quickly than
just the driver alone can.
ELECTRONIC BRAKE FORCE DISTRIBUTION (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. EBD responds to sudden stops by
redistributing brake force to enhance the braking effectiveness of all four wheels. Your vehicle comes standard with the Star Safety System
TM, which combines Anti-
lock Braking System (ABS), Brake Assist (BA), Electronic Brake-force Distribution
(EBD), Smart Stop Technology (SST), Traction Control (TRAC) and Vehicle Stability
Control (VSC).
Refer to the Owner’s Manual for more details and important information on limitations
to these systems.
ENHANCED VEHICLE STABILITY CONTROL (VSC)
Enhanced Vehicle Stability Control provides cooperative control of the ABS, TRAC,
VSC and EPS.
Enhanced VSC helps to maintain directional stability when loss of traction occurs
during a turn.
117387_A_MY20_Corolla_HV_QRG_V4_ML_1219_TEXT_R1.indd 4512/21/18 8:26 PM

46

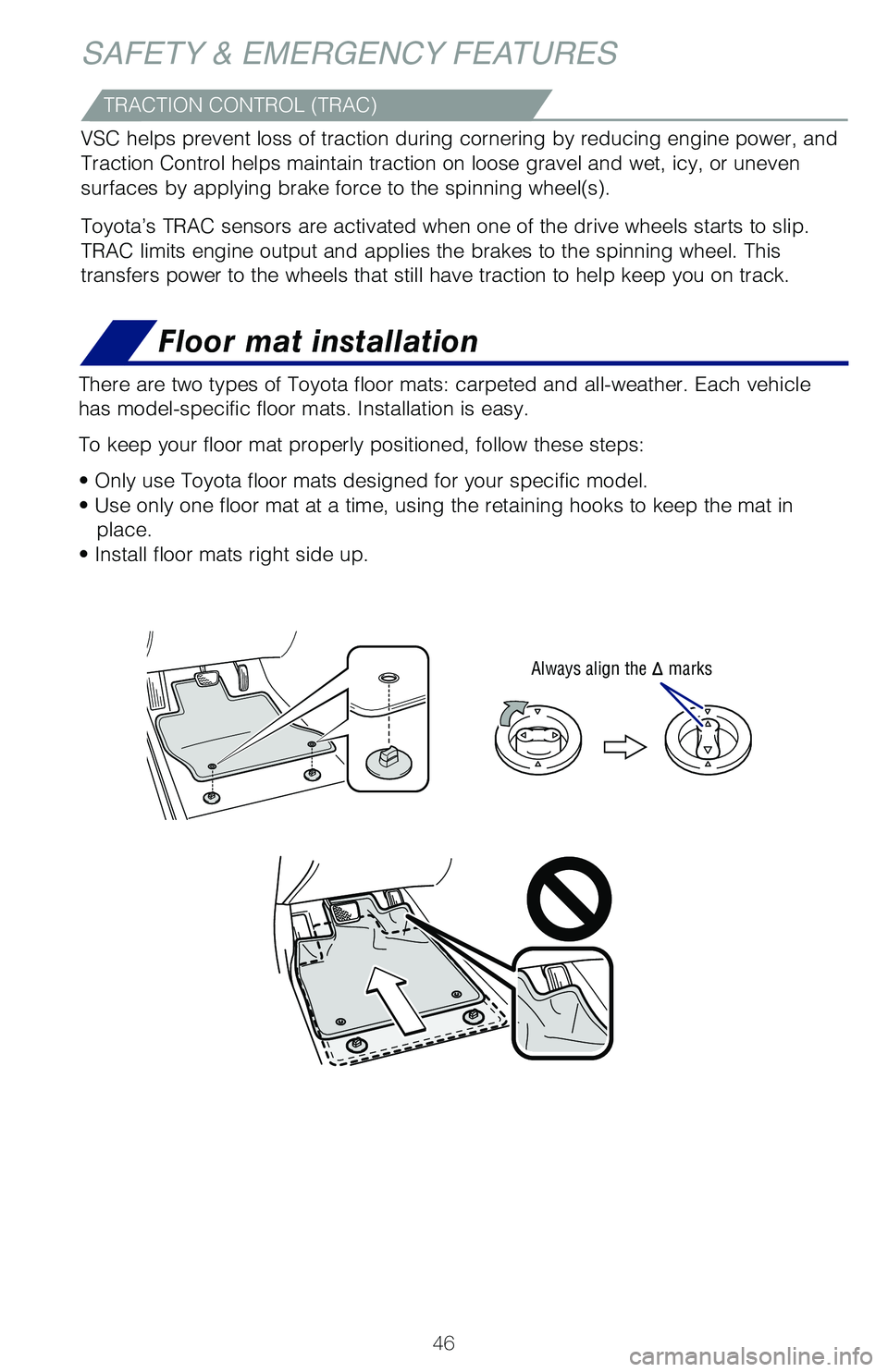

Floor mat installation
