GAUGES, METERS AND SERVICE REMINDER INDICATORS75
(a) Brake System Warning Light
This light comes on in the following cases
when the engine switch is in the “ON”
position.
DWhen the parking brake is applied...
DWhen the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
DWhen vacuum is low...
Have your vehicle checked at any
authorized Toyota dealer or repairer, or
another duly qualified and equipped
professional, in the following case:
DThe light does not come on even if the
parking brake is applied when the en-
gine switch is in the “ON” position.
CAUTION
If the light does not turn off even
after the parking brake is released
while the engine is running, immedi-
ately stop your vehicle at a safe
place and contact any authorized
Toyota dealer or repairer, or another
duly qualified and equipped professio-
nal. In this case, the brakes may not
work properly and your stopping
distance will become longer. Depress
the brake pedal firmly and bring the
vehicle to an immediate stop.
(b) Charging System Warning Light
This warning light comes on when the
engine switch is turned to the “ON” posi-
tion, and goes off when the engine is
started.
When there are problems in the charging
system while theengine is running, the
warning light comes on.
NOTICE
When the charging system warning
light comes on while the engine is
running, malfunctions such as the en-
gine drive belt being broken may have
occurred. If the warning light comes
on, immediately stop the vehicle in a
safe place and contact any authorized
Toyota dealer or repairer, or another
duly qualified and equipped profes-
sional.
(c) Low Engine Oil Pressure Warning
Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call any
authorized Toyota dealer or repairer, or
another duly qualified and equipped pro-
fessional, for assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light on—even for one block.
It may ruin the engine.
(d) Low Engine Oil Level Warning Light
This light warns that the engine oil level
is too low. Add oil as soon as possible.
(For instructions, see “Checking the en-
gine oil level” on page 188 in Section
7−2.)
Dyna100/150_EE

76GAUGES, METERS AND SERVICE REMINDER INDICATORS
While driving on steep inclines or rough
roads which causes the vehicle to sub-
stantially sway or on curves, this light
may come on due to the movement of
engine oil in the engine.
In normal conditions, due to engine oil
consumption, this light may come on earli-
er than the specified service interval of
the scheduled maintenance. This is be-
cause the engine oil is consumed to the
low level within the scheduled mainte-
nance interval and does not indicate a
problem. (For detailed information, see
“Facts about engine oil consumption” on
page 115 in Section 2.)
NOTICE
Continued engine operation with low
engine oil will damage the engine.
(e) Malfunction Indicator Lamp
This lamp comes on in the following
cases.
a. On some models: The fuel tank is
completely empty. (See “Fuel gauge”
on page 68 in this Section for instruc-
tions.)
b. There is a problem somewhere in the
engine electricalsystem, electronic en-
gine control system orengine emission
control system.
If it comes on while you are driving in
case b, have your vehicle checked/re-
paired by any authorized Toyota dealer or
repairer, or another duly qualified and
equipped professional, as soon as pos-
sible.If engine speed does not increase when
the accelerator pedal is depressed, there
may be a problem somewhere in the elec-
tronic engine controlsystem. Stop the ve-
hicle and contact any authorized Toyota
dealer or repairer, or another duly quali-
fied and equipped professional, or take
your vehicle carefully, since the vehicle
performance will be lower than normal, to
any authorized Toyota dealer or repairer,
or another duly qualified and equipped
professional, as soon as possible.
Even if the abnormality in the electronic
engine controlsystem is corrected during
low speed driving, thesystem may not
recover until the engine is stopped and
the engine switch is turned to the “ACC”
or “LOCK” position.
The lamp flashes when the engine emis-
sion control system is not functioning cor-
rectly. If the engine is run for more than
50 hours with the lamp flashing, the sys-
tem will automatically reduce engine per-
formance until the malfunction is cor-
rected.
(f) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes nearly empty. Fill up
the tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
warning light may come on earlier than
usual.
Dyna100/150_EE

GAUGES, METERS AND SERVICE REMINDER INDICATORS77
(g) “ABS” Warning Light
The light comes on when the engine
switch is turned to the “ON” position. If
the anti−lock brake system works properly,
the light turns off after a few seconds.
Thereafter, if the system malfunctions, the
light comes on again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti−lock brake systemdoes not operate,
but the brake system stilloperates con-
ventionally.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti−lock brake systemdoes not operate
so that the wheels could lock up during
a sudden braking or braking on slippery
road surfaces.
If either of the following conditions oc-
curs, this indicates a malfunction some-
where in the components monitored by
the warning light system. Contact any
authorized Toyota dealer or repairer, or
another duly qualified and equipped
professional, as soon as possible to
service the vehicle.
DThe light does not come on when the
engine switch is turned to the “ON”
position, or the light remains on.
DThe light comes on while you are driv-
ing.
A warning light turning on briefly during
operation does not indicate a problem.
(h) SRS Warning Light
This light will come on when the engine
switch is turned to the “ON” position.
After about 6 seconds, the light will go
off. This means the systems of the air-
bag and driver ’s seat belt pretensioner
are operating properly.
This warning light system monitors the
airbag sensor assembly, airbag sensor,
driver ’s seat belt pretensioner assembly,
inflator, interconnecting wiring and power
sources.If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact any authorized Toyota
dealer or repairer, or another duly quali-
fied and equipped professional, as soon
as possible to service the vehicle.
DThe light does not come on when the
engine switch is turned to the “ON”
position or remains on for more than
6 seconds or flashes.
DThe light comes on or starts flashing
while driving.
(i) DPF (Diesel Particulate Filter) Sys-
tem Indicator Light
If the deposit builds up in the filter, the
indicator light on the instrument cluster
will come on when the engine switch is
turned on. The deposit built up in the filter
needs to be regenerated. For details, see
“DPF system” onpage 110 in Section 2.
If you do not perform regeneration and
continue to drive for a while with the indi-
cator light on, the light will begin to flash.
CAUTION
Continuing to drive with the light
flashing will cause the malfunction in-
dicator light to come on. In this
event, damage may be caused to the
vehicle or an accident may occur. If
the malfunction indicator light comes
on, have your vehicle checked by any
authorized Toyota dealer or repairer,
or another duly qualified and
equipped professional immediately.
Dyna100/150_EE

78GAUGES, METERS AND SERVICE REMINDER INDICATORS
(j) Timing Belt Replacement Warning
Light
This light will come on every time when
the trip amount gets between 140000 km
and 150000 km in kilometer reading or
90000 miles in mile reading to indicate
that the timing belt should be replaced.
When it comes on, have the belt replaced
and the warning light reset by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
NOTICE
Continued driving without having the
belt replaced will result in a broken
belt and engine damage.
(k) Fuel Filter Warning Light
The light warns you that the amount of
accumulated water in the fuel filter has
reached the specified level.
If it comes on, drain the water immediate-
ly. (See page 192 in Section 7−2for
instructions for how to drain the water.)
NOTICE
Never drive the vehicle with the warn-
ing light on. Continued driving with
water accumulated in the fuel filter
will damage the fuel injection pump.
(l) Engine Oil Change Reminder Light
This light comes on to remind you to
change the engine oil and oil filter.
If the light comes on, change the engine
oil and oil filter at your earliest conve-
nience. For detailed information, see “Oil
maintenance managementsystem” on
page 70 in this Section.(m) Light Reminder Buzzer
This buzzer will sound if the driver ’s door
is opened while the engine switch is
turned to the “LOCK” position with the
headlight switch on. Removing the key will
not stop the buzzer as long as the head-
light switch is on.
CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light)
1. Apply the parking brake.
2. Turn the engine switch to the “ACC”
position.
The SRS warning light should come on.
It goes off after about 6 seconds.
3. Turn the engine switch to the “ON”
position, but do not start the engine.
All the service reminder indicators ex-
cept the SRS warning light should
come on. The “ABS” warning light goes
off after a few seconds. The engine oil
change reminder light goes off after
about 5 seconds.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by any authorized
Toyota dealer or repairer, or another duly
qualified and equipped professional, as
soon as possible.
Dyna100/150_EE

ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE79
Section 1−6
OPERATION OF INSTRUMENTS AND
CONTROLS
Engine (ignition) switch, Transmission and Parking
brake
DEngine (ignition) switch 80.............................
DManual transmission 81................................
DParking brake 82......................................
Dyna100/150_EE

80ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE
“START”—Starter motor on. The key
will return to the “ON” position when
released.
For starting tips, see page 123 in Section
3.
“ON”—Engine on and all accessories
on. Before starting, glow plugs on and
engine preheated.
This is the normal driving position.
“ACC”—Accessories such as the radio
operate, but the engine is off.
“LOCK”—Engine is off and the steering
wheel is locked. The key can be re-
moved only at this position.
You must push in the key to turn the key
from “ACC” to the “LOCK” position.
When starting the engine, the key may
seem stuck at the “LOCK” position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
It is not a malfunction if the needles on
all meters and gauges move slightly when
the engine switch is turned to the “ACC”,
“ON” or “START” position.
CAUTION
Never remove the key when the ve-
hicle is moving, as this will lock the
steering wheel and result in loss of
steering control.
NOTICE
Do not leave the engine switch in the
“ON” position if the engine is not
running. The battery will discharge.
Dyna100/150_EE
Engine (ignition) switch

ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE81
The shift pattern is conventional as
shown above.
On some models, the buzzer will sound
when you shift the gear into “R” (reverse).
Press the clutch pedal down fully while
shifting, and then release it slowly. Do not
rest your foot on the pedal while driving,
because it will cause clutch trouble. Do
not use the clutch to hold the vehicle
when stopped on an uphill grade—use the
parking brake.
Upshifting too soon or downshifting too
late will cause lugging, and possibly ping-
ing. Regularly revving the engine to maxi-
mum speed in each gear will cause ex-
cessive engine wear and high fuel
consumption.
Maximum allowable speeds
To get on a highway or to pass slower
traffic, maximum acceleration may be nec-
essary. Make sure you observe the follow-
ing maximum allowable speeds in each
gear:
Dyna 100


gear km/h (mph)
1 28 (17)
2 53 (33)
3 90 (56)
4 127 (79)Dyna 150


gear km/h (mph)
1 28 (17)
2 52 (32)
3 84 (52)
4 121 (75)
NOTICE
Do not downshift if you are going
faster than the maximum allowable
speed for the next lower gear.

: See “Model code” on page vi in the
beginning of this manual if you are not
sure of your vehicle model.
Good driving practice
DIf it is difficult to shift into reverse, put
the transmission in neutral, release the
clutch pedal momentarily, and then try
again.
DWhen towing a trailer, in order to main-
tain engine braking efficiency, do not
use fifth gear.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to skid or
spin.
NOTICE
zDo not use any gears other than
first gear when starting off and
moving forward. Doing so may dam-
age the clutch.
zMake sure the vehicle is completely
stopped before shifting into reverse.
Dyna100/150_EE
Manual transmission

82ENGINE (IGNITION) SWITCH, TRANSMISSION AND PARKING BRAKE
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Pull up the lever. For better hold-
ing power, first depress the brake pedal
and hold it while setting the parking
brake.
To release: Pull up the lever slightly (1),
press the lock release button (2), and low-
er (3).
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
Dyna100/150_EE
Parking brake

AIR CONDITIONING SYSTEM83
Section 1−7
OPERATION OF INSTRUMENTS AND
CONTROLS
Air conditioning system
DControls 84...........................................
DAir flow selector settings 88............................
DOperating tips 89......................................
DSide vents 91.........................................
DRear heatersystem 92.................................
DHeater idle up switch 93................................
DAir conditioning filters 93...............................
Dyna100/150_EE

84AIR CONDITIONING SYSTEM

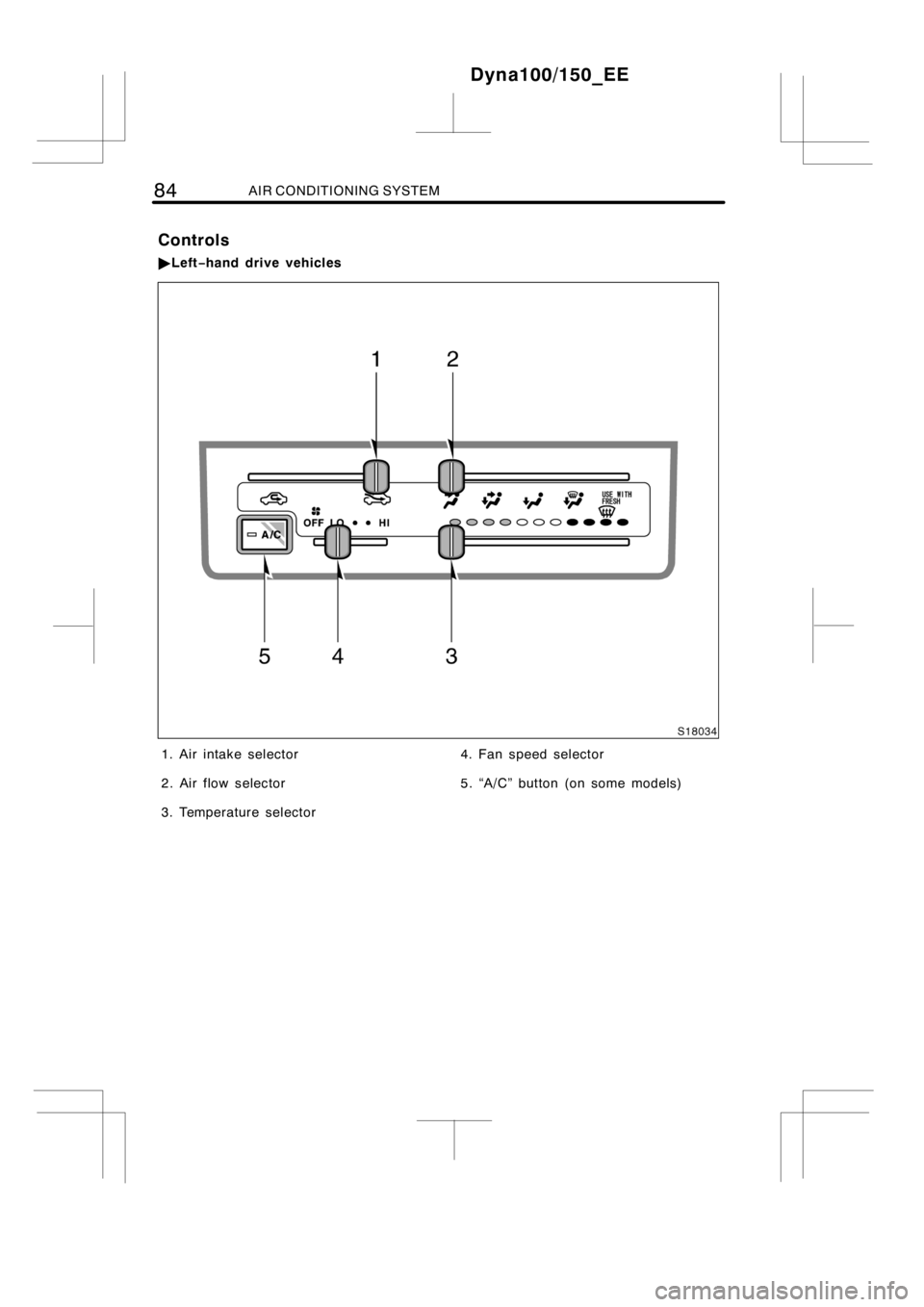

1. Air intake selector
2. Air flow selector
3. Temperature selector4. Fan speed selector
5. “A/C” button (on some models)
Dyna100/150_EE
Controls
"Left−hand drive vehicles
