TOYOTA DYNA 100/150 2014 Owners Manual (in English)

i
Foreword
Welcome to the growing group of value−conscious people who drive
Toyotas. We are proud of the advanced engineering and quality
construction of each vehicle we build.
This Owner ’s Manual explains the operation of your new Toyota.
Please read it thoroughly and have all the occupants follow the
instructions carefully. Doing so will help you enjoy many years
of safe and trouble−free motoring. For important information
about this manual and your Toyota, read the following pages
carefully.
When it comes to service, remember that your Toyota dealer knows
your vehicle very well and is interested in your complete satisfac-
tion. Your Toyota dealer will provide quality maintenance and any
other assistance you may require.
Please leave this Owner ’s Manual in this vehicle at the time of
resale. The next owner will need this information also.
All information and specifications in this manual are current at the
time of printing. However, because of Toyota’s policy of continual
product improvement, we reserve the right to make changes at any
time without notice.
Please note that this manual applies to all models and explains
all equipment, including options. Therefore, you may find some
explanations for equipment not installed on your vehicle.

2012 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied,
in whole or in part, without the written permission of Toyota Motor
Corporation.
Dyna100/150_EE

ii
Important information about this manual
Safety and vehicle damage
warnings
Throughout this manual, you will see safety
and vehicle damage warnings. You must
follow these warnings carefully to avoid
possible injury or damage.
The types of warnings, what they look like,
and how they are used in this manual are
explained as follows:
CAUTION
This is a warning against anything
which may cause injury to people if
the warning is ignored. You are in-
formed about what you must or must
not do in order to reduce the risk of
injury to yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning
is ignored. You are informed about
what you must or must not do in or-
der to avoid or reduce the risk of
damage to your vehicle and its equip-
ment.
Safety symbol
When you see the safety symbol shown
above, it means: “Do not...”; “Do not do
this”; or “Do not let this happen”.
Dyna100/150_EE

iii
Important information about your
To y o t a
Accessories, spare parts and
modification of your Toyota
Both genuine Toyota and a wide variety of other spare parts and
accessories for Toyota vehicles are currently available on the market.
Should it be determined that any of the genuine Toyota parts or
accessories supplied with the vehicle need to be replaced, Toyota
recommends that genuine Toyota parts or accessories, be used to
replace them. Other parts or accessories of matching quality can
also be used. Toyota cannot acceptany liability orguarantee spare
parts and accessories which are not genuine Toyota products, nor for
replacement or installation involving such parts. In addition, damage
or performance problems resulting from the use of non−genuine
Toyota spare parts or accessories may not be covered under
warranty.
Installation of an RF−transmitter system
As the installation of an RF−transmitter system in your vehicle could
affect electronic systems such as the electronically controlled fuel
pump, electronic engine controlsystem, anti−lock brake system, SRS
airbag system and seat belt pretensionersystem, be sure to check
with any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional, for precautionary measures or special
instructions regarding installation.
Further information regarding frequency bands, power levels, antenna
positions and installation provisions for the installation of RF−trans-
mitters, is available on request at any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Dyna100/150_EE

iv
Maintenance schedule
Please refer to the separate “Toyota Service Booklet” or “Toyota War-
ranty Booklet”.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your Toyota
contain explosive chemicals. If the vehicle is scrapped with the air-
bag and pretensioner left as they are, this may cause an accident
such as fire. Be sure to have the systems of the SRS airbag and
seat belt pretensioner removed and disposed of by a qualified ser-
vice shop or by an authorized Toyota dealer or repairer, or another
duly qualified and equipped professional, before you dispose of your
vehicle.
Your vehicle contains batteries and/or accumulators. Do not discard
them into the environment but cooperate with separate collection (Di-
rective 2006/66/EC).
Dyna100/150_EE

v
Table of contents
1 OPERATION OF INSTRUMENTS AND CONTROLSPage
1 Overview of instruments and controls
1 .......................
2 Keys and Doors11 ......................................
3 Seats, Seat belts, Steering wheel and Mirrors23 ...............
4 Lights and Wipers61 .....................................
5 Gauges, Meters and Service reminder indicators67 .............
6 Engine (ignition) switch, Transmission and Parking brake79 ......
7 Air conditioning system83 .................................
8 Other equipment99 ......................................
2 INFORMATION BEFORE DRIVING YOUR TOYOTA 107........
3 STARTING AND DRIVING 123...............................
4 IN CASE OF AN EMERGENCY 141..........................
5 CORROSION PREVENTION AND APPEARANCE CARE 169...
6 MAINTENANCE REQUIREMENTS 175.......................
7DO−IT−YOURSELF MAINTENANCE
1 Introduction179 .........................................
2 Engine and Chassis187 ..................................
3 Electrical components199 .................................
8 SPECIFICATIONS 211......................................
9 INDEX 221................................................
Dyna100/150_EE

vi
Model code
KDY221−TD
Check the model code to see what type of model your vehicle is.
The model code appears on the manufacturer ’s plate or label with the heading
“MODEL”.
See “Your Toyota’s identification” on page 120 in Section 2 for the manufacturer ’s
plate or label location.D and B: Single tire—Dyna 100
G and E: Double tires—Dyna 150Rear tires
KDY221, KDY231, KDY251 and KDY261:
Models with 1KD−FTV engine
Basic code
Cab type
T: Single cab
P: Double cab
Dyna100/150_EE

OVERVIEW OF INSTRUMENTS AND CONTROLS1
Section 1−1
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
DInstrument panel overview 2.............................
DInstrument cluster overview 6...........................
DIndicator symbols on the instrument panel 8..............
Dyna100/150_EE

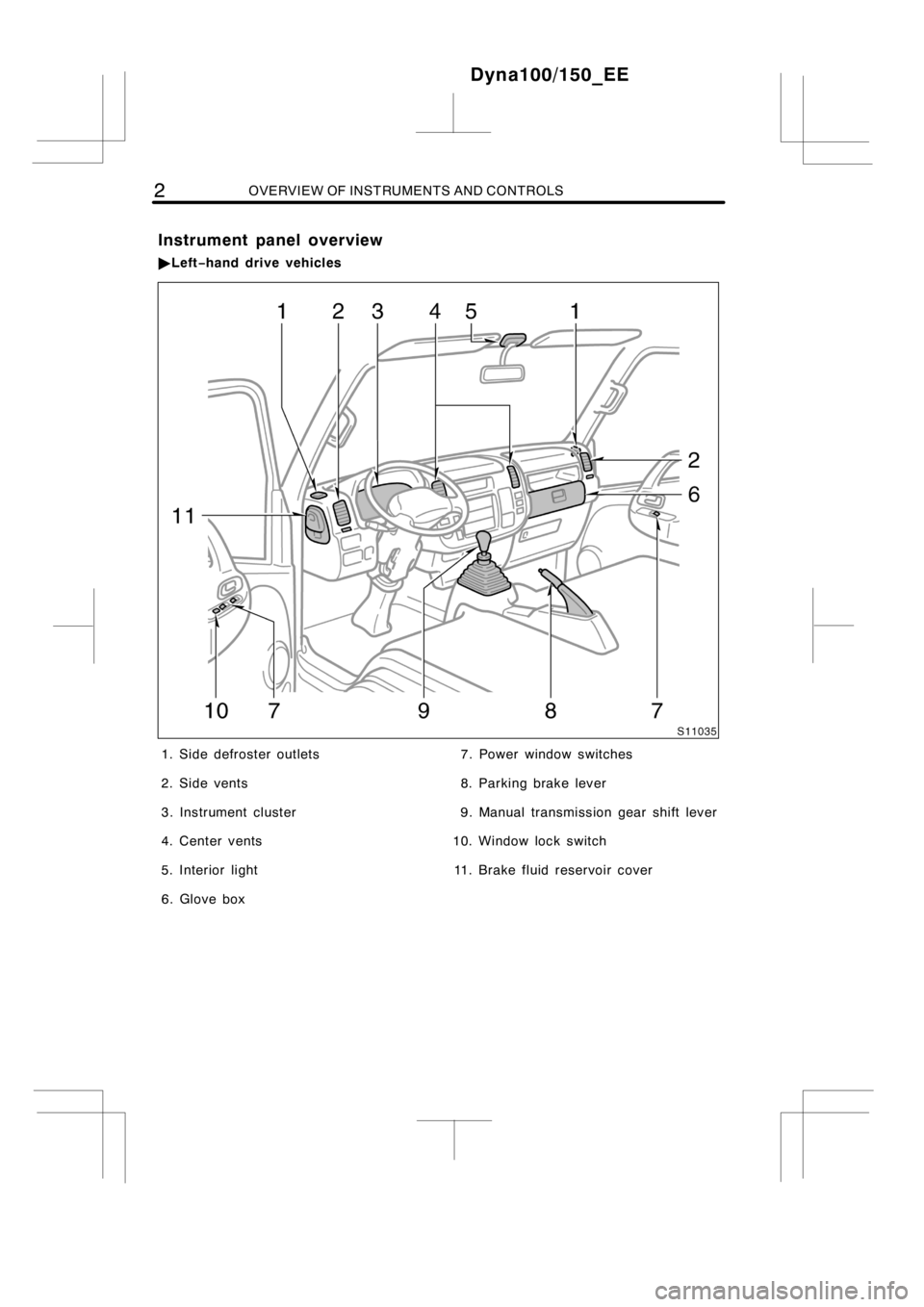

2OVERVIEW OF INSTRUMENTS AND CONTROLS
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Interior light
6. Glove box7. Power window switches
8. Parking brake lever
9. Manual transmission gear shift lever
10. Window lock switch
11. Brake fluid reservoir cover
Dyna100/150_EE
Instrument panel overview
"Left−hand drive vehicles

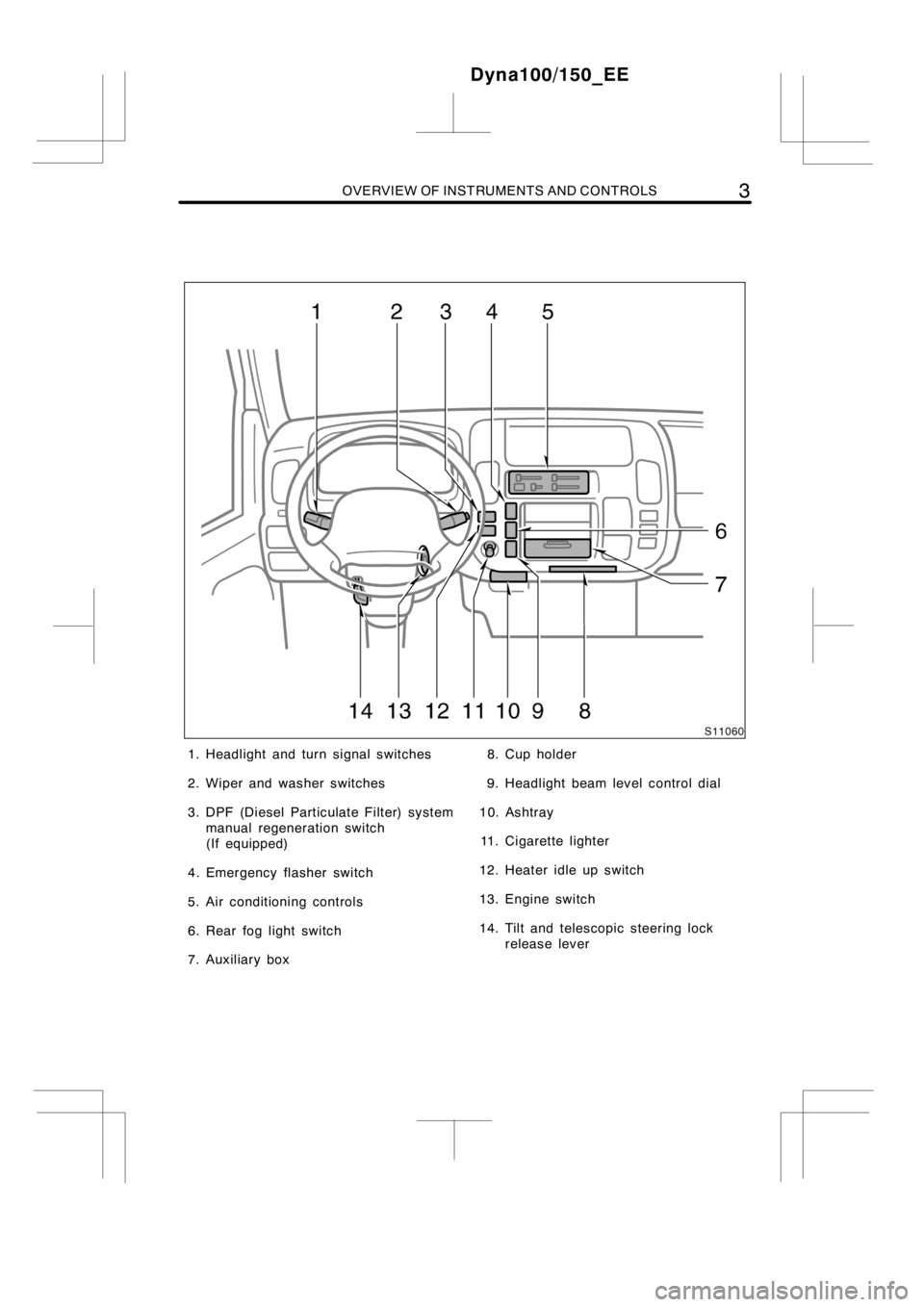

OVERVIEW OF INSTRUMENTS AND CONTROLS3
1. Headlight and turn signal switches
2. Wiper and washer switches
3. DPF (Diesel Particulate Filter) system
manual regeneration switch
(If equipped)
4. Emergency flasher switch
5. Air conditioning controls
6. Rear fog light switch
7. Auxiliary box8. Cup holder
9. Headlight beam level control dial
10. Ashtray
11. Cigarette lighter
12. Heater idle up switch
13. Engine switch
14. Tilt and telescopic steering lock
release lever
Dyna100/150_EE

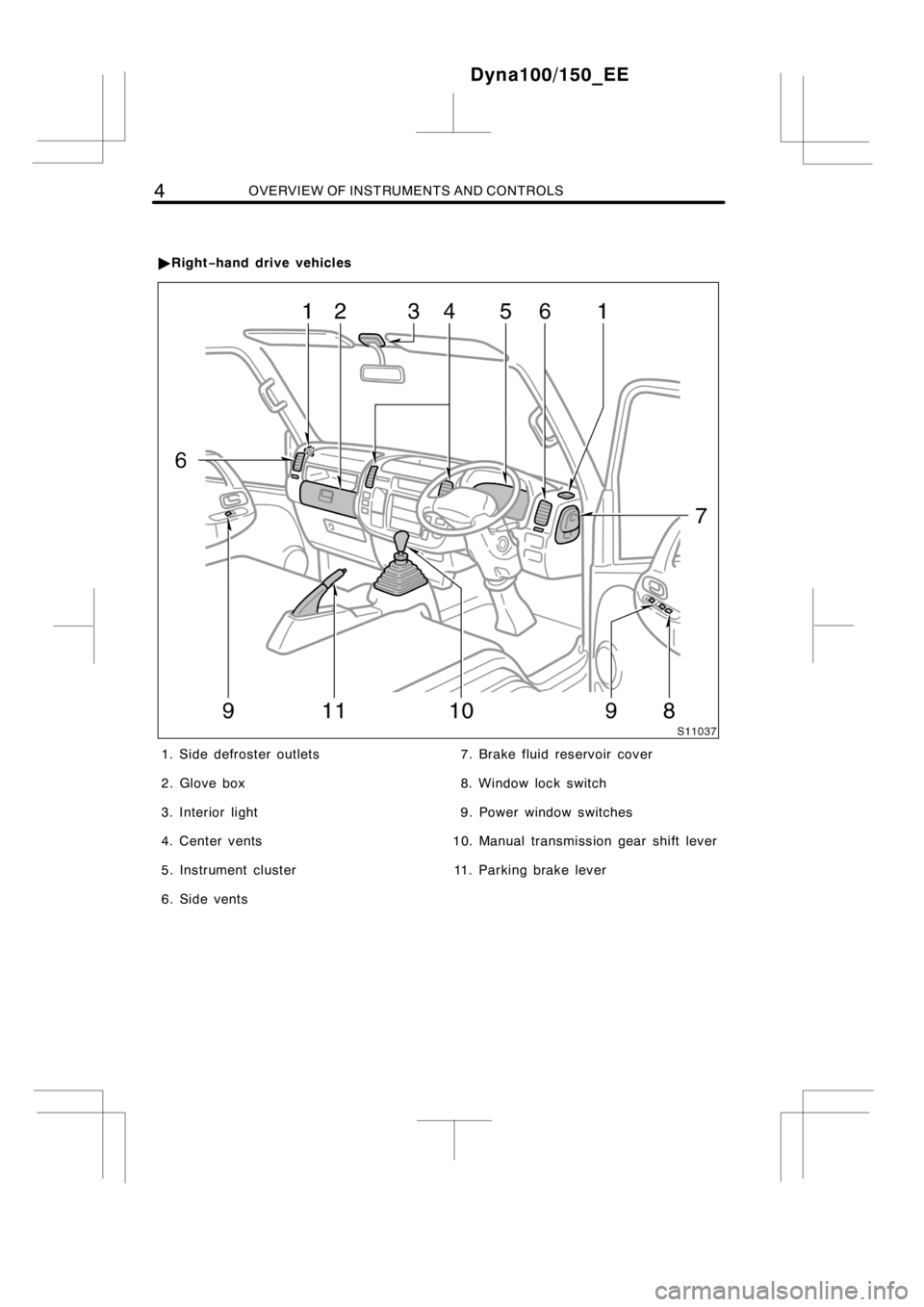

4OVERVIEW OF INSTRUMENTS AND CONTROLS
1. Side defroster outlets
2. Glove box
3. Interior light
4. Center vents
5. Instrument cluster
6. Side vents7. Brake fluid reservoir cover
8. Window lock switch
9. Power window switches
10. Manual transmission gear shift lever
11. Parking brake lever
Dyna100/150_EE
"Right−hand drive vehicles
