TOYOTA ECHO 2000 Owners Manual (in English)

ECHO_U
1202000 ECHO (OM52411U)
Air intake selector
Move the lever to select the air source.1. Recirculate Recirculates the air inside
the vehicle.
2. Fresh Draws outside air into the sys-
tem. "A/C" button
To turn on the air conditioning, press the
"A/C" button. The "A/C" button indicator
will come on. To turn the air conditioning
off, press the button again.

ECHO_U
1212000 ECHO (OM52411U)
Air flow selector settingsOperating tips
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, move the fan speed to
"HI" for a minute to help clear the in-
take ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
SU18004

ECHO_U
1222000 ECHO (OM52411U)
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except "OFF".
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.Heating
For best results, set controls to:
Fan speed Any setting except "OFF"
Temperature Towards red zone
Air intakeFRESH (outside air)
Air flowFLOOR
Air conditioningOFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.
Press the "A/C" button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield. Air conditioning
For best results, set controls to:
Fan speed Any setting except "OFF"
Temperature To w a r d s blue zone
Air intakeFRESH (outside air)
Air flowPANEL
Air conditioningON
For quick cooling, move the air intake
selector to recirculate for a few min-
utes.
Ventilation
For best results, set controls to:
Fan speed Any setting except "OFF"
Temperature Towards blue zone
Air intakeFRESH (outside air)
Air flowPANEL
Air conditioningOFF

ECHO_U
1232000 ECHO (OM52411U)
Defogging
The inside of the windshield
For best results, set controls to:Fan speed Any setting except "OFF"
Temperature Towards red zone to heat;
blue zone to cool
Air intakeFRESH (outside air)
Air flowWINDSHIELD
Turning the air flow control knob to wind-
shield position turns on the defroster−
linked air conditioning. This is to clean up
the front view more quickly.
When the "A/C" button is not pressed in,
turning the air flow control knob to a posi-
tion other than windshield or floor/wind-
shield turns off the air conditioning.
On humid days, do not blow cold air
on the windshieldthe difference be-
tween the outside and inside tempera-
tures could make the fogging worse. Defrosting
The outside of the windshield
For best results, set controls to:
Fan speed Any setting except "OFF"
Temperature Towards red zone
Air intakeFRESH (outside air)
Air flowWINDSHIELD
Turning the air flow control knob to wind-
shield position turns on the defroster−
linked air conditioning. This is to clean up
the front view more quickly.
When the "A/C" button is not pressed in,
turning the air flow control knob to a posi-
tion other than windshield or floor/wind-
shield turns off the air conditioning.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.
Instrument panel vents
SY18004
If air flow control is not satisfactory, check
the instrument panel vents. The instrument
panel vents may be opened or closed as
shown.

ECHO_U
1242000 ECHO (OM52411U)

ECHO_U
1252000 ECHO (OM52411U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray 126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet 127
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove box 128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Auxiliary boxes 128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Cup holders 129
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Floor mat 130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1− 9

ECHO_U
1262000 ECHO (OM52411U)

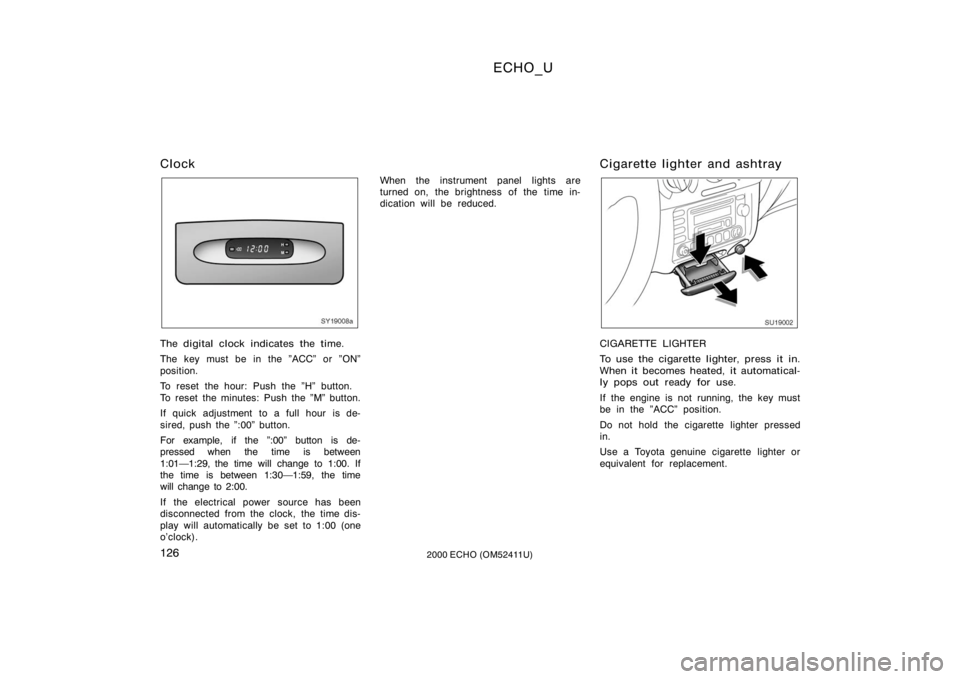

Clock
SY19008a
The digital clock indicates the time.
The key must be in the "ACC" or "ON"
position.
To reset the hour: Push the "H" button.
To reset the minutes: Push the "M" button.
If quick adjustment to a full hour is de-
sired, push the ":00" button.
For example, if the ":00" button is de-
pressed when the time is between
1:011:29, the time will change to 1:00. If
the time is between 1:301:59, the time
will change to 2:00.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).When the instrument panel lights are
turned on, the brightness of the time in-
dication will be reduced.
Cigarette lighter and ashtray
SU19002
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
When it becomes heated, it automatical-
ly pops out ready for use.
If the engine is not running, the key must
be in the "ACC" position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.

ECHO_U
1272000 ECHO (OM52411U)
ASHTRAY
To use the ashtray, open out.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, push it back
in completely.
To remove the ashtray, press down on the
lock spring plate and pull out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always push the ash-
tray back in completely after use.
SU19011
The power outlet is designed for power
supply for car accessories.
The key must be in the "ACC" or "ON"
position for the power outlet to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
 To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
Close the power outlet lid when the
power outlet is not in use. Inserting
a foreign object other than the ap-
propriate plug that fits the outlet,
or allowing any liquid into the out-
let may cause electrical failure or
short circuits.
Power outlet
(without cigarette lighter)

ECHO_U
1282000 ECHO (OM52411U)

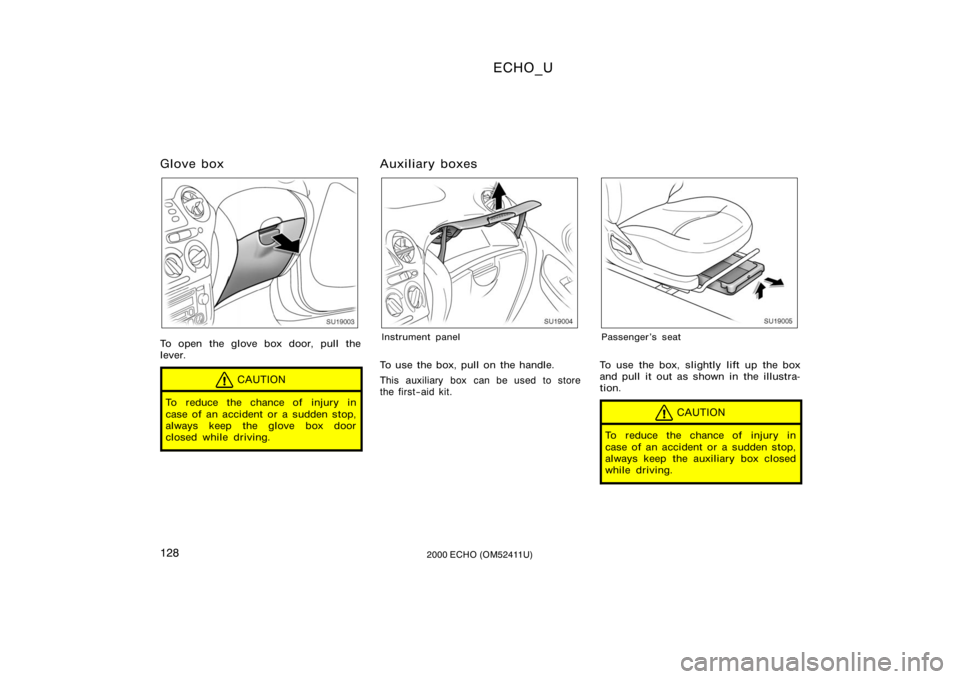

Glove box
SU19003
To open the glove box door, pull the
lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Auxiliary boxes
SU19004
Instrument panel
To use the box, pull on the handle.
This auxiliary box can be used to store
the first−aid kit.
SU19005
Passenger ’s seat
To use the box, slightly lift up the box
and pull it out as shown in the illustra-
tion.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.

ECHO_U
1292000 ECHO (OM52411U)

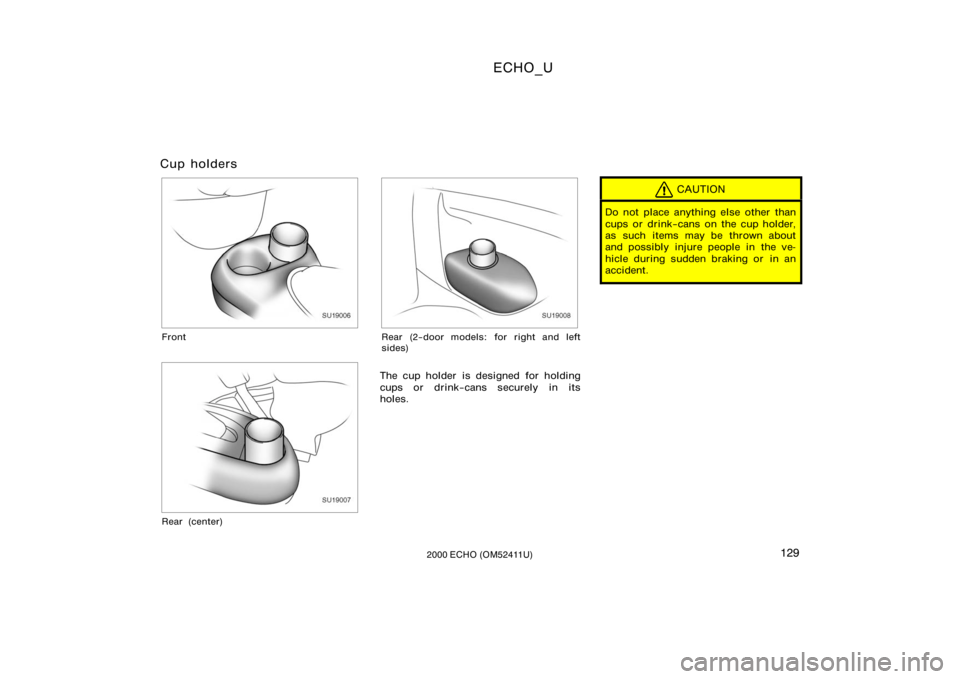

Cup holders
SU19006
Front
SU19007
Rear (center)
SU19008
Rear (2−door models: for right and left
sides)
The cup holder is designed for holding
cups or drink−cans securely in its
holes.
CAUTION
Do not place anything else other than
cups or drink−cans on the cup holder,
as such items may be thrown about
and possibly injure people in the ve-
hicle during sudden braking or in an
accident.
