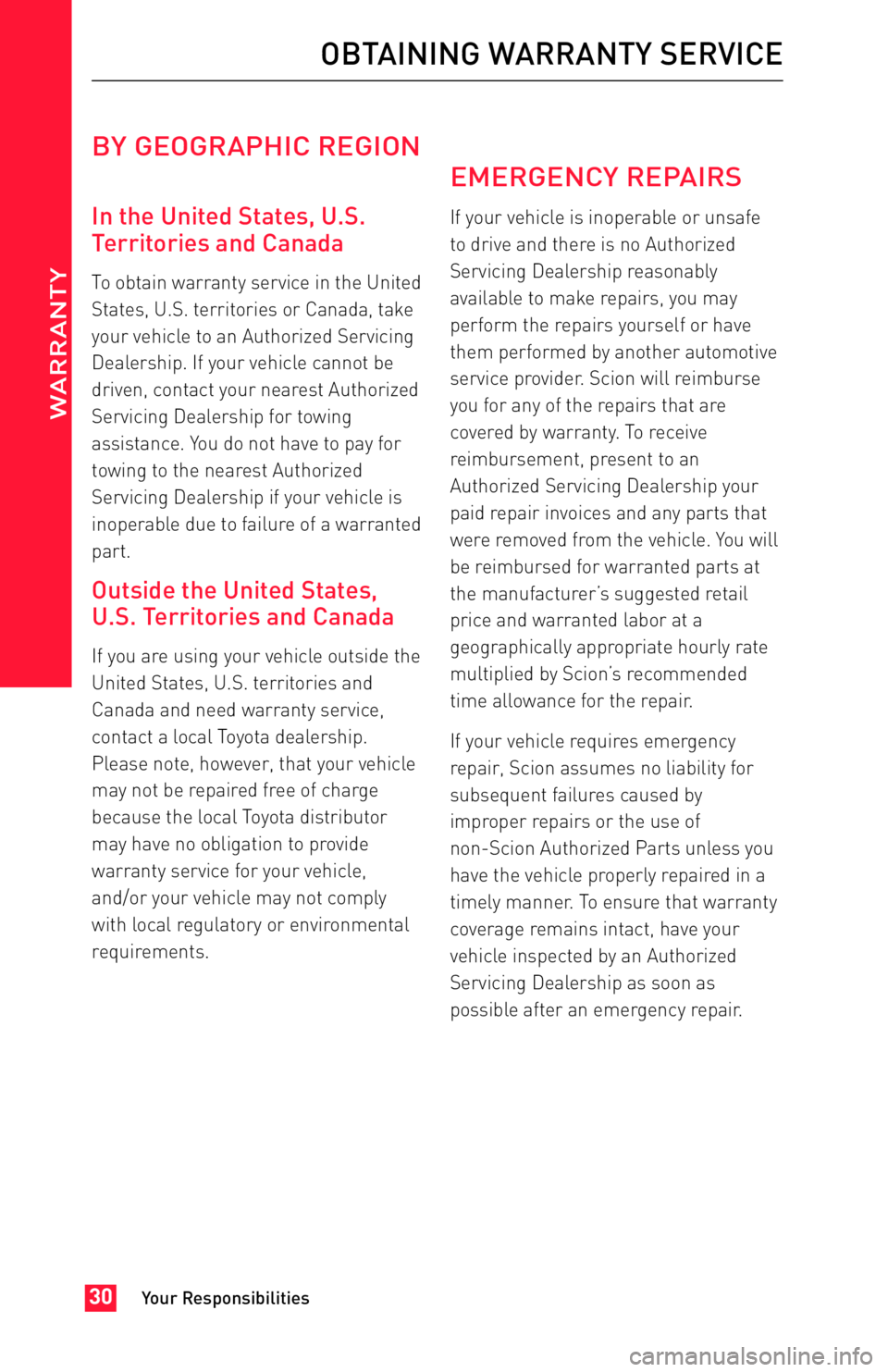

In the United States, U.S.
Territories and Canada
To obtain warranty service in the United
States, U.S. territories or Canada, take
your vehicle to an Authorized Servicing
Dealership. If your vehicle cannot be
driven, contact your nearest Authorized
Servicing Dealership for towing
assistance. You do not have to pay for
towing to the nearest Authorized
Servicing Dealership if your vehicle is
inoperable due to failure of a warranted
part.
Outside the United States,
U.S. Territories and Canada
If you are using your vehicle outside the
United States, U.S. territories and
Canada and need warranty service,
contact a local Toyota dealership.
Please note, however, that your vehicle
may not be repaired free of charge
because the local Toyota distributor
may have no obligation to provide
warranty service for your vehicle,
and/or your vehicle may not comply
with local regulatory or environmental
requirements.
EMERGENCY REPAIRS
If your vehicle is inoperable or unsafe
to drive and there is no Authorized
Servicing Dealership reasonably
available to make repairs, you may
perform the repairs yourself or have
them performed by another automotive
service provider. Scion will reimburse
you for any of the repairs that are
covered by warranty. To receive
reimbursement, present to an
Authorized Servicing Dealership your
paid repair invoices and any parts that
were removed from the vehicle. You will
be reimbursed for warranted parts at
the manufacturer’s suggested retail
price and warranted labor at a
geographically appropriate hourly rate
multiplied by Scion’s recommended
time allowance for the repair.
If your vehicle requires emergency
repair, Scion assumes no liability for
subsequent failures caused by
improper repairs or the use of
non-Scion Authorized Parts unless you
have the vehicle properly repaired in a
timely manner. To ensure that warranty
coverage remains intact, have your
vehicle inspected by an Authorized
Servicing Dealership as soon as
possible after an emergency repair.
OBTAINING WARRANTY SERVICE
WARRANTY
Your Responsibilities30

JOBNAME: 1139278-2013-sfr-toy PAGE: 31 SESS: 11 OUTPUT: Fri Apr 20 09:31:46 2012
/tweddle/toyota/sched-maint/1139278-en-sfr/wg
R

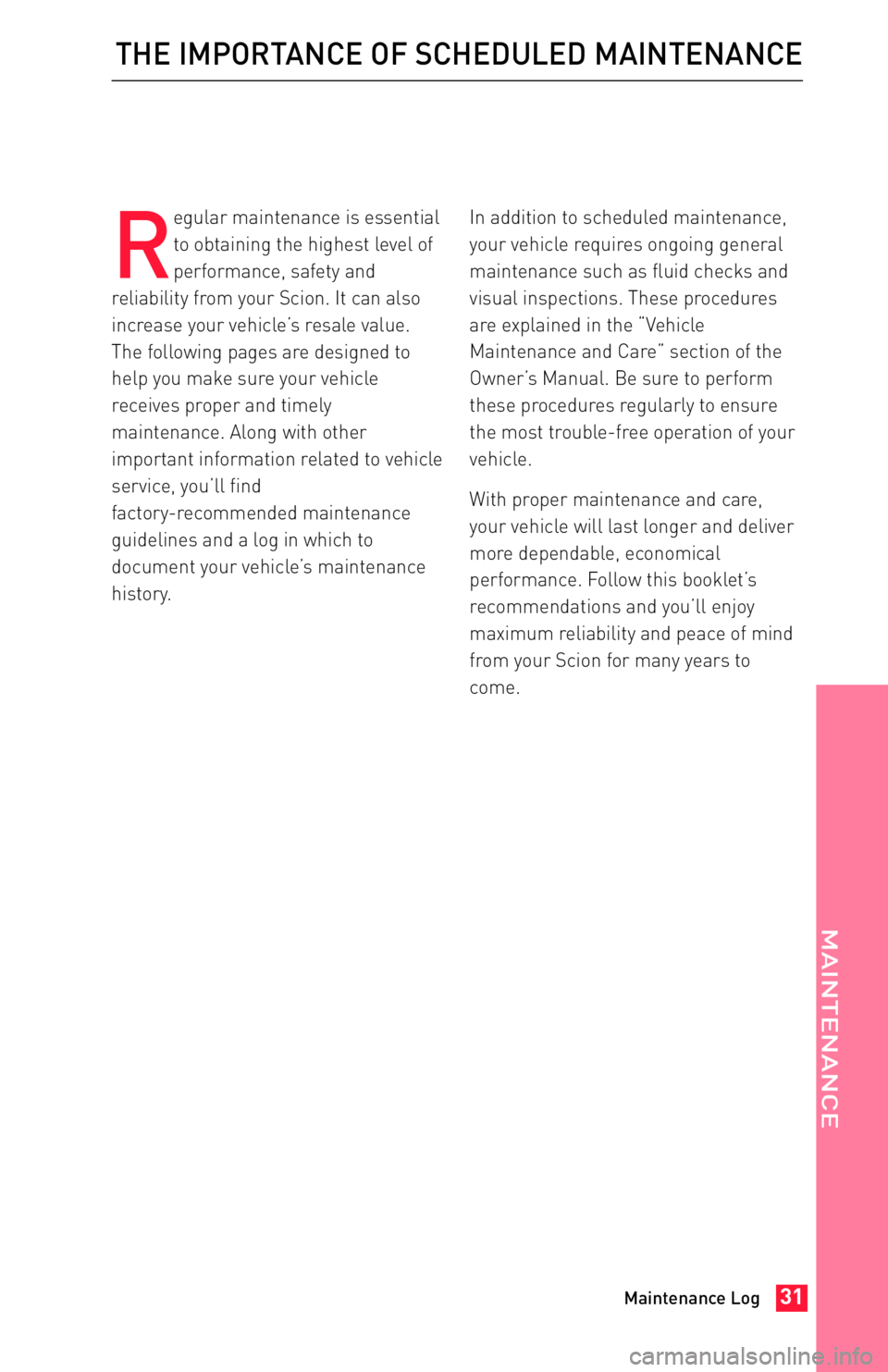

egular maintenance is essential
to obtaining the highest level of
performance, safety and
reliability from your Scion. It can also
increase your vehicle’s resale value.
The following pages are designed to
help you make sure your vehicle
receives proper and timely
maintenance. Along with other
important information related to vehicle
service, you’ll find
factory-recommended maintenance
guidelines and a log in which to
document your vehicle’s maintenance
history. In addition to scheduled maintenance,
your vehicle requires ongoing general
maintenance such as fluid checks and
visual inspections. These procedures
are explained in the “Vehicle
Maintenance and Care” section of the
Owner’s Manual. Be sure to perform
these procedures regularly to ensure
the most trouble-free operation of your
vehicle.
With proper maintenance and care,
your vehicle will last longer and deliver
more dependable, economical
performance. Follow this booklet’s
recommendations and you’ll enjoy
maximum reliability and peace of mind
from your Scion for many years to
come.
THE IMPORTANCE OF SCHEDULED MAINTENANCE
Maintenance Log31
MAINTENANCE

JOBNAME: 1139278-2013-sfr-toy PAGE: 32 SESS: 2 OUTPUT: Fri Apr 20 09:31:46 2012
/tweddle/toyota/sched-maint/1139278-en-sfr/wg
N
ow that you’ve got your Scion
on the road, you want to make
sure it keeps going. That’s
where scheduled maintenance comes
in. Taking your car in for regular service
will help your ride run better and last
longer. It will keep your repair bills
down too.
This booklet makes it easy to keep your
Scion running smoothly. It lists all the
factory-recommended services and
tells you when your vehicle needs
them. Be sure to look this booklet over
carefully and keep it in your glove box.
Do what it says and your Scion should
be happy for many miles to come.
KEEP YOUR RIDE RUNNING
Maintenance Log32
MAINTENANCE

JOBNAME: 1139278-2013-sfr-toy PAGE: 33 SESS: 2 OUTPUT: Fri Apr 20 09:31:46 2012
/tweddle/toyota/sched-maint/1139278-en-sfr/wg

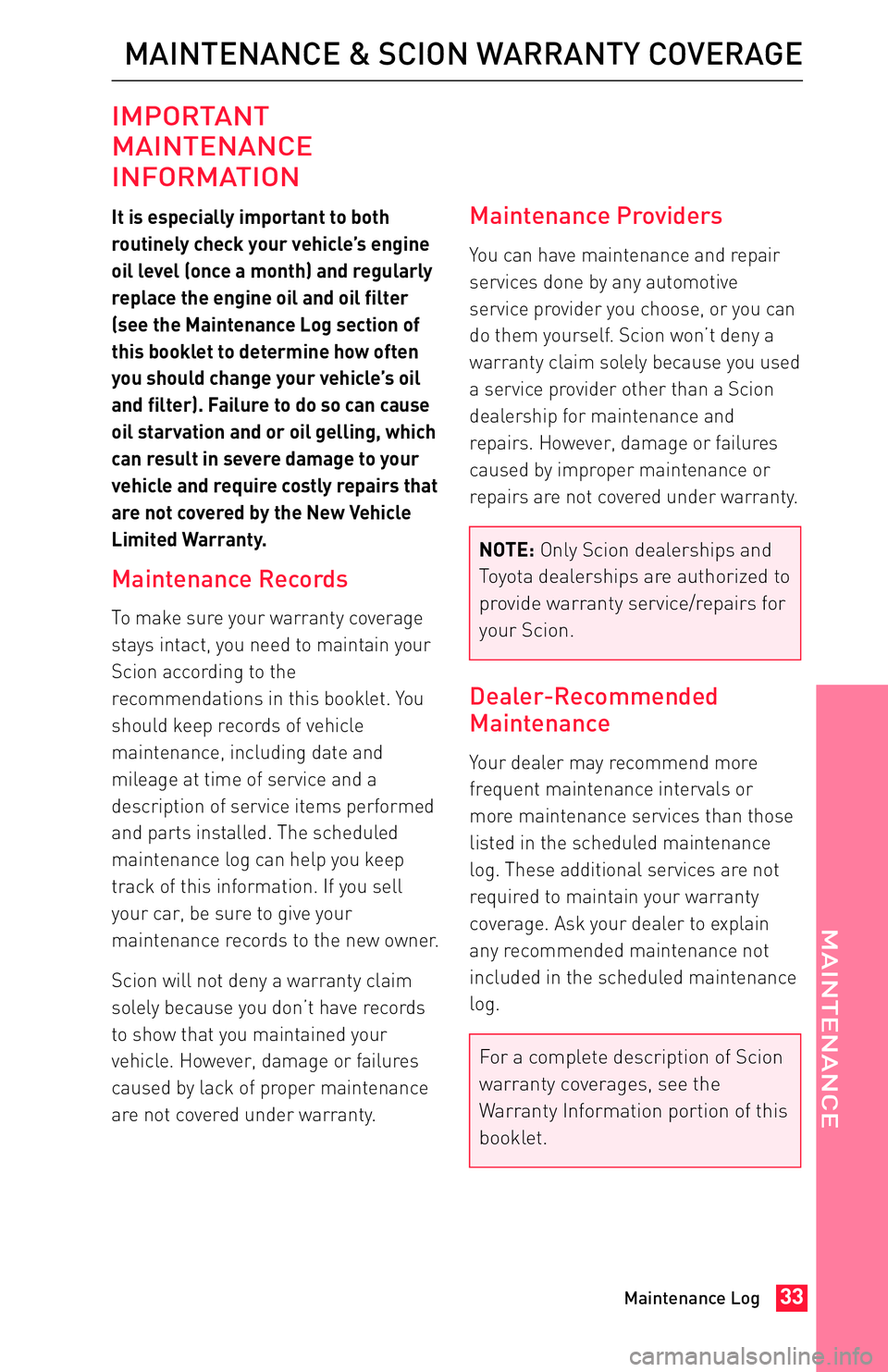

IMPORTANT
MAINTENANCE
INFORMATION
It is especially important to both
routinely check your vehicle’s engine
oil level (once a month) and regularly
replace the engine oil and oil filter
(see the Maintenance Log section of
this booklet to determine how often
you should change your vehicle’s oil
and filter). Failure to do so can cause
oil starvation and or oil gelling, which
can result in severe damage to your
vehicle and require costly repairs that
are not covered by the New Vehicle
Limited Warranty.
Maintenance Records
To make sure your warranty coverage
stays intact, you need to maintain your
Scion according to the
recommendations in this booklet. You
should keep records of vehicle
maintenance, including date and
mileage at time of service and a
description of service items performed
and parts installed. The scheduled
maintenance log can help you keep
track of this information. If you sell
your car, be sure to give your
maintenance records to the new owner.
Scion will not deny a warranty claim
solely because you don’t have records
to show that you maintained your
vehicle. However, damage or failures
caused by lack of proper maintenance
are not covered under warranty.
Maintenance Providers
You can have maintenance and repair
services done by any automotive
service provider you choose, or you can
do them yourself. Scion won’t deny a
warranty claim solely because you used
a service provider other than a Scion
dealership for maintenance and
repairs. However, damage or failures
caused by improper maintenance or
repairs are not covered under warranty.
NOTE:Only Scion dealerships and
Toyota dealerships are authorized to
provide warranty service/repairs for
your Scion.
Dealer-Recommended
Maintenance
Your dealer may recommend more
frequent maintenance intervals or
more maintenance services than those
listed in the scheduled maintenance
log. These additional services are not
required to maintain your warranty
coverage. Ask your dealer to explain
any recommended maintenance not
included in the scheduled maintenance
log.
For a complete description of Scion
warranty coverages, see the
Warranty Information portion of this
booklet.
MAINTENANCE & SCION WARRANTY COVERAGE
Maintenance Log33
MAINTENANCE

JOBNAME: 1139278-2013-sfr-toy PAGE: 34 SESS: 2 OUTPUT: Fri Apr 20 09:31:46 2012
/tweddle/toyota/sched-maint/1139278-en-sfr/wg

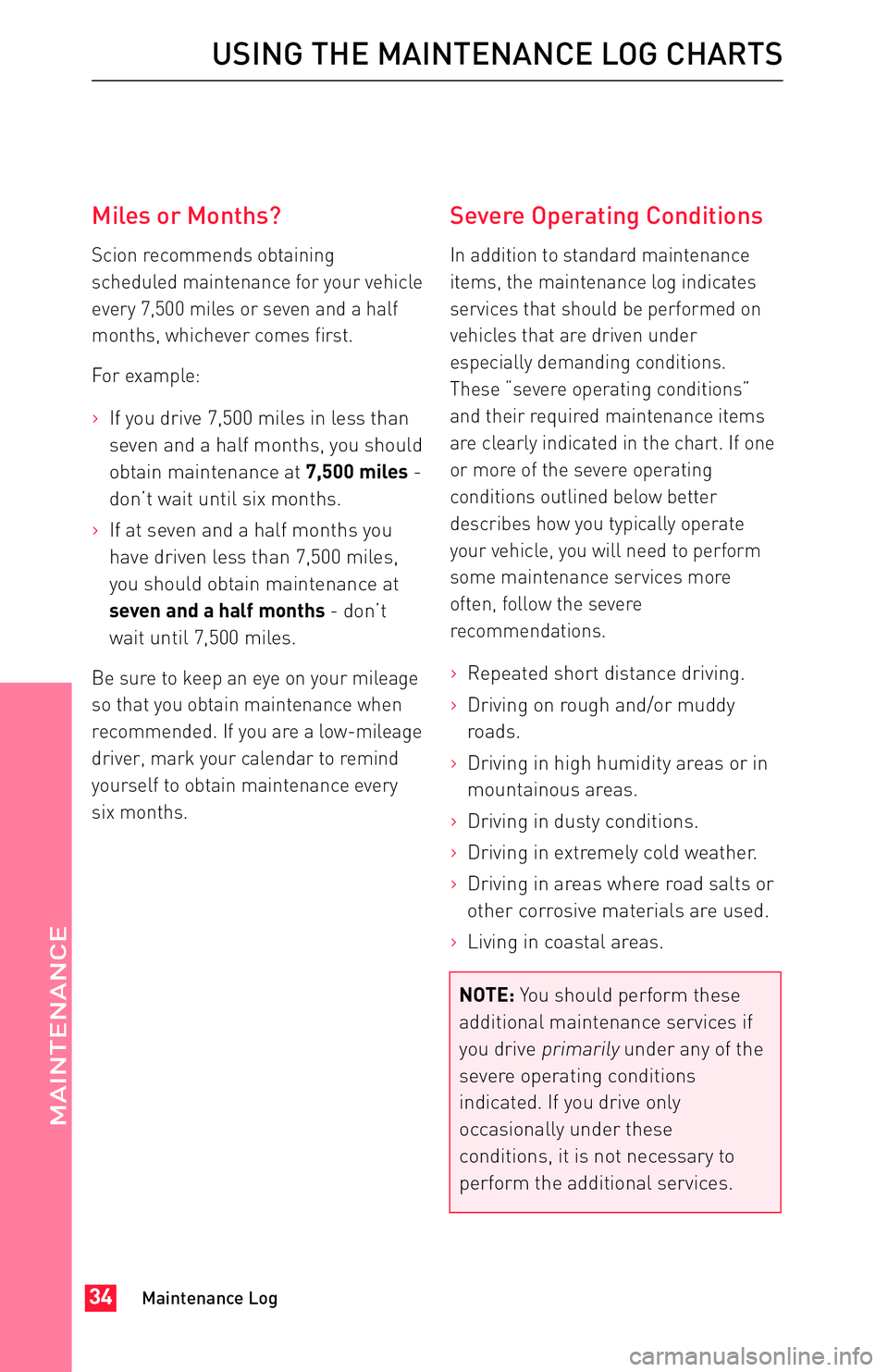

Miles or Months?
Scion recommends obtaining
scheduled maintenance for your vehicle
every 7,500 miles or seven and a half
months, whichever comes first.
For example:
>If you drive 7,500 miles in less than
seven and a half months, you should
obtain maintenance at 7,500 miles-
don’t wait until six months.
>If at seven and a half months you
have driven less than 7,500 miles,
you should obtain maintenance at
seven and a half months - don’t
wait until 7,500 miles.
Be sure to keep an eye on your mileage
so that you obtain maintenance when
recommended. If you are a low-mileage
driver, mark your calendar to remind
yourself to obtain maintenance every
six months.
Severe Operating Conditions
In addition to standard maintenance
items, the maintenance log indicates
services that should be performed on
vehicles that are driven under
especially demanding conditions.
These “severe operating conditions”
and their required maintenance items
are clearly indicated in the chart. If one
or more of the severe operating
conditions outlined below better
describes how you typically operate
your vehicle, you will need to perform
some maintenance services more
often, follow the severe
recommendations.
>Repeated short distance driving.
>Driving on rough and/or muddy
roads.
>Driving in high humidity areas or in
mountainous areas.
>Driving in dusty conditions.
>Driving in extremely cold weather.
>Driving in areas where road salts or
other corrosive materials are used.
>Living in coastal areas.
NOTE: You should perform these
additional maintenance services if
you drive
primarilyunder any of the
severe operating conditions
indicated. If you drive only
occasionally under these
conditions, it is not necessary to
perform the additional services.
USING THE MAINTENANCE LOG CHARTS
Maintenance Log34
MAINTENANCE

JOBNAME: 1139278-2013-sfr-toy PAGE: 35 SESS: 11 OUTPUT: Fri Apr 20 09:31:46 2012
/tweddle/toyota/sched-maint/1139278-en-sfr/wg

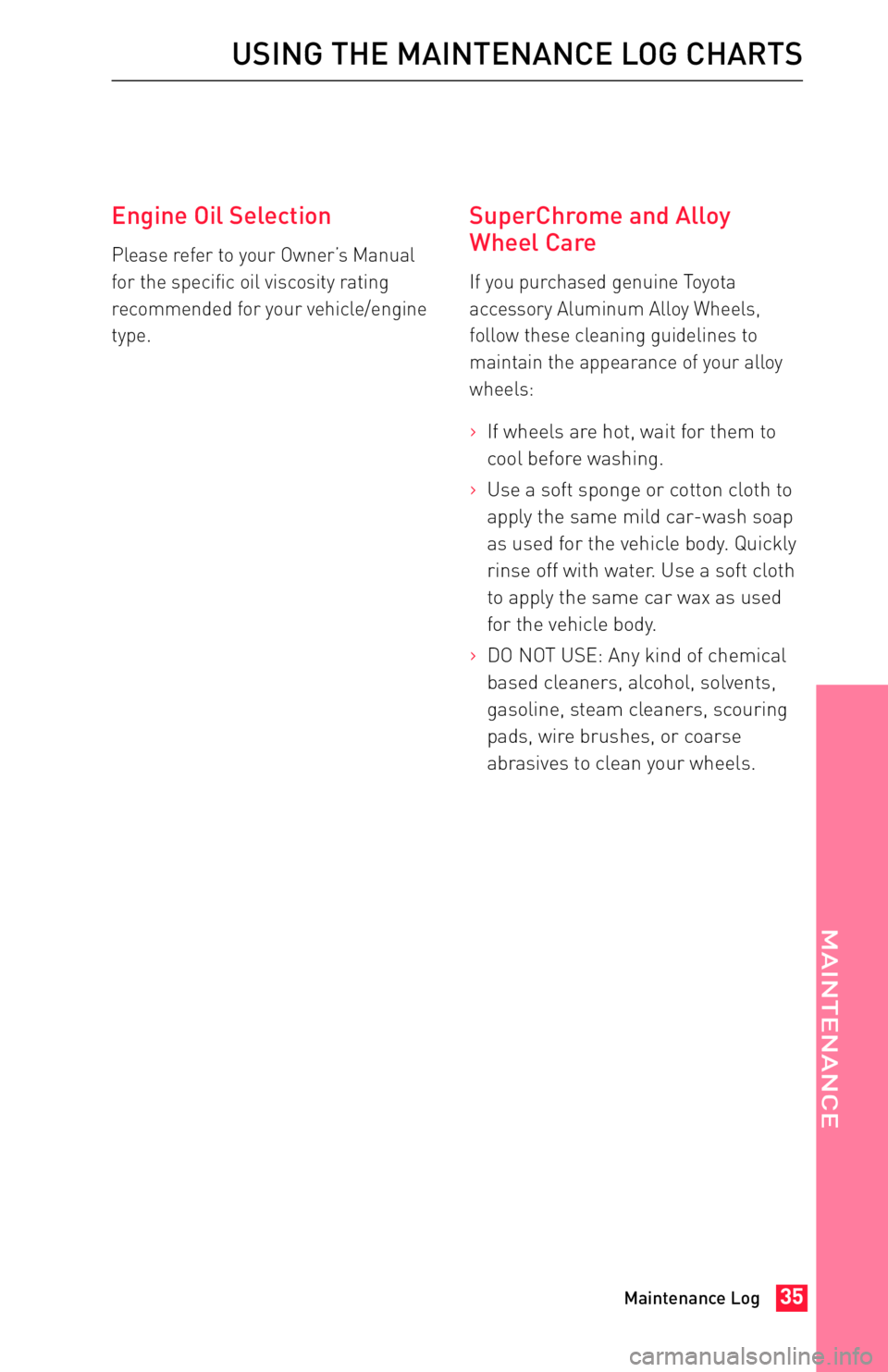

Engine Oil Selection
Please refer to your Owner’s Manual
for the specific oil viscosity rating
recommended for your vehicle/engine
type.
SuperChrome and Alloy
Wheel Care
If you purchased genuine Toyota
accessory Aluminum Alloy Wheels,
follow these cleaning guidelines to
maintain the appearance of your alloy
wheels:
>If wheels are hot, wait for them to
cool before washing.
>Use a soft sponge or cotton cloth to
apply the same mild car-wash soap
as used for the vehicle body. Quickly
rinse off with water. Use a soft cloth
to apply the same car wax as used
for the vehicle body.
>DO NOT USE: Any kind of chemical
based cleaners, alcohol, solvents,
gasoline, steam cleaners, scouring
pads, wire brushes, or coarse
abrasives to clean your wheels.
USING THE MAINTENANCE LOG CHARTS
Maintenance Log35
MAINTENANCE

JOBNAME: 1139278-2013-sfr-toy PAGE: 36 SESS: 11 OUTPUT: Fri Apr 20 09:31:46 2012
/tweddle/toyota/sched-maint/1139278-en-sfr/wg

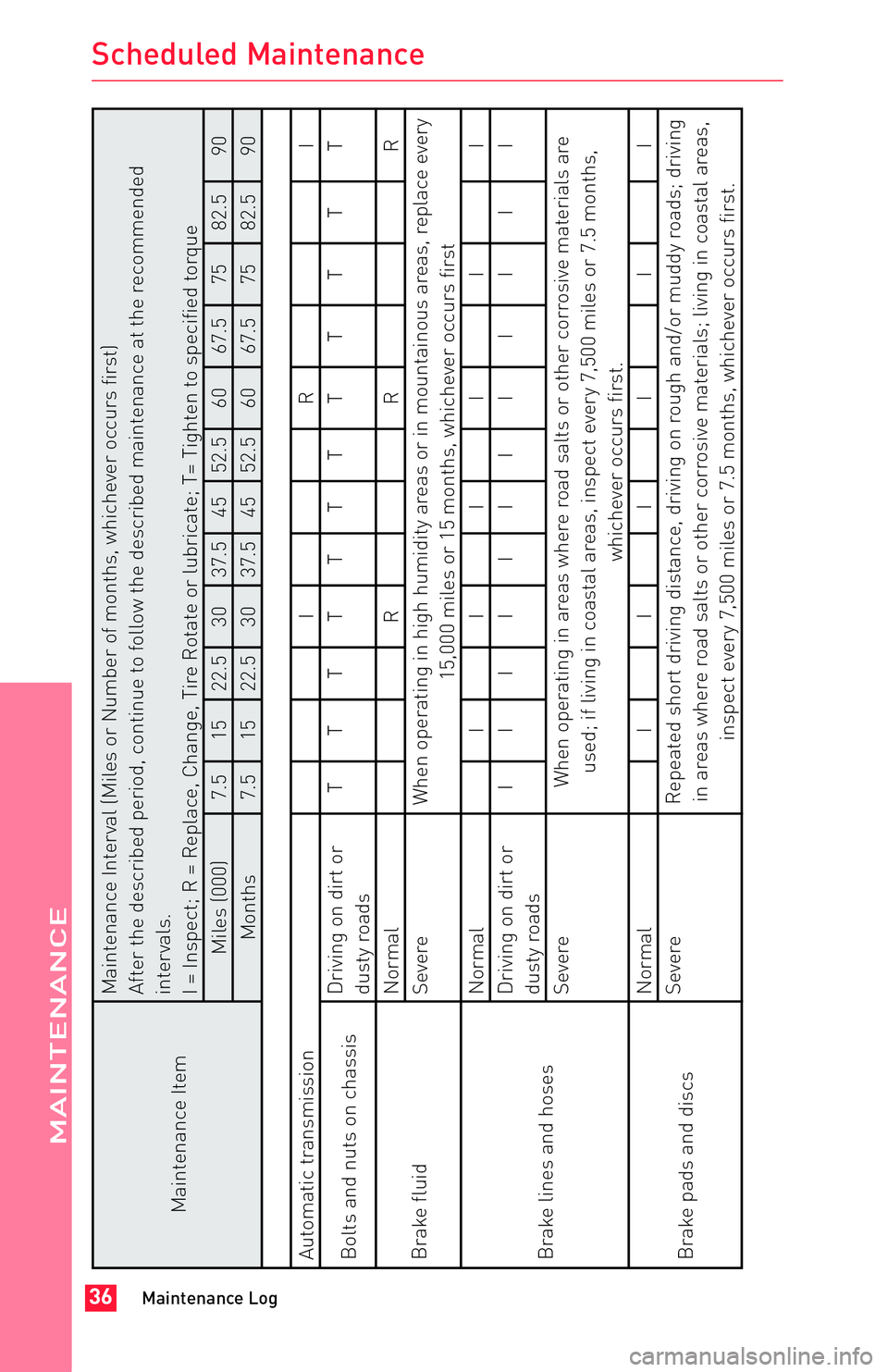

Maintenance ItemMaintenance Interval (Miles or Number of months, whichever occurs first)
After the described period, continue to follow the described maintenance at the recommended
intervals.
I = Inspect; R = Replace, Change, Tire Rotate or lubricate; T= Tighten to specified torque
Miles (000) 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90Months 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Automatic transmission I R I
Bolts and nuts on chassis Driving on dirt or
dusty roadsTTTTTTTTTTT T
Brake fluid Normal R R R
Severe When operating in high humidity areas or in mountainous areas, replace every
15,000 miles or 15 months, whichever occurs first
Brake lines and hoses Normal I I I I I I
Driving on dirt or
dusty roads
IIIIIIIIIII I
Severe When operating in areas where road salts or other corrosive materials are used; if living in coastal areas, inspect every 7,500 miles or 7.5 months,whichever occurs first.
Brake pads and discs Normal I I I I I I
Severe Repeated short driving distance, driving on rough and/or muddy roads; driving
in areas where road salts or other corrosive materials; living in coastal areas,inspect every 7,500 miles or 7.5 months, whichever occurs first.
Scheduled Maintenance
MAINTENANCE
36Maintenance Log

JOBNAME: 1139278-2013-sfr-toy PAGE: 37 SESS: 11 OUTPUT: Fri Apr 20 09:31:46 2012
/tweddle/toyota/sched-maint/1139278-en-sfr/wg
Maintenance ItemMaintenance Interval (Miles or Number of months, whichever occurs first)
After the described period, continue to follow the described maintenance at the recommended
intervals.
I = Inspect; R = Replace, Change, Tire Rotate or lubricate; T= Tighten to specified torque
Miles (000) 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90Months 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90

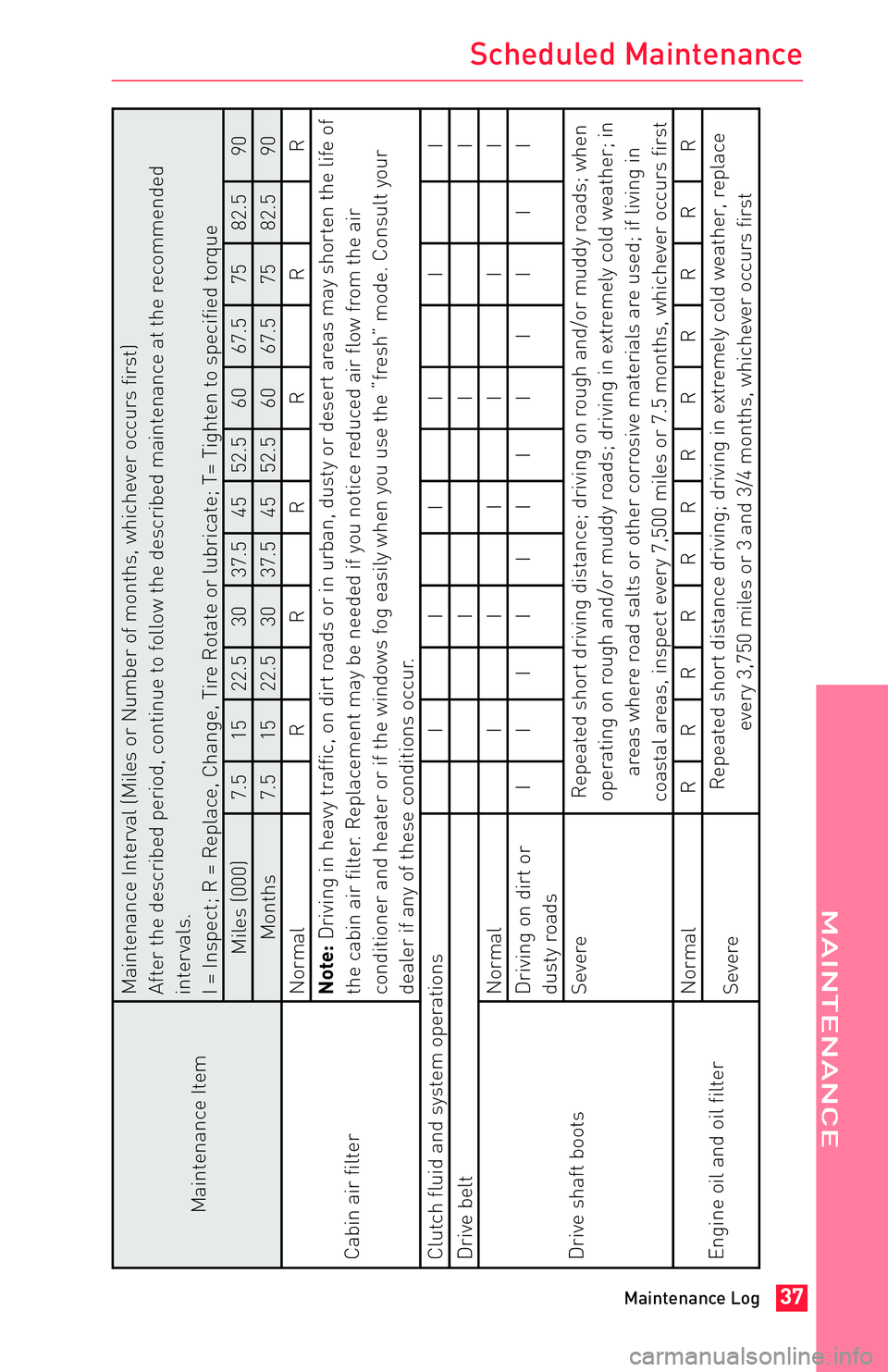

Cabin air filter Normal R R R R R R
Note:
Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten the life of
the cabin air filter. Replacement may be needed if you notice reduced air flow from the air
conditioner and heater or if the windows fog easily when you use the “fresh” mode. Consult your
dealer if any of these conditions occur.
Clutch fluid and system operations I I I I I I
Drive belt I I I
Drive shaft boots Normal I I I I I I
Driving on dirt or
dusty roads
IIIIIIIIIII I
Severe Repeated short driving distance; driving on rough and/or muddy roads; when operating on rough and/or muddy roads; driving in extremely cold weather; inareas where road salts or other corrosive materials are used; if living in
coastal areas, inspect every 7,500 miles or 7.5 months, whichever occurs first
Engine oil and oil filter Normal
RRRRRRRRRRR R
Severe Repeated short distance driving; driving in extremely cold weather, replace
every 3,750 miles or 3 and 3/4 months, whichever occurs first
Scheduled Maintenance
MAINTENANCE
37Maintenance Log

JOBNAME: 1139278-2013-sfr-toy PAGE: 38 SESS: 11 OUTPUT: Fri Apr 20 09:31:46 2012
/tweddle/toyota/sched-maint/1139278-en-sfr/wg

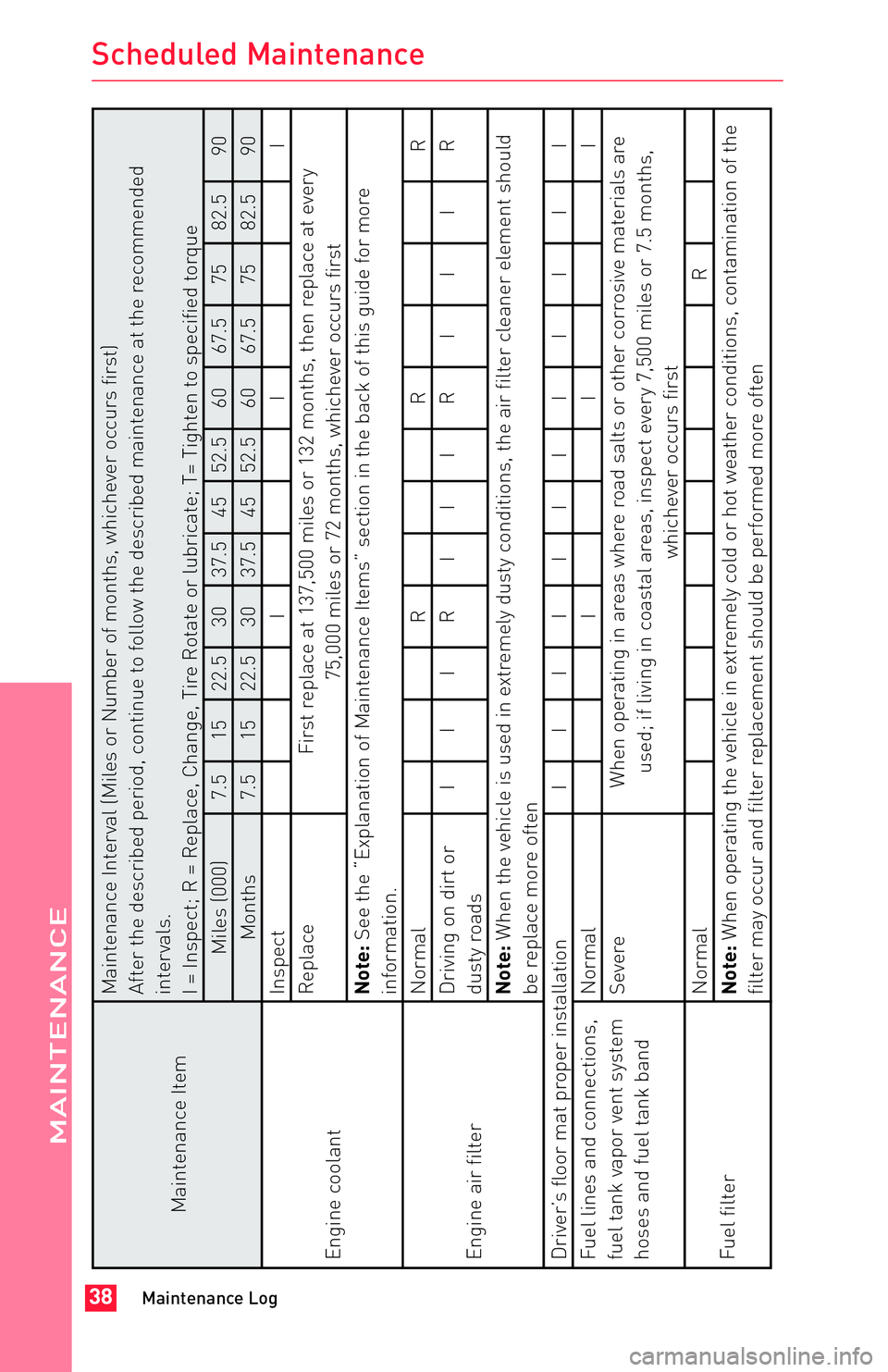

Maintenance ItemMaintenance Interval (Miles or Number of months, whichever occurs first)
After the described period, continue to follow the described maintenance at the recommended
intervals.
I = Inspect; R = Replace, Change, Tire Rotate or lubricate; T= Tighten to specified torque
Miles (000) 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90Months 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Engine coolant Inspect I I I
Replace First replace at 137,500 miles or 132 months, then replace at every
75,000 miles or 72 months, whichever occurs first
Note: See the “Explanation of Maintenance Items” section in the back of this guide for more
information.
Engine air filter Normal R R R
Driving on dirt or
dusty roads
IIIRIIIRI I I R
Note: When the vehicle is used in extremely dusty conditions, the air filter cleaner element should
be replace more often
Driver’s floor mat proper installation IIIIIIIIIII I
Fuel lines and connections,
fuel tank vapor vent system
hoses and fuel tank band Normal
II I
Severe When operating in areas where road salts or other corrosive materials are
used; if living in coastal areas, inspect every 7,500 miles or 7.5 months, whichever occurs first
Fuel filter Normal
R
Note: When operating the vehicle in extremely cold or hot weather conditions, contamination of the
filter may occur and filter replacement should be performed more often
Scheduled Maintenance
MAINTENANCE
38Maintenance Log

JOBNAME: 1139278-2013-sfr-toy PAGE: 39 SESS: 11 OUTPUT: Fri Apr 20 09:31:46 2012
/tweddle/toyota/sched-maint/1139278-en-sfr/wg
Maintenance ItemMaintenance Interval (Miles or Number of months, whichever occurs first)
After the described period, continue to follow the described maintenance at the recommended
intervals.
I = Inspect; R = Replace, Change, Tire Rotate or lubricate; T= Tighten to specified torque
Miles (000) 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90Months 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Fuel tank cap gasket I I I
Manual transmission oil I I I I
Parking brake linings and
drums Normal I I I
Severe When operating in areas where road salts or other corrosive materials are
used; if living in coastal areas, inspect every 7,500 miles or 7.5 months,whichever occurs first
Rear differential oil IIIIIIIIIII I
Spark plugs R
Steering gear box Normal
IIII I I
Driving on dirt or
dusty roads IIIIIIIIIII I
Severe When operating on rough and/or muddy roads; driving in extremely cold
weather; in areas where road salts or other corrosive materials are used; if living in coastal areas, inspect every 7,500 miles or 7.5 months, whichever occurs first
Scheduled Maintenance
MAINTENANCE
39Maintenance Log
