TOYOTA FR-S 2014 Owners Manual (in English)

341 6-1. Specifications
6
Vehicle specifications
Vehicle identification
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Scion. It is used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
This number is located on the
top left of the body panel.
This number is also on the Certi-
fication Label.

342 6-1. Specifications
■Engine number
The engine number is stamped on the engine block as shown.

343 6-1. Specifications
6
Vehicle specifications
Engine
Fuel
*: If unleaded gasoline with an octane rating of 93 (98 RON) is not available,
unleaded gasoline with an octane rating of 91 (95 RON) may be used with
no detriment to engine durability or driveability.
Model FA20
Ty p eHorizontally opposed, liquid cooled 4 cylinder, 4-
stroke gasoline
Bore and stroke 3.39 3.39 in. (86.0  86.0 mm)
Displacement 121.93 cu.in. (1998 cm3)
Drive belt tension Automatic adjustment
Fuel type Unleaded gasoline only
Octane rating 93 (Research octane number 98) or higher*
Fuel tank capacity
(Reference)13.2 gal. (50 L, 11.0 Imp. gal.)

344 6-1. Specifications
Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Scion vehicle. Scion rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
Oil capacity
(Drain and refill 
reference*)
Without filter
With filter 5.5 qt. (5.2 L, 4.6 Imp. qt.)
5.7 qt. (5.4 L, 4.8 Imp. qt.)
Outside temperature

345 6-1. Specifications
6
Vehicle specifications
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubricant Specification Advisory Commit-
tee) Certification Mark is added to some oil containers to help you
select the oil you should use.
CTH61AS018

346 6-1. Specifications
Cooling system
Ignition system
CapacityVehicles with an automatic transmission
7.9 qt. (7.5 L, 6.6 Imp. qt.)
Vehicles with a manual transmission
7.6 qt. (7.2 L, 6.3 Imp. qt.)
Coolant typeUse either of the following.
• “TOYOTA Genuine 50/50 Pre-mixed Super Long
Life Coolant BLUE”
• Similar high-quality ethylene glycol-based non-
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Spark plug
Make
GapDENSO ZXE27HBR8
0.031 in. (0.8 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

347 6-1. Specifications
6
Vehicle specifications

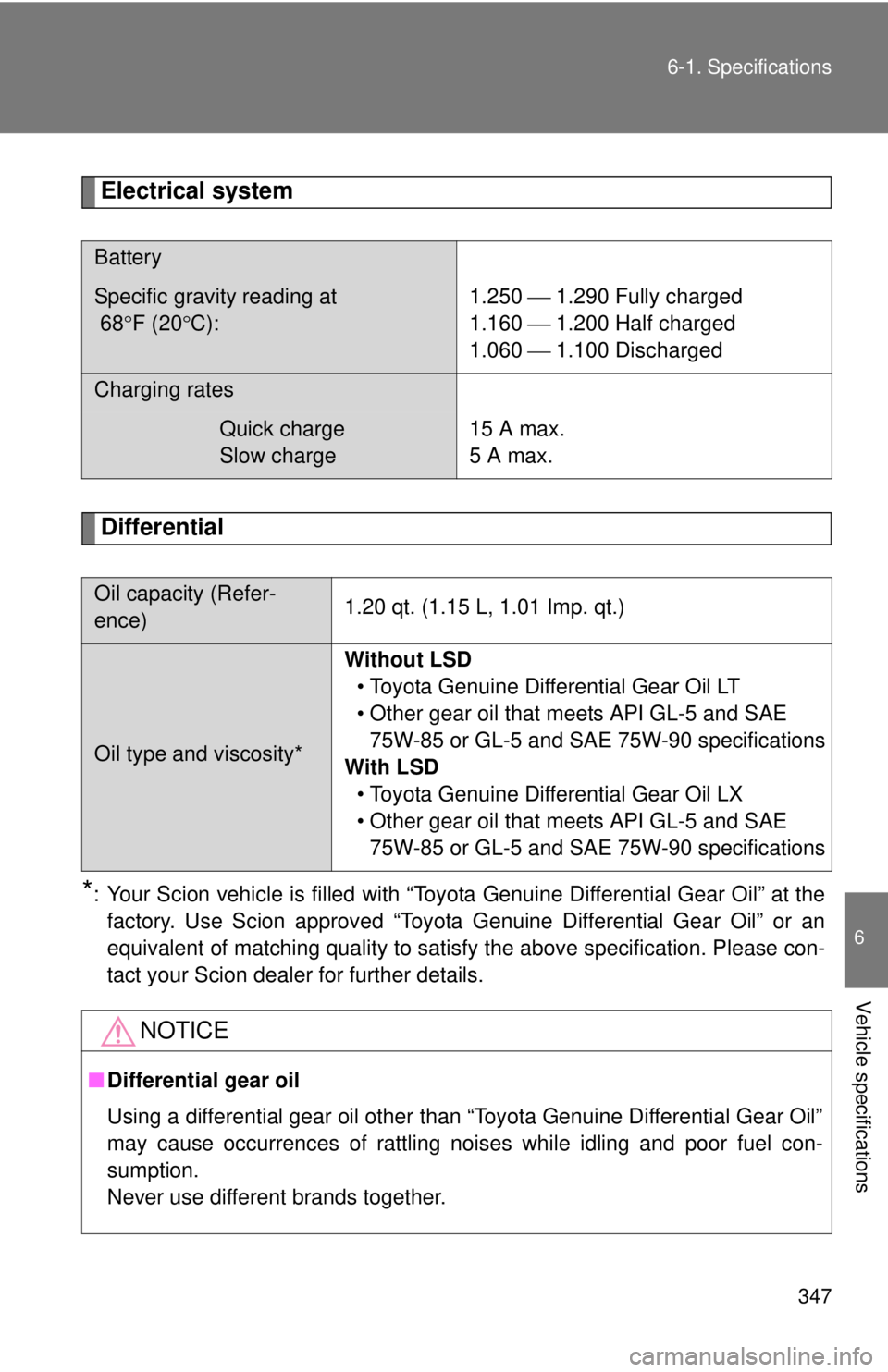

Electrical system
Differential
*: Your Scion vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory. Use Scion approved “Toyota Genuine Differential Gear Oil” or an
equivalent of matching quality to satisfy the above specification. Please con-
tact your Scion dealer for further details.
Battery
Specific gravity reading at
68F (20C):1.250  1.290 Fully charged
1.160  1.200 Half charged
1.060  1.100 Discharged
Charging rates
Quick charge
Slow charge15 A max.
5 A max.
Oil capacity (Refer-
ence)1.20 qt. (1.15 L, 1.01 Imp. qt.)
Oil type and viscosity*Without LSD
• Toyota Genuine Differential Gear Oil LT
• Other gear oil that meets API GL-5 and SAE
75W-85 or GL-5 and SAE 75W-90 specifications
With LSD
• Toyota Genuine Differential Gear Oil LX
• Other gear oil that meets API GL-5 and SAE
75W-85 or GL-5 and SAE 75W-90 specifications
NOTICE
■Differential gear oil
Using a differential gear oil other than “Toyota Genuine Differential Gear Oil”
may cause occurrences of rattling noises while idling and poor fuel con-
sumption.
Never use different brands together.

348 6-1. Specifications

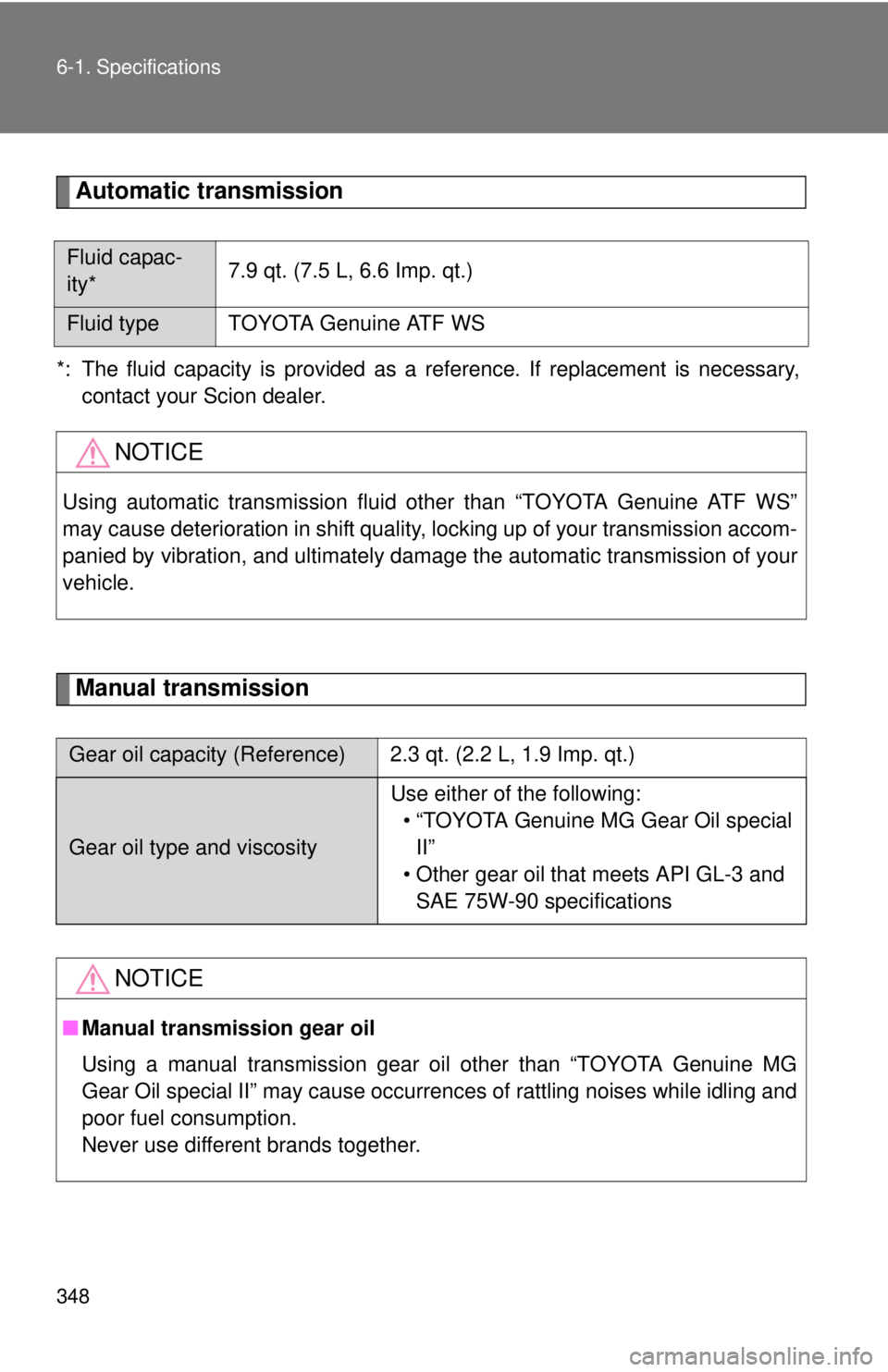

Automatic transmission
*: The fluid capacity is provided as a reference. If replacement is necessary,
contact your Scion dealer.
Manual transmission
Fluid capac-
ity*7.9 qt. (7.5 L, 6.6 Imp. qt.)
Fluid type TOYOTA Genuine ATF WS
NOTICE
Using automatic transmission fluid other than “TOYOTA Genuine ATF WS”
may cause deterioration in shift quality, locking up of your transmission accom-
panied by vibration, and ultimately damage the automatic transmission of your
vehicle.
Gear oil capacity (Reference) 2.3 qt. (2.2 L, 1.9 Imp. qt.)
Gear oil type and viscosityUse either of the following:
• “TOYOTA Genuine MG Gear Oil special
II”
• Other gear oil that meets API GL-3 and
SAE 75W-90 specifications
NOTICE
■Manual transmission gear oil
Using a manual transmission gear oil other than “TOYOTA Genuine MG
Gear Oil special II” may cause occurrences of rattling noises while idling and
poor fuel consumption.
Never use different brands together.

349 6-1. Specifications
6
Vehicle specifications

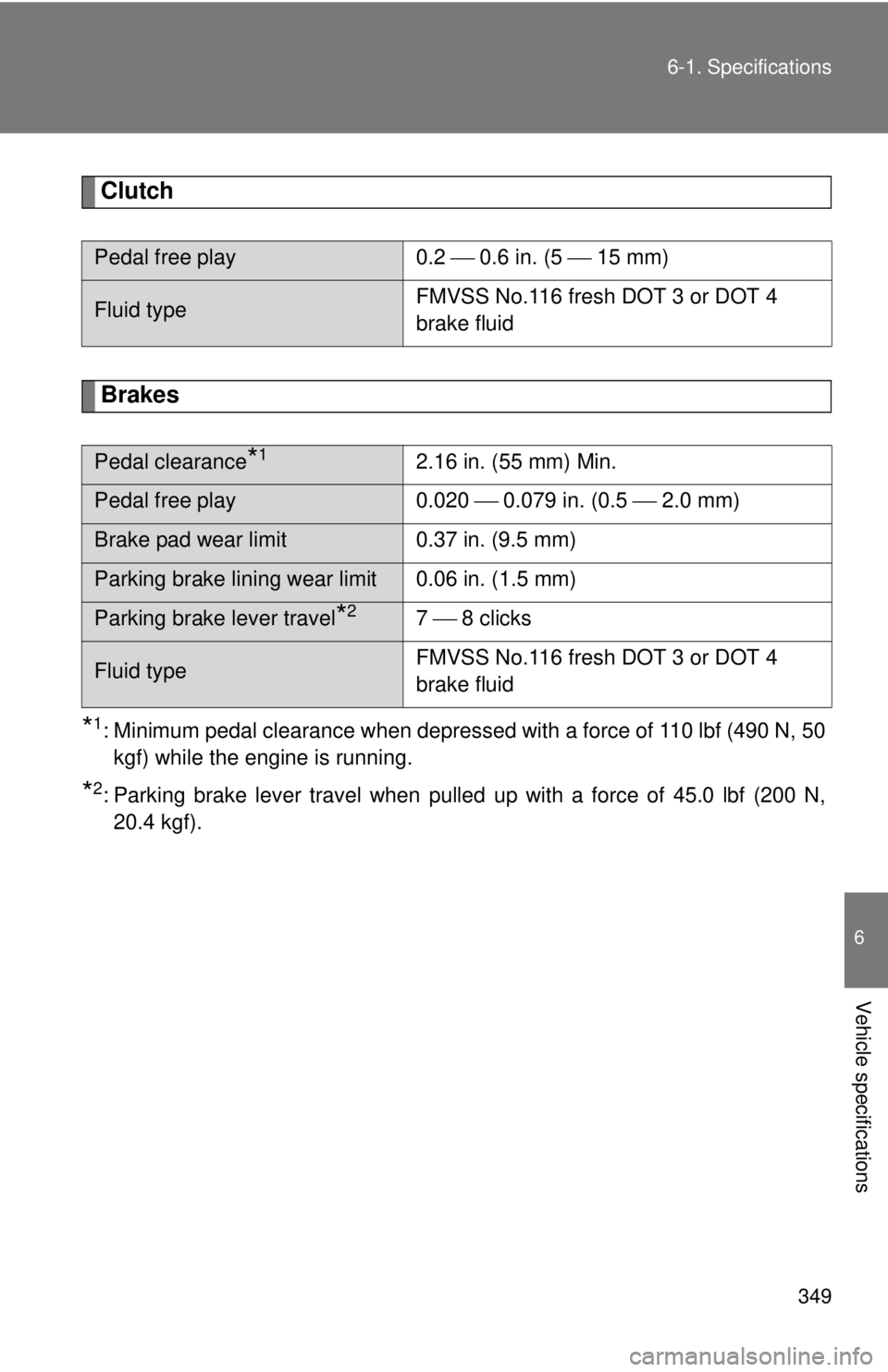

Clutch
Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50
kgf) while the engine is running.
*2: Parking brake lever travel when pulled up with a force of 45.0 lbf (200 N,
20.4 kgf).
Pedal free play 0.2  0.6 in. (5  15 mm)
Fluid typeFMVSS No.116 fresh DOT 3 or DOT 4
brake fluid
Pedal clearance*12.16 in. (55 mm) Min.
Pedal free play 0.020  0.079 in. (0.5  2.0 mm)
Brake pad wear limit 0.37 in. (9.5 mm)
Parking brake lining wear limit 0.06 in. (1.5 mm)
Parking brake lever travel*27  8 clicks
Fluid typeFMVSS No.116 fresh DOT 3 or DOT 4
brake fluid

350 6-1. Specifications

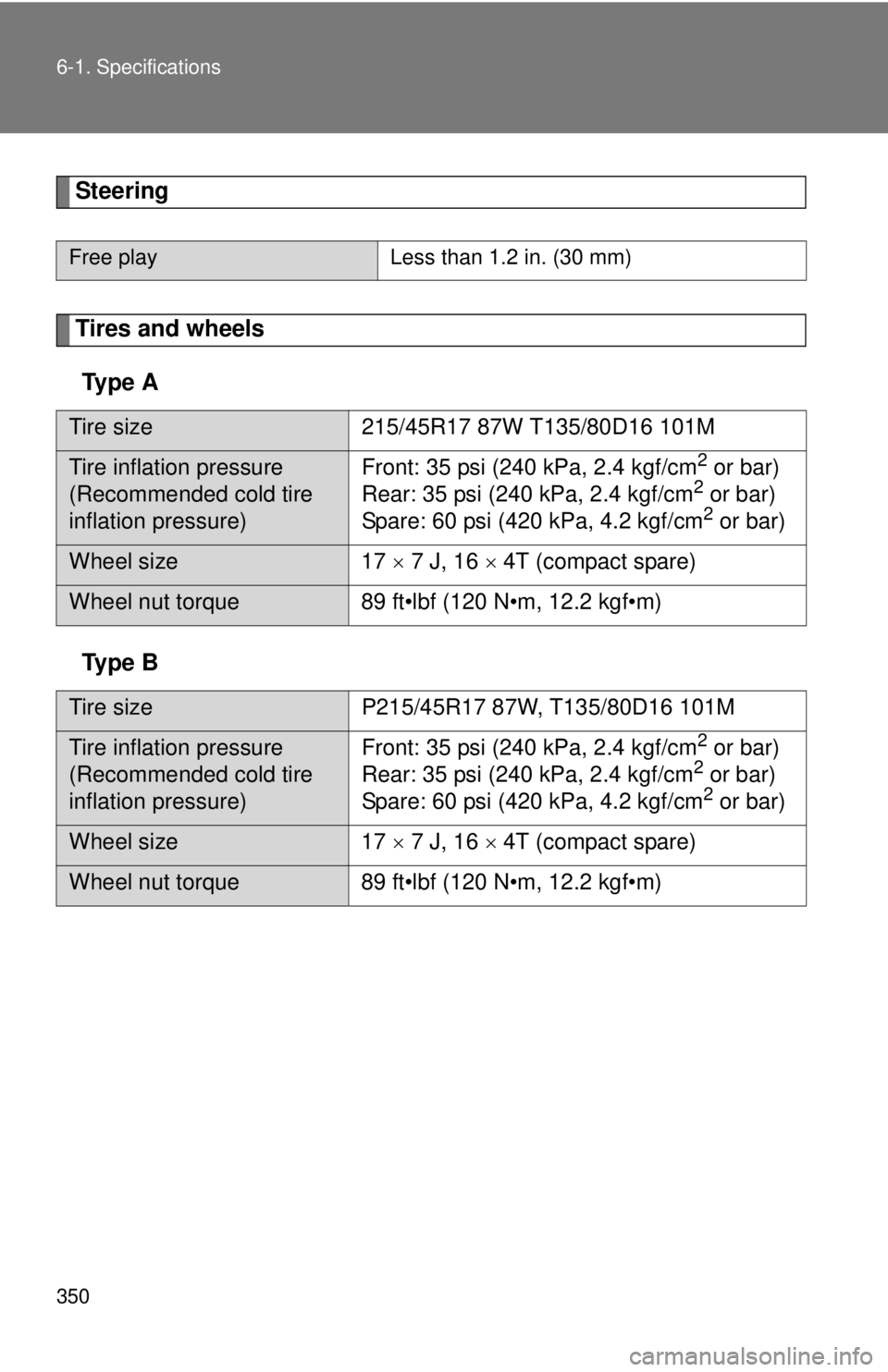

Steering
Tires and wheels
Ty p e A
Ty p e B
Free play Less than 1.2 in. (30 mm)
Tire size 215/45R17 87W T135/80D16 101M
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size 17  7 J, 16  4T (compact spare)
Wheel nut torque 89 ft•lbf (120 N•m, 12.2 kgf•m)
Tire size P215/45R17 87W, T135/80D16 101M
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size 17  7 J, 16  4T (compact spare)
Wheel nut torque 89 ft•lbf (120 N•m, 12.2 kgf•m)
