111 1-7. Safety information
1
Before driving
CAUTION
■SRS airbag precautions
●The SRS front passenger airbag also deploys with considerable force, and
can cause death or serious injury especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the air-
bag as possible with the seatback adjusted, so the front passenger sits
upright.
●Improperly seated and/or restrained infants and children can be killed or
seriously injured by a deploying airbag. An infant or child who is too small
to use a seat belt should be properly secured using a child restraint sys-
tem. Scion strongly recommends that all infants and children be placed in
the rear seats of the vehicle and properly restrained. The rear seats are
safer for infants and children than the front passenger seat. (P. 125)
●Do not sit on the edge of the seat or
lean against the dashboard.

112 1-7. Safety information
CAUTION
■SRS airbag precautions
●Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
●Do not allow the front seat occupants to
hold items on their knees.
●Do not lean against the door, the roof
side rail or the front, side and rear pil-
lars.
●Do not allow anyone to kneel on the
passenger seat toward the door or put
their head or hands outside the vehicle.
●Do not attach anything to or lean any-
thing against areas such as the dash-
board or steering wheel pad.
These items can become projectiles
when SRS driver and front passenger
airbags deploy.

113 1-7. Safety information
1
Before driving
CAUTION
■SRS airbag precautions
●Do not use seat accessories which cover the parts where the SRS side
airbags inflate as they may interfere with inflation of the airbags. Such
accessories may prevent the side airbags from activating correctly, disable
the system or cause the side airbags to inflate accidentally, resulting in
death or serious injury.
●Do not strike or apply significant levels of force to the area of the SRS air-
bag components (P. 87).
Doing so can cause the SRS airbags to malfunction.
●Do not touch any of the component parts immediately after the SRS air-
bags have deployed (inflated) as they may be hot.
●If breathing becomes difficult after the SRS airbag has deployed, open a
door or window to allow fresh air in, or leave the vehicle if it is safe to do
so. Wash off any residue as soon as possible to prevent skin irritation.
●If the areas where the SRS airbags are stored, such as the steering wheel
pad and front and rear pillar garnishes, are damaged or cracked, have
them replaced by your Scion dealer.
●Do not attach anything to areas such as
a door, windshield glass, side door
glass, rear quarter glass, front and rear
pillar or roof side rail.

114 1-7. Safety information
CAUTION
■Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications
without consulting your Scion dealer.
The SRS airbags may malfunction or deploy (inflate) accidentally, causing
death or serious injury.
●Installation, removal, disassembly and repair of the SRS airbags.
●Repairs, modifications, removal or replacement of the steering wheel,
instrument panel, dashboard, seats or seat upholstery, front, side and rear
pillars or roof side rails.
●Repairs or modifications of the front fender, front bumper, or side of the
occupant compartment.
●Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows,
winches.
●Modifications to the vehicle's suspension system.
●Installation of electronic devices such as mobile two-way radios and CD
players.
●Modifications to your vehicle for a person with a physical disability.

115 1-7. Safety information
1
Before driving
SRS airbag system monitors
A diagnostic system continually
monitors the readiness of the
SRS airbag system (including
front seat belt pretensioners)
while the vehicle is being driven.
The SRS warning light will show
normal system operation by illu-
minating for approximately 6
seconds when the “ENGINE
START STOP” switch is turned
to IGNITION ON mode.
The following components are monitored by the indicator:
●Front sub sensor (right-hand side)
●Front sub sensor (left-hand side)
●Airbag control module (including impact sensors)
●Frontal airbag module (driver’s side)
●Frontal airbag module (front passenger’s side)
●Side airbag sensor (center pillar right-hand side)
●Side airbag sensor (center pillar left-hand side)
●Door impact sensor (right-hand side)
●Door impact sensor (left-hand side)
●Side airbag module (driver’s side)
●Side airbag module (front passenger’s side)
●Curtain shield airbag sensor (rear wheel house right-hand side)
●Curtain shield airbag sensor (rear wheel house left-hand side)
●Curtain shield airbag module (right-hand side)

116 1-7. Safety information
●Curtain shield airbag module (left-hand side)
●Satellite safing sensor (under the center of the rear seats)
●Seat belt pretensioner (driver’s side)
●Seat belt pretensioner (front passenger’s side)
●Seat belt buckle switch (front passenger’s side)
●Front passenger’s occupant classification system sensor
●Front passenger’s occupant detection control module
●Front passenger’s frontal airbag ON and OFF indicator
●All related wiring
CAUTION
■SRS warning light
If the warning light exhibits any of the following conditions, there may be a
malfunction in the seat belt pretensioners, SRS airbag system and/or front
passenger occupant classification system. Immediately take your vehicle to
your nearest Scion dealer to have the system checked. Unless checked and
properly repaired, the seat belt pretensioners, SRS airbag and/or front pas-
senger occupant classification system will not operate properly in the event
of a collision, which may increase the risk of death or serious injury.
●Flashing or flickering of the warning light
●No illumination of the warning light when the “ENGINE START STOP”
switch is first turned to IGNITION ON mode.
●Continuous illumination of the warning light
●Illumination of the warning light while driving

117
1
1-7. Safety information
Before driving

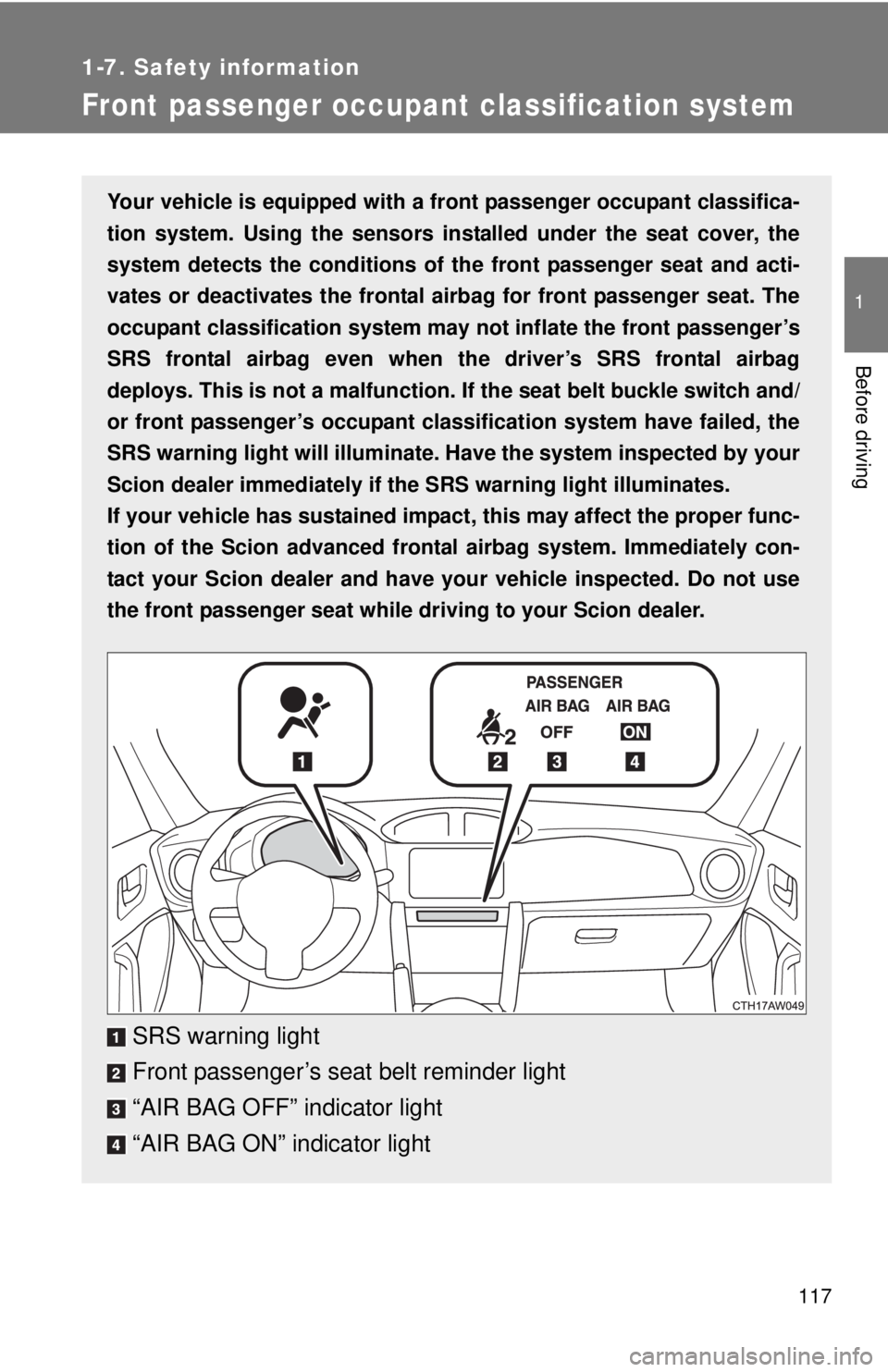

Front passenger occupant classification system
Your vehicle is equipped with a front passenger occupant classifica-
tion system. Using the sensors installed under the seat cover, the
system detects the conditions of the front passenger seat and acti-
vates or deactivates the frontal airbag for front passenger seat. The
occupant classification system may not inflate the front passenger’s
SRS frontal airbag even when the driver’s SRS frontal airbag
deploys. This is not a malfunction. If the seat belt buckle switch and/
or front passenger’s occupant classification system have failed, the
SRS warning light will illuminate. Have the system inspected by your
Scion dealer immediately if the SRS warning light illuminates.
If your vehicle has sustained impact, this may affect the proper func-
tion of the Scion advanced frontal airbag system. Immediately con-
tact your Scion dealer and have your vehicle inspected. Do not use
the front passenger seat while driving to your Scion dealer.
SRS warning light
Front passenger’s seat belt reminder light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light

118 1-7. Safety information
Condition and operation in the front passenger occupant
classification system*1
■Adult*2
■Child restraint system with infant*6, *7, *8
Indicator/
warning light“AIR BAG ON” and “AIR BAG OFF”
indicator lights“AIR BAG
ON”
SRS warning light Off
Front passenger’s seat belt reminder light
Flashing
*3
DevicesFront passenger airbag
On Front side airbag
*4
Front curtain shield airbag*4
Front passenger’s seat belt pretensioner*4
Indicator/
warning light“AIR BAG ON” and “AIR BAG OFF”
indicator lights“AIR BAG
OFF”*9
SRS warning light
Off
Front passenger’s seat belt reminder light
DevicesFront passenger airbag Off
Front side airbag
*4
On
Front curtain shield airbag*4
Front passenger’s seat belt pretensioner*4
The front passenger’s frontal airbag ON and OFF indicators show
you the status of the front passenger’s SRS frontal airbag. When
the “ENGINE START STOP” switch is turned to IGNITION ON
mode, both the ON and OFF indicators illuminate while the system
is checked, after which both indicators turn off.
After that, one of the indicators illuminates depending on the status
of the front passenger’s SRS frontal airbag determined by the
Scion advanced frontal airbag monitoring system.

119 1-7. Safety information
1
Before driving
■Child*5, *7
■Unoccupied
■There is a malfunction in the system
Indicator/
warning light“AIR BAG ON” and “AIR BAG OFF”
indicator lights“AIR BAG
OFF” or “AIR
BAG ON”*5
SRS warning light Off
Front passenger’s seat belt reminder lightOff or
flashing
*3, *5
DevicesFront passenger airbag Off or on
*5
Front side airbag*4
On
Front curtain shield airbag*4
Front passenger’s seat belt pretensioner*4
Indicator/
warning light“AIR BAG ON” and “AIR BAG OFF”
indicator lights“AIR BAG
OFF”
SRS warning light
Off
Front passenger’s seat belt reminder light
DevicesFront passenger airbag Off
Front side airbag
*4
On
Front curtain shield airbag*4
Front passenger’s seat belt pretensioner*4
Indicator/
warning light“AIR BAG ON” and “AIR BAG OFF”
indicator lights“AIR BAG
OFF”
SRS warning light On
Front passenger’s seat belt reminder light Off
DevicesFront passenger airbag Off
Front side airbag
*4
On
Front curtain shield airbag*4
Front passenger’s seat belt pretensioner*4

120 1-7. Safety information
*1: The occupant classification system does not operate during self-
checking.
*2: The system judges a person of adult size as an adult. When a
smaller adult sits in the front passenger seat, the system may not
recognize him/her as an adult depending on his/her physique and
posture.
*3: In the event the front passenger does not wear a seat belt.
*4: The front passenger’s SRS side airbag, SRS curtain shield airbag
and seat belt pretensioner are not controlled by the occupant
classification system.
*5: For some children, child in seat, child in booster seat or child in
convertible seat, the system may not recognize him/her as a
child. Factors which may affect this can be the physique or pos-
ture.
Children who have outgrown a child restraint system should
always wear the seat belt when sitting in the seat irrespective of
whether the airbag is deactivated or activated.
*6: When a child restraint system is installed on the front passenger
seat, do not place any article on the seat other than the child
occupant and a child restraint system.
Failure to do so may prevent the front passenger occupant classi-
fication system from functioning correctly or cause the system to
fail.
*7: Do not place more than one child on the front passenger seat.
Failure to do so may prevent the front passenger occupant classi-
fication system from functioning correctly.
*8: Never install a rear-facing child restraint system on the front pas-
senger seat. See the caution that follows regarding installation of
a child restraint system. (P. 129)
*9: In case the indicator is not illuminated, consult this manual on
how to installing the child restraint system properly. (P. 129)
