49
1
YARIS(GR) Owner's Manual_Europe_M52L09_en

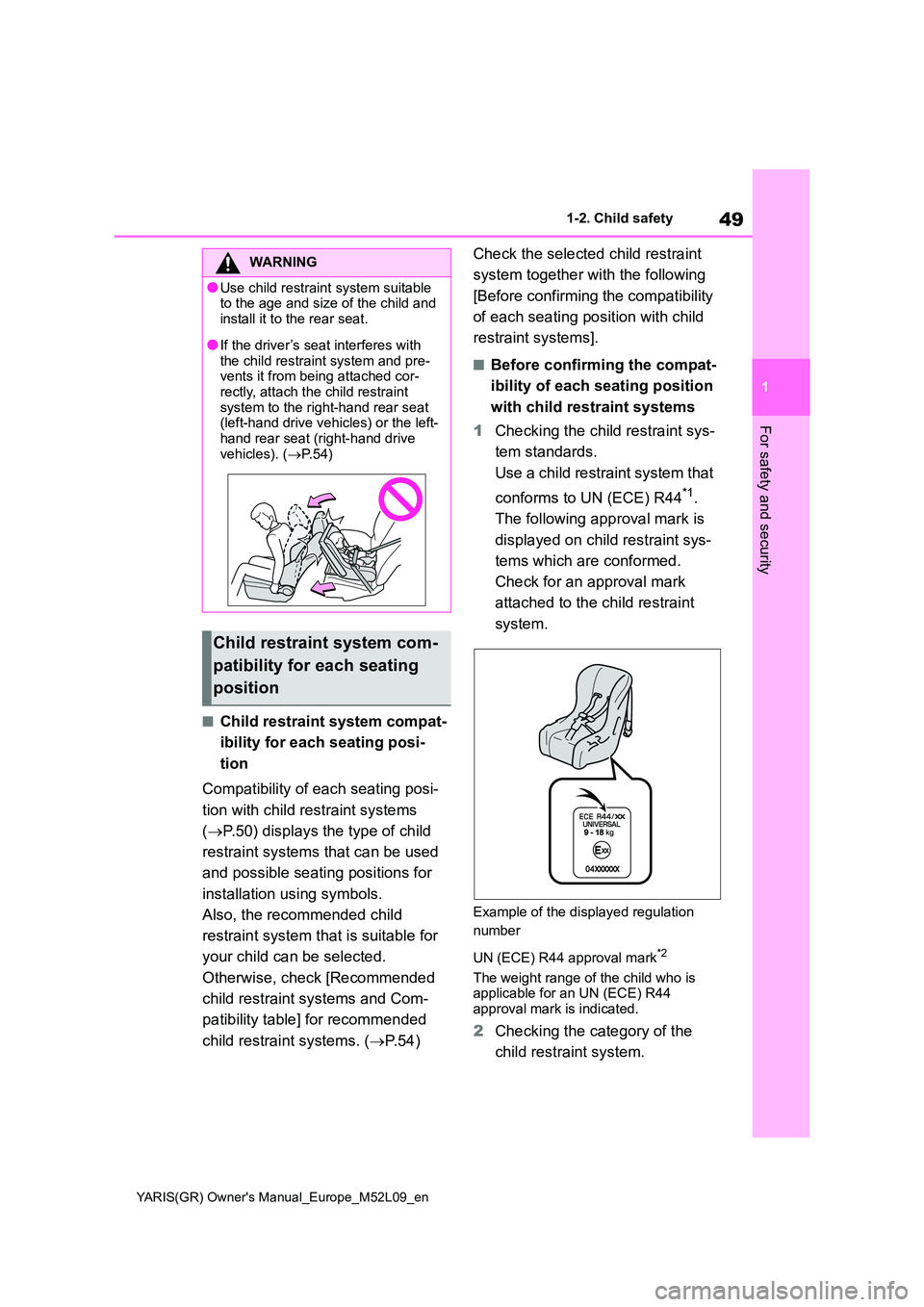

1-2. Child safety
For safety and security
■Child restraint system compat-
ibility for each seating posi-
tion
Compatibility of each seating posi-
tion with child restraint systems
( →P.50) displays the type of child
restraint systems that can be used
and possible seating positions for
installation using symbols.
Also, the recommended child
restraint system that is suitable for
your child can be selected.
Otherwise, check [Recommended
child restraint systems and Com-
patibility table] for recommended
child restraint systems. ( →P. 5 4 )
Check the selected child restraint
system together with the following
[Before confirming the compatibility
of each seating position with child
restraint systems].
■Before confirming the compat-
ibility of each seating position
with child restraint systems
1 Checking the child restraint sys-
tem standards.
Use a child restraint system that
conforms to UN (ECE) R44*1.
The following approval mark is
displayed on child restraint sys-
tems which are conformed.
Check for an approval mark
attached to the child restraint
system.
Example of the displayed regulation
number
UN (ECE) R44 approval mark*2
The weight range of the child who is applicable for an UN (ECE) R44
approval mark is indicated.
2 Checking the category of the
child restraint system.
WARNING
●Use child restraint system suitable to the age and size of the child and
install it to the rear seat.
●If the driver’s seat interferes with
the child restraint system and pre- vents it from being attached cor-rectly, attach the child restraint
system to the right-hand rear seat (left-hand drive vehicles) or the left-hand rear seat (right-hand drive
vehicles). ( →P. 5 4 )
Child restraint system com-
patibility for each seating
position

50
YARIS(GR) Owner's Manual_Europe_M52L09_en
1-2. Child safety

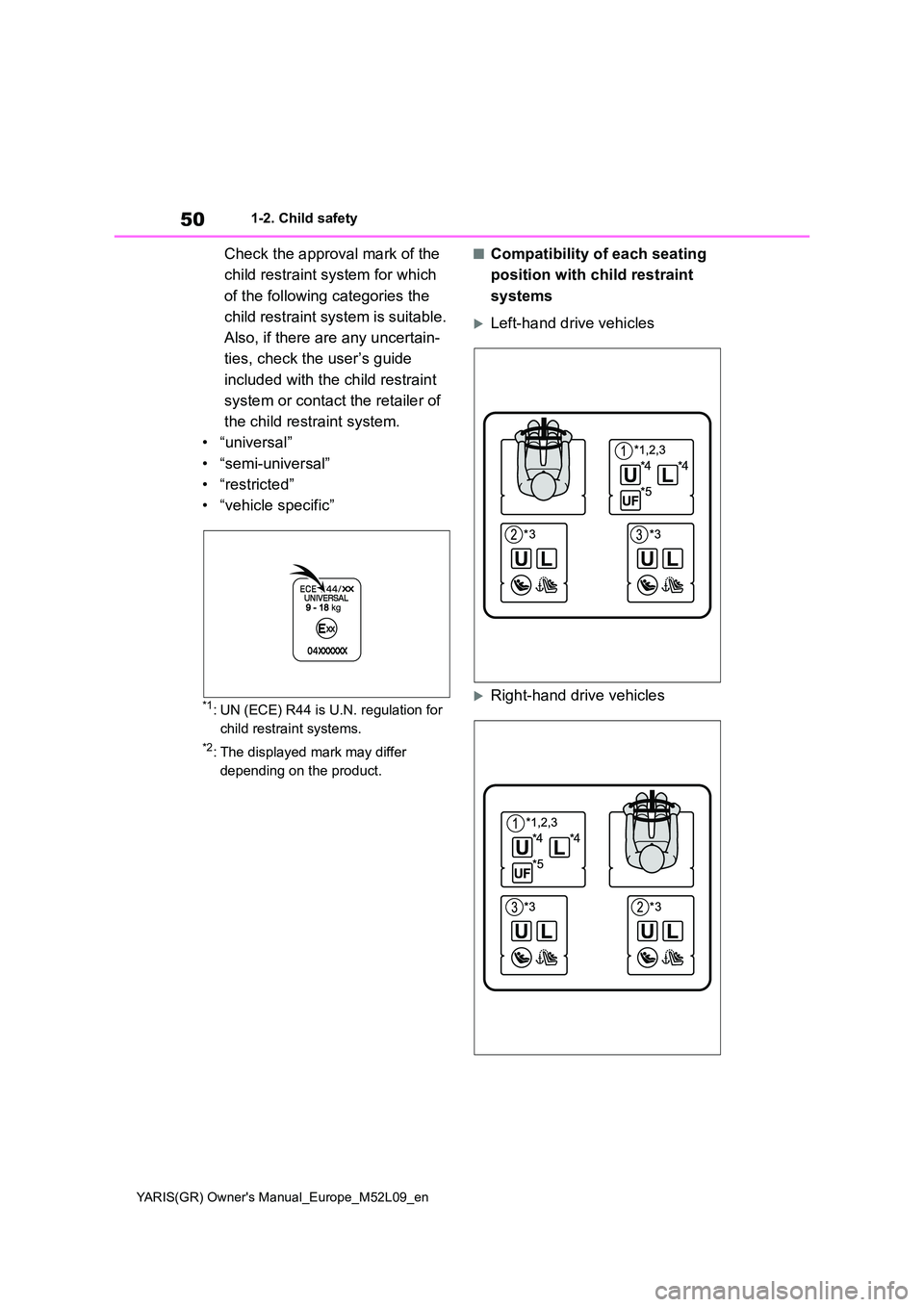

Check the approval mark of the
child restraint system for which
of the following categories the
child restraint system is suitable.
Also, if there are any uncertain-
ties, check the user’s guide
included with the child restraint
system or contact the retailer of
the child restraint system.
•“universal”
• “semi-universal”
• “restricted”
• “vehicle specific”
*1: UN (ECE) R44 is U.N. regulation for
child restraint systems.
*2: The displayed mark may differ
depending on the product.
■Compatibility of each seating
position with child restraint
systems
Left-hand drive vehicles
Right-hand drive vehicles

51
1
YARIS(GR) Owner's Manual_Europe_M52L09_en
1-2. Child safety
For safety and security

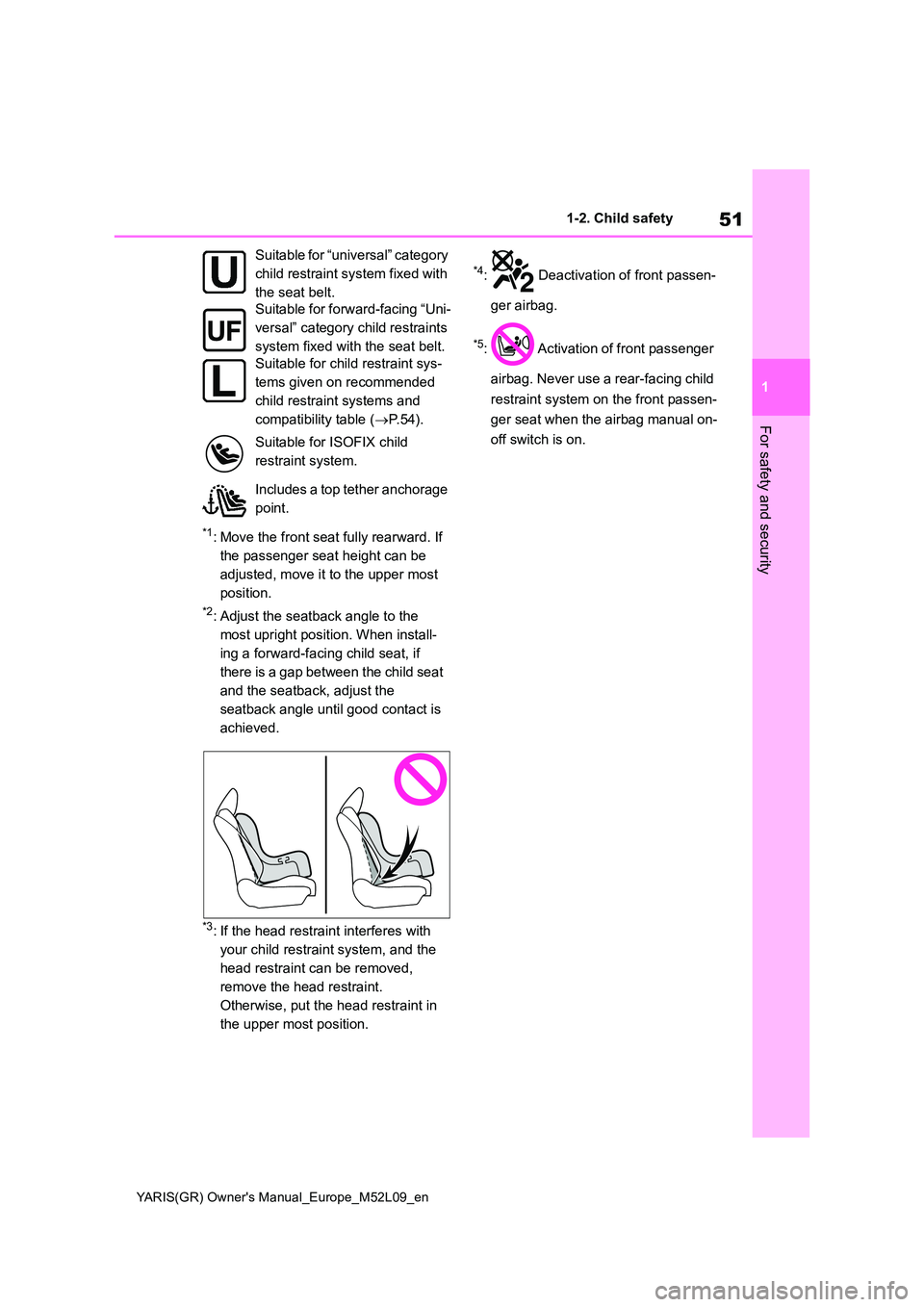

*1: Move the front seat fully rearward. If
the passenger seat height can be
adjusted, move it to the upper most
position.
*2: Adjust the seatback angle to the
most upright position. When install-
ing a forward-facing child seat, if
there is a gap between the child seat
and the seatback, adjust the
seatback angle until good contact is
achieved.
*3: If the head restraint interferes with
your child restraint system, and the
head restraint can be removed,
remove the head restraint.
Otherwise, put the head restraint in
the upper most position.
*4: Deactivation of front passen-
ger airbag.
*5: Activation of front passenger
airbag. Never use a rear-facing child
restraint system on the front passen-
ger seat when the airbag manual on-
off switch is on.
Suitable for “universal” category
child restraint system fixed with
the seat belt.
Suitable for forward-facing “Uni-
versal” category child restraints
system fixed with the seat belt.
Suitable for child restraint sys-
tems given on recommended
child restraint systems and
compatibility table ( →P.54).
Suitable for ISOFIX child
restraint system.
Includes a top tether anchorage
point.

52
YARIS(GR) Owner's Manual_Europe_M52L09_en
1-2. Child safety

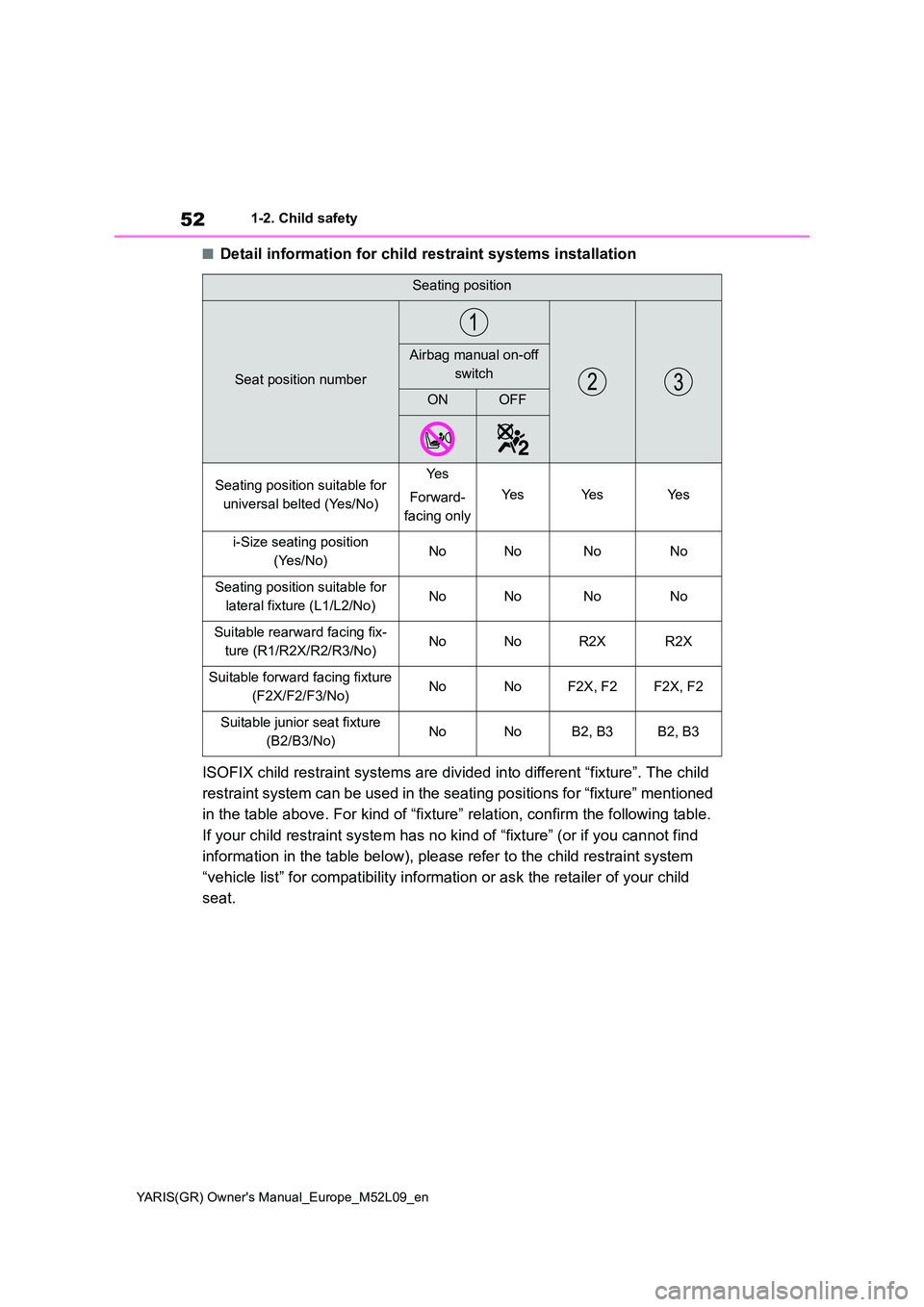

■Detail information for child restraint systems installation
ISOFIX child restraint systems are divided into different “fixture”. The child
restraint system can be used in the seating positions for “fixture” mentioned
in the table above. For kind of “fixture” relation, confirm the following table.
If your child restraint system has no kind of “fixture” (or if you cannot find
information in the table below), please refer to the child restraint system
“vehicle list” for compatibility information or ask the retailer of your child
seat.
Seating position
Seat position number
Airbag manual on-off
switch
ONOFF
Seating position suitable for
universal belted (Yes/No)
Ye s
Forward-
facing only
Ye sYe sYe s
i-Size seating position
(Yes/No)NoNoNoNo
Seating position suitable for
lateral fixture (L1/L2/No)NoNoNoNo
Suitable rearward facing fix-
ture (R1/R2X/R2/R3/No)NoNoR2XR2X
Suitable forward facing fixture
(F2X/F2/F3/No)NoNoF2X, F2F2X, F2
Suitable junior seat fixture
(B2/B3/No)NoNoB2, B3B2, B3

53
1
YARIS(GR) Owner's Manual_Europe_M52L09_en
1-2. Child safety
For safety and security

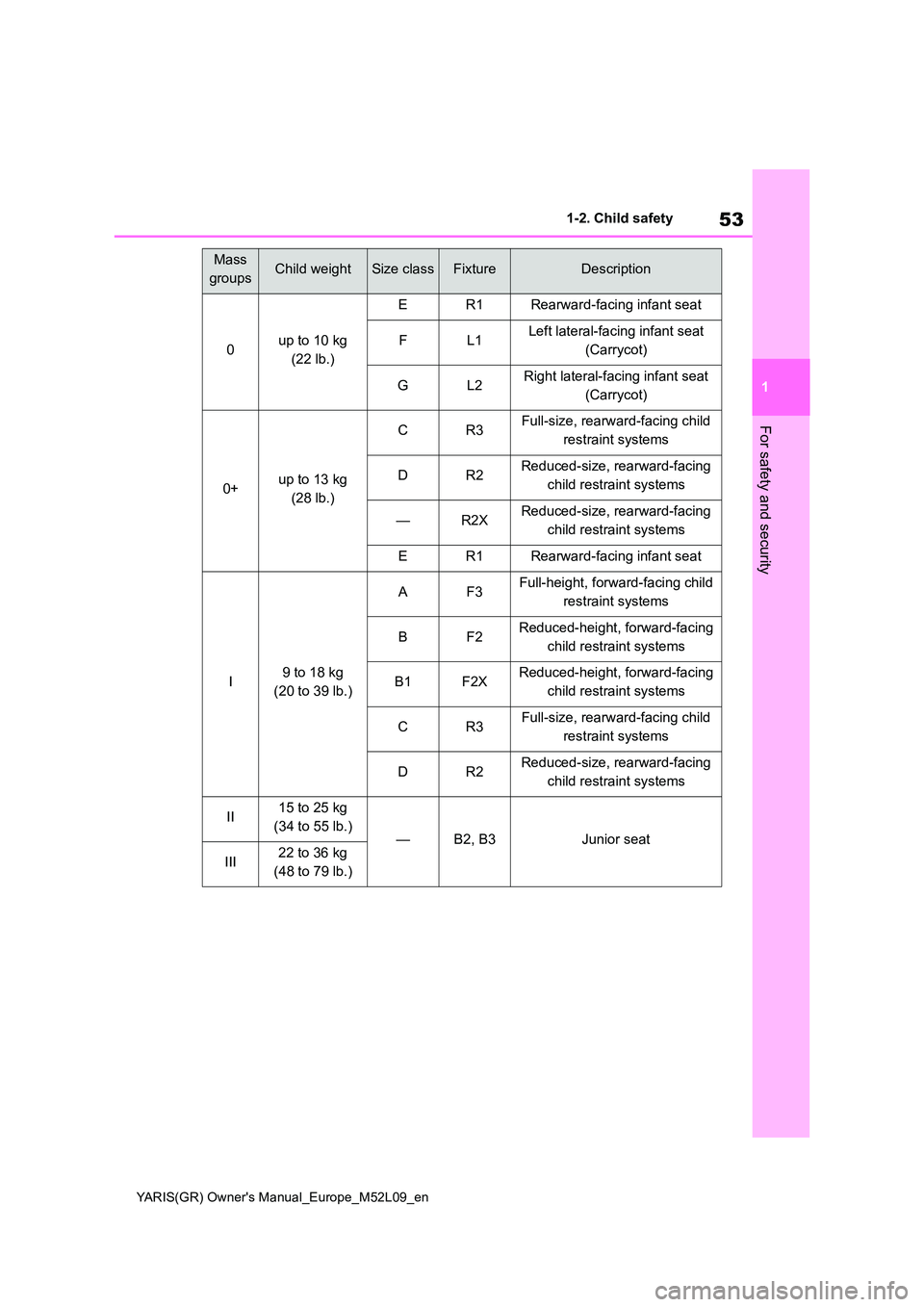

Mass
groupsChild weightSize classFixtureDescription
0up to 10 kg
(22 lb.)
ER1Rearward-facing infant seat
FL1Left lateral-facing infant seat
(Carrycot)
GL2Right lateral-facing infant seat
(Carrycot)
0+up to 13 kg
(28 lb.)
CR3Full-size, rearward-facing child
restraint systems
DR2Reduced-size, rearward-facing
child restraint systems
—R2XReduced-size, rearward-facing
child restraint systems
ER1Rearward-facing infant seat
I9 to 18 kg
(20 to 39 lb.)
AF3Full-height, forward-facing child
restraint systems
BF2Reduced-height, forward-facing
child restraint systems
B1F2XReduced-height, forward-facing
child restraint systems
CR3Full-size, rearward-facing child
restraint systems
DR2Reduced-size, rearward-facing
child restraint systems
II15 to 25 kg
(34 to 55 lb.)—B2, B3Junior seat
III22 to 36 kg
(48 to 79 lb.)

54
YARIS(GR) Owner's Manual_Europe_M52L09_en
1-2. Child safety

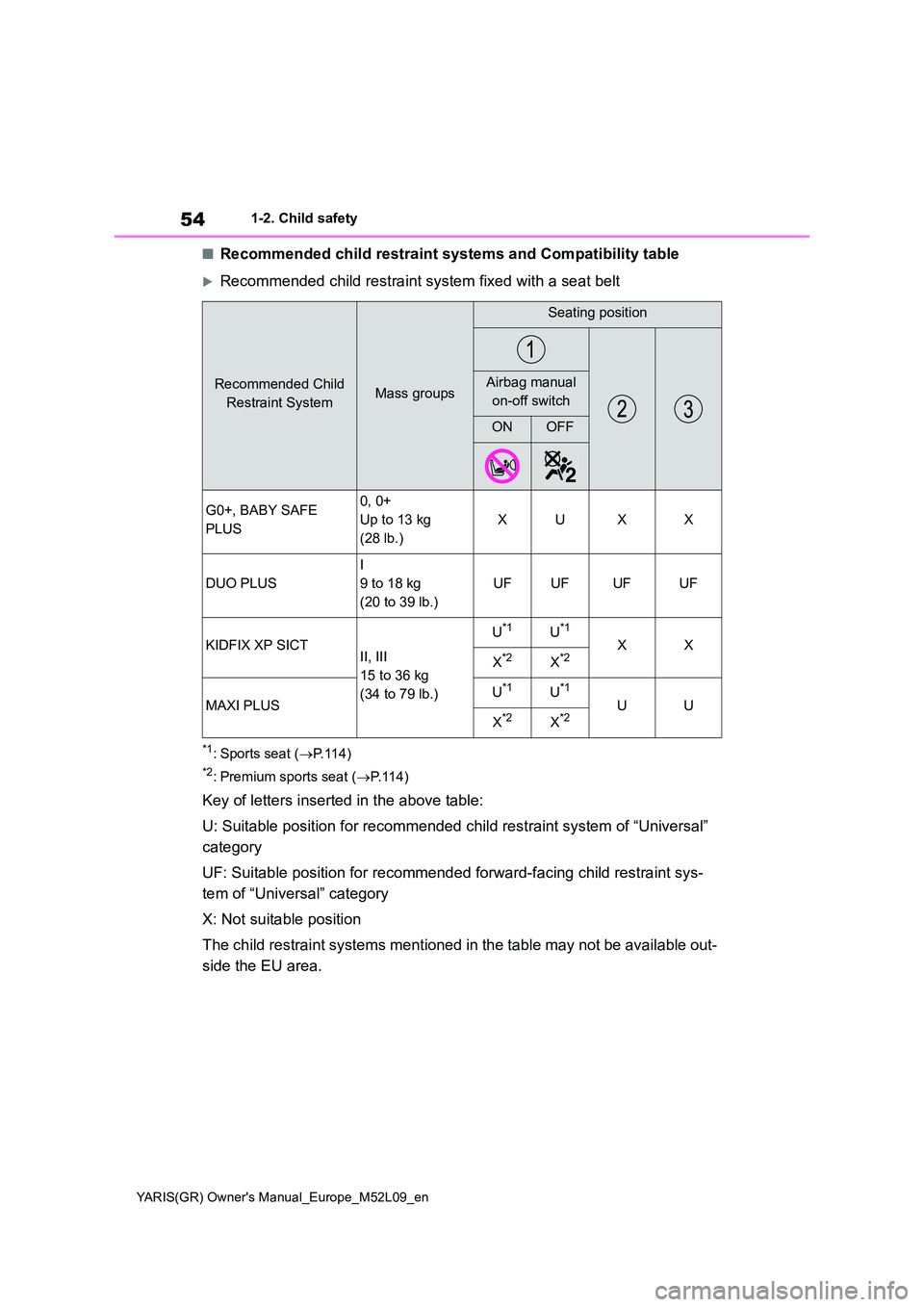

■Recommended child restraint systems and Compatibility table
Recommended child restraint system fixed with a seat belt
*1: Sports seat (→P.114)
*2: Premium sports seat (→P.114)
Key of letters inserted in the above table:
U: Suitable position for recommended child restraint system of “Universal”
category
UF: Suitable position for recommended forward-facing child restraint sys-
tem of “Universal” category
X: Not suitable position
The child restraint systems mentioned in the table may not be available out-
side the EU area.
Recommended Child
Restraint SystemMass groups
Seating position
Airbag manual
on-off switch
ONOFF
G0+, BABY SAFE
PLUS
0, 0+
Up to 13 kg
(28 lb.)
XUXX
DUO PLUS
I
9 to 18 kg
(20 to 39 lb.)
UFUFUFUF
KIDFIX XP SICTII, III
15 to 36 kg
(34 to 79 lb.)
U*1U*1
XX
X*2X*2
MAXI PLUSU*1U*1
UU
X*2X*2

55
1
YARIS(GR) Owner's Manual_Europe_M52L09_en
1-2. Child safety
For safety and security

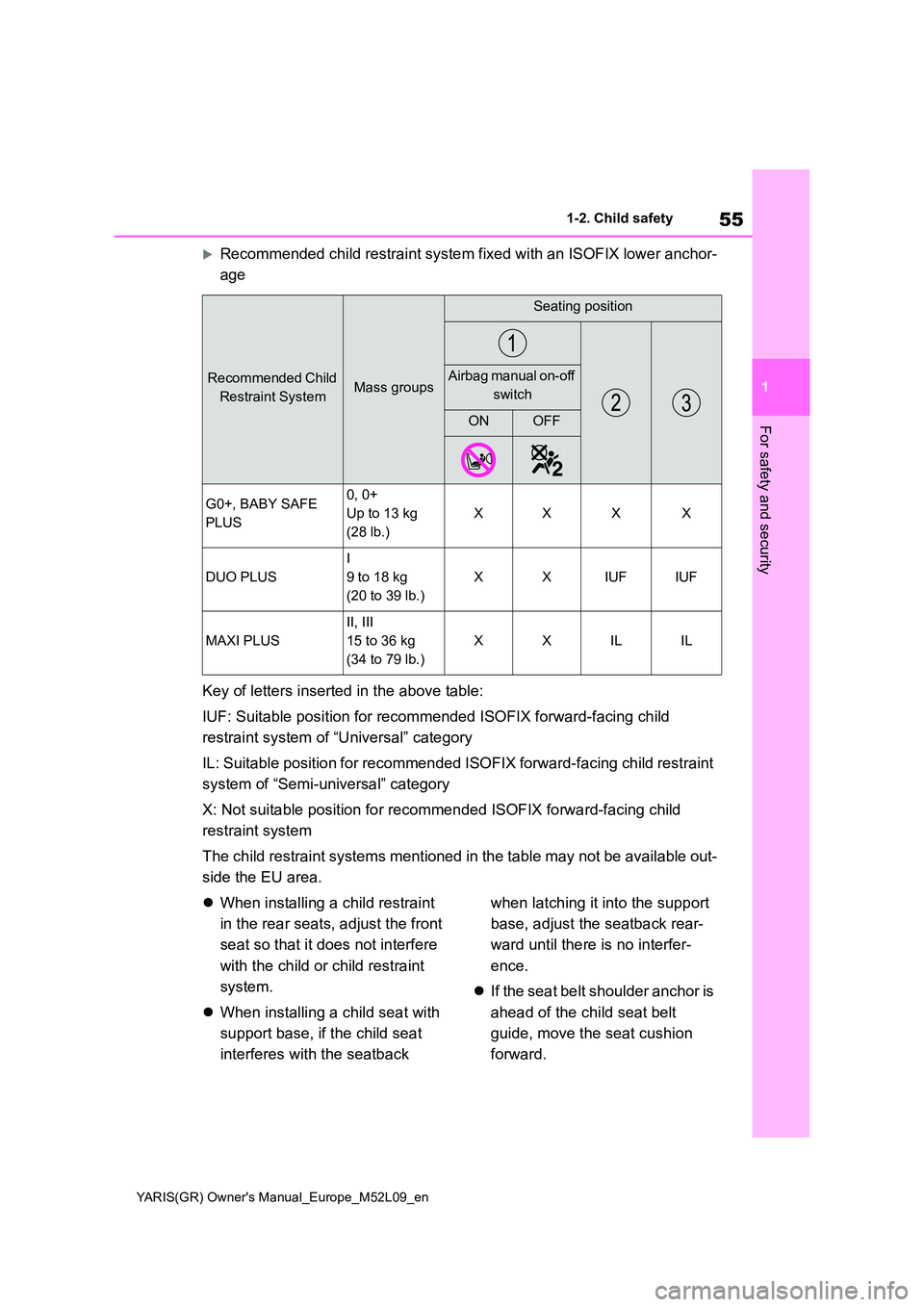

Recommended child restraint system fixed with an ISOFIX lower anchor-
age
Key of letters inserted in the above table:
IUF: Suitable position for recommended ISOFIX forward-facing child
restraint system of “Universal” category
IL: Suitable position for recommended ISOFIX forward-facing child restraint
system of “Semi-universal” category
X: Not suitable position for recommended ISOFIX forward-facing child
restraint system
The child restraint systems mentioned in the table may not be available out-
side the EU area.
z When installing a child restraint
in the rear seats, adjust the front
seat so that it does not interfere
with the child or child restraint
system.
z When installing a child seat with
support base, if the child seat
interferes with the seatback
when latching it into the support
base, adjust the seatback rear-
ward until there is no interfer-
ence.
z If the seat belt shoulder anchor is
ahead of the child seat belt
guide, move the seat cushion
forward.
Recommended Child
Restraint SystemMass groups
Seating position
Airbag manual on-off
switch
ONOFF
G0+, BABY SAFE
PLUS
0, 0+
Up to 13 kg
(28 lb.)
XXXX
DUO PLUS
I
9 to 18 kg
(20 to 39 lb.)
XXIUFIUF
MAXI PLUS
II, III
15 to 36 kg
(34 to 79 lb.)
XXILIL

56
YARIS(GR) Owner's Manual_Europe_M52L09_en
1-2. Child safety
zWhen installing a junior seat, if
the child in your child restraint
system is in a very upright posi-
tion, adjust the seatback angle to
the most comfortable position.
And if the seat belt shoulder
anchor is ahead of the child seat
belt guide, move the seat cush-
ion forward.
Confirm with the operation manual enclosed with the child restraint system
about the installation of the child restraint system.
Child restraint system installation method
Installation methodPage
Seat belt attachmentP. 5 7

57
1
YARIS(GR) Owner's Manual_Europe_M52L09_en
1-2. Child safety
For safety and security
■Installing child restraint sys-
tem using a seat belt
Install the child restraint system in
accordance to the operation man-
ual enclosed with the child restraint
system.
If the child restraint system on hand
is not within the “universal” cate-
gory (or the necessary information
is not in the table), refer to the
“Vehicle List” provided by the child
restraint system maker for various
possible installation positions, or
check the compatibility after asking
the retailer of the child seat.
( →P.49, 50)
1 If installing the child restraint
system to the front passenger
seat is unavoidable, refer to
P.46 for the front passenger seat
adjustment.
2 If the head restraint interferes
with your child restraint system,
and the head restraint can be
removed, remove the head
restraint. Otherwise, put the
head restraint in the upper most
position. ( →P. 1 1 8 )
3 Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Securely fix the seat belt to the
child restraint system in accor-
ISOFIX lower anchorage
attachmentP. 5 9
Top tether anchorage
attachmentP. 6 0
Installation methodPage
Child restraint system fixed
with a seat belt

58
YARIS(GR) Owner's Manual_Europe_M52L09_en
1-2. Child safety
dance to the directions enclosed
with the child restraint system.
4 If your child restraint system is
not equipped with a lock-off (a
seat belt locking feature),
secure the child restraint system
using a locking clip.
5 After installing the child restraint
system, rock it back and forth to
ensure that it is installed
securely. ( →P. 5 8 )
■Removing a child restraint
system installed with a seat
belt
Press the buckle release button
and fully retract the seat belt.
When releasing the buckle, the child
restraint system may spring up due to
the rebound of the seat cushion.
Release the buckle while holding down
the child restraint system.
Since the seat belt automatically reels
itself, slowly return it to the stowing
position.
■When installing a child restraint system
You may need a locking clip to install the
child restraint system. Follow the instructions provided by the manufac-turer of the system. If your child restraint
system does not provide a locking clip, you can purchase the following item from any authorized Toyota retailer or
Toyota authorized repairer, or any reli- able repairer: Locking clip for child restraint system
(Part No. 73119-22010)
WARNING
■When installing a child restraint
system
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Do not allow children to play with
the seat belt. If the seat belt becomes twisted around a child’s neck, it may lead to choking or
other serious injuries that could result in death. If this occurs and the buckle cannot be unfastened,
scissors should be used to cut the belt.
●Ensure that the belt and plate are securely locked and the seat belt is not twisted.
●Shake the child restraint system left and right, and forward and back-
ward to ensure that it has been securely installed.
●After securing a child restraint sys-tem, never adjust the seat.
