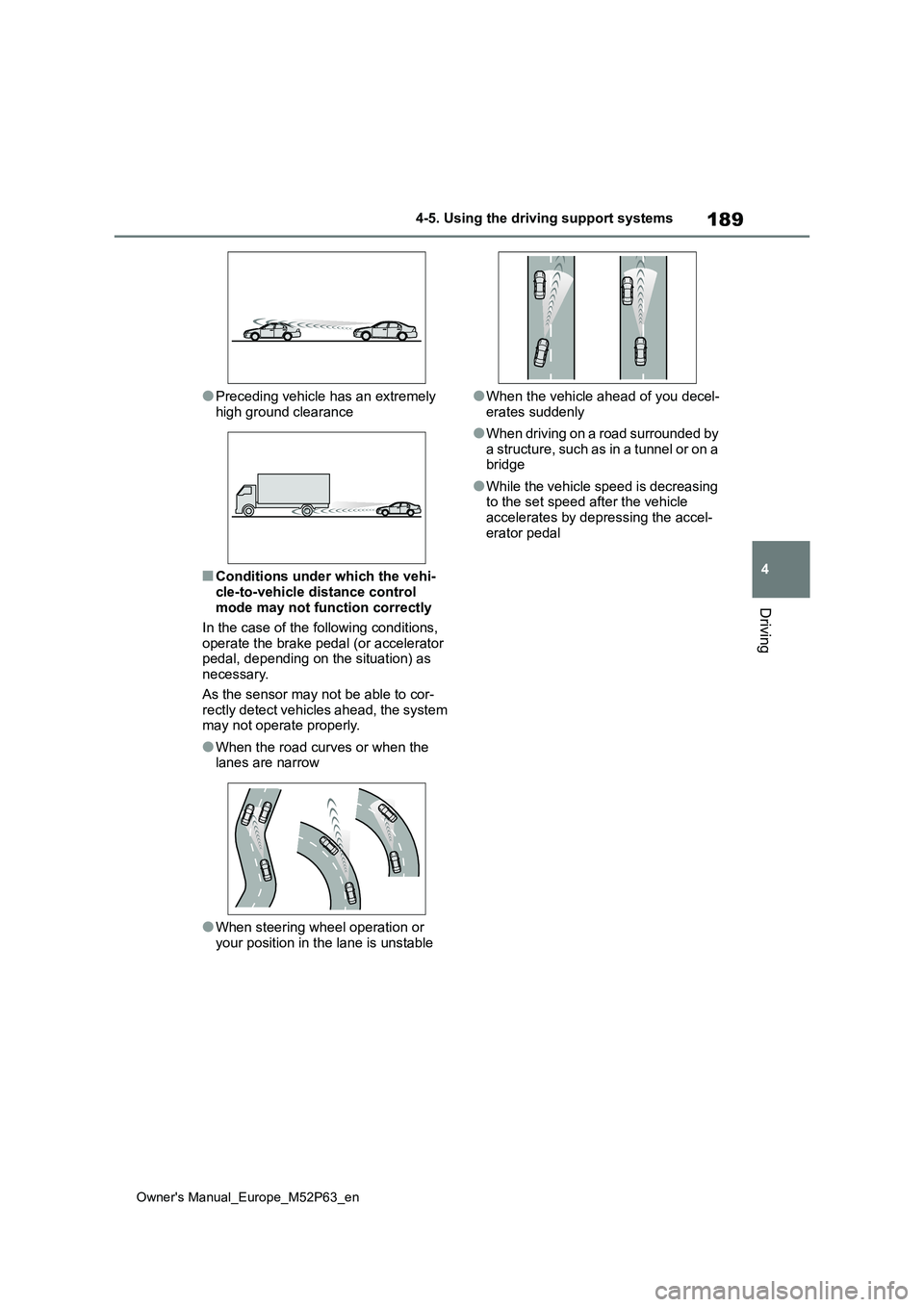

4-5. Using the driving support systems
Driving
●Preceding vehicle has an extremely
high ground clearance
■Conditions under which the vehi-
cle-to-vehicle distance control mode may not function correctly
In the case of the following conditions,
operate the brake pedal (or accelerator pedal, depending on the situation) as necessary.
As the sensor may not be able to cor- rectly detect vehicles ahead, the system may not operate properly.
●When the road curves or when the lanes are narrow
●When steering wheel operation or your position in the lane is unstable
●When the vehicle ahead of you decel-
erates suddenly
●When driving on a road surrounded by
a structure, such as in a tunnel or on a bridge
●While the vehicle speed is decreasing to the set speed after the vehicle accelerates by depressing the accel-
erator pedal

190
Owner's Manual_Europe_M52P63_en
4-5. Using the driving support systems
*: If equipped
The RSA system recognizes spe-
cific road signs using the front cam-
era and/or navigation system (when
speed limit information is available)
to provide information to the driver
via the display.
If the system judges that the vehicle
is being driven over the speed limit,
performing prohibited actions, etc.,
according to the recognized road
signs, it notifies the driver through a
visual notification and notification
buzzer.
When the front camera recognizes
a sign and/or information of a sign
is available from the navigation sys-
tem, the sign will be displayed on
the multi-information display.
 When the driving support system
information is selected, a maxi-
mum of 3 signs can be dis-
played. ( P. 8 4 )
 When a tab other than the driving
support system information is
selected, the following types of
road signs will be displayed.
( P. 8 4 )
• Speed limit begins/ends sign
• Speed limit related information sign
(Highway, Motorway, Urban area,
Residential area)
• End of prohibition sign
• No-entry sign* (when notification is
necessary)
• Speed limit with supplemental sign
(Ramp way only)
*: For vehicles with navigation system

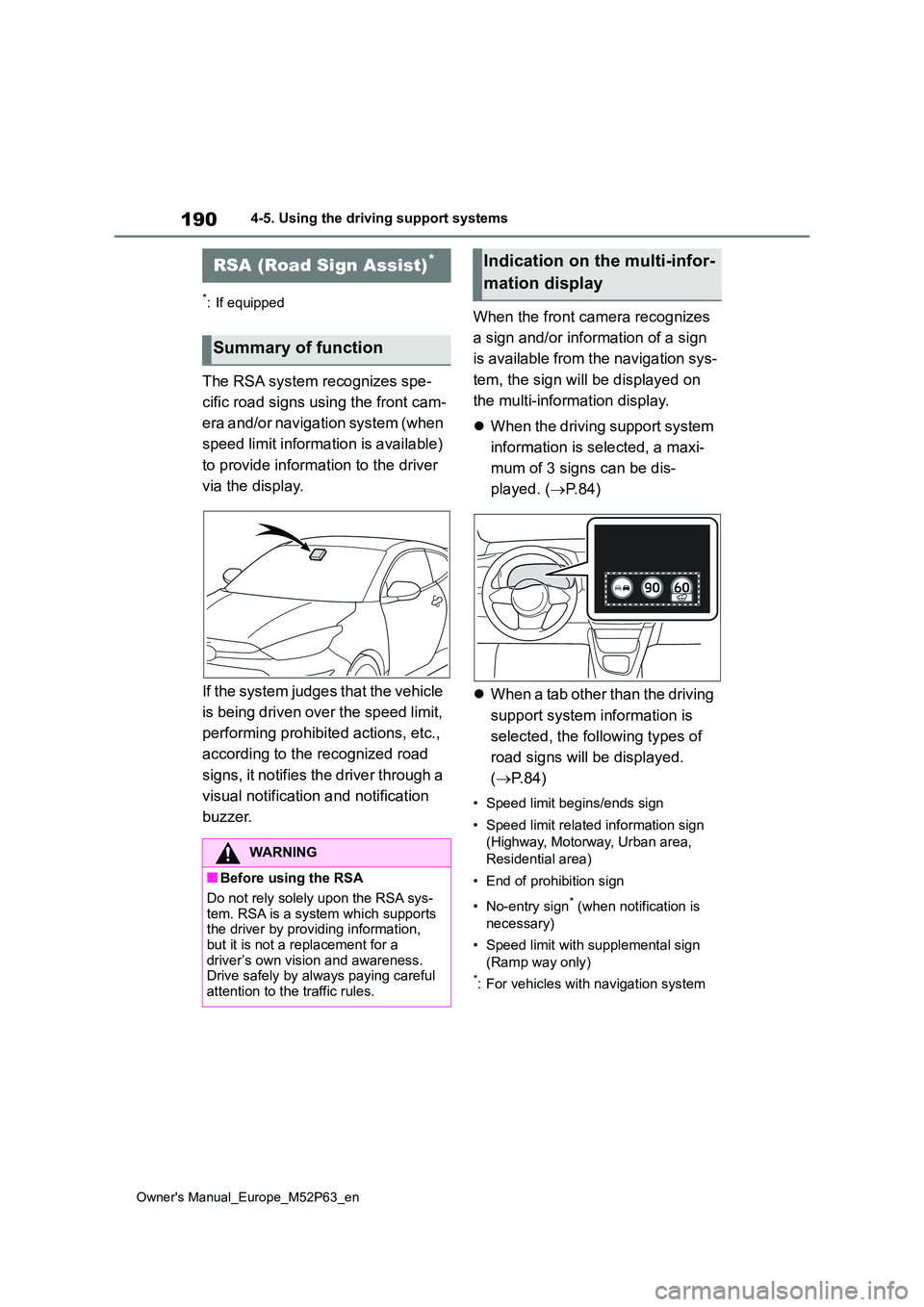

RSA (Road Sign Assist)*
Summary of function
WARNING
■Before using the RSA
Do not rely solely upon the RSA sys-
tem. RSA is a system which supports the driver by providing information, but it is not a replacement for a
driver’s own vision and awareness. Drive safely by always paying careful attention to the traffic rules.
Indication on the multi-infor-
mation display

191
4
Owner's Manual_Europe_M52P63_en
4-5. Using the driving support systems
Driving
If signs other than speed limit signs are
recognized, they will be displayed in an
overlapping stack under the current
speed limit sign.
The following types of road signs,
including electronic signs and blink-
ing signs, are recognized.
A non-official (not meeting the Vienna
Convention) or a recently introduced
traffic sign may not be recognized.
 Speed limit road signs
 Speed limit related information*
*: Displayed when a sign is recognized
but speed limit information for the
road is not available from the naviga-
tion system
 No-overtaking road signs
 Other road signs

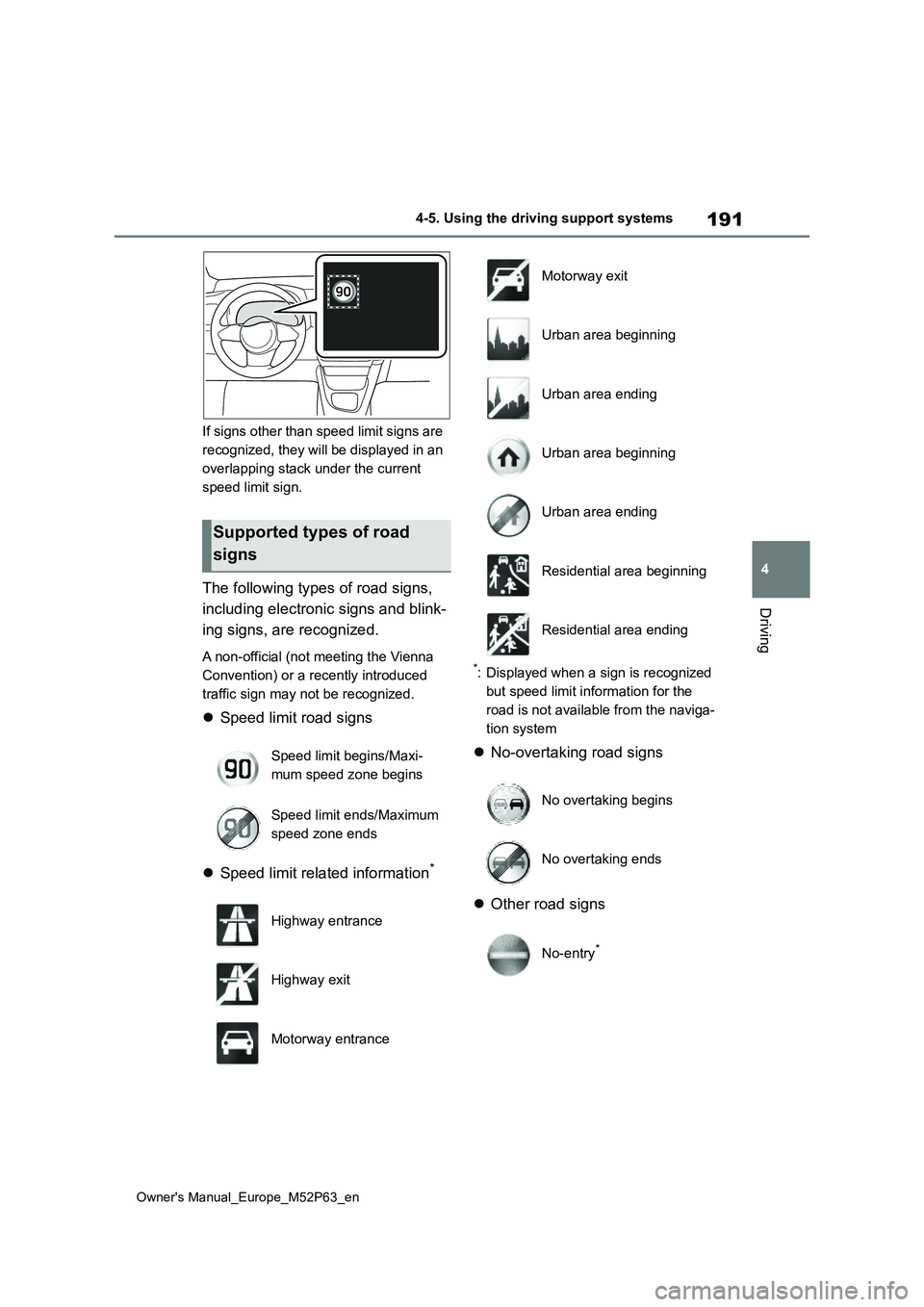

Supported types of road
signs
Speed limit begins/Maxi-
mum speed zone begins
Speed limit ends/Maximum
speed zone ends
Highway entrance
Highway exit
Motorway entrance
Motorway exit
Urban area beginning
Urban area ending
Urban area beginning
Urban area ending
Residential area beginning
Residential area ending
No overtaking begins
No overtaking ends
No-entry*

192
Owner's Manual_Europe_M52P63_en
4-5. Using the driving support systems
*: For vehicles with navigation system
Speed limit with supplemental
mark*1
*1: Displayed simultaneously with speed
limit
*2: Contents not recognized.
*3: If the turn signal indicator is not
operated when changing lanes, the
mark does not display.

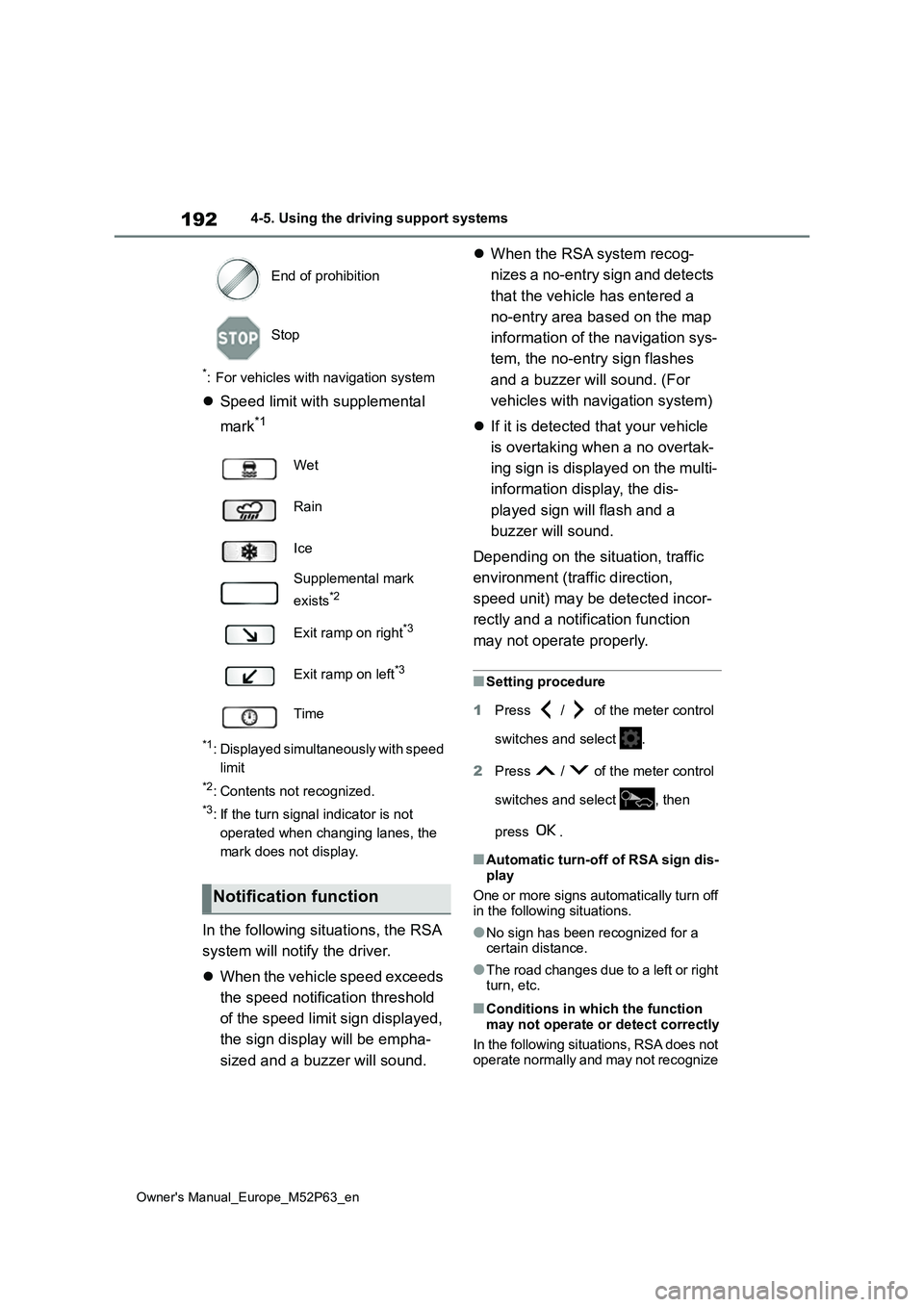

In the following situations, the RSA
system will notify the driver.
 When the vehicle speed exceeds
the speed notification threshold
of the speed limit sign displayed,
the sign display will be empha-
sized and a buzzer will sound.
 When the RSA system recog-
nizes a no-entry sign and detects
that the vehicle has entered a
no-entry area based on the map
information of the navigation sys-
tem, the no-entry sign flashes
and a buzzer will sound. (For
vehicles with navigation system)
 If it is detected that your vehicle
is overtaking when a no overtak-
ing sign is displayed on the multi-
information display, the dis-
played sign will flash and a
buzzer will sound.
Depending on the situation, traffic
environment (traffic direction,
speed unit) may be detected incor-
rectly and a notification function
may not operate properly.
■Setting procedure
1 Press / of the meter control
switches and select .
2 Press / of the meter control
switches and select , then
press .
■Automatic turn-off of RSA sign dis-
play
One or more signs automatically turn off in the following situations.
●No sign has been recognized for a certain distance.
●The road changes due to a left or right turn, etc.
■Conditions in which the function
may not operate or detect correctly
In the following situations, RSA does not operate normally and may not recognize
End of prohibition
Stop
Wet
Rain
Ice
Supplemental mark
exists*2
Exit ramp on right*3
Exit ramp on left*3
Time
Notification function

193
4
Owner's Manual_Europe_M52P63_en
4-5. Using the driving support systems
Driving
signs, display the incorrect sign, etc.
However, this does not indicate a mal- function.

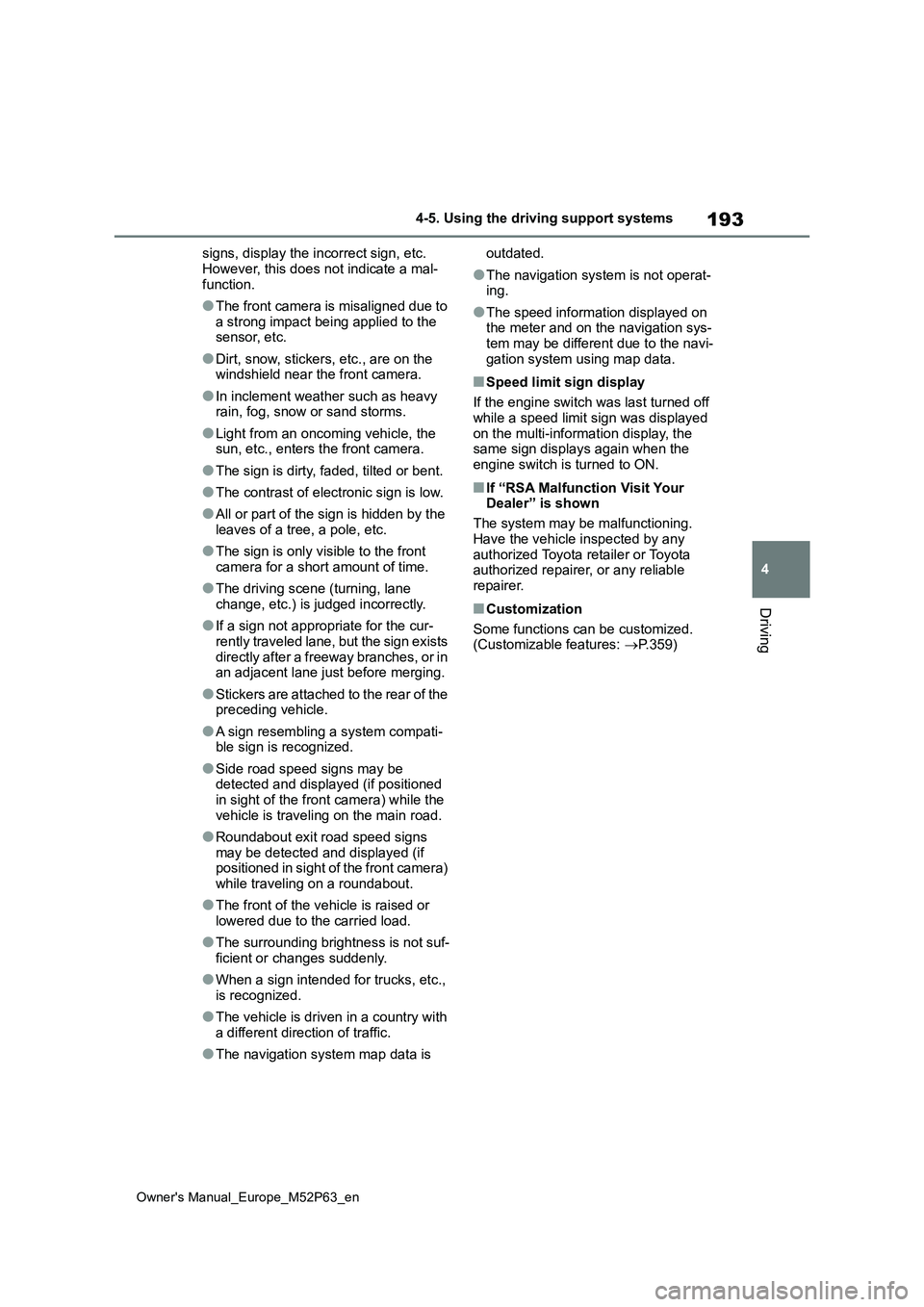

●The front camera is misaligned due to a strong impact being applied to the sensor, etc.
●Dirt, snow, stickers, etc., are on the windshield near the front camera.
●In inclement weather such as heavy rain, fog, snow or sand storms.
●Light from an oncoming vehicle, the sun, etc., enters the front camera.
●The sign is dirty, faded, tilted or bent.
●The contrast of electronic sign is low.
●All or part of the sign is hidden by the
leaves of a tree, a pole, etc.
●The sign is only visible to the front
camera for a short amount of time.
●The driving scene (turning, lane
change, etc.) is judged incorrectly.
●If a sign not appropriate for the cur-
rently traveled lane, but the sign exists directly after a freeway branches, or in an adjacent lane just before merging.
●S t ic ke r s a r e a t t ac he d t o t h e r e ar o f t he preceding vehicle.
●A sign resembling a system compati-ble sign is recognized.
●Side road speed signs may be detected and displayed (if positioned
in sight of the front camera) while the vehicle is traveling on the main road.
●Roundabout exit road speed signs may be detected and displayed (if positioned in sight of the front camera)
while traveling on a roundabout.
●The front of the vehicle is raised or
lowered due to the carried load.
●The surrounding brightness is not suf-
ficient or changes suddenly.
●When a sign intended for trucks, etc.,
is recognized.
●The vehicle is driven in a country with
a different direction of traffic.
●The navigation system map data is
outdated.
●The navigation system is not operat- ing.
●The speed information displayed on the meter and on the navigation sys-
tem may be different due to the navi- gation system using map data.
■Speed limit sign display
If the engine switch was last turned off
while a speed limit sign was displayed on the multi-information display, the same sign displays again when the
engine switch is turned to ON.
■If “RSA Malfunction Visit Your Dealer” is shown
The system may be malfunctioning.
Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
■Customization
Some functions can be customized. (Customizable features: P.359)

194
Owner's Manual_Europe_M52P63_en
4-5. Using the driving support systems
■Stopping the engine
1 Fully depress the clutch pedal
and depress the brake pedal to
stop the vehicle.
2 Move the shift lever to N and
release the clutch pedal. The
engine will stop automatically.
When the engine is stopped by the Stop
& Start system, the Stop & Start indica- tor will illuminate.
■Restarting the engine
With the shift lever in N, depress
the clutch pedal. The engine will
start automatically.
When the engine starts, the Stop &
Start indicator will turn off.
Press the Stop & Start cancel
switch to disable the Stop & Start
system.
The Stop & Start cancel indicator
will illuminate.
Pressing the switch again will enable
the Stop & Start system and the Stop &
Start cancel indicator will turn off.
■Automatic enabling of the Stop & Start system
If the Stop & Start system is disabled
using the Stop & Start cancel switch, it will be automatically re-enabled once the engine switch is turned off and then
the engine is started.
■Points for use
●If the engine switch is pressed when
the engine is stopped by the Stop & Start system, the engine will not be
able to be restarted by the automatic engine start function. In this case, restart the engine using the normal
engine starting procedure. ( P.134)
●When the engine is being restarted by
the Stop & Start system, the power outlets may be temporarily unusable, but this does not indicate a malfunc-
tion.

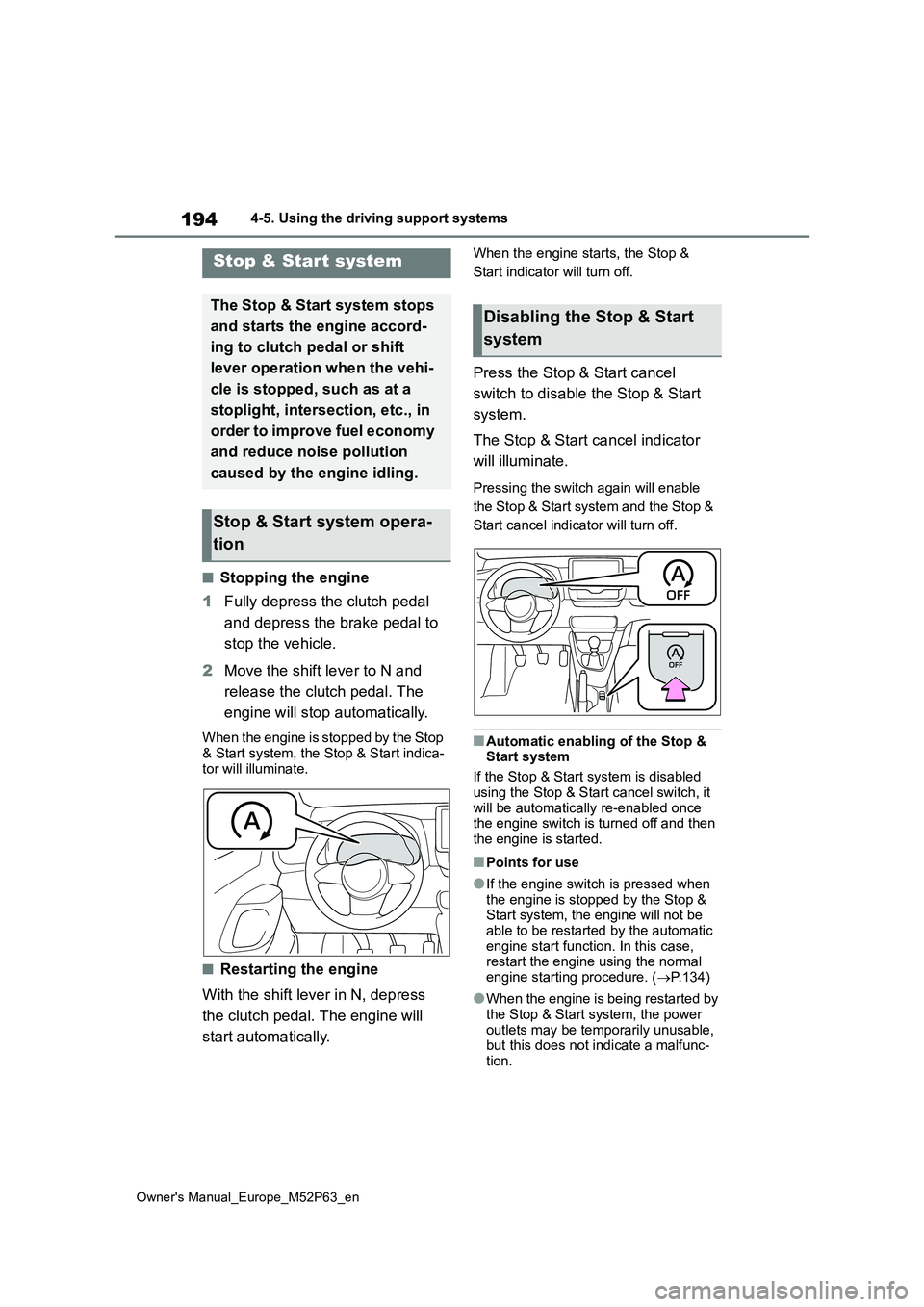

Stop & Start system
The Stop & Start system stops
and starts the engine accord-
ing to clutch pedal or shift
lever operation when the vehi-
cle is stopped, such as at a
stoplight, inters ection, etc., in
order to improve fuel economy
and reduce noise pollution
caused by the engine idling.
Stop & Start system opera-
tion
Disabling the Stop & Start
system

195
4
Owner's Manual_Europe_M52P63_en
4-5. Using the driving support systems
Driving
●Installation and removal of electrical
components and wireless devices may affect the Stop & Start system. Contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer for details.
●When stopping the vehicle for a lon-ger period of time, turn the engine switch off to stop the engine com-
pletely.
●When the engine is restarted by the
Stop & Start system, the steering wheel may temporarily feel heavy.
■Operating conditions
●The Stop & Start system is operational when all of the following conditions are met:
• The vehicle has been driven a certain amount of time.• The clutch pedal is not depressed.
• The shift lever is in N. • The driver’s seat belt is fastened.• The driver’s door is closed.
• The selected driving modes are nor- mal mode and track mode.• The windshield defogger is off.
• The engine is adequately warmed up. • The outside temperature is -5°C (23°F) or higher.
• The hood and back door are closed. ( P.195)
●In the following situations the engine may not be stopped by the Stop & Start system. This is not a malfunction
of the Stop & Start system. • When the air conditioning system is being used.
• When the battery is undergoing a peri- odic recharge.• When the battery is not sufficiently
charged, such as if the vehicle has been parked for a long time and the battery charge has decreased, the
electric load is large, the battery fluid temperature is excessively low or the battery has deteriorated.
• When the brake booster vacuum is low.• When the elapsed time since the
engine was restarted is short. • When the vehicle is stopped fre-
quently, such as when in a traffic jam.
• When the engine coolant temperature or transmission fluid temperature is extremely low or high.
• When the steering wheel is being operated.• When the vehicle is being driven in a
high altitude area. • When the battery fluid temperature is extremely low or high.
• For a while after the battery terminals have been disconnected and recon-nected.
●When the engine is stopped by the S t o p & S t a r t s y s t e m , t h e e n g i n e w i l l b e
restarted automatically if any of the following conditions are met:
(To enable the engine to be stopped by
the Stop & Start system again, drive the

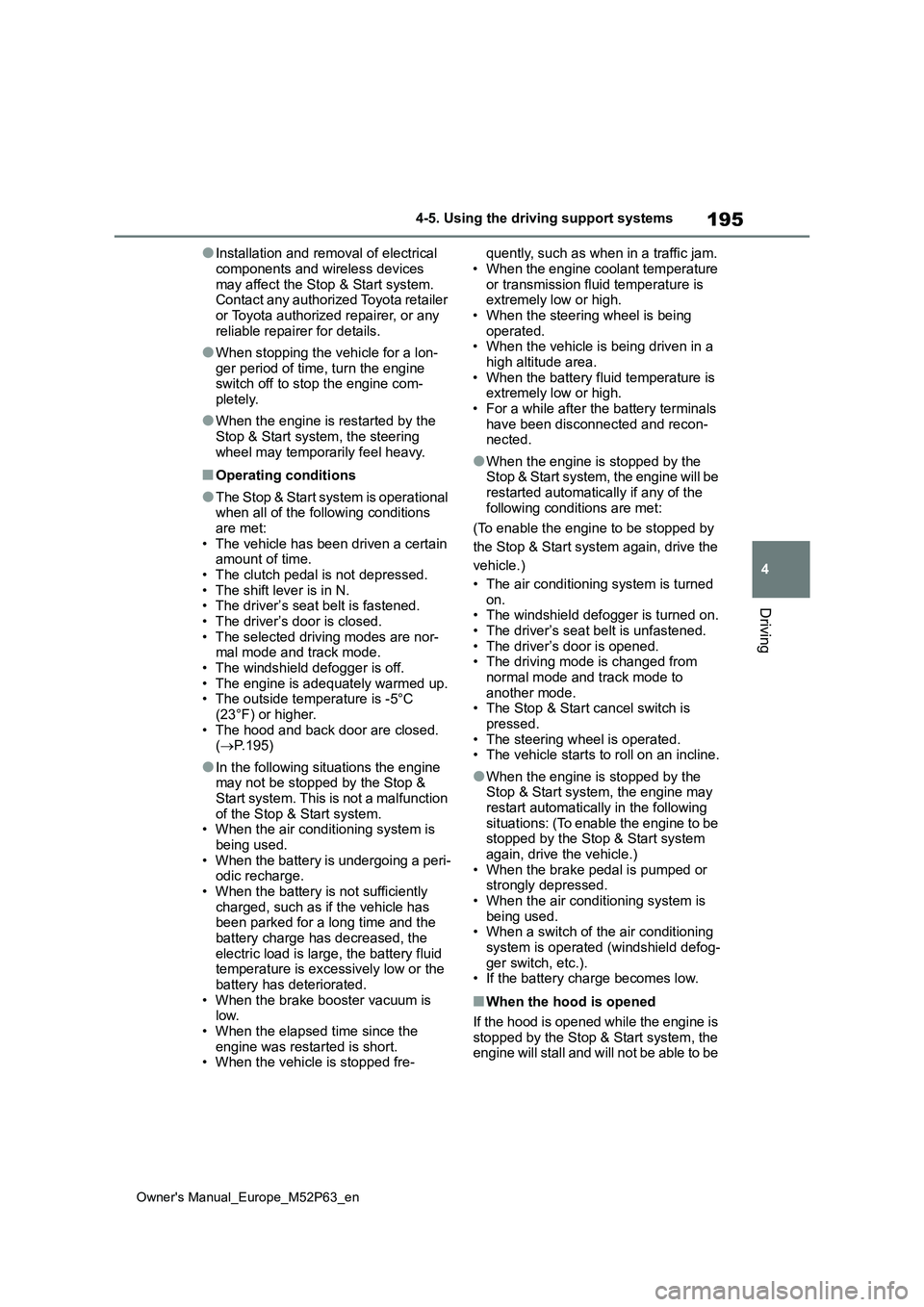

vehicle.)
• The air conditioning system is turned
on. • The windshield defogger is turned on.• The driver’s seat belt is unfastened.
• The driver’s door is opened. • The driving mode is changed from normal mode and track mode to
another mode. • The Stop & Start cancel switch is pressed.
• The steering wheel is operated. • The vehicle starts to roll on an incline.
●When the engine is stopped by the Stop & Start system, the engine may restart automatically in the following
situations: (To enable the engine to be stopped by the Stop & Start system again, drive the vehicle.)
• When the brake pedal is pumped or strongly depressed.• When the air conditioning system is
being used. • When a switch of the air conditioning system is operated (windshield defog-
ger switch, etc.). • If the battery charge becomes low.
■When the hood is opened
If the hood is opened while the engine is
stopped by the Stop & Start system, the engine will stall and will not be able to be

196
Owner's Manual_Europe_M52P63_en
4-5. Using the driving support systems
restarted by the automatic engine start
function. In this case, restart the engine using the normal engine starting proce-dure. ( P.134)
■When the hood or back door is
opened
If the hood or back door is closed after the engine is started with the hood or
back door open, the Stop & Start system will not operate. Close the hood and back door turn the engine switch off,
wait 30 seconds or more, and then start the engine.

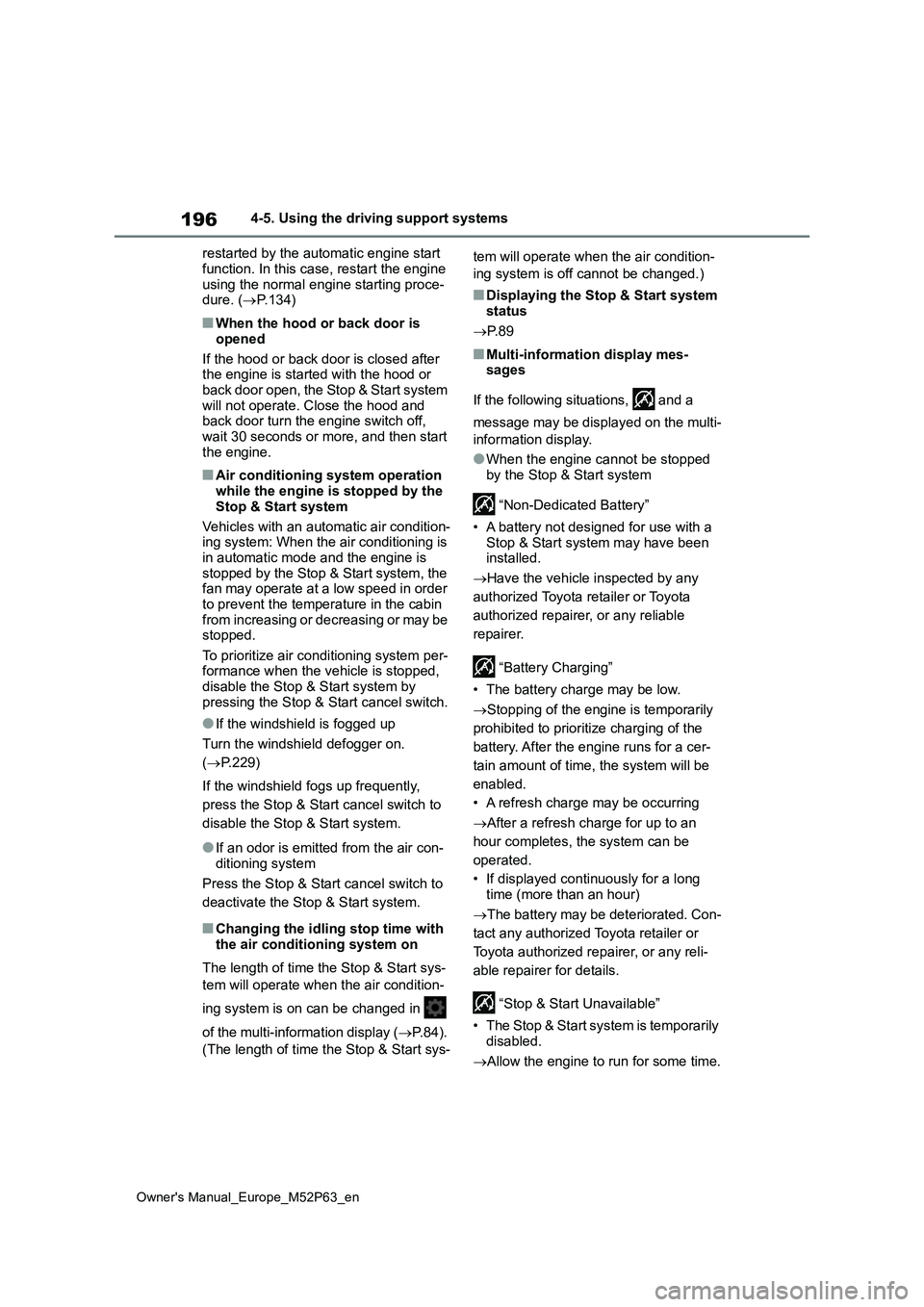

■Air conditioning system operation while the engine is stopped by the
Stop & Start system
Vehicles with an automatic air condition- ing system: When the air conditioning is
in automatic mode and the engine is stopped by the Stop & Start system, the fan may operate at a low speed in order
to prevent the temperature in the cabin from increasing or decreasing or may be stopped.
To prioritize air conditioning system per- formance when the vehicle is stopped, disable the Stop & Start system by
pressing the Stop & Start cancel switch.
●If the windshield is fogged up
Turn the windshield defogger on.
( P.229)
If the windshield fogs up frequently,
press the Stop & Start cancel switch to
disable the Stop & Start system.
●If an odor is emitted from the air con- ditioning system
Press the Stop & Start cancel switch to
deactivate the Stop & Start system.
■Changing the idling stop time with
the air conditioning system on
The length of time the Stop & Start sys-
tem will operate when the air condition-
ing system is on can be changed in
of the multi-information display ( P.84).
(The length of time the Stop & Start sys-
tem will operate when the air condition-
ing system is off cannot be changed.)
■Displaying the Stop & Start system status
 P. 8 9
■Multi-information display mes- sages
If the following situations, and a
message may be displayed on the multi-
information display.
●When the engine cannot be stopped
by the Stop & Start system
“Non-Dedicated Battery”
• A battery not designed for use with a
Stop & Start system may have been installed.
 Have the vehicle inspected by any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.

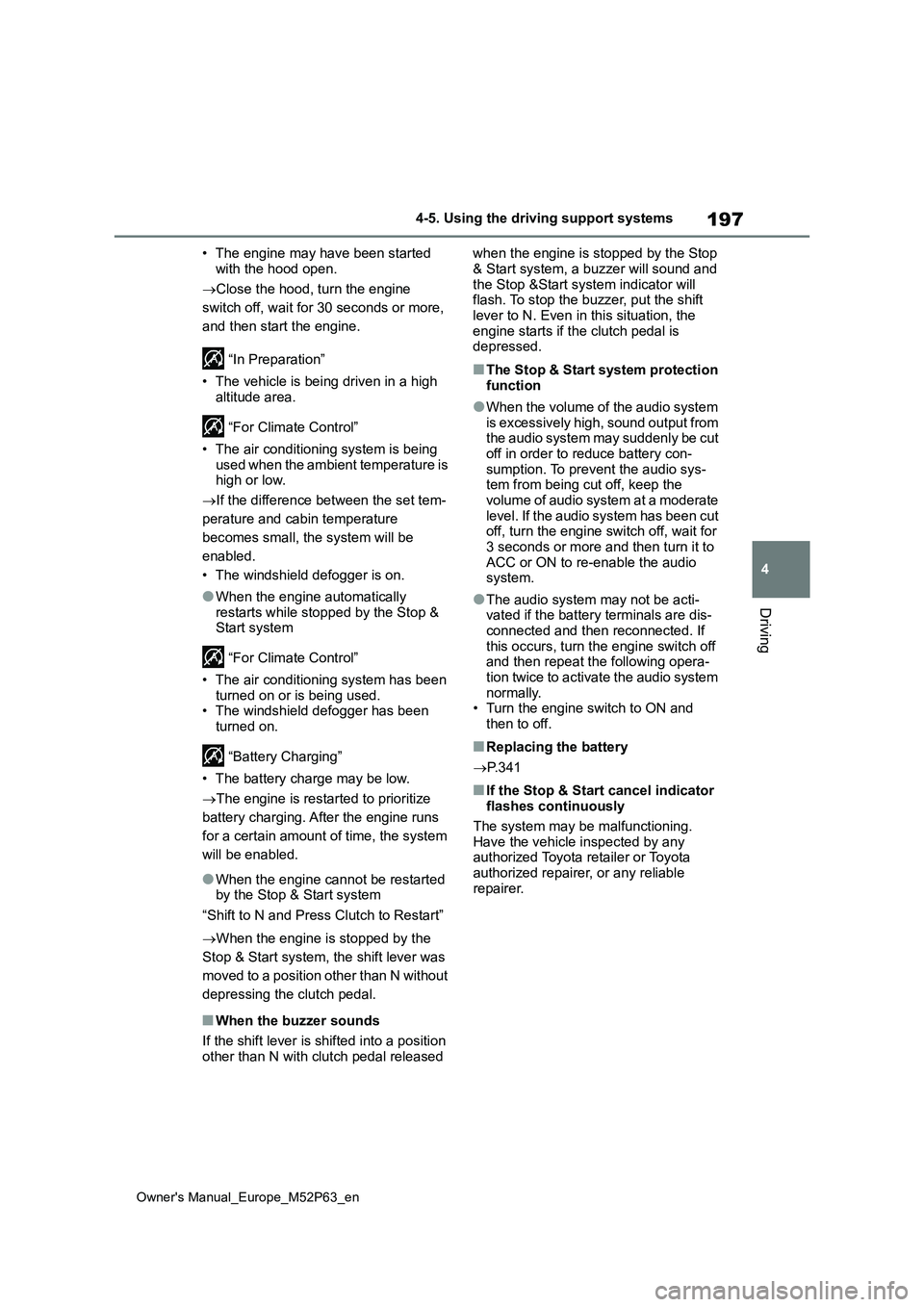

“Battery Charging”
• The battery charge may be low.
 Stopping of the engine is temporarily
prohibited to prioritize charging of the
battery. After the engine runs for a cer-
tain amount of time, the system will be
enabled.
• A refresh charge may be occurring
 After a refresh charge for up to an
hour completes, the system can be
operated.
• If displayed continuously for a long time (more than an hour)
 The battery may be deteriorated. Con-
tact any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer for details.
“Stop & Start Unavailable”
• The Stop & Start system is temporarily disabled.
 Allow the engine to run for some time.

197
4
Owner's Manual_Europe_M52P63_en
4-5. Using the driving support systems
Driving
• The engine may have been started
with the hood open.
 Close the hood, turn the engine
switch off, wait for 30 seconds or more,
and then start the engine.
“In Preparation”
• The vehicle is being driven in a high
altitude area.
“For Climate Control”
• The air conditioning system is being
used when the ambient temperature is high or low.
 If the difference between the set tem-
perature and cabin temperature
becomes small, the system will be
enabled.
• The windshield defogger is on.
●When the engine automatically
restarts while stopped by the Stop & Start system
“For Climate Control”
• The air conditioning system has been turned on or is being used.• The windshield defogger has been
turned on.
“Battery Charging”
• The battery charge may be low.
 The engine is restarted to prioritize
battery charging. After the engine runs
for a certain amount of time, the system
will be enabled.
●When the engine cannot be restarted by the Stop & Start system
“Shift to N and Press Clutch to Restart”
 When the engine is stopped by the
Stop & Start system, the shift lever was
moved to a position other than N without
depressing the clutch pedal.
■When the buzzer sounds
If the shift lever is shifted into a position other than N with clutch pedal released
when the engine is stopped by the Stop
& Start system, a buzzer will sound and the Stop &Start system indicator will flash. To stop the buzzer, put the shift
lever to N. Even in this situation, the engine starts if the clutch pedal is depressed.
■The Stop & Start system protection
function
●When the volume of the audio system
is excessively high, sound output from the audio system may suddenly be cut off in order to reduce battery con-
sumption. To prevent the audio sys- tem from being cut off, keep the volume of audio system at a moderate
level. If the audio system has been cut off, turn the engine switch off, wait for 3 seconds or more and then turn it to
ACC or ON to re-enable the audio system.
●The audio system may not be acti-vated if the battery terminals are dis-connected and then reconnected. If
this occurs, turn the engine switch off and then repeat the following opera-tion twice to activate the audio system
normally. • Turn the engine switch to ON and then to off.
■Replacing the battery
 P. 3 4 1
■If the Stop & Start cancel indicator flashes continuously
The system may be malfunctioning.
Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.

198
Owner's Manual_Europe_M52P63_en
4-5. Using the driving support systems

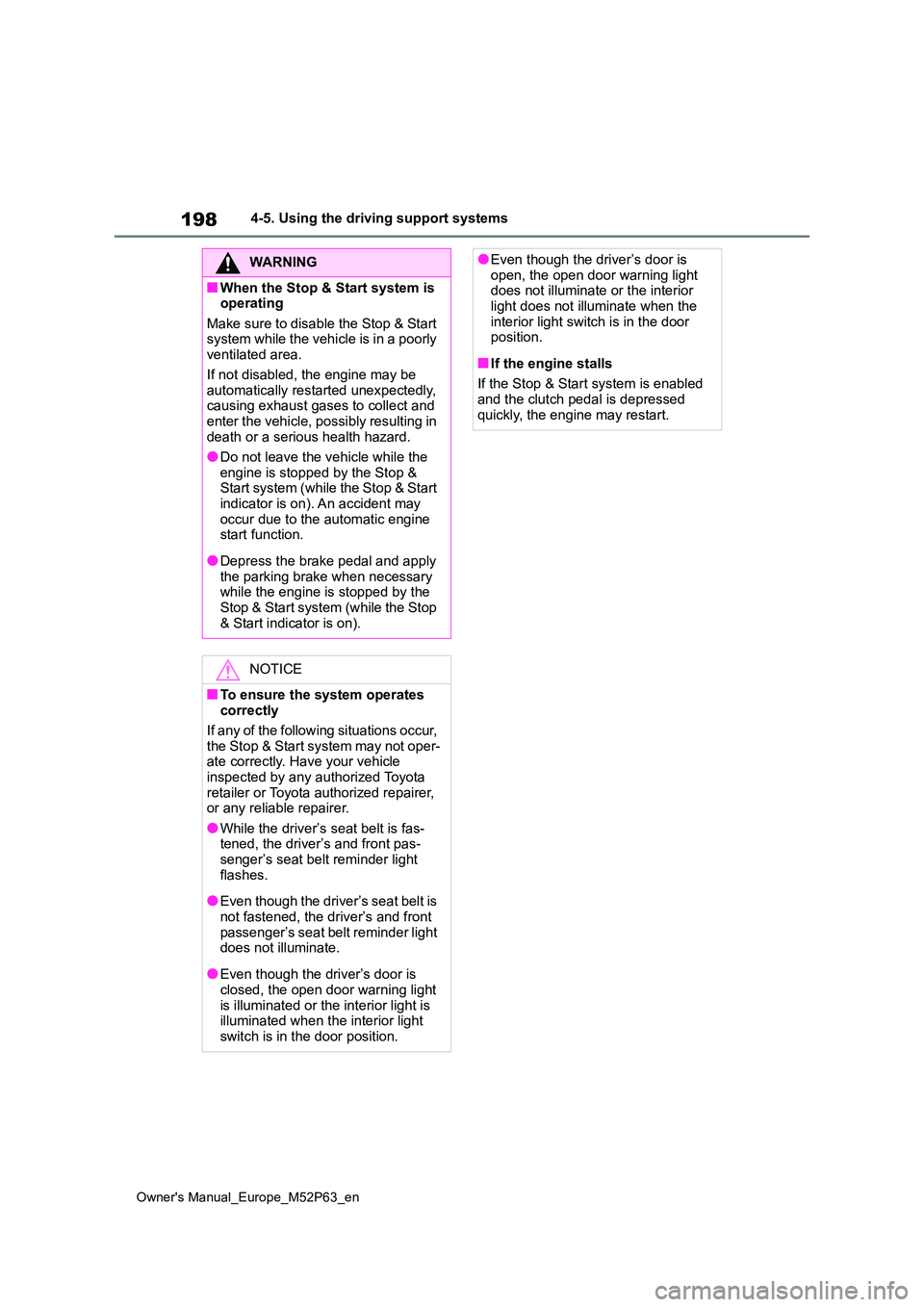

WARNING
■When the Stop & Start system is operating
Make sure to disable the Stop & Start system while the vehicle is in a poorly ventilated area.
If not disabled, the engine may be automatically restarted unexpectedly, causing exhaust gases to collect and
enter the vehicle, possibly resulting in death or a serious health hazard.
●Do not leave the vehicle while the
engine is stopped by the Stop & Start system (while the Stop & Start indicator is on). An accident may
occur due to the automatic engine start function.
●Depress the brake pedal and apply the parking brake when necessary while the engine is stopped by the
Stop & Start system (while the Stop & Start indicator is on).
NOTICE
■To ensure the system operates correctly
If any of the following situations occur, the Stop & Start system may not oper-ate correctly. Have your vehicle
inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●While the driver’s seat belt is fas-tened, the driver’s and front pas-senger’s seat belt reminder light
flashes.
●Even though the driver’s seat belt is
not fastened, the driver’s and front passenger’s seat belt reminder light does not illuminate.
●Even though the driver’s door is closed, the open door warning light
is illuminated or the interior light is illuminated when the interior light switch is in the door position.
●Even though the driver’s door is open, the open door warning light does not illuminate or the interior
light does not illuminate when the interior light switch is in the door position.
■If the engine stalls
If the Stop & Start system is enabled
and the clutch pedal is depressed quickly, the engine may restart.
