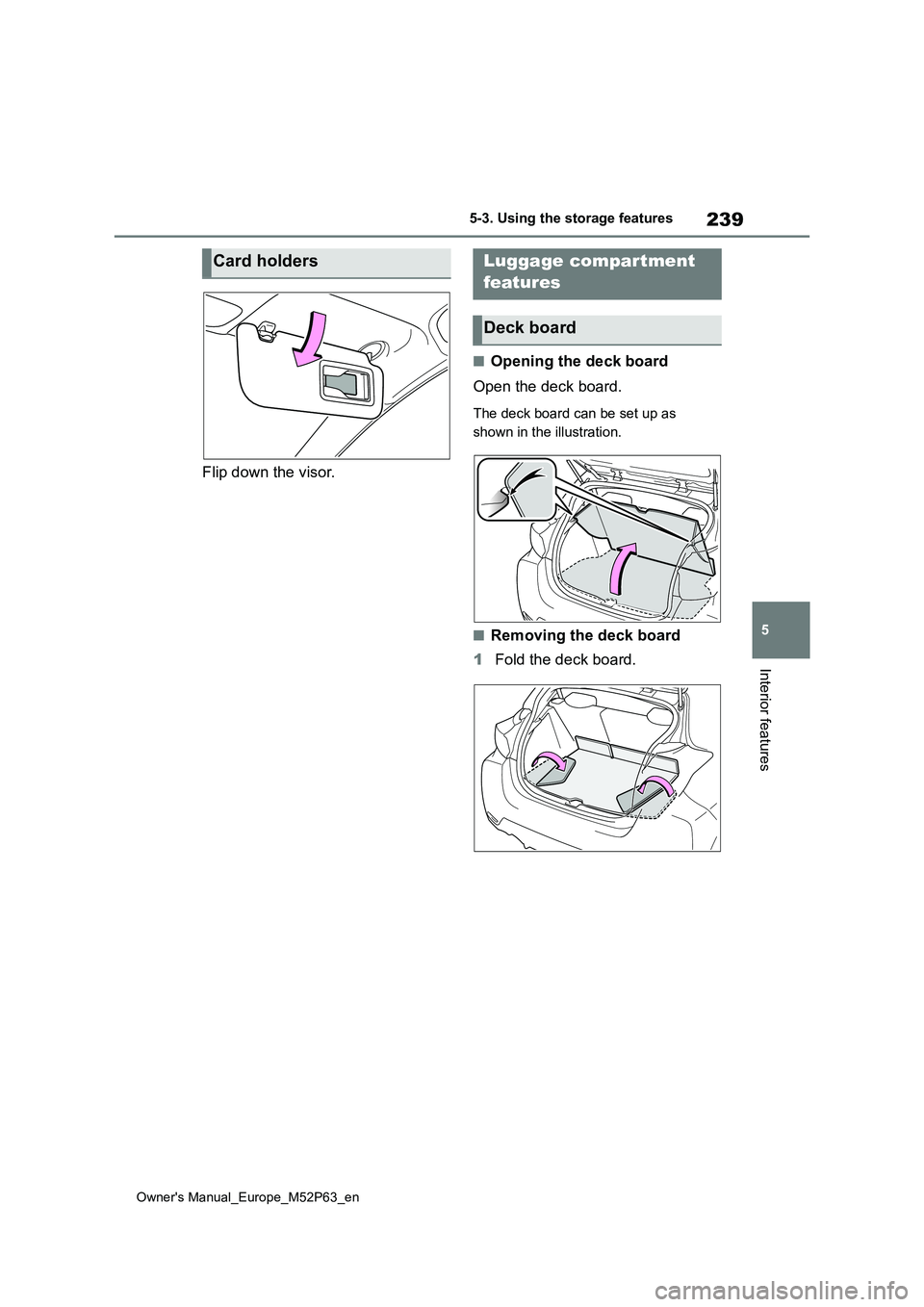

TOYOTA GR YARIS 2022 Owners Manual

239
5
Owner's Manual_Europe_M52P63_en
5-3. Using the storage features
Interior features
Flip down the visor.
■Opening the deck board
Open the deck board.
The deck board can be set up as
shown in the illustration.
■Removing the deck board
1 Fold the deck board.
Card holdersLuggage compartment
features
Deck board

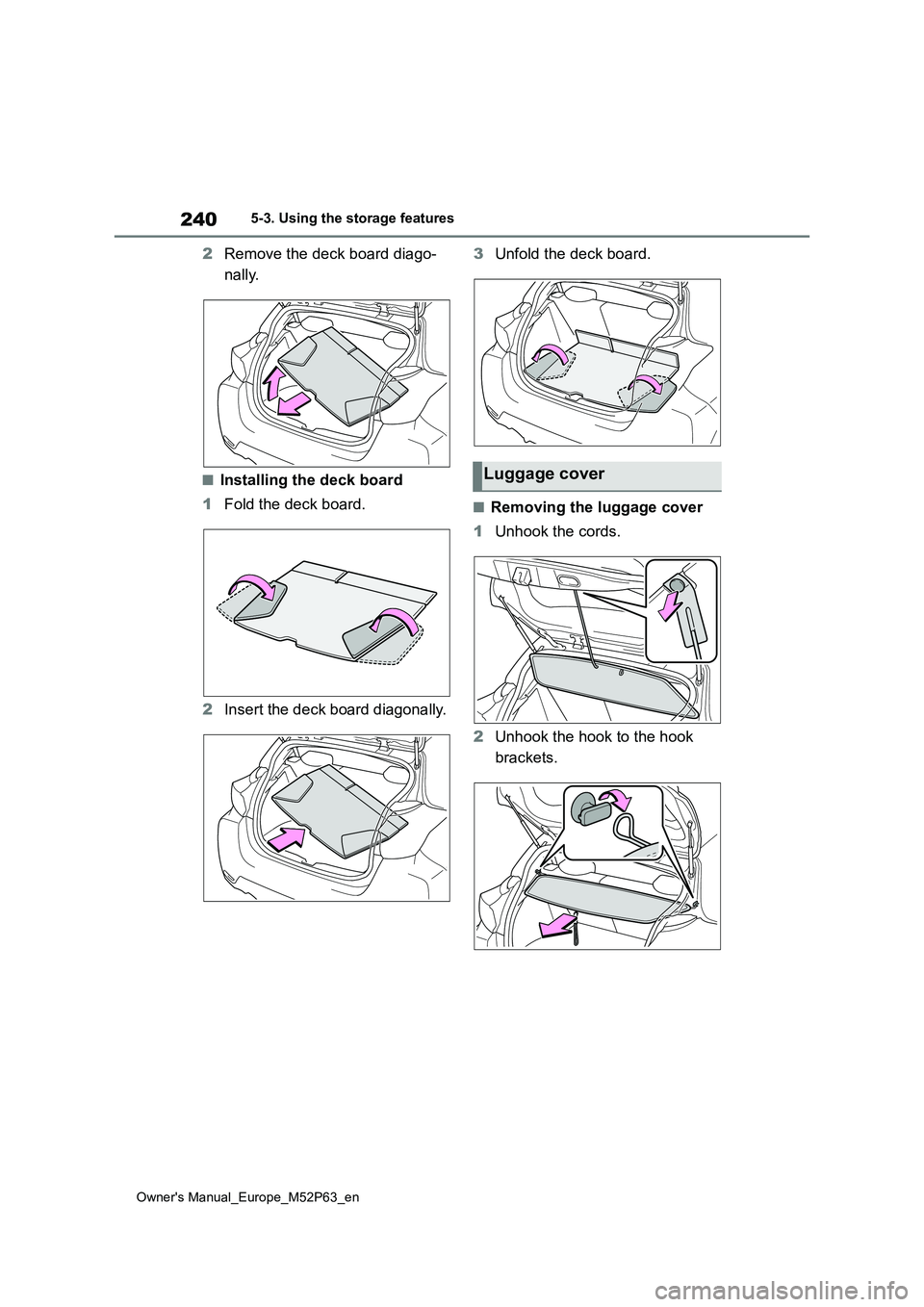

240
Owner's Manual_Europe_M52P63_en
5-3. Using the storage features
2Remove the deck board diago-
nally.
■Installing the deck board
1 Fold the deck board.
2 Insert the deck board diagonally.
3 Unfold the deck board.
■Removing the luggage cover
1 Unhook the cords.
2 Unhook the hook to the hook
brackets.
Luggage cover

241
5
Owner's Manual_Europe_M52P63_en
5-3. Using the storage features
Interior features
WARNING
■Luggage cover precautions
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not place anything on the lug-
gage cover. In the event of sudden braking or turning, the item may go flying and strike an occupant.
●Do not allow children to climb on the luggage cover. Climbing on the
luggage cover could result in dam- age to the luggage cover.
●Be sure to attach the cords cor-rectly to prevent the cover from fly-ing off.
NOTICE
■To avoid damaging the luggage cover
Do not fold the luggage cover. Doing so may damage the luggage cover.

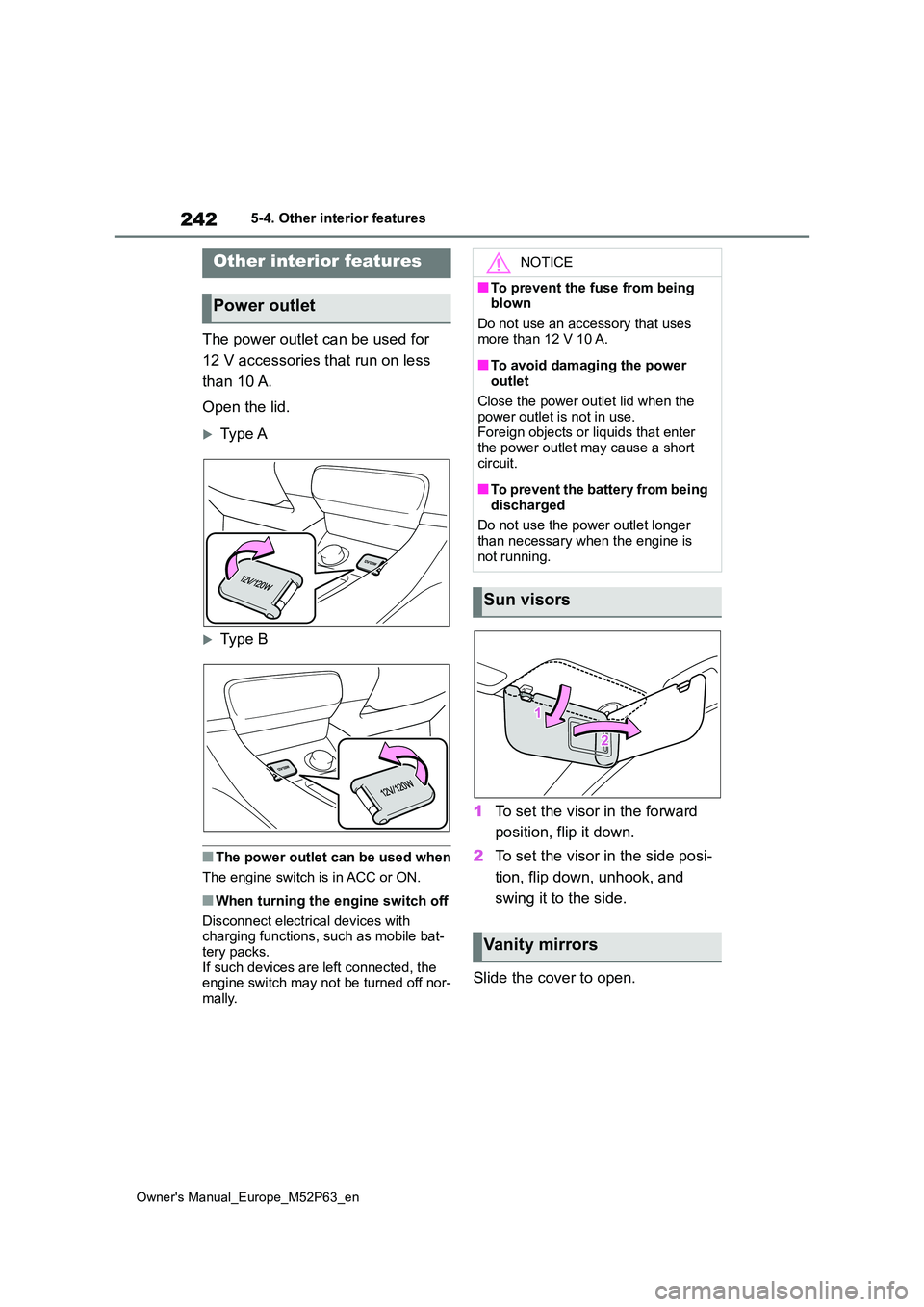

242
Owner's Manual_Europe_M52P63_en
5-4. Other interior features
5-4.Other interior features
The power outlet can be used for
12 V accessories that run on less
than 10 A.
Open the lid.
Type A
Type B
■The power outlet can be used when
The engine switch is in ACC or ON.
■When turning the engine switch off
Disconnect electrical devices with charging functions, such as mobile bat-
tery packs. If such devices are left connected, the engine switch may not be turned off nor-
mally.
1 To set the visor in the forward
position, flip it down.
2 To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Slide the cover to open.
Other interior features
Power outlet
NOTICE
■To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■To avoid damaging the power outlet
Close the power outlet lid when the
power outlet is not in use. Foreign objects or liquids that enter the power outlet may cause a short
circuit.
■To prevent the battery from being
discharged
Do not use the power outlet longer than necessary when the engine is
not running.
Sun visors
Va n it y m i r ro r s

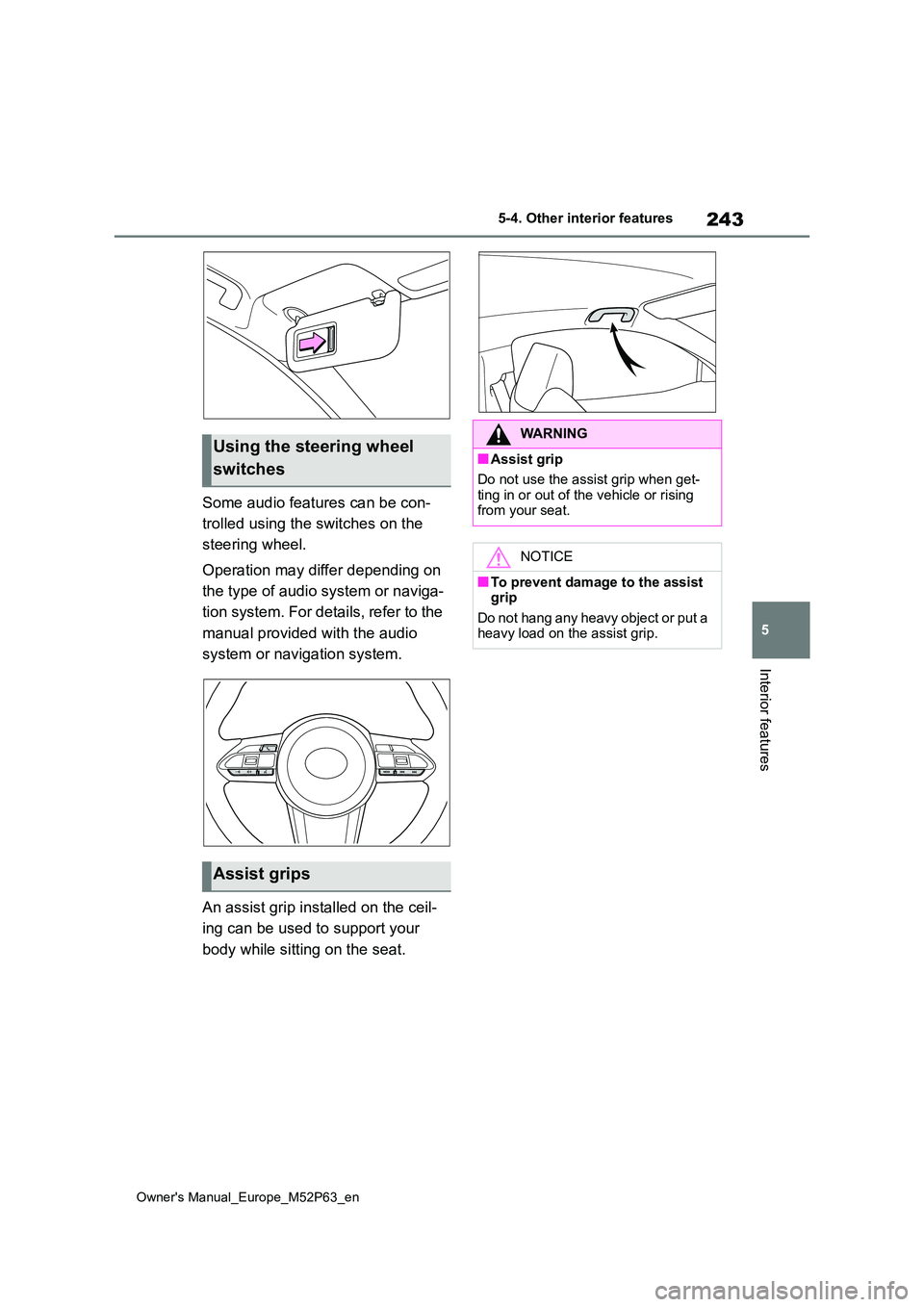

243
5
Owner's Manual_Europe_M52P63_en
5-4. Other interior features
Interior features
Some audio features can be con-
trolled using the switches on the
steering wheel.
Operation may differ depending on
the type of audio system or naviga-
tion system. For details, refer to the
manual provided with the audio
system or navigation system.
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Using the steering wheel
switches
Assist grips
WARNING
■Assist grip
Do not use the assist grip when get- ting in or out of the vehicle or rising from your seat.
NOTICE
■To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.

244
Owner's Manual_Europe_M52P63_en
5-4. Other interior features

6

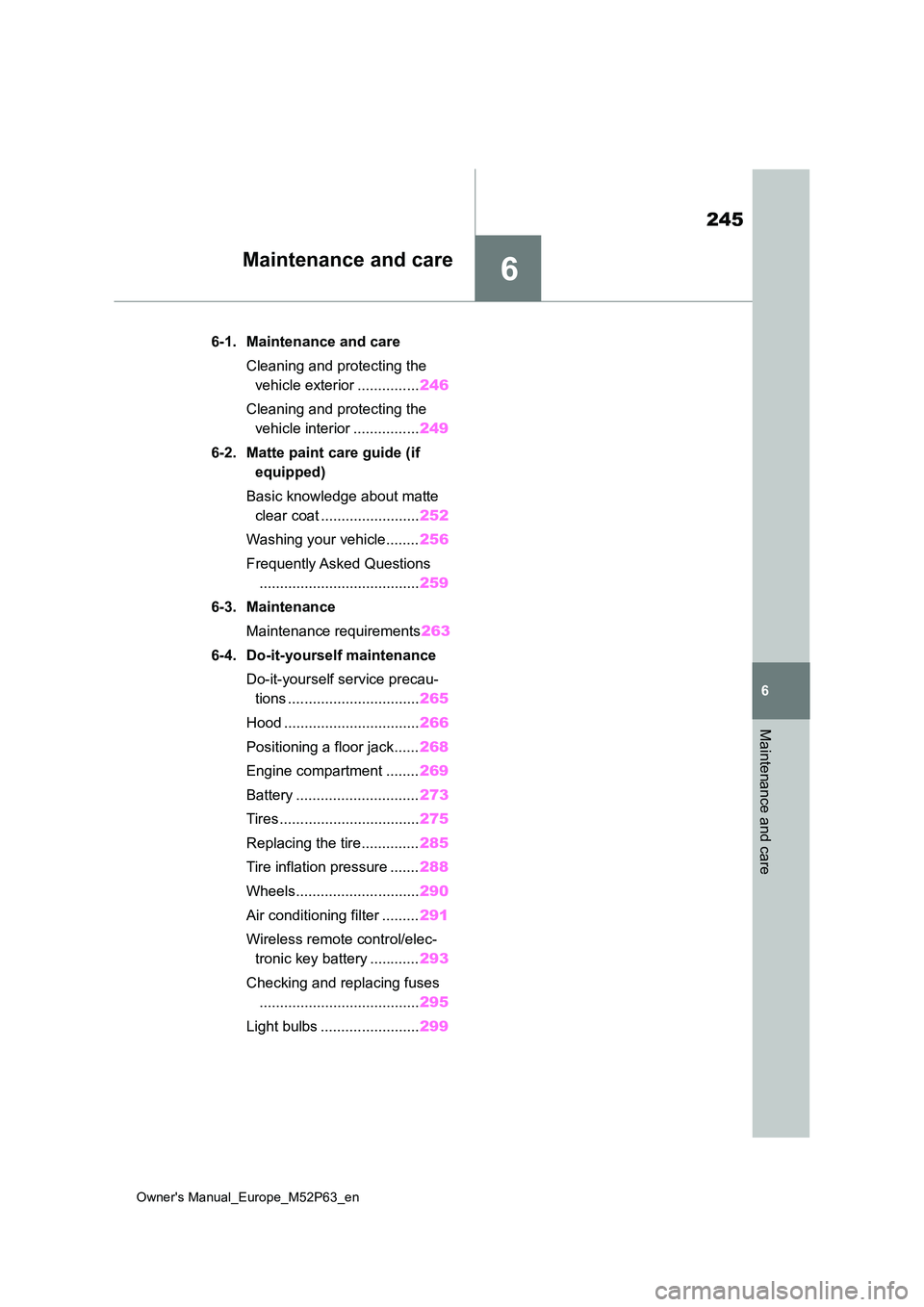

245
Owner's Manual_Europe_M52P63_en
6
Maintenance and care
Maintenance and care
6-1. Maintenance and care
Cleaning and protecting the
vehicle exterior ............... 246
Cleaning and protecting the
vehicle interior ................ 249
6-2. Matte paint care guide (if
equipped)
Basic knowledge about matte
clear coat ........................ 252
Washing your vehicle........ 256
Frequently Asked Questions
....................................... 259
6-3. Maintenance
Maintenance requirements 263
6-4. Do-it-yourself maintenance
Do-it-yourself service precau-
tions ................................ 265
Hood ................................. 266
Positioning a floor jack...... 268
Engine compartment ........ 269
Battery .............................. 273
Tires .................................. 275
Replacing the tire.............. 285
Tire inflation pressure ....... 288
Wheels.............................. 290
Air conditioning filter ......... 291
Wireless remote control/elec-
tronic key battery ............ 293
Checking and replacing fuses
....................................... 295
Light bulbs ........................ 299

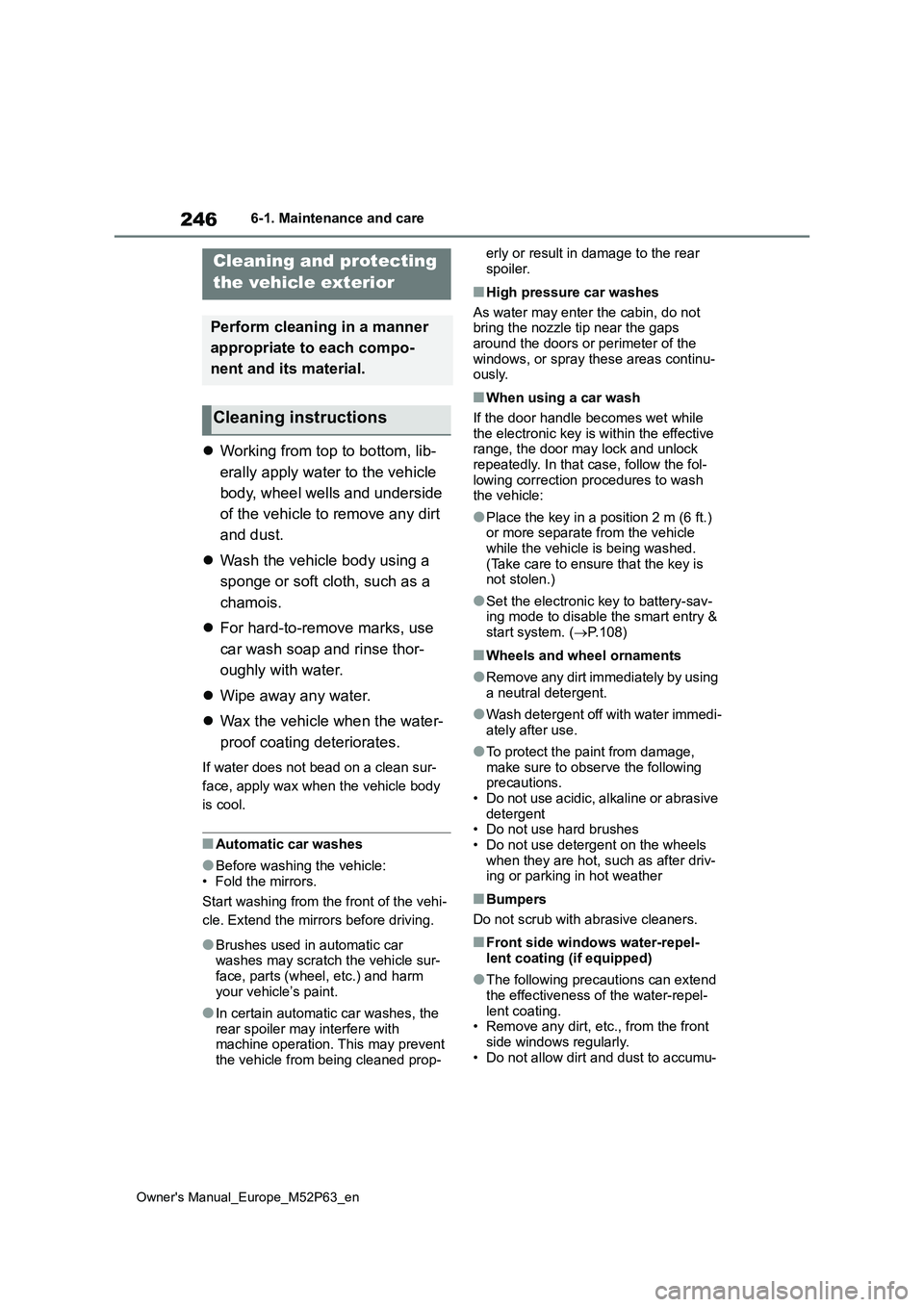

246
Owner's Manual_Europe_M52P63_en
6-1. Maintenance and care
6-1.Mainte nance a nd care
Working from top to bottom, lib-
erally apply water to the vehicle
body, wheel wells and underside
of the vehicle to remove any dirt
and dust.
 Wash the vehicle body using a
sponge or soft cloth, such as a
chamois.
 For hard-to-remove marks, use
car wash soap and rinse thor-
oughly with water.
 Wipe away any water.
 Wax the vehicle when the water-
proof coating deteriorates.
If water does not bead on a clean sur-
face, apply wax when the vehicle body
is cool.
■Automatic car washes
●Before washing the vehicle: • Fold the mirrors.
Start washing from the front of the vehi-
cle. Extend the mirrors before driving.
●Brushes used in automatic car washes may scratch the vehicle sur-
face, parts (wheel, etc.) and harm your vehicle’s paint.
●In certain automatic car washes, the rear spoiler may interfere with machine operation. This may prevent
the vehicle from being cleaned prop-
erly or result in damage to the rear
spoiler.
■High pressure car washes
As water may enter the cabin, do not bring the nozzle tip near the gaps
around the doors or perimeter of the windows, or spray these areas continu-ously.
■When using a car wash
If the door handle becomes wet while the electronic key is within the effective range, the door may lock and unlock
repeatedly. In that case, follow the fol- lowing correction procedures to wash the vehicle:
●Place the key in a position 2 m (6 ft.) or more separate from the vehicle
while the vehicle is being washed. (Take care to ensure that the key is not stolen.)
●Set the electronic key to battery-sav-ing mode to disable the smart entry &
start system. ( P.108)
■Wheels and wheel ornaments
●Remove any dirt immediately by using
a neutral detergent.
●Wash detergent off with water immedi-
ately after use.
●To protect the paint from damage,
make sure to observe the following precautions.• Do not use acidic, alkaline or abrasive
detergent • Do not use hard brushes• Do not use detergent on the wheels
when they are hot, such as after driv- ing or parking in hot weather
■Bumpers
Do not scrub with abrasive cleaners.
■Front side windows water-repel-
lent coating (if equipped)
●The following precautions can extend
the effectiveness of the water-repel- lent coating.• Remove any dirt, etc., from the front
side windows regularly. • Do not allow dirt and dust to accumu-
Cleaning and protecting
the vehicle exterior
Perform cleaning in a manner
appropriate to each compo-
nent and its material.
Cleaning instructions

247
6
Owner's Manual_Europe_M52P63_en
6-1. Maintenance and care
Maintenance and care
late on the windows for a long period.
Clean the windows with a soft, damp cloth as soon as possible.• Do not use wax or glass cleaners that
contain abrasives when cleaning the windows.• Do not use any metallic objects to
remove condensation build up.
●When the water-repellent perfor-
mance has become insufficient, the coating can be repaired. Consult any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
■Plated portions
If dirt cannot be removed, clean the
parts as follows:
●Use a soft cloth dampened with an
approximately 5% solution of neutral detergent and water to clean the dirt off.
●Wipe the surface with a dry, soft cloth to remove any remaining moisture.
●To remove oily deposits, use alcohol wet wipes or a similar product.
■Carbon film (if equipped)
●Do not attach a roof carrier on the car-bon-film. It may damage the film sur-
face.
●On l y u se lo w t em pe r a tu r e wat e r ; 50 ° C
(122°F) or less, for an automatic car wash and high pressure washer.
Do not use the high pressure washer to
the film edge to avoid coming off.
●Do not take heated water more than 90°C (194°F) directly. It may cause the film to come off easily.
●Only use a neutral detergent which is approved for car wash use and water.
●Do not wax or apply a coating to the film to keep film textured appearance.
●Dirt like bird droppings and oil should be cleaned off with a neutral detergent
immediately.
■Brake
●Painted brake calipers
• When using detergent, use neutral
detergent. Do not use hard brushes or abrasive cleaners, as they will dam-age the paint.
• Do not use detergent on the brake cal- ipers when they are hot.• Wash detergent off immediately after
use.
●Rust may form if the vehicle is parked
with wet brake pads or disc rotors, causing them to stick. Before parking the vehicle after it is washed, drive
slowly and apply the brakes several times to dry the parts.
WARNING
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may cause the electrical components, etc.
to catch fire.
■When cleaning the windshield
Set the wiper switch to off. If the wiper switch is in “AUTO”, the wipers may operate unexpectedly in the following
situations, and may result in hands being caught or other serious injuries and cause damage to the wiper
blades.
Off
AUTO
●When the upper part of the wind- shield where the raindrop sensor is
located is touched by hand
●When a wet rag or similar is held
close to the raindrop sensor

248
Owner's Manual_Europe_M52P63_en
6-1. Maintenance and care
WARNING
●If something bumps against the windshield
●If you directly touch the raindrop sensor body or if something bumps
into the raindrop sensor
■Precautions regarding the
exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has cooled sufficiently, as touching a hot
exhaust pipe can cause burns.
■Precaution regarding the rear
bumper with Blind Spot Monitor (if equipped)
If the paint of the rear bumper is
chipped or scratched, the system may malfunction. If this occurs, consult with any authorized Toyota retailer or
Toyota authorized repairer, or any reli- able repairer.
NOTICE
■To prevent paint deterioration and corrosion on the body and components (aluminum wheels,
etc.)
●Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on
the paint surface
• If dead insects, insect droppings or
bird droppings are present on the paint surface
• After driving in an area contami- nated with soot, oily smoke, mine dust, iron powder or chemical sub-
stances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gas- oline are spilled on the paint sur-face
●If the paint is chipped or scratched, have it repaired immediately.
●To prevent the wheels from corrod-ing, remove any dirt and store in a
place with low humidity when stor- ing the wheels.
■Cleaning the exterior lights
●Wash carefully. Do not use organic substances or scrub with a hard
brush. This may damage the surfaces of the lights.
●Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
■To prevent damage to the wind-shield wiper arms
When lifting the wiper arms away
from the windshield, pull the driver side wiper arm upward first, and repeat for the passenger side. When
returning the wipers to their original position, do so from the passenger side first.
■When using an automatic car wash
Set the wiper switch to the off posi- tion. If the wiper switch is in “AUTO”, the wipers may operate and the wiper
blades may be damaged.
