8-1. Specifications
Vehicle specifications

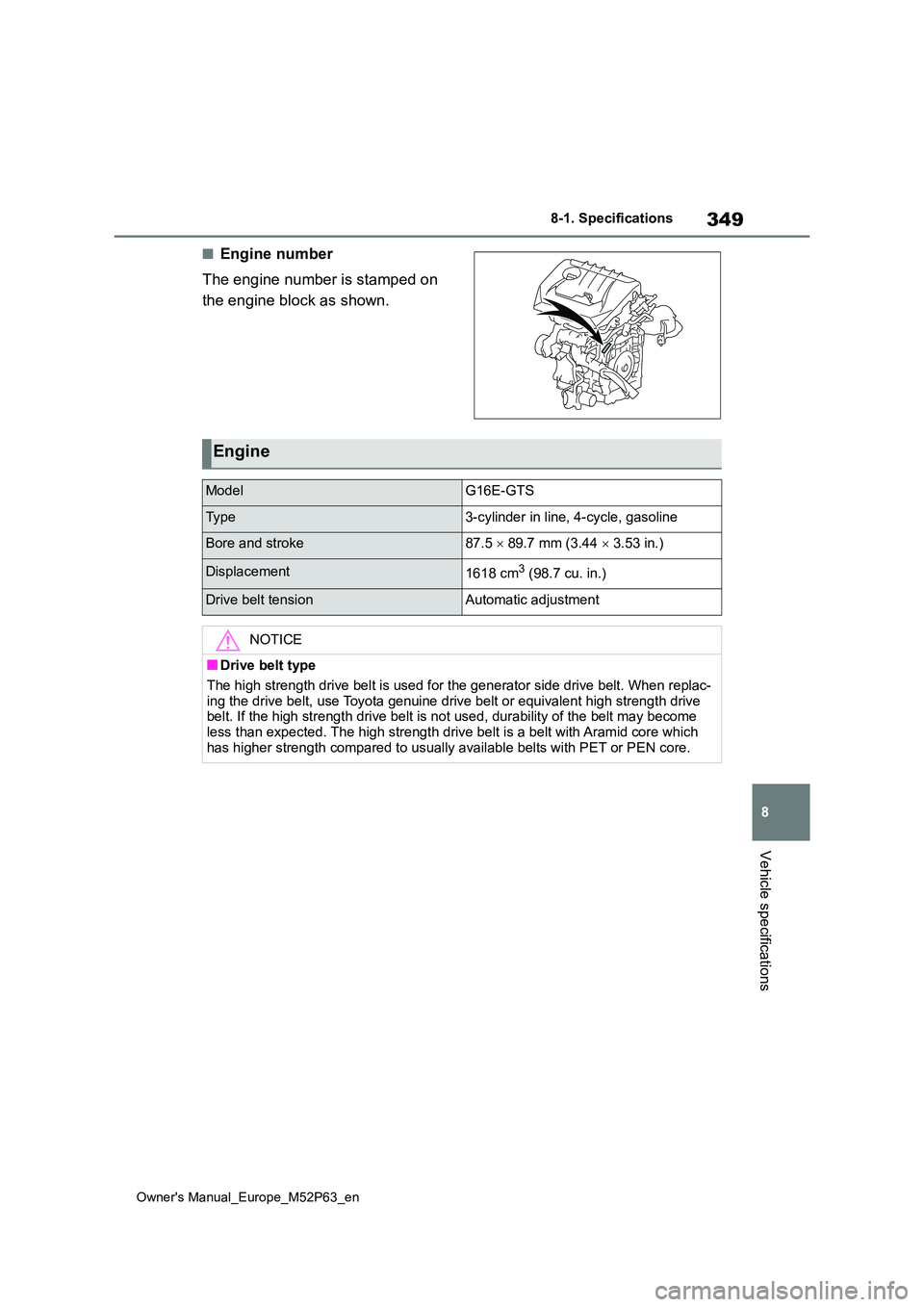

■Engine number
The engine number is stamped on
the engine block as shown.
Engine
ModelG16E-GTS
Ty p e3-cylinder in line, 4-cycle, gasoline
Bore and stroke87.5  89.7 mm (3.44  3.53 in.)
Displacement1618 cm3 (98.7 cu. in.)
Drive belt tensionAutomatic adjustment
NOTICE
■Drive belt type
The high strength drive belt is used for the generator side dri ve belt. When replac-
ing the drive belt, use Toyota genuine drive belt or equivalent high strength drive belt. If the high strength drive belt is not used, durability o f the belt may become less than expected. The high strength drive belt is a belt with Aramid core which
has higher strength compared to usually available belts with PE T or PEN core.

350
Owner's Manual_Europe_M52P63_en
8-1. Specifications
*: If unleaded gasoline with a Research Octane Number of 98 is not available,
unleaded gasoline with a Research Octane Number of 95 may be us ed with no
detriment to engine durability or driveability.
■Oil capacity (Drain and refill
[Reference*])
*: The engine oil capacity is a reference
quantity to be used when changing
the engine oil. Warm up and turn off
the engine, wait more than 8 minutes,
and check the oil level on the dip-
stick.
■Engine oil selection
Gasoline Engine 
“Toyota Genuine Motor Oil” is used
in your Toyota vehicle. Toyota rec-
ommends the use of approved
“Toyota Genuine Motor Oil”.
Another motor oil of matching qual-
ity can also be used.
Oil grade:
API grade SN PLUS “Resource-
Conserving” or SP “Resource-Con-
serving”; or ILSAC GF-6A multi-
grade engine oil
Recommended viscosity (SAE):
SAE 0W-20
Fuel
Fuel type
When you find these types of fuel label at
the gas station, use only the fuel with one
of the following labels.
EU area:
Unleaded gasoline conforming to Euro-
pean standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane Number98 or higher*
Fuel tank capacity
(Reference)50.0 L (13.2 gal., 11.0 Imp. gal.)
Lubrication system
With filter4.3 L (4.5 qt., 3.7 Imp. qt.)
Without fil-
ter4.0 L (4.2 qt., 3.5 Imp. qt.)

351
8
Owner's Manual_Europe_M52P63_en
8-1. Specifications
Vehicle specifications
Temperature range anticipated
before next oil change
Oil viscosity (0W-20 is explained
here as an example):
• The 0W in 0W-20 indicates the
characteristic of the oil which
allows cold startability. Oils with a
lower value before the W allow
for easier starting of the engine
in cold weather.
• The 20 in 0W-20 indicates the
viscosity characteristic of the oil
when the oil is at high tempera-
ture.
How to read oil container labels:
Either or both API registered marks
are added to some oil containers to
help you select the oil you should
use.
API Service Symbol
Top portion: “API SERVICE SP” means
the oil quality designation by American
Petroleum Institute (API).
Center portion: “SAE 0W-20” means
the SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specifica-
tion Advisory Committee (ILSAC) Certi-
f ic at i o n M ar k i s d is pl a ye d on t h e f r o nt o f
the container.
Cooling system
Capacity (Reference)5.2 L (5.5 qt., 4.6 Imp. qt.)
Coolant type
Use either of the following:
 “Toyota Super Long Life Coolant”
 Similar high-quality ethylene glycol-based non-sili-
cate, non-amine, non-nitrite, and non-borate coolant
with long-life hybrid organic acid technology
Do not use plain water alone.

352
Owner's Manual_Europe_M52P63_en
8-1. Specifications

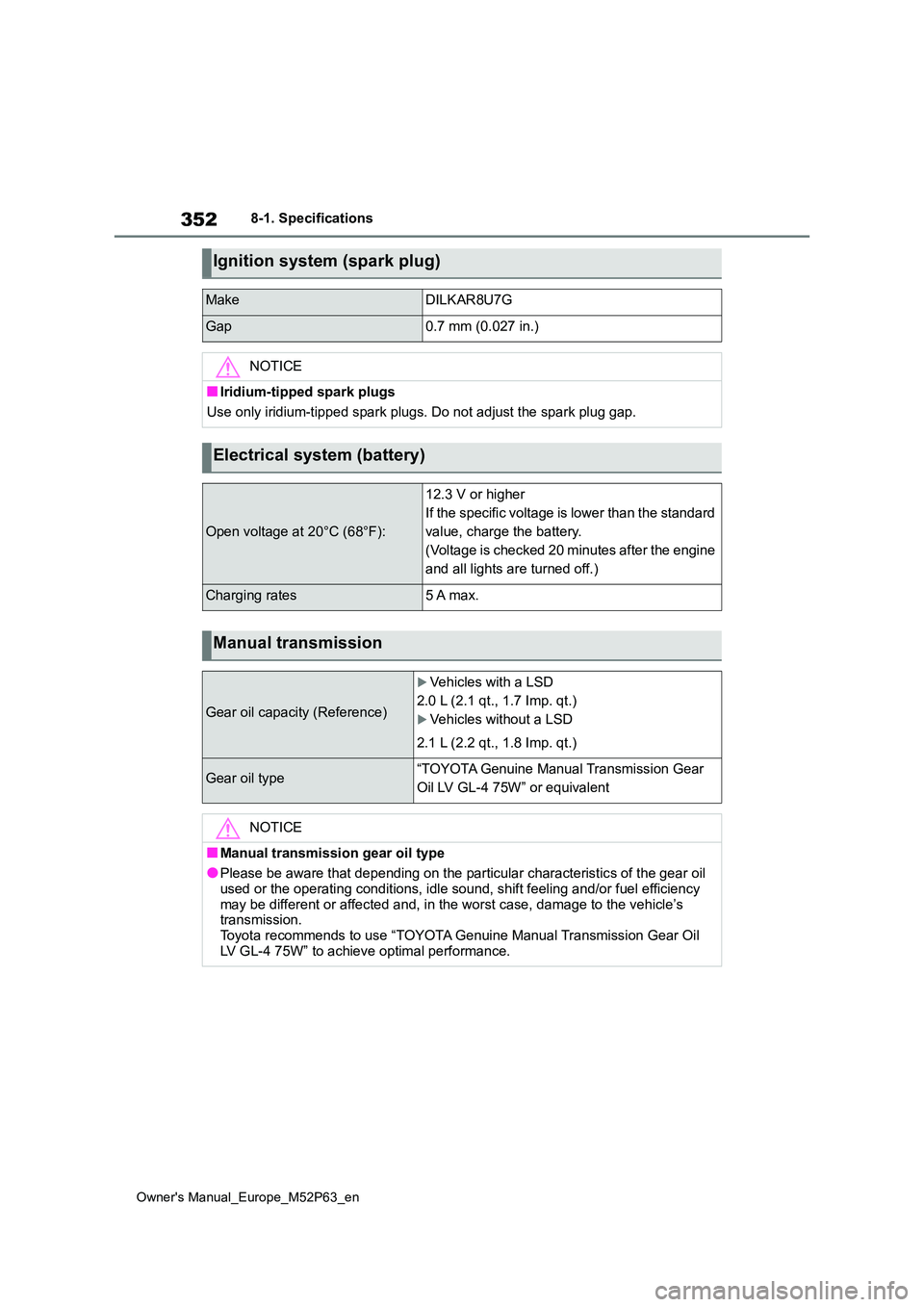

Ignition system (spark plug)
MakeDILKAR8U7G
Gap0.7 mm (0.027 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark pl ug gap.
Electrical system (battery)
Open voltage at 20°C (68°F):
12.3 V or higher
If the specific voltage is lower than the standard
value, charge the battery.
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
Charging rates5 A max.
Manual transmission
Gear oil capacity (Reference)
Vehicles with a LSD
2.0 L (2.1 qt., 1.7 Imp. qt.)
Vehicles without a LSD
2.1 L (2.2 qt., 1.8 Imp. qt.)
Gear oil type“TOYOTA Genuine Manual Transmission Gear
Oil LV GL-4 75W” or equivalent
NOTICE
■Manual transmission gear oil type
●Please be aware that depending on the particular characteristic s of the gear oil
used or the operating conditions, idle sound, shift feeling and /or fuel efficiency may be different or affected and, in the worst case, damage to the vehicle’s transmission.
Toyota recommends to use “TOYOTA Genuine Manual Transmission Ge ar Oil LV GL-4 75W” to achieve optimal performance.

353
8
Owner's Manual_Europe_M52P63_en
8-1. Specifications
Vehicle specifications
*: If a fluid type with “TOYOTA GENUINE BRAKE FLUID DOT4, CLASS6”, FMVSS
No.116 DOT4 or SAE J1704LV is not available, fluid type with TO YOTA GENU-
INE BRAKE FLUID DOT3, FMVSS No.116 DOT3 or SAE J1703 may be used
with no detriment to brake durability.
Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at
the factory.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or a n equiva-
lent of matching quality to satisfy the above specification. Pl ease contact
any authorized Toyota retailer or Toyota authorized repairer, o r any reliable
repairer for further details.
NOTICE

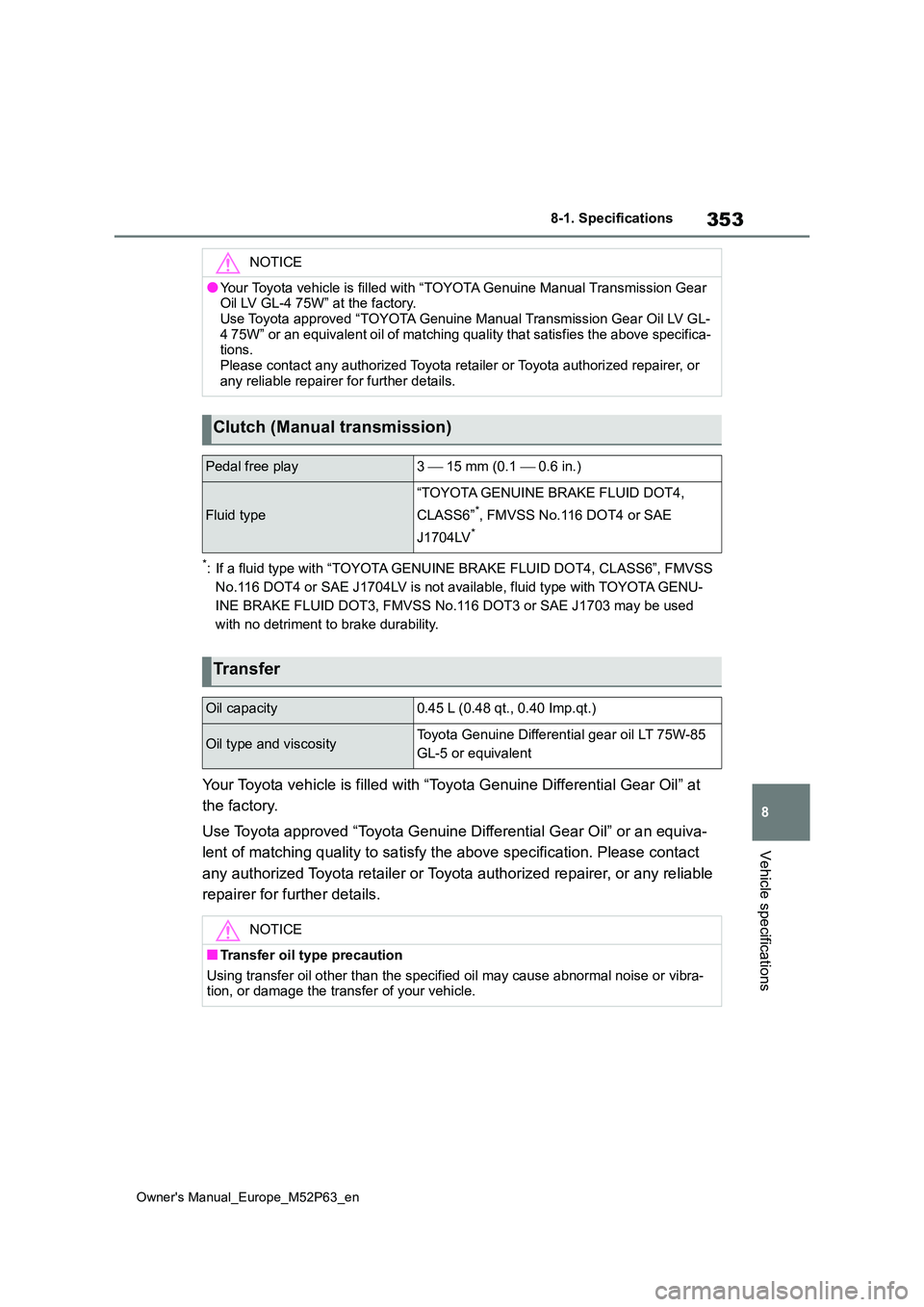

●Your Toyota vehicle is filled with “TOYOTA Genuine Manual Trans mission Gear Oil LV GL-4 75W” at the factory.
Use Toyota approved “TOYOTA Genuine Manual Transmission Gear Oi l LV GL- 4 75W” or an equivalent oil of matching quality that satisfies the above specifica- tions.
Please contact any authorized Toyota retailer or Toyota authori zed repairer, or any reliable repairer for further details.
Clutch (Manual transmission)
Pedal free play3  15 mm (0.1  0.6 in.)
Fluid type
“TOYOTA GENUINE BRAKE FLUID DOT4,
CLASS6”*, FMVSS No.116 DOT4 or SAE
J1704LV*
Transfer
Oil capacity0.45 L (0.48 qt., 0.40 Imp.qt.)
Oil type and viscosityToyota Genuine Differential gear oil LT 75W-85
GL-5 or equivalent
NOTICE
■Transfer oil type precaution
Using transfer oil other than the specified oil may cause abnor mal noise or vibra- tion, or damage the transfer of your vehicle.

354
Owner's Manual_Europe_M52P63_en
8-1. Specifications
Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at
the factory.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or a n equiva-
lent of matching quality to satisfy the above specification. Pl ease contact
any authorized Toyota retailer or Toyota authorized repairer, o r any reliable
repairer for further details.
*1: Minimum pedal clearance when depressed with a force of 300 N ( 31.0 kgf, 67.4
lbf) while the engine is running.
*2: Right-hand drive vehicles
*3: Left-hand drive vehicles
*4: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf, 45.0
lbf)
*5: If a fluid type with “TOYOTA GENUINE BRAKE FLUID DOT4, CLASS6” , FMVSS
No.116 DOT4 or SAE J1704LV is not available, fluid type with TO YOTA GENU-
INE BRAKE FLUID DOT3, FMVSS No.116 DOT3 or SAE J1703 may be use d
with no detriment to brake durability.

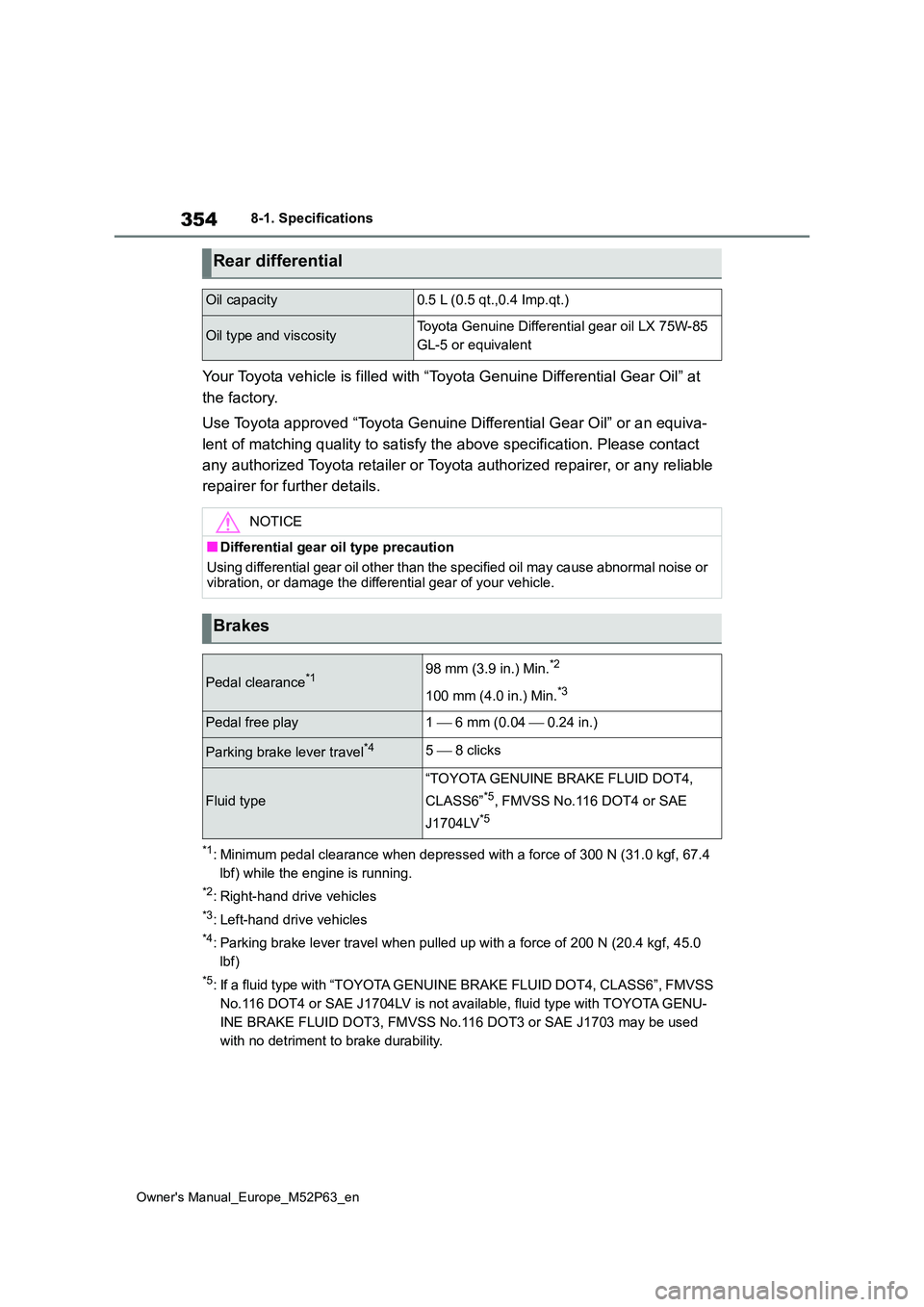

Rear differential
Oil capacity0.5 L (0.5 qt.,0.4 Imp.qt.)
Oil type and viscosityToyota Genuine Differential gear oil LX 75W-85
GL-5 or equivalent
NOTICE
■Differential gear oil type precaution
Using differential gear oil other than the specified oil may ca use abnormal noise or vibration, or damage the differential gear of your vehicle.
Brakes
Pedal clearance*198 mm (3.9 in.) Min.*2
100 mm (4.0 in.) Min.*3
Pedal free play1  6 mm (0.04  0.24 in.)
Parking brake lever travel*45  8 clicks
Fluid type
“TOYOTA GENUINE BRAKE FLUID DOT4,
CLASS6”*5, FMVSS No.116 DOT4 or SAE
J1704LV*5

355
8
Owner's Manual_Europe_M52P63_en
8-1. Specifications
Vehicle specifications

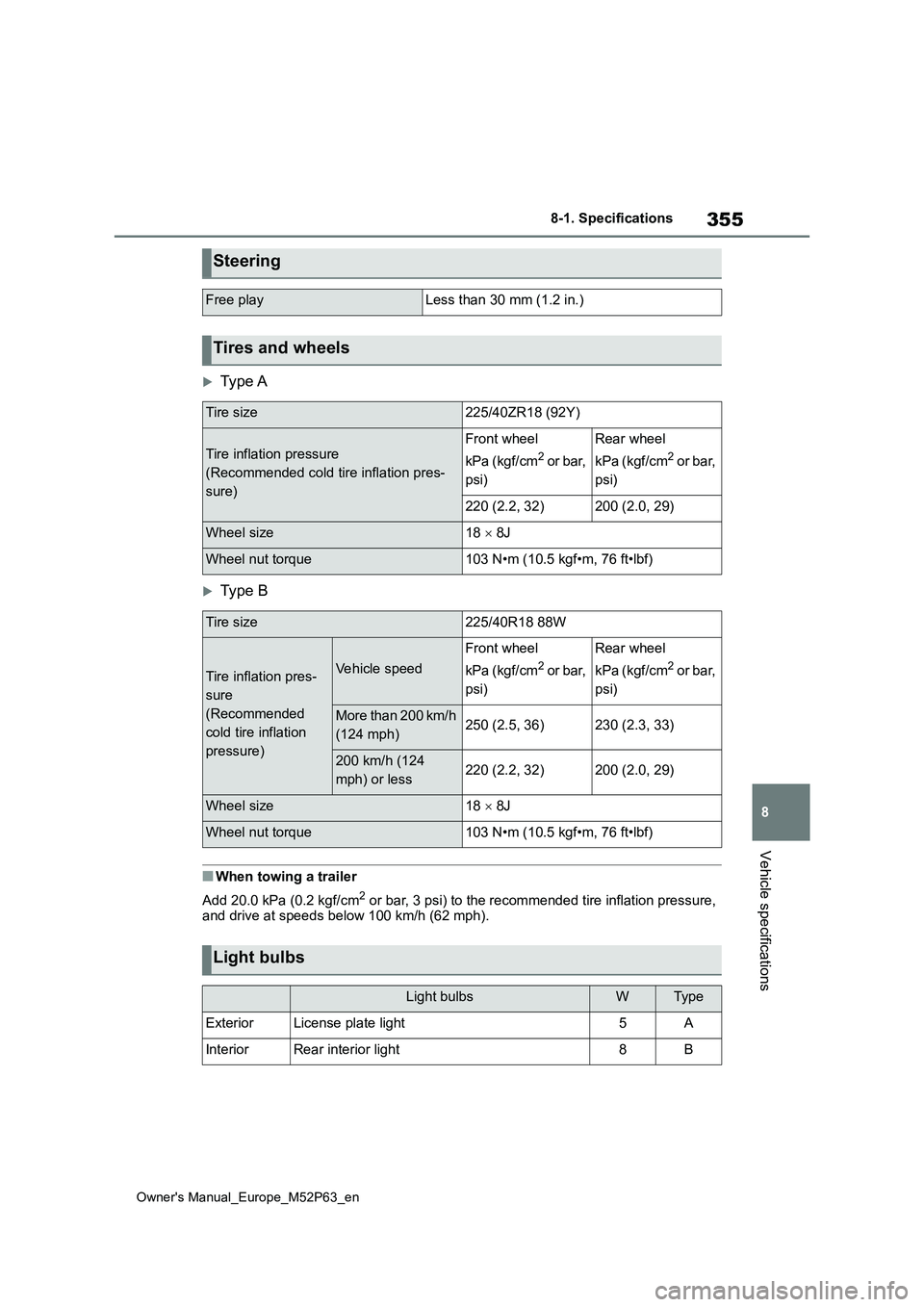

Type A
Type B
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation pressure, and drive at speeds below 100 km/h (62 mph).
Steering
Free playLess than 30 mm (1.2 in.)
Tires and wheels
Tire size225/40ZR18 (92Y)
Tire inflation pressure
(Recommended cold tire inflation pres-
sure)
Front wheel
kPa (kgf/cm2 or bar,
psi)
Rear wheel
kPa (kgf/cm2 o r b a r,
psi)
220 (2.2, 32)200 (2.0, 29)
Wheel size18  8J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size225/40R18 88W
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2 or bar,
psi)
Rear wheel
kPa (kgf/cm2 o r b a r,
psi)
More than 200 km/h
(124 mph)250 (2.5, 36)230 (2.3, 33)
200 km/h (124
mph) or less220 (2.2, 32)200 (2.0, 29)
Wheel size18  8J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Light bulbs
Light bulbsWTyp e
ExteriorLicense plate light5A
InteriorRear interior light8B

356
Owner's Manual_Europe_M52P63_en
8-1. Specifications
A: Wedge base bulbs (clear)
B: Double end bulbs

357
8
Owner's Manual_Europe_M52P63_en
8-1. Specifications
Vehicle specifications
■Use of ethanol blended gasoline in
a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol
content is up to 10%. Make sure that the ethanol blended gasoline to be used has a Research Octane Number that follows
the above.
■If your engine knocks
●Consult any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
●You may occasionally notice light knocking for a short time while accel-erating or driving uphill. This is normal
and there is no need for concern.
Fuel information
When you find these types of
fuel label at the gas station,
use only the fuel with one of
the following labels.
EU area
You must only use unleaded
gasoline conforming to Euro-
pean standard EN228.
Select unleaded gasoline with
a Research Octane Number of
98 or higher for optimum
engine performance.
If this premium type cannot be
obtained, you may temporarily
use unleaded gasoline with a
Research Octane Number as
low as 95. The use of such gas-
oline may cause the engine to
knock or drastically reduce
output to protect itself while
driving with a heavy load. To
avoid this refill the tank with
premium unleaded gasoline as
soon as possible.
Except EU area
You must only use unleaded
gasoline.
Select unleaded gasoline with
a Research Octane Number of
98 or higher for optimum
engine performance.
If this premium type cannot be
obtained, you may temporarily
use unleaded gasoline with a
Research Octane Number as
low as 95. The use of such gas-
oline may cause the engine to
knock or drastically reduce
output to protect itself while
driving with a heavy load. To
avoid this refill the tank with
premium unleaded gasoline as
soon as possible.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If
improper fuels are used, the engine will be damaged.
●Do not use gasoline with metallic additives, for example manganese, iron or lead, otherwise it may cause
damage on your engine or emission control system.
●Do not add aftermarket fuel addi-tives which contain metallic addi-tives.

358
Owner's Manual_Europe_M52P63_en
8-1. Specifications
NOTICE

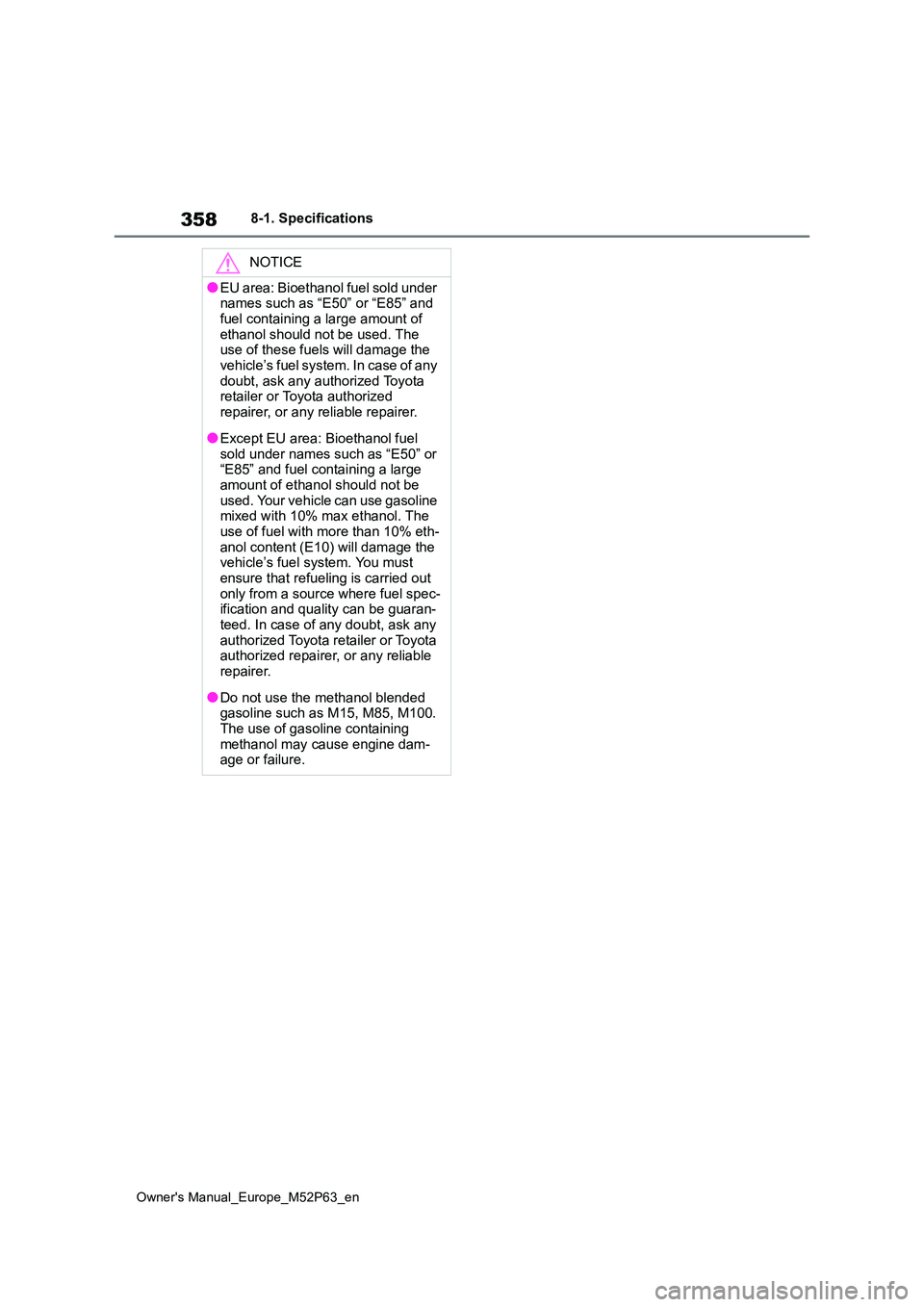

●EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of these fuels will damage the
vehicle’s fuel system. In case of any doubt, ask any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
●Except EU area: Bioethanol fuel
sold under names such as “E50” or “E85” and fuel containing a large amount of ethanol should not be
used. Your vehicle can use gasoline mixed with 10% max ethanol. The use of fuel with more than 10% eth-
anol content (E10) will damage the vehicle’s fuel system. You must ensure that refueling is carried out
only from a source where fuel spec- ification and quality can be guaran-teed. In case of any doubt, ask any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine dam-age or failure.
