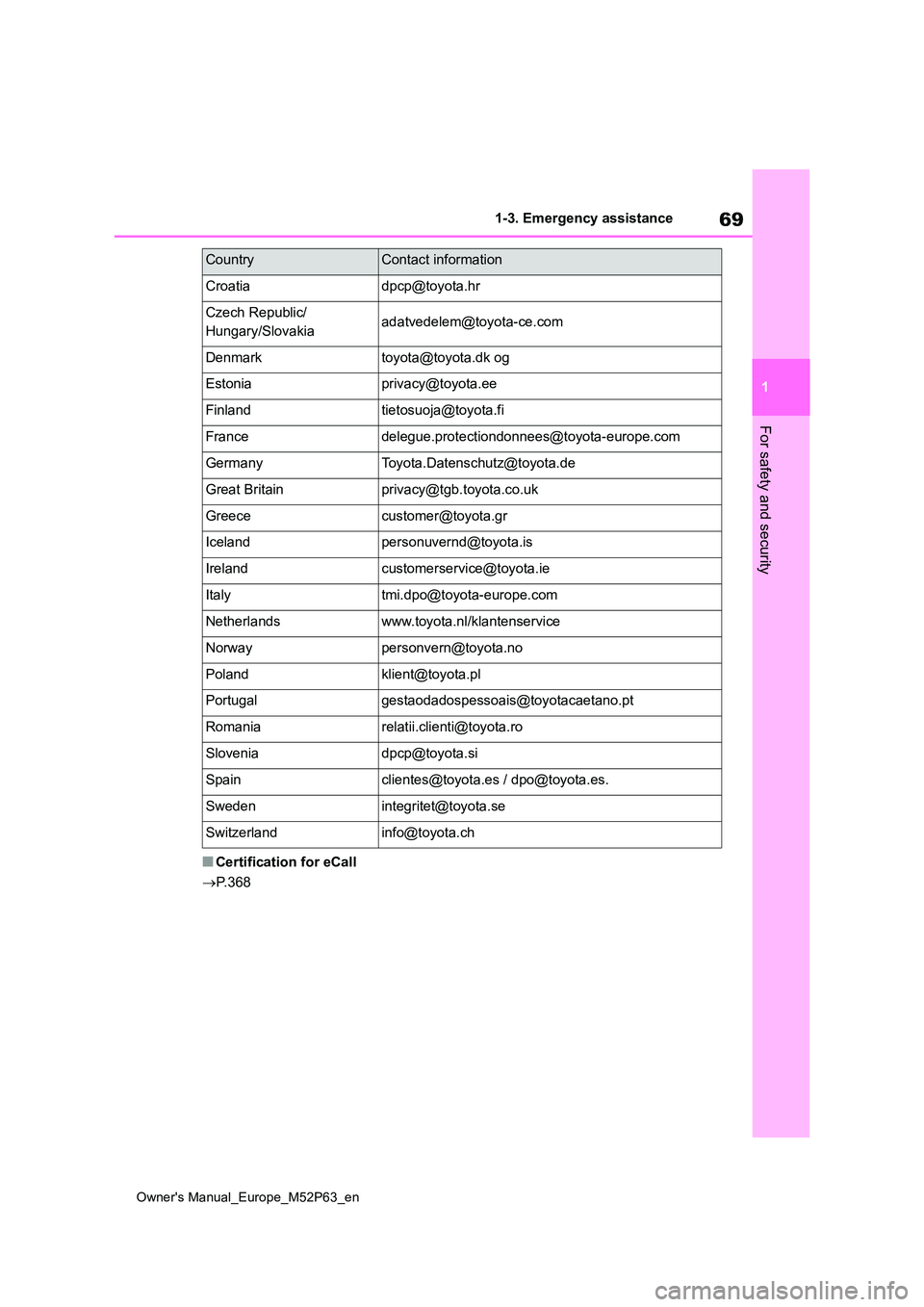

Owner's Manual_Europe_M52P63_en
1-3. Emergency assistance
For safety and security
■Certification for eCall
 P. 3 6 8
[email protected]
Czech Republic/
Hungary/[email protected]
[email protected] og
[email protected]
[email protected]
[email protected]
[email protected]
Great [email protected]
[email protected]
[email protected]
[email protected]
[email protected]
Netherlandswww.toyota.nl/klantenservice
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected] / [email protected].
[email protected]
[email protected]
CountryContact information

70

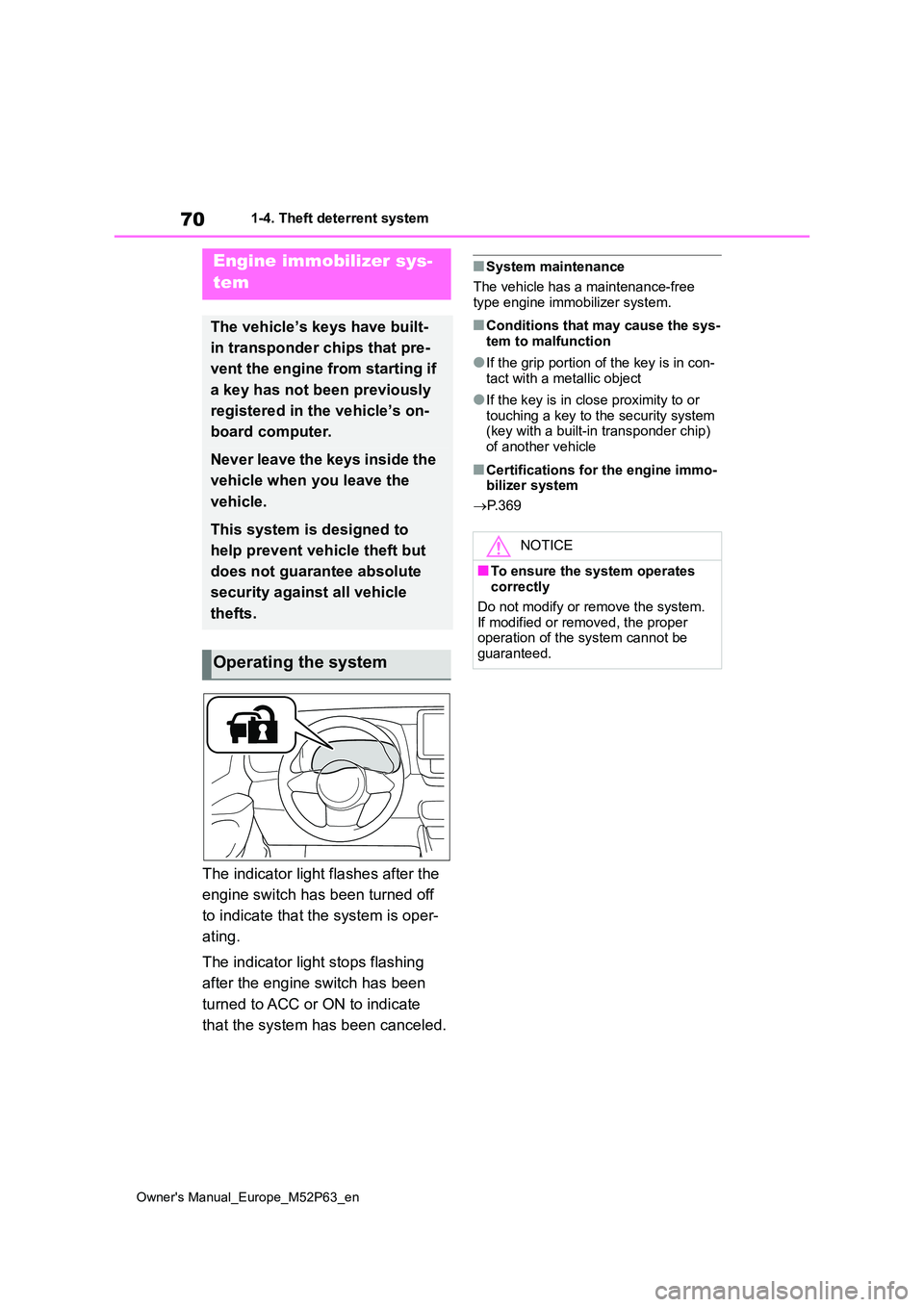

Owner's Manual_Europe_M52P63_en
1-4. Theft deterrent system
1-4.Theft de terre nt sys te m
The indicator light flashes after the
engine switch has been turned off
to indicate that the system is oper-
ating.
The indicator light stops flashing
after the engine switch has been
turned to ACC or ON to indicate
that the system has been canceled.
■System maintenance
The vehicle has a maintenance-free
type engine immobilizer system.
■Conditions that may cause the sys- tem to malfunction
●If the grip portion of the key is in con-tact with a metallic object
●If the key is in close proximity to or touching a key to the security system (key with a built-in transponder chip)
of another vehicle
■Certifications for the engine immo- bilizer system
 P. 3 6 9
Engine immobilizer sys-
tem
The vehicle’s keys have built-
in transponder chips that pre-
vent the engine from starting if
a key has not been previously
registered in the vehicle’s on-
board computer.
Never leave the keys inside the
vehicle when you leave the
vehicle.
This system is designed to
help prevent vehicle theft but
does not guarantee absolute
security against all vehicle
thefts.
Operating the system
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of the system cannot be
guaranteed.

71
1
Owner's Manual_Europe_M52P63_en
1-4. Theft deterrent system
For safety and security
*: If equipped
■Setting
Turn the engine switch off, have all
the passengers exit the vehicle and
ensure that all the doors are closed.
Using the entry function: Touch the
sensor area on the outside door
handle twice within 5 seconds.
Using the wireless remote control:
Press twice within 5 seconds.
■Canceling
Using the entry function: Hold the
outside door handle.
Using the wireless remote control:
Press .

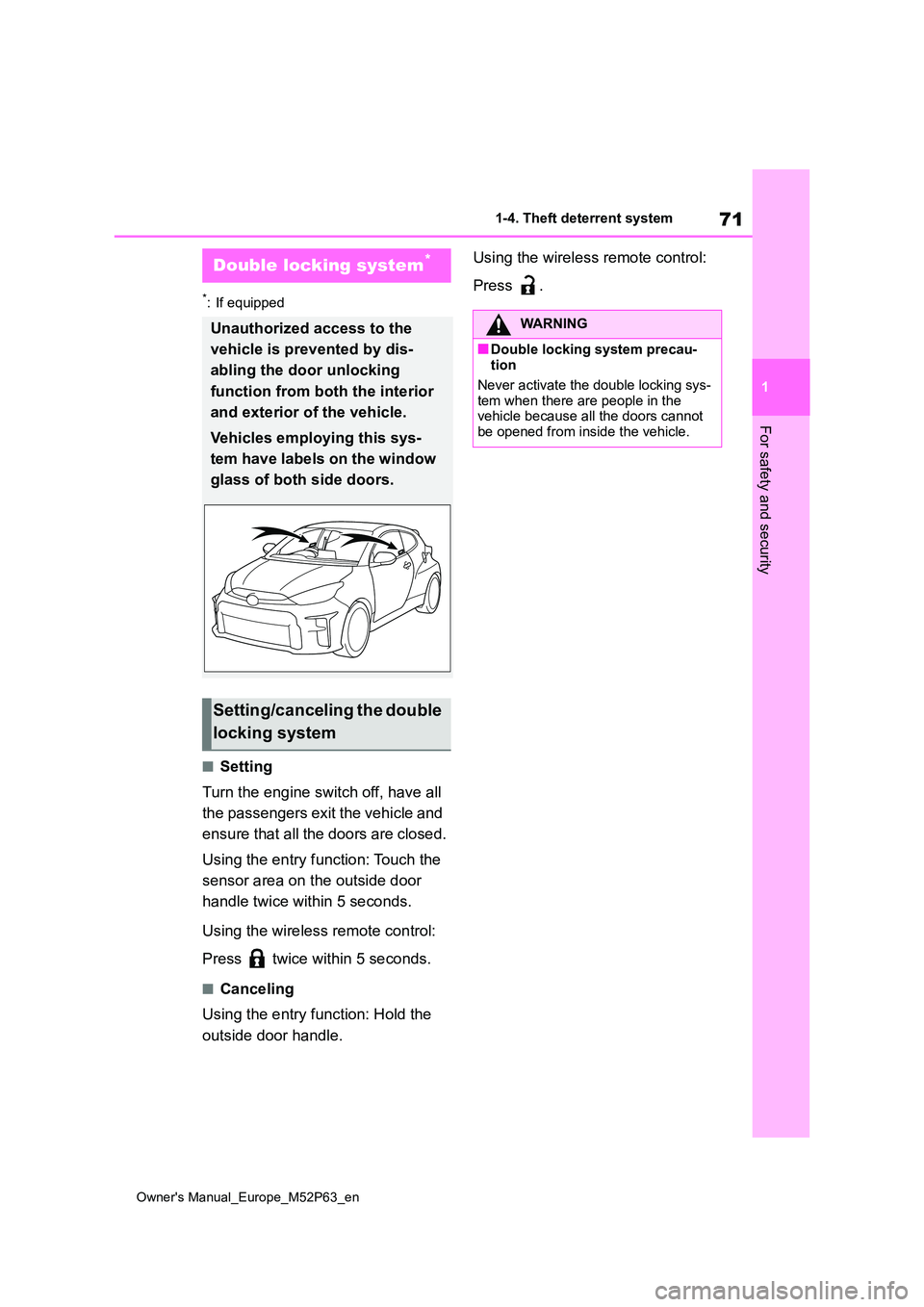

Double locking system*
Unauthorized access to the
vehicle is prevented by dis-
abling the door unlocking
function from both the interior
and exterior of the vehicle.
Vehicles employing this sys-
tem have labels on the window
glass of both side doors.
Setting/canceling the double
locking system
WARNING
■Double locking system precau- tion
Never activate the double locking sys- tem when there are people in the vehicle because all the doors cannot
be opened from inside the vehicle.

72

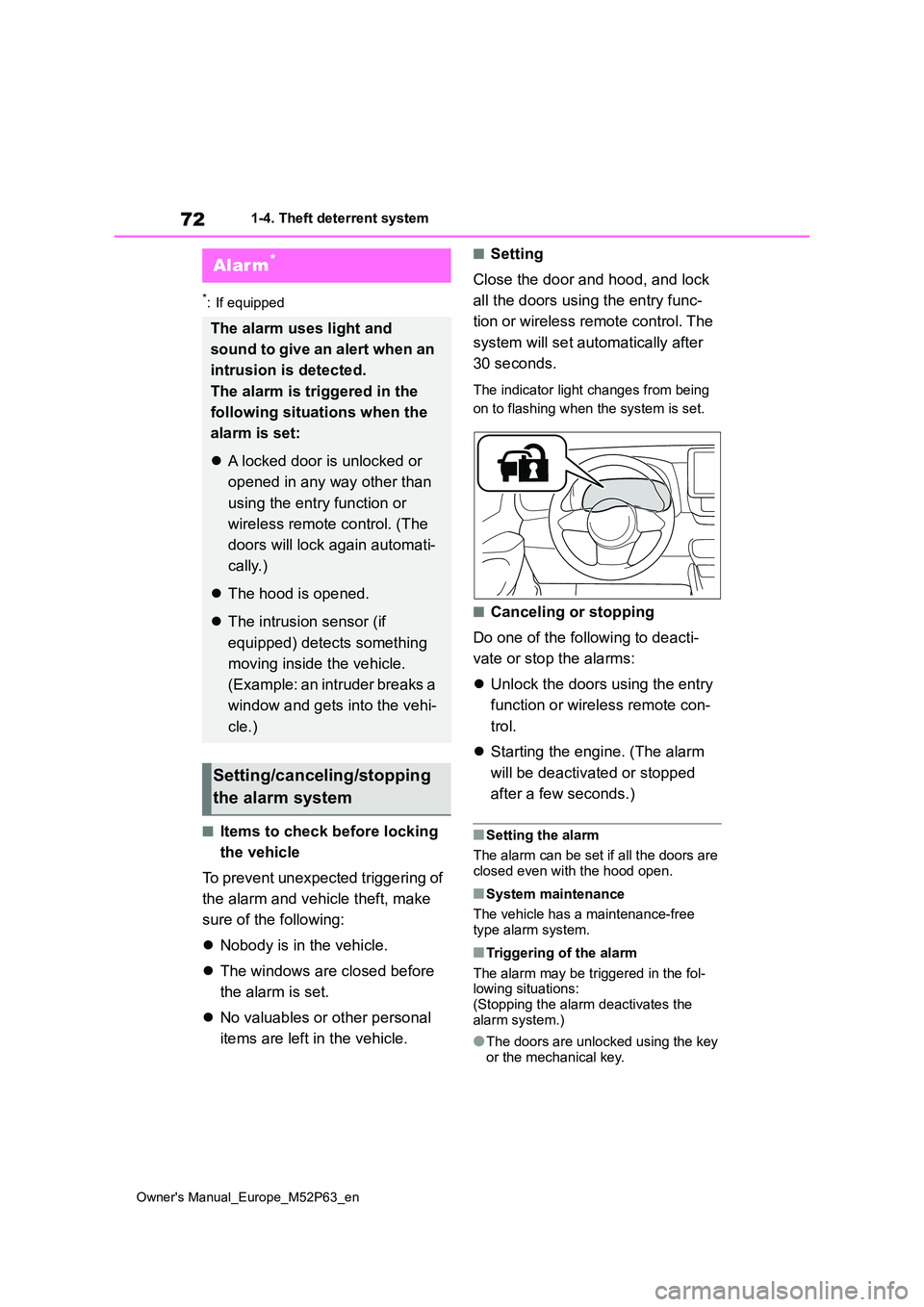

Owner's Manual_Europe_M52P63_en
1-4. Theft deterrent system
*: If equipped
■Items to check before locking
the vehicle
To prevent unexpected triggering of
the alarm and vehicle theft, make
sure of the following:
 Nobody is in the vehicle.
 The windows are closed before
the alarm is set.
 No valuables or other personal
items are left in the vehicle.
■Setting
Close the door and hood, and lock
all the doors using the entry func-
tion or wireless remote control. The
system will set automatically after
30 seconds.
The indicator light changes from being
on to flashing when the system is set.
■Canceling or stopping
Do one of the following to deacti-
vate or stop the alarms:
 Unlock the doors using the entry
function or wireless remote con-
trol.
 Starting the engine. (The alarm
will be deactivated or stopped
after a few seconds.)
■Setting the alarm
The alarm can be set if all the doors are
closed even with the hood open.
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Triggering of the alarm
The alarm may be triggered in the fol- lowing situations: (Stopping the alarm deactivates the
alarm system.)
●The doors are unlocked using the key
or the mechanical key.
Alarm*
The alarm uses light and
sound to give an alert when an
intrusion is detected.
The alarm is triggered in the
following situations when the
alarm is set:
 A locked door is unlocked or
opened in any way other than
using the entry function or
wireless remote control. (The
doors will lock again automati-
cally.)
 The hood is opened.
The intrusion sensor (if
equipped) detects something
moving inside the vehicle.
(Example: an intruder breaks a
window and gets into the vehi-
cle.)
Setting/canceling/stopping
the alarm system

73
1
Owner's Manual_Europe_M52P63_en
1-4. Theft deterrent system
For safety and security

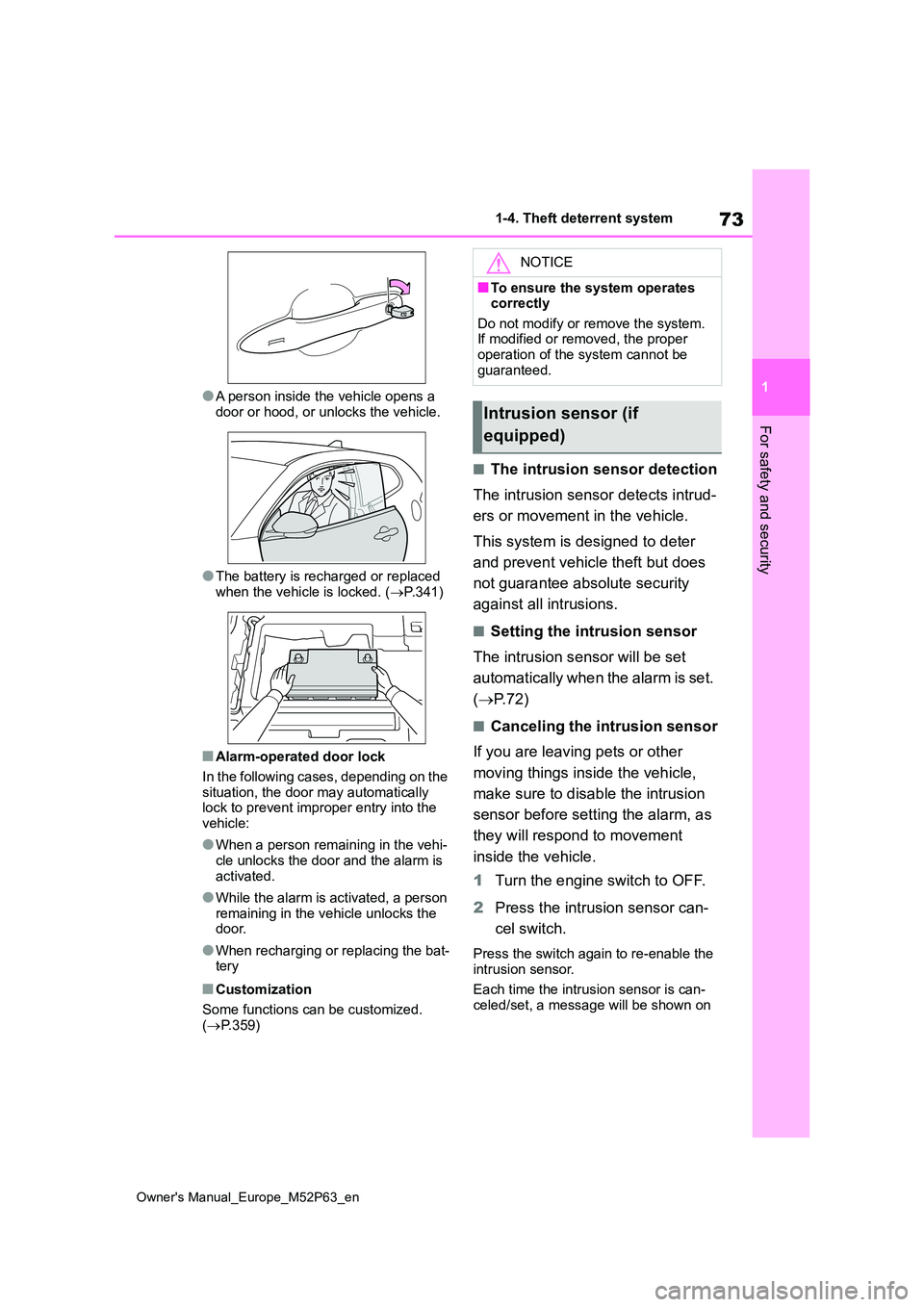

●A person inside the vehicle opens a
door or hood, or unlocks the vehicle.
●The battery is recharged or replaced
when the vehicle is locked. ( P.341)
■Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically lock to prevent improper entry into the
vehicle:
●When a person remaining in the vehi-
cle unlocks the door and the alarm is activated.
●While the alarm is activated, a person remaining in the vehicle unlocks the door.
●When recharging or replacing the bat-tery
■Customization
Some functions can be customized. ( P.359)
■The intrusion sensor detection
The intrusion sensor detects intrud-
ers or movement in the vehicle.
This system is designed to deter
and prevent vehicle theft but does
not guarantee absolute security
against all intrusions.
■Setting the intrusion sensor
The intrusion sensor will be set
automatically when the alarm is set.
( P. 7 2 )
■Canceling the intrusion sensor
If you are leaving pets or other
moving things inside the vehicle,
make sure to disable the intrusion
sensor before setting the alarm, as
they will respond to movement
inside the vehicle.
1 Turn the engine switch to OFF.
2 Press the intrusion sensor can-
cel switch.
Press the switch again to re-enable the intrusion sensor.
Each time the intrusion sensor is can- celed/set, a message will be shown on
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of the system cannot be
guaranteed.
Intrusion sensor (if
equipped)

74

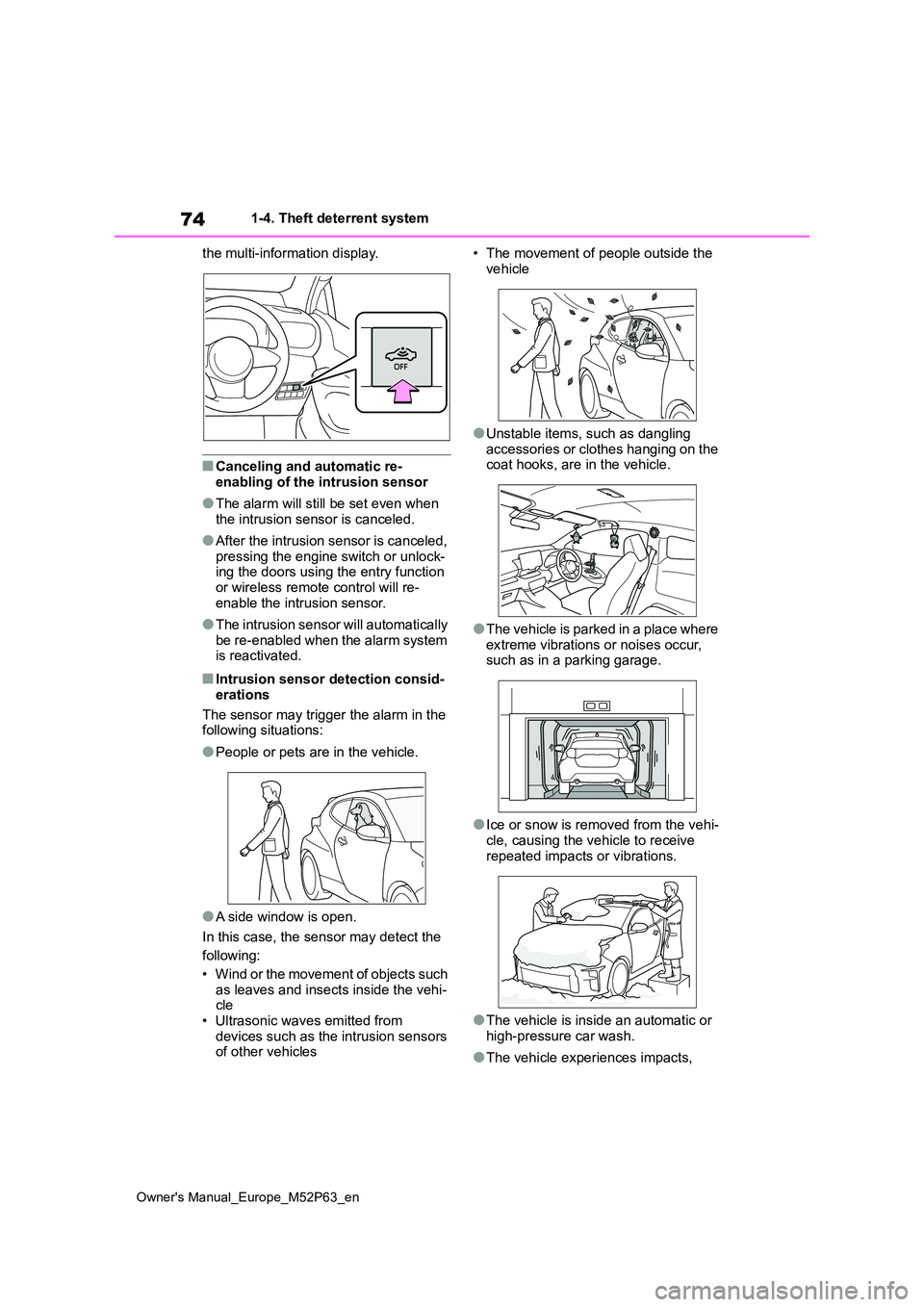

Owner's Manual_Europe_M52P63_en
1-4. Theft deterrent system
the multi-information display.
■Canceling and automatic re- enabling of the intrusion sensor
●The alarm will still be set even when the intrusion sensor is canceled.
●After the intrusion sensor is canceled, pressing the engine switch or unlock-ing the doors using the entry function
or wireless remote control will re- enable the intrusion sensor.
●The intrusion sensor will automatically be re-enabled when the alarm system is reactivated.
■Intrusion sensor detection consid-
erations
The sensor may trigger the alarm in the following situations:
●People or pets are in the vehicle.
●A side window is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects such
as leaves and insects inside the vehi- cle• Ultrasonic waves emitted from
devices such as the intrusion sensors of other vehicles
• The movement of people outside the
vehicle
●Unstable items, such as dangling
accessories or clothes hanging on the coat hooks, are in the vehicle.
●The vehicle is parked in a place where extreme vibrations or noises occur, such as in a parking garage.
●Ice or snow is removed from the vehi-cle, causing the vehicle to receive
repeated impacts or vibrations.
●The vehicle is inside an automatic or
high-pressure car wash.
●The vehicle experiences impacts,

75
1

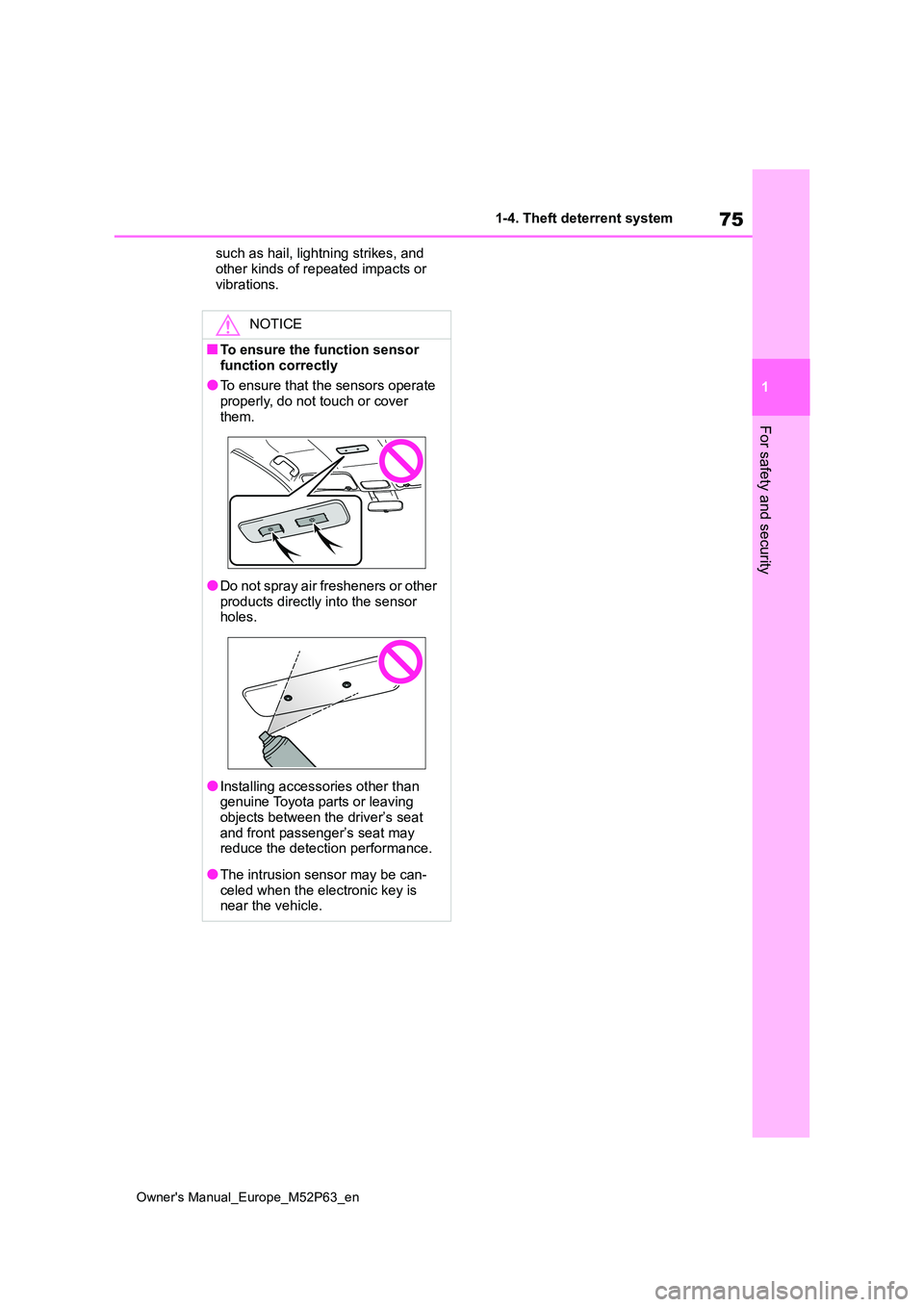

Owner's Manual_Europe_M52P63_en
1-4. Theft deterrent system
For safety and security
such as hail, lightning strikes, and
other kinds of repeated impacts or vibrations.
NOTICE
■To ensure the function sensor
function correctly
●To ensure that the sensors operate properly, do not touch or cover
them.
●Do not spray air fresheners or other
products directly into the sensor holes.
●Installing accessories other than genuine Toyota parts or leaving objects between the driver’s seat
and front passenger’s seat may reduce the detection performance.
●The intrusion sensor may be can-celed when the electronic key is near the vehicle.

76

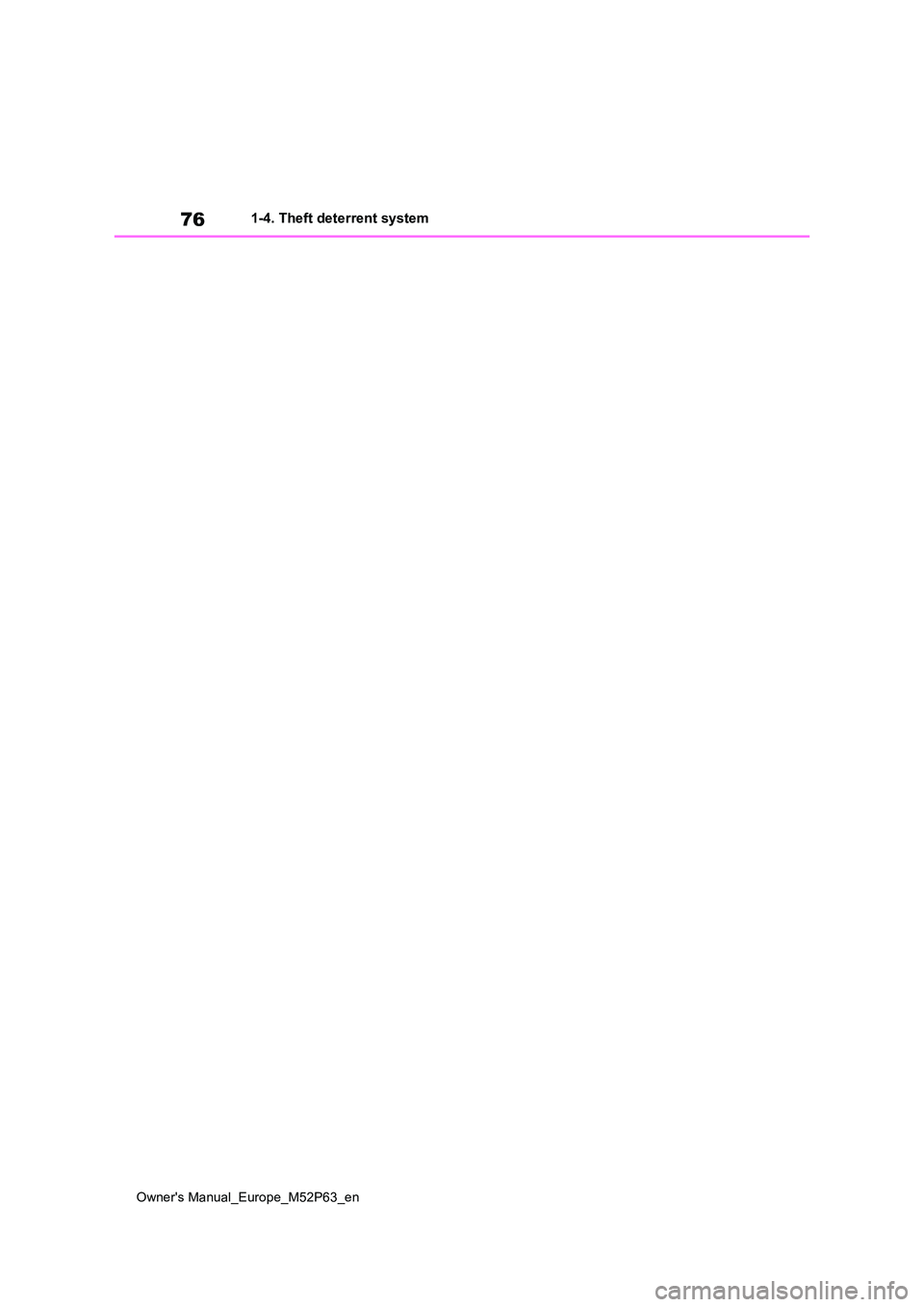

Owner's Manual_Europe_M52P63_en
1-4. Theft deterrent system

2
77

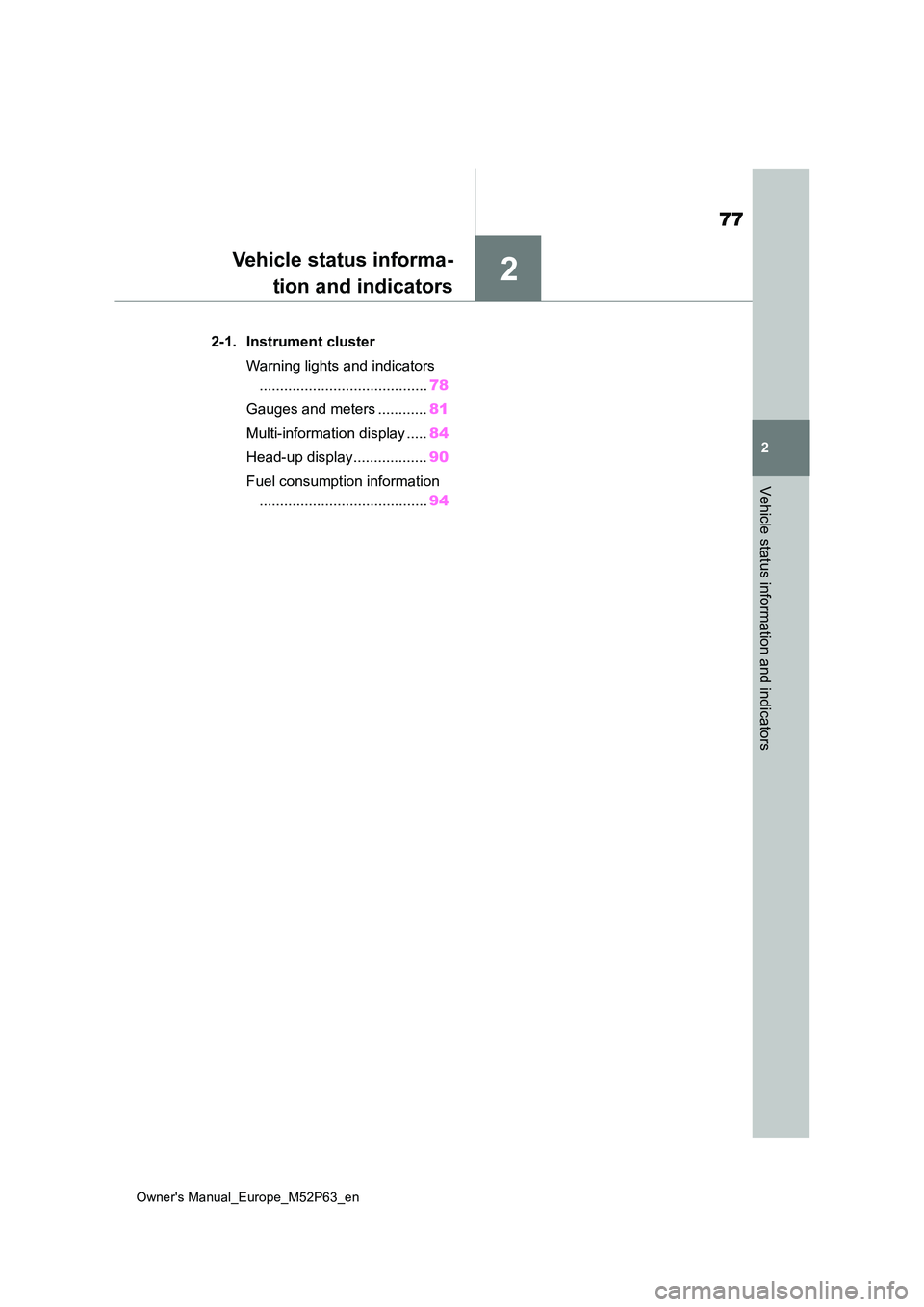

Owner's Manual_Europe_M52P63_en
2
Vehicle status information and indicators
Vehicle status informa-
tion and indicators
2-1. Instrument cluster
Warning lights and indicators
......................................... 78
Gauges and meters ............ 81
Multi-information display ..... 84
Head-up display.................. 90
Fuel consumption information
......................................... 94

78

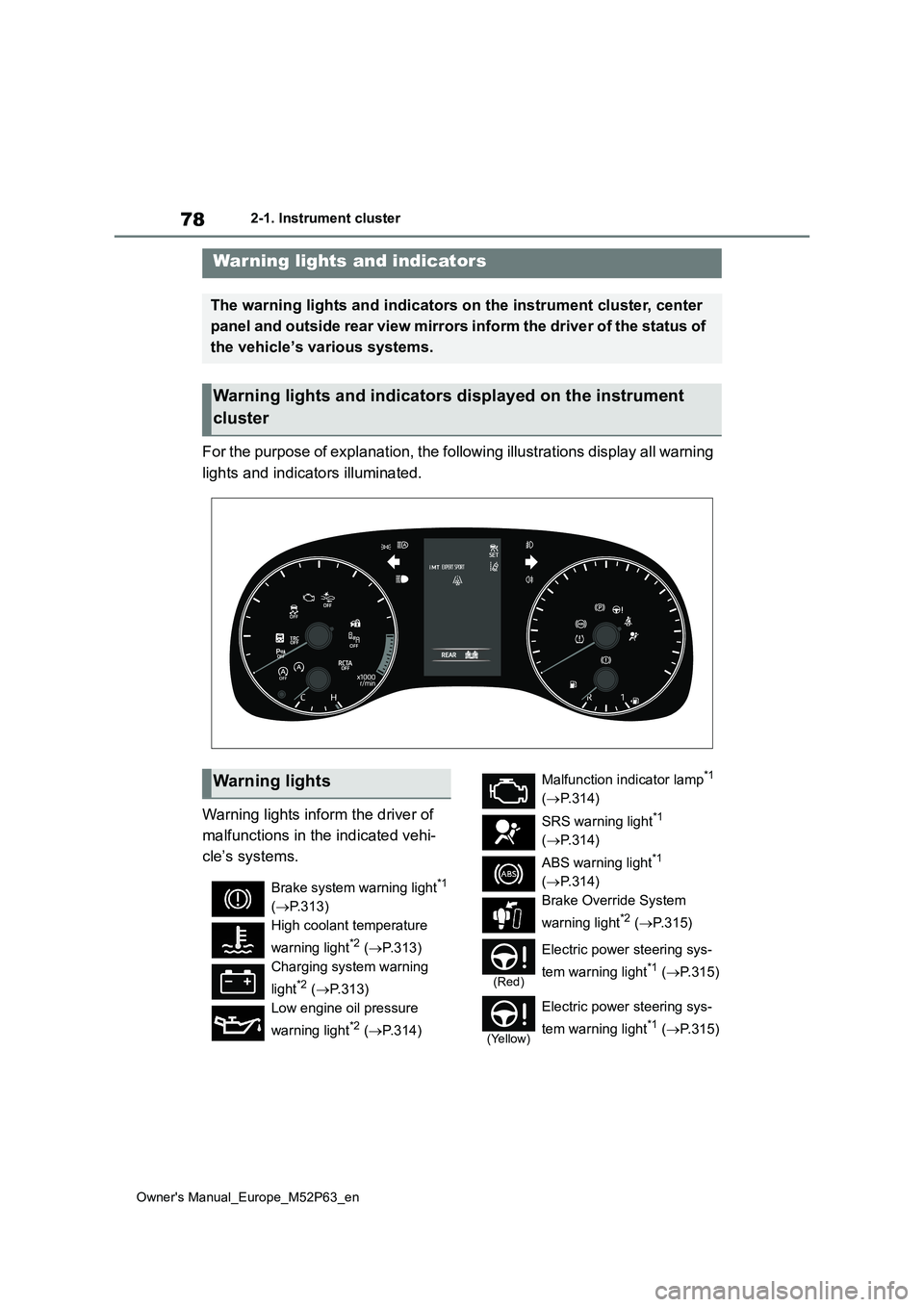

Owner's Manual_Europe_M52P63_en
2-1. Instrument cluster
2-1.In strument clu ste r
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.
Warning lights inform the driver of
malfunctions in the indicated vehi-
cle’s systems.
Warning lights and indicators
The warning lights and indicators on the instrument cluster, center
panel and outside rear view mirrors inform the driver of the st atus of
the vehicle’s various systems.
Warning lights and indicators displayed on the instrument
cluster
Warning lights
Brake system warning light*1
( P.313)
High coolant temperature
warning light*2 ( P.313)
Charging system warning
light*2 ( P.313)
Low engine oil pressure
warning light*2 ( P.314)
Malfunction indicator lamp*1
( P.314)
SRS warning light*1
( P.314)
ABS warning light*1
( P.314)
Brake Override System
warning light*2 ( P. 3 1 5 )
(Red)
Electric power steering sys-
tem warning light*1 ( P.315)
(Yellow)
Electric power steering sys-
tem warning light*1 ( P.315)
