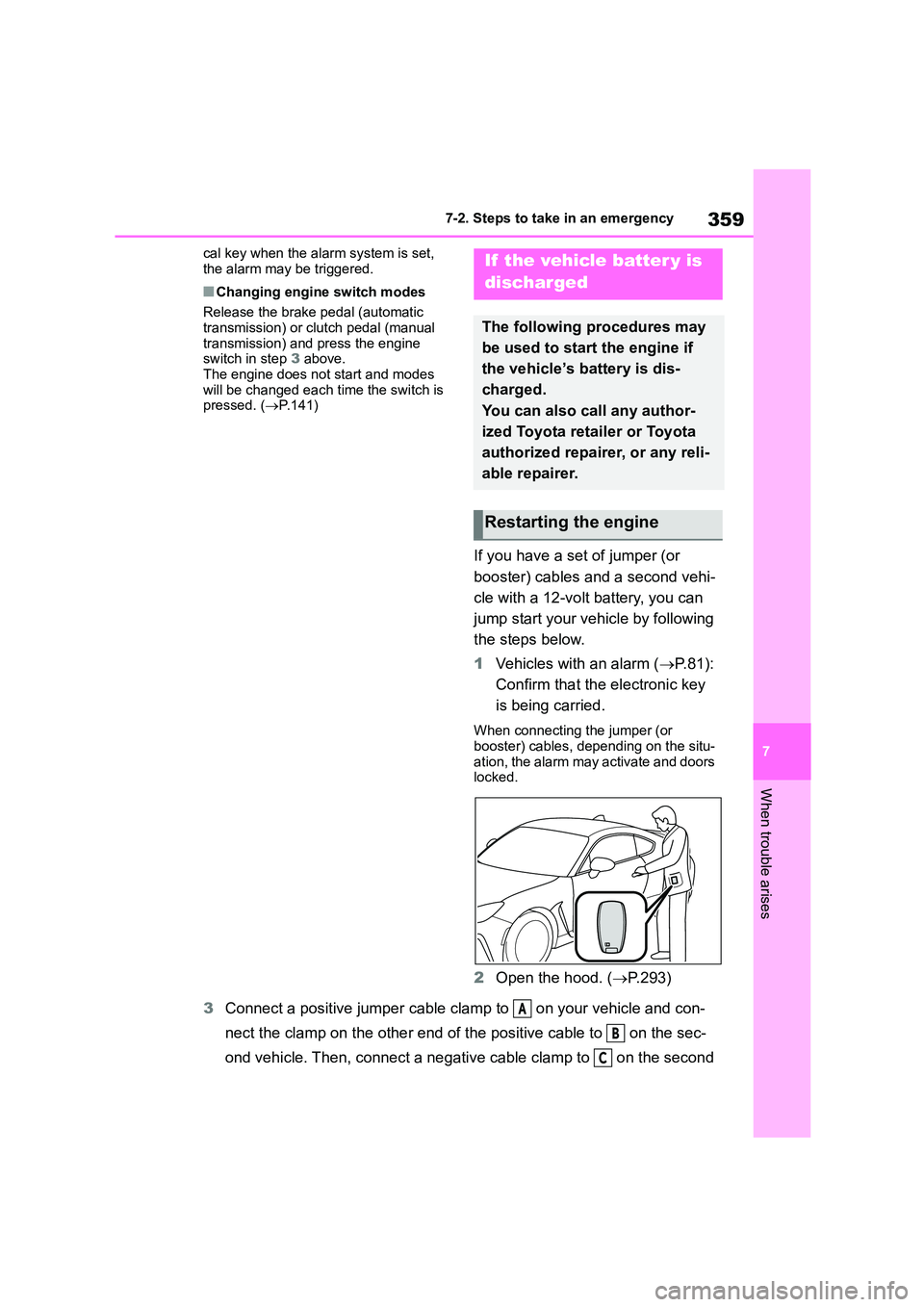

7-2. Steps to take in an emergency
When trouble arises
cal key when the alarm system is set,
the alarm may be triggered.
■Changing engine switch modes
Release the brake pedal (automatic
transmission) or clutch pedal (manual
transmission) and press the engine switch in step 3 above.
The engine does not start and modes
will be changed each time the switch is pressed. ( P.141)
If you have a set of jumper (or
booster) cables and a second vehi-
cle with a 12-volt battery, you can
jump start your vehicle by following
the steps below.
1 Vehicles with an alarm (P. 8 1 ) :
Confirm that the electronic key
is being carried.
When connecting the jumper (or
booster) cables, depending on the situ- ation, the alarm may activate and doors
locked.
2 Open the hood. (P.293)
3 Connect a positive jumper cable clamp to on your vehicle and con-
nect the clamp on the other end of the positive cable to on the sec-
ond vehicle. Then, connect a negativ e cable clamp to on the second
If the vehicle batter y is
discharged
The following procedures may
be used to start the engine if
the vehicle’s battery is dis-
charged.
You can also call any author-
ized Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer.
Restarting the engine
A
B
C

3607-2. Steps to take in an emergency
vehicle and connect the clamp at the other end of the negative cable to
.
Positive (+) battery terminal (your vehicle)
Positive (+) battery terminal (second vehicle)
Negative (-) battery terminal (second vehicle)
Connect the jumper cable to ground on your vehicle as shown in the
illustration.
4 Start the engine of the second
vehicle. Increase the engine
speed slightly and maintain at
that level for approximately 5
minutes to recharge the battery
of your vehicle.
5 Open and close any of the door
of your vehicle with the engine
switch off.
6 Maintain the engine speed of
the second vehicle and start the
engine of your vehicle by turning
the engine switch to ON.
7 Once the vehicle’s engine has
started, remove the jumper
cables in the exact reverse
order from which they were con-
nected.
Once the engine starts, have the
vehicle inspected at any author-
ized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer as soon as possible.
■Starting the engine when the bat-
tery is discharged
The engine cannot be started by
push-starting.
■To prevent battery discharge
●Turn off the headlights and the audio
system while the engine is off.
●Turn off any unnecessary electrical
components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic.
D
A
C
D

361
7

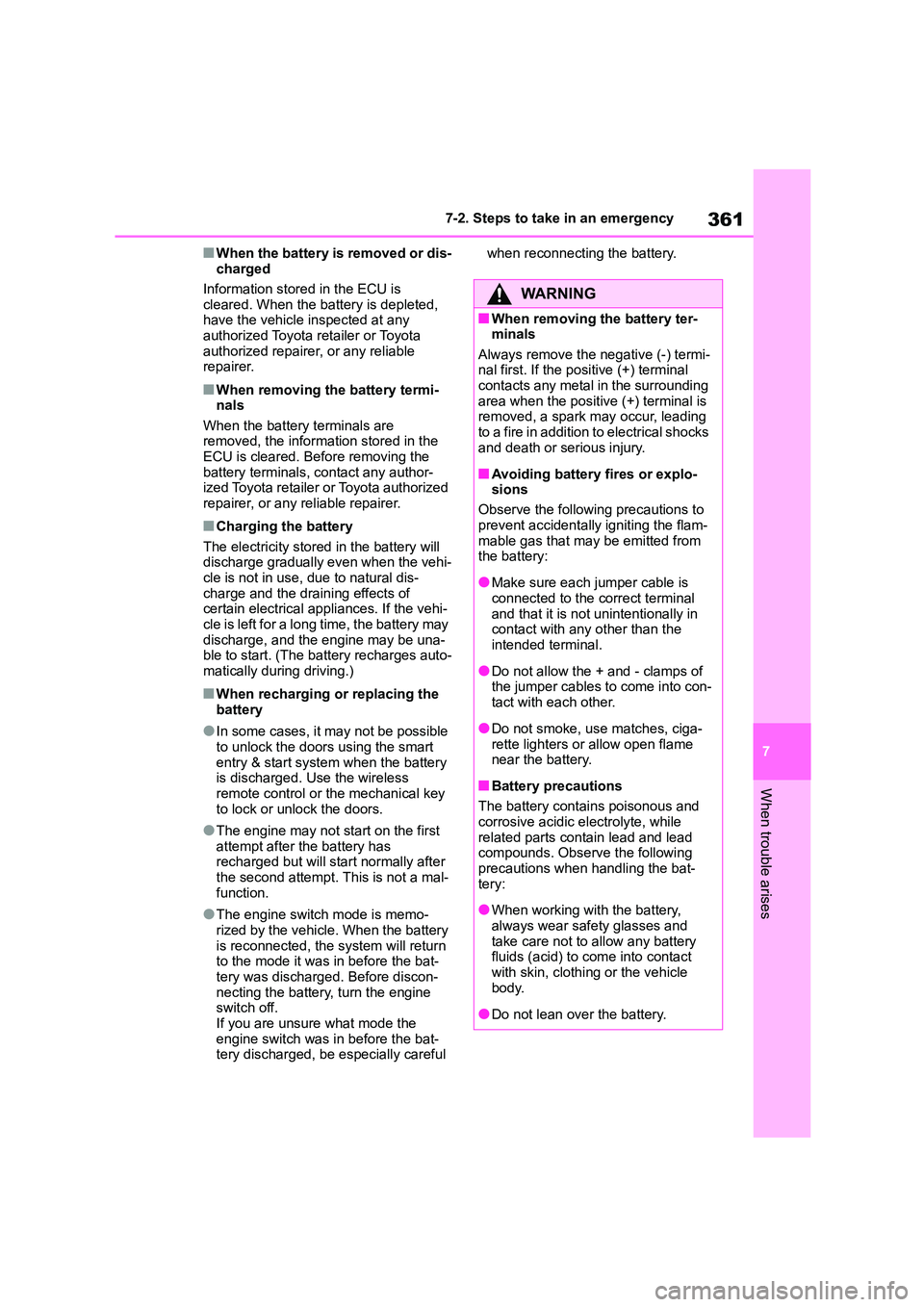

7-2. Steps to take in an emergency
When trouble arises
■When the battery is removed or dis-
charged
Information stored in the ECU is
cleared. When the battery is depleted,
have the vehicle inspected at any authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
■When removing the battery termi- nals
When the battery terminals are
removed, the information stored in the ECU is cleared. Before removing the
battery terminals, contact any author-
ized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■Charging the battery
The electricity stored in the battery will
discharge gradually even when the vehi- cle is not in use, due to natural dis-
charge and the draining effects of
certain electrical appliances. If the vehi- cle is left for a long time, the battery may
discharge, and the engine may be una-
ble to start. (The battery recharges auto- matically during driving.)
■When recharging or replacing the
battery
●In some cases, it may not be possible
to unlock the doors using the smart
entry & start system when the battery is discharged. Use the wireless
remote control or the mechanical key
to lock or unlock the doors.
●The engine may not start on the first
attempt after the battery has recharged but will start normally after
the second attempt. This is not a mal-
function.
●The engine switch mode is memo-
rized by the vehicle. When the battery
is reconnected, the system will return to the mode it was in before the bat-
tery was discharged. Before discon-
necting the battery, turn the engine switch off.
If you are unsure what mode the
engine switch was in before the bat- tery discharged, be especially careful
when reconnecting the battery.
WA R N I N G
■When removing the battery ter- minals
Always remove the negative (-) termi-
nal first. If the positive (+) terminal contacts any metal in the surrounding
area when the positive (+) terminal is
removed, a spark may occur, leading
to a fire in addition to electrical shocks and death or serious injury.
■Avoiding battery fires or explo-sions
Observe the following precautions to
prevent accidentally igniting the flam- mable gas that may be emitted from
the battery:
●Make sure each jumper cable is
connected to the correct terminal
and that it is not unintentionally in contact with any other than the
intended terminal.
●Do not allow the + and - clamps of
the jumper cables to come into con-
tact with each other.
●Do not smoke, use matches, ciga-
rette lighters or allow open flame near the battery.
■Battery precautions
The battery contains poisonous and
corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following
precautions when handling the bat-
tery:
●When working with the battery,
always wear safety glasses and take care not to allow any battery
fluids (acid) to come into contact
with skin, clothing or the vehicle body.
●Do not lean over the battery.

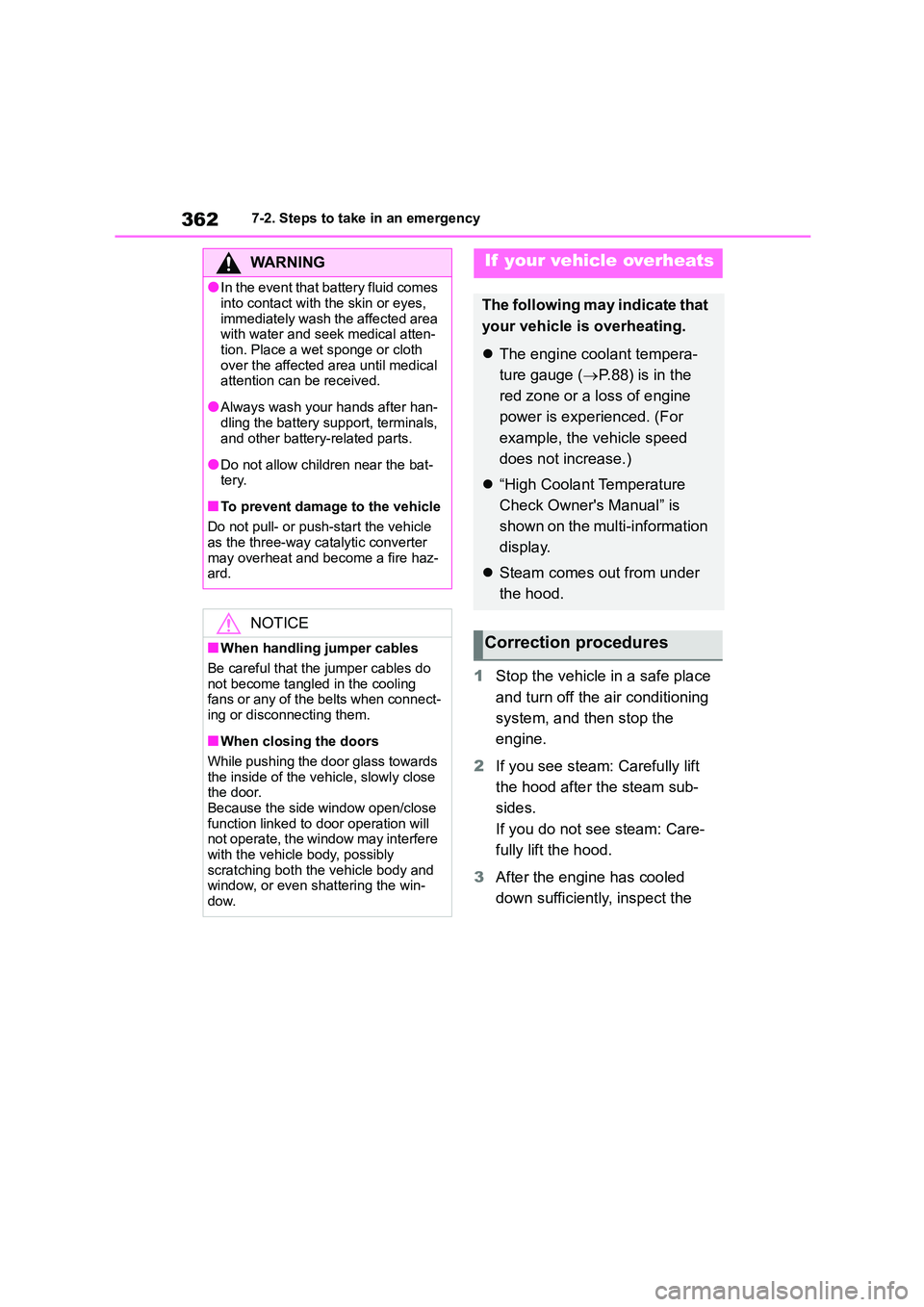

3627-2. Steps to take in an emergency
1Stop the vehicle in a safe place
and turn off the air conditioning
system, and then stop the
engine.
2 If you see steam: Carefully lift
the hood after the steam sub-
sides.
If you do not see steam: Care-
fully lift the hood.
3 After the engine has cooled
down sufficiently, inspect the
WA R N I N G
●In the event that battery fluid comes
into contact with the skin or eyes,
immediately wash the affected area with water and seek medical atten-
tion. Place a wet sponge or cloth
over the affected area until medical attention can be received.
●Always wash your hands after han-
dling the battery support, terminals, and other battery-related parts.
●Do not allow children near the bat-tery.
■To prevent damage to the vehicle
Do not pull- or push-start the vehicle
as the three-way catalytic converter
may overheat and become a fire haz- ard.
NOTICE
■When handling jumper cables
Be careful that the jumper cables do
not become tangled in the cooling fans or any of the belts when connect-
ing or disconnecting them.
■When closing the doors
While pushing the door glass towards
the inside of the vehicle, slowly close the door.
Because the side window open/close
function linked to door operation will not operate, the window may interfere
with the vehicle body, possibly
scratching both the vehicle body and window, or even shattering the win-
dow.
If your vehicle overheats
The following may indicate that
your vehicle is overheating.
 The engine coolant tempera-
ture gauge ( P.88) is in the
red zone or a loss of engine
power is experienced. (For
example, the vehicle speed
does not increase.)
 “High Coolant Temperature
Check Owner's Manual” is
shown on the multi-information
display.
 Steam comes out from under
the hood.
Correction procedures

363
7
7-2. Steps to take in an emergency
When trouble arises

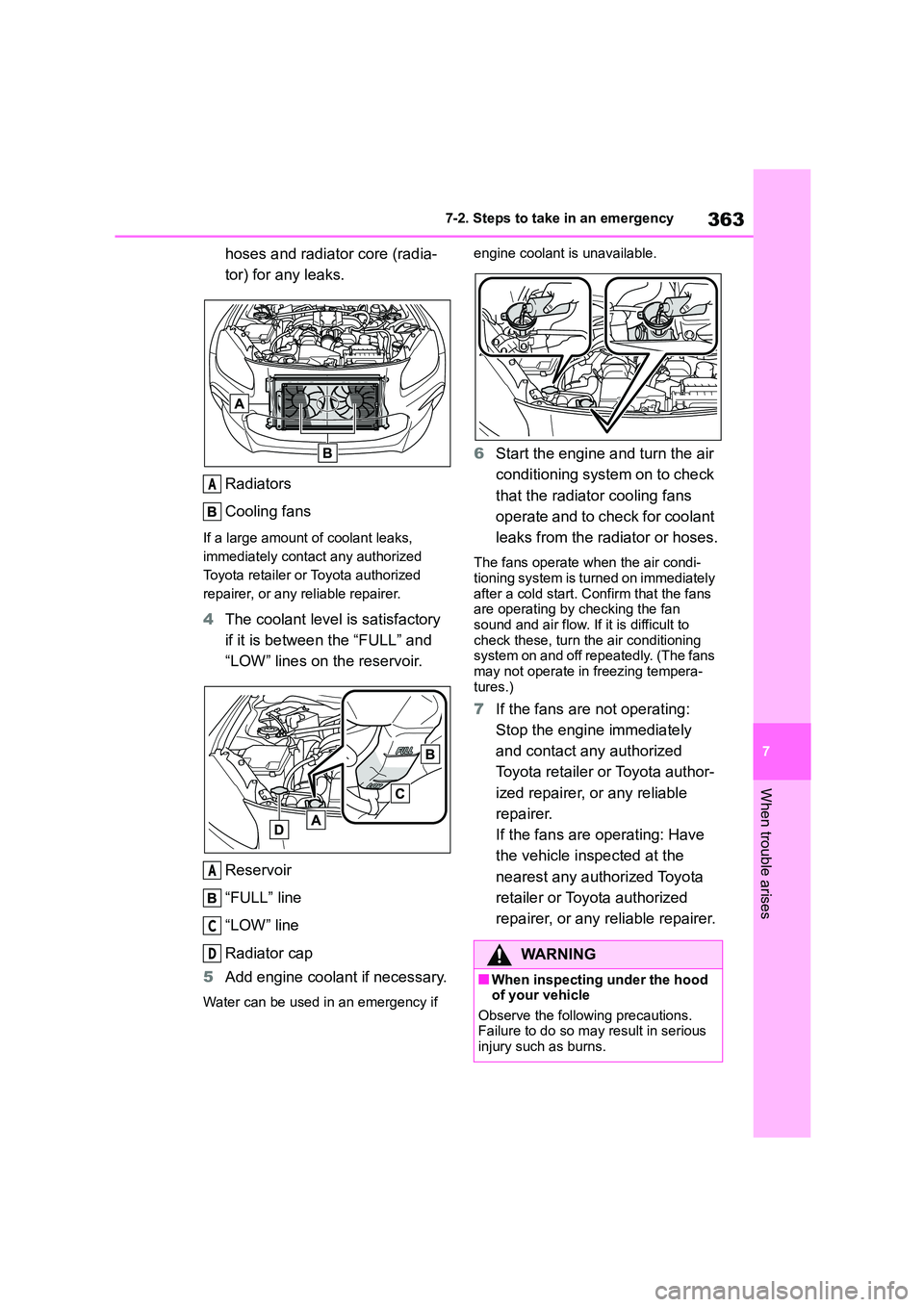

hoses and radiator core (radia-
tor) for any leaks.
Radiators
Cooling fans
If a large amount of coolant leaks,
immediately contact any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
4 The coolant level is satisfactory
if it is between the “FULL” and
“LOW” lines on the reservoir.
Reservoir
“FULL” line
“LOW” line
Radiator cap
5 Add engine coolant if necessary.
Water can be used in an emergency if
engine coolant is unavailable.
6 Start the engine and turn the air
conditioning system on to check
that the radiator cooling fans
operate and to check for coolant
leaks from the radiator or hoses.
The fans operate when the air condi-
tioning system is turned on immediately
after a cold start. Confirm that the fans are operating by checking the fan
sound and air flow. If it is difficult to
check these, turn the air conditioning system on and off repea tedly. (The fans
may not operate in freezing tempera-
tures.)
7 If the fans are not operating:
Stop the engine immediately
and contact any authorized
Toyota retailer or Toyota author-
ized repairer, or any reliable
repairer.
If the fans are operating: Have
the vehicle inspected at the
nearest any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
A
A
C
DWA R N I N G
■When inspecting under the hood
of your vehicle
Observe the following precautions. Failure to do so ma y result in serious
injury such as burns.

3647-2. Steps to take in an emergency
1Stop the engine. Set the parking
brake and shift the shift lever to
P (automatic transmission) or N
(manual transmission).
2 Remove the mud, snow or sand
from around the rear wheels.
3 Place wood, stones or some
other material under the rear
wheels to help provide traction.
4 Restart the engine.
5 Shift the shift lever to D or R
(automatic transmission) or 1 or
R (manual transmission) and
release the parking brake. Then,
while exercising caution,
depress the accelerator pedal.
■When it is difficult to free the vehi- cle
Press the switch to turn off TRC.
WA R N I N G
●If steam is seen coming from under
the hood, do not open the hood
until the steam has subsided. The engine compartment may be very
hot.
●Keep hands and clothing (espe-
cially a tie, a scarf or a muffler)
away from the fans and belts. Fail-
ure to do so may cause the hands or clothing to be caught, resulting in
serious injury.
●Do not loosen the coolant reservoir
caps while the engine and radiator
are hot. High temperature steam or coolant
could spray out.
NOTICE
■When adding engine coolant
Add coolant slowly after the engine
has cooled down sufficiently. Adding
cool coolant to a hot engine too
quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant
with foreign matter (such as sand or
dust etc.).
●Do not use any coolant additive.
If the vehicle becomes
stuck
Carry out the following proce-
dures if the tires spin or the
vehicle becomes stuck in mud,
dirt or snow:
Recovering procedure

365
7
7-2. Steps to take in an emergency
When trouble arises
WA R N I N G
■When attempting to free a stuck
vehicle
If you choose to push the vehicle back and forth to free it, make sure
the surrounding area is clear to avoid
striking other vehicl es, objects or peo- ple. The vehicle may also lunge for-
ward or lunge back suddenly as it
becomes free. Use extreme caution.
■When shifting the shift lever
(vehicles with an automatic
transmission)

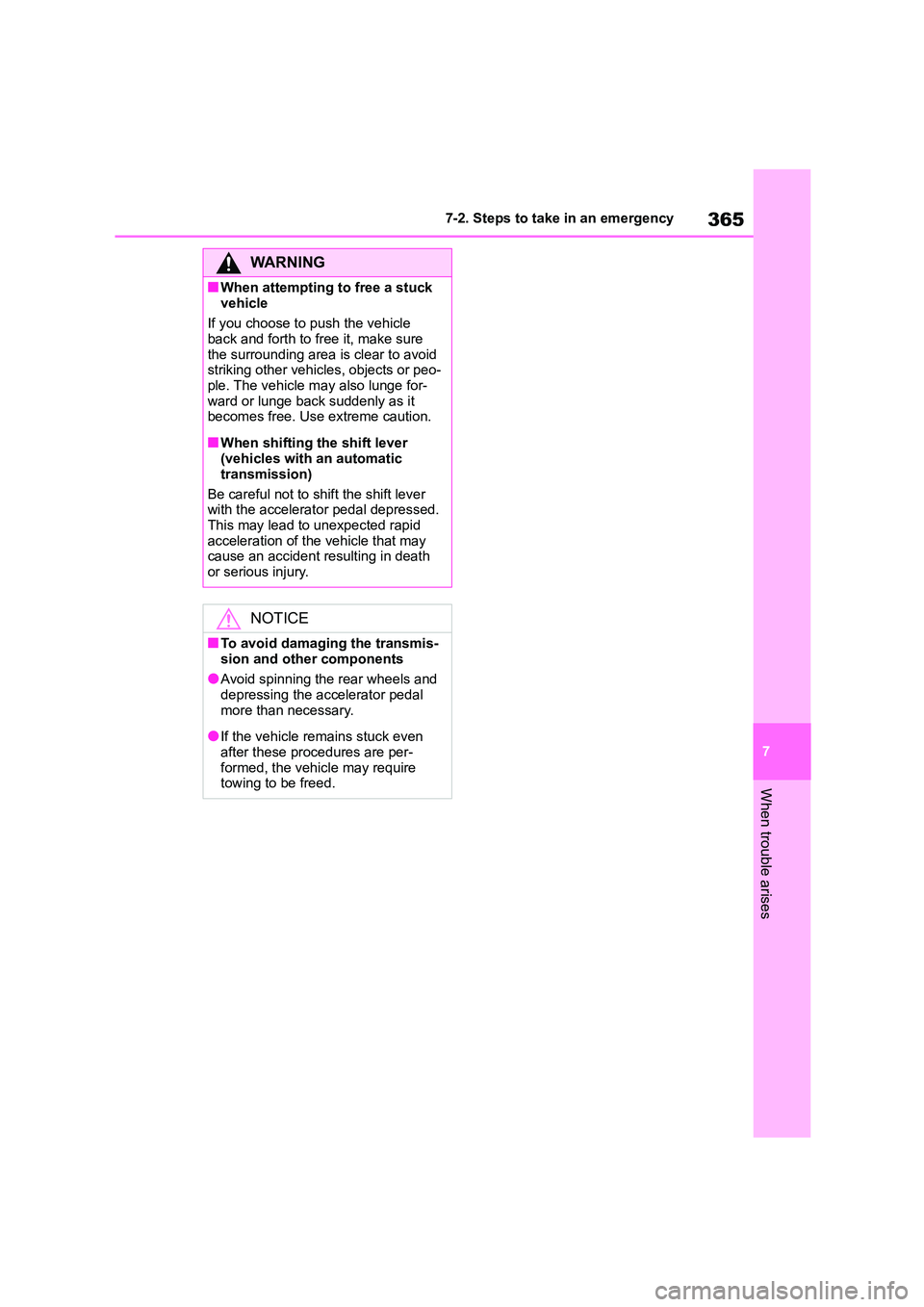

Be careful not to shift the shift lever
with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death
or serious injury.
NOTICE
■To avoid damaging the transmis-
sion and other components
●Avoid spinning the rear wheels and depressing the accelerator pedal
more than necessary.
●If the vehicle remains stuck even
after these procedures are per-
formed, the vehicle may require towing to be freed.

3667-2. Steps to take in an emergency

8
367
8

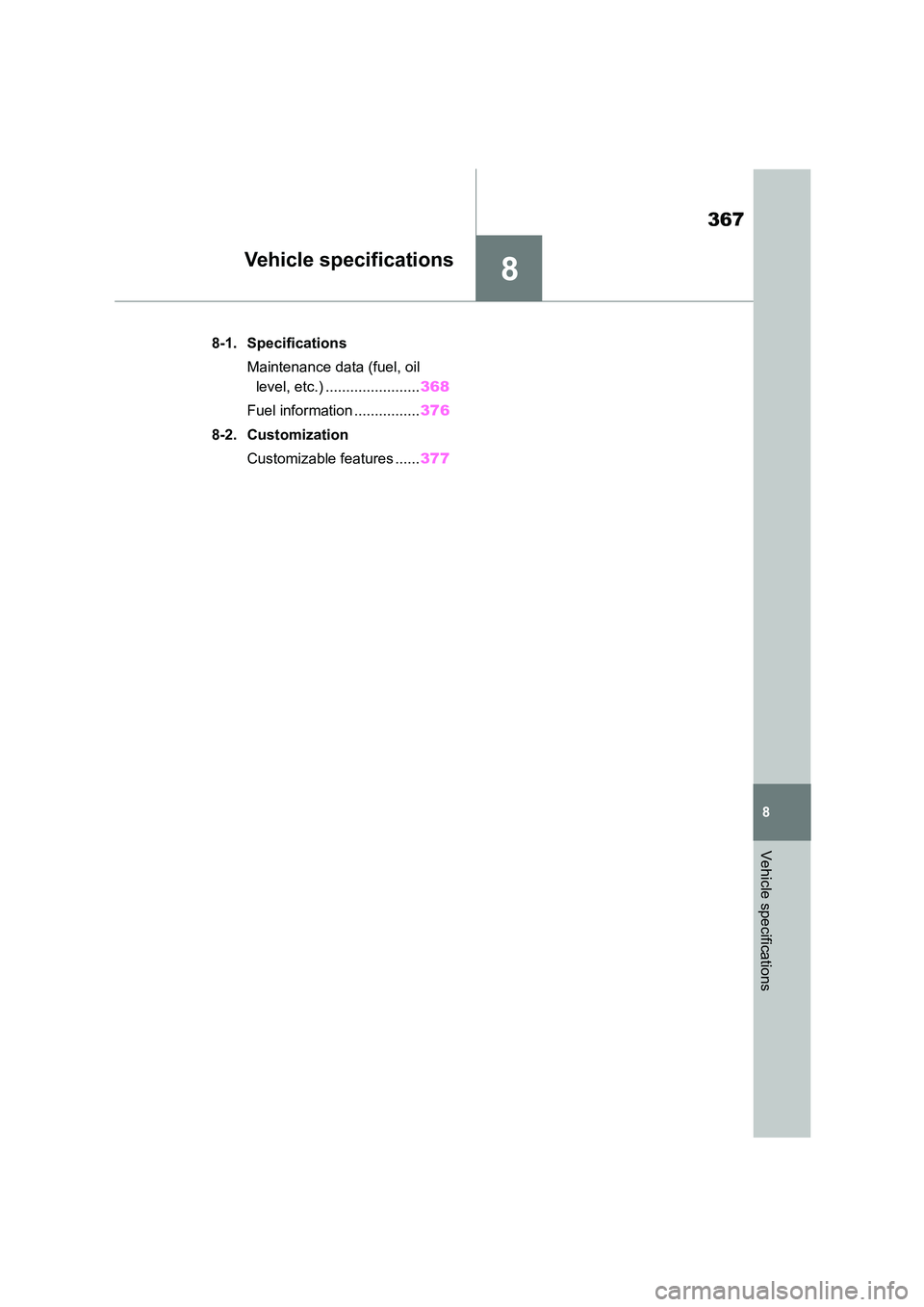

Vehicle specifications
Vehicle specifications
.8-1. Specifications
Maintenance data (fuel, oil
level, etc.) ....................... 368
Fuel information ................ 376
8-2. Customization
Customizable features ...... 377

3688-1. Specifications
8-1.Specifications
*: Unladen vehicle
■Vehicle identification number
The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifi-
cation number for your Toyota. It is
used in registering the ownership of
your vehicle.
This number is stamped under the
right-hand front seat. This number is located on the top
left of the body panel.

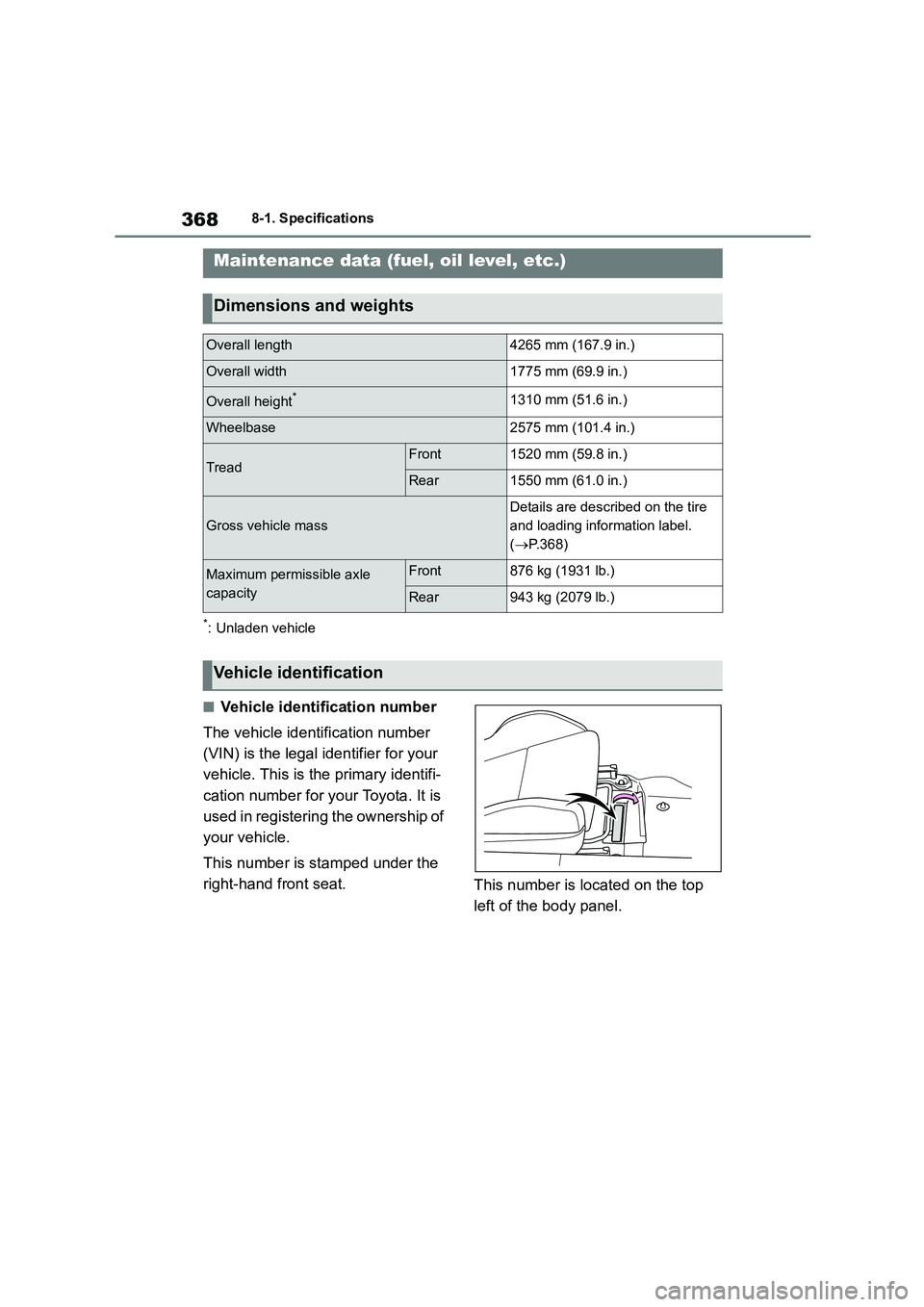

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length4265 mm (167.9 in.)
Overall width1775 mm (69.9 in.)
Overall height*1310 mm (51.6 in.)
Wheelbase2575 mm (101.4 in.)
TreadFront1520 mm (59.8 in.)
Rear1550 mm (61.0 in.)
Gross vehicle mass
Details are described on the tire
and loading information label.
( P.368)
Maximum permissible axle
capacity
Front876 kg (1931 lb.)
Rear943 kg (2079 lb.)
Vehicle identification
