8-1. Specifications
Vehicle specifications
This number is also on the manu-
facturer’s label.

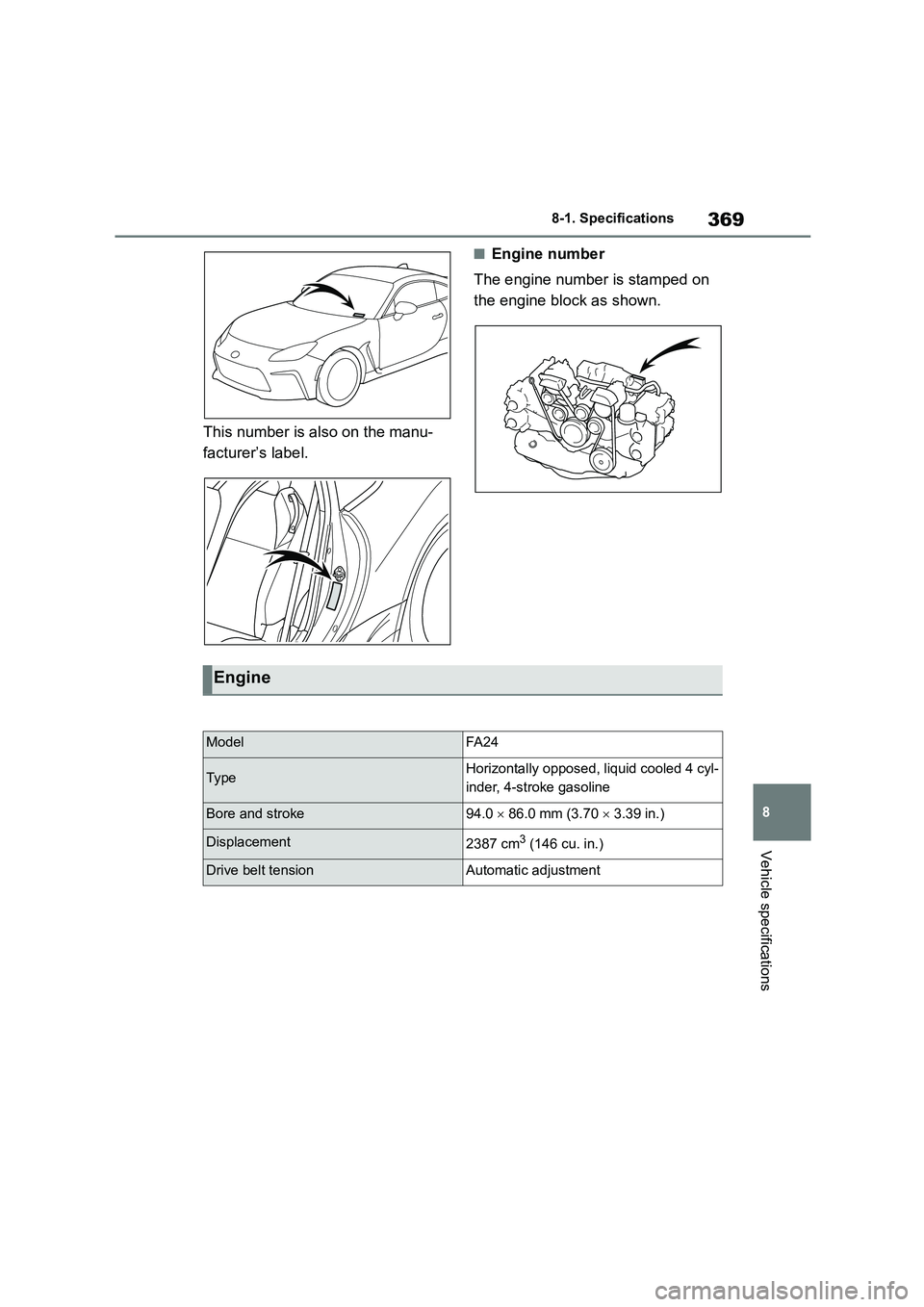

■Engine number
The engine number is stamped on
the engine block as shown.
Engine
ModelFA2 4
Ty p eHorizontally opposed, liquid cooled 4 cyl-
inder, 4-stroke gasoline
Bore and stroke94.0  86.0 mm (3.70  3.39 in.)
Displacement2387 cm3 (146 cu. in.)
Drive belt tensionAutomatic adjustment

3708-1. Specifications
*: If unleaded gasoline with a Research Octane Number of 98 is not available,
unleaded gasoline with a Research Octane Number of 95 may be used with no
detriment to engine durability or driveability.
■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and check
the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used
in your Toyota vehicle. Use Toyota
approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade:
0W-20, 5W-20 and 5W-30:
API grade SL “Energy-Conserving”,
SM “Energy-Conserving”, SN
“Resource-Conserving” or SN
PLUS “Resource-Conserving”; or
ILSAC GF-5 multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled in to your Toyota
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
Fuel
Fuel type
When you find these types of fuel label at
the gas station, use only the fuel with one
of the following labels.
EU area: Unleaded gasoline conforming
to European standard EN228 only
Except EU area: Unleaded gasoline only
Research Octane Number98 or higher*
Fuel tank capacity (Reference)50 L (13.2 gal., 11.0 Imp. gal.)
Lubrication system
With filter5.0 L (5.3 qt., 4.4 Imp. qt.)
Without filter4.8 L (5.1 qt., 4.2 Imp. qt.)

371
8
8-1. Specifications
Vehicle specifications
at the next oil change.
Temperature range anticipated
before next oil change
Preferred
Oil viscosity (0W-20 is explained
here as an example):
• The 0W in 0W-20 indicates the
characteristic of the oil which
allows cold startab ility. Oils with a
lower value before the W allow
for easier starting of the engine
in cold weather.
• The 20 in 0W-20 indicates the
viscosity characteristic of the oil
when the oil is at high tempera-
ture. An oil with a higher viscos-
ity (one with a higher value) may
be better suited if the vehicle is
operated at high speeds, or
under extreme load conditions.

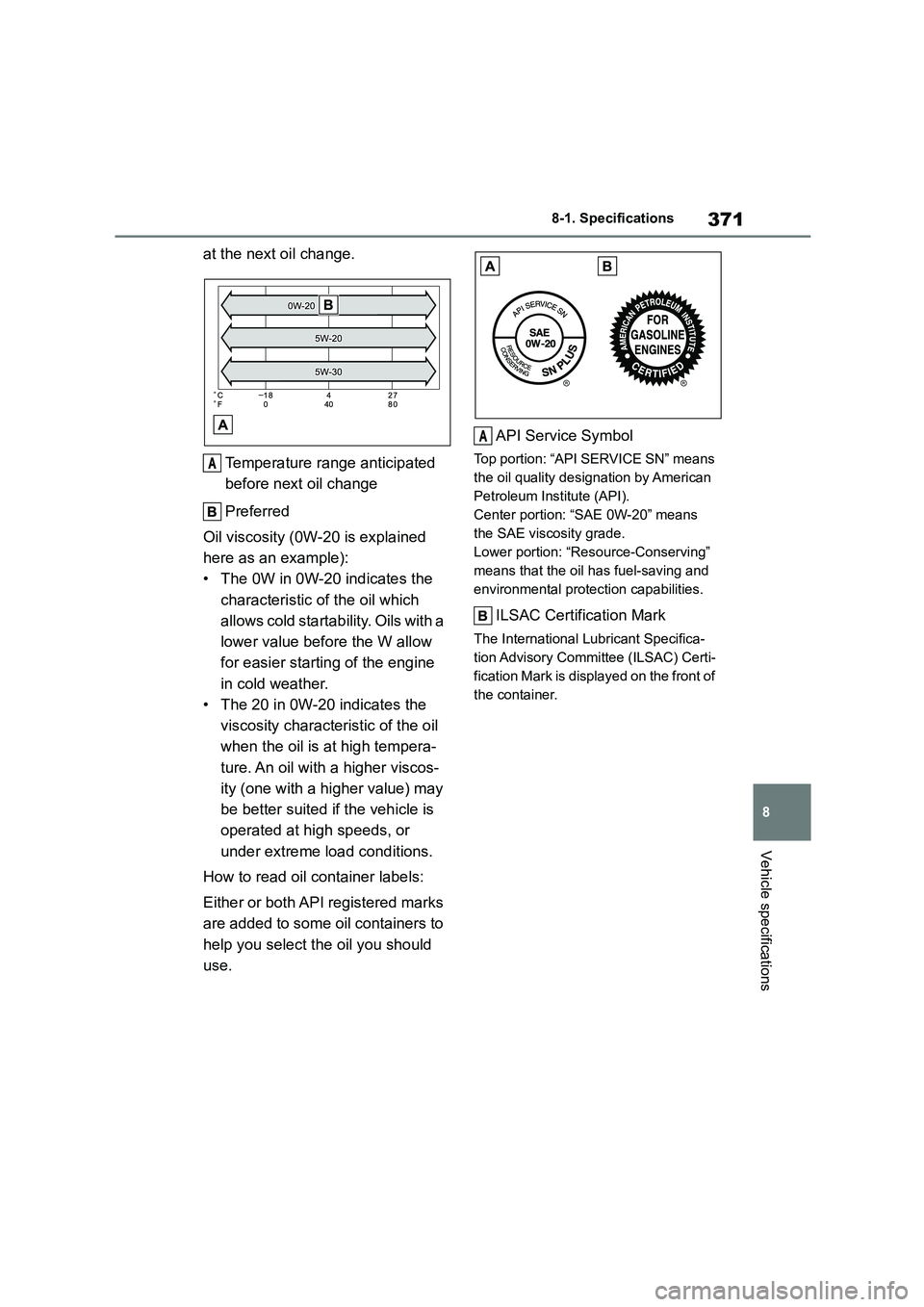

How to read oil container labels:
Either or both API registered marks
are added to some oil containers to
help you select the oil you should
use.
API Service Symbol
Top portion: “API SERVICE SN” means
the oil quality designation by American
Petroleum Institute (API).
Center portion: “SAE 0W-20” means
the SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specifica-
tion Advisory Commi ttee (ILSAC) Certi-
fication Mark is displayed on the front of
the container.
A
A

3728-1. Specifications

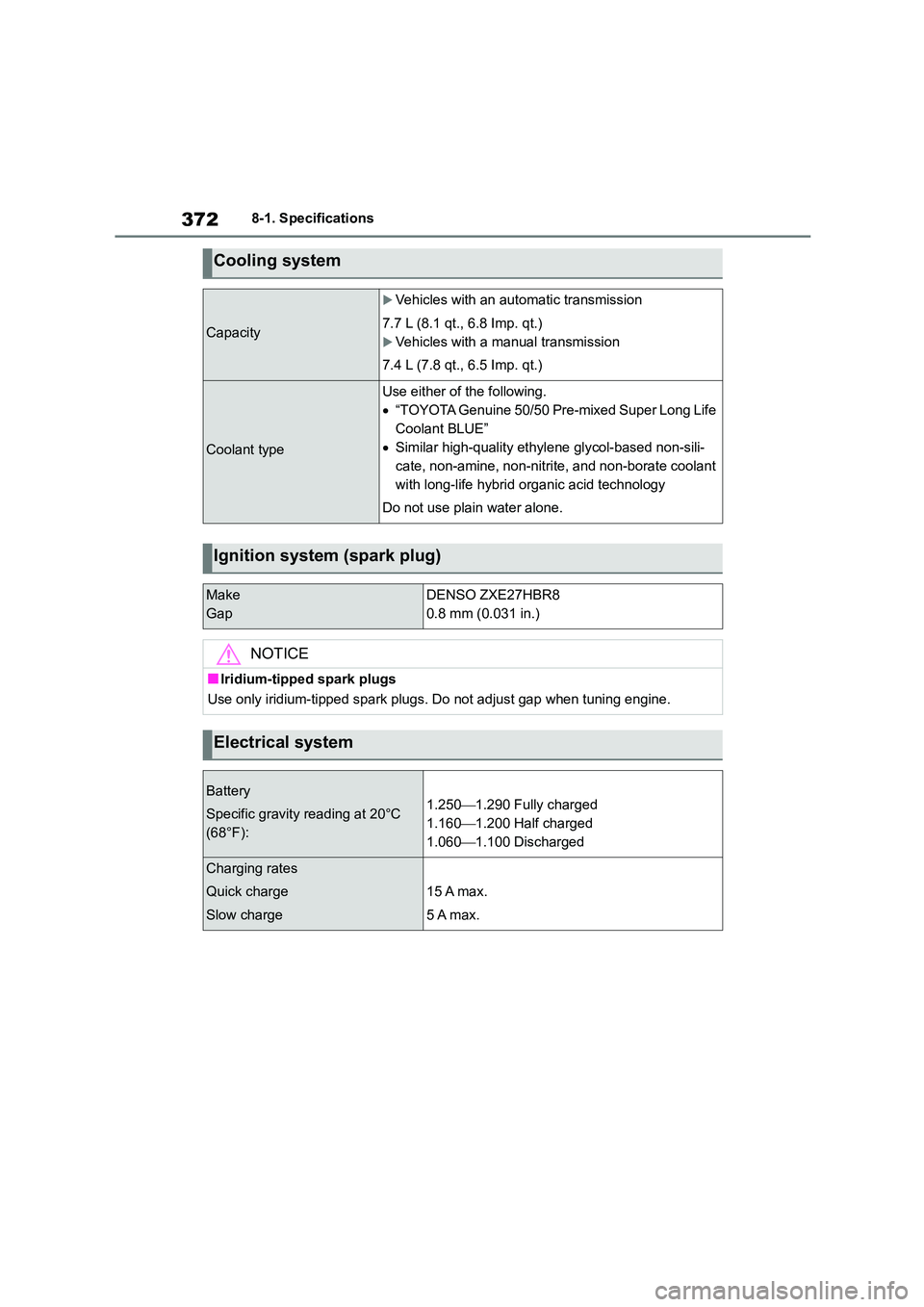

Cooling system
Capacity
Vehicles with an automatic transmission
7.7 L (8.1 qt., 6.8 Imp. qt.)
Vehicles with a manual transmission
7.4 L (7.8 qt., 6.5 Imp. qt.)
Coolant type
Use either of the following.
 “TOYOTA Genuine 50/50 Pre-mixed Super Long Life
Coolant BLUE”
 Similar high-quality ethylene glycol-based non-sili-
cate, non-amine, non-nitrite, and non-borate coolant
with long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
Make
Gap
DENSO ZXE27HBR8
0.8 mm (0.031 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Electrical system
Battery
Specific gravity reading at 20°C
(68°F):
1.250 1.290 Fully charged
1.160 1.200 Half charged
1.060 1.100 Discharged
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.

373
8
8-1. Specifications
Vehicle specifications

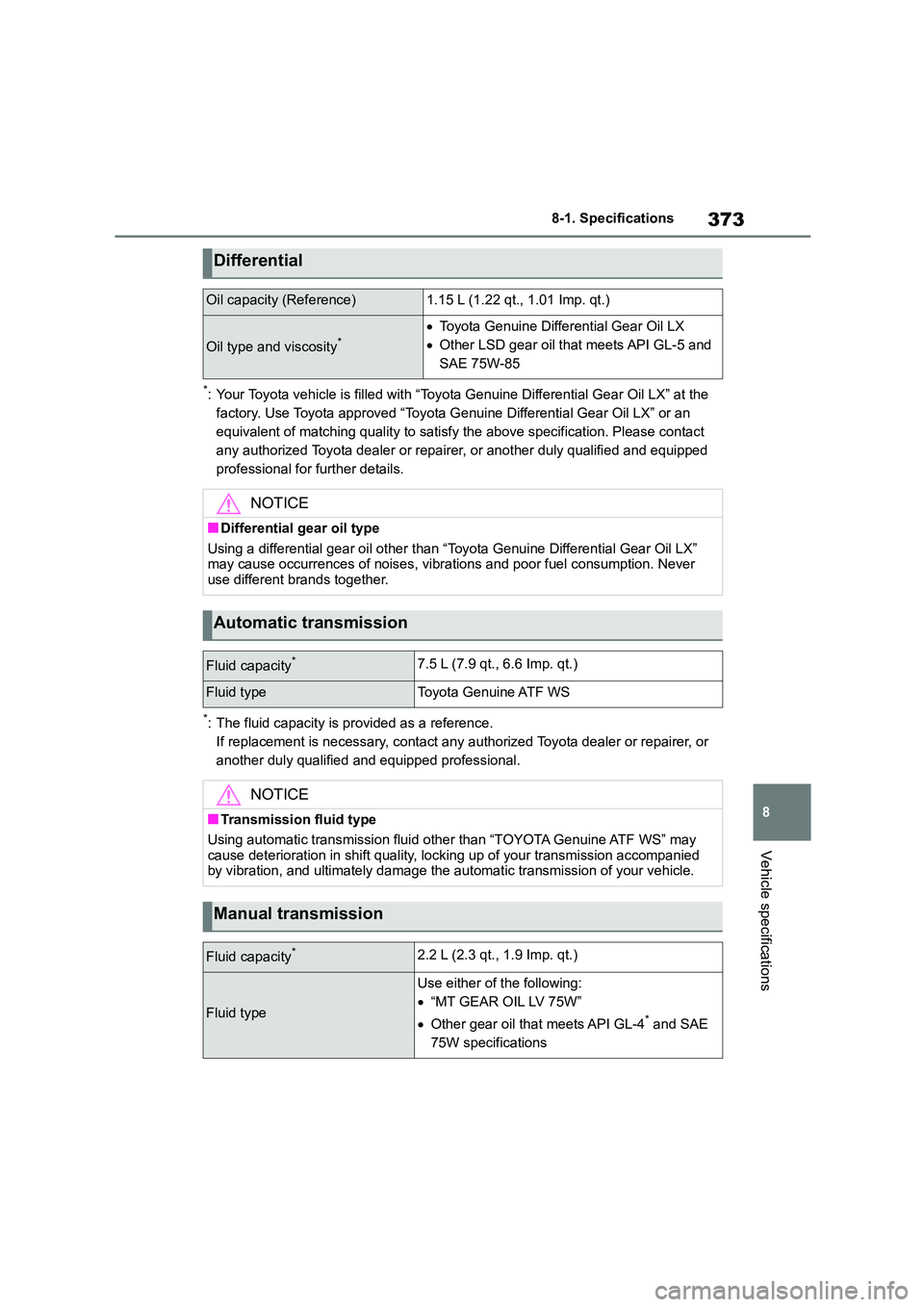

*: Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil LX” at the
factory. Use Toyota approved “Toyota G enuine Differential Gear Oil LX” or an
equivalent of matching quality to satisfy the above specification. Please contact
any authorized Toyota dealer or repairer, or another duly qualified and equipped
professional for further details.
*: The fluid capacity is provided as a reference.
If replacement is necessary, contact any au thorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Differential
Oil capacity (Reference)1.15 L (1.22 qt., 1.01 Imp. qt.)
Oil type and viscosity* Toyota Genuine Differential Gear Oil LX
 Other LSD gear oil that meets API GL-5 and
SAE 75W-85
NOTICE
■Differential gear oil type
Using a differential gear oil other than “Toyota Genuine Differential Gear Oil LX” may cause occurrences of noises, vibrations and poor fuel consumption. Never
use different brands together.
Automatic transmission
Fluid capacity*7.5 L (7.9 qt., 6.6 Imp. qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using automatic transmission fluid other than “TOYOTA Genuine ATF WS” may
cause deterioration in shift quality, locking up of your transmission accompanied by vibration, and ultimately damage the automatic transmission of your vehicle.
Manual transmission
Fluid capacity*2.2 L (2.3 qt., 1.9 Imp. qt.)
Fluid type
Use either of the following:
 “MT GEAR OIL LV 75W”
 Other gear oil that meets API GL-4* and SAE
75W specifications

3748-1. Specifications
*: The recommended oil grade is API GL-4. However, API GL-3 can also be used.
*1: Minimum pedal clearance when depressed with a force of 300 N (30 kgf, 67 lbf)
while the engine is running.

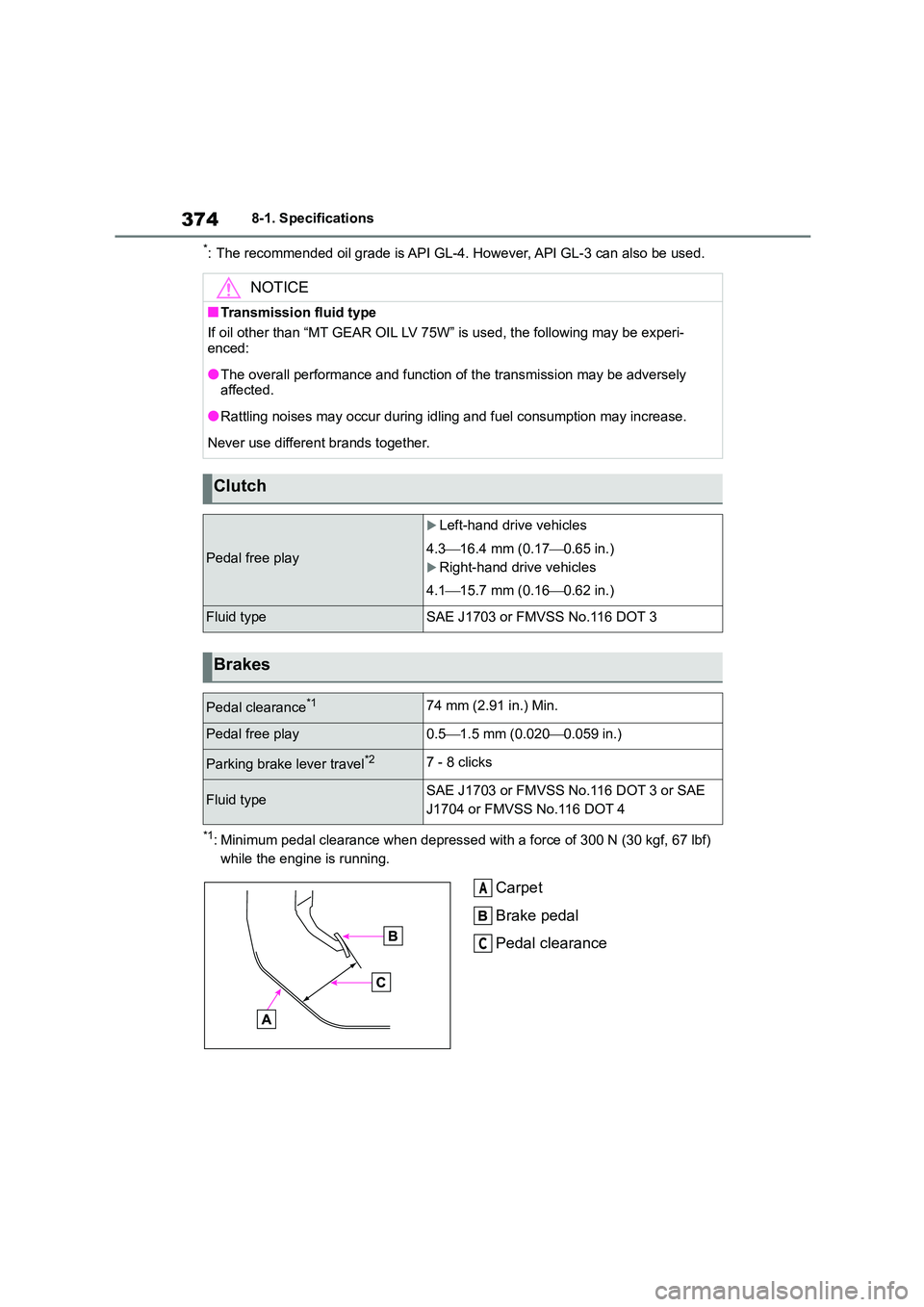

Carpet
Brake pedal
Pedal clearance
NOTICE
■Transmission fluid type
If oil other than “MT GEAR OIL LV 75W” is used, the following may be experi- enced:
●The overall performance and function of the transmission may be adversely affected.
●Rattling noises may occur during idling and fuel consumption may increase.
Never use different brands together.
Clutch
Pedal free play
Left-hand drive vehicles
4.3 16.4 mm (0.170.65 in.)
Right-hand drive vehicles
4.1 15.7 mm (0.160.62 in.)
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
Brakes
Pedal clearance*174 mm (2.91 in.) Min.
Pedal free play0.51.5 mm (0.0200.059 in.)
Parking brake lever travel*27 - 8 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3 or SAE
J1704 or FMVSS No.116 DOT 4
A
C

375
8
8-1. Specifications
Vehicle specifications
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf, 45.0
lbf).
17-inch tires
18-inch tires
A: Wedge base bulbs (clear)
B: Double end bulbs
Steering

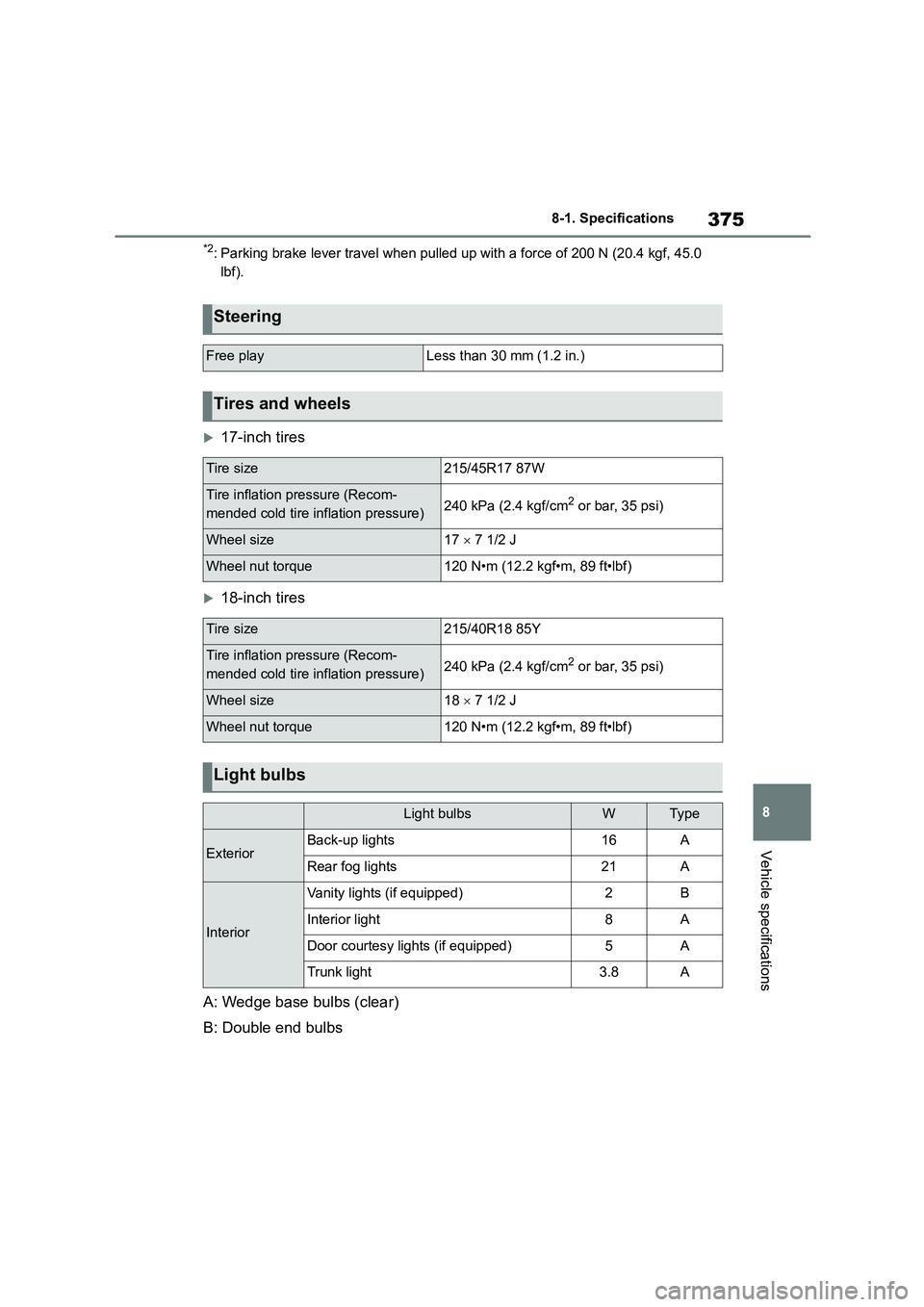

Free playLess than 30 mm (1.2 in.)
Tires and wheels
Tire size215/45R17 87W
Tire inflation pressure (Recom-
mended cold tire inflation pressure)240 kPa (2.4 kgf/cm2 or bar, 35 psi)
Wheel size17  7 1/2 J
Wheel nut torque120 N•m (12.2 kgf•m, 89 ft•lbf)
Tire size215/40R18 85Y
Tire inflation pressure (Recom-
mended cold tire inflation pressure)240 kPa (2.4 kgf/cm2 or bar, 35 psi)
Wheel size18  7 1/2 J
Wheel nut torque120 N•m (12.2 kgf•m, 89 ft•lbf)
Light bulbs
Light bulbsWTy p e
ExteriorBack-up lights16A
Rear fog lights21A
Interior
Vanity lights (if equipped)2B
Interior light8A
Door courtesy lights (if equipped)5A
Trunk light3.8A

3768-1. Specifications
■Use of ethanol blended gasoline in
a gasoline engine
Toyota allows the use of ethanol
blended gasoline where the ethanol
content is up to 10%. Make sure that the ethanol blended gasoline to be used has
a Research Octane Number that follows
the above.
■If your engine knocks
●Consult any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
●You may occasionally notice light knocking for a short time while accel-
erating or driving uphill. This is normal
and there is no need for concern.Fuel infor mation

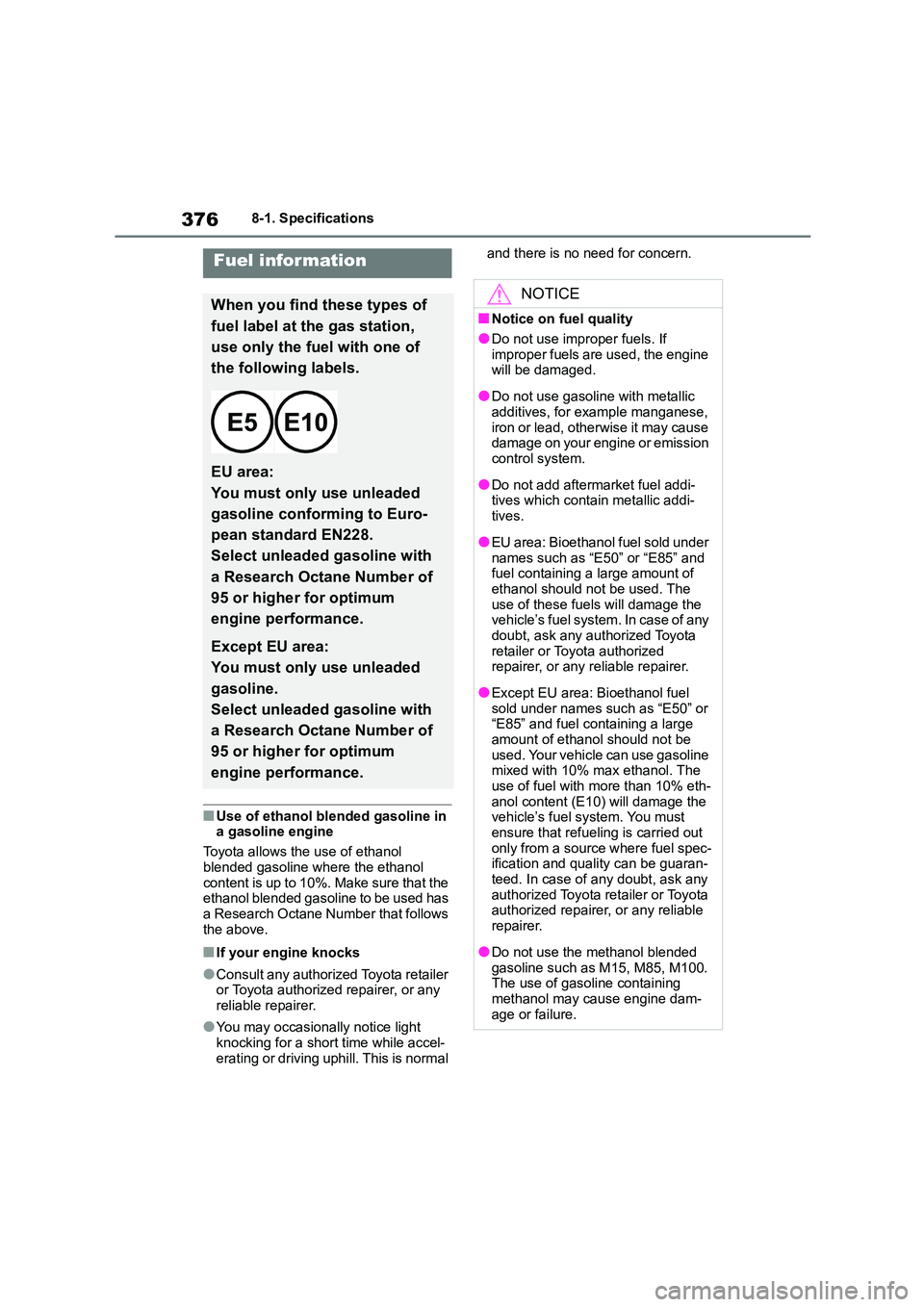

When you find these types of
fuel label at the gas station,
use only the fuel with one of
the following labels.
EU area:
You must only use unleaded
gasoline conforming to Euro-
pean standard EN228.
Select unleaded gasoline with
a Research Octane Number of
95 or higher for optimum
engine performance.
Except EU area:
You must only use unleaded
gasoline.
Select unleaded gasoline with
a Research Octane Number of
95 or higher for optimum
engine performance.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If
improper fuels are used, the engine
will be damaged.
●Do not use gasoline with metallic
additives, for example manganese,
iron or lead, otherwise it may cause damage on your engine or emission
control system.
●Do not add aftermarket fuel addi-
tives which contain metallic addi-
tives.
●EU area: Bioethanol fuel sold under
names such as “E50” or “E85” and fuel containing a large amount of
ethanol should not be used. The
use of these fuels will damage the vehicle’s fuel system. In case of any
doubt, ask any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
●Except EU area: Bioethanol fuel sold under names such as “E50” or
“E85” and fuel containing a large
amount of ethanol should not be used. Your vehicle can use gasoline
mixed with 10% max ethanol. The
use of fuel with more than 10% eth- anol content (E10) will damage the
vehicle’s fuel system. You must
ensure that refue ling is carried out only from a source where fuel spec-
ification and quality can be guaran-
teed. In case of any doubt, ask any authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
●Do not use the methanol blended
gasoline such as M15, M85, M100. The use of gasoline containing
methanol may cause engine dam-
age or failure.

377
8
8-2. Customization
Vehicle specifications
8-2.Customization

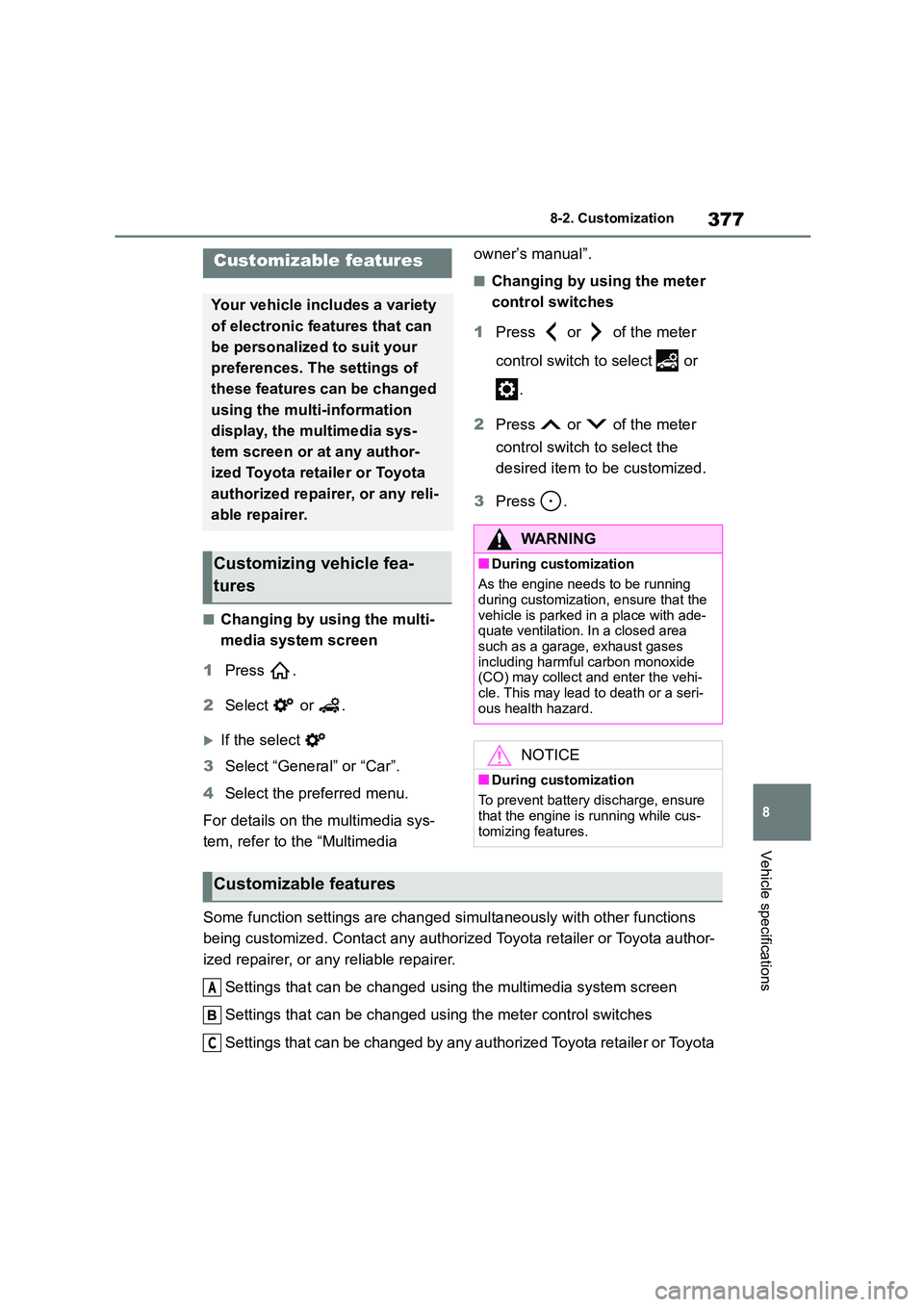

■Changing by using the multi-
media system screen
1 Press .
2 Select or .
If the select
3 Select “General” or “Car”.
4 Select the preferred menu.
For details on the multimedia sys-
tem, refer to the “Multimedia
owner’s manual”.
■Changing by using the meter
control switches
1 Press or of the meter
control switch to select or
.
2 Press or of the meter
control switch to select the
desired item to be customized.
3 Press .
Some function settings are changed simultaneously with other functions
being customized. Contact any authorize d Toyota retailer or Toyota author-
ized repairer, or any reliable repairer.

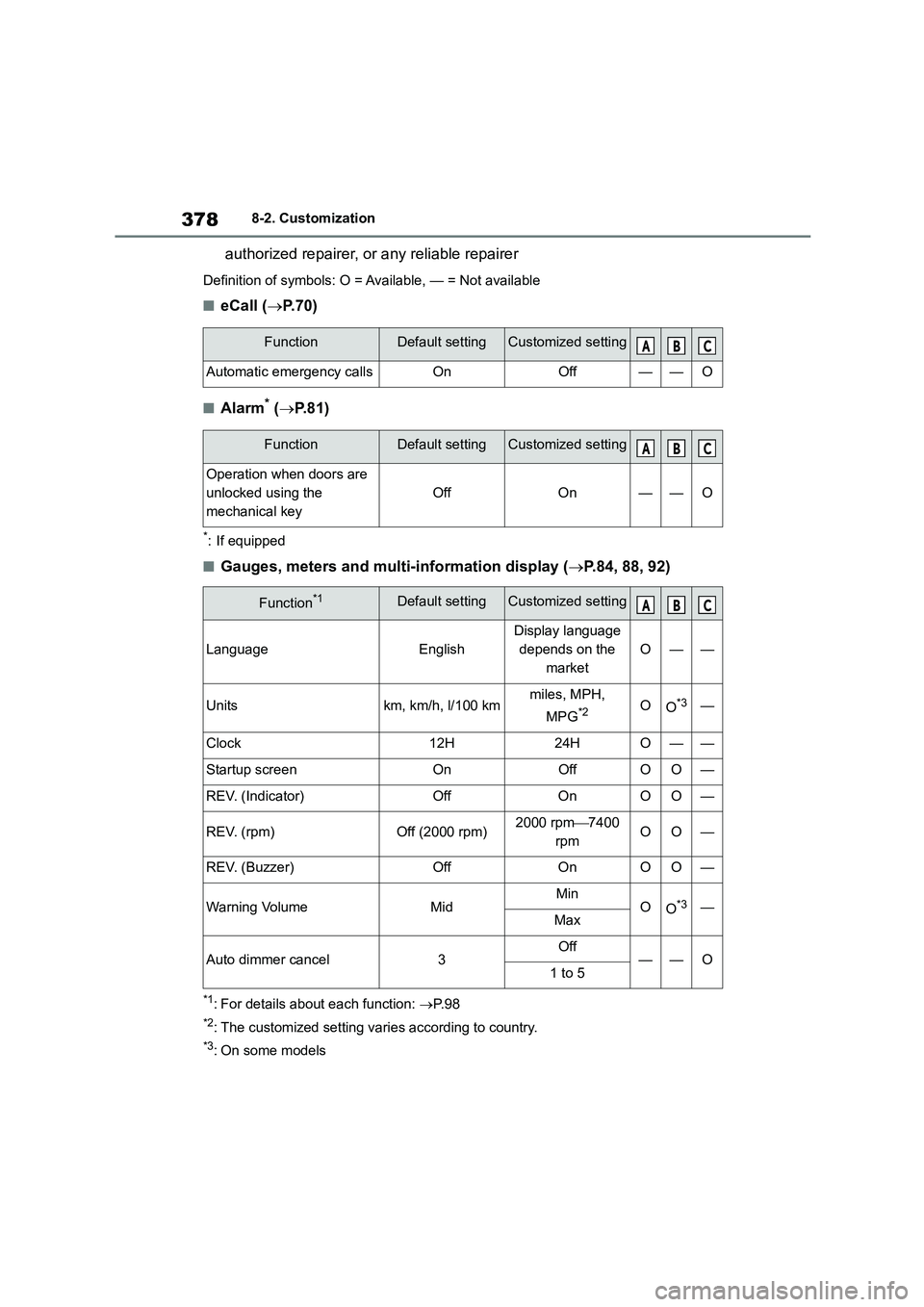

Settings that can be changed using the multimedia system screen
Settings that can be changed using the meter control switches
Settings that can be changed by any authorized Toyota retailer or Toyota
Customizable features
Your vehicle includes a variety
of electronic features that can
be personalized to suit your
preferences. The settings of
these features can be changed
using the multi-information
display, the multimedia sys-
tem screen or at any author-
ized Toyota reta iler or Toyota
authorized repairer, or any reli-
able repairer.
Customizing vehicle fea-
tures
WA R N I N G
■During customization
As the engine needs to be running
during customization, ensure that the vehicle is parked in a place with ade-
quate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehi-
cle. This may lead to death or a seri- ous health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.
Customizable features
A
C

3788-2. Customization
authorized repairer, or any reliable repairer
Definition of symbols: O = Available, — = Not available
■eCall (P. 7 0 )
■Alarm* (P.81)
*: If equipped
■Gauges, meters and multi-information display (P.84, 88, 92)
*1: For details about each function: P. 9 8
*2: The customized setting varies according to country.
*3: On some models
FunctionDefault settingCustomized setting
Automatic emergency callsOnOff——O
ABC
FunctionDefault settingCustomized setting
Operation when doors are
unlocked using the
mechanical key
OffOn——O
Function*1Default settingCustomized setting
LanguageEnglish
Display language
depends on the
market
O——
Unitskm, km/h, l/100 kmmiles, MPH,
MPG*2OO*3—
Clock12H24HO——
Startup screenOnOffOO—
REV. (Indicator)OffOnOO—
REV. (rpm)Off (2000 rpm)2000 rpm 7400
rpmOO—
REV. (Buzzer)OffOnOO—
Warning VolumeMidMinOO*3—Max
Auto dimmer cancel3Off——O1 to 5
ABC
ABC
