TOYOTA GT86 2016 (in English) Owner's Manual

FT86_EE
21
C
B

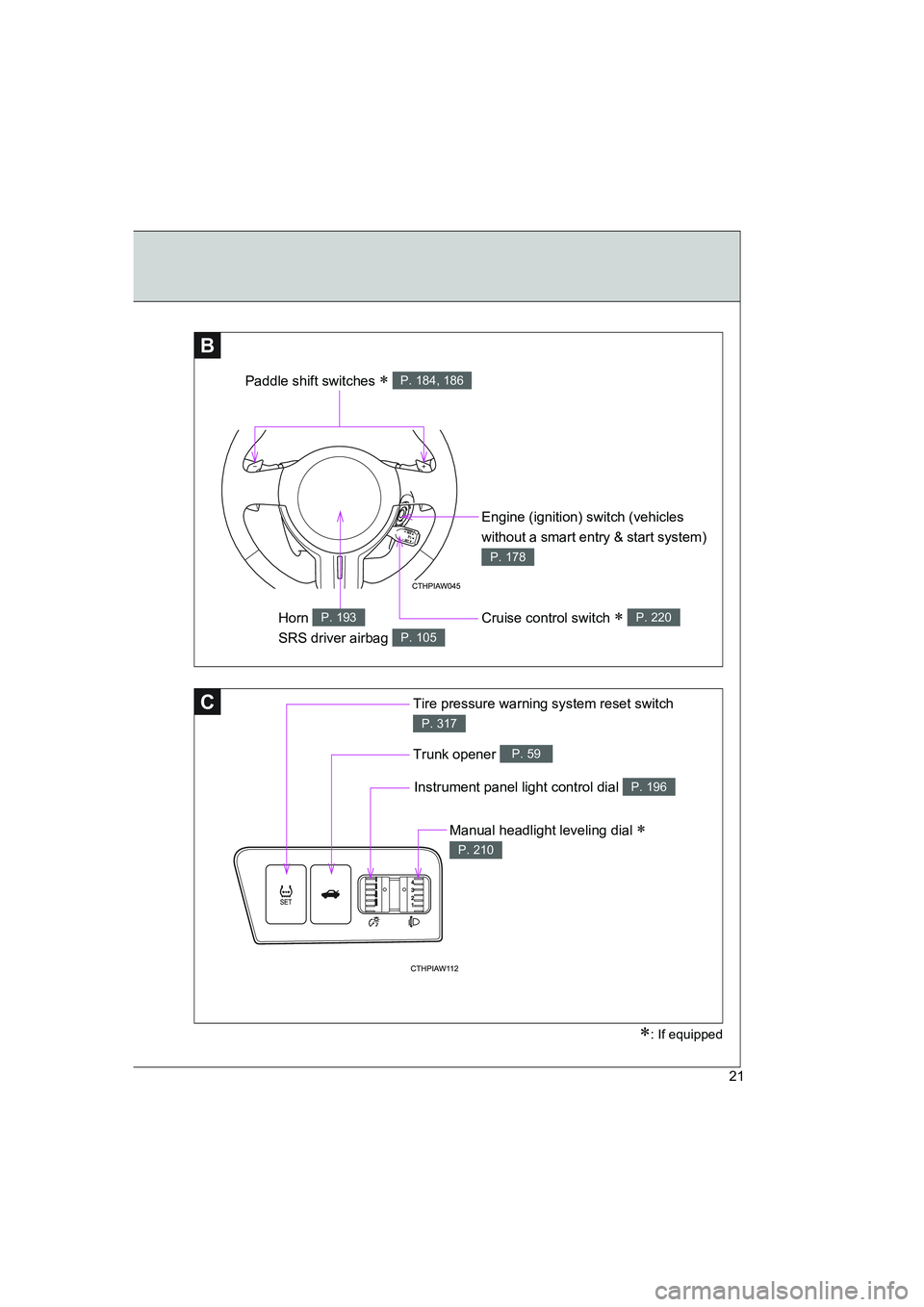

Engine (ignition) switch (vehicles
without a smart entry & start system)
P. 178
Cruise control switch ∗ P. 220Horn
SRS driver airbag P. 193
P. 105
Instrument panel light control dial P. 196
Manual headlight leveling dial ∗
P. 210
Trunk opener P. 59
∗: If equipped
Paddle shift switches ∗ P. 184, 186
Tire pressure warning system reset switch
P. 317
86_OM_EE_OM18058E.book 21 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

FT86_EE
22

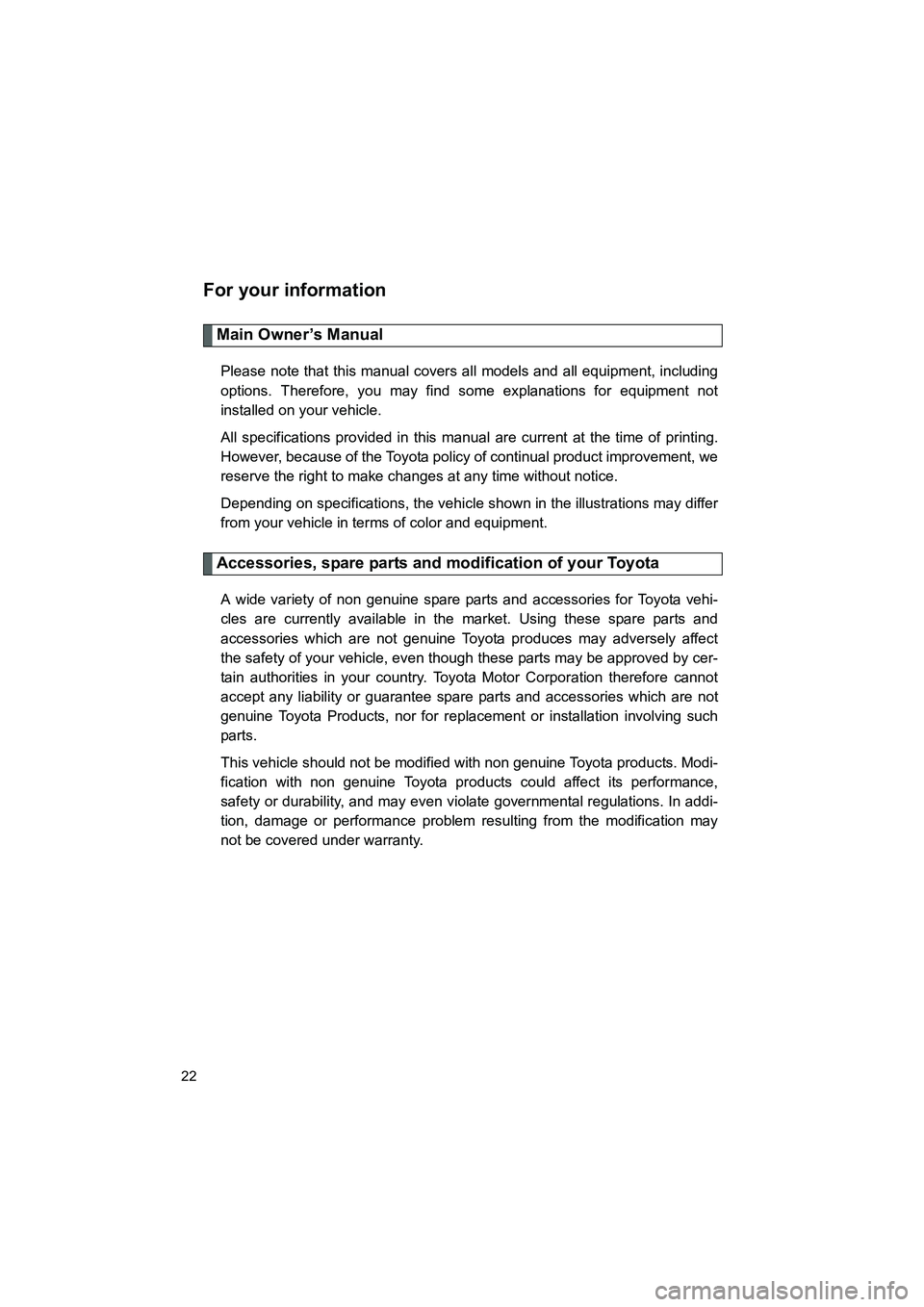

For your information
Main Owner’s Manual
Please note that this manual covers all models and all equipment, including
options. Therefore, you may find some explanations for equipment not
installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of color and equipment.
Accessories, spare parts and modification of your Toyota
A wide variety of non genuine spare parts and accessories for Toyota vehi-
cles are currently available in the market. Using these spare parts and
accessories which are not genuine Toyota produces may adversely affect
the safety of your vehicle, even though these parts may be approved by cer-
tain authorities in your country. Toyota Motor Corporation therefore cannot
accept any liability or guarantee spare parts and accessories which are not
genuine Toyota Products, nor for replacement or installation involving such
parts.
This vehicle should not be modified with non genuine Toyota products. Modi-
fication with non genuine Toyota products could affect its performance,
safety or durability, and may even violate governmental regulations. In addi-
tion, damage or performance problem resulting from the modification may
not be covered under warranty.
86_OM_EE_OM18058E.book 22 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

FT86_EE
23

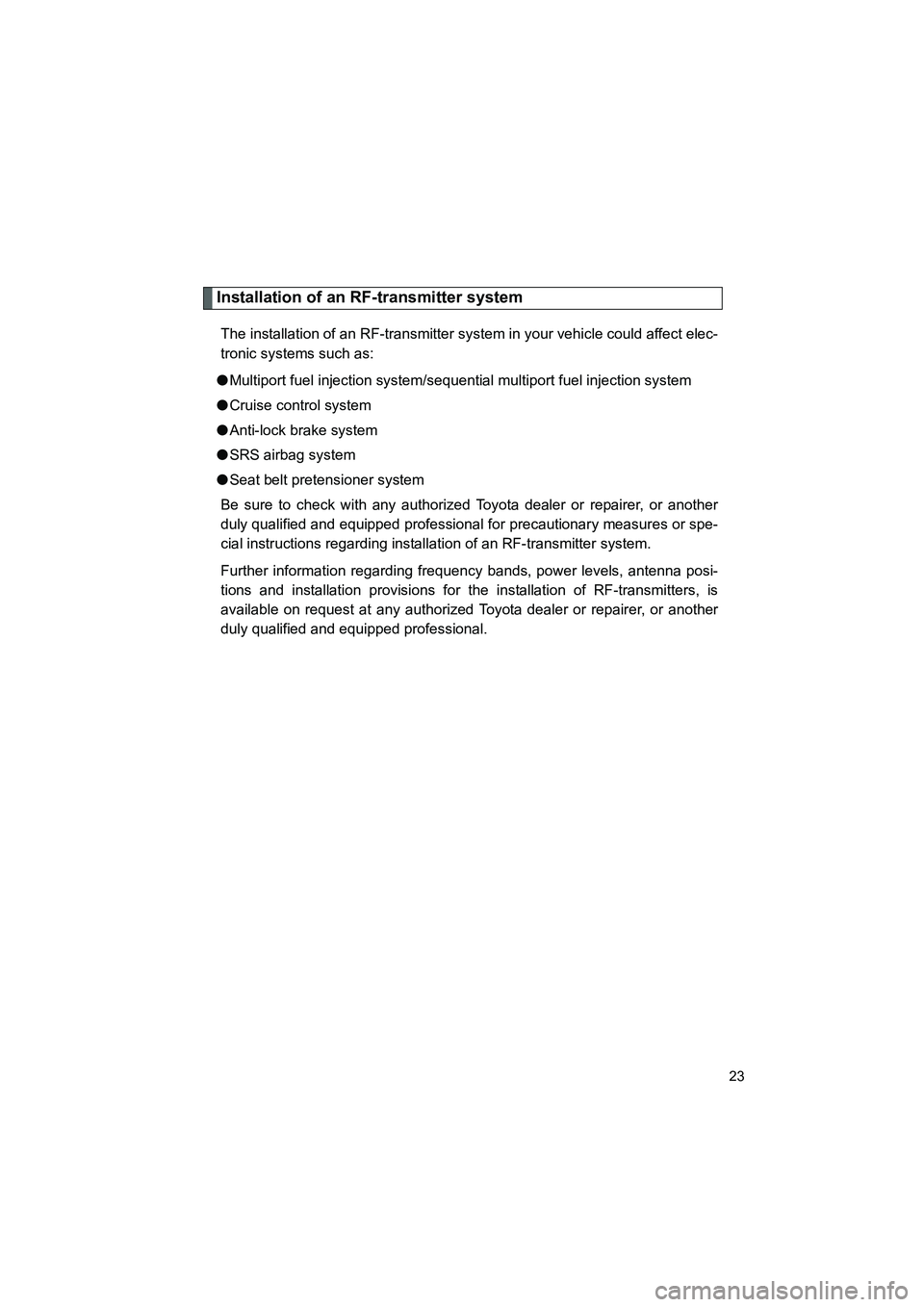

Installation of an RF-transmitter system
The installation of an RF-transmitter system in your vehicle could affect elec-
tronic systems such as:
●Multiport fuel injection system/sequential multiport fuel injection system
●Cruise control system
●Anti-lock brake system
●SRS airbag system
●Seat belt pretensioner system
Be sure to check with any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional for precautionary measures or spe-
cial instructions regarding installation of an RF-transmitter system.
Further information regarding frequency bands, power levels, antenna posi-
tions and installation provisions for the installation of RF-transmitters, is
available on request at any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
86_OM_EE_OM18058E.book 23 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

FT86_EE
24

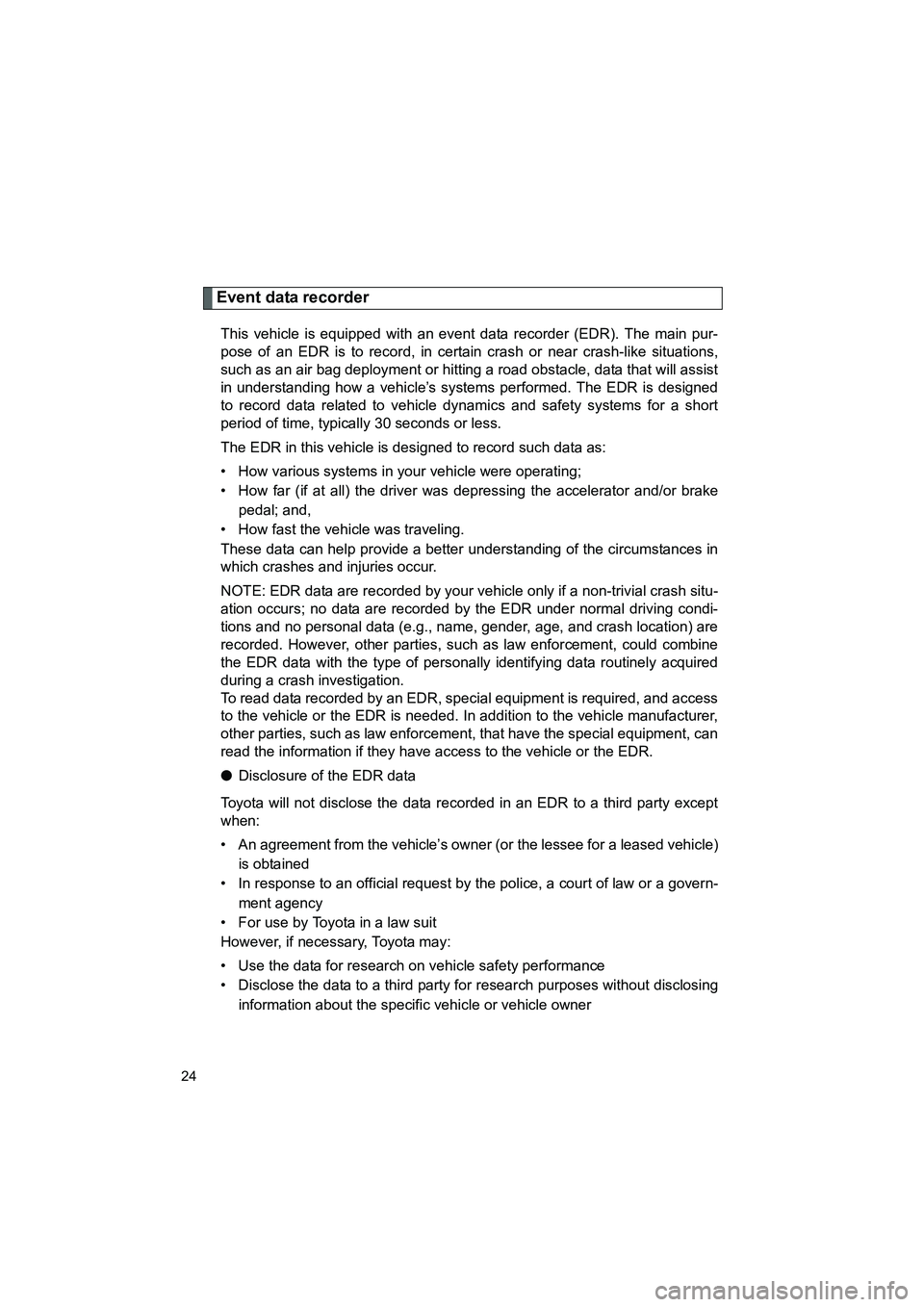

Event data recorder
This vehicle is equipped with an event data recorder (EDR). The main pur-
pose of an EDR is to record, in certain crash or near crash-like situations,
such as an air bag deployment or hitting a road obstacle, data that will assist
in understanding how a vehicle’s systems performed. The EDR is designed
to record data related to vehicle dynamics and safety systems for a short
period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• How far (if at all) the driver was depressing the accelerator and/or brake
pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situ-
ation occurs; no data are recorded by the EDR under normal driving condi-
tions and no personal data (e.g., name, gender, age, and crash location) are
recorded. However, other parties, such as law enforcement, could combine
the EDR data with the type of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access
to the vehicle or the EDR is needed. In addition to the vehicle manufacturer,
other parties, such as law enforcement, that have the special equipment, can
read the information if they have access to the vehicle or the EDR.
●Disclosure of the EDR data
Toyota will not disclose the data recorded in an EDR to a third party except
when:
• An agreement from the vehicle’s owner (or the lessee for a leased vehicle)
is obtained
• In response to an official request by the police, a court of law or a govern-
ment agency
• For use by Toyota in a law suit
However, if necessary, Toyota may:
• Use the data for research on vehicle safety performance
• Disclose the data to a third party for research purposes without disclosing
information about the specific vehicle or vehicle owner
86_OM_EE_OM18058E.book 24 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

FT86_EE
25

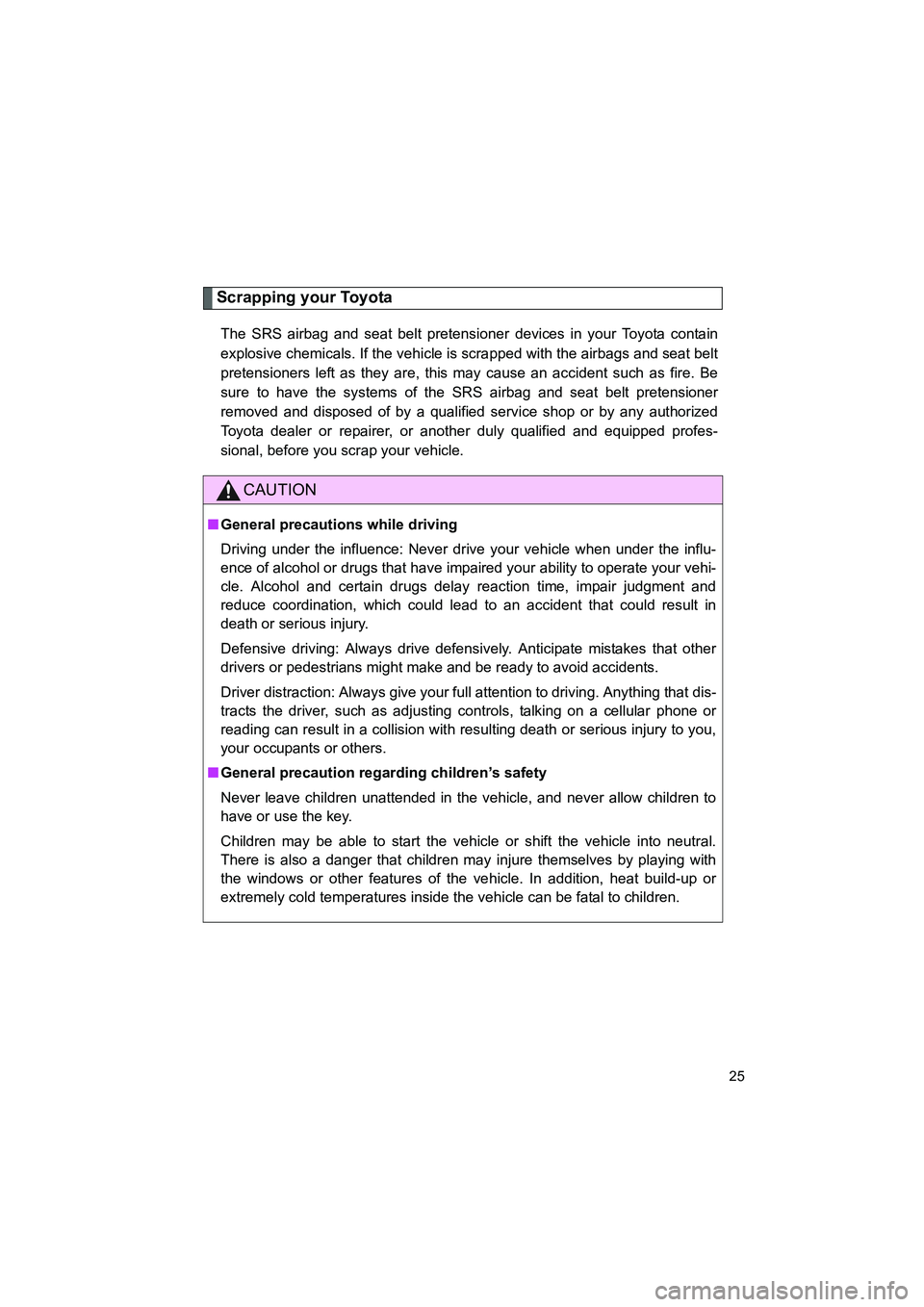

Scrapping your Toyota
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional, before you scrap your vehicle.
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.
86_OM_EE_OM18058E.book 25 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

FT86_EE
26

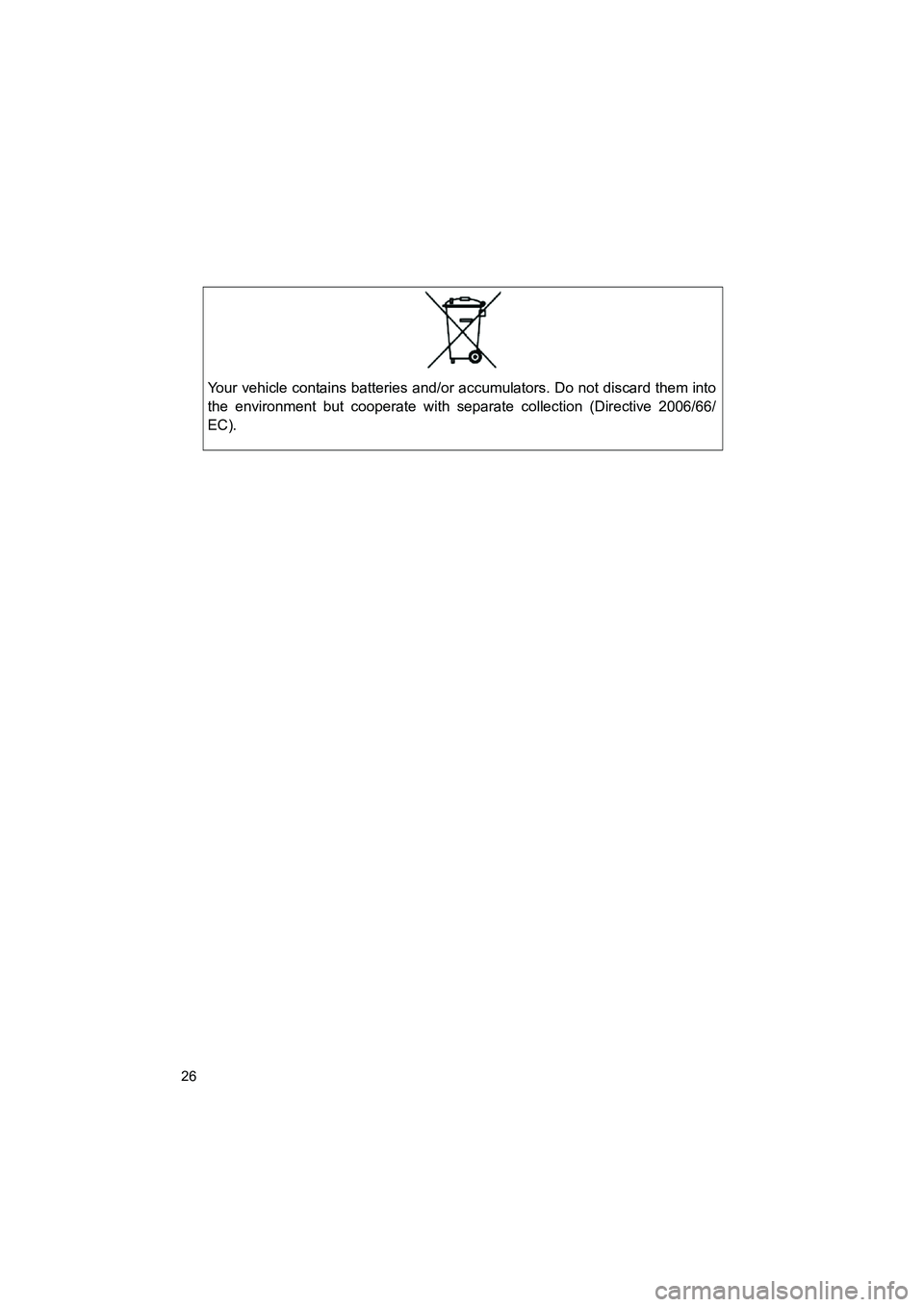

Your vehicle contains batteries and/or accumulators. Do not discard them into
the environment but cooperate with separate collection (Directive 2006/66/
EC).
86_OM_EE_OM18058E.book 26 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

FT86_EE
27

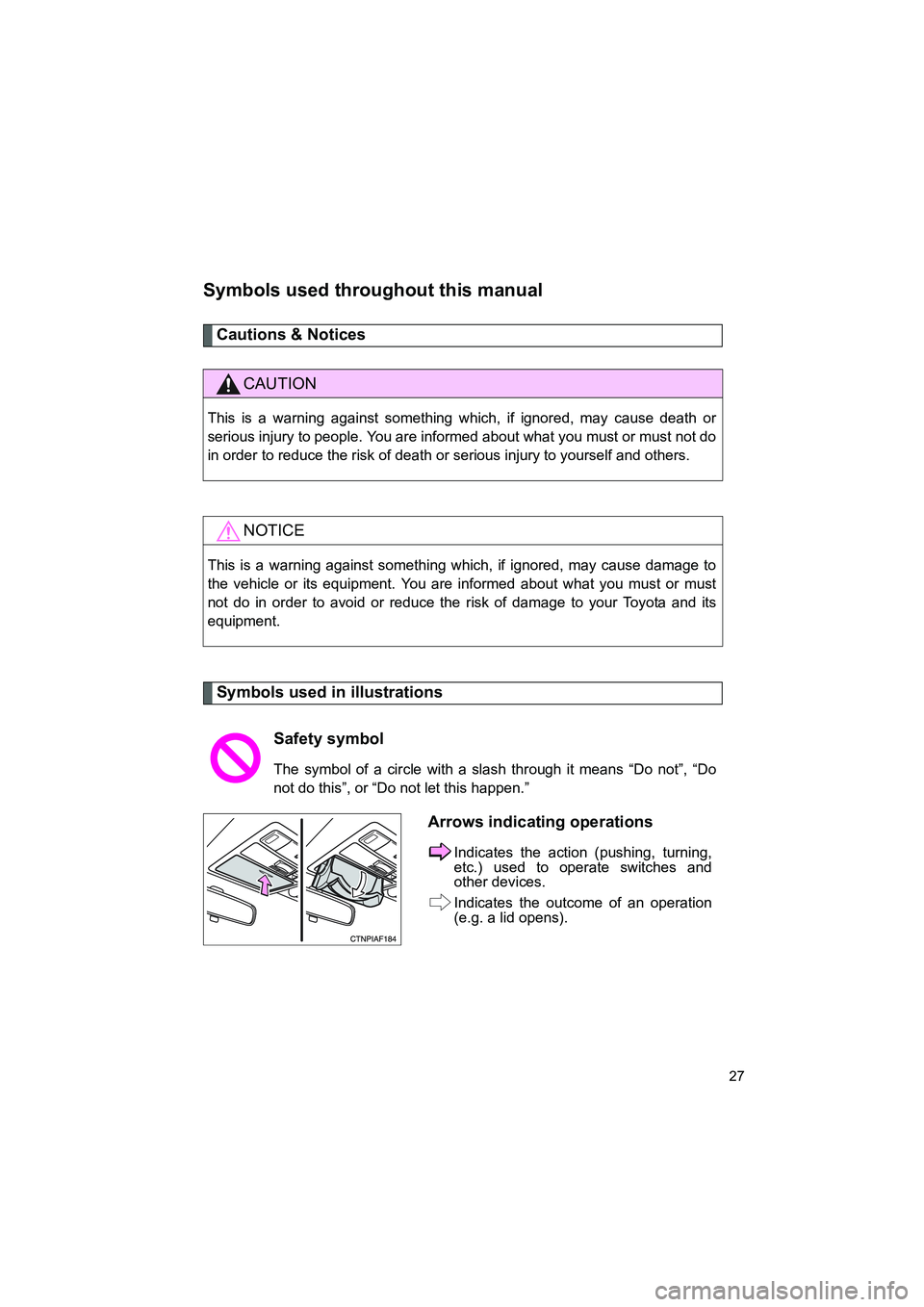

Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against something which, if ignored, may cause death or
serious injury to people. You are informed about what you must or must not do
in order to reduce the risk of death or serious injury to yourself and others.
NOTICE
This is a warning against something which, if ignored, may cause damage to
the vehicle or its equipment. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to your Toyota and its
equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”, “Do
not do this”, or “Do not let this happen.”
Arrows indicating operations
Indicates the action (pushing, turning,
etc.) used to operate switches and
other devices.
Indicates the outcome of an operation
(e.g. a lid opens).
86_OM_EE_OM18058E.book 27 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

FT86_EE
28
86_OM_EE_OM18058E.book 28 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

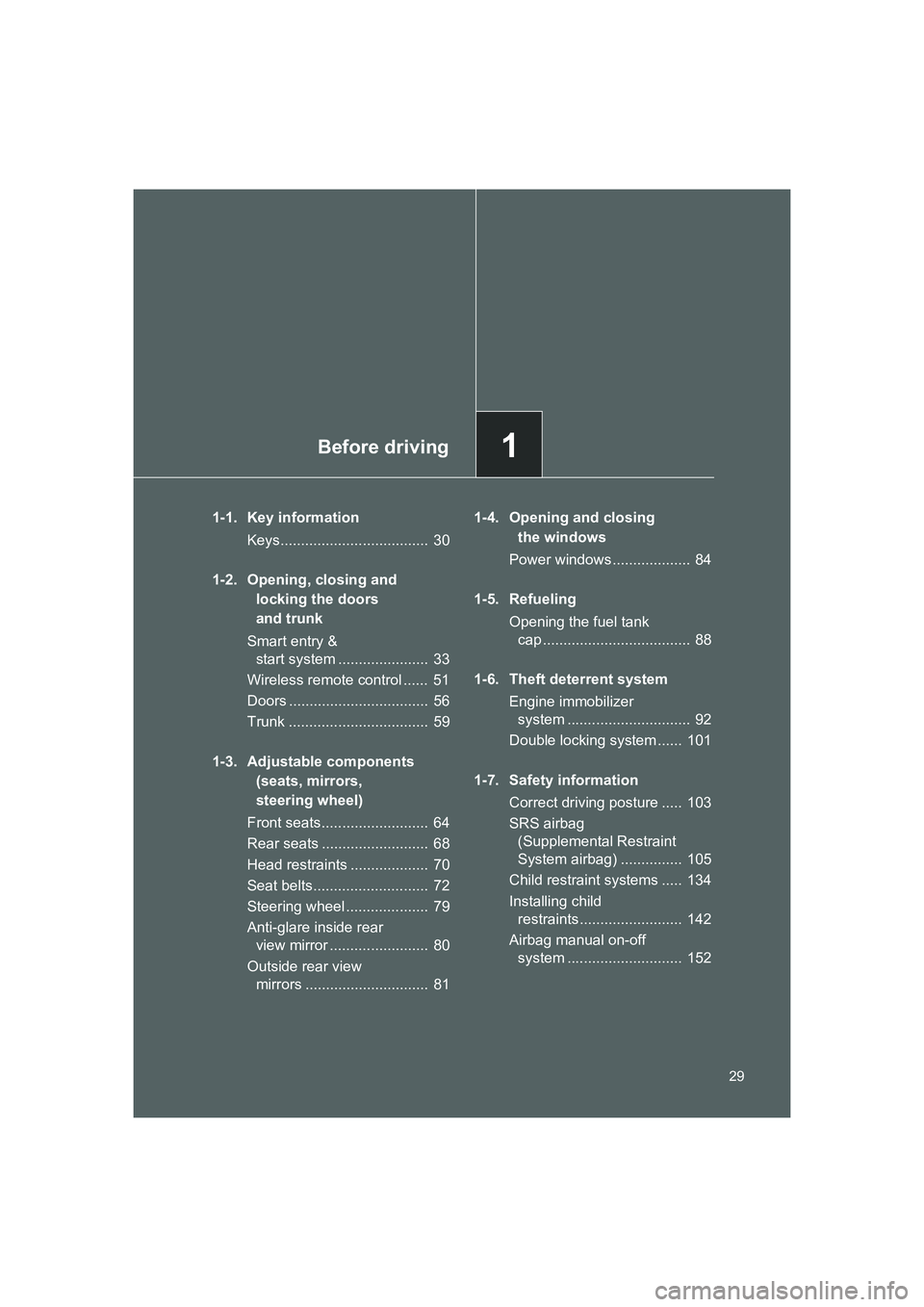

1Before driving
29
FT86_EE
1-1. Key information
Keys.................................... 30
1-2. Opening, closing and
locking the doors
and trunk
Smart entry &
start system ...................... 33
Wireless remote control ...... 51
Doors .................................. 56
Trunk .................................. 59
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats.......................... 64
Rear seats .......................... 68
Head restraints ................... 70
Seat belts............................ 72
Steering wheel .................... 79
Anti-glare inside rear
view mirror ........................ 80
Outside rear view
mirrors .............................. 811-4. Opening and closing
the windows
Power windows ................... 84
1-5. Refueling
Opening the fuel tank
cap .................................... 88
1-6. Theft deterrent system
Engine immobilizer
system .............................. 92
Double locking system ...... 101
1-7. Safety information
Correct driving posture ..... 103
SRS airbag
(Supplemental Restraint
System airbag) ............... 105
Child restraint systems ..... 134
Installing child
restraints ......................... 142
Airbag manual on-off
system ............................ 152
86_OM_EE_OM18058E.book 29 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

30
FT86_EE

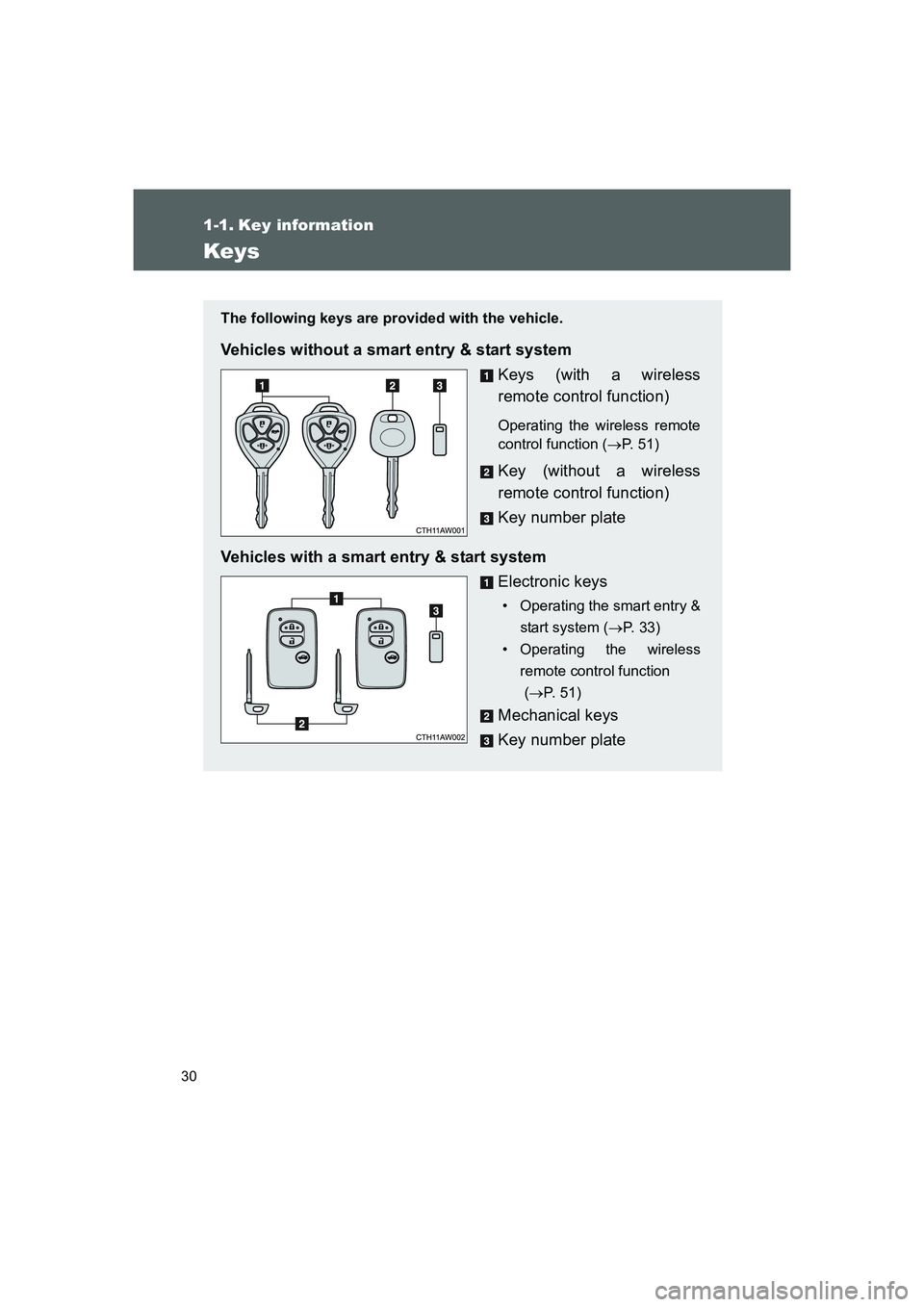

1-1. Key information
Keys
The following keys are provided with the vehicle.
Vehicles without a smart entry & start system
Keys (with a wireless
remote control function)
Operating the wireless remote
control function (→P. 51)
Key (without a wireless
remote control function)
Key number plate
Vehicles with a smart entry & start system
Electronic keys
• Operating the smart entry &
start system (→P. 33)
• Operating the wireless
remote control function
(→P. 5 1 )
Mechanical keys
Key number plate
86_OM_EE_OM18058E.book 30 ページ ２０１５年３月１７日　火曜日　午前１１時３１分
