41 1-2. Opening, closing and locking the doors and trunk
1
Before driving
FT86_EE
■Notes for the entry function
●Even when the electronic key is within the effective range (detection
areas), the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle,
near the ground, or in a high place when the doors are locked or
unlocked.
• The electronic key is near the ground or in a high place, or too close to
the rear bumper center when the trunk is unlocked.
• The electronic key is on the instrument panel, rear package tray or
floor, in the door pockets or glove box or auxiliary box when the engine
is started or “ENGINE START STOP” switch modes are changed.
●Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave
reception conditions, it may be detected by the antenna outside the cabin
and the door will become lockable from the outside, possibly trapping the
electronic key inside the vehicle.
●As long as the electronic key is within the effective range, the doors may
be locked or unlocked by anyone.
●Even if the electronic key is not inside the vehicle, it may be possible to
start the engine if the electronic key is near the window.
●The doors may unlock if a large amount of water splashes on the door
handle, such as in the rain or in a car wash when the electronic key is
within the effective range. (The door will automatically be locked after
approximately 30 seconds if the doors are not opened and closed.)
●Gripping the door handle when wearing a glove may not unlock the door.
●If the wireless remote control is used to lock the doors when the elec-
tronic key is near the vehicle, there is a possibility that the door may not
be unlocked by the entry function. (Use the wireless remote control to
unlock the doors.)
●A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the
original position and check that the doors unlock before pulling the door
handle again.
86_OM_EE_OM18058E.book 41 ページ 2015年3月17日 火曜日 午前11時31分
Page 42 of 464

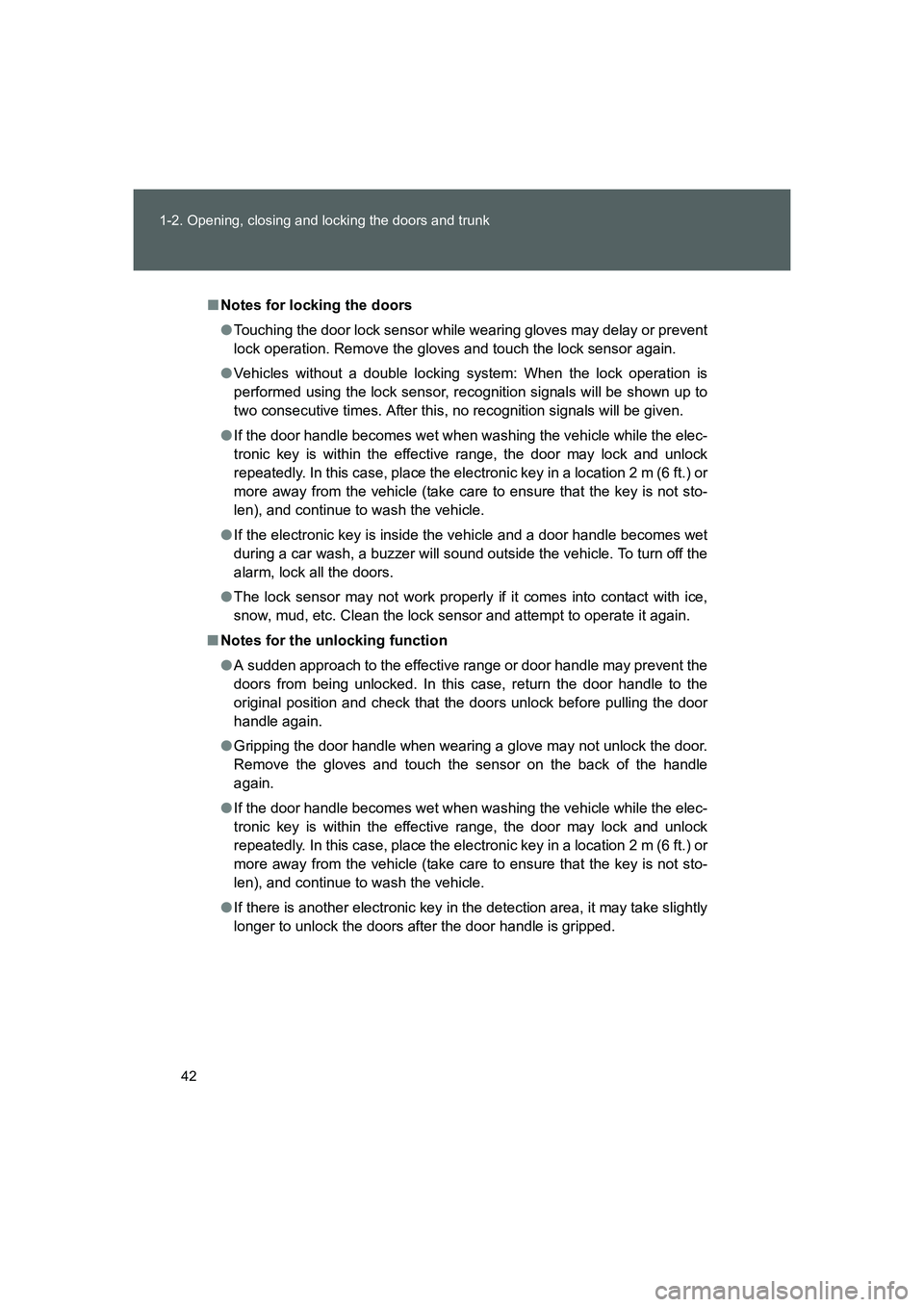

42 1-2. Opening, closing and locking the doors and trunk
FT86_EE
■Notes for locking the doors
●Touching the door lock sensor while wearing gloves may delay or prevent
lock operation. Remove the gloves and touch the lock sensor again.
●Vehicles without a double locking system: When the lock operation is
performed using the lock sensor, recognition signals will be shown up to
two consecutive times. After this, no recognition signals will be given.
●If the door handle becomes wet when washing the vehicle while the elec-
tronic key is within the effective range, the door may lock and unlock
repeatedly. In this case, place the electronic key in a location 2 m (6 ft.) or
more away from the vehicle (take care to ensure that the key is not sto-
len), and continue to wash the vehicle.
●If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a buzzer will sound outside the vehicle. To turn off the
alarm, lock all the doors.
●The lock sensor may not work properly if it comes into contact with ice,
snow, mud, etc. Clean the lock sensor and attempt to operate it again.
■Notes for the unlocking function
●A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the
original position and check that the doors unlock before pulling the door
handle again.
●Gripping the door handle when wearing a glove may not unlock the door.
Remove the gloves and touch the sensor on the back of the handle
again.
●If the door handle becomes wet when washing the vehicle while the elec-
tronic key is within the effective range, the door may lock and unlock
repeatedly. In this case, place the electronic key in a location 2 m (6 ft.) or
more away from the vehicle (take care to ensure that the key is not sto-
len), and continue to wash the vehicle.
●If there is another electronic key in the detection area, it may take slightly
longer to unlock the doors after the door handle is gripped.
86_OM_EE_OM18058E.book 42 ページ 2015年3月17日 火曜日 午前11時31分
Page 43 of 464

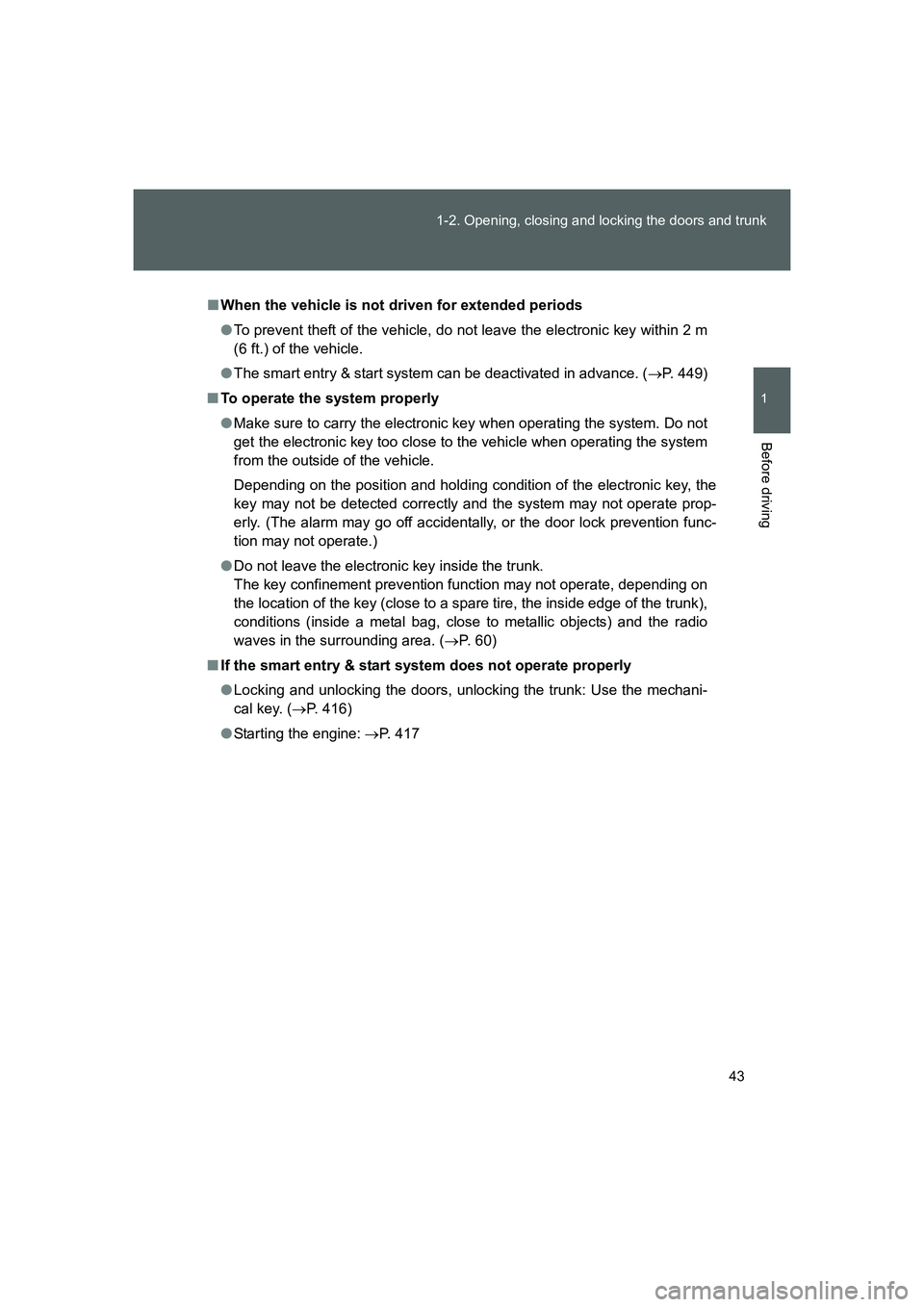

43 1-2. Opening, closing and locking the doors and trunk
1
Before driving
FT86_EE
■When the vehicle is not driven for extended periods
●To prevent theft of the vehicle, do not leave the electronic key within 2 m
(6 ft.) of the vehicle.
●The smart entry & start system can be deactivated in advance. (→P. 449)
■To operate the system properly
●Make sure to carry the electronic key when operating the system. Do not
get the electronic key too close to the vehicle when operating the system
from the outside of the vehicle.
Depending on the position and holding condition of the electronic key, the
key may not be detected correctly and the system may not operate prop-
erly. (The alarm may go off accidentally, or the door lock prevention func-
tion may not operate.)
●Do not leave the electronic key inside the trunk.
The key confinement prevention function may not operate, depending on
the location of the key (close to a spare tire, the inside edge of the trunk),
conditions (inside a metal bag, close to metallic objects) and the radio
waves in the surrounding area. (→P. 60)
■If the smart entry & start system does not operate properly
●Locking and unlocking the doors, unlocking the trunk: Use the mechani-
cal key. (→P. 416)
●Starting the engine: →P. 417
86_OM_EE_OM18058E.book 43 ページ 2015年3月17日 火曜日 午前11時31分
Page 44 of 464

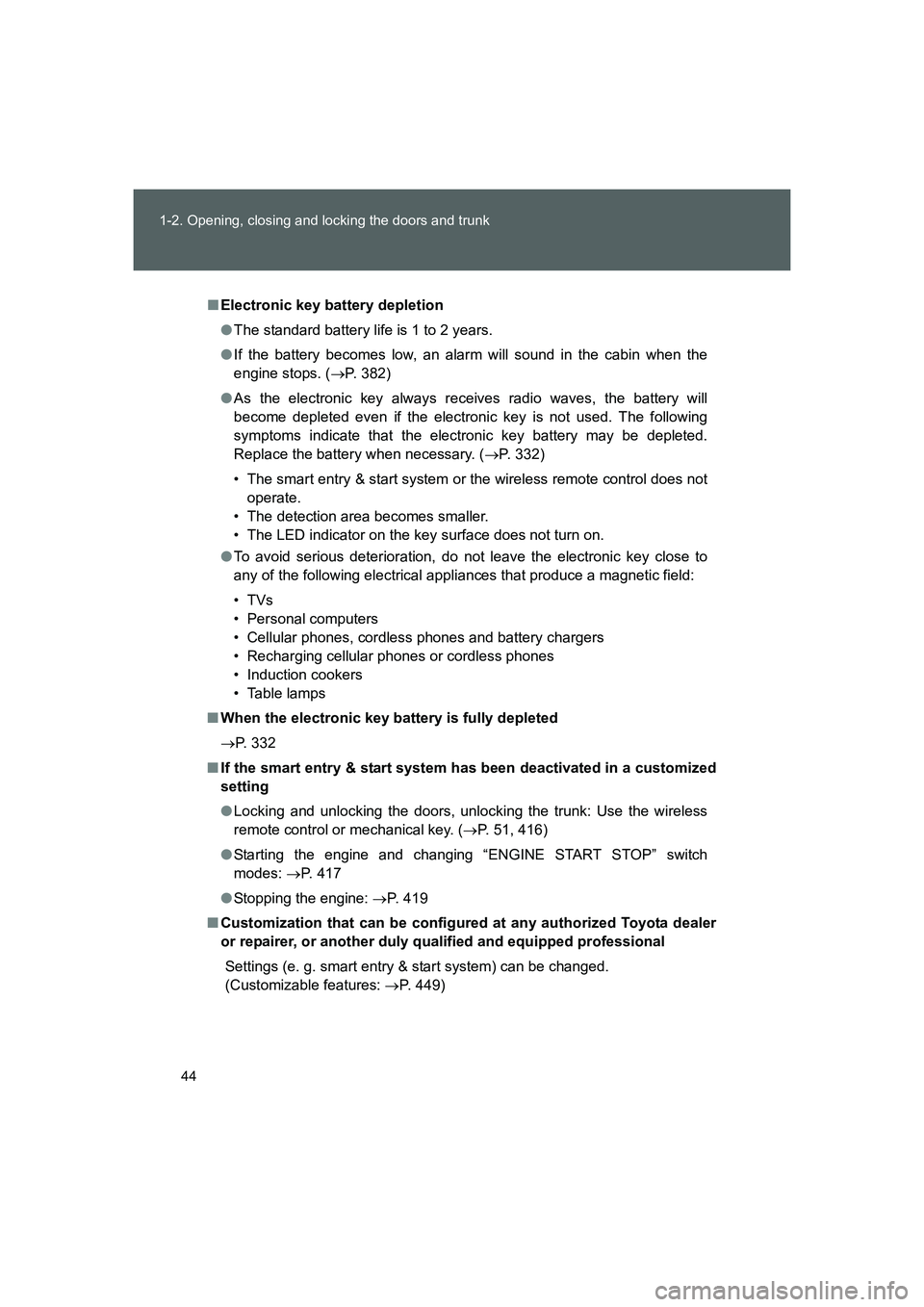

44 1-2. Opening, closing and locking the doors and trunk
FT86_EE
■Electronic key battery depletion
●The standard battery life is 1 to 2 years.
●If the battery becomes low, an alarm will sound in the cabin when the
engine stops. (→P. 382)
●As the electronic key always receives radio waves, the battery will
become depleted even if the electronic key is not used. The following
symptoms indicate that the electronic key battery may be depleted.
Replace the battery when necessary. (→P. 332)
• The smart entry & start system or the wireless remote control does not
operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
●To avoid serious deterioration, do not leave the electronic key close to
any of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Induction cookers
• Table lamps
■When the electronic key battery is fully depleted
→P. 332
■If the smart entry & start system has been deactivated in a customized
setting
●Locking and unlocking the doors, unlocking the trunk: Use the wireless
remote control or mechanical key. (→P. 51, 416)
●Starting the engine and changing “ENGINE START STOP” switch
modes: →P. 417
●Stopping the engine: →P. 419
■Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e. g. smart entry & start system) can be changed.
(Customizable features: →P. 449)
86_OM_EE_OM18058E.book 44 ページ 2015年3月17日 火曜日 午前11時31分
Page 45 of 464
45 1-2. Opening, closing and locking the doors and trunk
1
Before driving
FT86_EE

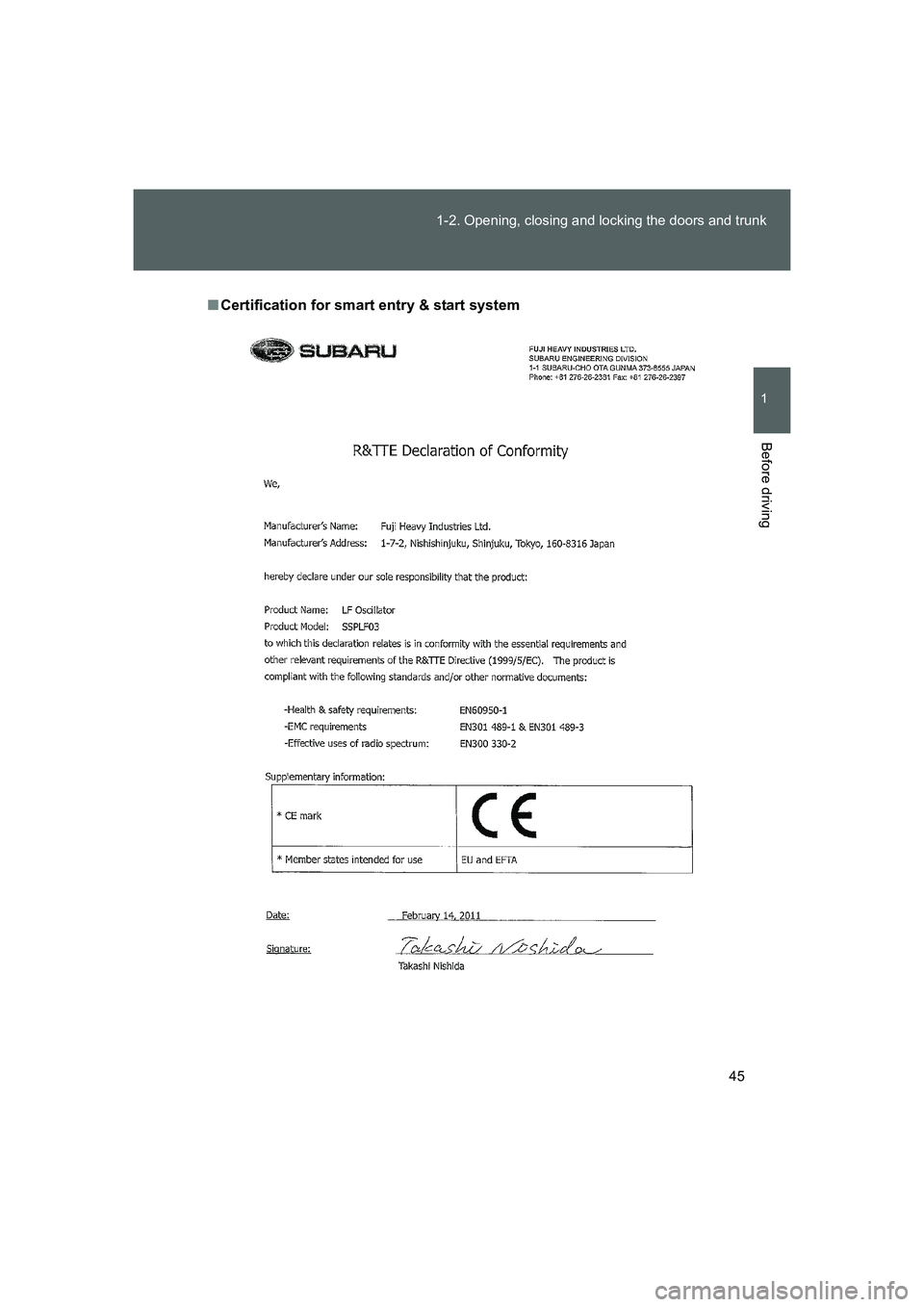

■Certification for smart entry & start system
86_OM_EE_OM18058E.book 45 ページ 2015年3月17日 火曜日 午前11時31分
Page 46 of 464

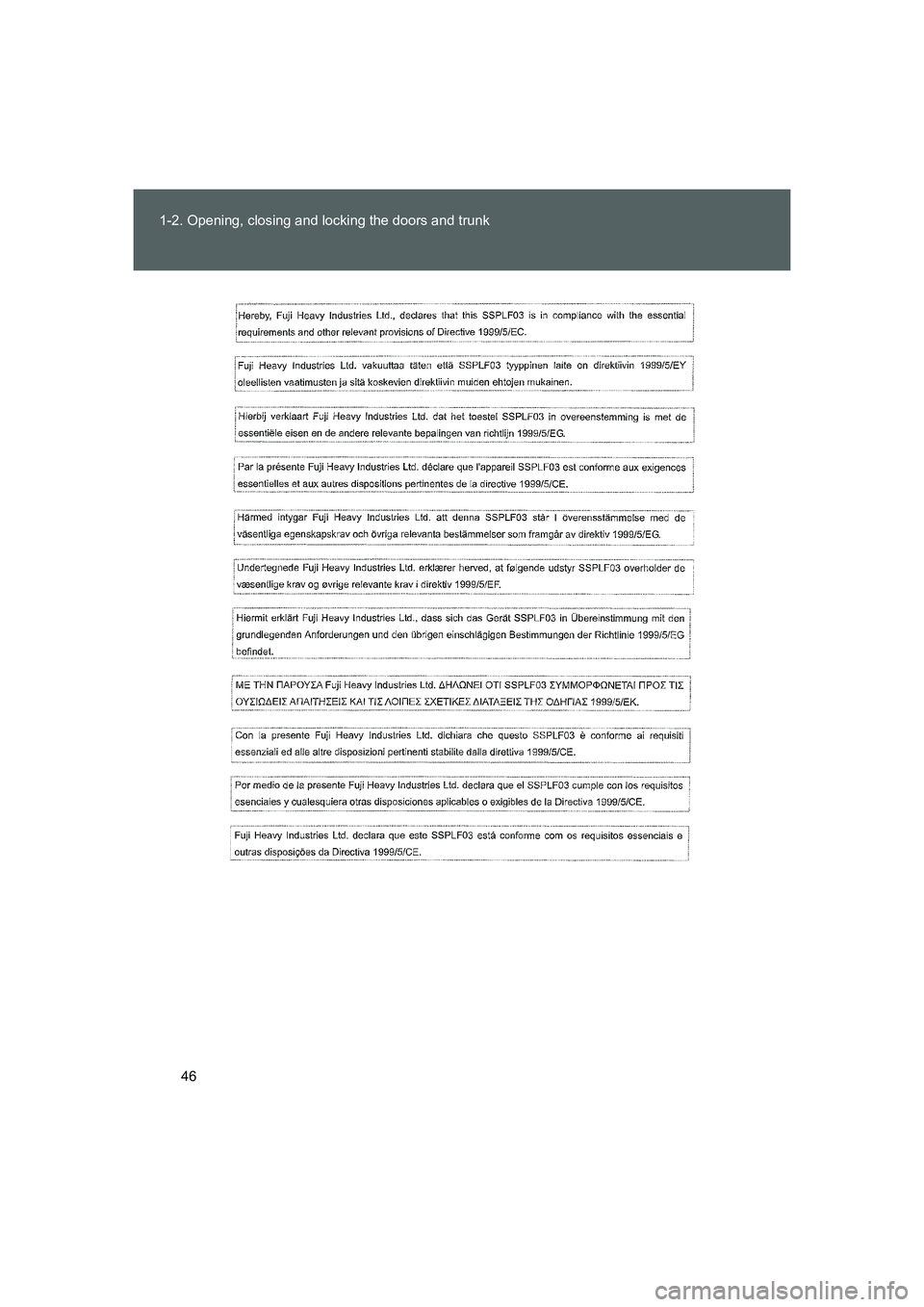

46 1-2. Opening, closing and locking the doors and trunk
FT86_EE
86_OM_EE_OM18058E.book 46 ページ 2015年3月17日 火曜日 午前11時31分
Page 47 of 464

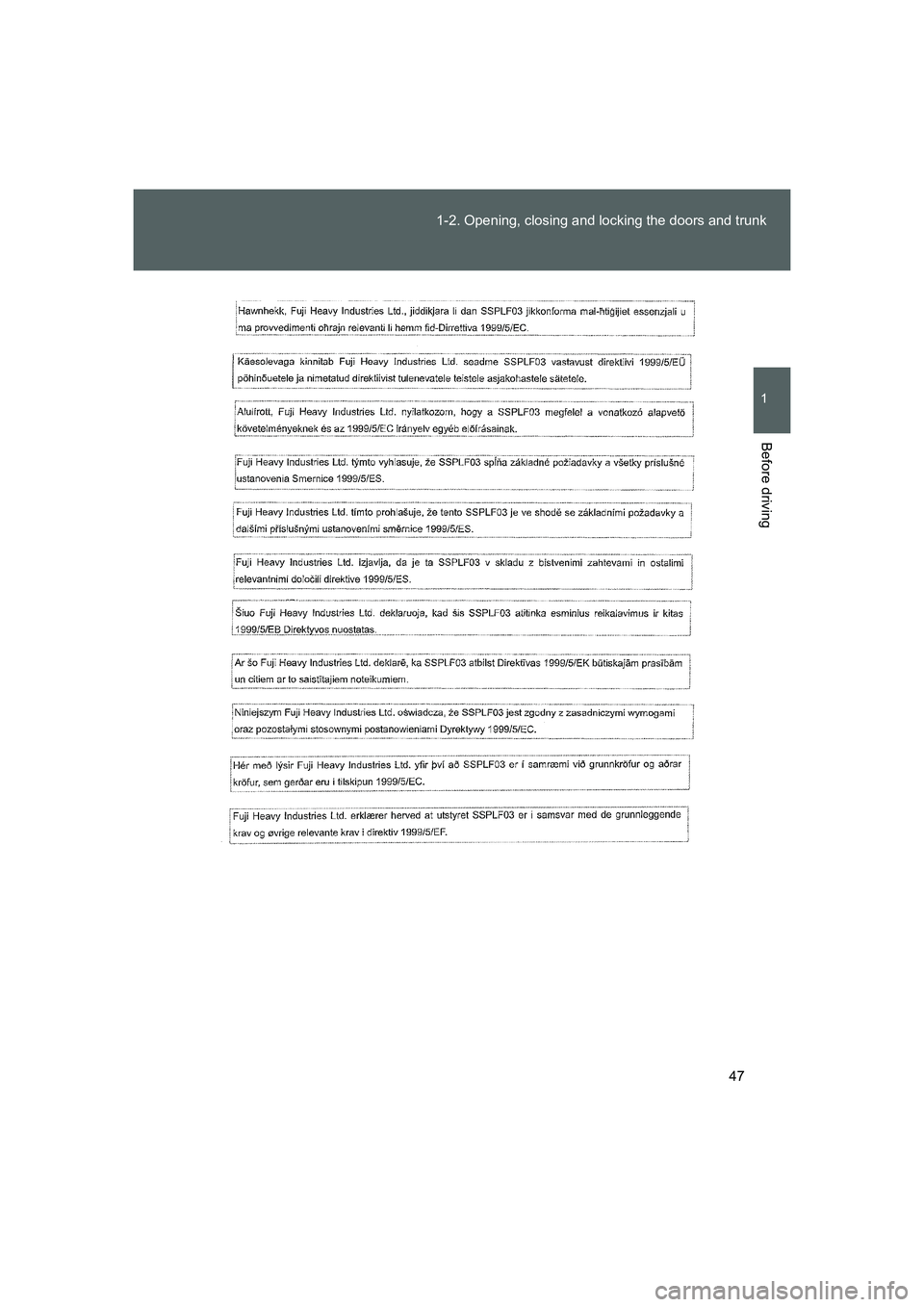

47 1-2. Opening, closing and locking the doors and trunk
1
Before driving
FT86_EE
86_OM_EE_OM18058E.book 47 ページ 2015年3月17日 火曜日 午前11時31分

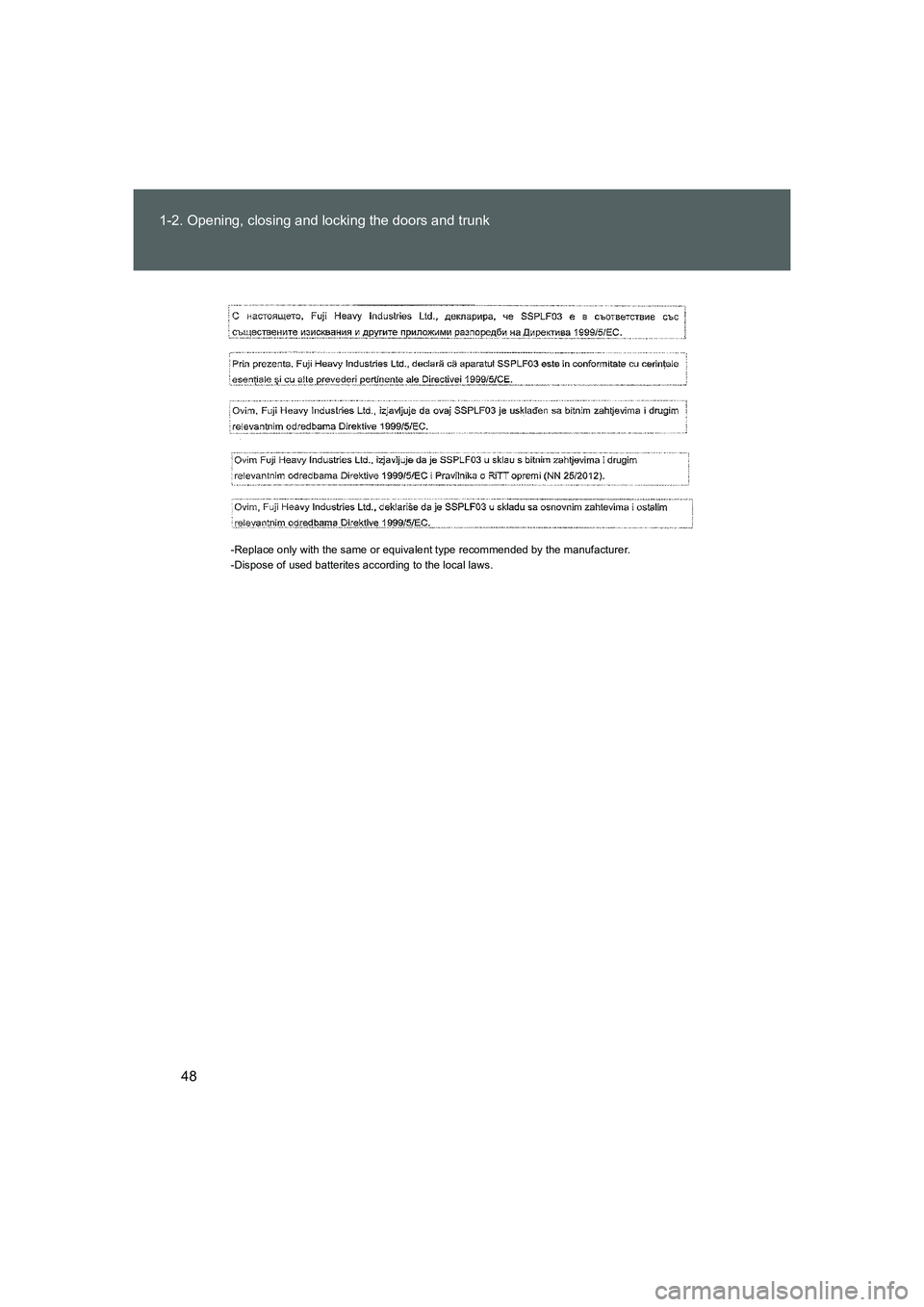

Page 48 of 464
48 1-2. Opening, closing and locking the doors and trunk
FT86_EE
-Replace only with the same or equivalent type recommended by the manufacturer.
-Dispose of used batterites according to the local laws.
86_OM_EE_OM18058E.book 48 ページ 2015年3月17日 火曜日 午前11時31分
Page 49 of 464

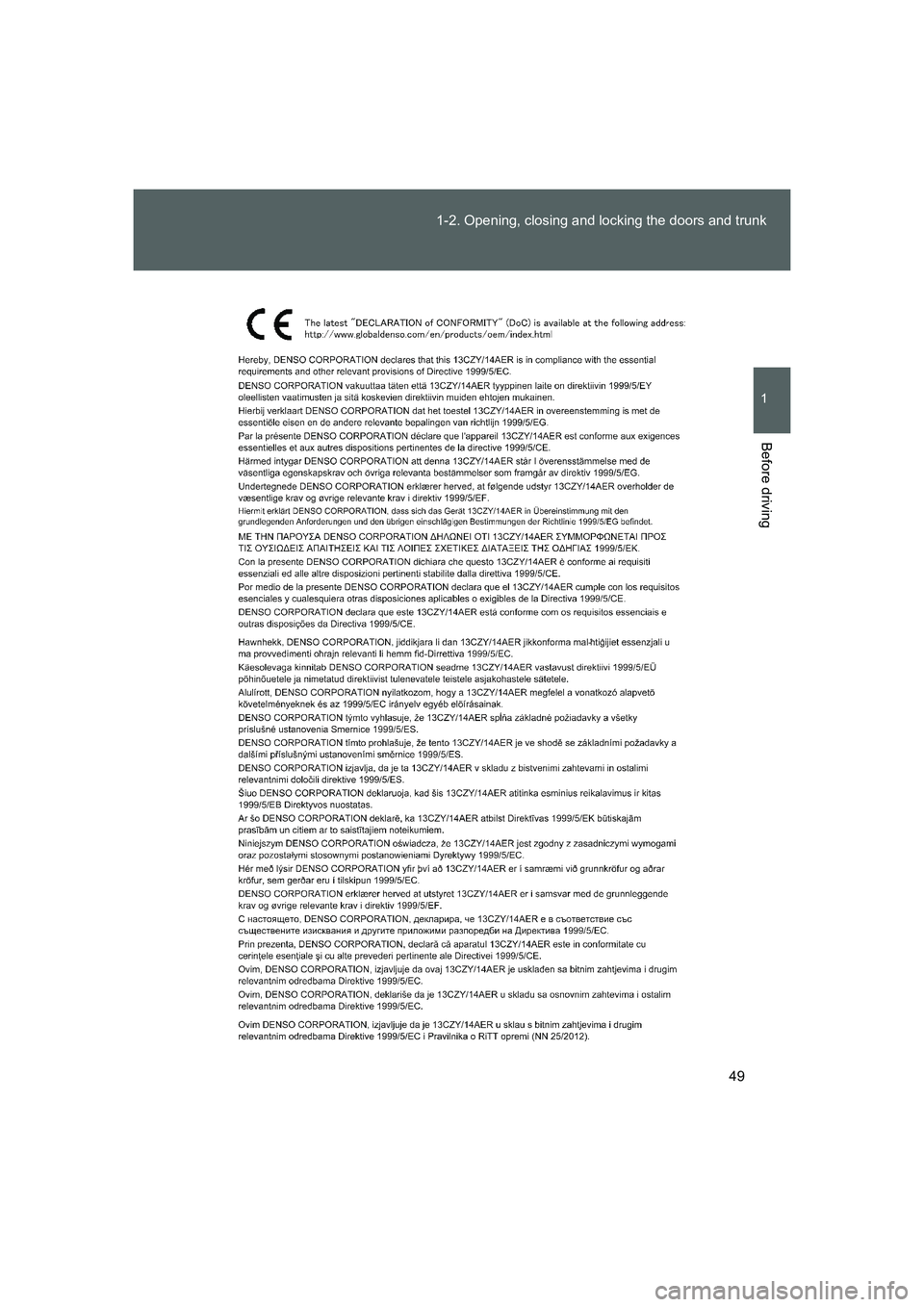

49 1-2. Opening, closing and locking the doors and trunk
1
Before driving
FT86_EE
86_OM_EE_OM18058E.book 49 ページ 2015年3月17日 火曜日 午前11時31分
Page 50 of 464

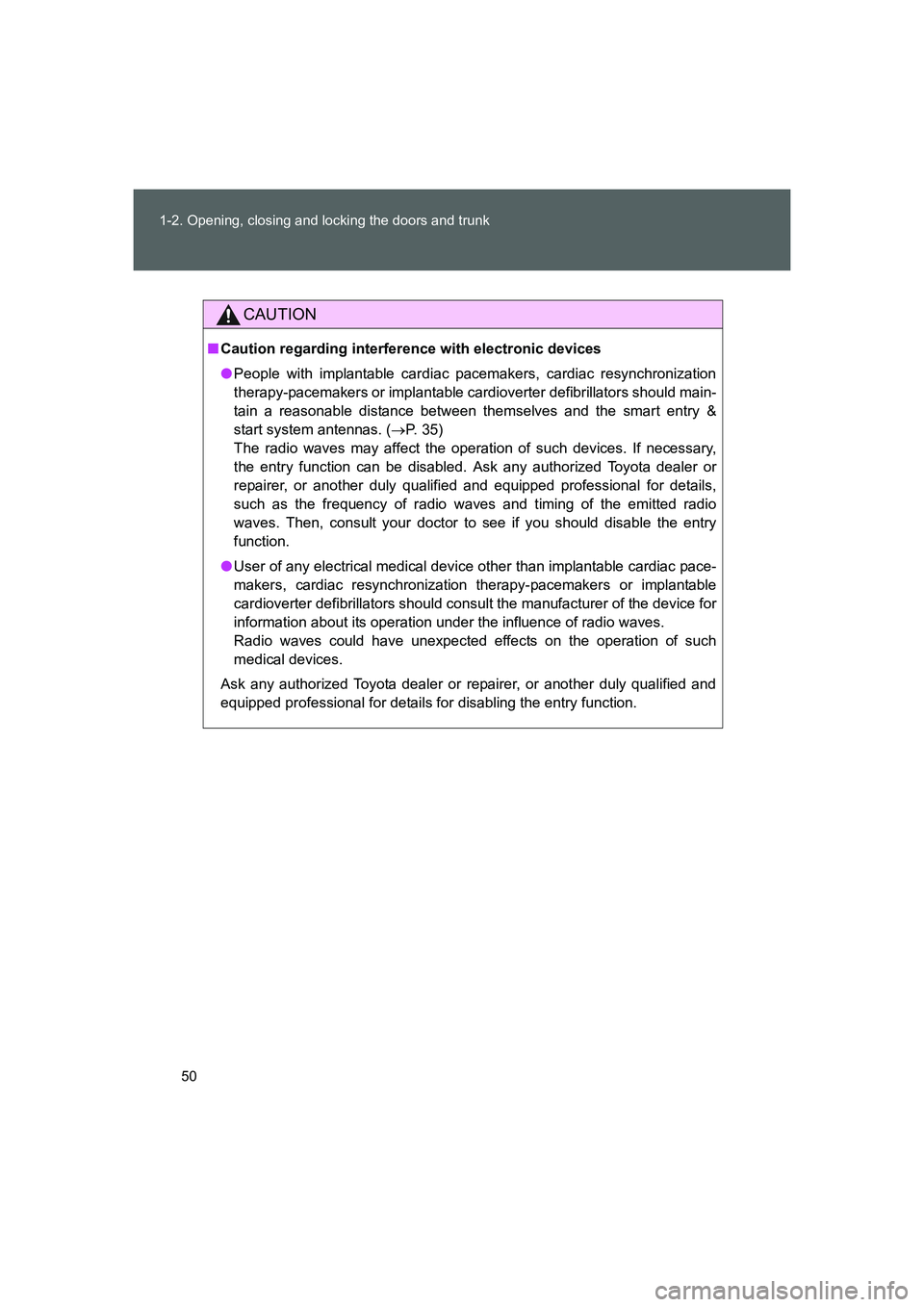

50 1-2. Opening, closing and locking the doors and trunk
FT86_EE
CAUTION
■Caution regarding interference with electronic devices
●People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should main-
tain a reasonable distance between themselves and the smart entry &
start system antennas. (→P. 35)
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for details,
such as the frequency of radio waves and timing of the emitted radio
waves. Then, consult your doctor to see if you should disable the entry
function.
●User of any electrical medical device other than implantable cardiac pace-
makers, cardiac resynchronization therapy-pacemakers or implantable
cardioverter defibrillators should consult the manufacturer of the device for
information about its operation under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such
medical devices.
Ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details for disabling the entry function.
