331 4-3. Do-it-yourself maintenance
4
Maintenance and care
FT86_EE
■Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to
the “Toyota Service Booklet” or “Toyota Warranty Booklet”.)
■If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
■When removing the glove box
Do not forcibly pull the glove box. Otherwise, the lower claws or the lower
claw engagement points may be deformed, making it difficult to reinstall or
close the glove box.
■When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.
86_OM_EE_OM18058E.book 331 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

332
4-3. Do-it-yourself maintenance
FT86_EE
Wireless remote control/electronic key batter y
Replace the battery with a new one if it is depleted.
■You will need the following items:
●Flathead screwdriver
●Lithium battery CR2016 (vehicles without a smart entry & start
system), or CR1632 (vehicles with a smart entry & start sys-
tem)
■Replacing the battery (vehicles without a smart entry & start
system)
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver
with a rag.
To prevent the buttons from
being disassembled, face the
button surface downward.
Remove the module.
STEP 1
STEP 2
86_OM_EE_OM18058E.book 332 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

333 4-3. Do-it-yourself maintenance
4
Maintenance and care
FT86_EE

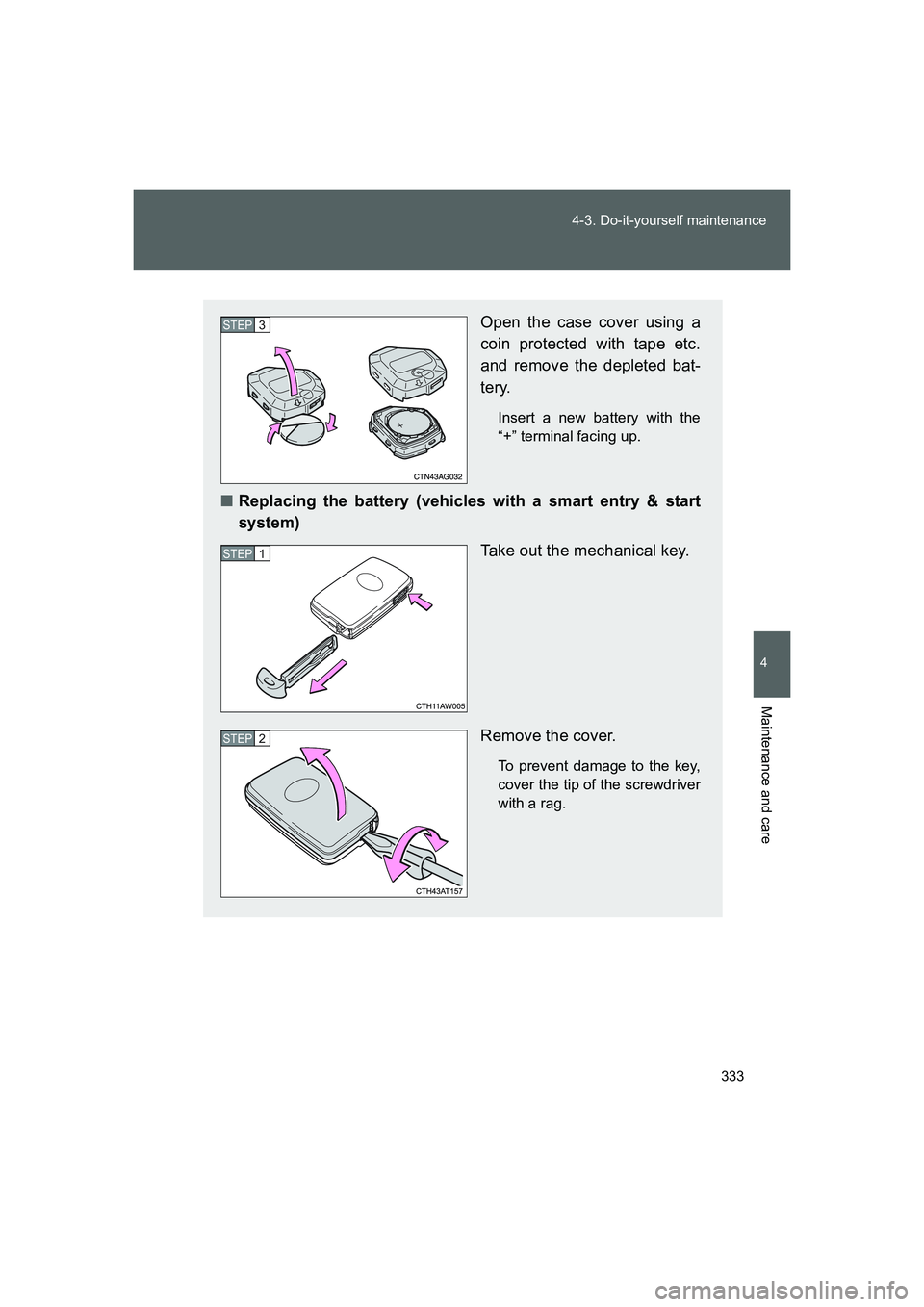

Open the case cover using a
coin protected with tape etc.
and remove the depleted bat-
tery.
Insert a new battery with the
“+” terminal facing up.
■Replacing the battery (vehicles with a smart entry & start
system)
Take out the mechanical key.
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver
with a rag.
STEP 3
STEP 1
STEP 2
86_OM_EE_OM18058E.book 333 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

334 4-3. Do-it-yourself maintenance
FT86_EE
■Use a CR2016 (vehicles without a smart entry & start system) or
CR1632 (vehicles with a smart entry & start system) lithium battery
●Batteries can be purchased at any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional, local electrical appli-
ance shops or camera stores.
●Replace only with the same or equivalent type recommended by the
manufacturer.
●Dispose of used batteries according to local laws.
■If the key battery is depleted
The following symptoms may occur:
●The smart entry & start system (if equipped) and wireless remote control
will not function properly.
●The operational range will be reduced.
■When putting the module back (vehicles without a smart entry & start
system)

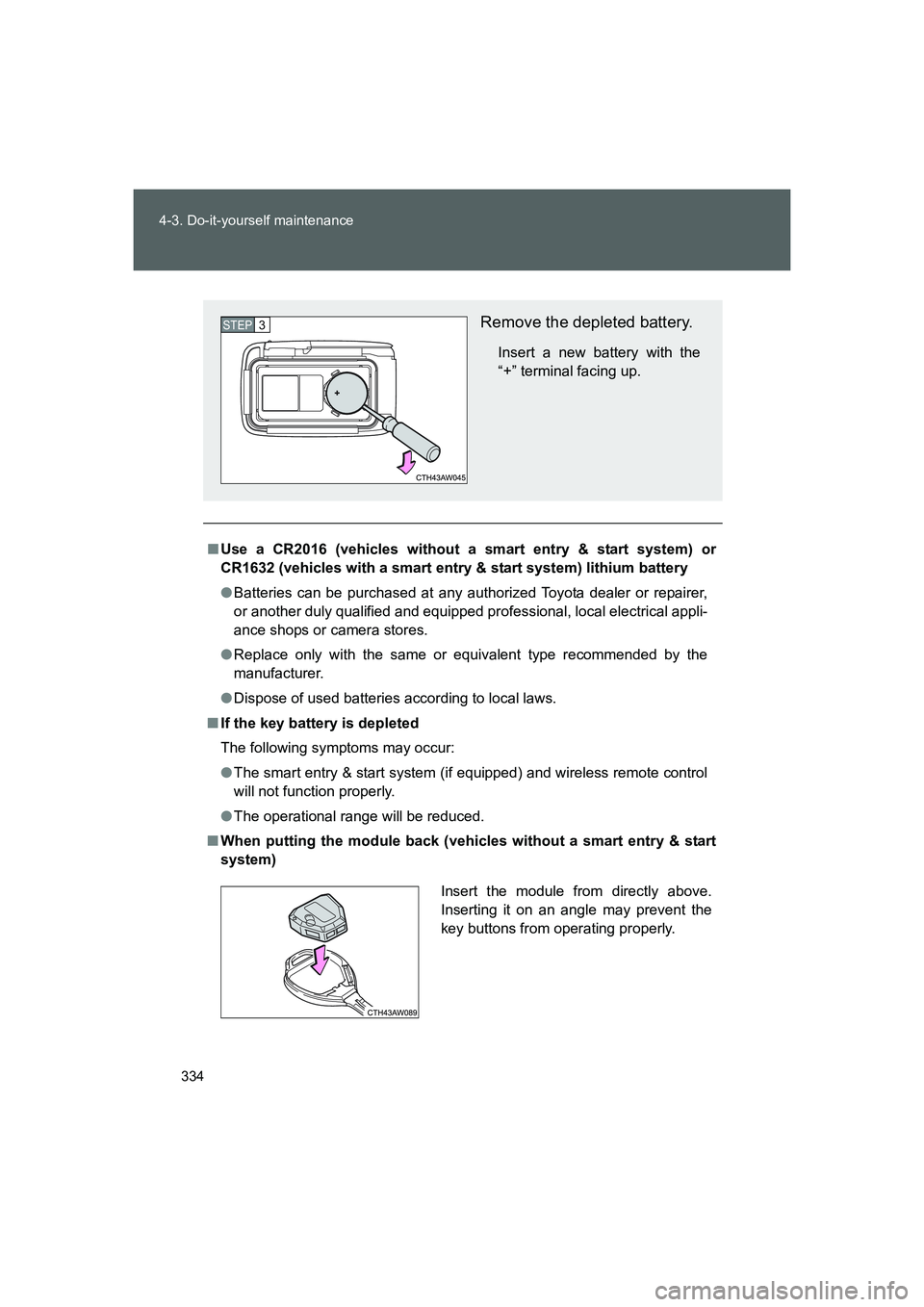

Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP 3
Insert the module from directly above.
Inserting it on an angle may prevent the
key buttons from operating properly.
86_OM_EE_OM18058E.book 334 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

335 4-3. Do-it-yourself maintenance
4
Maintenance and care
FT86_EE
CAUTION
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
■Certification for the lithium battery
●RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS
●Batteries shall not be exposed to excessive heat such as sunshine, fire or
the like.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote control.
●Do not bend either of the battery terminals.
86_OM_EE_OM18058E.book 335 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

336
4-3. Do-it-yourself maintenance
FT86_EE

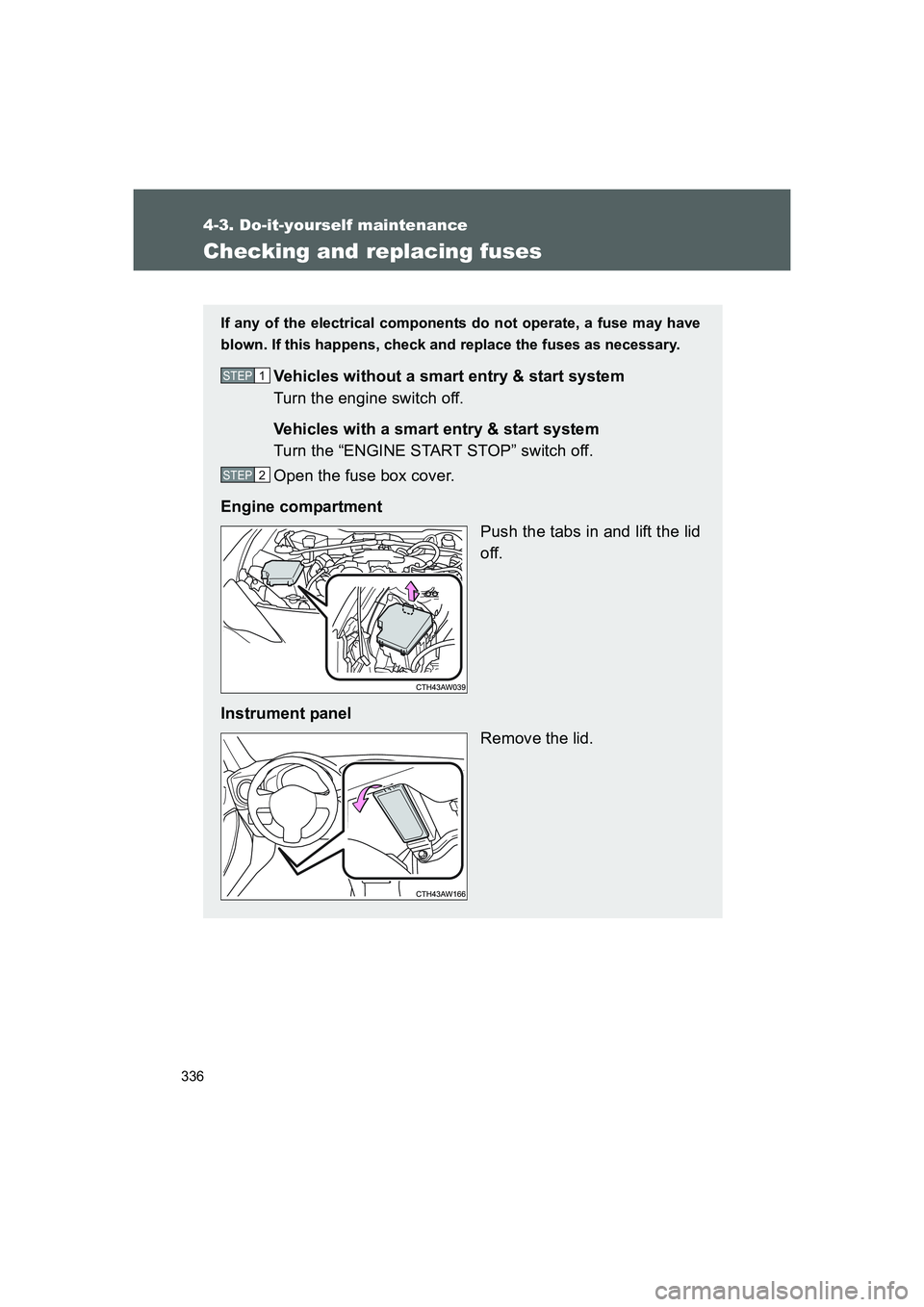

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without a smart entry & start system
Turn the engine switch off.
Vehicles with a smart entry & start system
Turn the “ENGINE START STOP” switch off.
Open the fuse box cover.
Engine compartment
Push the tabs in and lift the lid
off.
Instrument panel
Remove the lid.STEP 1
STEP 2
86_OM_EE_OM18058E.book 336 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

337 4-3. Do-it-yourself maintenance
4
Maintenance and care
FT86_EE

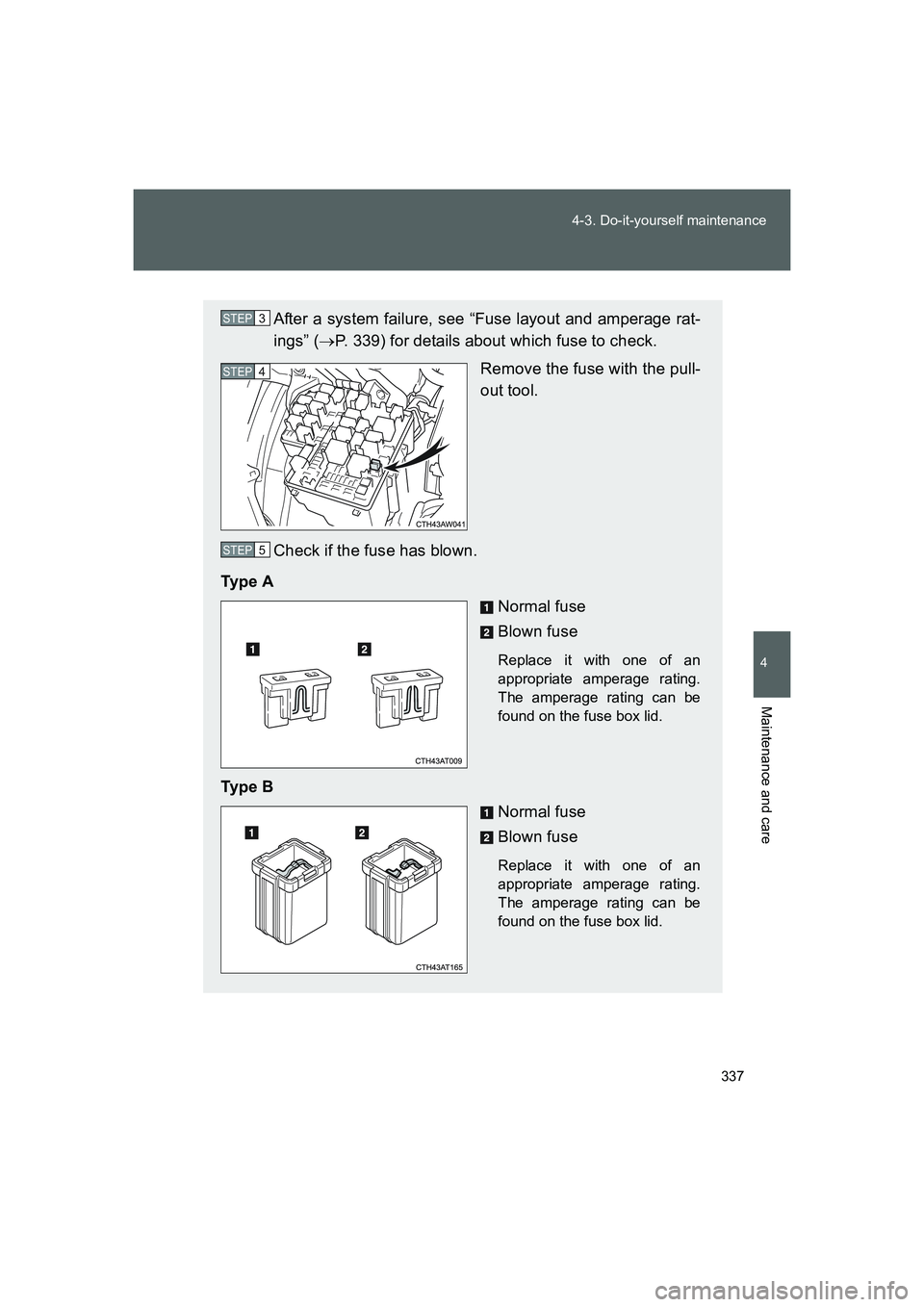

After a system failure, see “Fuse layout and amperage rat-
ings” (→P. 339) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e B
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP 3
STEP 4
STEP 5
86_OM_EE_OM18058E.book 337 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

338 4-3. Do-it-yourself maintenance
FT86_EE

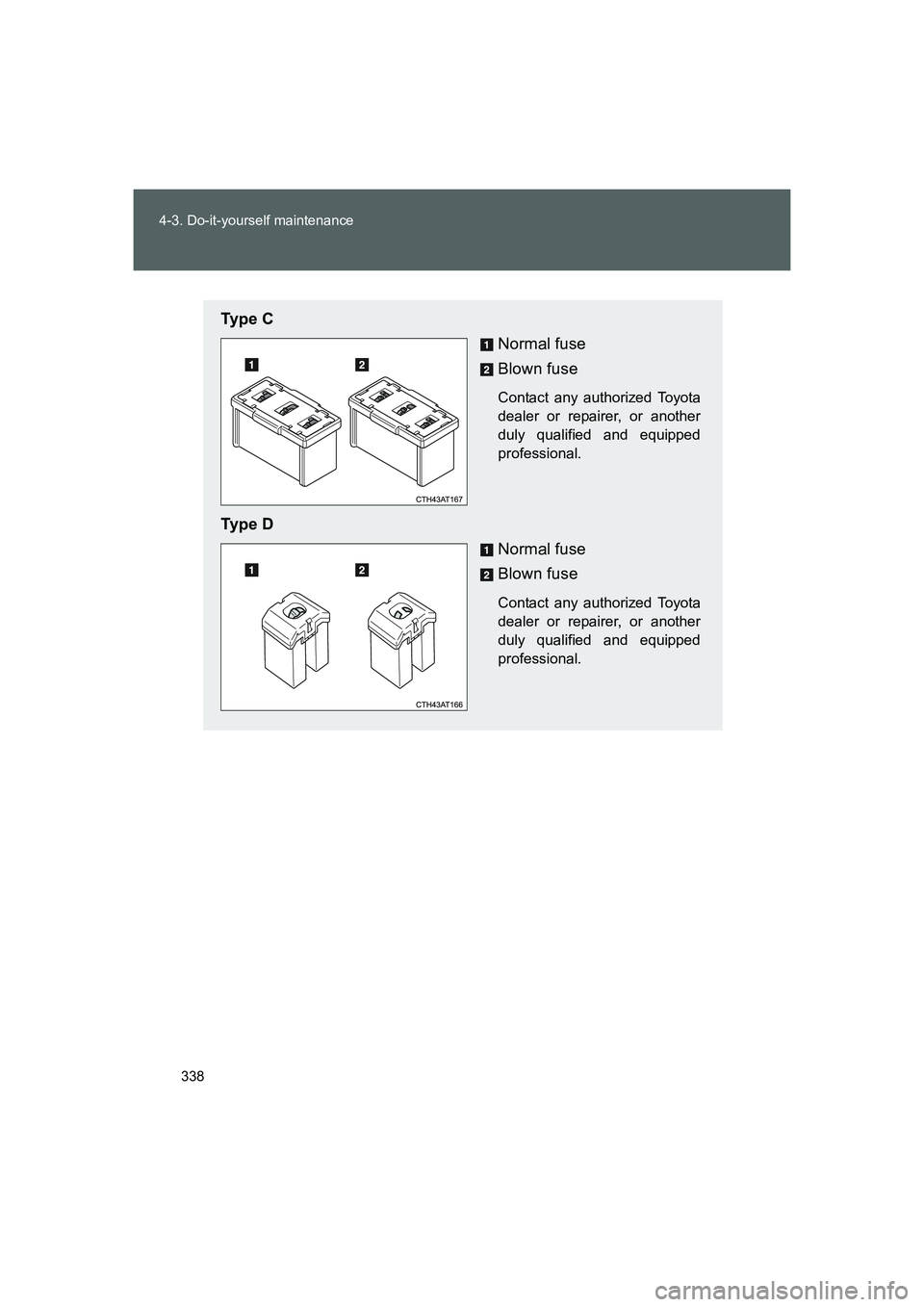

Ty p e C
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
Ty p e D
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
86_OM_EE_OM18058E.book 338 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

339 4-3. Do-it-yourself maintenance
4
Maintenance and care
FT86_EE

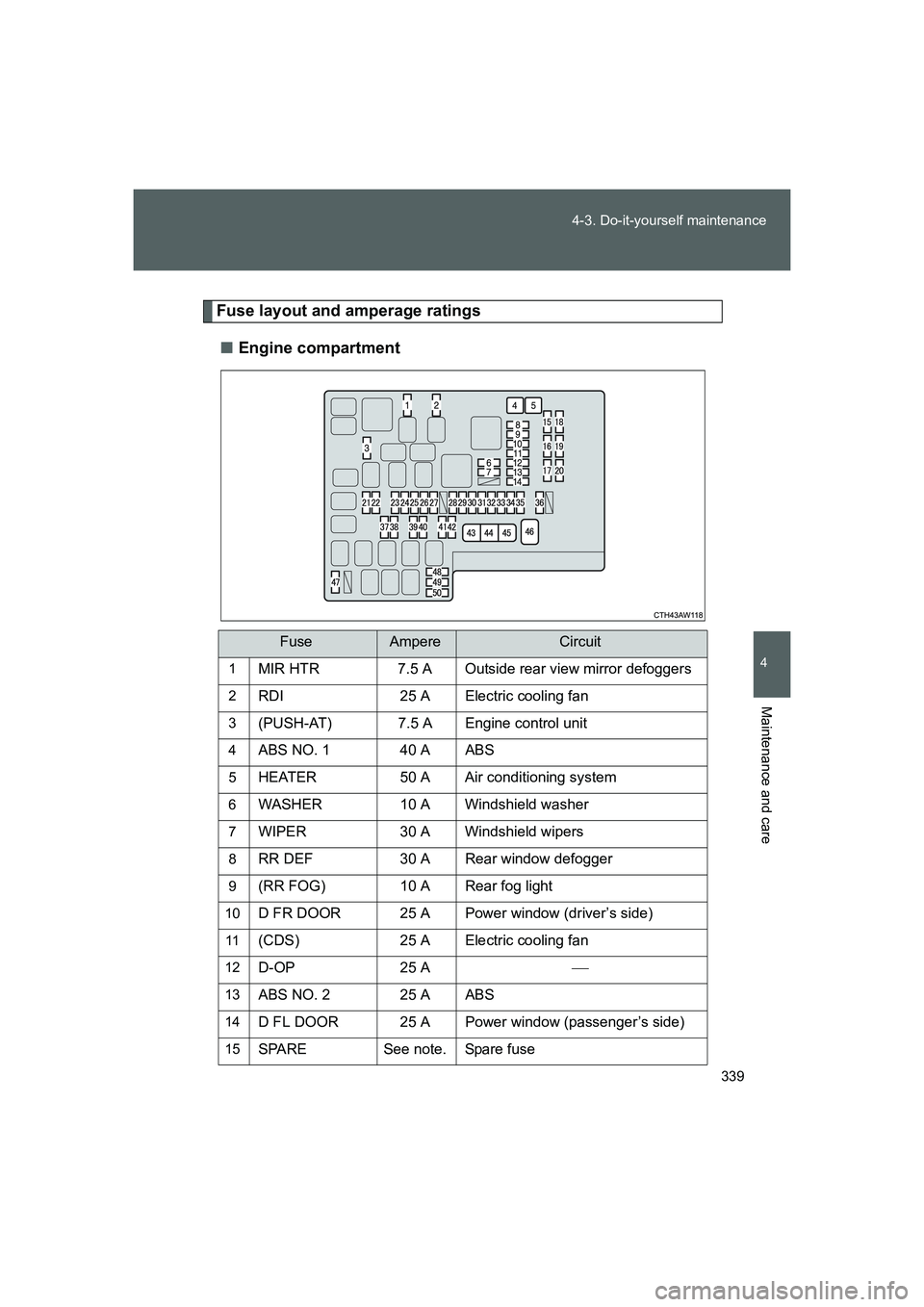

Fuse layout and amperage ratings
■Engine compartment
FuseAmpereCircuit
1MIR HTR 7.5 A Outside rear view mirror defoggers
2RDI 25 A Electric cooling fan
3(PUSH-AT) 7.5 A Engine control unit
4ABS NO. 1 40 A ABS
5HEATER 50 A Air conditioning system
6WASHER 10 A Windshield washer
7WIPER 30 A Windshield wipers
8RR DEF 30 A Rear window defogger
9(RR FOG) 10 A Rear fog light
10D FR DOOR 25 A Power window (driver’s side)
11(CDS) 25 A Electric cooling fan
12D-OP 25 A
13ABS NO. 2 25 A ABS
14D FL DOOR 25 A Power window (passenger’s side)
15SPARE See note. Spare fuse
86_OM_EE_OM18058E.book 339 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

340 4-3. Do-it-yourself maintenance
FT86_EE

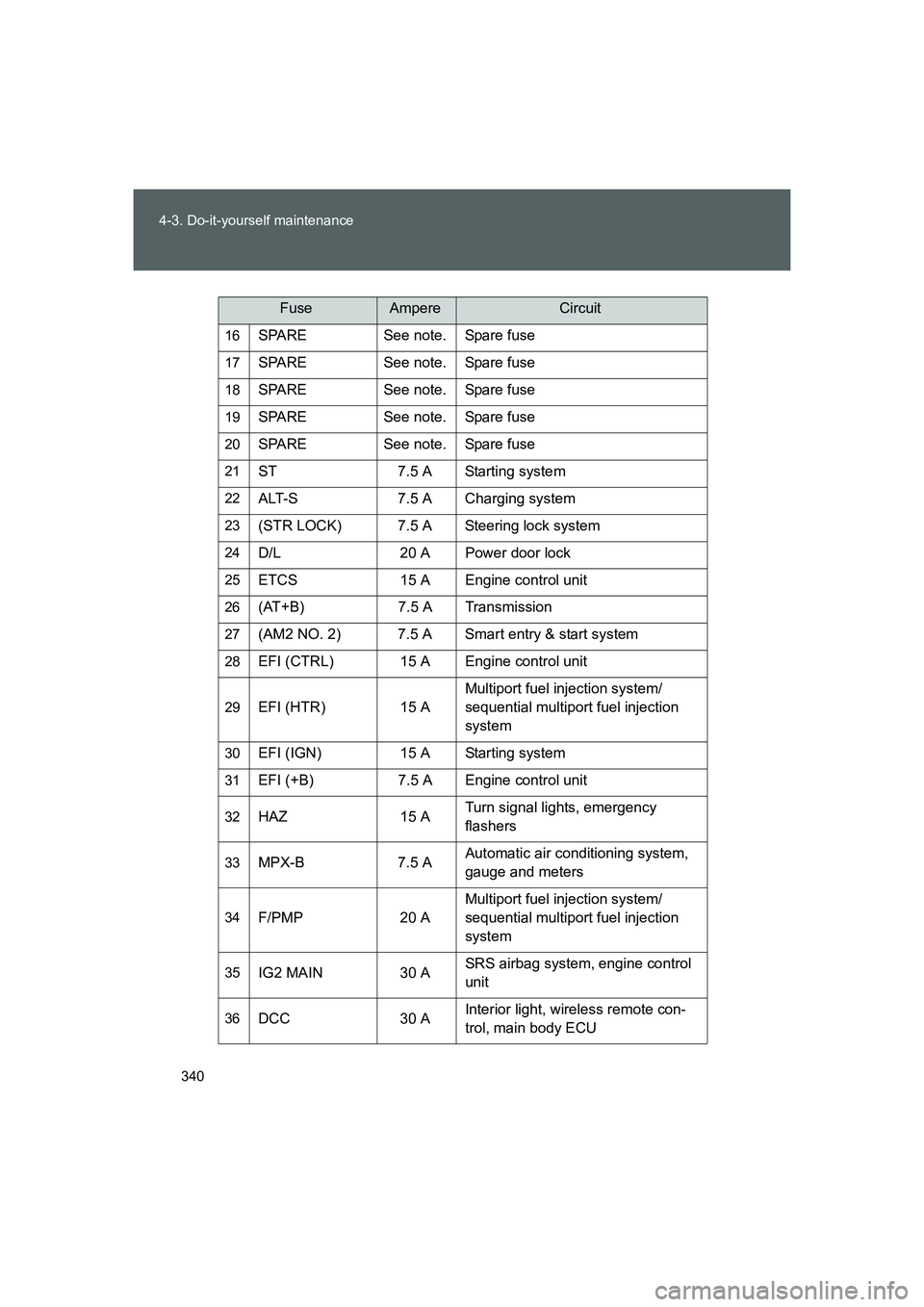

16SPARE See note. Spare fuse
17SPARE See note. Spare fuse
18SPARE See note. Spare fuse
19SPARE See note. Spare fuse
20SPARE See note. Spare fuse
21ST 7.5 A Starting system
22ALT-S 7.5 A Charging system
23(STR LOCK) 7.5 A Steering lock system
24D/L 20 A Power door lock
25ETCS 15 A Engine control unit
26(AT+B) 7.5 A Transmission
27(AM2 NO. 2) 7.5 A Smart entry & start system
28EFI (CTRL) 15 A Engine control unit
29EFI (HTR) 15 AMultiport fuel injection system/
sequential multiport fuel injection
system
30EFI (IGN) 15 A Starting system
31EFI (+B) 7.5 A Engine control unit
32HAZ 15 ATurn signal lights, emergency
flashers
