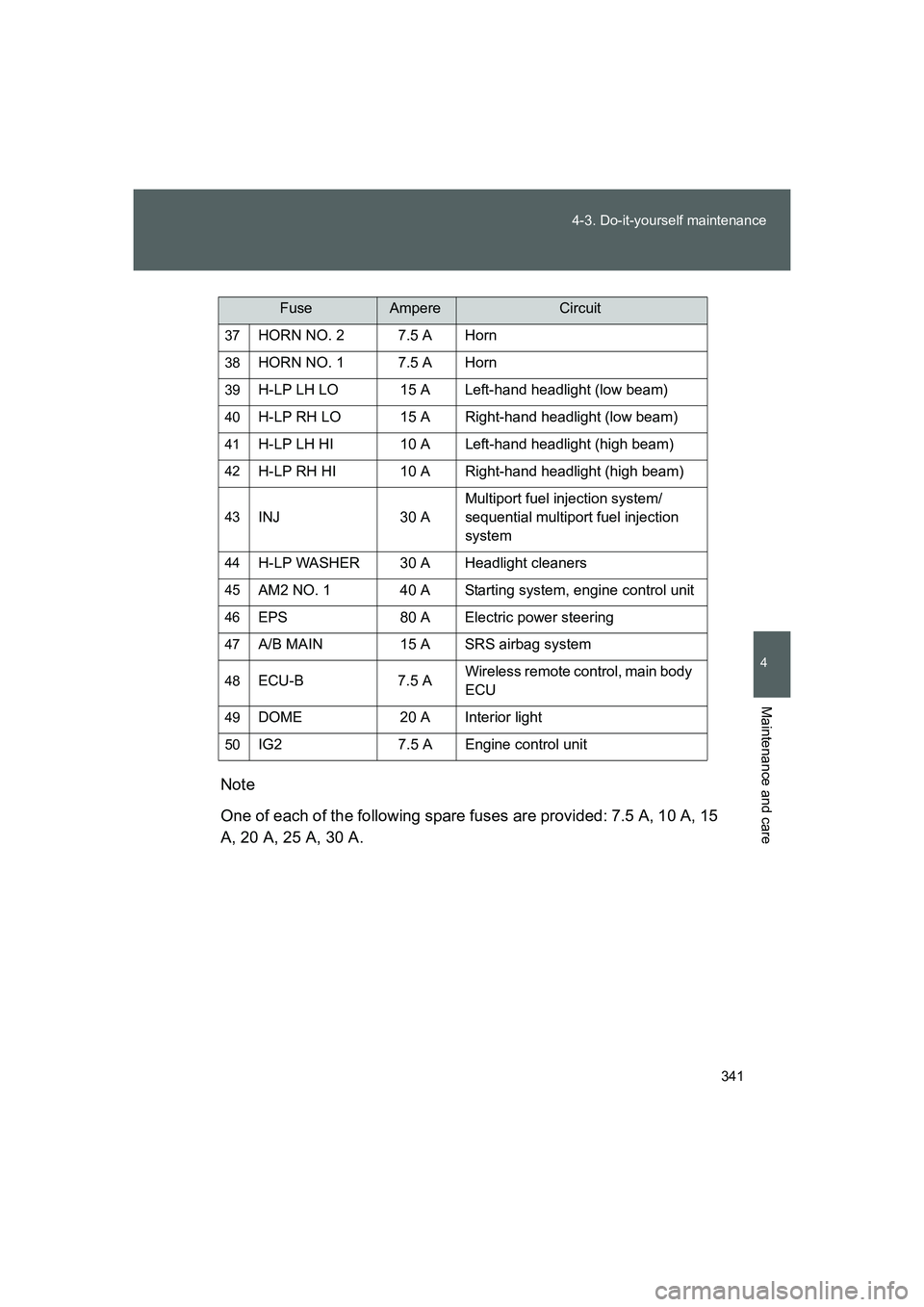

TOYOTA GT86 2016  Owners Manual (in English) 341 4-3. Do-it-yourself maintenance
4
Maintenance and care
FT86_EENote
One of each of the following spare fuses are provided: 7.5 A, 10 A, 15
A, 20 A, 25 A, 30 A.
37HORN NO. 2 7.5 A Horn
38HORN NO. 1

Page 342 of 464

TOYOTA GT86 2016  Owners Manual (in English) 342 4-3. Do-it-yourself maintenance

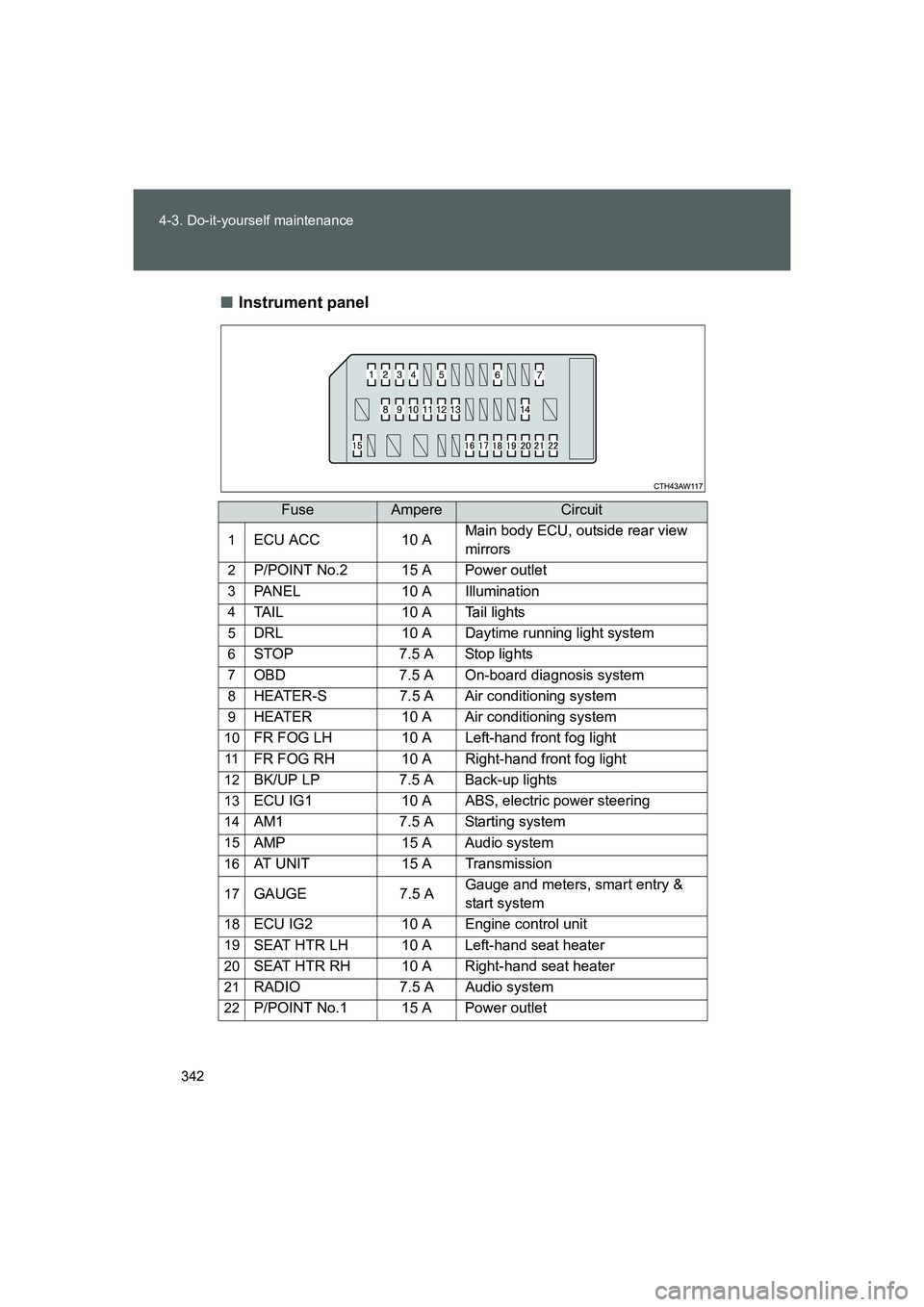

FT86_EE■Instrument panel
FuseAmpereCircuit
1ECU ACC 10 AMain body ECU, outside rear view
mirrors
2P/POINT No.2 15 A Power outlet
3PANEL 10 A Illumination
4TAIL 1

Page 343 of 464

TOYOTA GT86 2016  Owners Manual (in English) 343 4-3. Do-it-yourself maintenance
4
Maintenance and care
FT86_EE

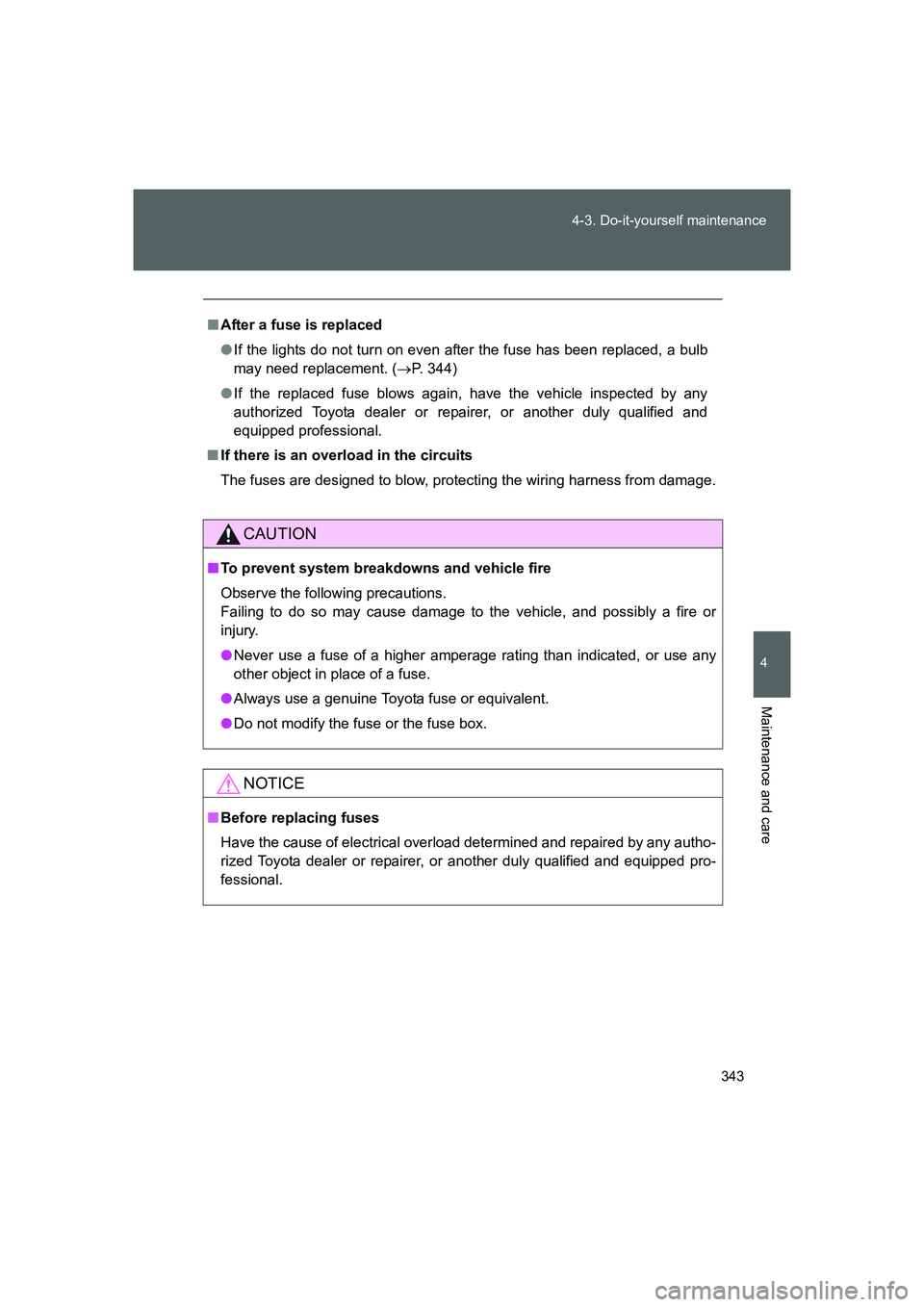

■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (→P

Page 344 of 464

TOYOTA GT86 2016  Owners Manual (in English) 344
4-3. Do-it-yourself maintenance
FT86_EE

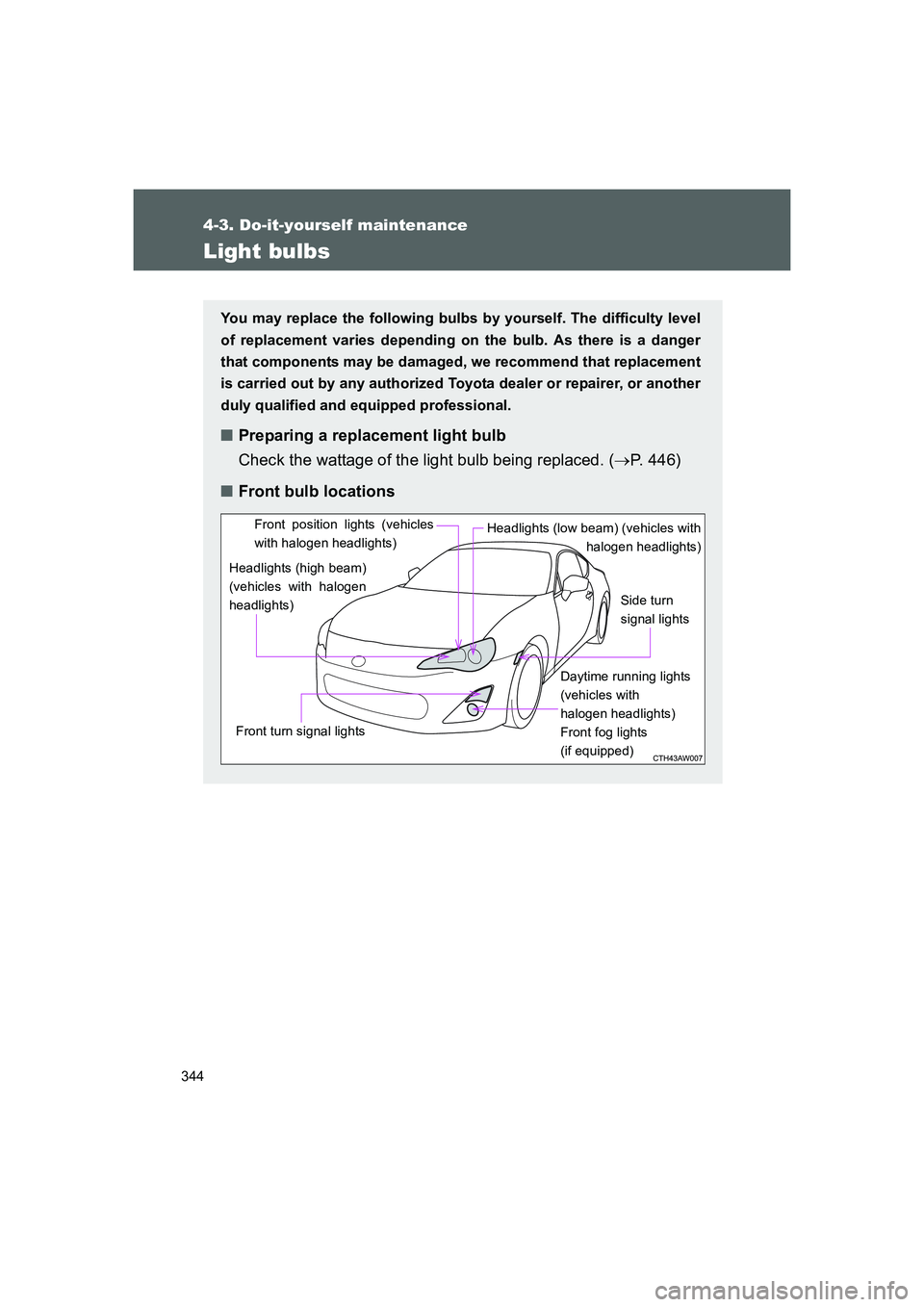

Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. As there is a danger
that com

Page 345 of 464

TOYOTA GT86 2016  Owners Manual (in English) 345 4-3. Do-it-yourself maintenance
4
Maintenance and care
FT86_EE

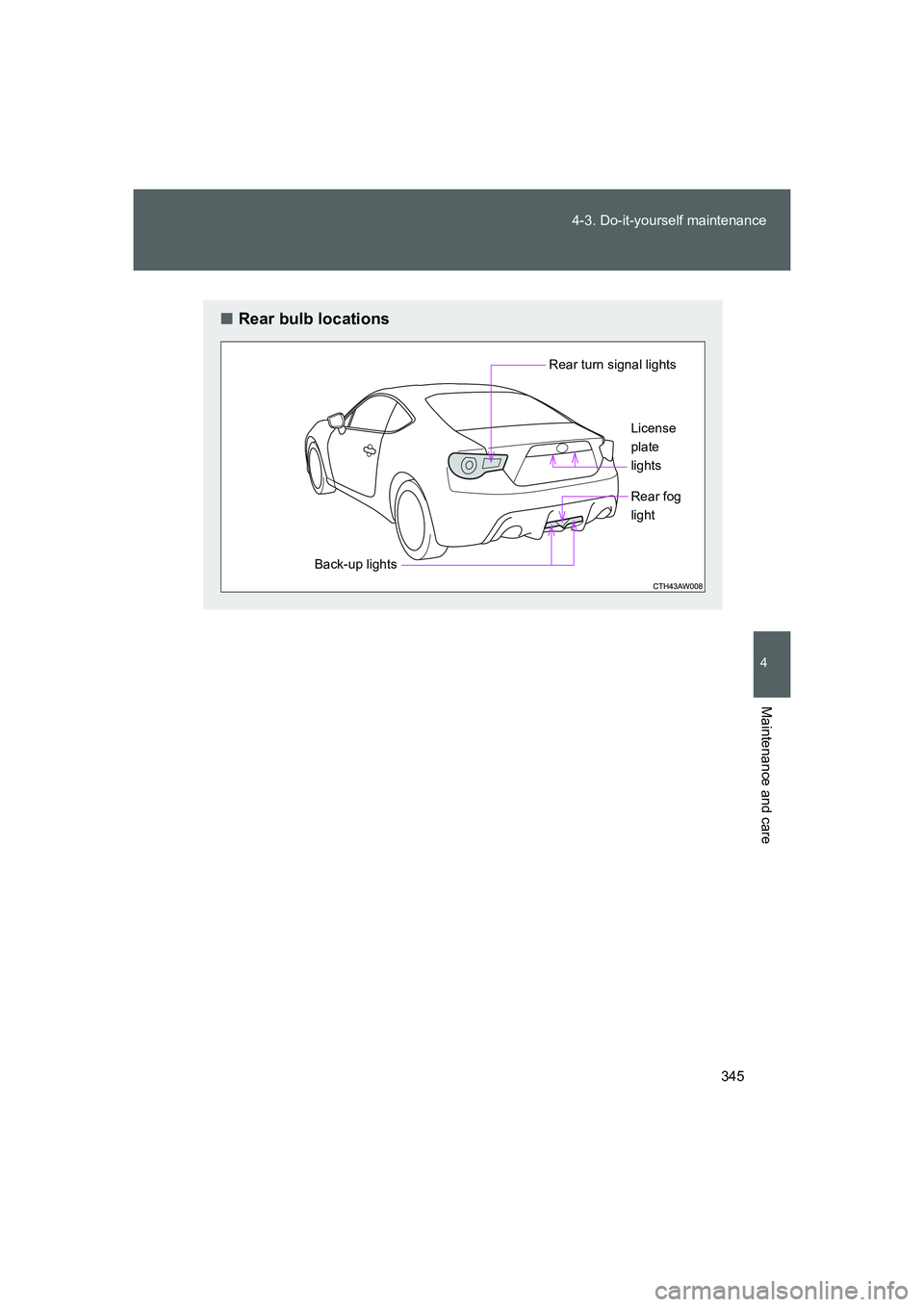

■Rear bulb locations
Rear turn signal lights
Back-up lightsLicense
plate
lights
Rear fog
light
86_OM_EE_OM18058E.book  345 ペー

Page 346 of 464

TOYOTA GT86 2016  Owners Manual (in English) 346 4-3. Do-it-yourself maintenance
FT86_EE

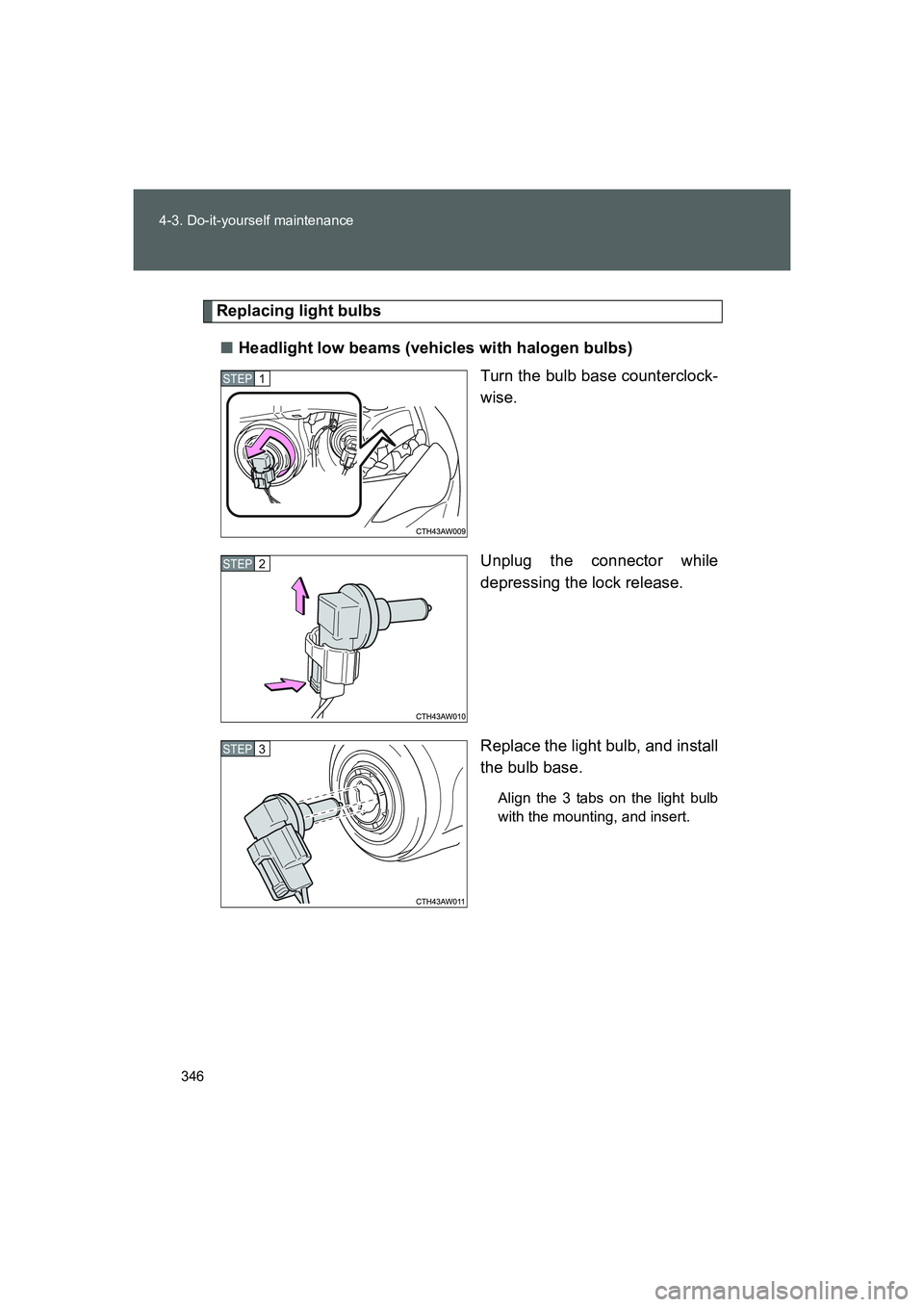

Replacing light bulbs
■Headlight low beams (vehicles with halogen bulbs)
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the

Page 347 of 464

TOYOTA GT86 2016  Owners Manual (in English) 347 4-3. Do-it-yourself maintenance
4
Maintenance and care
FT86_EETurn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlight low beams on once and
visu

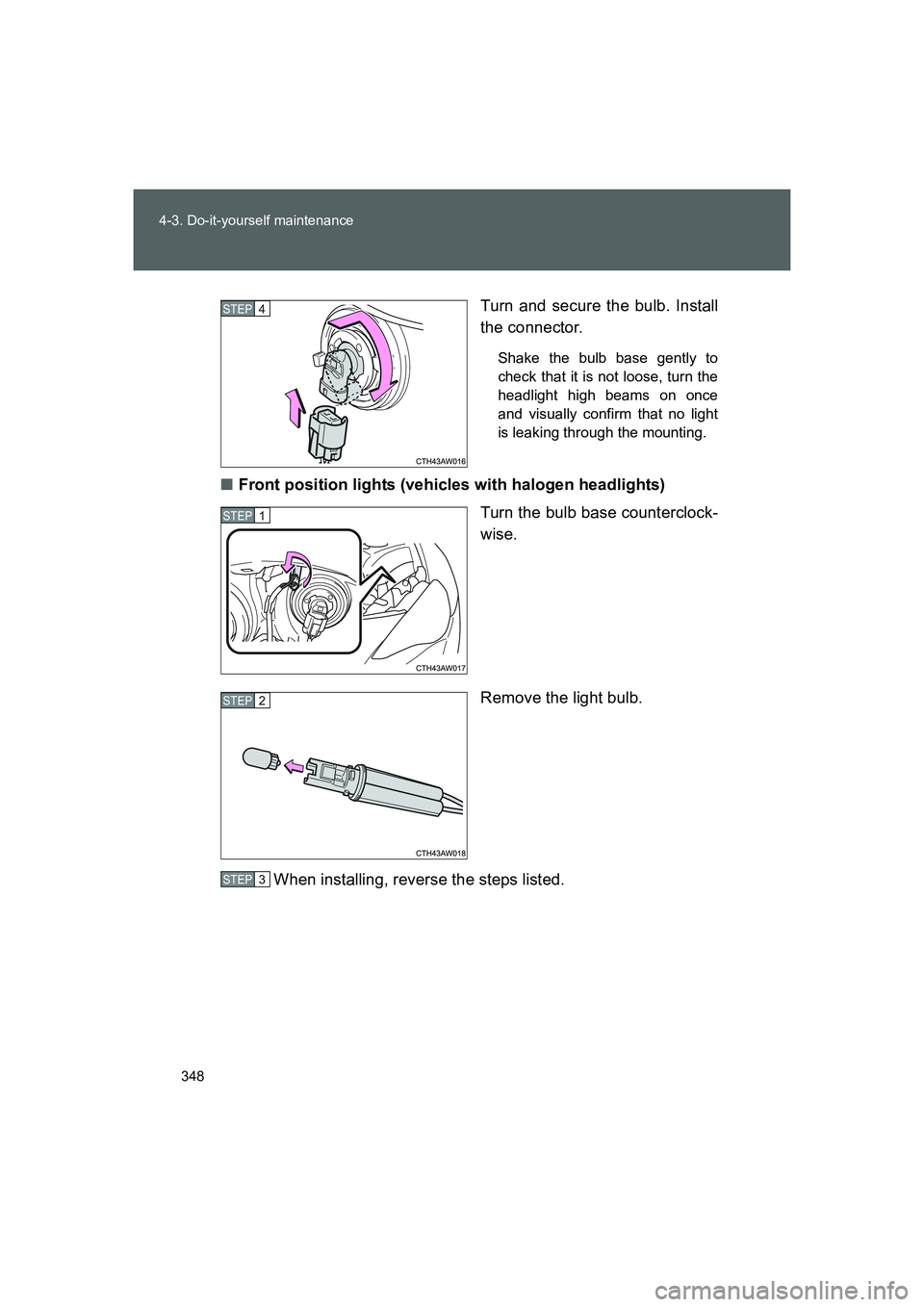

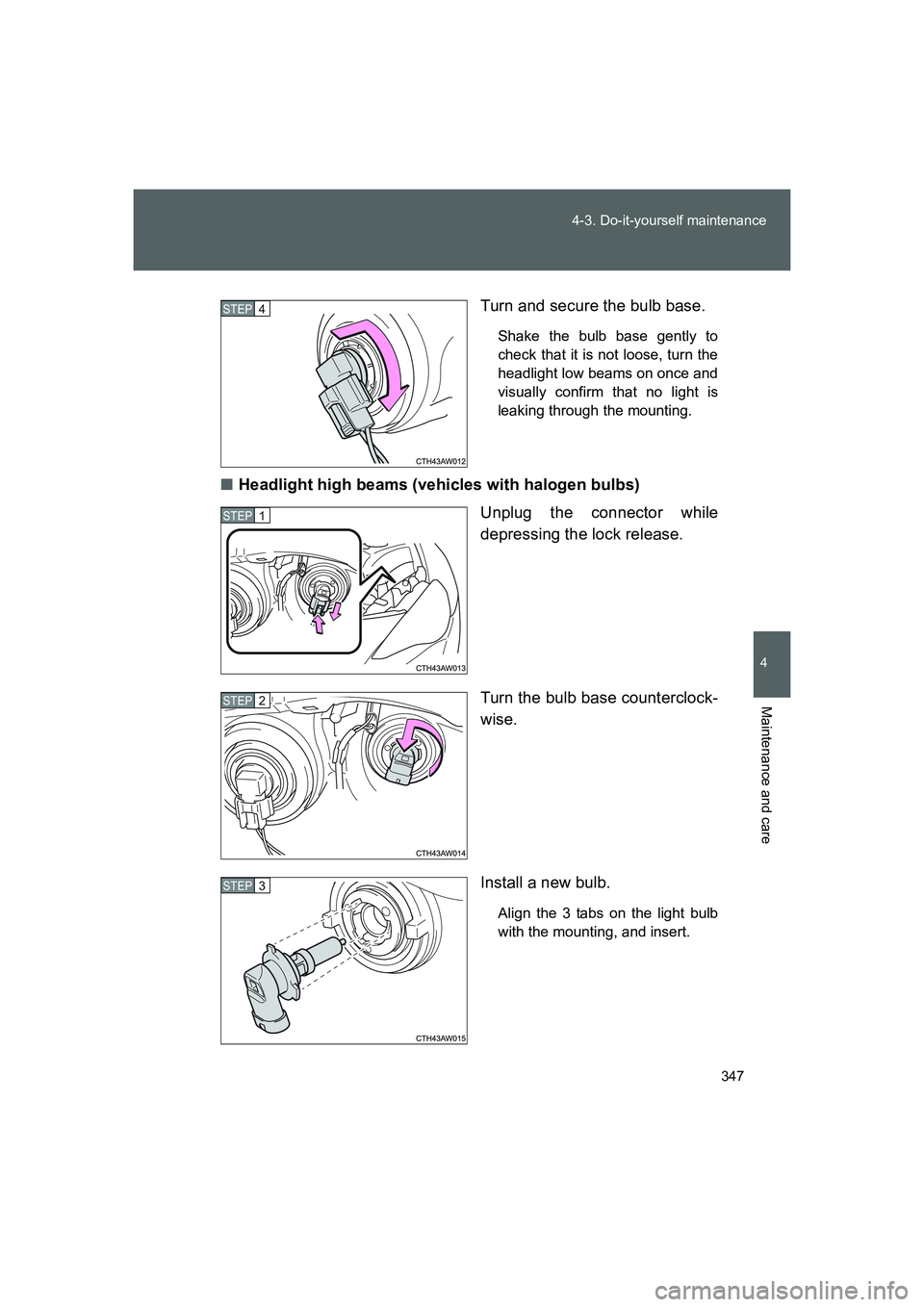

Page 348 of 464

TOYOTA GT86 2016  Owners Manual (in English) 348 4-3. Do-it-yourself maintenance
FT86_EETurn and secure the bulb. Install
the connector.
Shake the bulb base gently to
check that it is not loose, turn the
headlight high beams on once
and visually

Page 349 of 464

TOYOTA GT86 2016  Owners Manual (in English) 349 4-3. Do-it-yourself maintenance
4
Maintenance and care

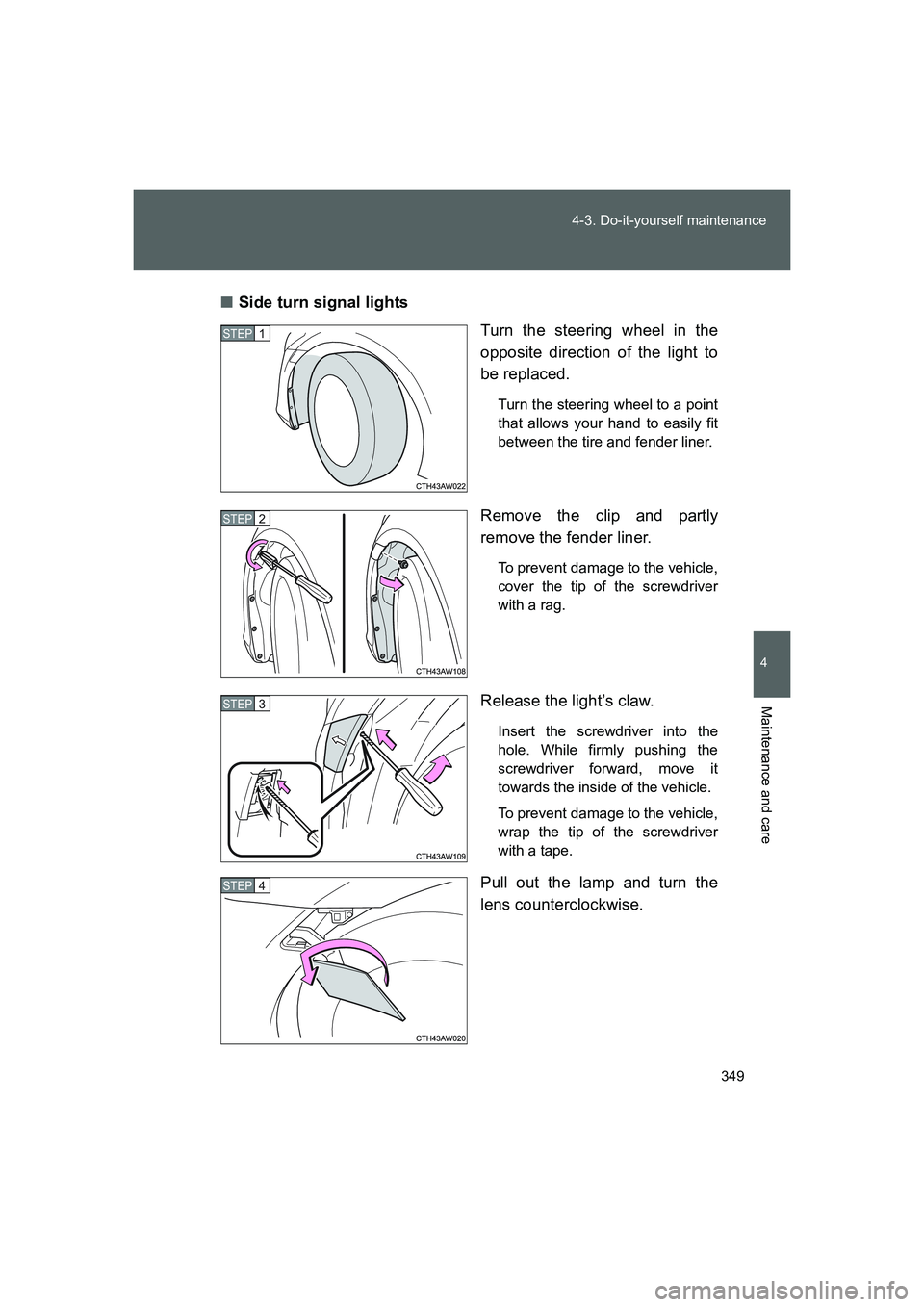

FT86_EE■Side turn signal lights
Turn the steering wheel in the
opposite direction of the light to
be replaced.
Turn the steering wheel to a

Page 350 of 464

TOYOTA GT86 2016  Owners Manual (in English) 350 4-3. Do-it-yourself maintenance
FT86_EERemove the light bulb.
When installing, reverse the steps listed.

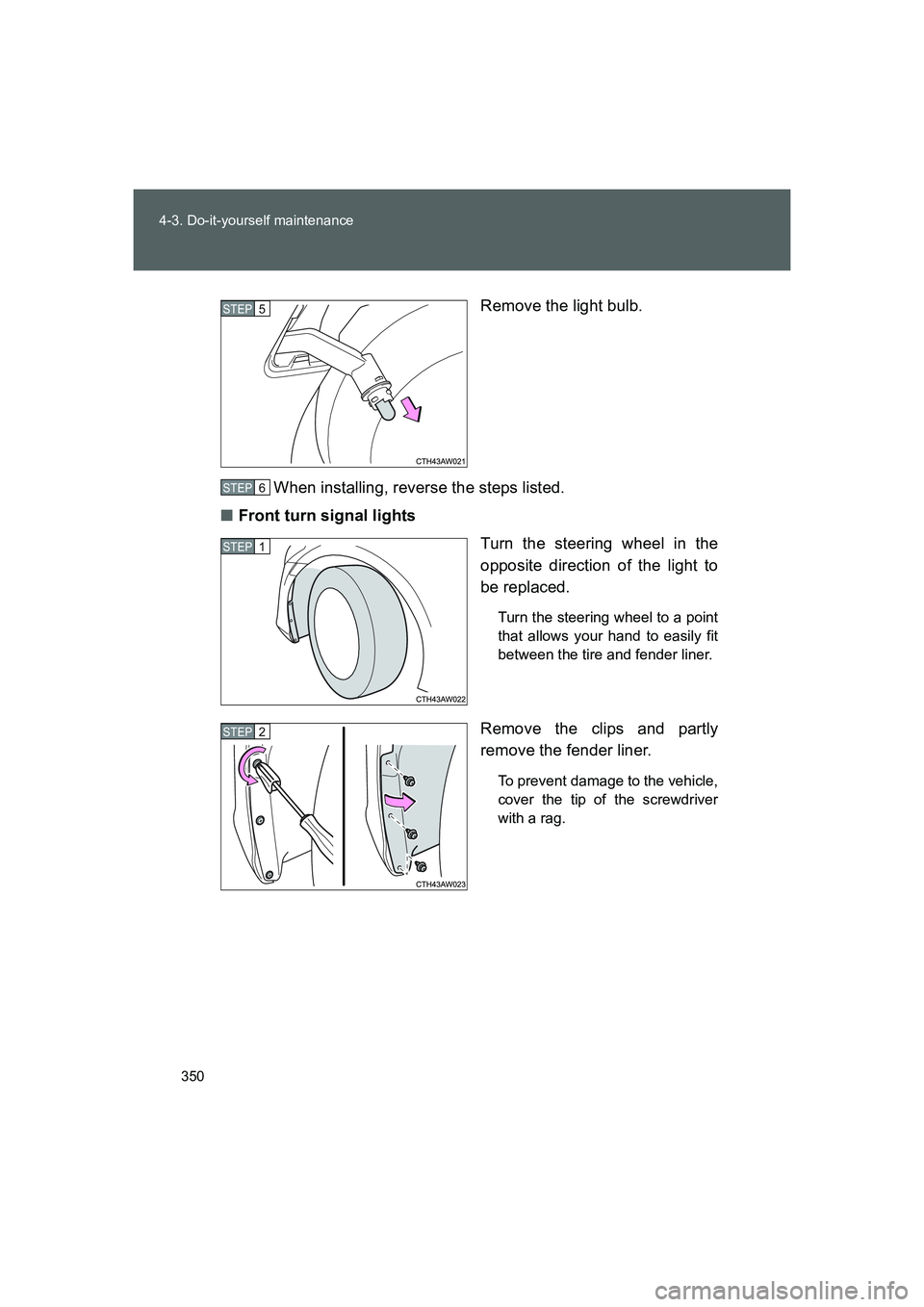

■Front turn signal lights
Turn the steering wheel in the
opposite direction of the light
