TOYOTA GT86 2017 (in English) Owner's Guide

1Before driving
31
86_EE (OM18071E)
1-1. Key informationKeys.................................... 32
1-2. Opening, closing and locking the doors and
trunk
Smart entry & start system ...................... 35
Wireless remote control ...... 52
Doors .................................. 57
Trunk .................................. 60
1-3. Adjustable components (seats, mirrors, steering
wheel)
Front seats.......................... 66
Rear seats .......................... 69
Head restraints ................... 71
Seat belts............................ 73
Steering wheel .................... 80
Anti-glare inside rear view mirror ................................ 81
Outside rear view mirrors .............................. 82 1-4. Opening and closing the
windows
Power windows ................... 85
1-5. Refueling Opening the fuel tank cap .................................... 89
1-6. Theft deterrent system Engine immobilizer system .............................. 93
Double locking system ...... 102
1-7. Safety information Correct driving posture ..... 104
SRS airbag (Supplemental Restraint
System airbag) ............... 106
Child restraint systems ..... 136
Installing child restraints ......................... 145
Airbag manual on-off system ............................ 155

32
86_EE (OM18071E)
1-1. Key information

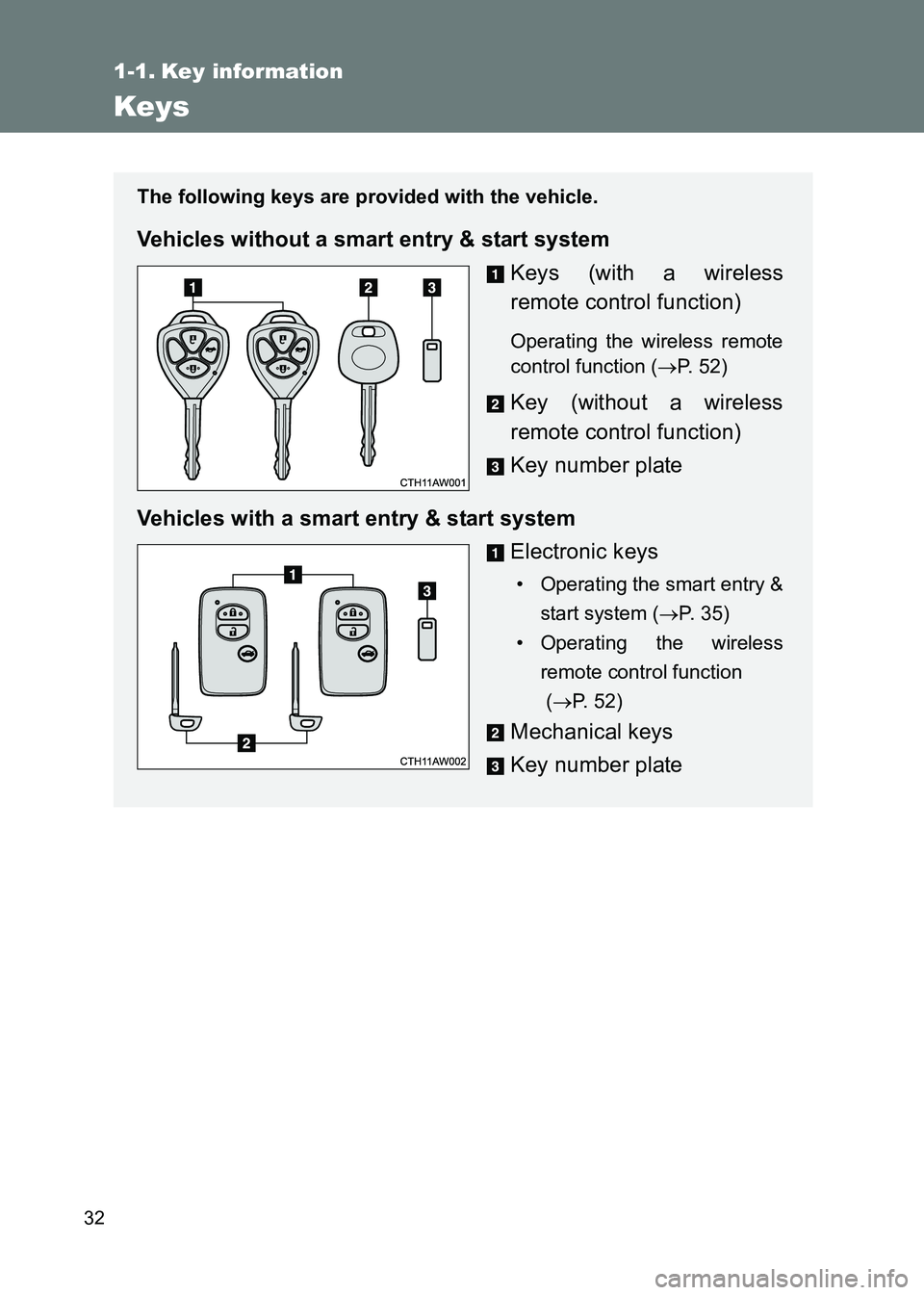

Keys
The following keys are provided with the vehicle.
Vehicles without a smart entry & start systemKeys (with a wireless
remote control function)
Operating the wireless remote
control function (→P. 52)
Key (without a wireless
remote control function)
Key number plate
Vehicles with a smart entry & start system Electronic keys
• Operating the smart entry &start system ( →P. 35)
• Operating the wireless remote control function
(→ P. 5 2 )
Mechanical keys
Key number plate

33
1-1. Key information
1
Before driving
86_EE (OM18071E)
Using the mechanical key (vehicles
with a smart entry & start system)
To take out the mechanical key,
slide the release lever and take
the key out.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or entry
function does not operate prop-
erly, you will need the mechanical
key. (→P. 455)
■Key number plate
Keep the plate in a safe place, not in the vehicle. In the event that a key
(without a smart entry & start system) or mechanical key (with a smart entry
& start system) is lost, a new key can be made by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional, using
the key number plate. ( →P. 454)
■ When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons
are not likely to be pressed accidentally. Pressing a button may cause the
key to emit radio waves that could interfere with the operation of the aircraft.

34
1-1. Key information
86_EE (OM18071E)

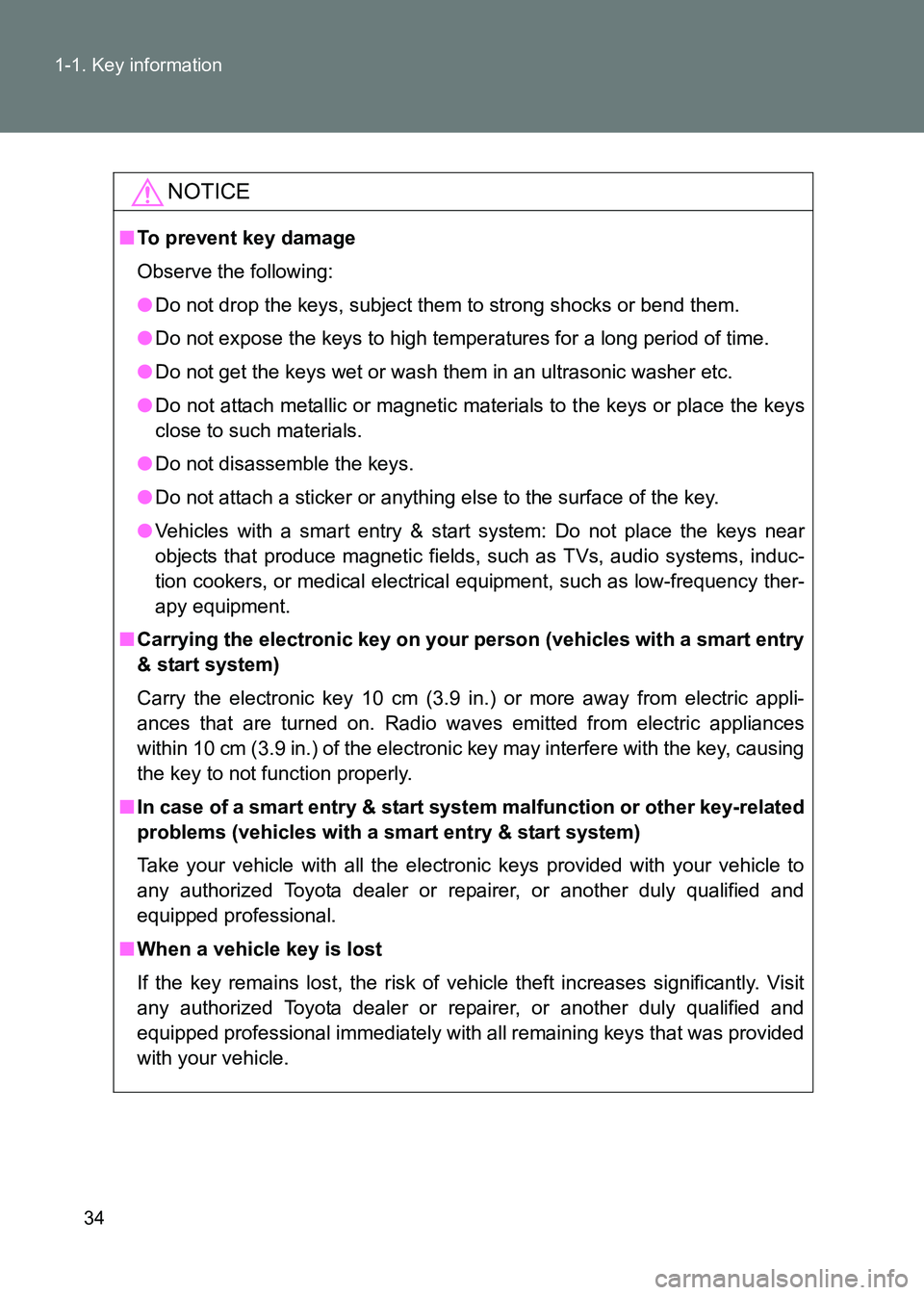

NOTICE
■
To prevent key damage
Observe the following:
●Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for a long period of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the key.
● Vehicles with a smart entry & start system: Do not place the keys near
objects that produce magnetic fields, such as TVs, audio systems, induc-
tion cookers, or medical electrical equipment, such as low-frequency ther-
apy equipment.
■ Carrying the electronic key on your person (vehicles with a smart entry
& start system)
Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 10 cm (3.9 in.) of the electronic key may interfere with the key, causing
the key to not function properly.
■ In case of a smart entry & start syst em malfunction or other key-related
problems (vehicles with a smart entry & start system)
Take your vehicle with all the electronic keys provided with your vehicle to
any authorized Toyota dealer or re pairer, or another duly qualified and
equipped professional.
■ When a vehicle key is lost
If the key remains lost, the risk of vehicle theft increases significantly. Visit
any authorized Toyota dealer or re pairer, or another duly qualified and
equipped professional immediately with all remaining keys that was provided
with your vehicle.

35
1
Before driving
86_EE (OM18071E)
1-2. Opening, closing and locking the doors and trunk

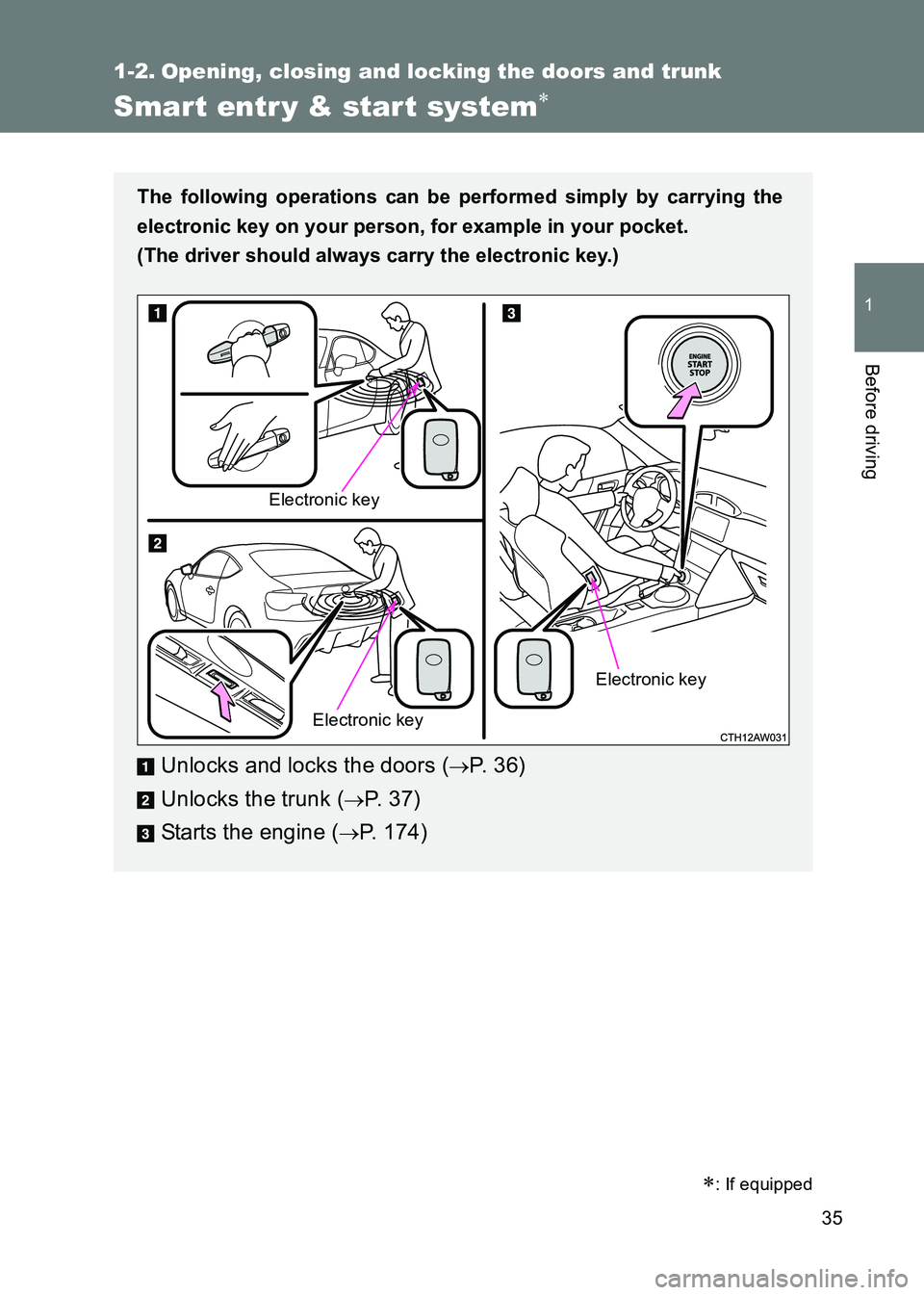

Smart entr y & start system∗
The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Unlocks and locks the doors (→P. 3 6 )
Unlocks the trunk (
→P. 3 7 )
Starts the engine (
→P. 174)
Electronic key
Electronic key
Electronic key
∗: If equipped

36
1-2. Opening, closing and locking the doors and trunk
86_EE (OM18071E)

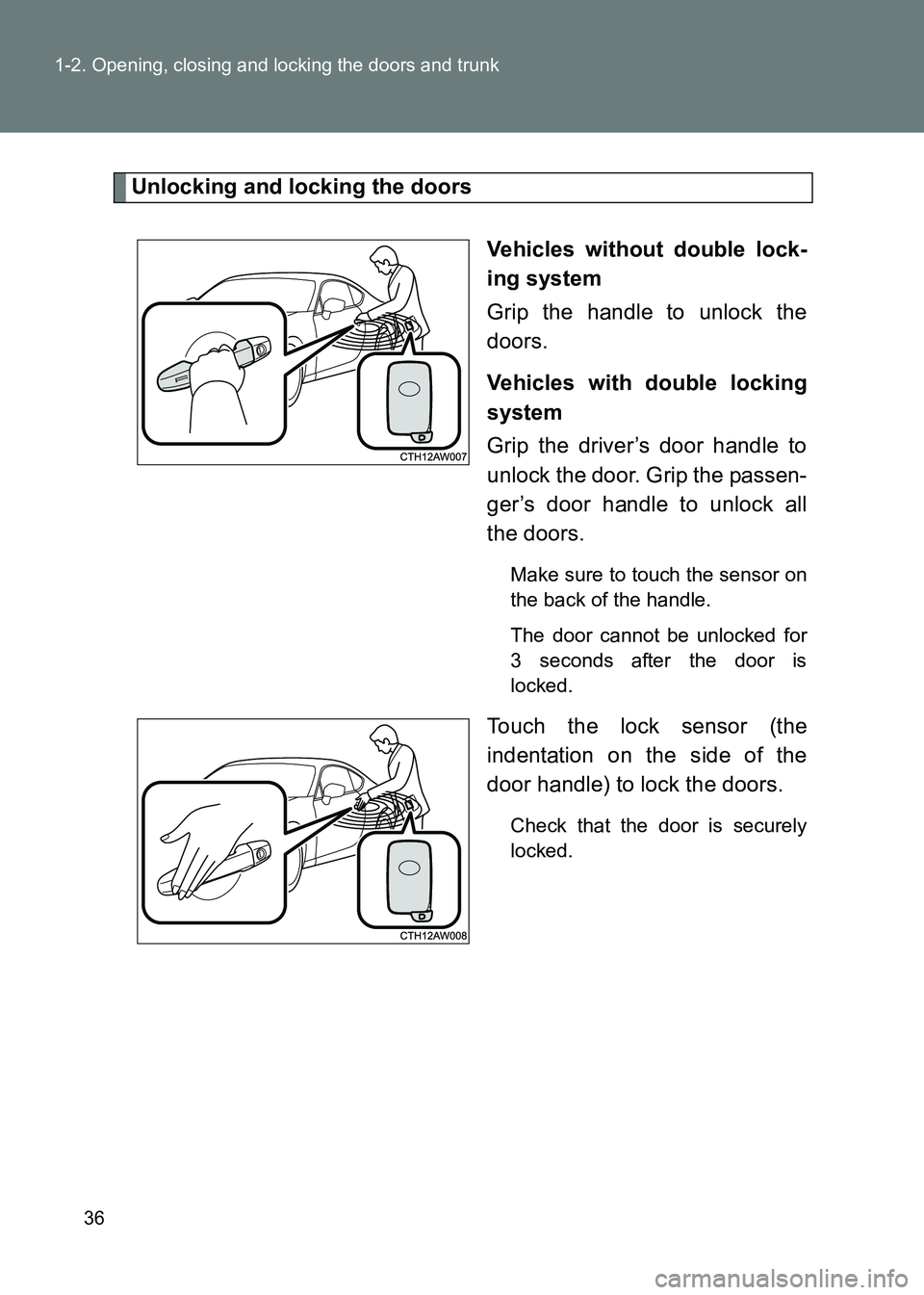

Unlocking and locking the doors
Vehicles without double lock-
ing system
Grip the handle to unlock the
doors.
Vehicles with double locking
system
Grip the driver’s door handle to
unlock the door. Grip the passen-
ger’s door handle to unlock all
the doors.
Make sure to touch the sensor on
the back of the handle.
The door cannot be unlocked for
3 seconds after the door is
locked.
Touch the lock sensor (the
indentation on the side of the
door handle) to lock the doors.
Check that the door is securely
locked.

37
1-2. Opening, closing and locking the doors and trunk
1
Before driving
86_EE (OM18071E)

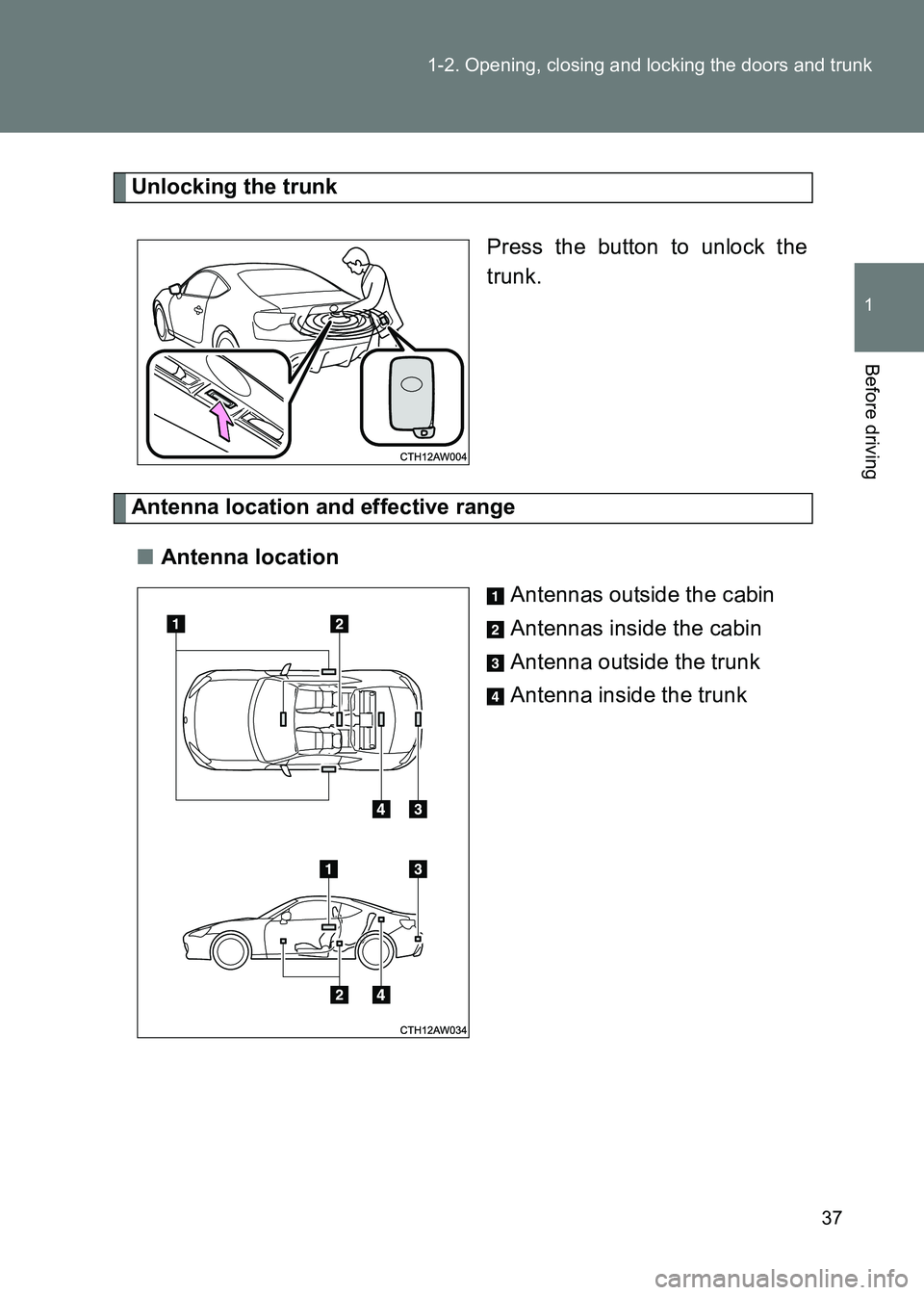

Unlocking the trunk
Press the button to unlock the
trunk.
Antenna location and effective range■ Antenna location
Antennas outside the cabin
Antennas inside the cabin
Antenna outside the trunk
Antenna inside the trunk

38
1-2. Opening, closing and locking the doors and trunk
86_EE (OM18071E)
■
Effective range (areas within which the electronic key is
detected)
When locking or unlockingthe doors
The system can be operated
when the electronic key is
within about 0.4 - 0.8 m (1.3 -
2.6 ft.) of either of the outside
door handles. (Only the
doors detecting the key can
be operated.)
When unlocking the trunk
The system can be operated
when the electronic key is
within about 0.4 - 0.8 m (1.3 -
2.6 ft.) of the trunk release
button.
When starting the engineor changing “ENGINE
START STOP” switch
modes
The system can be operated
when the electronic key is
inside the vehicle.

39
1-2. Opening, closing and locking the doors and trunk
1
Before driving
86_EE (OM18071E)
■

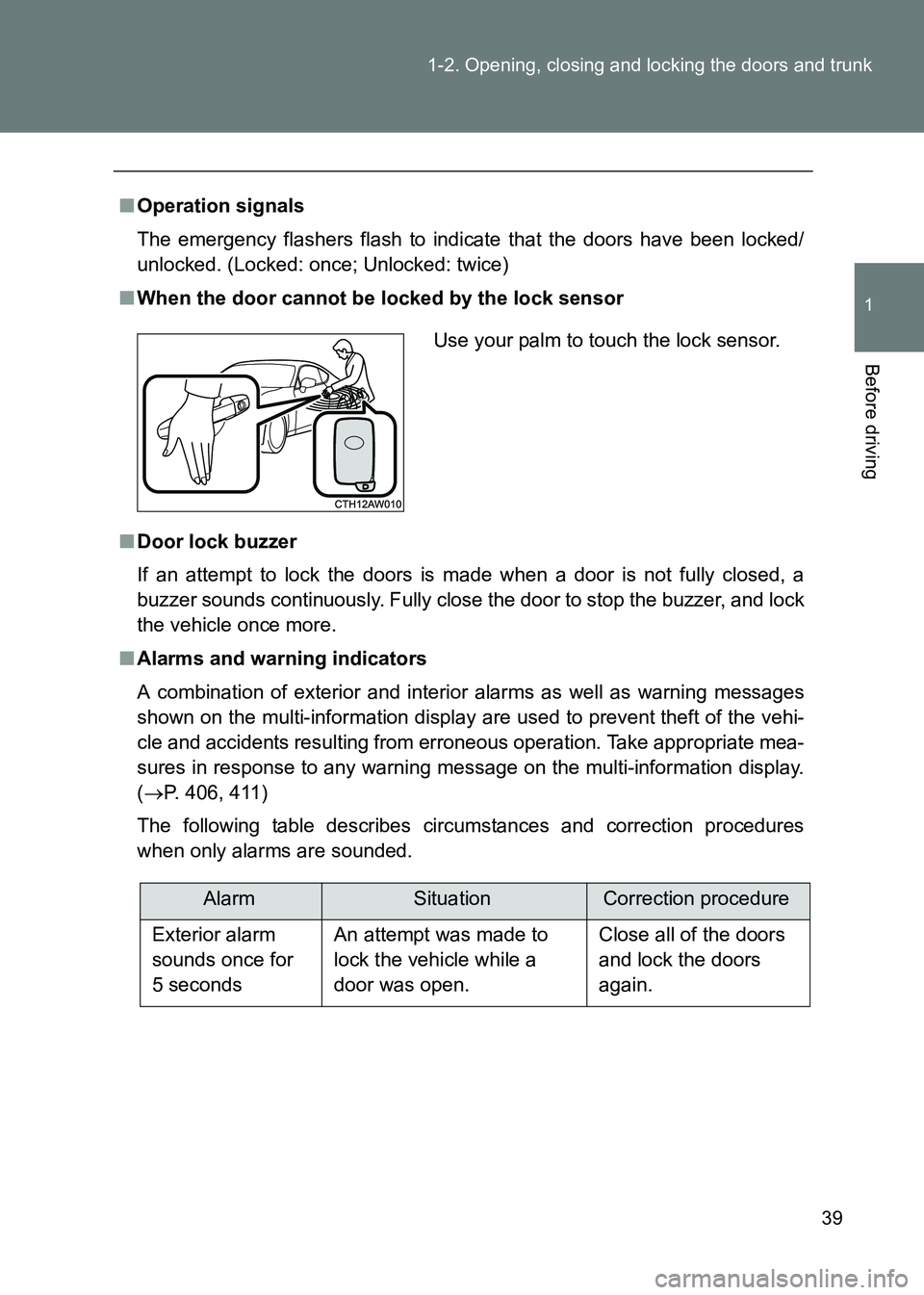

Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: once; Unlocked: twice)
■ When the door cannot be locked by the lock sensor
■ Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously. Fully close the door to stop the buzzer, and lock
the vehicle once more.
■ Alarms and warning indicators
A combination of exterior and interior alarms as well as warning messages
shown on the multi-information display are used to prevent theft of the vehi-
cle and accidents resulting from err oneous operation. Take appropriate mea-
sures in response to any warning message on the multi-information display.
( → P. 406, 411)
The following table describes circumstances and correction procedures
when only alarms are sounded. Use your palm to touch the lock sensor.
AlarmSituationCorrection procedure
Exterior alarm
sounds once for
5 seconds An attempt was made to
lock the vehicle while a
door was open. Close all of the doors
and lock the doors
again.

40
1-2. Opening, closing and locking the doors and trunk
86_EE (OM18071E)
■
Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again. (How-
ever, depending on the location of the electronic key, the key may be
detected as being in the vehicle. In this case, the vehicle may be unlocked.)
■ Battery-saving function
The battery-saving function will be activated in order to prevent the elec-
tronic key battery and the vehicle battery from being discharged while the
vehicle is not in operation for a long time.
●In the following situations, the smart entry & start system may take some
time to unlock the doors.
• The electronic key has been left in an area of approximately 2 m (6 ft.)
of the outside of the vehicle for 10 minutes or longer.
• The smart entry & start system has not been used for 5 days or longer.
● If the smart entry & start system has not been used for 14 days or longer,
the doors cannot be unlocked at any doors except the driver’s door.
In this case, take hold of the driver’s door handle, or use the wireless
remote control or the mechanical key, to unlock the doors.
AlarmSituationCorrection procedure
Interior alarm
sounds continu-
ously The “ENGINE START
STOP” switch was turned
to ACCESSORY mode
while the driver’s door was
open (or the driver’s door
was opened while the
“ENGINE START STOP”
switch was in ACCES-
SORY mode). Turn the “ENGINE
START STOP” switch
off and close the
driver’s door.
